APS iArmor User manual

iArmor®
Customer Support: [email protected]
Rev. 20201201
1
iArmor®by APS
PART#:IA‐S177
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
Fastener Size Tightening Torque (ft-lbs)
6mm 6-7
8mm 16-18
10mm 31-32
12mm 56-58
14mm 92-94

PART LIST
Driver Side Step Bar Passenger Side Step Bar
Front
Driver Front
Mounting Bracket
(DFM/PFM)
X1
X1
Driver Center
Mounting Bracket
(DCM/PCM)
X1
Passenger Front
Mounting Brack-
et (DFM/PFM)
X1
Bar Bracket
X1
X1
Driver Rear
Mounting Bracket
(DRM/PRM)
Passenger Center
Mounting Bracket
(DCM/PCM)
Passenger Rear
Mounting Bracket
(DRM/PRM)
X1
X1
X1
X1
X1
X1
Bar Bracket
Bar Bracket Bar Bracket
Bar Bracket Bar Bracket

iArmor®
Customer Support: [email protected]
Rev. 20201201
2
M8X1.25 Hex Nut
X12
M8X1.25-55mm Carriage Bolt
X6
M8 Clip Nut
X4
M10X45mm Bolt Plate
X2
M10X1.5-25mm
Hex Bolt
X12
M10 X1.5 Hex
Flange Nut
X12
M10 Large Flat
Washer
X2
M10 Flat Washer
X12
M10 Lock Washers
X2
M10 X1.5 Hex Nuts
X2
M8X1.25-25mm Hex Bolt
X10
M8 Large Flat Washer
X22
M8 Lock Washer
X16
U Bracket
X6 X12
Spacer
The instruction here is for your reference only. We strongly
recommend the professional installer for best result. We are not
responsible for any damage caused by the installation.
STEP 1
Locate mounting locations as shown, (Fig 1).
STEP 2
Install M8 Clip Nuts as shown, (Fig 2-3).
(Fig 1) Passenger Side Mounting Locations
Fig 2
Fig 3
M8 Clip Nut
M8 Clip Nut

iArmor®
Customer Support: [email protected]
Rev. 20201201
3
STEP 3
Assemble Passenger Mounting Brackets & Bar Brackets with
(2) M10X1.5-25mm Hex Bolts, (2) M10 Flat Washers and (2)
M10 X1.5 Hex Nuts, as shown (Fig 4a, Fig 4b). Don’t fully
tighten at this time.
DRM/PRM
Bar Brackets
DCM/PCM DFM/PFM
Fig 4a
Fig 4b
(2) M10X1.5-25mm Hex Bolts
(2) M10 Flat Washers
(2) M10 X1.5 Hex Flange Nuts
STEP 4
Attach the Assembled Passenger Front Bracket and Passenger
Center Bracket to the rocker panel as shown (Fig 5 & 6). Don’t
fully tighten at this time.
(Fig 5) Passenger Front Mounting Bracket Installed
(Fig 6) Passenger Center Mounting Bracket Installed
(1) M8X1.25-25mm Hex Bolt
(2) M8 Large Flat Washers
(1) M8 Lock Washer
(1) M8 X1.25 Hex Nut
(1) M8X1.25-25mm Hex Bolt
(2) M8 Large Flat Washers
(1) M8 Lock Washer
(1) M8 X1.25 Hex Nut
(1) M8X1.25-25mm Hex Bolt
(1) M8 Large Flat Washer
(1) M8 Lock Washer
(1) M8X1.25-25mm Hex Bolt
(1) M8 Large Flat Washer
(1) M8 Lock Washer

iArmor®
Customer Support: [email protected]
Rev. 20201201
4
Attach the Assembled Passenger Rear Mounting Bracket by
locating the large circular hole in the rocker panel insert (1)
M10X45mm Bolt Plate into the hole and attach the rear bracket
using (1) M10 Large Flat Washer, (1) M10 Lock Washer, and
(1) M10 X1.5 Hex Nut. Don’t fully tighten at this time.
Once attached, drill a 8mm hole through the pinch weld and
attack using M8 hardware, (1) M8X1.25-25mm Hex Bolts, (2)
M8 Large Flat Washers, (1) M8 Lock Washers, (1) M8 X1.25
Hex Nuts. Don’t fully tighten at this time.

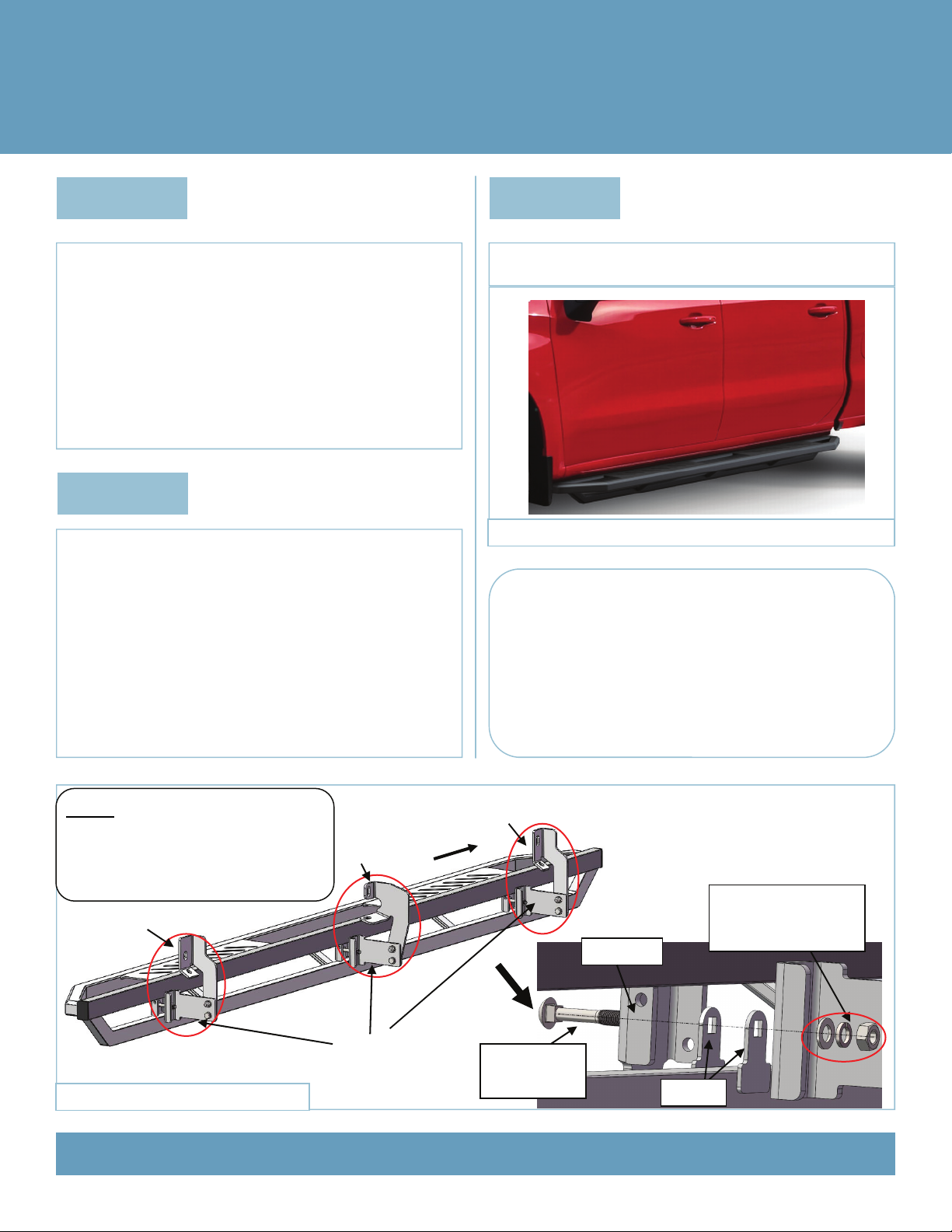

STEP 5
STEP 6
Once all (3) passenger side mounting brackets are installed,
select and attach the Passenger Side Step Bar onto the
Mounting Brackets with (3) U Brackets, (6) Spacers, (3)
M8X1.25-55mm Carriage Bolts, (3) M8 Large Flat Washers, (3)
M8 Lock Washers and (3) M8X1.25 Hex Nuts. Do not fully tight-
en hardware at this time.Properly level and adjust the Step Bar
and fully tighten all hardware.
Move to the driver side of the vehicle. Repeat Steps 1-6 for the
Driver Side Bar installation. (Fig 7)
STEP 7
Installation completed (Fig 8).
(Fig 8) Installation Completed
Attention
Do periodic inspections to the installation to make sure
that all hardware is secure and tight.
In order to protect your bars/boards, please use only
mild soap/non-abrasive products for cleaning.

(Fig 7) Driver Side Step Bar Installed
Front
DFM
DCM
DRM
Bar Brackets
NOTE: Torque all M8 X1.25-55mm Car-
riage Bolts to 16~18 Ib-ft. Don't over
tighten, or the aluminum square bars
will be damaged by the brackets
M8X1.25-55mm
Carriage Bolt
U Bracket
Spacers
M8 Large Flat Washer
M8 Lock washer
M8X1.25 Hex Nut
