Argos Lima Coffee Table User manual

MADE IN
BRITAIN
Dimensions
Width - 117cm
Depth - 49cm
Height - 37cm
Lima - Coffee Table
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 01/07/14
Important - Please read these instructions fully before starting assembly
ALR3074
275/5205

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 22kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
Glue Safety - Take care when using glue, please follow the advice below
Skin contact: Remove contami-
nation by washing with soap and
water. This procedure should be
followed prior to aeting and
drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Components - Panels
Please check you have all the panels listed below
2
4
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
5
7
1
6
8
2 3
9 10
12
11
13
Top (D01121A)
(1166 x 489mm)
Base (D1124A)
(1090 x 466mm)
Small Back (D1127A)
(377 x 224mm)
Plinth (D1094A)
(1090 x 96mm) x 2
Right Side (D1123A)
(335 x 485mm)
Large Back (D1126A)
(224 x 650mm)
Left Drawer Side (W445LH)
(320 x 150mm)
Right Drawer Side (W445RH)
(320 x 150mm)
Upright (D1909A)
(224 x 466mm)
Left Side (D1908A)
(335 x 485mm)
Drawer Front (D1910A)
(390 x 237mm)
Drawer Base (T558)
(338 x 317mm)
Drawer Back (W558)
(327 x 150mm)

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 4
B
Metal dowel (F901) x 14
C
Large locking
nut (F900) x 12
E
Small locking
nut (F3) x 2
F
G
Small metal dowel (F893) x 4
H
19mm Screw (F461) x 2
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J K
Hollow core
locking nut
(F892) x 4
L
I
D
Wedgefix (F639) x 2
N
40mm Screw (F910) x 4
O
Mini block (F25) x 4
Knock-in Peg (F171) x 4
13mm Screw (F52) x 6
MR Runner (F160) x 1
b
L Runner (F161) x 1
Mc
L Runner (F159) x 1
Ma
R Runner (F162) x 1
Md
13mm Screw (F63) x 6
Tools required
Rule Scissors Hammer Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Handle (F306) x 1

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

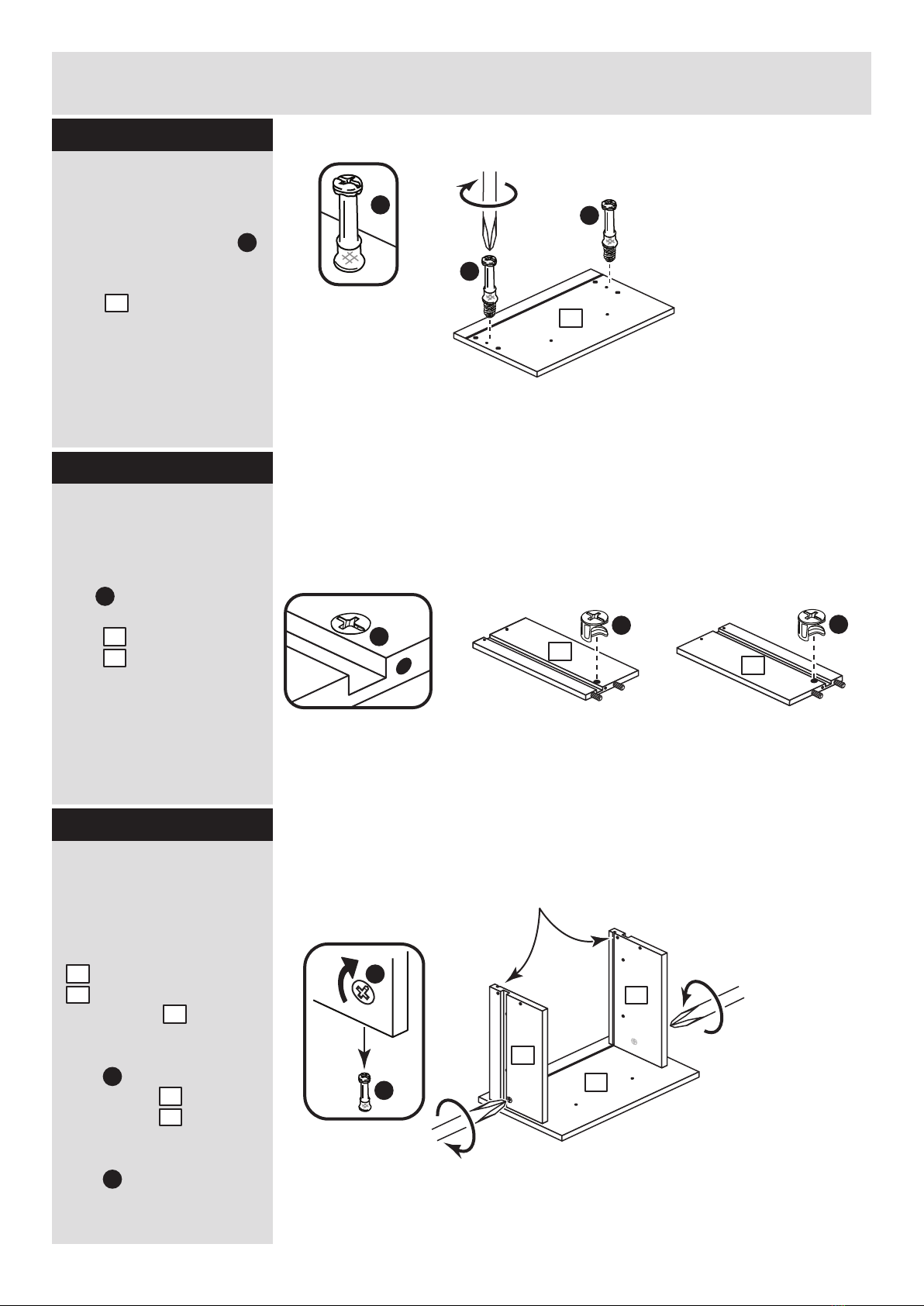

Step 1
B
F
F
Prepare the drawer
front
Screw 2 metal dowels
into the holes shown on
the back of the drawer
front .
Note: Tighten metal
dowels up fully against
the panel.
B
8
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
F
9
10
Assemble the drawer
sides and back
Fit the left drawer side
and right drawer side
to the drawer back
using 4 knock-in pegs
L
9
10
11
Step 2
Step 3
L
L
L
L
F
9
10
9
10
11
B
B
B
B
8
Small grooves
on the inside
Fit the drawer back
Fit the drawer back
down onto the drawer
base .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
.
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on
either surface of the drawer sides.
Make sure that the small groove
is on the inside, as shown.
?
Step 3
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
9
10
8
F
F
9
10
B
B
D
6
Small groove
7
8
Note: The locking nuts can be on
either surface of the drawer sides.
Make sure that the small groove
is on the inside, as shown.
x 2
B
B
F
Small groove
8
9
10

L
L
Assembly Instructions
5

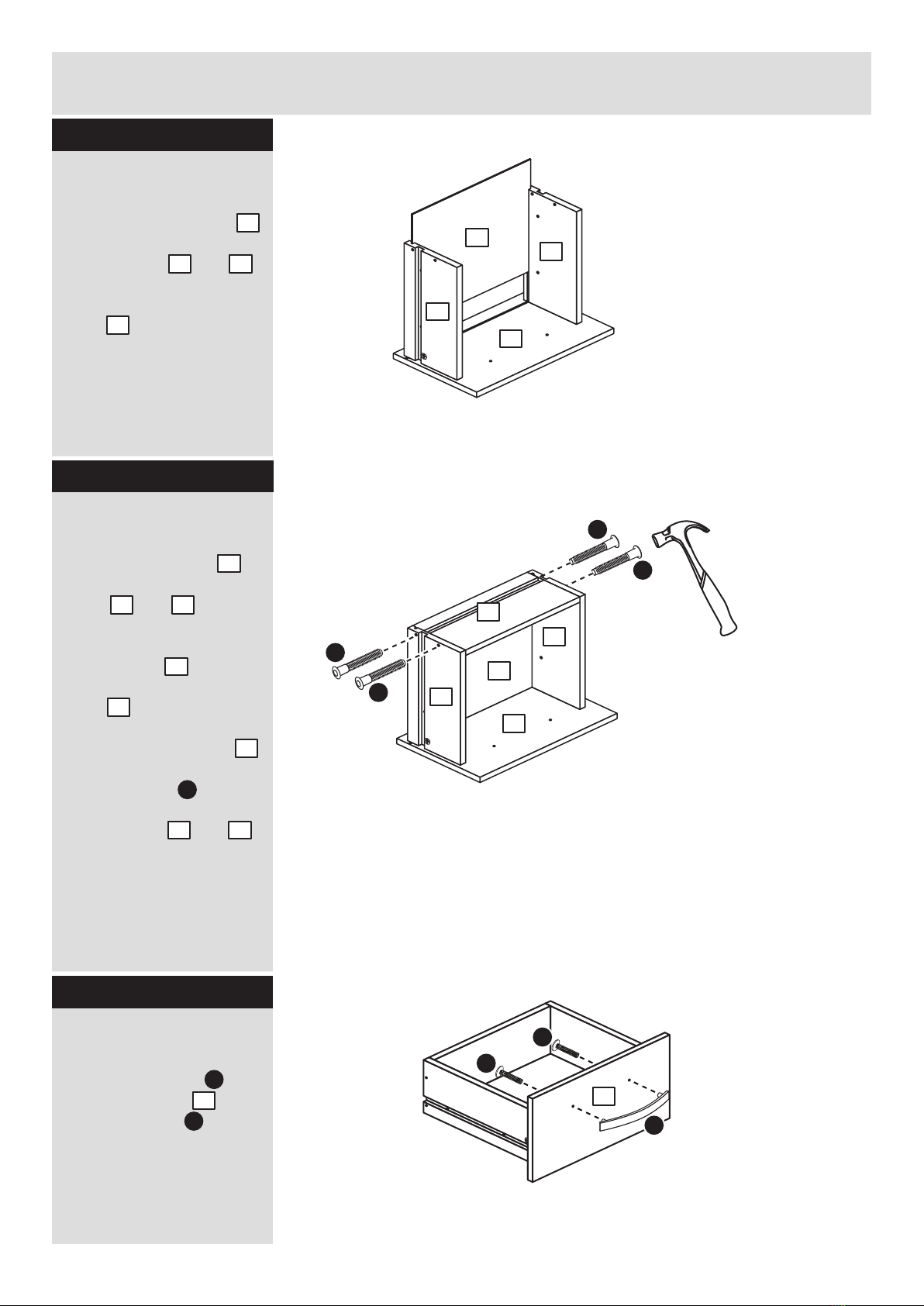

Step 4
Attach the handle
Attach the handle to
the drawer front
using 2 screws .
I
H
Step 6
8
8
10
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
12
9 10
8
11
9 10
12
11
11
L
9 10
10
9
12
8
1010
12
9
11
L
L
8
H
H
I

Assembly Instructions
6

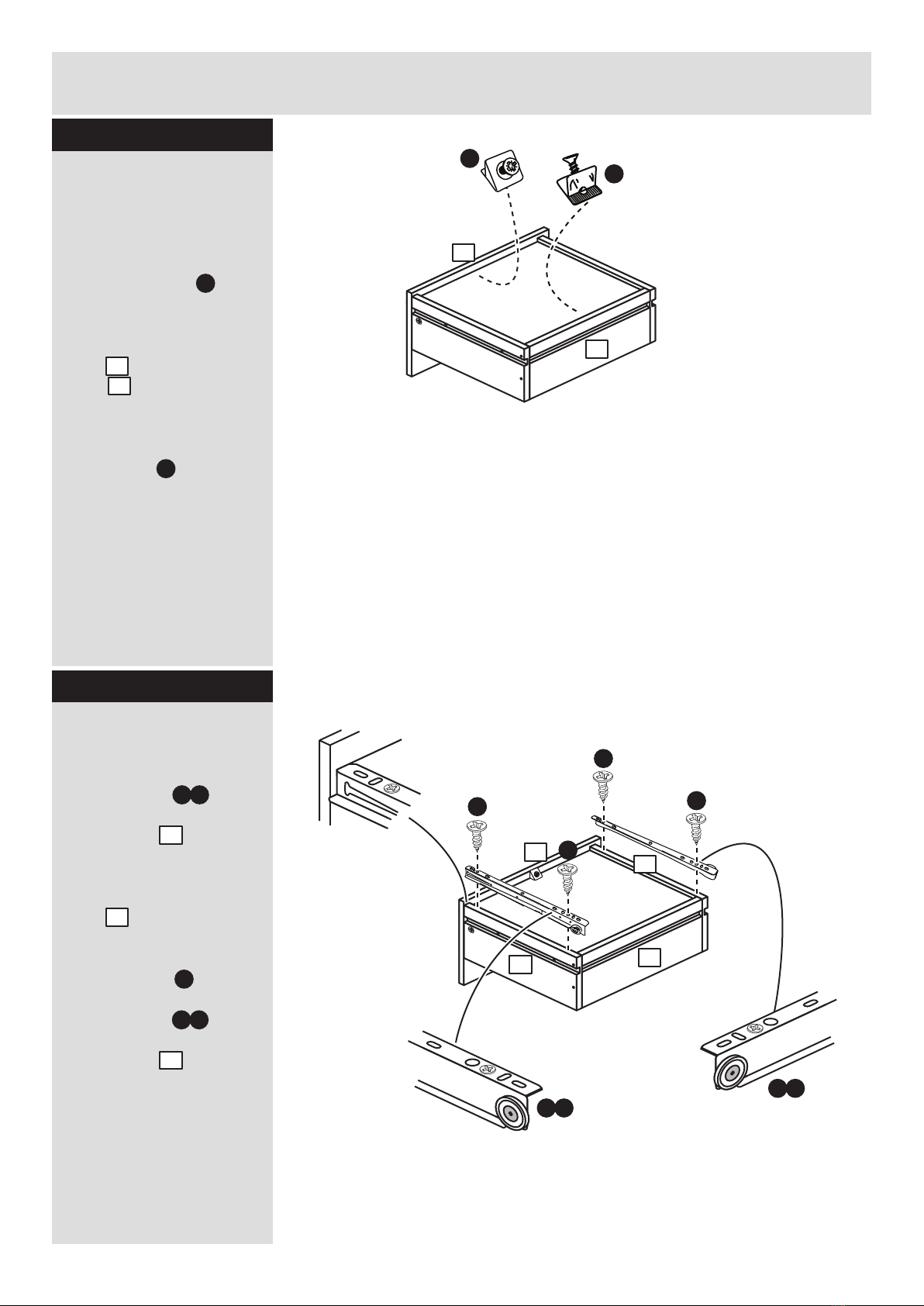

Step 7
8
11
J
J
J
J
Step 8
Fit runners to the
drawers
Fit the runner to the
bottom edge of the left
drawer side , as
shown, making sure that
it is pushed up against
the back of the drawer
front . Use a bradawl
to mark the fixing
positions, then secure
with 2 screws .
Fit the runner to the
bottom edge of the right
drawer side using the
same method.
10
M c
9
8
J
M d
M c
M d
Runners must be
pushed up against
the drawer front
D
D
Fit the wedgefixes
Turn the drawer
assembly over.
Slide a wedgefix into
the centre of the small
groove located on the
back of the drawer
front and the drawer
back .
Once in place, tighten up
the screws in the
wedgefixes .
D
8
11
D
8
11
10
9

Assembly Instructions
7

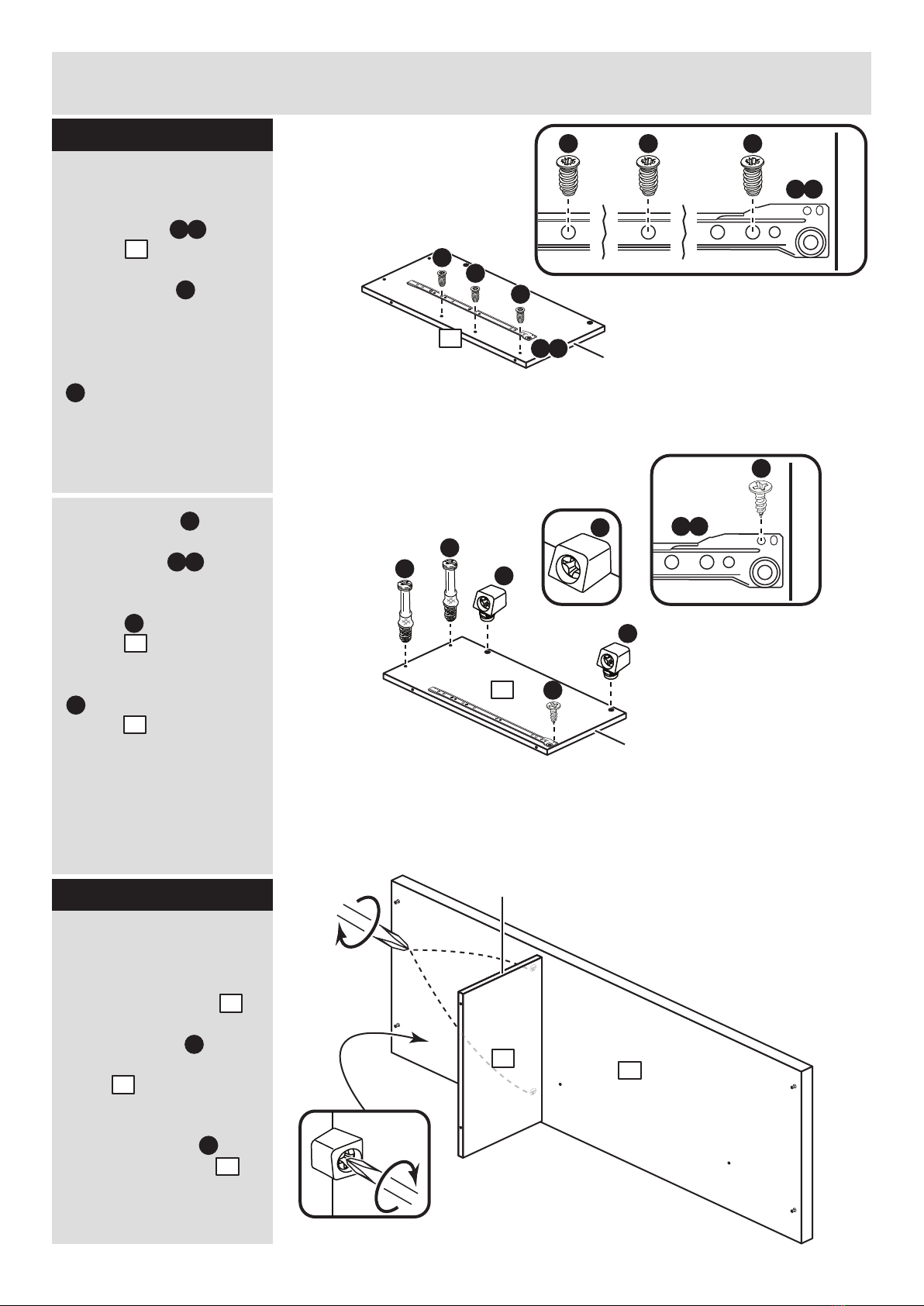

Step 9
Prepare the left side
a: Fit runner to the
left side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runner .
c: Screw 6 large metal
dowels into the holes
shown on the left side
. .
Push 2 hollow core
locking nuts into the
left side , making sure
that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
c:
C
CC
B
B
1
1
C
C
C
B
B
B
B
B
B
C
C
1
1
K
M a
K
K
J
1
M a
1
K
K
J
M a
M a
K K
1st
screw
2nd
screw
K
3rd
screw
a:
M a
J
b:

Assembly Instructions
8

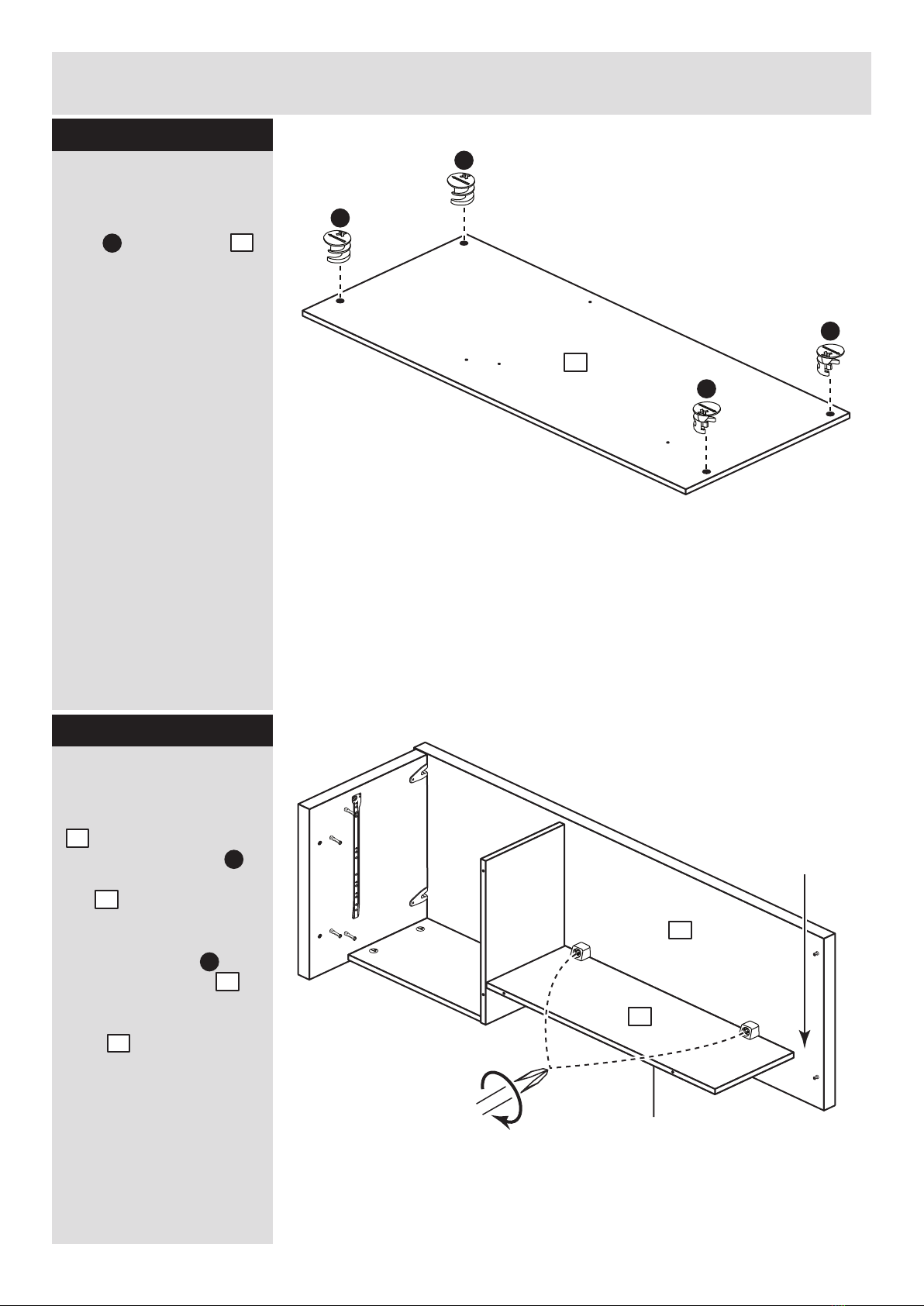

Step 10
Prepare the top
Screw 4 small metal
dowels into the holes
in the top .
Note: Tighten metal
dowels up fully against
the panels.
G
G
4G
G
G
G
4
Prepare the small
back
Insert 4 large locking
nuts into the small
back , as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
E
E
E
E
E
E
6
6
E
B

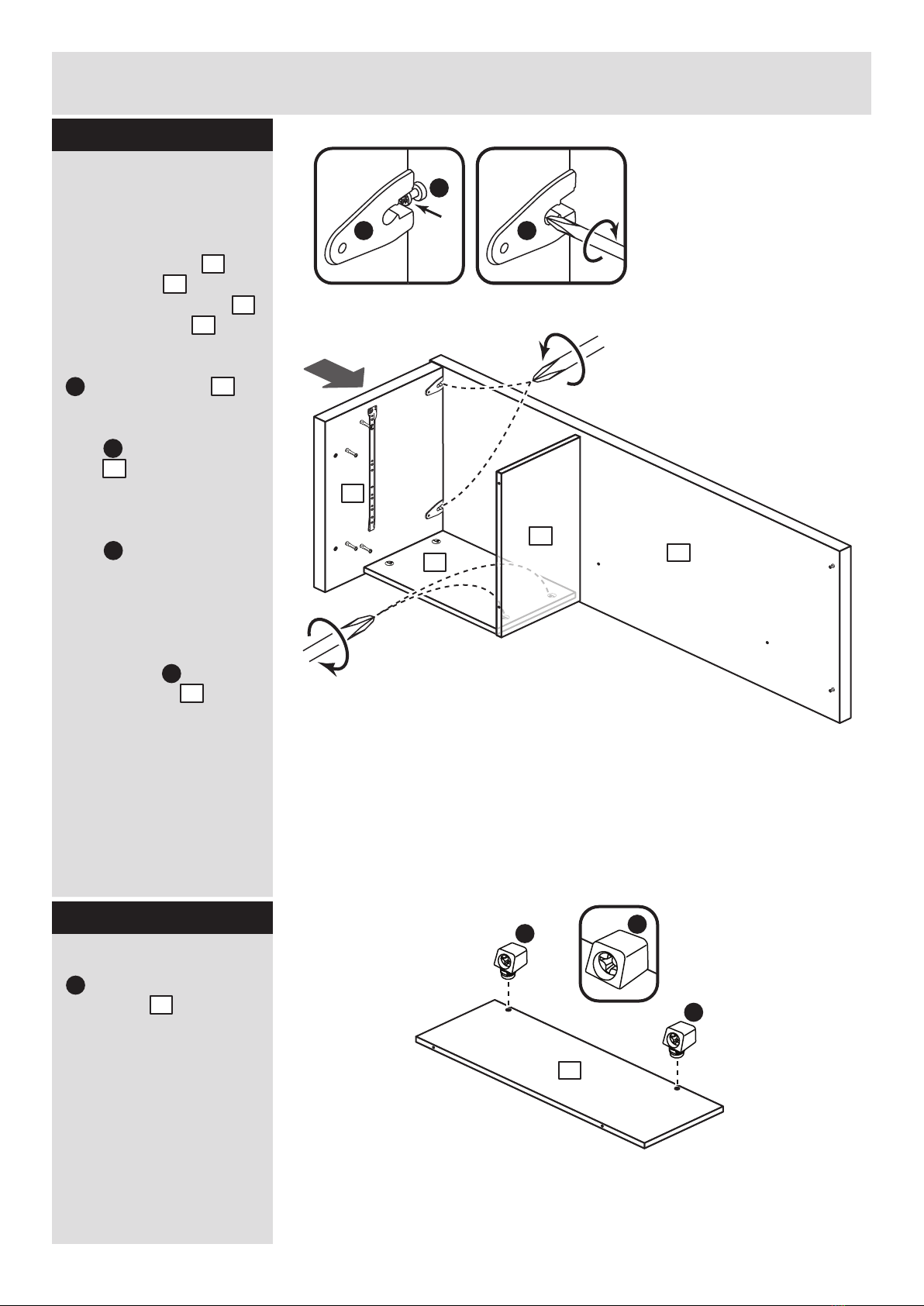

Step 11
6
1
Join the left side and
small back
Push the small back
onto the left side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the small back .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 12
6
1
E
6
E
Note: The top edge of
both panels must be
flush with each other

4
Assembly Instructions
9
Step 13
Prepare the right side
Screw 4 large metal
dowels into the holes
shown on the right side
. .
Push 2 hollow core
locking nuts into the
right side , making
sure that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
BC
C
B
B
B
2
B
2
2
C
C
C
Step 10 G
C B
Join the left side and
top
Push the left side
onto the top .
The 2 small metal dowels
. fitted to the top
must slide into the top of
the 2 hollow core locking
nuts fitted to the left
side .
Insert a screwdriver into
the 2 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
1
1
4
G4
C
1
C
b:
a:
Prepare the upright
a: Fit runner to the
upright .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runner .
Screw 2 large metal
dowels into the
upright .
Gently tap 2 mini blocks
. into the holes on the
upright , orientated as
shown.
5
B
5
Join the top and
upright
Position the upright
so that the screws from
the mini blocks are
over the holes in the top
panel .
Tighten up the screws in
the 2 mini blocks into
the holes in the top .
Step 14
5
Front edge
O
O
5
O
4
O
4
M b
K
Front edge
K1st
screw
2nd
screw
K3rd
screw
M b
Front edge
J
K
K
M b
K
B
BO
O
J
Front
edge
Front
edge
M b
5
K
K
J
M b
5
5
4

Assembly Instructions
10
Step 15
Gently tap 2 mini blocks
. into the holes on the
large back ,
orientated as shown.
Fit the left side and
small back to the top
and upright
Push the left side
onto the top and
locate the small back
onto the upright .
The 2 small metal dowels
. fitted to the top
must slide into the top of
the 2 hollow core locking
nuts fitted to the left
side .
Insert a screwdriver into
the 2 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the small back .
G
C C
1
6
5
1
4
6
5
G4
C
1
C
E
6
Step 16
3
3
O
O
O
O
4

Assembly Instructions
11
Step 17
Prepare the right side
Screw 4 large metal
dowels into the holes
shown on the right side
. .
Push 2 hollow core
locking nuts into the
right side , making
sure that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
BC
C
B
B
B
2
B
2
2
C
C
C
Support the
large back
Note: The gap
between the large
back and the right
side is for cable
management
Fit the large back
Position the large back
. so that the screws
from the mini blocks
are over the holes in the
top .
Tighten up the screws in
the 2 mini blocks into
the holes in the top .
Note: Support the large
back until the base
has been fitted in the
next step.
Step 18
3
E
E
E
E
7
Prepare the base
Insert 4 large locking
nuts into the base
as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
E7,
3
O
4
4
O
3
4

Assembly Instructions
12
E

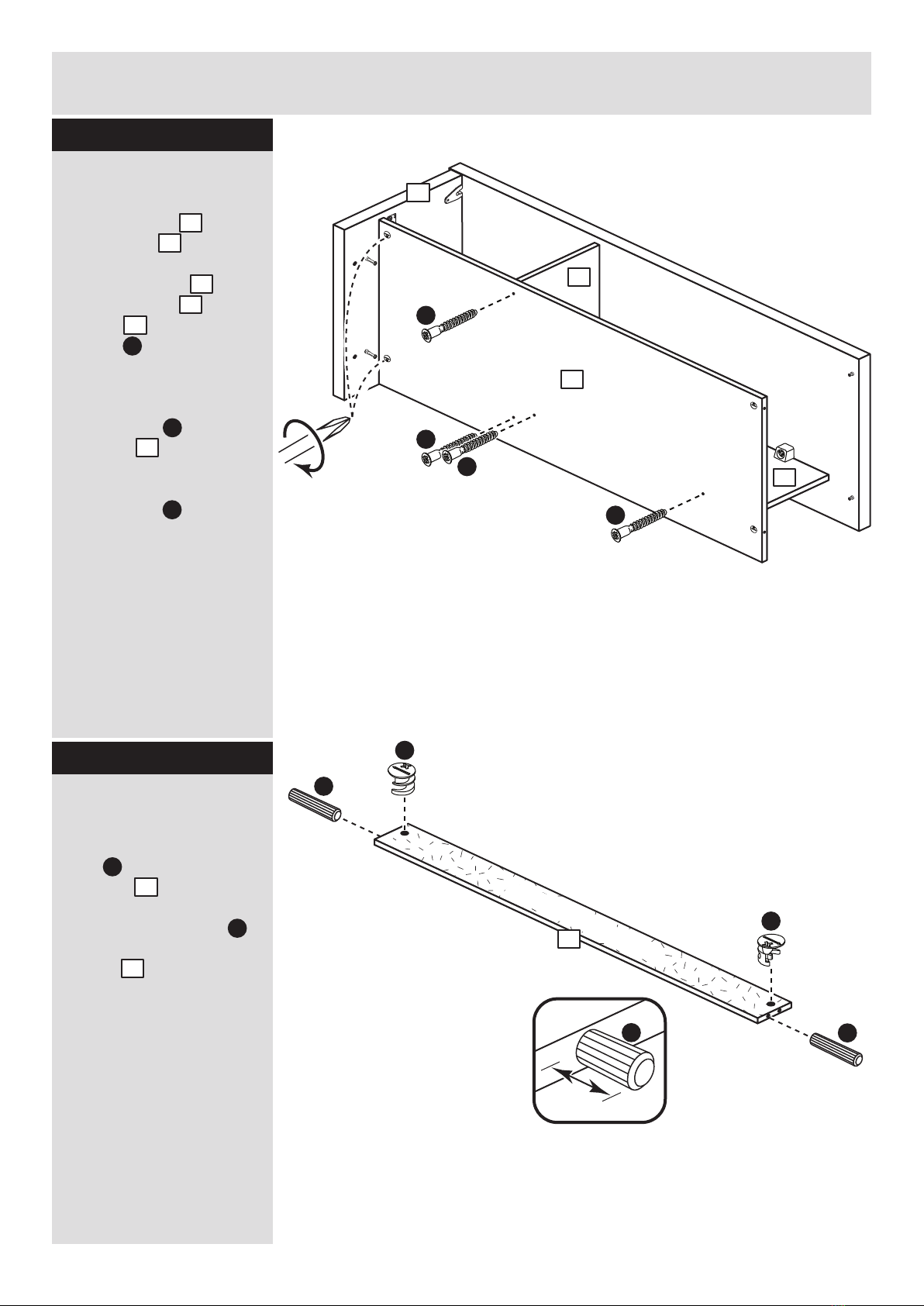

Step 19
A
Prepare the 2 plinths
Insert 2 large locking
nuts into each of the
2 plinths , as shown.
Tap a wooden dowel
into each end of the 2
plinths , as shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
E
E
A
10mm
A
Step 20
Fit the base
Push the base onto
the left side .
Attach the base to
the large back and
upright using 4
screws .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
7
7
7
1
3
5
E
N
N
N
N
N
3
5
1
7
E
13
A
13
plain chipboard surface
13
E
x 2

Assembly Instructions
13
Step 21
Prepare the right side
Screw 4 large metal
dowels into the holes
shown on the right side
. .
Push 2 hollow core
locking nuts into the
right side , making
sure that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
BC
C
B
B
B
2
B
2
2
C
C
C
Fit the plinths
Push the 2 plinths
onto the left side , as
shown
Use a screwdriver to
tighten the large locking
nut fitted to each
plinth .
Note: Support the 2
plinths until the right
side has been fitted in
the next step.
Step 22
13
1
E
Prepare the right side
Screw 4 large metal
dowels into the holes
shown on the right side
. .
Push 2 hollow core
locking nuts into the
right side , making
sure that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
B
C
C
B
B
B
2
B
2
2
C
C
C
C
CC
plain chipboard surface
13
13
13
Support
the plinths
finished surface
13
1

Assembly Instructions
14
Step 23
13
13
7
4
2
Fit the right side
Push the right side
onto the top , base
and plinths .
The 2 small metal dowels
. fitted to the top
must slide into the top of
the 2 hollow core locking
nuts fitted to the right
side .
Note: At this stage, only
tighten the hollow core
locking nut at the
front of the unit.
Insert a screwdriver into
the hollow core locking
nut at the front of the
unit only and turn the
nut inside as far as it will
go.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the base and plinths
. .
Stand the unit up for
the next step.
2
4 7
13
G
C
4
2
C
E
7
13
Warning: The
unit is heavy.
Lift with care.
C
Tighten the remaining
hollow core locking
nut
Insert a screwdriver into
the hollow core locking
nut at the back of the
right side and turn
the nut inside as far as it
will go.
Step 24
2
C
Note: Tighten this
hollow core locking
nut at step 24
2

Assembly Instructions
15
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

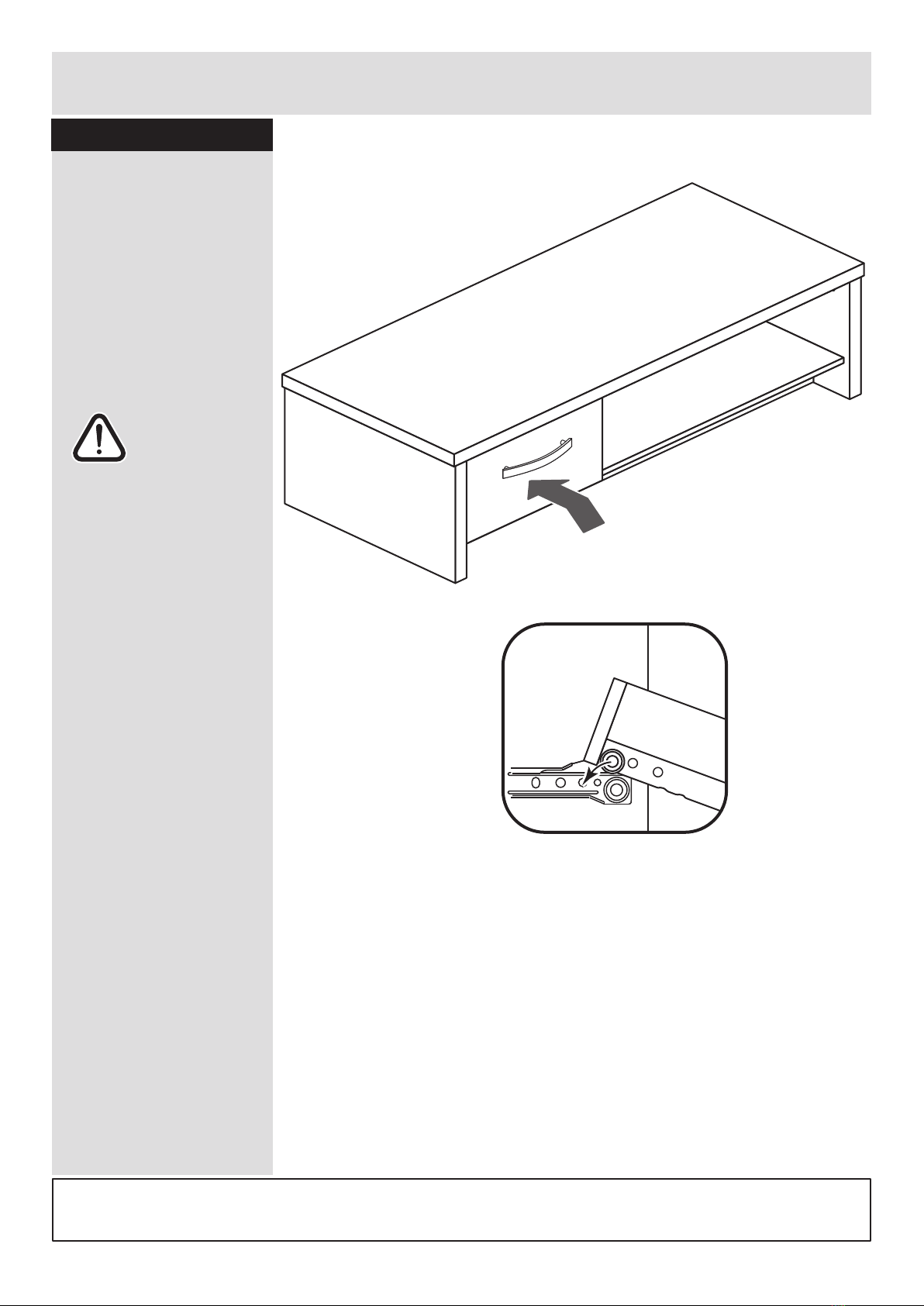

Step 25
Warning: The
unit is heavy.
Lift with care.
Step 18
Drawer
ALR3074
Fit the drawer
Slide the wheels of the
runners fitted to the
drawer over the wheels
of the runners fitted to
the side panels and push
the drawer into position.
Assembly is complete
