Sit N’ Sleep Bed
Assembly Instructions - Please keep for future reference
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 08/11/13
Dimensions
Width - 200cm
Depth - 99/143cm
Height - 170.5cm
758/5418
758/5401
IMPORTANT NOTE:
The top surface of the
mattress should not come
above this line.

1
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warnings
Care and maintenance
• Because of the size of this unit,
it is recommended to assemble it
in the room intended for use.
• Do not discard any of the
packaging until you have
checked that you have all the
parts and the pack of fittings.
• Discard all extra fittings and
keep fittings out of reach of
children.
• Assemble this product on a flat
surface.
• Assemble all parts loosely
before tightening any bolts.
• At least 2 people are required
to assemble this product.
• Unit weight: 38.6kgs.
• Retain Assembly Instructions
for future reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• READ CAREFULLY - RETAIN
FOR FUTURE REFERENCE
• Regularly check and ensure
that all bolts and fittings are
tightened properly.
• Always use the ladder for
entering and leaving the upper
bunk.
• The recommended mattress
size is L1900 x W910 mm.
• Ensure thickness of mattress
does not exceed 220 mm.
• Refrain from using the bunk
bed if any structural part is
broken or missing.
• Please advise your children to
only enter and leave the upper
bunk by using the ladder.
• Please prohibit more that one
person on the upper bunk.
• Please prohibit children from
jumping on the upper and lower
beds.
• WARNING: Do not allow
children under 6 years of age to
use the upper bunk due to risk
of injury and falls.
• STRANGULATION HAZARD -
Never attach or hang items such
as ropes, strings, cords,
harnesses and belts to any part
of the bunk bed.
• WARNING: Children can
become trapped between the
bed and the wall. To avoid risk
of serious injury the distance
between the top safety barrier
and the wall shall not exceed 75
mm or shall be more than 230
mm.
• THIS BED COMPLIES WITH
EN747-1:2012 / EN747-2:2012
• Please clean the unit surface
using either damp (not wet)
cloth and a mild domestic soap
solution or by using an
appropriate polish.
• Do not use any abrasive
materials when cleaning.
• From time to time check that
there are no loose bolts on this
unit.

2

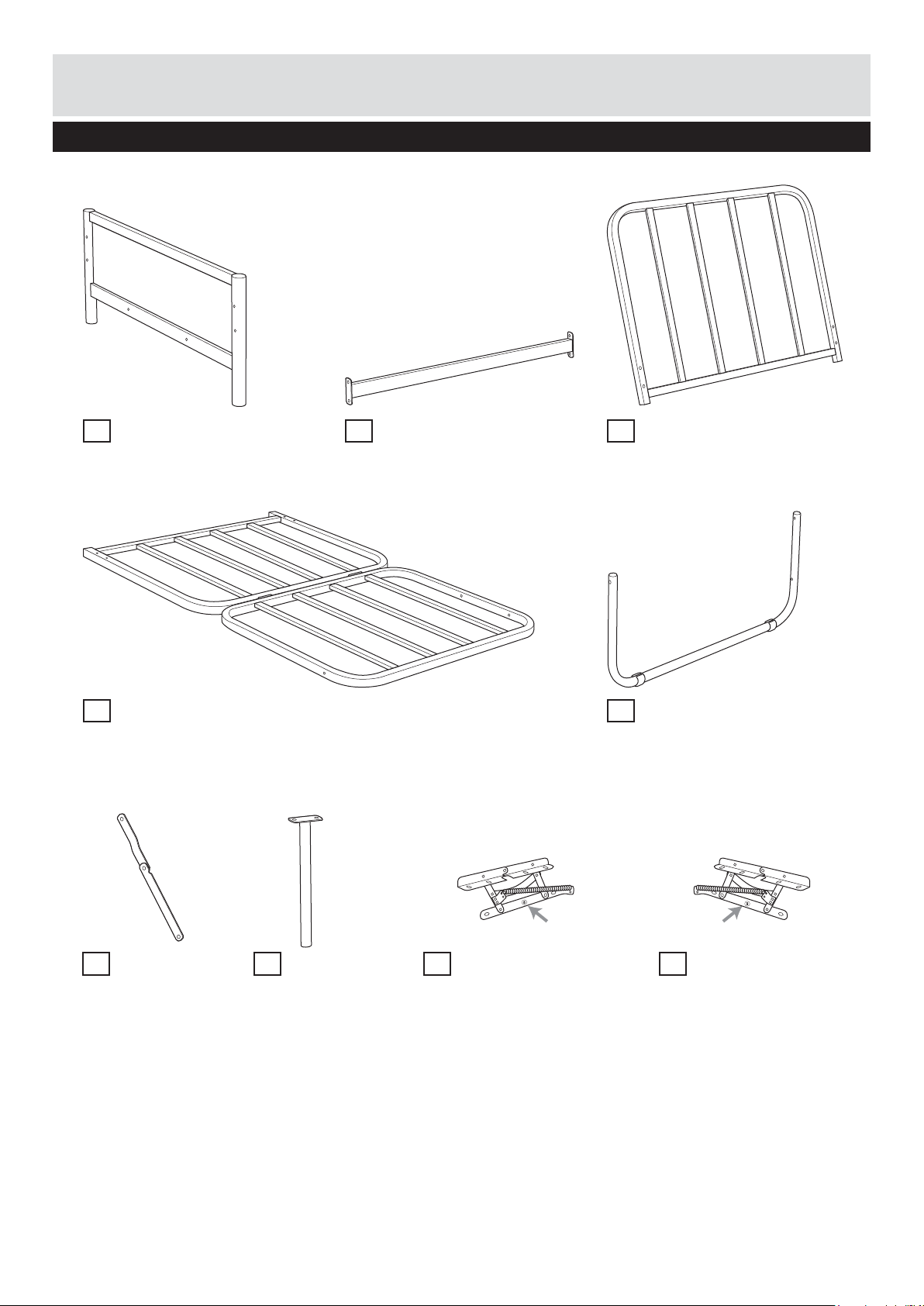

Components - Parts
Please check you have all the parts listed below
Lower rail
(190 x 6.5 x 2.5cm)
8
Upper front safety rail
(190 x 41.5 x 2.5cm)
10
Upper back safety rail
(190 x 41.5 x 2.5cm)
9
Slats (with webbing attached) x 24
(94 x 2.5 x 2.6cm)
11
Upper side safety rail x 2
(91 x 36 x 4cm)
5
Front right-hand
endpost
(Ø5 x 170.5cm)
1Back right-hand
end post
(Ø5 x 170.5cm)
2
Lower side rail x 2
(91 x 4 x 2cm)
6
Front left-hand
end post
(Ø5 x 170.5cm)
4Back left-hand
end post
(Ø5 x 170.5cm)
3
Middle side rail x 2
(89 x 2 x 2cm)
7
Sticker “4”Sticker “3”Sticker “2”Sticker “1”

3
Components - Parts (cont.)
Please check you have all the parts listed below
Ladder brace
(45.5 x 1.5 x Ø1cm)
15 Shelf side frame x 2
(52 x 33 x 1.6cm)
16 Shelf brace x 4
(Ø1.3 x 72cm)
17
Small shelf panel
(72 x 24 x 1.2cm)
18 Big shelf panel
(72 x 33 x 1.2cm)
19 Back brace x 2
(135.5 x 2 x Ø1.3cm)
20
Left ladder side rail
(Ø2.5 x 141cm)
12 Right ladder side rail
(Ø2.5 x 141cm)
13 Ladder step x 4
(Ø2.5 x 29 cm)
14
Sticker “12” Sticker “13”

4

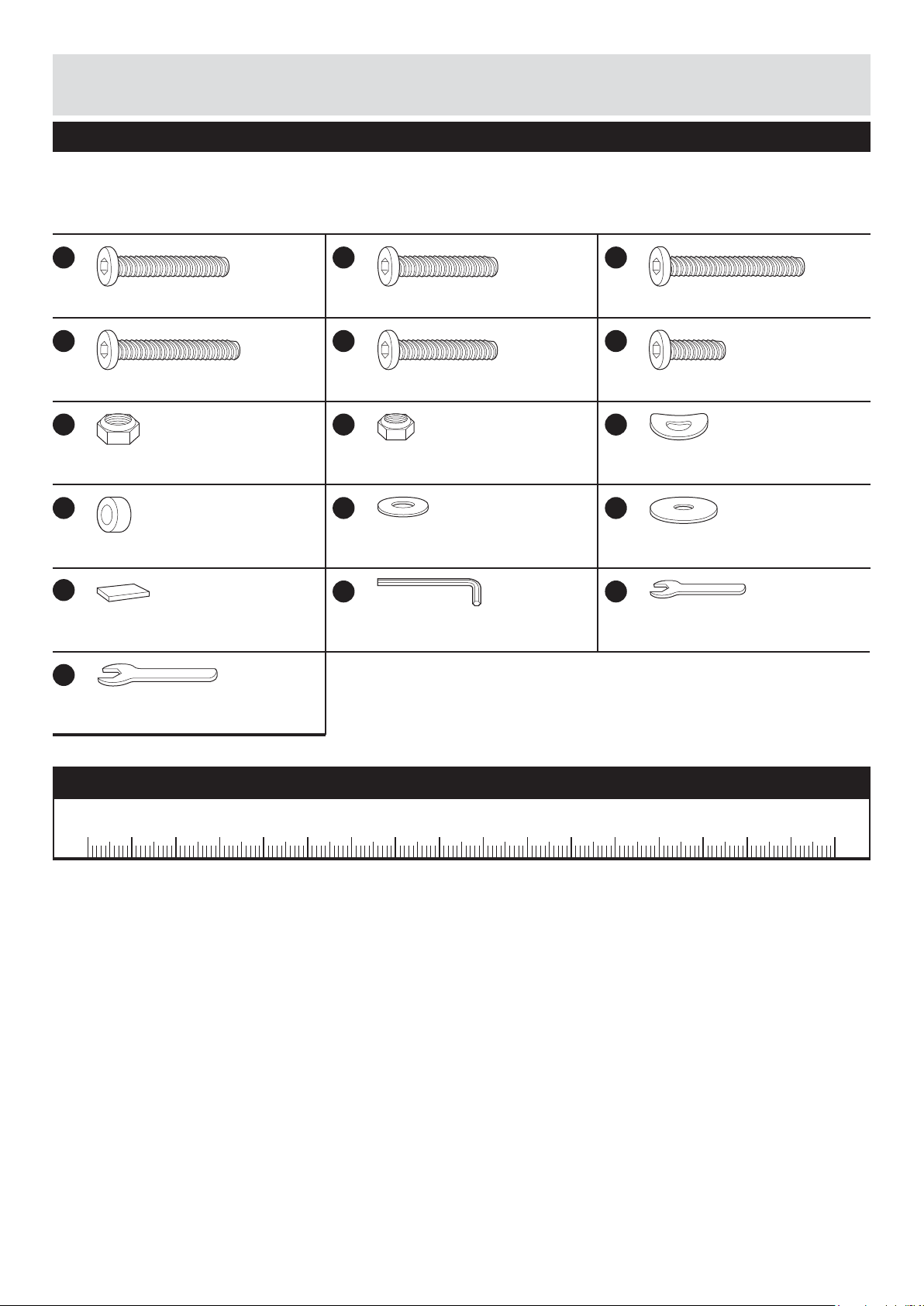

Components - Fittings
Please check you have all the fittings listed below
Tools required
M6 x 80mm Bolt x 11
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
M6 x 50mm Bolt x 8
B
M6 x 35mm Bolt x 2
C
Ruler - Use this ruler to help correctly identify the screws
0 15 30 45 60 75 905 20 35 50 65 80 9510 25 40 55 70 85 100 120 140105 125 145110 130 150115 135 155 160 165 170
Crosshead screwdriver
H
Small screw x 2
G
Big screw x 8
M
M6 Lock nut x 6
K
Plastic washer x 8
I
M8 Curved washer x 12
J
M6 Curved washer x 19
O
Plastic cap x 8
M6 x 27mm Bolt x 12
D
M6 x 20mm Bolt x 11
E
M8 x 60 mm Bolt x 12
F
N
Spring washer x 8
P
Spanner x 1
Q
Allen key x 1
L
Wall strap x 1

5

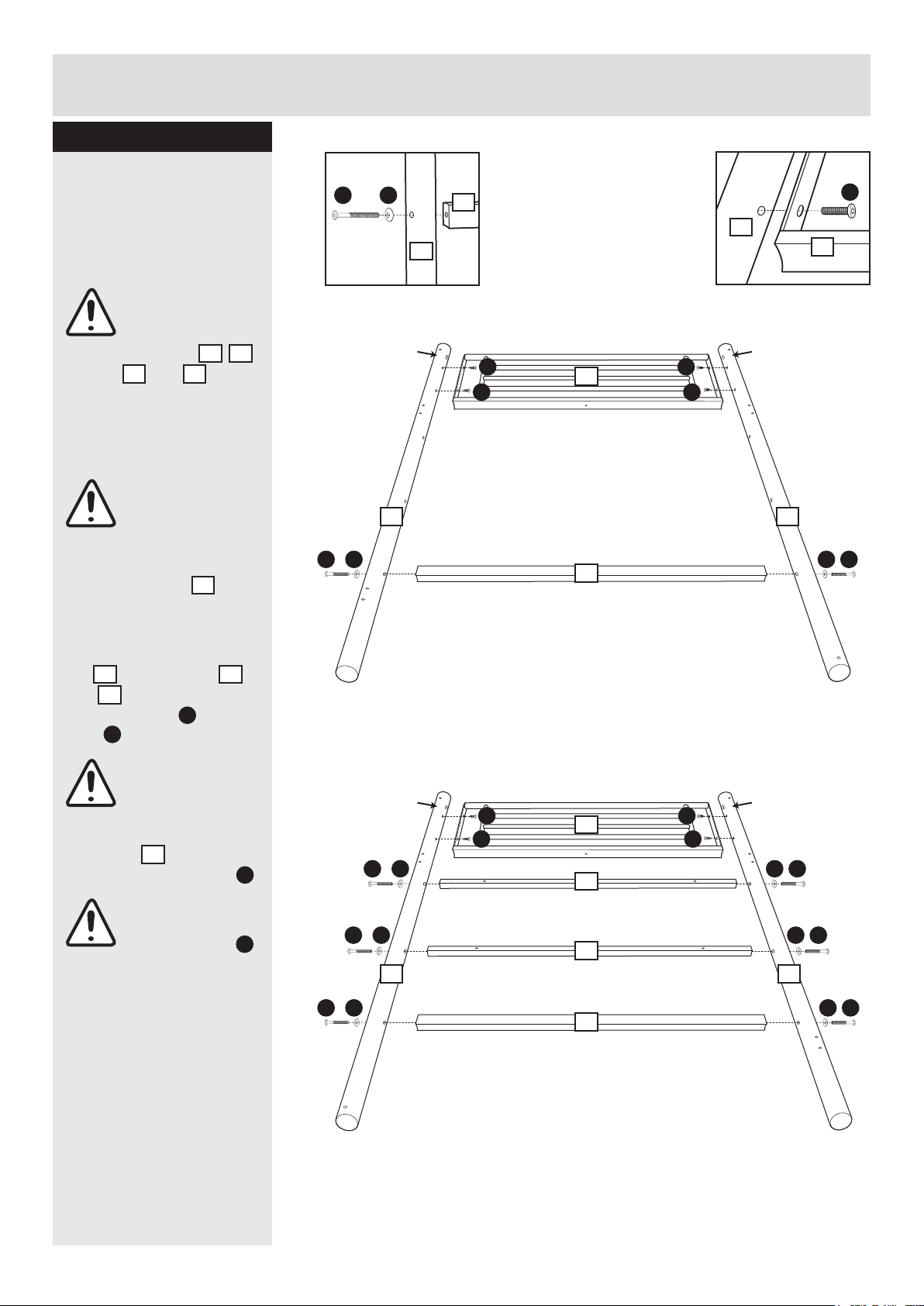

Assembly Instructions
Step 1
RIGHT-HAND END PANEL
a: b:
2
2
2
5
5
6
6
1
E
A J
A J
AJ
E
E
E
E
LEFT-HAND END PANEL
5
6
7
7
34
E
A J AJ
A J AJ
A J AJ
E
E
E
Assembling end panels
Lay all parts flat on a soft
surface on the floor to
avoid damaging any of
the parts.
Note:
Identify and
correctly position
end posts , ,
and by
looking for the
sticker label
pasted on the
posts.
Note:
Determine your
preferred shelf
position. Then
attach the middle
side rails
either on the left
or right.
a: Attach the lower side
rail to end posts
and then secure
using washers and
bolts .
Note: Do not fully
tighten bolts at
this stage.
b: Attach the upper side
safety rail into position
and secure using bolts .
Note: Fully
tighten all bolts
using allen key .
Repeat above steps to
assemble the left-hand
end panel as shown in
the diagram.
16
5
2
1 2
3 4
A
E
Q
J
Sticker “2” Sticker “1”
Sticker “4” Sticker “3”
7

Attaching rails
Note: Determine
your preferred
bunk bed entry
position. Then
attach the front
safety rail with
the entry space
positioned either
on the left or right.
a: Identify the correct
rails for assembly and
with the help of an
assistant attach the lower
tubes of upper back
safety rail , upper front
safety rail and lower
rail to end posts using
bolts , washers and
nuts .
Note:
Do not fix bolts on
lower holes of
back safety rail
at this stage.
Locate hole on
centre of lower
rail and make
sure to position it
up.
Do not fully
tighten bolts at
this stage.
b: Attach the top tubes
of upper back safety rail
and upper front safety
rail to end posts using
bolts and washers .
Note: Do not fully
tighten bolts at
this stage.
c: Insert plastic caps
into holes on the right
end posts & and fix
by pushing firmly as
shown.
Assembly Instructions
Step 2
6
2
1
1
1 2
3
3
4
9
9
98
8
8
10
AJ
J
A
JA
J
FI
FIM
M
F
F
I
I
FI
FIM
F
O
O
O
O
O
O
O
O
O
O
OI
F
I
M
F
I
F
I
F
I
M
JA
9
10
10
9
10
c:a:
10
M
FI
FI
b:
A
4
hole up
Option for
right upper bunk entry
Option for
left upper bunk entry
Option for
right shelf position
Option for
left shelf position
2
1
3
4
2
1
3
4
10 10

Assembly Instructions
Step 3
7
2
3
3
9
9
8
8
20 20
20
20
20
a: b:
FIM
F
F
I
I
M
M
E
E
Step 4
Assembling shelf
a: Attach the shelf
braces to shelf side
frames using bolts
as shown.
Note: Do not fully
tighten bolts at
this stage.
b: Position the shelf
panels and as
shown and attach it to
shelf braces using
screws . Tighten screws
using a crosshead
screwdriver.
Note: After all
bolts and screws
are positioned,
fully tighten all
bolts using allen
key .
D
D
D
D
D
D
D
D
16
16
17
17
17 17
18
19
17 17
17
17
17
G
G
G
G
G
G
G
GG
18
17
16 D
G
17
18 19
Q
D
16
17
a:
b:
Attaching back braces
a: Position the back
braces as shown and
attach it to upper back
safety rail using bolts
, washers and nuts .
b: Attach the back
braces to lower rail
using bolt as shown.
Note: After all
bolts in step 2
and 3 are
positioned, fully
tighten all bolts
and nuts using
allen key and
spanner .
9
20 8
20
FI
Q
P
M
E

9
10
11
D
D
D
D
D
16
16
16
8
Assembly Instructions
Step 6
11
H
5
7
7
7
5
5
Attaching slats
a: With the help of an
assistant, line up the
slats onto upper rails
and . Push firmly
down to lock it into
position. Check that they
cannot be removed by
slightly pulling upwards.
b: Extend the end of the
webbing on the slats
and secure to bottom
edge of side safety rails
using screws .
Tighten screws using a
crosshead screwdriver.
11
H
5
11
9 10
Step 5
H
H
11
10
Attaching shelf
Position the shelf on the
bed as shown and attach
the side frames to
middle right side rails
using bolts . Tighten
bolts using allen key .
7
16
D
Q
a: b:

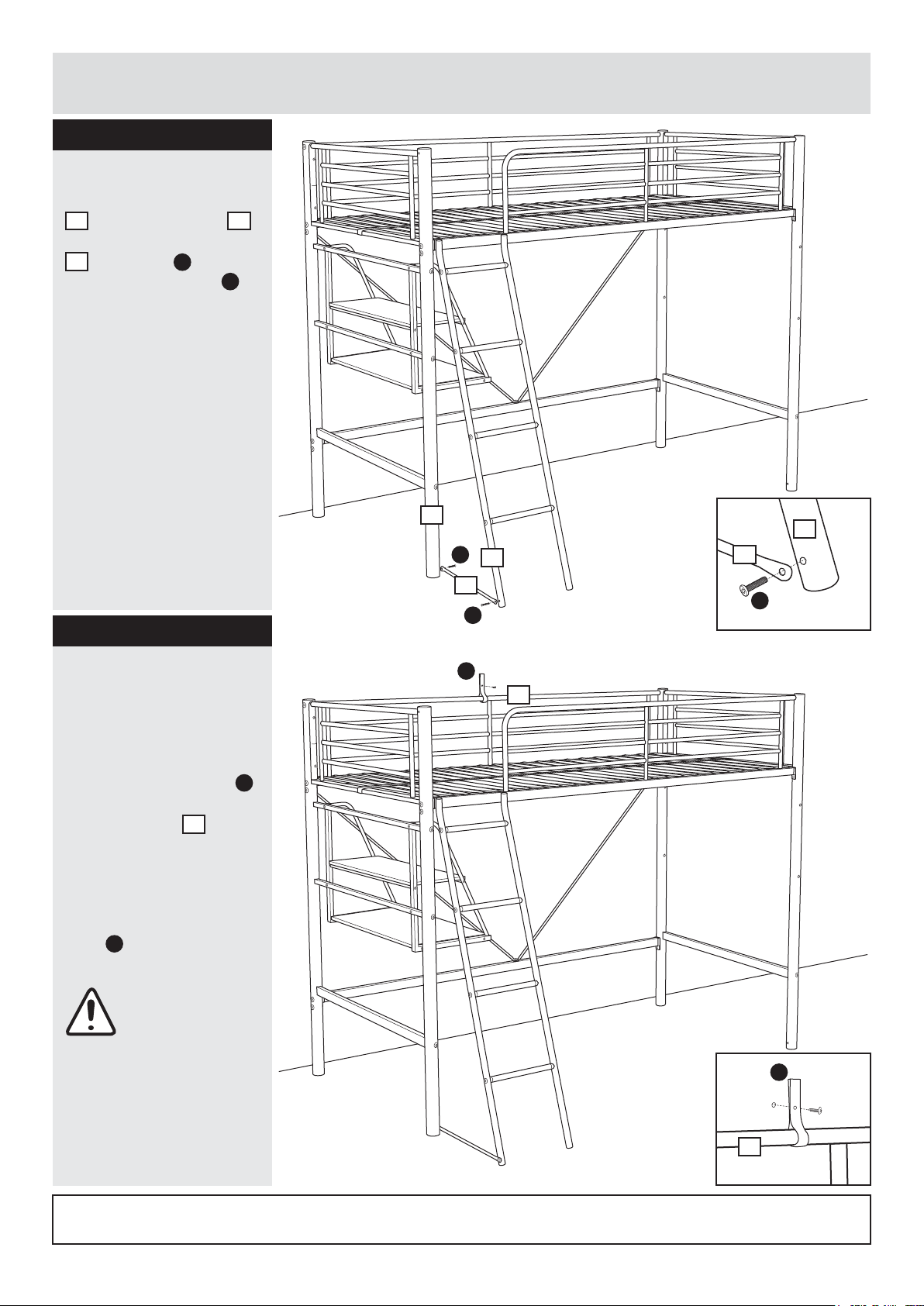

Attaching ladder
Attach the ladder to the
upper front safety rail
using bolts as shown.
Tighten bolts using allen
key .
9
Step 7

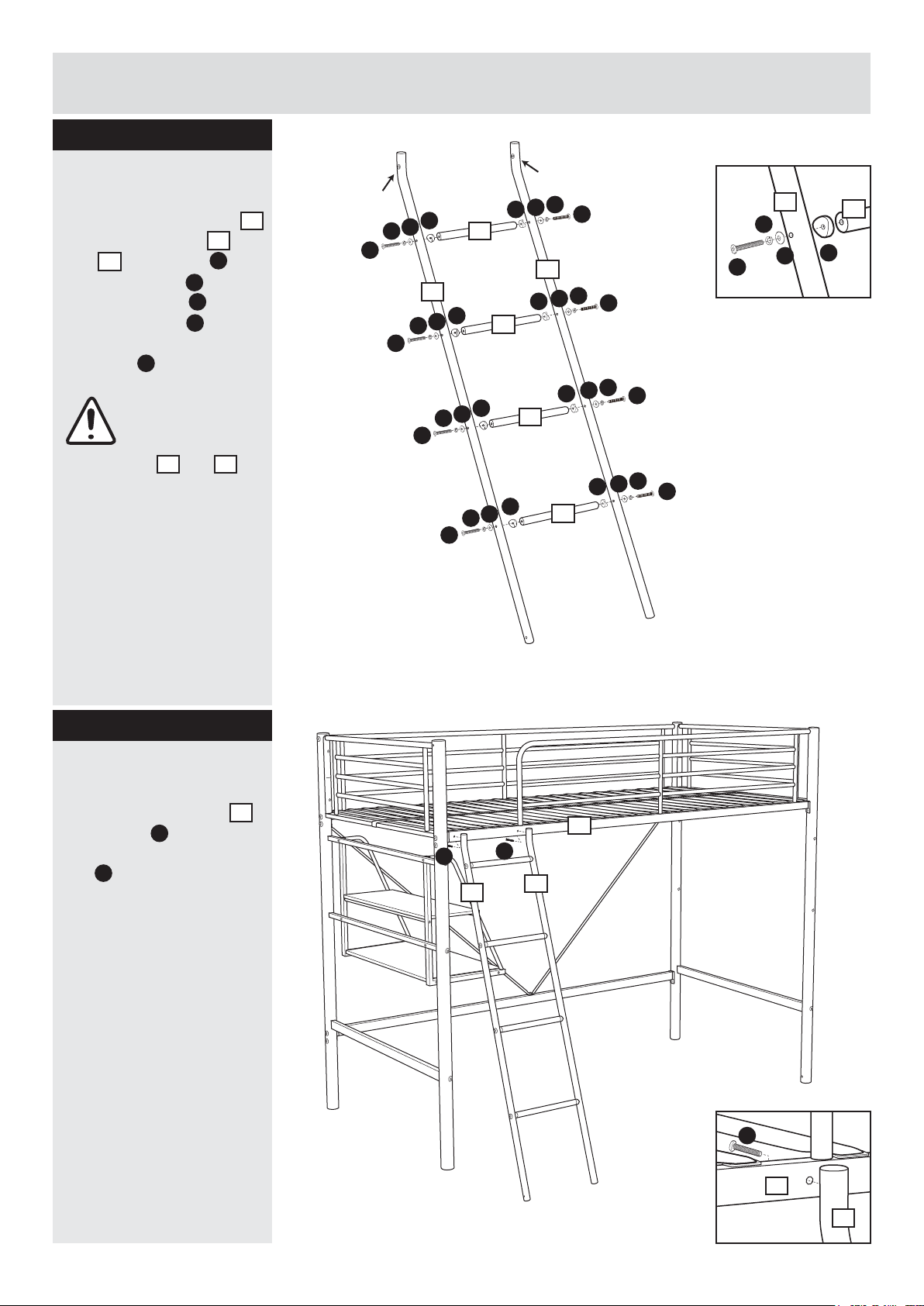

Assembling ladder
Referring to diagram,
attach the ladder steps
to ladder side rails
and using bolts ,
spring washers ,
curved washers and
plastic washers .
Tighten all bolts using
allen key .
Note: Identify and
correctly position
the ladder side
rails and
by looking for the
sticker labels
pasted on the
rails.
K
Q
B
N
J
14
13
13
12
12
Assembly Instructions
Step 8
10
13
C
10
12 13
C
C
Q
10
C
Sticker “13”
Sticker “12”
12
12
13
14
14
14
14
14
B
NJ
N
N
J
J
NJ
N
N
J
J
N
J
N
J
N
JB
KK
K
K
K
K
K
K
B
B
B
B
B
K
B
B

This unit must be fixed to
a wall.
Move the bunk bed into
position on the wall.
Position the wall strap
to the top post of upper
back safety rail to
mark fixing holes on the
wall. Remove the wall
strap then drill holes and
insert appropriate wall
plugs. Reposition wall
strap and fix using
appropriate screws.
Warning:
Before drilling,
check wall for
hidden pipes and
cables. Consult a
qualified
specialist if
unsure.
Assembly is complete.
Fixing to wall
L
L
9
12
4
15
E
E
Securing the ladder
Attach the ladder brace
to ladder side rail
and front right-hand post
using bolts . Tighten
bolts using allen key .
15 12
4E
Q
10
Assembly Instructions
Step 9
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
12
15
E
Wall
L
9
9
Wall L
Step 10

Single Metal Futon
Assembly Instructions - Please keep for future reference 7585418
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 21/08/12
Dimensions
Width - 82cm
Depth - 80-170cm
Height - 30-69.5cm
7585401

1
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Warnings
Care and maintenance
• Because of the size of this unit,
it is recommended to assemble it
in the room intended for use.
• Do not discard any of the
packaging until you have
checked that you have all the
parts and the pack of fittings.
• Assemble this product on a flat
surface.
• Assemble all parts loosely
before tightening any bolts.
• Discard all extra fittings and
keep fittings out of reach of
children.
• Unit weight: 45kgs.
• At least 2 people are required
to assemble this product.
• Retain Assembly Instructions
for future reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should only be
used on firm, level ground.
• Make sure the legs remain in
contact with the ground.
• Do not stand on the product.
• Keep hands away from folding
mechanisms to prevent possible
entrapment or injury.
• Do not allow children to jump
on the unit as this could cause
damage to the frame.
• Folding and unfolding this
product should only be carried
out under adult supervision.
• Please clean the unit surface
using either damp (not wet)
cloth and a mild domestic soap
solution or by using an
appropriate polish.
• Do not use any abrasive
materials when cleaning.
• From time to time check that
there are no loose bolts on this
unit.

2
Components - Parts
Please check you have all the parts listed below
Futon side frame x 2
(70 x 30 x 3.2cm)
1Front / back rail x 2
(76 x 8.5 x 2.5cm)
2Back frame
(70 x 55 x 2cm)
3
Seat frame
(110 x 70 x 2cm)
4Front leg
(63 x 26 x 2.4cm)
5
Sticker “9”Sticker “8”
Flap stay
(23.5 x 1.5 x 1cm)
6Centre leg
(23 x 7.5 x 2.2cm)
7Right futon mechanism
(42.5 x 18 x 5.5cm)
9Left futon mechanism
(42.5 x 18 x 5.5cm)
8

3
Components - Fittings
Please check you have all the fittings listed below
M8 x 40mm Bolt x 8
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
M8 x 30mm Bolt x 12
B
M6 x 60mm Bolt x 1
C
M6 x 50mm Bolt x 1
D
M6 x 30 mm Bolt x 2
E F
G H I
J
Ruler - Use this ruler to help correctly identify the screws
0 15 30 45 60 75 905 20 35 50 65 80 9510 25 40 55 70 85 100 120 140105 125 145110 130 150115 135 155 160 165 170
M8 Lock nut x 20
M6 x 15 mm Bolt x 2
Spacer x 2
M6 Lock nut x 4 Curved metal washer x 8
N
Allen key x 1
P
Big spanner x 1
O
Small spanner x 1
K
Flat metal washer x 3
L
Plastic washer x 1
M
Adhesive pad x 8

Attaching side frames
Position the side frames
as shown and attach
the front/back rails
using bolts , washers
and nuts . Tighten bolts
and nuts using allen key
and big spanner .
4
Assembly Instructions
Step 1
Step 2
A
G
N P
I
2
Attaching futon
mechanisms
Correctly position the left
and right futon
mechanisms and attach
it to side frames
using bolts and nuts .
Tighten bolts and nuts
using allen key and big
spanner .
Note: Identify and
correctly position
the futon
mechanisms
and by
looking for the
sticker labels
pasted on the
rails.
1
AIG
A
A
A
I
I
I
G
G
G
A
A
A
I
I
I
G
G
AI
G
G
AIG
AIG
2
2
2
1
1
1
B G
N
P
8
9
9
1
8
Step 3
Attaching back frame
Position the back frame
as shown and attach
it to futon mechanisms
and using bolts and
nuts . Tighten bolts and
nuts using allen key
and big spanner .
G
G
B
B
G
G
B
B
G
B
8
9
9
1
1
1
9
3
3
9
8
8
G
B
G
B
G
G
B
B
G
B
N
P
9
G
B
G
B
3

Attaching front leg
Position the front leg
and attach it to seat
frame using bolt ,
spacers and nut on
one side then using bolt ,
washers & and nut
on the other side as
shown. Tighten bolts and
nuts using allen key
and small spanner .
5
Assembly Instructions
Attaching centre leg
Carefully lay the seat
frame face down on a
flat protected surface.
Position the centre leg
as shown and attach it to
seat frame using bolts .
Tighten bolts using allen
key .
Step 4
Step 5
4
7
7
4
4
4
4
5
5
5
5
4
7
Step 6
Attaching flap stay
Position the flap stay
as shown and attach it to
front leg and seat
frame using bolts ,
washers and nuts .
Tighten bolts and nuts
using allen key and
small spanner .
6
4
5
K H
E
N
O
F
F
N
C
C
C
D
J H
K L H
N
O
D
D
J
JJ
J
K
L
K
L
H
H
H
H
F
F
F
4
6
6
5
5
EK
H
EKH
EKH

Attaching seat frame
Position the seat frame
as shown and attach
it to futon mechanisms
and using bolts and
nuts . Tighten bolts and
nuts using allen key
and big spanner .
4
9
8
G
B
N
P
6
Assembly Instructions
Step 7
Step 8
Attaching adhesive
pads
Remove backing from
adhesive pads then
carefully position it on the
top surface of front &
back rails and under
the four middle rails of
seat frames and back
frame as shown.
Assembly is complete.
3
3
4
4
4
9
8
G
B
G
B
G
B
G
B
9
G
B
G
B
4
M
M
M
M
M
M
M
M
M
M
2
4
2
2
2

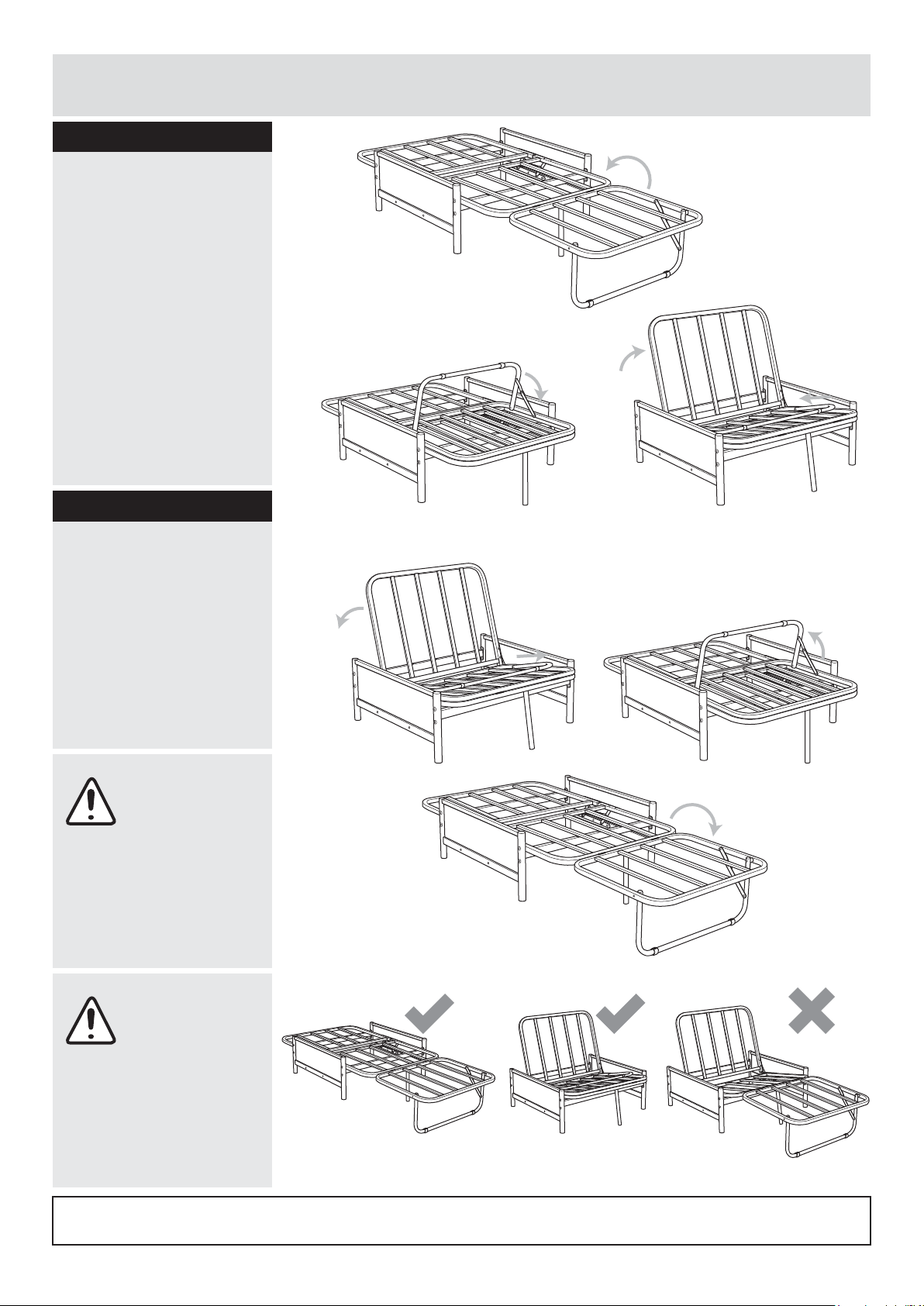

Folding the futon
a: Carefully pull up the
front leg and fold down
the front seat frame.
b: Fold down the front
leg.
c: Then carefully push in
the seat frame and pull
up the back rest.
Warning:
This futon can be
used only as bed
and seat. The
recilining position
as shown on the
right is prohibited
for this unit.
7
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Operation Instructions
Step 1
Opening the futon
a: Carefully pull out the
front seat frame and fold
down the back frame.
b: Pull up the front leg.
c: Then carefully open
the seat frame as shown.
Step 2
a:
c:
b: c:
Recilining positionSeat positionBed position
a: b:
Warning:
Keep hands away
from hinges and
folding
mechanisms to
prevent possible
entarpment or
injury.
