Argos Malibu 630/3165 User manual

MADE IN
BRITAIN
Dimensions
Width - 75cm
Depth - 40cm
Height - 109cm
Malibu - 5+2 Drawer Chest
Assembly Instructions - Please keep for future reference 630/3165
630/3206
630/3172
630/3189
630/3196
709/0226
709/0154
719/3460
719/3453
630/3213
630/3237
143/9261
144/3288
152/6095
157/8665
152/5759
159/7093
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 5 - 10/10/13
Important - Please read these instructions fully before starting assembly
Ruler - Use this ruler to help correctly identify the screws
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
ALR2440
Issue 2 - 29/03/11 - Added Argos Codes 719/1682 and 719/1668
Issue 4 - 10/04/13 - Added Argos Codes 719/3460 and 719/3453
Issue3 - 02/05/11 - Incorrect Argos Codes 719/1682 & 719/1668 have been replaced with correct codes of 709/0226 & 709/0154.
Issue 5 - 10/10/13 - 6 new Argos codes added

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 31kgs. Please lift
with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Glue Safety - Take care when using glue, please follow the advice below
Skin contact: Remove contami-
nation by washing with soap and
water. This procedure should be
followed prior to aeting and
drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
1
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• From time to time check that
there are no loose screws on
this unit.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Plinth - D0118A
714 x 92mm
x2
Rail - D0119A
714 x 66mm
Back Rail - D0120A
714 x 60mm
Components - Panels
Please check you have all the panels listed below
Glue Safety - Take care when using glue, please follow the advice below
Skin contact: Remove contami-
nation by washing with soap and
water. This procedure should be
followed prior to aeting and
drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
2
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• From time to time check that
there are no loose screws on
this unit.
Left Side (D0226A)
(1071 x 394mm)
Drawer Divider - D0034A
145 x 249mm
waterfall
1
Small Left
Drawer Front
(D0122A) (353 x 157mm)
4Small Right
Drawer Front
(D0123A) (353 x 157mm)
5
Right Side (D0227A)
(1071 x 394mm)
2
80% Top (D0116A)
(747 x 396mm)
3
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Divider (D0117A)
(160 x 238mm)
14
Rail (D0121A)
(714 x 72mm)
11
Plinth (D0118A)
(714 x 92mm)
12
Back Rail (D0120A) x 2
(714 x 60mm)
13
Large Drawer Front (D0131A) x 5
(710 x 157mm)
6
Small Drawer Base x 2
(T161) (299 x 330mm)
7
Foldy Back (X166)
(517 x 738mm)
15
Large Drawer Base x 5
(T162) (299 x 695mm)
8
Small Drawer Wrap x 2 (W161)
(943 x 95mm)
9
Large Drawer Wrap x 5 (W162)
(1308 x 95mm)
10

Please check you have all the fittings listed below
Tools required
Glue Safety - Take care when using glue, please follow the advice below
Skin contact: Remove contami-
nation by washing with soap and
water. This procedure should be
followed prior to aeting and
drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
3
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• From time to time check that
there are no loose screws on
this unit.
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 13
B
Metal dowel (F901) x 18
C
Nail holder (F149) x 1
D
Large locking
nut (F900) x 4
E
Small locking
nut (F3) x 14
F
G
40mm Screw (F910) x 6
J
13mm Screw (F79) x 1
H
25mm Screw (F50) x 12 Handle (F631) x 12
I
Rule Scissors Hammer Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Nail (F51) x 22
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
K
Bracket (F327) x 1
R (F601)
L (F600)
F599
F599
L
Drawer stops (F599) x 14
Runners (F600) x 7 and (F601) x 7
Electric drill
(only use when
drilling into walls)

Assembly Instructions
4
Prepare small drawer
fronts and wraps x 2
Note: The small right
drawer front has a
small identification
hole.
a: Screw 2 x metal
dowels into the holes
on the back of the small
drawer fronts and .
Note: Tighten metal
dowels up fully against
the panels.
b: Insert 2 small locking
nuts into the holes
shown on the drawer
wrap .
Note: Arrow on locking
nut must point towards
hole in edge of panel.
B
4 5
a:
a:
b:
b:
F
9
F
Assemble small
drawers x 2
a: Place small drawer
base into the narrow
slot on the small drawer
wrap . Fold wrap
around the base.
b: Turn each of the
drawer wrap assemblies
over and push onto the
back of the small drawer
fronts and .
Turn locking nuts
clockwise to secure
panels - more than 1/2 a
turn.
7
9
4 5
F
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
90%
5
Identification
hole
and
B
B
B
B
B
F
F
B
4 5
9
9
9
9
7
4 5
F
F
Step 1
Step 2
plain surface
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can
be on either surface of the
drawer sides.
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can
be on either surface of the
drawer sides.

Assembly Instructions
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
5

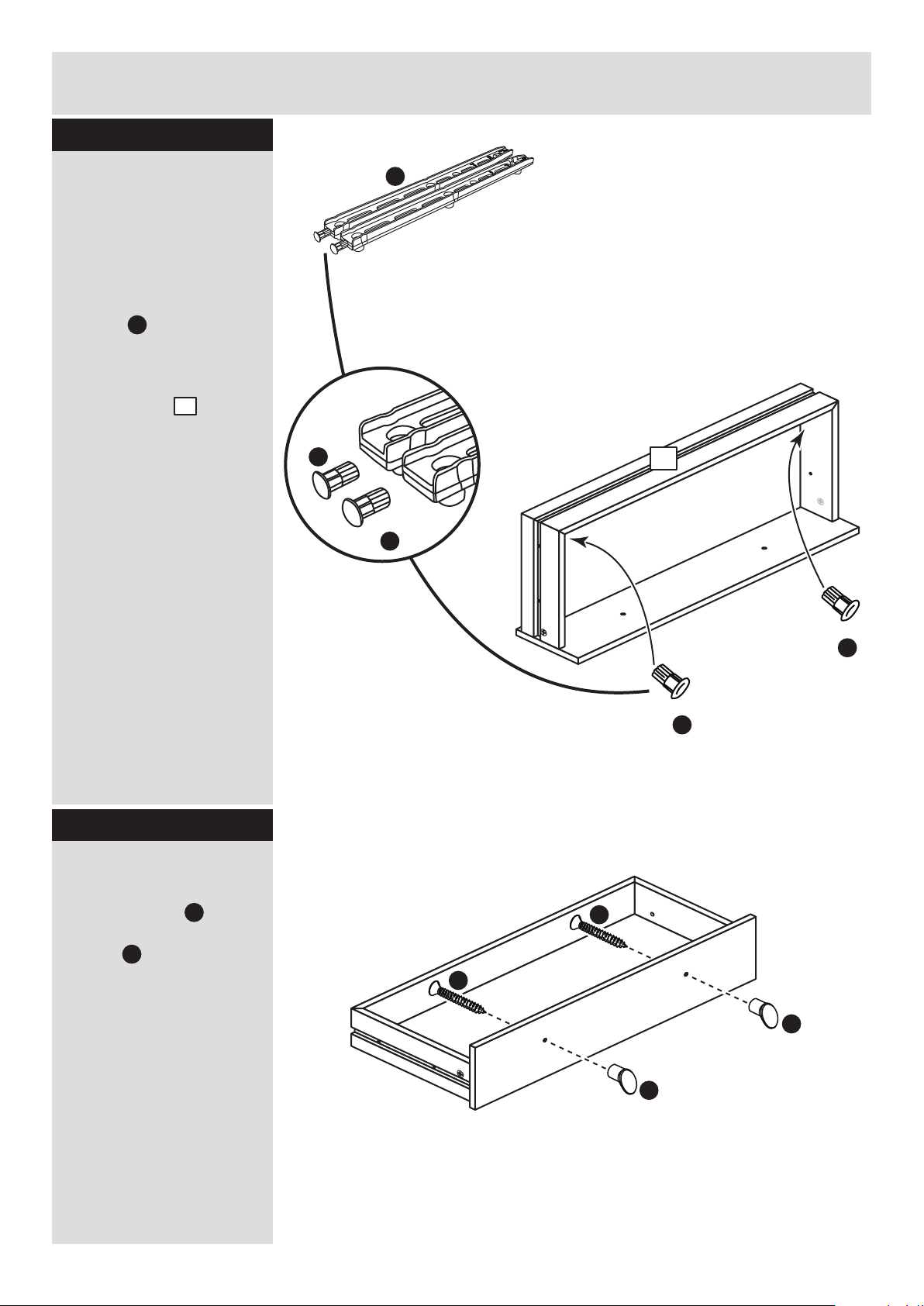

Push drawer stops
into small drawer
wraps x 2
Carefully break off the 2
drawer stops (F599) from
each pair of the drawer
runners .
Push the drawer stops
fully through the small
drawer wraps from
the inside.
1
E
A
L
SNAP!
SNAP!
F599
9
Attach handles x 2
Attach handle to the
drawer fronts using
screw .
Note: Do not
overtighten the screw.
I
H
L
L
F599
L
F599
L
F599
L
I
H
9
Step 3
Step 4

Assembly Instructions
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
6
Step 1
Prepare large drawer
fronts and wraps x 5
a: Screw 2 x metal
dowels into the holes
on the back of the large
drawer fronts .
Note: Tighten metal
dowels up fully against
the panels.
b: Insert 2 small locking
nuts into the holes
shown on the large
drawer wrap .
Note: Arrow on locking
nut must point towards
hole in edge of panel.
B
6
F
10
Assemble large
drawers x 5
a: Place large drawer
base into the narrow
slot on the large drawer
wrap . Fold wrap
around the base.
b: Turn each of the
drawer wrap assemblies
over and push onto the
back of the large drawer
fronts .
Note: Turn locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
8
10
6
F
a:
a:
b:
b:
F
B
F
F
B
6
10
8
10
10
6
Step 5
Step 6
plain surface
Note: Due to the manufacturing
process, the holes for the locking
nut can be on either surface of the
drawer sides.
Note: The locking nuts can
be on either surface of the
drawer sides.

10
Assembly Instructions
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
7
Push drawer stops
into large drawer
wraps x 5
Carefully break off the 2
drawer stops (F599) from
each pair of the drawer
runners .
Push the drawer stops
fully through the large
drawer wraps from
the inside.
1
E
A
L
SNAP!
SNAP!
10
Attach handles x 10
Attach handles to the
large drawer fronts using
screws .
Note: Do not
overtighten the screws.
I
H
F599
L
L
F599
L
F599
L
F599
L
I
I
H
H
Step 7
Step 8

A
A
Assembly Instructions
8
Prepare left and right
side
Separate runners .
a: Push fit 6 x left
runners marked ‘L’
into the holes shown on
left side .
Note: Runners must be
be fitted flat against the
panel. If necessary
gently tap into final
position.
Insert large locking
nut as shown.
Note: Arrow on locking
nut must point towards
hole in edge of
panel.
Tap in wooden dowel
as shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
b: Push fit 6 x right
runners marked ‘R’
into the holes shown on
right side .
Insert large locking
nut as shown.
Tap in wooden dowel
as shown.
1
L
E
A
2
E
A
10mm
L
F600
Finished
front edge
a:
b:
Finished
front edge
R
L
LEA
L
L
L
L
L
E
E
L
L
L
L
L
L
L
F601
L
1
2
L
L
Step 9

Assembly Instructions
Step 10
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
9
Finished front edge
Prepare rail, plinth
and back rails
a: Tap 4 x wooden
dowels into the ends
of the rail .
b: Tap 2 x wooden
dowels into the ends
of the plinth .
c: Tap 2 x wooden
dowels into the ends
of the 2 back rails .
Note: The colour of the
back rails may differ
from the main unit colour
or may be plain
chipboard.
A
A
11
12
A
13
a:
b:
c:
Fit rail to the right
side
Attach rail to the right
side using the
dowels already fitted.
L
11
2
Finished front edge
Plain chipboard
surface
80%
11
11
2
12
13
A
A
A
A
A
A
A
A
13
Step 11

G
G
G
Assembly Instructions
Step 12
10
Fit plinth to the right
side
Attach plinth to the
right side using the
dowel already fitted and
secure with screw .
12
2
G
L
Fit back rail to the
right side x 2
2 people are needed
here
Attach back rails to
the right side using
the dowel already fitted
to them and secure with
screw .
Support both of the
back rails until the
left side has been fitted
in the next stage.
13
2
G
This outer face should
be the same colour as
the main unit panels
12
2
13
2
13
13
Step 13
plain chipboard
surface

Assembly Instructions
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
11
Prepare top panel
Fit bracket to the
underside of the top
using screw so it is
flush with the back edge
and 200mm in from the
edge,
Screw in 4 x metal
dowels .
L
3
80%
Finish left side
Push the left side
onto the dowels fitted to
the plinth, rail and
back rails.
Secure the left
side with 3 x
screw .
G
1
200mm
K
B
J
11
G
G
G
B
B
B
B
3
K
J
Step 14
Step 15

Assembly Instructions
12
Finished
front edge
LF600
R
F601
Finished
front edge
Finished
front edge
Turn divider over
Prepare both surfaces
of the divider
Note: The 2 holes for the
large locking nuts may
be drilled in either
surface of the drawer
divider .
The colour of the divider
may differ from the main
unit colour or may be
plain chipboard.
a: If the holes are on
this surface, insert 2 x
large locking nuts .
Push fit a left runner
marked ‘L’ into the holes
shown.
Tap in wooden dowel ,
as shown.
Turn divider over
b: If the holes are on
this surface, insert 2 x
large locking nuts .
Push fit a right runner
marked ‘R’ into the holes
shown.
E
A
14
a:
b:
E
Fit divider to top
Push the divider onto
the top .
Use a screwdriver to
tighten the 2 large
locking nuts (fitted to
either surface).
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
14
E
23
E
B
L
L
L
L
L
L
14
E
E
E
E
E
B
14
14
2
214
2
E
E
E
Step 16
Step 17
A

y
Assembly Instructions
Step 19
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
80%

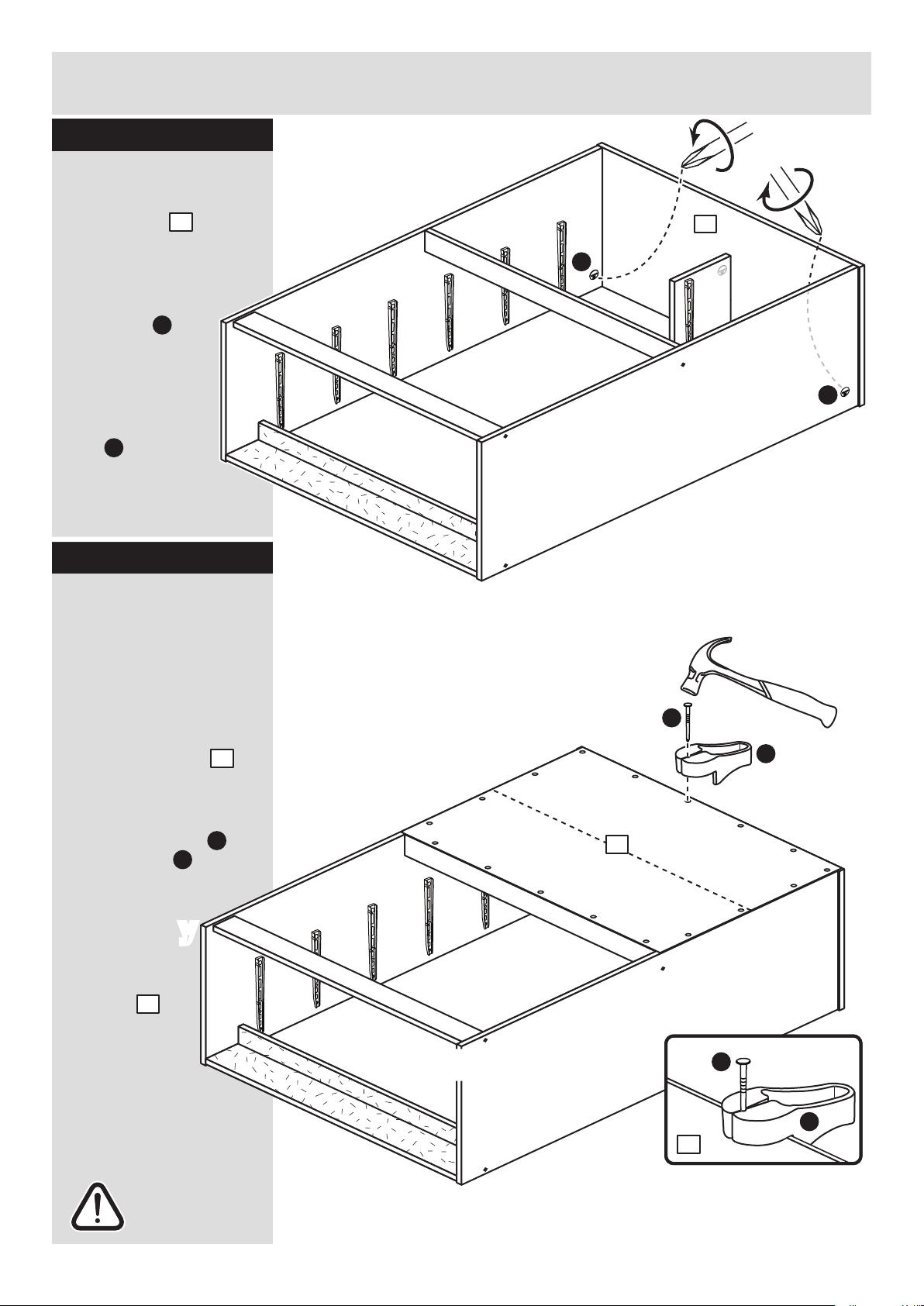

Attach top
Push the top onto
the side panels.
Use a screwdriver to
tighten the large
locking nut
fitted to each
side.
Note: Turn the
large locking
nuts as far as
they will go -
more than 1/2 a
turn.
33
E
x
y
y
x
Fit back panel
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
down onto the unit, as
shown.
Use the nail guide to
hold the nails
vertical and
at the correct
distance
whilst you
nail around
the outside of
the back .
Note: Nails
should be
spaced about
150mm apart.
Stand the unit up.
15
15
15
15
C
D
13
E
E
Warning: The
chest is heavy.
Lift with care.
C
C
D
D
EE
E
Step 18
The measurement from top
corner X to bottom corner X
must be equal to the
measurement from top
corner Y to bottom corner Y
a: b:

Assembly Instructions
14
WALL
WALL
Insert drawers
Lift front of drawer whilst
inserting to overcome
the ‘stop’ system.
Note: Remember the
small right drawer front
has a small
identification hole.
Note: To ensure that
your drawers run
smoothly, spray a small
amount of furniture
polish into the grooves.
Secure unit to a wall
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by use of the metal
bracket fitted to the
top of the unit.
Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the Unit to
the wall.
Warning: Take
care when
drilling the wall that you
do not drill into any
pipes, wires etc. If in
doubt, consult an expert.
3
3
3
K
K
Step 20
Step 21

Assembly Instructions
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
Rebated Edge
F73
COVERED EDGE
Use 2nd hole in from front of
Runner F1004 to fit 1st F73 then
fit other F73 to match other hole.
F1004
When you insert F900,
make sure the arrow is
pointing towards the hole
in the edge of the panel.
F900
F73
F1004
COVERED EDGE
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Assembly is complete
15 ALR2440
Warning: The
chest is heavy.
Lift with care.
Step 22
