Argos New Sywell 239/6994 User manual

MADE IN
BRITAIN
New Sywell - Dresser and Stool
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 03/06/14
Important - Please read these instructions fully before starting assembly
ALR3017
239/6994
247/9684
258/7040
259/7975
Dresser
Dimensions
Width - 77.5cm
Depth - 40cm
Height - 74.5cm
Stool
Dimensions
Width - 43cm
Depth - 35.5cm
Height - 48cm

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 24kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.

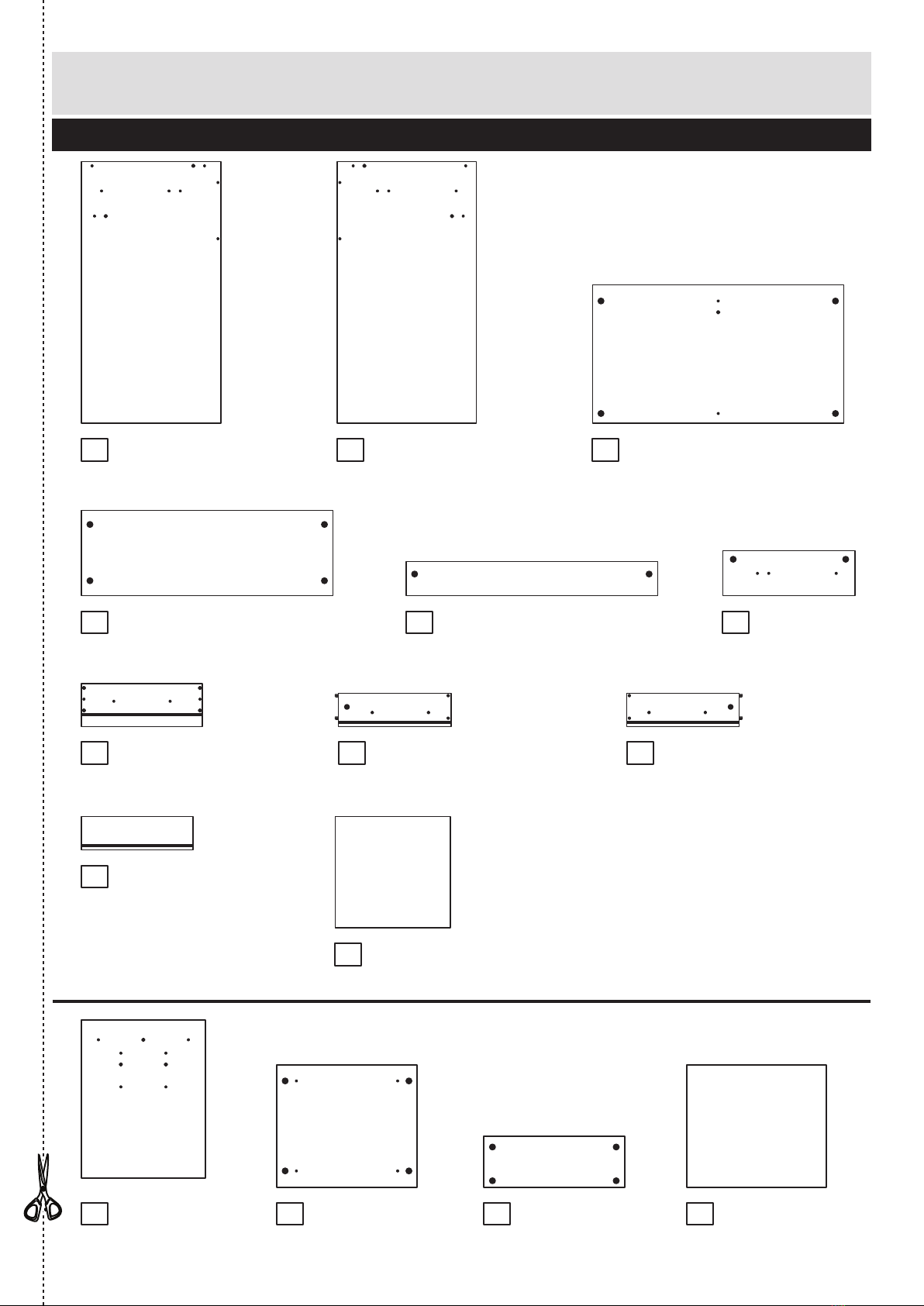

Components - Panels
Please check you have all the panels listed below
2
12 3
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
4
Left Side (DF745)
(745 x 396mm)
Modesty (DF748)
(715 x 243mm)
Rail (DF753)
(715 x 97mm)
Divider (DF887)
(128 x 376mm)
Drawer Front (DF888)
(344 x 122mm) x 2
Top (DF1348)
(745 x 396mm)
Right Side (DF746)
(745 x 396mm)
7
5 6
8Left Drawer Side (W320-95LH)
(320 x 95mm) x 2
Drawer Base (T328-317)
(328 x 317mm) x 2
Right Drawer Side (W320-95RH)
(320 x 95mm) x 2
9
Drawer Back (W317-95)
(317 x 95mm) x 2
10
11
Stool Base (D0997A)
(400 x 348mm)
Stool Rail (D0998A)
(400 x 144mm) x 2
Stool Side (D0996A)
(451 x 352mm) x 2
Seat Pad (FMANPAD)
(398 x 348mm)
12 13 14 15

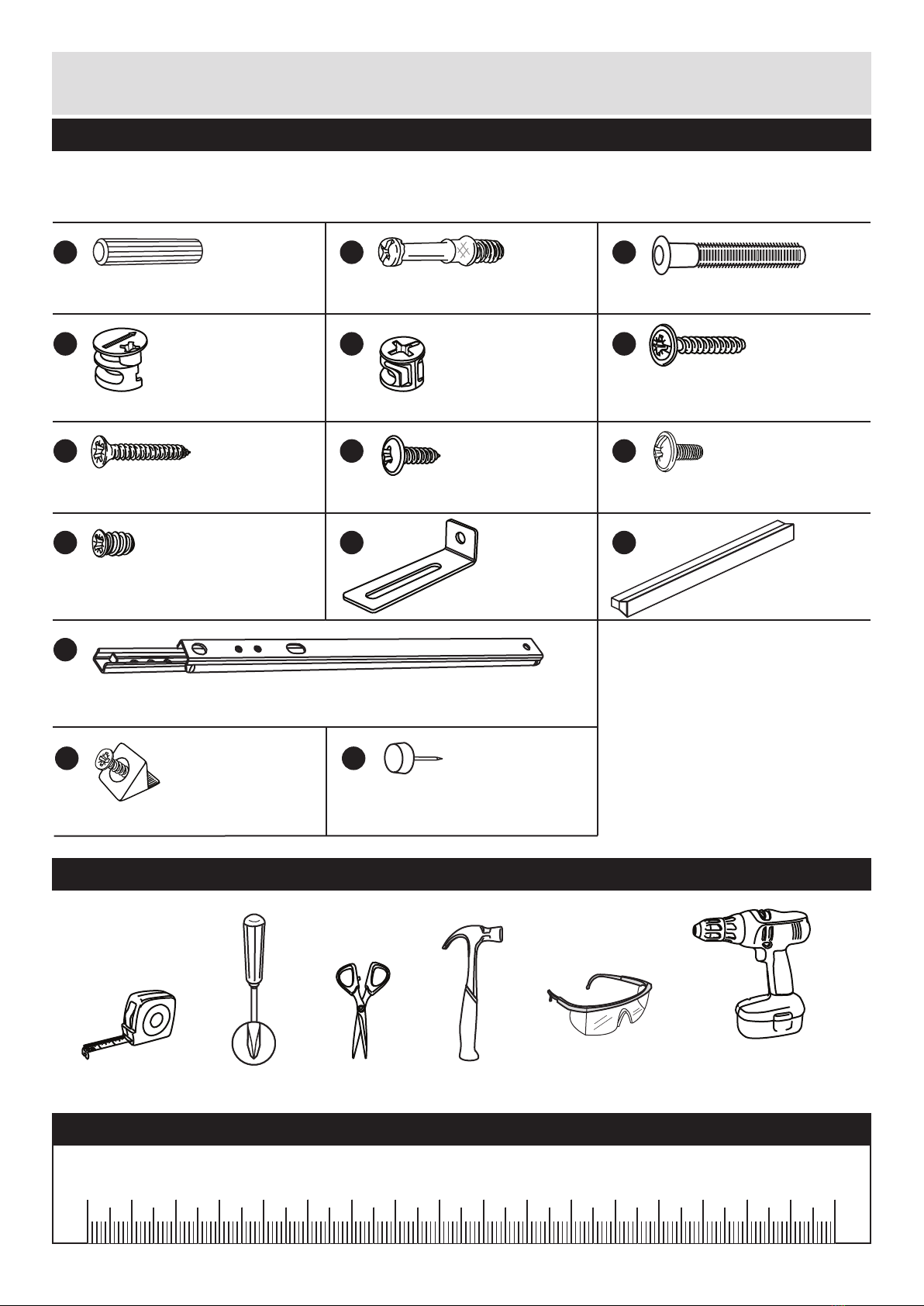

Please check you have all the fittings listed below
Tools required
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 11
B
Metal dowel (F901) x 28
C
D E F
G H I
L
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
M
J K
9mm Screw (F74) x 4
9mm Screw (F73) x 8
Drawer runner (F1004) x 4
see malibu fitment mk2 for large number of panels and fittings
Electric drill
(do not use for
fitting screws)
Knock-in Peg (F171) x 8
13mm Screw (F79) x 1
Small locking
nut (F3) x 4
Large locking
nut (F900) x 24
Bracket (F327) x 1 Handle (F315) x 2
25mm Screw (F95) x 4
O
Plastic Nail (F91) x 8
N
Wedgefix (F639) x 4
25mm Screw (F50) x 4

7

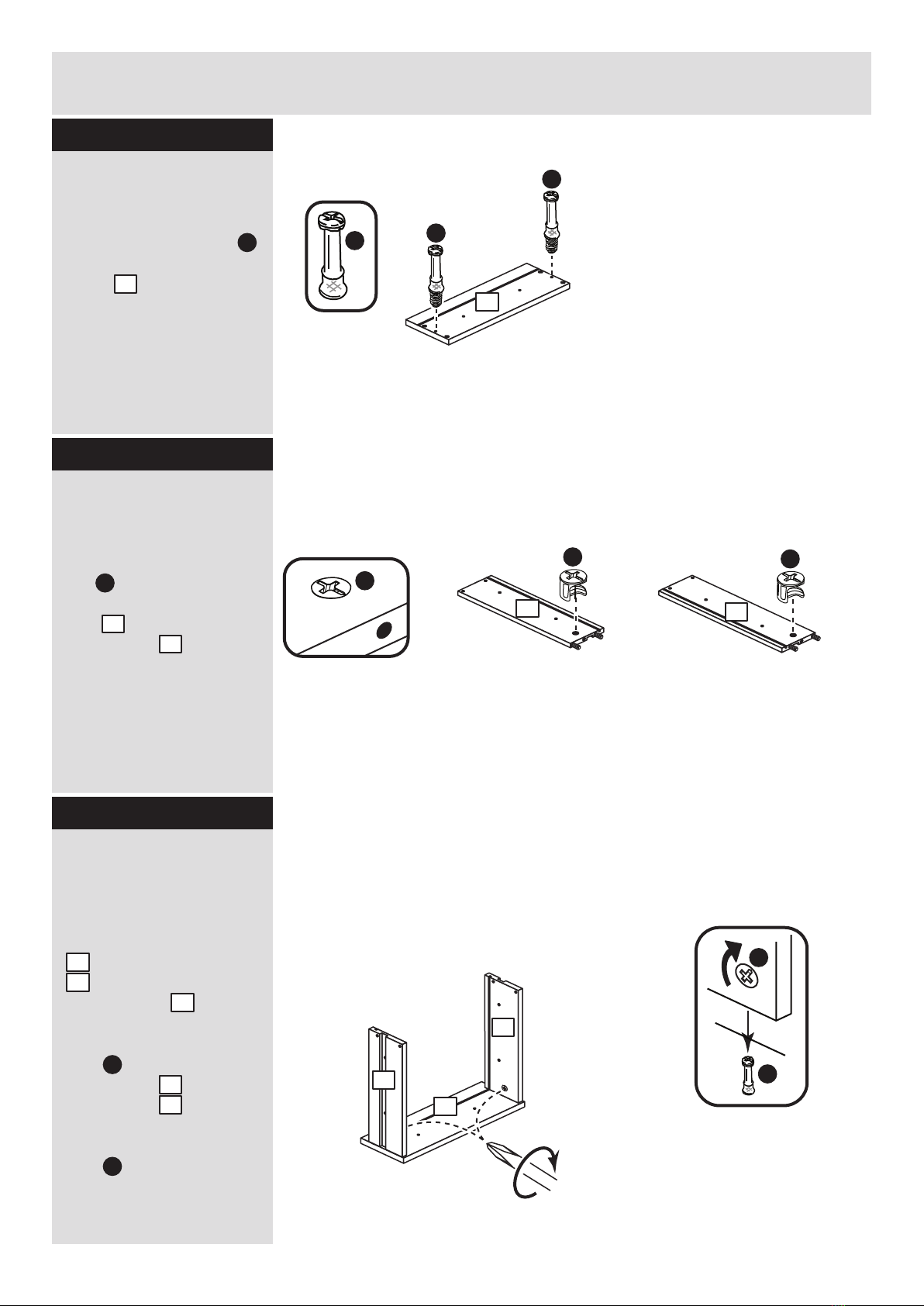

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
B
B
B
E
E
EE
89

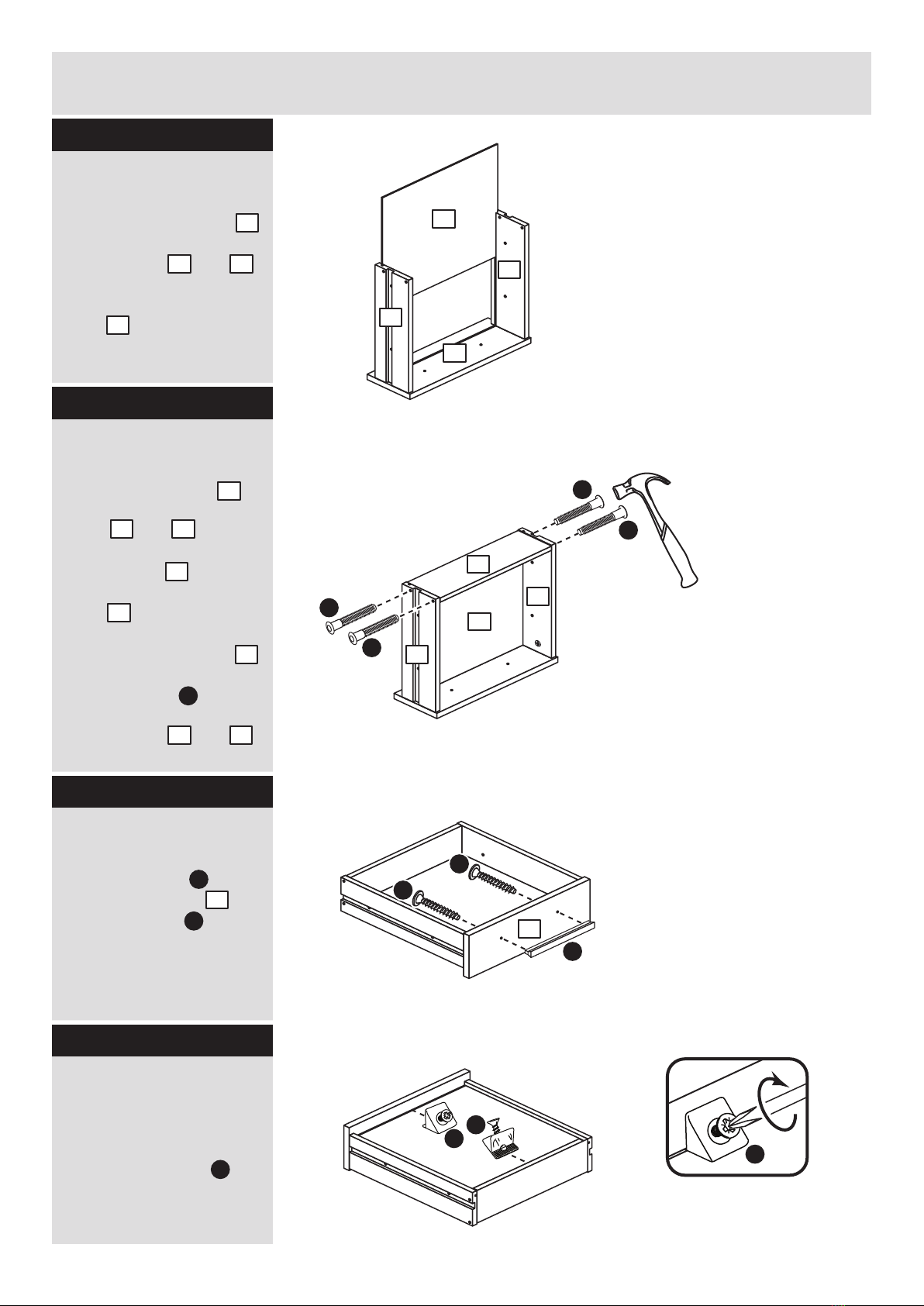

Step 2
Prepare the 2 drawer
fronts
Screw 2 metal dowels
into each of the 2 drawer
fronts .
Note: Tighten the metal
dowels up fully against
the panels.
B
7
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
E
8
9
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
8
9
7
E
E
8
9
8
9
B
B
7
x 2
x 2
x 2
x 2
80%

Assembly Instructions
5

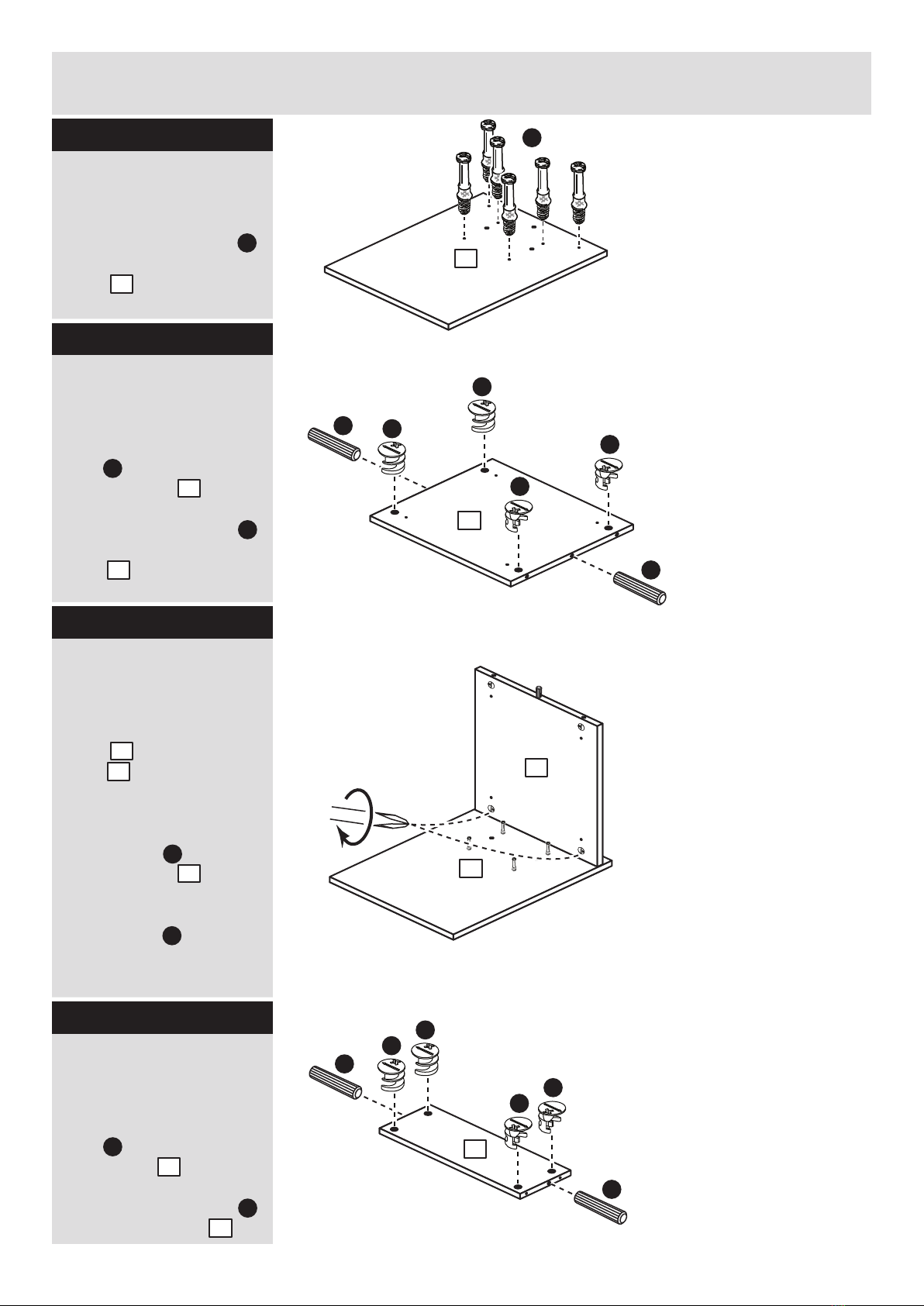

Step 4
C
C
Fit the drawer bases
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer backs
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
11
8 9
7
10
8 9
11
10
10
C
Attach the handles
Attach a handle to
each drawer front
using 2 screws .
Note: Do not
overtighten the screw.
L
F
7
8 9
Step 7
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
N
C
C
N
N
N
11
8
10
8
9
11
9
7
7
F
F
L
x 2
x 2
x 2
x 2

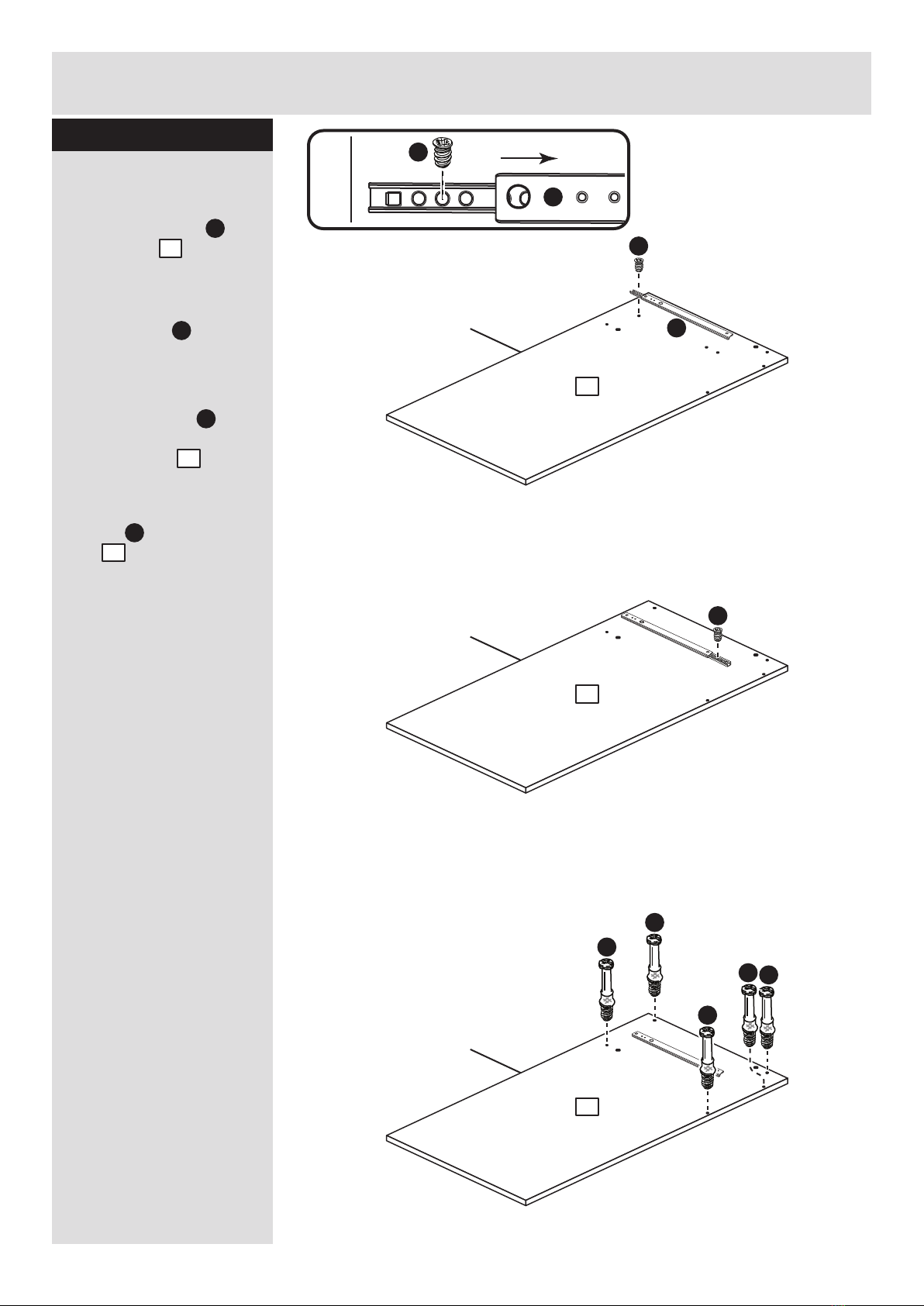

Prepare the left side
a: Place a runner on
the left side . Slide
back the top of the
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
c: Screw 5 metal
dowels into the left
side .
Finished
front edge
Assembly Instructions
6
Step 8
Profiled
front edge
J
M
J
M
a:
b:
c:
1
J
B
1
1
Finished
front edge
Finished
front edge
J
B
B
B
B
1
1
1
B
J
M

Assembly Instructions
7
Step 9
Prepare the right side
a: Place a runner on
the right side .
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
on the right side .
c: Screw 5 metal
dowels into the right
side .
2
J
J
M
M
2
B
2
a:
b:
c:
J
Finished
front edge
Finished
front edge
Finished
front edge
J
M
J
M
B
BB
B
B
Finished
front edge
2
2
2

Finished
front edge Finished
front edge
A
Prepare the top
Tap 2 wooden dowels
into the top .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 2 metal dowels
into the top .
Insert 4 large locking
nuts into the top .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Assembly Instructions
8
Step 10
D
D
D
10mm
A
A
D
D
B
B
A
3
3
B
D3
3
Finished
front edge
Fit the top
Push the top onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the right side .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
2
3
D
D
2
B
D
Step 11
2
3

A
Finished
front edge
Assembly Instructions
9
Step 12
Finished
front edge
Prepare the divider
a: Place a runner on
the divider as shown.
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the divider .
Tap a wooden dowel
into the divider .
Insert 2 large locking
nuts into the divider
. .
Turn the divider over
c: Place a runner on
the divider as shown.
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
d: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the divider .
6
J
J
D
6
6
6
M
M
6
J
J
6
M
M
c: d:
Note: Due to the manufacturing process, the 2 holes for
the large locking nut can be on either surface of the divider.
Turn the divider over
Finished
front edge
J
M
Finished
front edge
J
M
J
MJ
D
D
Finished
front edge
Finished
front edge
J
MJ
6 6
6 6
A

Finished
front edge
A
Finished
front edge
Assembly Instructions
10

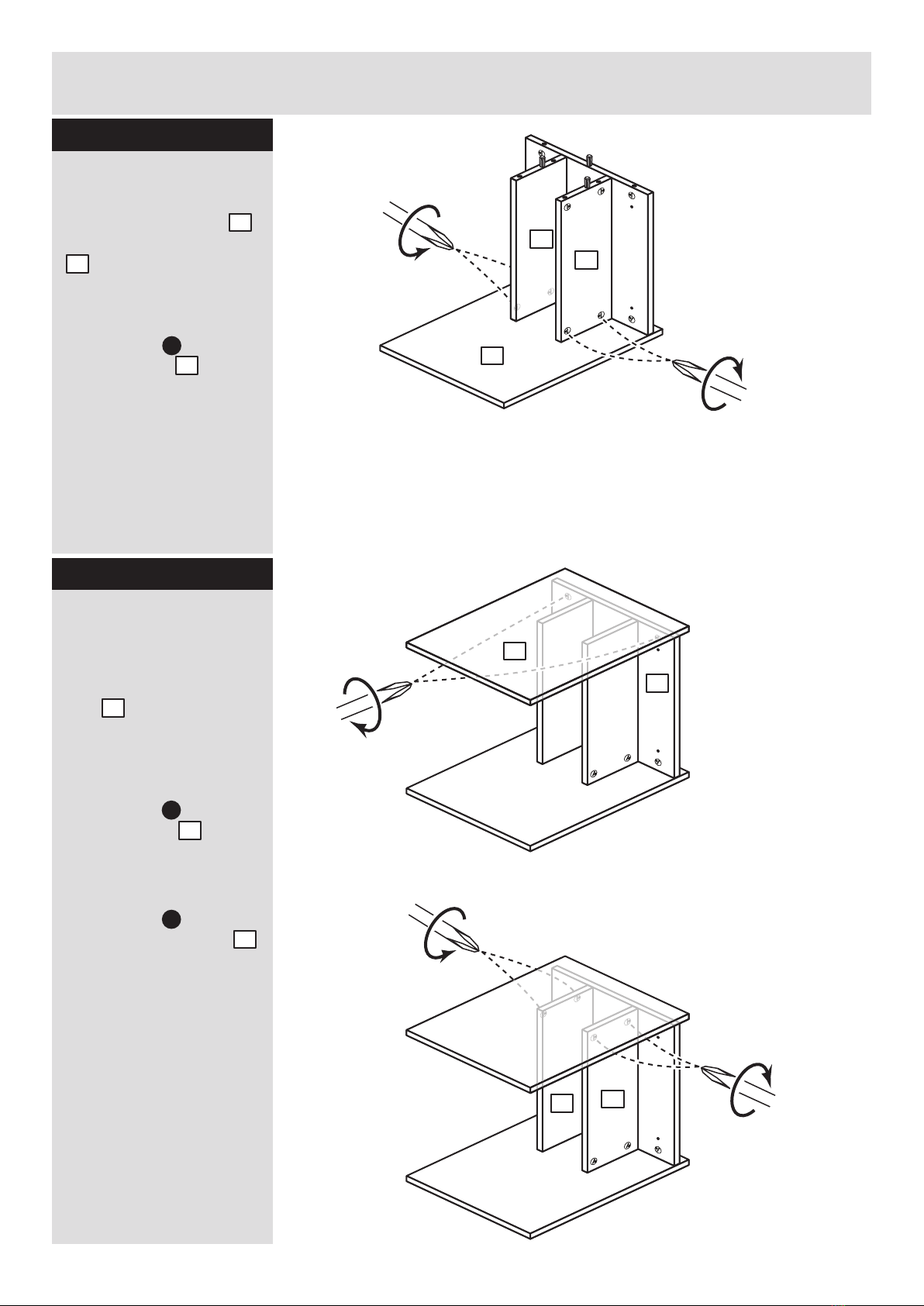

Step 13
Step 14
3
Fit the divider
Push the divider onto
the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the divider .
3
6
D
66
Prepare the rail
Tap 2 wooden dowels
into the rail .
Insert 2 large locking
nuts into the rail .
Step 15
A
5
D5
Finished
front edge
D
D
A
Fit the rail
Push the rail onto the
right side .
Use a screwdriver to
tighten the large locking
nut fitted to the rail .
2
5
D5
5
5
2
Note: The large locking nuts can
be on either surface of the divider.

Assembly Instructions
9
Step 16
Prepare the modesty
Insert 4 arge locking
nuts into the modesty
. .
D
4
D
D
D
D
4
2
Step 17
Fit the rail
Push the modesty
onto the right side .
Use a screwdriver to
tighten the large locking
nut fitted to the
modesty .
2
4
D
4
4
Step 18
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the top , modesty
and rail .
1
D
3 4
5
4
1
3
5

Assembly Instructions
12
Step 19
Step 20

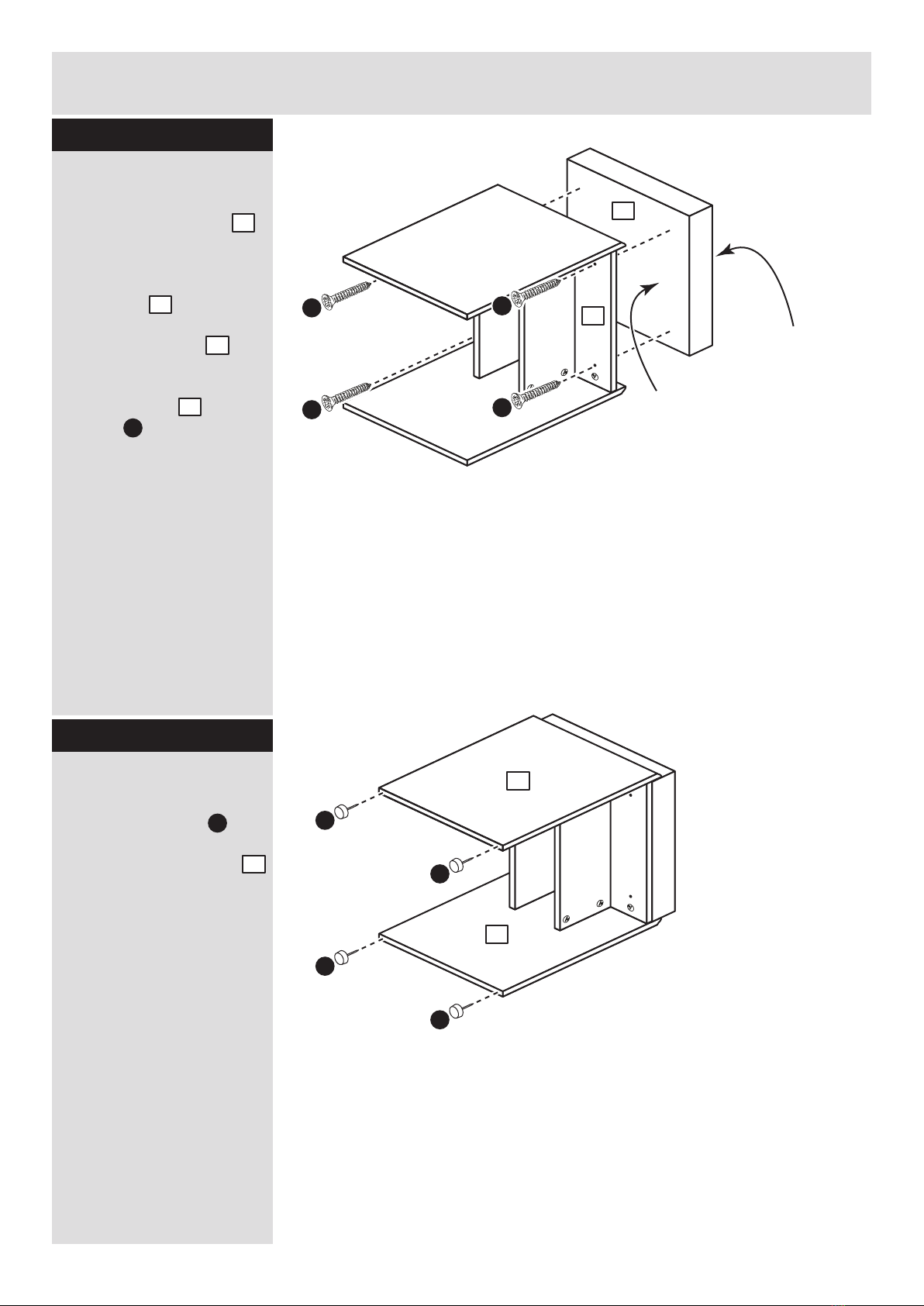

Fit the drawers
Slide both of the runners
. forward and locate
the drawer sides and
. between them, lining
up the holes in the
drawer sides with the
2nd 'threaded' holes in
the runners.
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws.
If they catch on the
runner you may need to
loosen them slightly.
I
M
2nd threaded
hole
M
I
10
11 I
I
8
9
Fit the plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. as shown.
1
2
O
1
2
O
OO
O

Assembly Instructions
13
Step 21
Fit the bracket
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall using the bracket ,
fitted just below the
modesty, on one of the
side panels with the
screw .
Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the unit to
the wall.
Warning: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc. If in
doubt, consult an expert.
The assembly of the
dresser is complete
K
H
The Bracket can be
fitted to either the Left
Side or the Right Side.
K
H

Assembly Instructions
14
Step 22
Prepare the 2 stool
sides
Screw 6 metal dowels
into each of the 2 stool
sides , as shown.
Step 23
B
Prepare the stool
base
Insert 4 large locking
nuts into the holes in
the stool base .
Tap 2 wooden dowels
into the ends of the stool
base .
Step 24
12
13
13
D
Fit a stool side to the
stool base
Fit one of the stool
sides to the stool
base .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
12
13
D
D
13
Step 25
Prepare the 2 stool
rails
Insert 4 large locking
nuts into each of the
2 stool rails .
Tap 2 wooden dowels
into each stool rail .
D
14
A
B
12
D
D
D
D
A
13
D
D
D
D
A
x 6
14
14 x 2
x 2
12
13
A
A
A

Assembly Instructions
15
Step 26
Fit the top
Push the sides and
down onto the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the sides and
. .
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. as shown.
Carefully stand the
unit up for the next
step.
1
2
M
Step 27
Fit the 2 stool rails
Push the 2 stool rails
down onto the stool side
. , as shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each stool rail .
14
12
D
14 12
14
Fit the other stool
side
a: Push the other stool
side down onto the
assembly, as shown.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the stool base .
b: Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each of the stool rails .
14
12
13
12
D
13
b:
a:
D
14
14 14

Assembly Instructions
16
Step 28
Fit the seat pad
Position the seat pad
onto the assembly and
make sure that its 4
edges line up with the
stool base .
Hold the seat pad in
position and screw up
through the 4 holes in
the stool base using
screws .
Note: Make sure that
you screw into the hard
surface of the seat pad.
15
13
G
15
13
15
13
Hard
surface
Soft
surface
Step 29
Fit the plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the stool sides
as shown.
G
G
G
G
O
O
O
O
12
O
12
12

Assembly Instructions
17
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 30
Assembly is complete

ALR3017
