Argos Samuel Shorty Bunk Bed User manual

Samuel Shorty Bunk Bed
Assembly Instructions - Please keep for future reference
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
Issue 2- 20/06/14
Dimensions
Width - 181cm
Depth - 82cm
Height - 160cm
IMPORTANT NOTE:
The top surface of the mattress
should not come above this line.
IMPORTANT NOTE:
Do not fully tighten
all bolts until all parts
of the bed are
assembled.
162/4131
188/9299
170/8253

• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• During assembly do not stand
or put weight on the product, this
could cause damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• To reduce the
likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• Unit weight: 32.5kgs.
1
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Care and maintenance
Handy Hints
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the
bolts.
• Regularly check and ensure
that all bolts and fittings are
tightend properly.
Warnings
• READ CAREFULLY - RETAIN
FOR FUTURE REFERENCE
• Regularly check and ensure
that all bolts and fittings are
tightened properly.
• Always use the ladder for
entering and leaving the upper
bunk.
• The recommended mattress
size is L1750 x W750 mm.
• Ensure thickness of mattress
does not exceed 175 mm.
• Refrain from using the bunk
bed if any structural part is
broken or missing.
• Please prohibit more that one
person on the upper bunk.
• Please advise your children to
only enter and leave the upper
bunk by using the ladder.
• Please prohibit children from
jumping on the upper and lower
beds.
• WARNING: Children can
become trapped between the
bed and the wall. To avoid risk
of serious injury the distance
between the top safety barrier
and the wall shall not exceed
75mm or shall be more than
230mm.
• WARNING: Do not allow
children under 6 years of age to
use the upper bunk due to risk
of injury and falls.
• STRANGULATION HAZARD -
Never attach or hang items such
as ropes, strings, cords,
harnesses and belts to any part
of the bunk bed.
• THIS BED COMPLIES WITH
EN747-1:2012 / EN747-2:2012
Manufacturer: BL Packaging Co.
Ltd.

2
Components - Parts
Please check you have all the parts listed below
If you have damaged or missing components, call the
Customer Helpline: Argos = 0345 640 0800
Lower side rail x 2
(75 x 18.5 x 3cm)
3Lower rail x 2
(173 x 7 x 2.5cm)
4
Upper front safety rail
(173 x 41.5 x 2.5cm)
5Upper back safety rail
(173 x 41.5 x 2.5cm)
6
Slat x 48
(77.5 x 2.5 x 3cm)
7Ladder
(93.5 x 34.5 x 3cm)
8
End post x 4
(Ø4.5 x 160cm)
1Upper side safety rail x 2
(73.5 x 35.5 x 3.5cm)
2

3
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
Friendly Tips
• Do not fully tighten all bolts until all parts of
the bed are assembled.
• Assemble lower rails to headboard &
footboard (end panels) first, followed by the
upper safety rails.
• One person must hold on the rails while
another person is assembling it and fitting
bolts to end posts.
• When assembling slats, make sure it is
aligned to the holes on the upper and lower
rails before pushing it firmly down.
• After all the parts are positioned, you can
fully tighten all bolts.
Tools required
Crosshead screwdriver
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
M6 x 65mm Bolt x 15
A B C
D E F
G H I
Allen key x 2
M6 x 40mm Bolt & Nut x 12 M6 x 20mm Bolt x 8
Screw x 4 Curved washer x 31 Spring washer x 31
Strap x 5 Plastic Cap x 6

4
Important note: Do not fully tighten bolts at this stage.

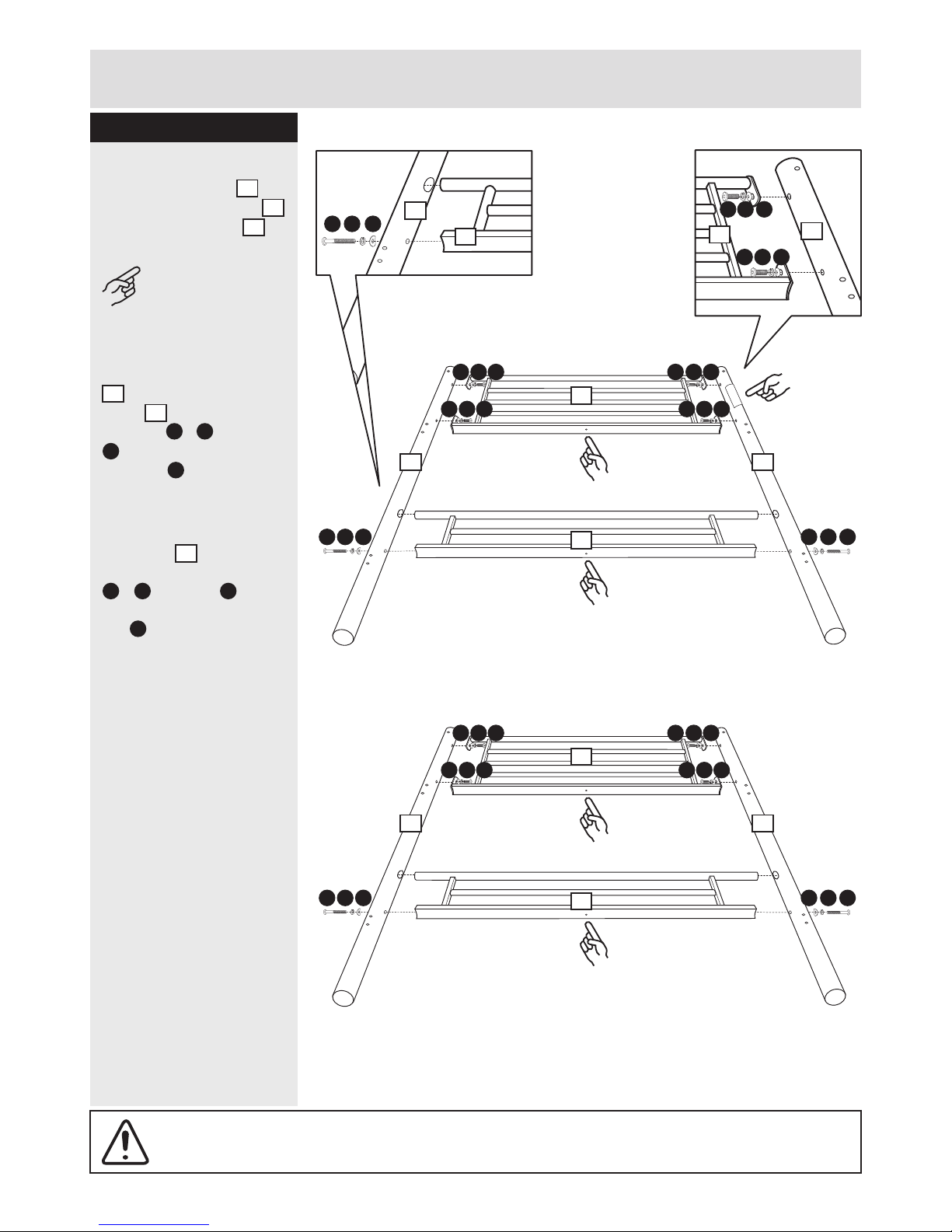

Assembling end panels
Position end posts ,
upper side safety rails
and lower side rails
as shown.
Ensure to position
the rails with
middle holes on
the bottom as
shown.
a: Attach lower side rail
into holes on end
posts and fix using
washers & and bolts
. Fasten bolts using
allen key but do not
fully tighten at this
stage.
b: Attach upper side
safety rail to end
posts & fix using washers
& and bolts .
Fasten bolts using allen
key but do not fully
tighten at this stage.
Repeat above steps to
assemble the other end
panel.
Assembly Instructions
Step 1
1
1
3
2
3
2
A
CFE
I
I
E F
a: b:
1
1
2
3
A EF
C F
C F
E
E
1
2
3
1
C
A EF AFE
C
F
F
E
E
C F
C F
E
E
warning
sticker
hole on
bottom
hole on
bottom
1
2
3
1
C
A EF AFE
C
F
F
E
E
C F
C F
E
E
hole on
bottom
hole on
bottom

5
1
4
A
E
B
B
E
F
F
Assembly Instructions
1
1
1
1
B
AFE
BE
F
B
A
EF
B
EF
1
1
4
4
1
1
B
AE
F
BE
F
B
A
EF
B
EF

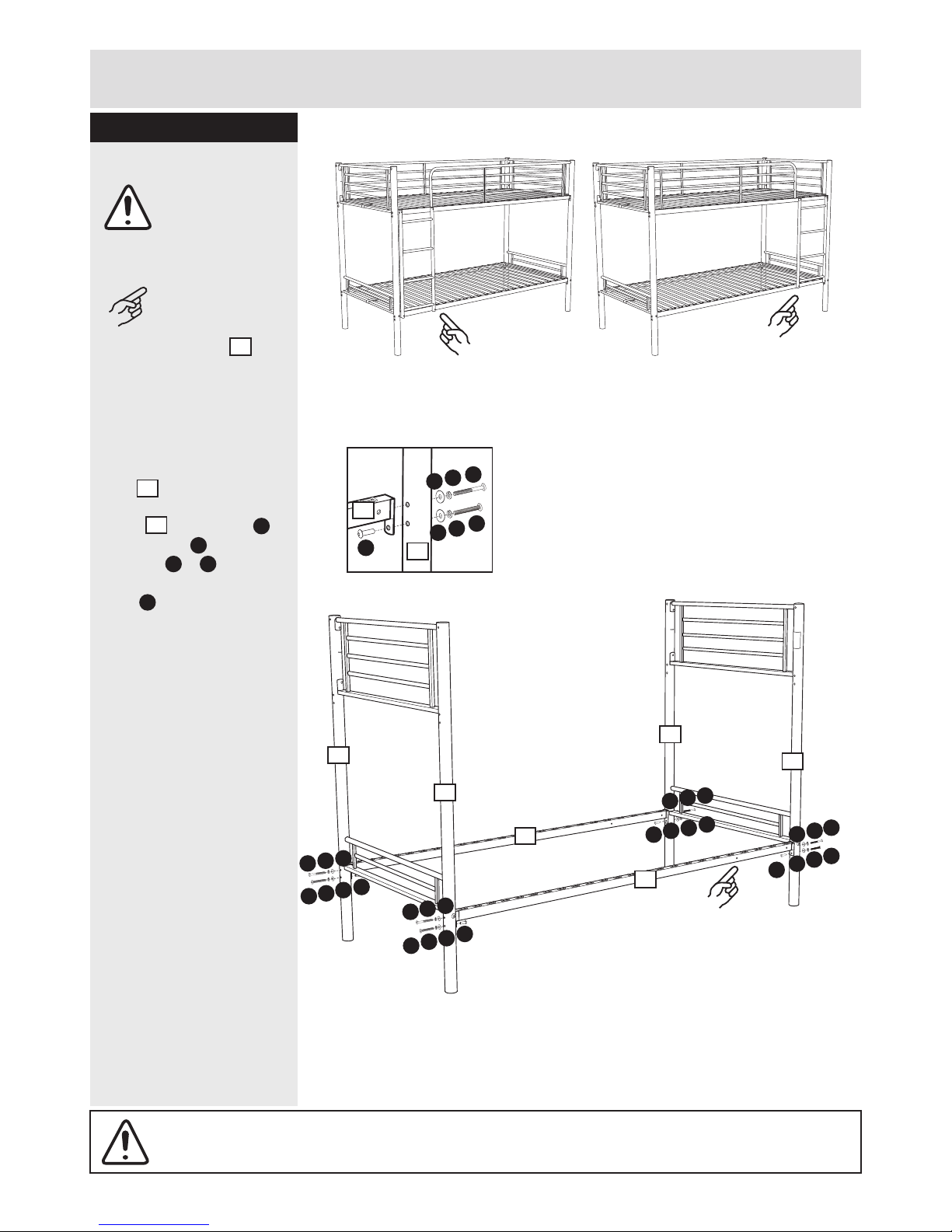

Step 2
Assembling lower rails
Important note:
Determine your
preferred upper
bunk bed entry
(left or right).
Ensure to position
holes (for ladder
assembly) on the
lower rails
according to your
preferred upper
bunk bed entry as
shown.
With the help of an
assistant position lower
rails to end panels as
shown and fix to end
posts using bolts ,
bolts & nuts and
washers & . Fasten
bolts & nuts using allen
keys but do not fully
tighten at this stage.
E F
A
B
4
4
1
I
holes
Left upper
bunk entry
Right upper
bunk entry
Important note: Do not fully tighten bolts at this stage.
nut
bolt

6
Step 4
Assembling upper back
safety rail
Repeat step 3 to
assemble the upper
back safety rail to
left-hand and
right-hand end panel as
shown.
6
A
EF
A
E
B
BEF
F
1
1
6
11
AFE
AFE
BFEB
Assembly Instructions
1
1
5
1
1
AE
F
AE
F
BE
FB
B
A
F
E
B
F
E
a: b: 1
5
B
AE
F
BE
F
5
1
AE
F
Step 3
Assembling upper front
safety rail
Ensure to position
holes (for ladder
assembly) on the
upper front safety
rail according
to your preferred
upper bunk bed
entry as shown.
a: With the help of an
assistant, attach upper
front safety rail to end
post using bolts &
washers & . Fasten
bolts using allen key
but do not fully tighten
at this stage.
b: Attach upper front
safety rail to end post
using bolts , bolt &
nuts and washers &
. Fasten bolts & nuts
using allen keys but
do not fully tighten at
this stage.
5
5
5
holes
1
1
A
A
I
E F
I
B
F
E
Important note: Do not fully tighten bolts at this stage.
nut
bolt

7
Assembly Instructions
Step 5
Assembling ladder
Important note:
Make sure to
correctly position
the ladder. The
arrow sticker on
the top edge must
be positioned at
the top rail as
shown.
Attach the ladder to
upper front safety rail
& lower rail and fix
using bolts and nuts
as shown. Fasten bolts
using allen keys but
do not fully tighten at
this stage.
5
8
4
B
I
Step 6
Assembling upper slats
Insert slats into holes
on upper safety rails
& . Lock it into
position by pushing firmly
down with your hand.
Note: Make sure
the slat is aligned
to the hole before
pushing it firmly
down.
7
5
67
5
6
5
8
B
B
5
4
8
BBB
B
B
B
BB
arrow up
nut
bolt
Important note: Do not fully tighten bolts at this stage.
5
7

Assembly Instructions
D
G
D
GD
D
G
G
2
3
7
7
2
3
2
2G
G
7
7
D

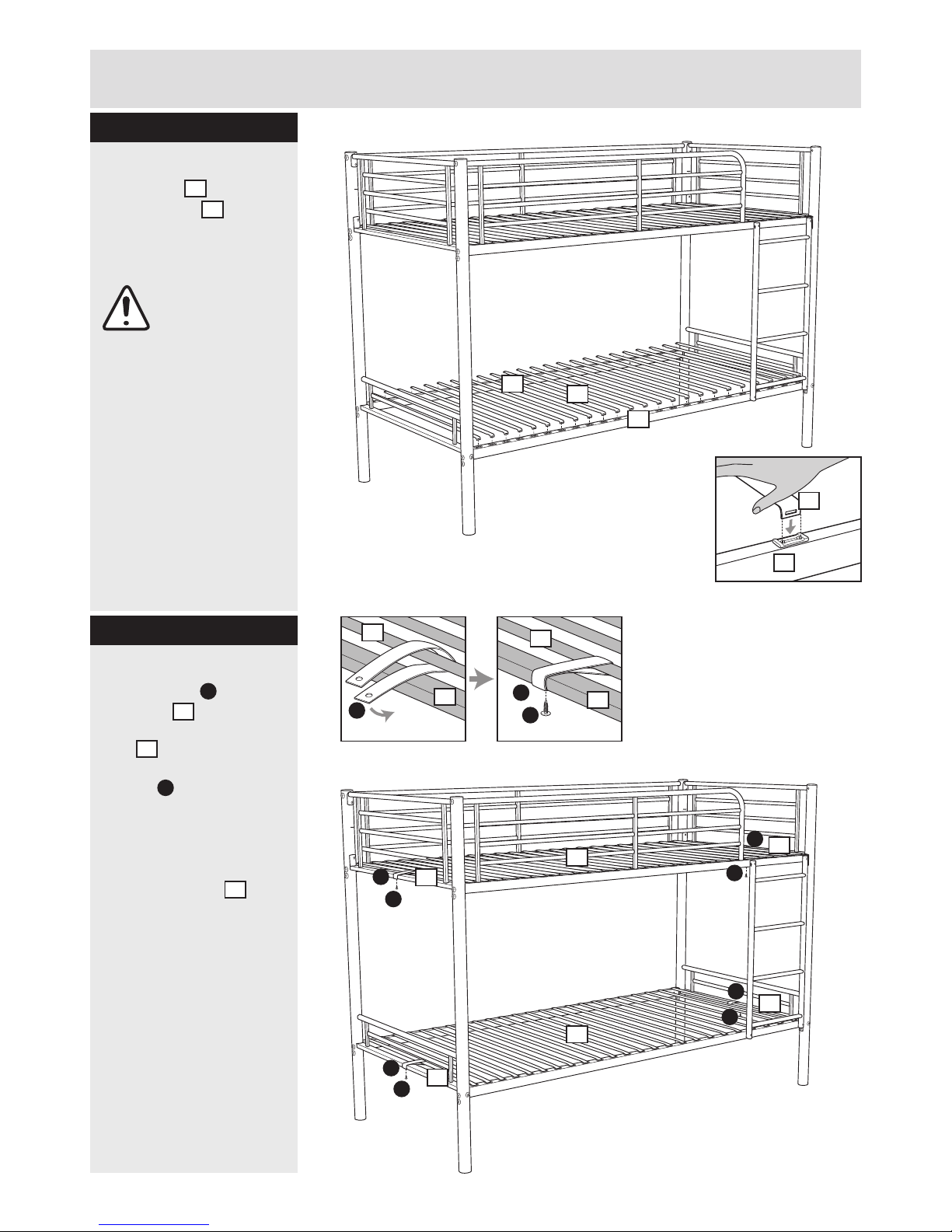

Securing slats
Attach straps around
end slats and bottom
tube of upper side safety
rails as shown and fix
through holes using
screws . Tighten
screws using a
crosshead screwdriver.
Repeat above steps to
attach other straps to
lower side rails .
Step 8
7
D
2
3
G
Step 7
4
4
7
8
4
7
Assembling lower slats
Insert slats into holes
on lower rails . Lock it
into position by pushing
firmly down with your
hand.
Note: Make sure
the slat is aligned
to the hole before
pushing it firmly
down.
7
4

A Guide to - Wall Mounting & Fixings
Revision 2 - 7/10/09
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist ftting in this case. For light
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when ftting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
plasterboard. The hammer fxing allows
it to be fxed to the wall rather than the
plasterboard. Always check the fxing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the ftting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the ftting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well ftted and are a tight ft in the
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fxings is the
responsibility of the installer.
1
4
H
HH
H
H
H
HH
1
Filling holes
Insert plastic caps into
holes on the top of end
post and lower rail
as shown.
Step 9
1 4
H
Step 10
Fixing to wall
This unit must be fixed to
a wall.
Move the bunk bed into
position on the wall.
Position the strap to
top post of upper back
safety rail to mark
fixing holes on the wall.
Remove the wall strap
then drill holes and insert
appropriate wall plugs.
Reposition strap and fix
using appropriate screws
for the wall.
Warning:
Before drilling,
check wall for
hidden pipes and
cables. Consult a
qualified
specialist if
unsure.
Assembly is complete.
G
6
Wall
G
6
Wall
G
6
Assembly Instructions
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
9
Important note: After all the parts are positioned, you
can now fully tighten all bolts fixed on previous steps.

A Guide to - Wall Mounting & Fixings
Revision 2 - 7/10/09
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist ftting in this case. For light
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when ftting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
plasterboard. The hammer fxing allows
it to be fxed to the wall rather than the
plasterboard. Always check the fxing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the ftting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the ftting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well ftted and are a tight ft in the
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fxings is the
responsibility of the installer.
