Aseptico ADU-08SX Sealant Express Manual

OPERATION and MAINTENANCE
INSTRUCTION MANUAL
P/ : 420280
Rev. G
ECO 13997
11/2016
WARRANTY
ADU-08SX
P.O. Box 1548
Woodinville, WA 98072
[phone] [phone]
www.aseptico.com
Aseptico warrants its products against defects in material or workmanship for a period of two (2) years,
from date of original invoice. Some handpieces are warranted for one year under the same conditions.
Other handpieces and expendable components, such as air turbines and light bulbs, are covered by
shorter warranty periods, or have no warranty. Aseptico's sole obligation under product warranty is (at its
sole option and discretion) to repair or replace any defective component or product in part or whole.
Aseptico shall be the sole arbiter of such action.
In the event of alleged defect under warranty, the purchaser is to notify Aseptico's Customer Service
Department promptly. Customer Service will provide instructions, usually directing that the product be
returned for service. Shipment to Aseptico and the cost thereof is always the responsibility of the
purchaser.
Accidental misuse, inappropriate installation, or failure to perform directed maintenance voids the
warranty. Deliberately defacing, modifying, or removing the serial number voids the warranty.
Aseptico does not assume, under this warranty, any risks or liabilities arising from the clinical use of its
products, whether or not such use involves coincidental utilization of products manufactured by others.

SYMBOL DEFINITIONS:
Type B
Equipment
Dangerous
Voltage
Attention - Consult
Accompanying
Documents
Type BF
Equipment
TABLE OF CONTENTS:
Introduction . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . .1
Setting Up the Unit . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . .2
Maintenance . . . . . . . . . . . . . . . . . . . .4
Cleaning . . . . . . . . . . . . . . . . . . . . . . .5
Warranty . . . . . . . . . . . . . .Back Cover
5
P.O. Box 1548
Woodinville, WA 98072
[phone]
[phone]
www.aseptico.com
CLEANING:
Surfa e Disinfe ting- Any external surfaces of
the ADU-08SX unit that are contacted during use
should be carefully wiped down with a disinfectant
between patients. The entire unit should be
thoroughly cleaned at least once a day.
Va uum System- After each patient, the air
vacuum system should be thoroughly rinsed by
evacuating clean water through the hose end
followed by air to clear all water from the tubes.
The entire system should be cleaned and
disinfected each time it is emptied. CAUTION: Use
only O -foaming cleansers in the vaccum lines.
Syringe tips should be changed between patients,
and used tips thoroughly cleaned and autoclaved
before reuse.

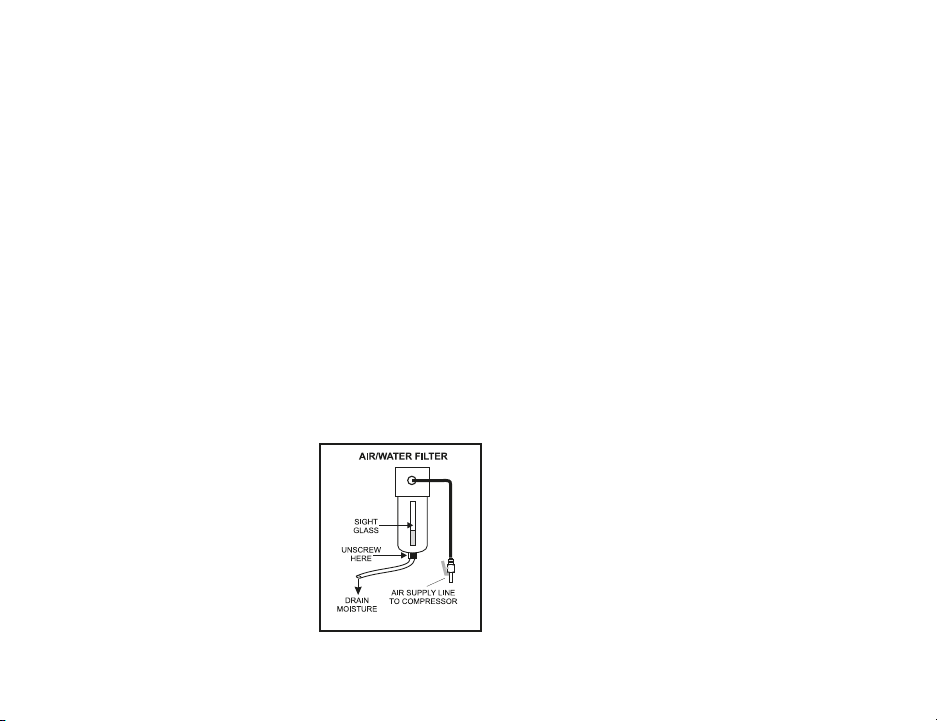

Air/Water Filter- The ADU-
08SX unit contains a built-in
air line filter. It removes
unwanted moisture, oil, dirt,
chips, and other contaminates
that may enter the air supply
line. To ensure clean dry air
to your unit, the filter bowl
must be drained regularly. If a
significant amount of water can be seen
through the sight glass on the moisture
collection bowl, the filter should be drained.
To drain, extend the drain line outside the
unit and unscrew the drain valve. Allow all
moisture to drain out, then retighten drain
valve.
Water Lines - Disinfect the water lines
weekly. Prepare a 1:10 bleach solution (1
part household bleach to 10 parts water).
Remove water reservoir and discard
residual water. Replace empty water
supply tank and air purge all waterlines. Fill
water supply tank with bleach solution. Run
bleach solution through all lines. Allow
bleach solution to stand in lines for 10
minutes. Remove water supply tank and
discard bleach. Flush water supply tank
and all lines thoroughly with clean water.
Air purge and leave lines dry until next
clinical use.

1
Performance, portability, and value combined with
Aseptico quality make a winning combination with the
ADU-08SX Sealant Express Delivery System.
The ADU-08SX is secured in a rugged injection
molded case and features an air/water syringe, high
volume vacuum system, self contained water system,
and an air line filter.
Congratulations!
This system is engineered to provide many years of
reliable service. Please read the instructions provided
in this manual to receive the best and longest service
from your Aseptico equipment.
Separate manuals may be provided to cover the
operation and maintenance of other accessories for
your unit.
PACKAGE CONTENTS
ADU-08SX Case and Unit
AA-21SX Vacuum System
TA-90D Air/Water Syringe
Water Bottle
Quick Grip Bar Clamp
Air Supply Line
Operation Instruction Manual
4

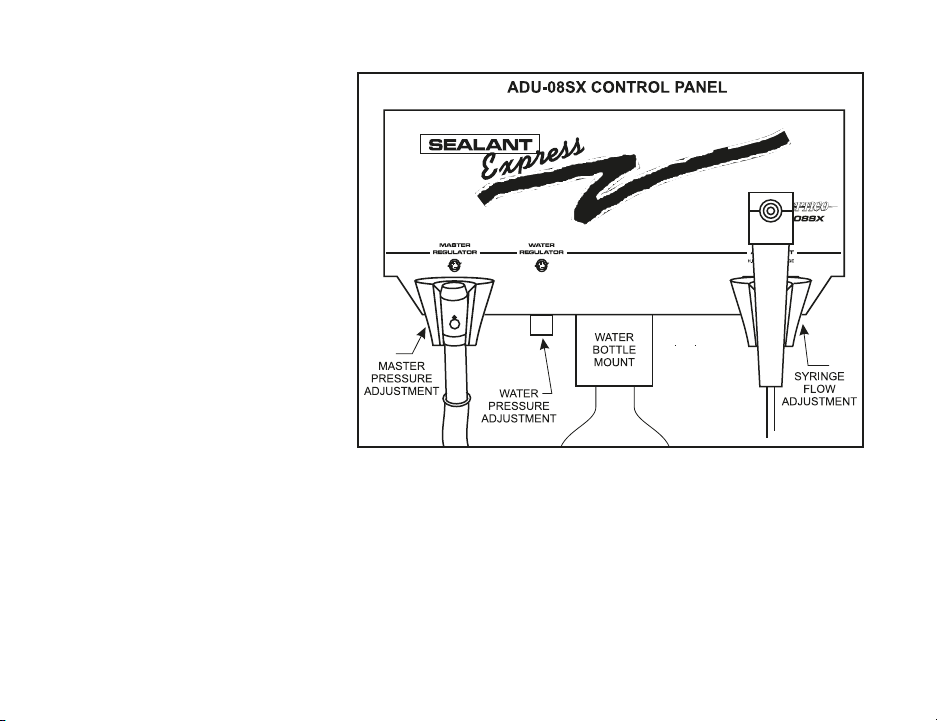

MAINTENANCE:
Master Pressure- The master
pressure regulator controls the
incoming supply pressure.
It is located behind the vacuum
holder, underneath the control
panel, inside the unit.
This regulator is factory set and
should not require further
adjustment. If further adjustment
is needed, turn knob clockwise to
increase pressure and counter
clockwise to decrease.
Water Pressure- The water
pressure regulator controls the
pressure inside the water supply
bottle. It is located to the left side
of the water bottle, underneath
the control panel, inside the unit.
If further adjustment is needed,
turn knob clockwise to increase
pressure and counter clockwise to
decrease.
Syringe Flow- The flow block controls the air flow to
the three-way air/water syringe. It is located directly
behind the syringe, underneath the control panel, inside
the unit. Using a small screwdriver blade, turn the right
adjusting screw clockwise to decrease air flow and
counterclockwise to increase.

2
SETTING UP THE UNIT:
The ADU-08SX unit may be set up independ-
ently or clamped to a table or counter top.
1. Unpack the ADU-08SX unit, and set on a
table top.
2. Open the unit case and remove the Quick
Grip bar clamp.
3. Position the unit close to the edge of the
table top. Expand Quick Grip bar clamp,
position over bottom edge of unit case and
under the edge of the table, then ratchet
trigger to compress and secure unit to
table.
4. Fill plastic water bottle with clean water and
screw into top mount beneath the unit
control.
5. Remove Air Vacuum System Assembly
from case and insert male quick disconnect
into air receptacle on the side of the case.
Hang hose end in holder on the front of the
unit.
6. Place the air/water syringe into the proper
holder on the front of the unit. Place the
disc foot control in a comfortable position
on the floor.
7. Extend 1/4" grey air supply line with quick
disconnect and plug into the AA-74
compressor, or a clean 50-100 PSI
compressed air supply.
OPERATION:
After the unit has been set up, you are ready
for operation as follows:
TA-90D Air/Water Syringe- Depress the right
button for air operation, and the left button for
water operation. Depressing both buttons will
create a mist. The syringe features quick-
change autoclavable tips: To remove a tip,
press on the locking collar surrounding the tip
socket and pull the used tip straight out of the
socket. To insert a new tip, press locking collar
and push tip into socket as far as it will go.
Release collar and gently tug on tip before
using to ensure that tip is securely locked into
socket.
3

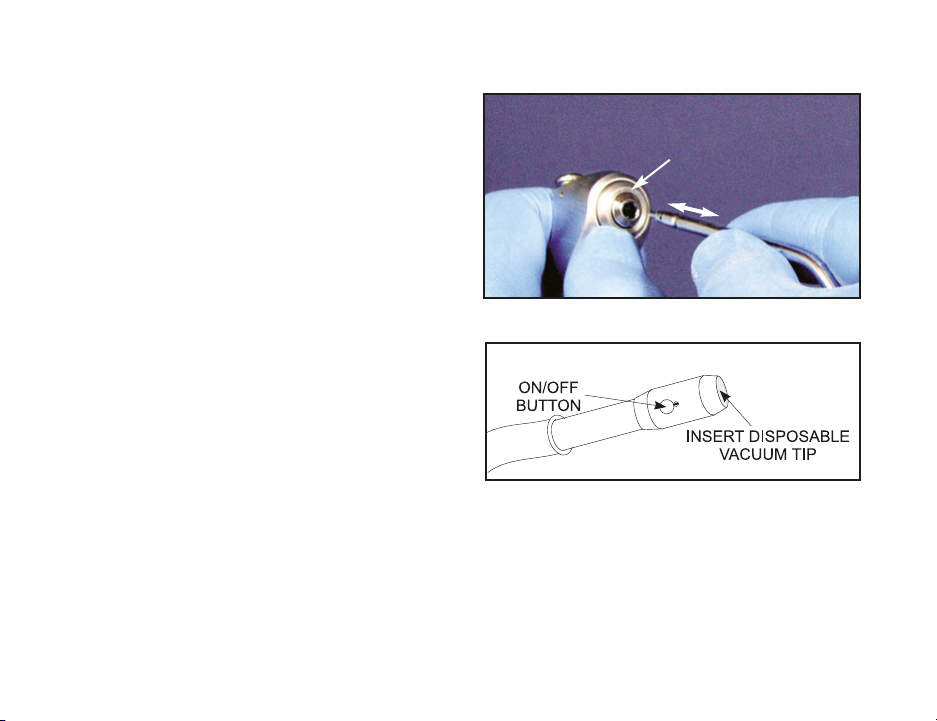

VACUUM HOSE
SYRINGE TIP REMOVAL
DEPRESS
LOCKING COLLAR
Syringe Tip Sterilization:
1) Remove contaminated syringe tip.
2) Remove all visible signs of contamination
before autoclaving.
3) Autoclave tip at 132° C (270° F) for ten minutes.
4) Sterilize between each patient use.
NOTE: Since only the tips can be auto-
claved, it is recommended that the air/water
syringe be bagged with a disposable, single-
use plastic sleeve between each patient use.
AA-21SX Air Va uum System- When the
unit is connected to a compressed air
source, and the vacuum bottle assembly is
attached to the air receptacle on the side of
the unit case, the Air Vacuum System should
be fully functional. Insert a standard
disposable vacuum tip into the hose end.
Depress button on hose end to activate
vacuum. Observe waste bottle while in use
and dispose of waste when bottle is
approximately 3/4 full.
Avoid waste flow-back during use by keeping
the O /OFF button depressed prior to
entering the oral cavity and until the hose
end has been removed from the patients
mouth. Clean the entire hose assembly and
waste bottle after each use by evacuating a
cleaner/disinfectant through the system and
thoroughly scrubbing entire assembly.

2
SETTING UP THE UNIT:
The ADU-08SX unit may be set up independ-
ently or clamped to a table or counter top.
1. Unpack the ADU-08SX unit, and set on a
table top.
2. Open the unit case and remove the Quick
Grip bar clamp.
3. Position the unit close to the edge of the
table top. Expand Quick Grip bar clamp,
position over bottom edge of unit case and
under the edge of the table, then ratchet
trigger to compress and secure unit to
table.
4. Fill plastic water bottle with clean water and
screw into top mount beneath the unit
control.
5. Remove Air Vacuum System Assembly
from case and insert male quick disconnect
into air receptacle on the side of the case.
Hang hose end in holder on the front of the
unit.
6. Place the air/water syringe into the proper
holder on the front of the unit. Place the
disc foot control in a comfortable position
on the floor.
7. Extend 1/4" grey air supply line with quick
disconnect and plug into the AA-74
compressor, or a clean 50-100 PSI
compressed air supply.
OPERATION:
After the unit has been set up, you are ready
for operation as follows:
TA-90D Air/Water Syringe- Depress the right
button for air operation, and the left button for
water operation. Depressing both buttons will
create a mist. The syringe features quick-
change autoclavable tips: To remove a tip,
press on the locking collar surrounding the tip
socket and pull the used tip straight out of the
socket. To insert a new tip, press locking collar
and push tip into socket as far as it will go.
Release collar and gently tug on tip before
using to ensure that tip is securely locked into
socket.
3
VACUUM HOSE
SYRINGE TIP REMOVAL
DEPRESS
LOCKING COLLAR
Syringe Tip Sterilization:
1) Remove contaminated syringe tip.
2) Remove all visible signs of contamination
before autoclaving.
3) Autoclave tip at 132° C (270° F) for ten minutes.
4) Sterilize between each patient use.
NOTE: Since only the tips can be auto-
claved, it is recommended that the air/water
syringe be bagged with a disposable, single-
use plastic sleeve between each patient use.
AA-21SX Air Va uum System- When the
unit is connected to a compressed air
source, and the vacuum bottle assembly is
attached to the air receptacle on the side of
the unit case, the Air Vacuum System should
be fully functional. Insert a standard
disposable vacuum tip into the hose end.
Depress button on hose end to activate
vacuum. Observe waste bottle while in use
and dispose of waste when bottle is
approximately 3/4 full.
Avoid waste flow-back during use by keeping
the O /OFF button depressed prior to
entering the oral cavity and until the hose
end has been removed from the patients
mouth. Clean the entire hose assembly and
waste bottle after each use by evacuating a
cleaner/disinfectant through the system and
thoroughly scrubbing entire assembly.

1
Performance, portability, and value combined with
Aseptico quality make a winning combination with the
ADU-08SX Sealant Express Delivery System.
The ADU-08SX is secured in a rugged injection
molded case and features an air/water syringe, high
volume vacuum system, self contained water system,
and an air line filter.
Congratulations!
This system is engineered to provide many years of
reliable service. Please read the instructions provided
in this manual to receive the best and longest service
from your Aseptico equipment.
Separate manuals may be provided to cover the
operation and maintenance of other accessories for
your unit.
PACKAGE CONTENTS
ADU-08SX Case and Unit
AA-21SX Vacuum System
TA-90D Air/Water Syringe
Water Bottle
Quick Grip Bar Clamp
Air Supply Line
Operation Instruction Manual
4
MAINTENANCE:
Master Pressure- The master
pressure regulator controls the
incoming supply pressure.
It is located behind the vacuum
holder, underneath the control
panel, inside the unit.
This regulator is factory set and
should not require further
adjustment. If further adjustment
is needed, turn knob clockwise to
increase pressure and counter
clockwise to decrease.
Water Pressure- The water
pressure regulator controls the
pressure inside the water supply
bottle. It is located to the left side
of the water bottle, underneath
the control panel, inside the unit.
If further adjustment is needed,
turn knob clockwise to increase
pressure and counter clockwise to
decrease.
Syringe Flow- The flow block controls the air flow to
the three-way air/water syringe. It is located directly
behind the syringe, underneath the control panel, inside
the unit. Using a small screwdriver blade, turn the right
adjusting screw clockwise to decrease air flow and
counterclockwise to increase.

SYMBOL DEFINITIONS:
Type B
Equipment
Dangerous
Voltage
Attention - Consult
Accompanying
Documents
Type BF
Equipment
TABLE OF CONTENTS:
Introduction . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . .1
Setting Up the Unit . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . . .2
Maintenance . . . . . . . . . . . . . . . . . . . .4
Cleaning . . . . . . . . . . . . . . . . . . . . . . .5
Warranty . . . . . . . . . . . . . .Back Cover
5
P.O. Box 1548
Woodinville, WA 98072
[phone]
[phone]
www.aseptico.com
CLEANING:
Surfa e Disinfe ting- Any external surfaces of
the ADU-08SX unit that are contacted during use
should be carefully wiped down with a disinfectant
between patients. The entire unit should be
thoroughly cleaned at least once a day.
Va uum System- After each patient, the air
vacuum system should be thoroughly rinsed by
evacuating clean water through the hose end
followed by air to clear all water from the tubes.
The entire system should be cleaned and
disinfected each time it is emptied. CAUTION: Use
only O -foaming cleansers in the vaccum lines.
Syringe tips should be changed between patients,
and used tips thoroughly cleaned and autoclaved
before reuse.
Air/Water Filter- The ADU-
08SX unit contains a built-in
air line filter. It removes
unwanted moisture, oil, dirt,
chips, and other contaminates
that may enter the air supply
line. To ensure clean dry air
to your unit, the filter bowl
must be drained regularly. If a
significant amount of water can be seen
through the sight glass on the moisture
collection bowl, the filter should be drained.
To drain, extend the drain line outside the
unit and unscrew the drain valve. Allow all
moisture to drain out, then retighten drain
valve.
Water Lines - Disinfect the water lines
weekly. Prepare a 1:10 bleach solution (1
part household bleach to 10 parts water).
Remove water reservoir and discard
residual water. Replace empty water
supply tank and air purge all waterlines. Fill
water supply tank with bleach solution. Run
bleach solution through all lines. Allow
bleach solution to stand in lines for 10
minutes. Remove water supply tank and
discard bleach. Flush water supply tank
and all lines thoroughly with clean water.
Air purge and leave lines dry until next
clinical use.

OPERATION and MAINTENANCE
INSTRUCTION MANUAL
P/ : 420280
Rev. G
ECO 13997
11/2016
WARRANTY
ADU-08SX
P.O. Box 1548
Woodinville, WA 98072
[phone] [phone]
www.aseptico.com
Aseptico warrants its products against defects in material or workmanship for a period of two (2) years,
from date of original invoice. Some handpieces are warranted for one year under the same conditions.
Other handpieces and expendable components, such as air turbines and light bulbs, are covered by
shorter warranty periods, or have no warranty. Aseptico's sole obligation under product warranty is (at its
sole option and discretion) to repair or replace any defective component or product in part or whole.
Aseptico shall be the sole arbiter of such action.
In the event of alleged defect under warranty, the purchaser is to notify Aseptico's Customer Service
Department promptly. Customer Service will provide instructions, usually directing that the product be
returned for service. Shipment to Aseptico and the cost thereof is always the responsibility of the
purchaser.
Accidental misuse, inappropriate installation, or failure to perform directed maintenance voids the
warranty. Deliberately defacing, modifying, or removing the serial number voids the warranty.
Aseptico does not assume, under this warranty, any risks or liabilities arising from the clinical use of its
products, whether or not such use involves coincidental utilization of products manufactured by others.
