Aseptico ALU-40TC Manual

OPERATION AND MAINTENANCE
INSTRUCTION MANUAL
ALU-40TC
PORTABLE
DENTAL LAMP
ALU-40TC
PORTABLE
DENTAL LAMP

i.
TABLE OF CONTENTS:
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . . .1
Safety Precautions . . . . . . . . . . . . . . . . . . . .2
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Maintenance . . . . . . . . . . . . . . . . . . . . . . . 6-7
Parts Lists & iagrams:

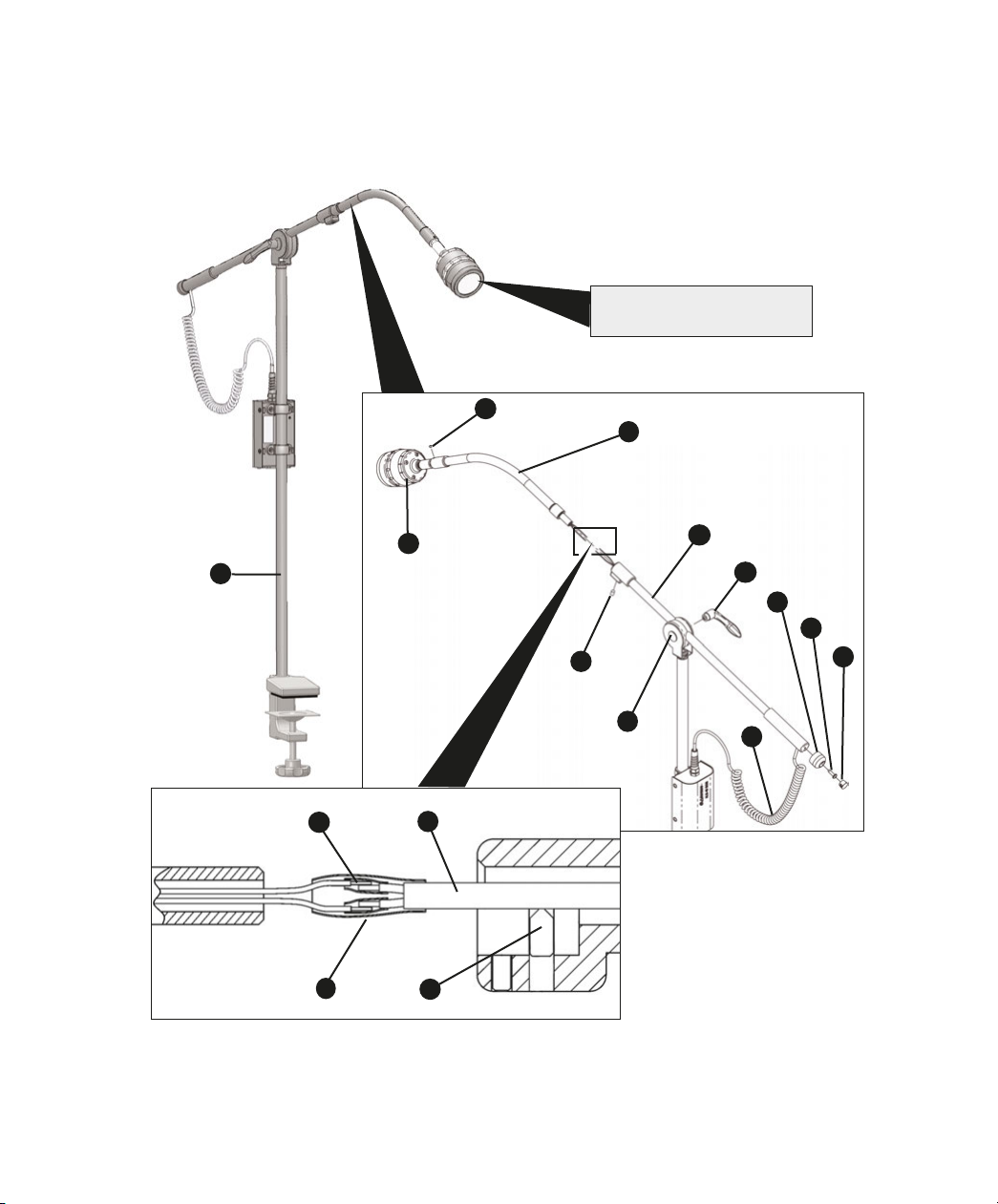

• Figure-9 Lamp Boom . . . . . . . . . . . . . . .8

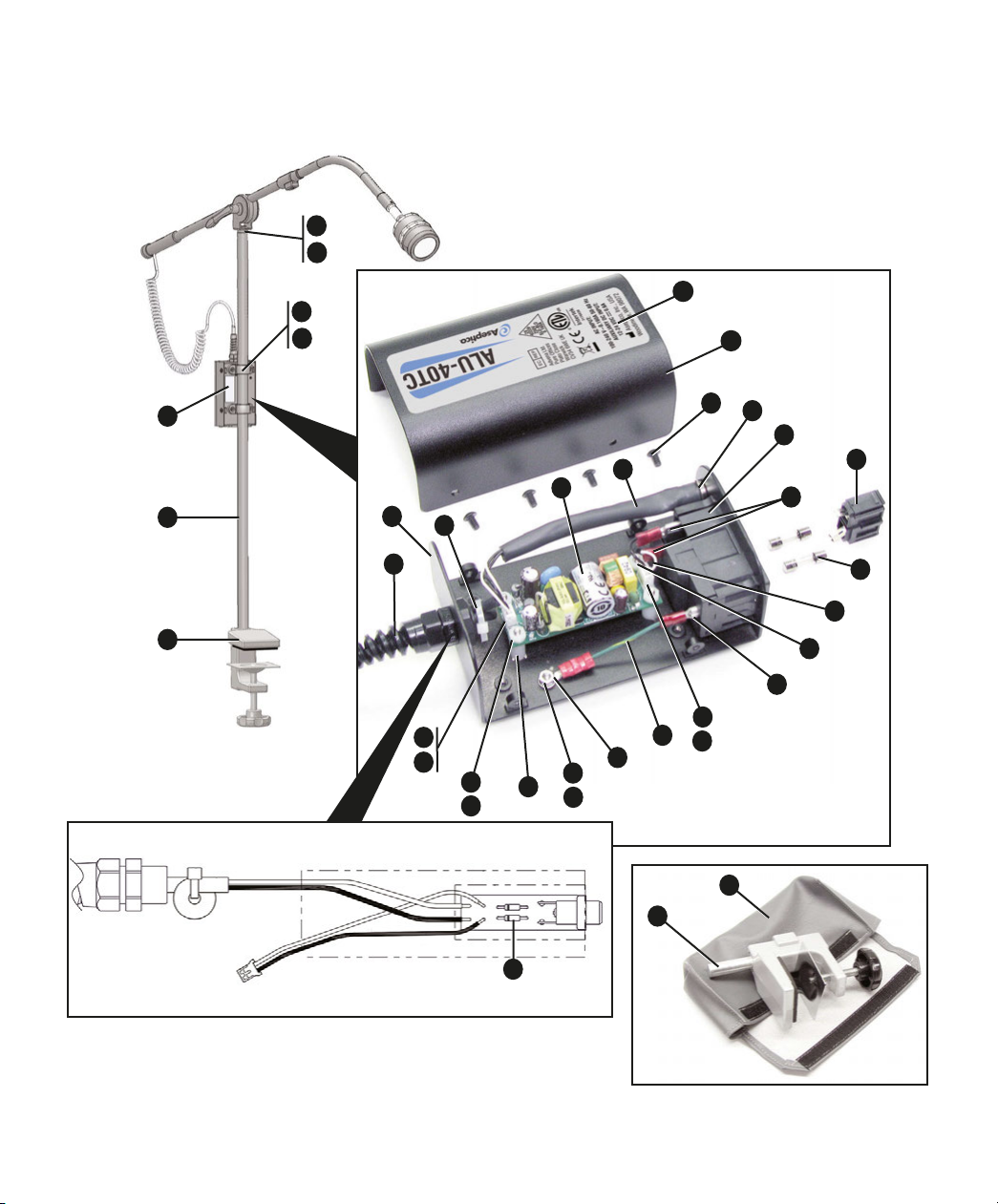

• Figure-10 Lamp & Pwr Supply . . . . . . .10

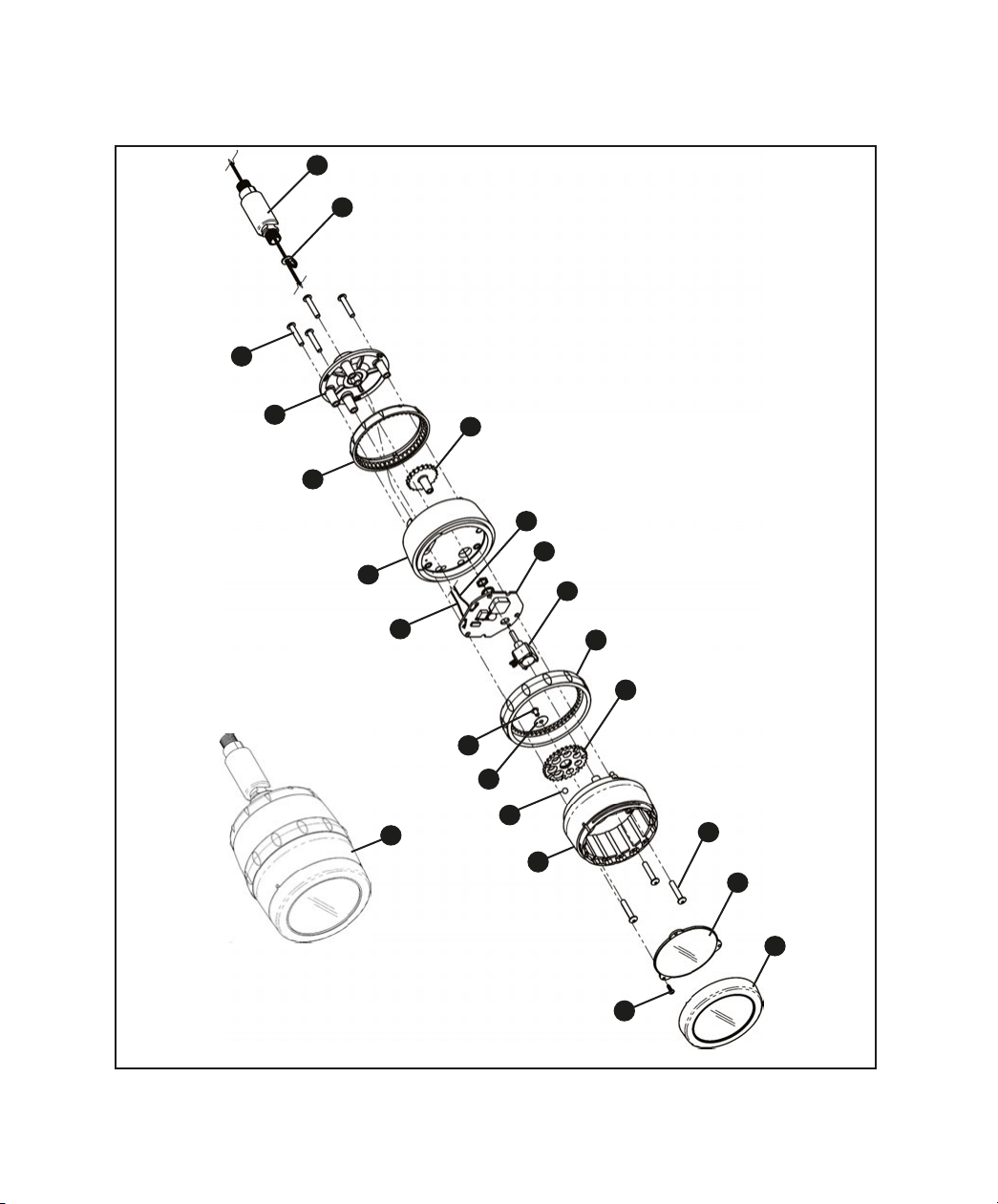

• Figure-11 Lamp Head . . . . . . . . . . . . .12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . .14
Specifications . . . . . . . . . . . . . . . . . . . . . . . .15
Symbol efinitions . . . . . . . . . . . . . . . . . . .16
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .17
P.O. Box 1548 • Woodinville, WA 98072
8333 216 th Street S.E. Woodinville, WA 98072
International [phone] • Toll Free [phone]
www.aseptico.com • [email protected]
INFORMATION CONCERNING THE ACCURACY AN
PRECISION OF THIS PRO UCT MAY BE OBTAINE
UPON REQUEST BY CONTACTING ASEPTICO AT THE
A RESS SHOWN ON THIS PAGE.
To prevent injury to people and damage to
property, please heed relevant warnings and
remarks. They are marked as follows:
WARNING: Serious injury or death
may result if ignored.
CAUTION: amage to property or
the environment may
result if ignored.
NOTE: Important additional
information and hints.
CONFORMS TO UL ST 60601-1;
CERTIFIE TO CSA ST C22.2 NO. 601.1

1
Your new Aseptico ALU-40TC Lamp is one of the finest operating lights available to the
dental and medical professions. The ALU-40TC uses an LE light source which
provides brilliant white light, reduced power consumption, and longer operating life.
The universal voltage input Lamp operates from 100VAC to 240VAC, 50 and 60Hz,
and it provides an auxillary C input that allows 12V and 24V battery operation in the
field. The ALU-40TC features a compact lamp head with adjustable intensity and
spotlight aperature controls, a flexible gooseneck, a heavy-duty table clamp, and a
padded carrying case.
Congratulations!
This System is engineered to provide many years of reliable service. Please read the
instructions provided in this manual to receive the best and longest service from your
Aseptico equipment.
Separate manuals may be provided to cover the operation and maintenance of
other accessories for your unit.
PACKAGE CONTENTS:
• Portable ental Lamp Assembly, PN: 120374-01
• Table Clamp, PN: 330590
• Color Filter, PN: 461974 (For use with light-activated composites.)
• Two 0.160A Spare Fuses, PN: 830046
• One Each 110V Power Cord, PN: 840107, and 220V Adapter, PN: 840115
• Soft Padded Carrying Case, PN: 410084
• Operation and Maintenance Manual, PN: 420923
• Setup Guide, PN: 420924
PURCHASED SEPARATELY:
• C Battery-Power Clip Assembly (Optional), PN: AA-40 C-BC
• 12Vdc Automobile Power Adapter Assembly (Optional), PN: AA-40 C-LP
• Color Filter 5-Pack (Optional), PN: AA-40FK
• Lens Replacement Kit (Optional), PN: AA-40LK, Includes:
- Fresnel Lens, PN: 461935
- Color Filter, PN: 461974
- Lens Cover, PN: 461936
- Torx Key, PN: 490140 (For removing Fresnel Lens)
- Three (3) Torx Screws, PN: 510727 (For mounting Fresnel Lens)

2
SAFETY PRECAUTIONS:
Aseptico accepts no liability for direct or consequential injury or damage resulting from improper
use, arising in particular through the non-observance of the operating instructions, or improper
preparation and maintenance of this product.
CAUTION: Use for intended purposes only. Failure to observe the operating instructions may
result in the patient or user suffering serious injury or the product being damaged,
possibly beyond repair. Before using this product, make sure that you have studied
and understood the operating instructions.
CAUTION: Use of other Lamp filters or accessories from third-party manufacturers is the sole
responsibility of the user.
CAUTION: All repairs to the LE Assembly, Boom Arm, and Power Supply are to be performed
by authorized Aseptico service personnel only.
WARNING: o not install where there is a risk of an explosion. The ALU-40TC is not intended
for operation in the presence of flammable anesthetics or gases.
CAUTION: Connect AC power supply mains cable to a properly grounded outlet only.
CAUTION: The ALU-40TC Lamp is sensitive to shock and may be damaged if dropped or
impacted against a hard surface.
WARNING: o not disassemble or alter the Lamp's LE , Boom Arm, or Power Supply
subassemblies.
CAUTION: It is recommended to always have the patient wear darkened eyewear during
dental procedures. Avoid looking directly into the LE when Lamp is turned on.
CAUTION: If the Lens Cover and/or acrylic Fresnel Lens on the Lamp Head needs to be
cleaned, use reagent-grade isopropyl alcohol, professional lens cleaning solution, or
de-ionized water with a small amount of dish soap - do not use other solvents as
they might adversely react with the Lens materials.
CAUTION: The ALU-40TC is designed to be mounted onto a table or support structure. The
table or support structure must be strong enough to safely support the lamp.
To prevent injury to people and damage to property, please heed relevant warnings and
remarks. They are marked as follows:
WARNING: Serious injury or death may result if ignored.
CAUTION: amage to property or the environment may result if ignored.
NOTE: Important additional information and hints.

3
1. Remove the ALU-40TC Lamp Assembly
and accessory pouch from the carrying
case. Remove the Table Clamp from the
pouch and turn the adjustment knob on
the bottom counterclockwise to open its
jaws (max. opening: 1.5 in. / 3.81 cm).
Slip the open Clamp over the edge of a
table or other support structure with the
Lamp mounting stud pointing upward.
Secure the Clamp to the table/structure
by tightening the adjustment knob
clockwise against the bottom side of the
table/structure. Hand tighten only.
I PORTANT: The table or support
structure must be strong enough to safely
support the Lamp Assembly.
Slide the Lamp’s vertical post downward
overtop the mounting stud on the Clamp
until the post seats firmly against the
flange on the stud.
2. Loosen the boom adjustment handle and
extend boom to desired length and/or
pivot the lamp head to the desired
operating position. Tighten handle to
secure the boom in place.
SETTING UP THE UNIT:

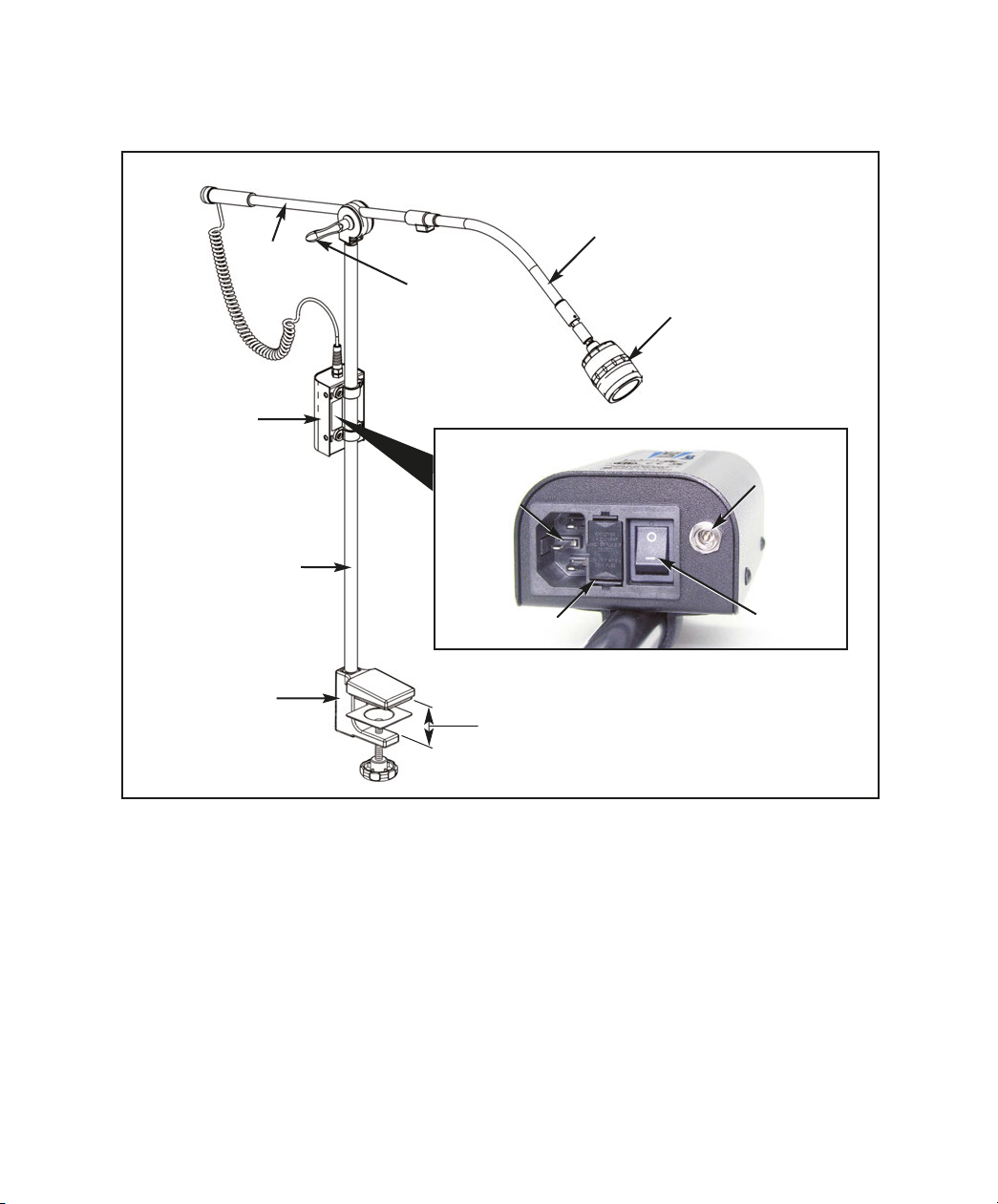

Fig. 1 - System Components
POWER
SUPPLY
VERTICAL POST
FLEXIBLE GOOSENECK
LA P HEAD
w/ADJUSTABLE
CONTROLS
BOO
ADJUST ENT
HANDLE
LA P
BOO
AC POWER
CONNECTOR
ON/OFF
SWITCH
DC POWER
CONNECTOR
FUSE
CO PART ENT
Fig. 2 - Power Supply - Bottom View
TABLE
CLA P Adjusta le, up to 1.5"
(3.81 cm) Max. Open

4
3. Attach power cord to receptacle on
bottom of power supply housing (see
Figure 2, page 3) and plug cord into a
grounded electrical outlet. NOTE: The
ALU-40TC Lamp features auto-sensing,
global voltage compatibility for 100VAC,
115VAC, 230VAC, and 240VAC at 50Hz
and 60Hz. The fuses provided are correct
for these line voltages. NOTE: A USA
style 110V power cord and 220V adapter
are shipped with the unit. Power plug
adapters for the specific country of usage
may need to be purchased separately.
Optional DC Power:
If the power source is 12V C or 24V C,
use the optional C Battery Clip or
Adapter Assemblies (see Figure 3) to
connect to the C source. Insert the
Assemblies' Power Plugs into the C
Power Jack located on the bottom of the
power supply housing (see Figure 2, page
3).
NOTE: When attaching the optional C
Battery Clips to the battery, connect the
red cable clamp to the positive (+)
terminal, and the black clamp to the
negative (-) terminal.
SETTING UP THE UNIT - Cont'd

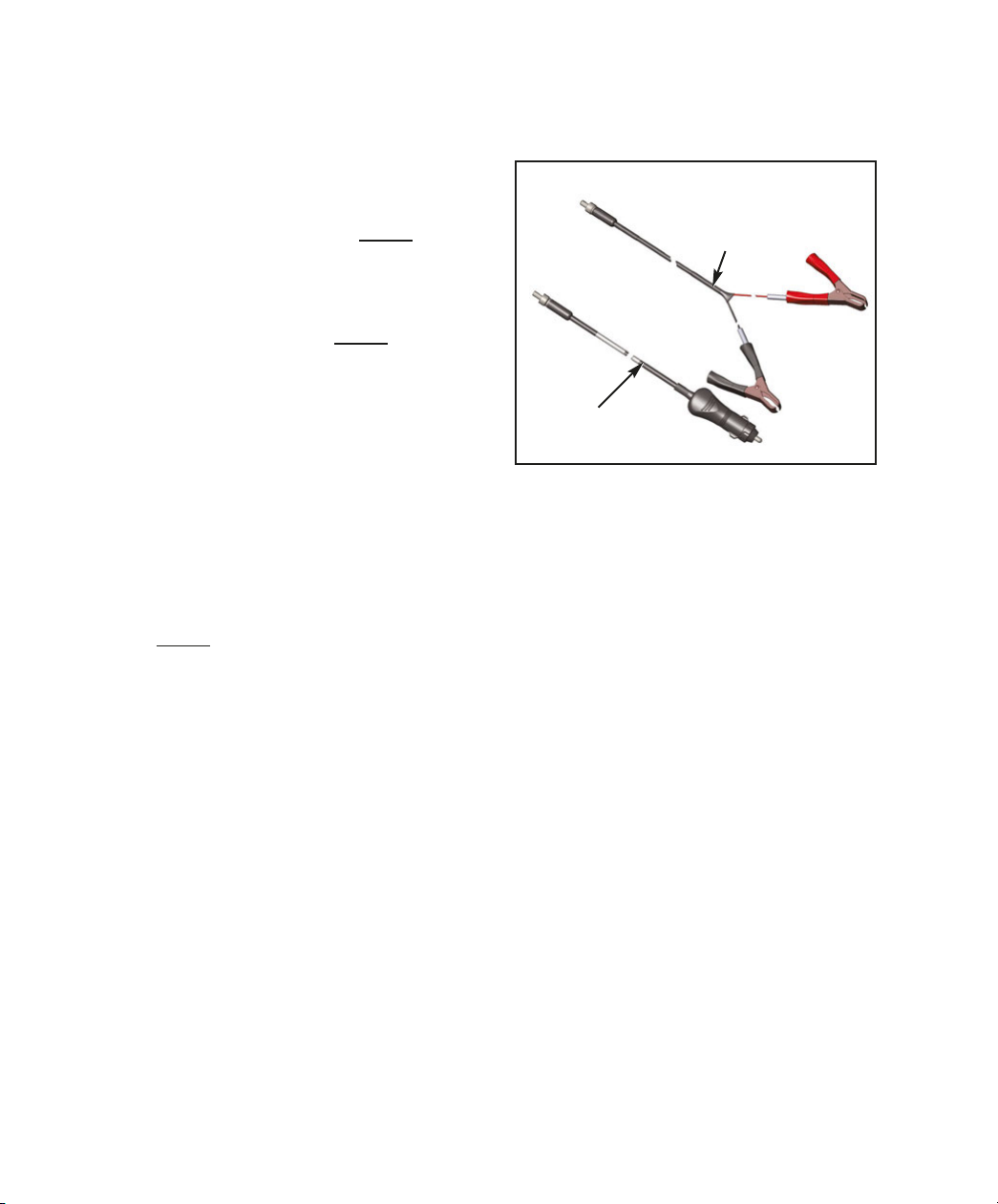

Fig. 3 - Optional DC Power Accessories
DC POWER PLUG
ASSE BLY
(Optional)
DC BATTERY CLIP
ASSE BLY
(Optional)

5
After the ALU-40TC Lamp has been set up,
the unit is ready to operate:
1. Ensure that the protective Lens Cover is
mounted onto the front of the Lamp Head
(see Figure 4).
I PORTANT: If applying light-activated
composites, it is recommended that the
supplied Color Filter, PN: 461974, be
used to filter the light from the ALU-40TC
Lamp. To install the Filter, remove the
Lens Cover and place the Filter against
the inside of the Cover (see Figure 5,
page 6). Center the Filter so that it
completely covers the transparent shield
on the Cover. Replace the Lens Cover.
2. Turn On/Off switch located on bottom of
power supply housing to On (—) position
(see Figure 2, page 3).
3. Adjust light intensity and spot size by
rotating the two adjustment rings on the
Lamp Head (see Figure 4):
a) LED Intensity Adjustment Ring:
Provides variable brightness control.
When viewed from the rear of the
Lamp Head, rotate Ring clockwise to
increase lamp intensity, or counter-
clockwise to decrease intensity. The
intensity adjustment range is from 0%
to 100%. NOTE: The total adjustment
range of the Intensity Ring covers
approximately 90° of rotation -- do not
OPERATION:
attempt to force the Ring past the
stops at each end of this range.
b) LED Aperture Adjustment Ring:
Allows user to select from seven
different beam aperture sizes. When
viewed from the rear of the Lamp
Head, rotate the Ring counterclock-
wise to increase beam width, and
clockwise to decrease width. NOTE:
When the Aperture Ring is rotated
continuously in one direction, the
Lamp will repeatedly cycle through the
seven aperture sizes.

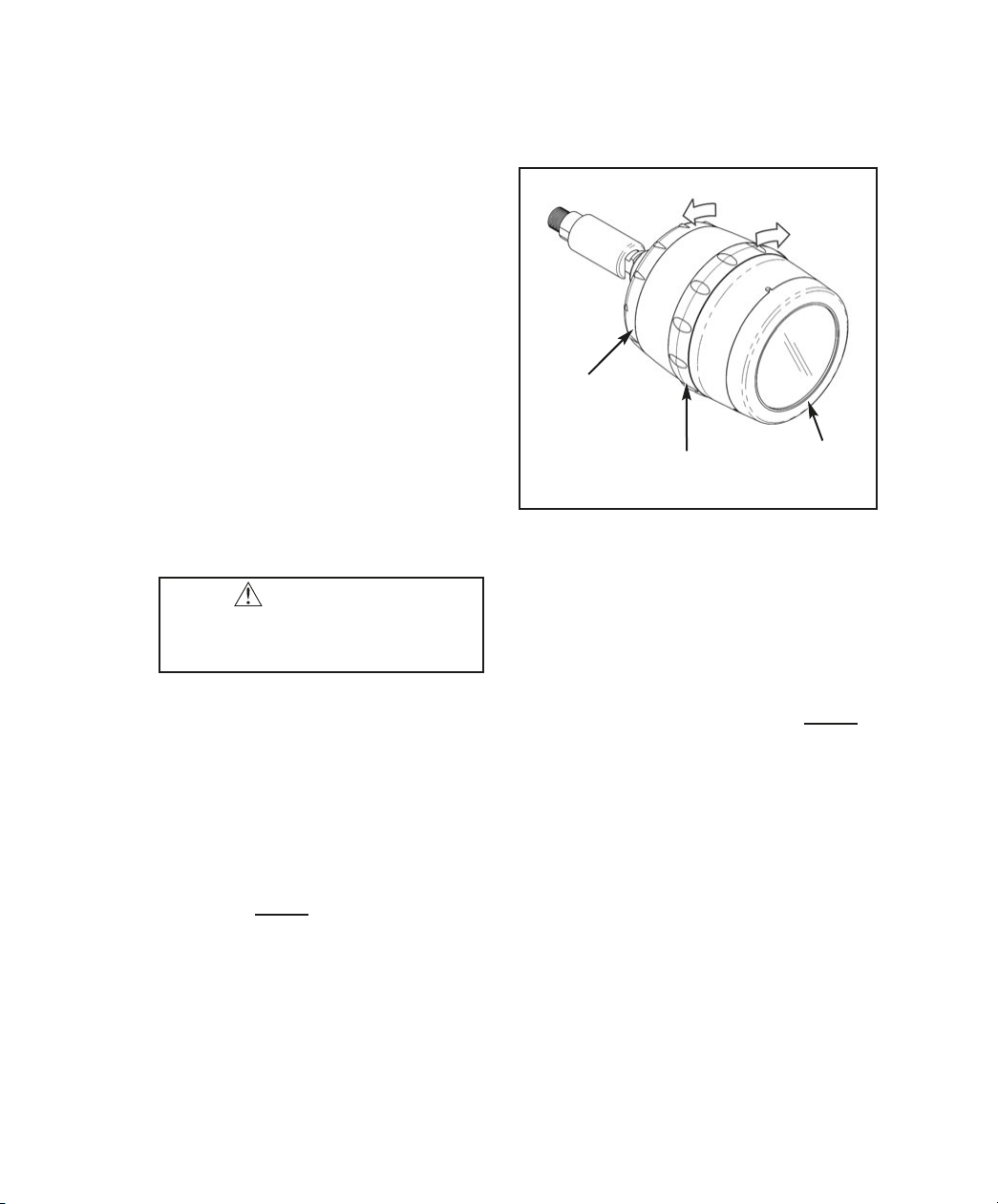

Fig. 4 - Illumination Controls
LED
INTENSITY
ADJUST ENT
RING
LED
APERTURE SIZE
ADJUST ENT RING
PROTECTIVE
LENS COVER
BRIGHTER
BEA WIDER
BEA
WARNING:
Avoid looking directly into LE lamp. Protect
patient with darkened eyewear when directing
light near patient's eyes.

6
NOTE: The Lens Cover, Color Filter,
Fresnel lens, Vertical Post, Table Clamp,
Fuses, and Power Cords are the only
user replaceable parts on the ALU-40TC
Lamp. All other Lamp components, such
as the LE Assembly, Power Supply, and
Boom Assembly are not field serviceable
and must be returned to Aseptico if
repairs are required.

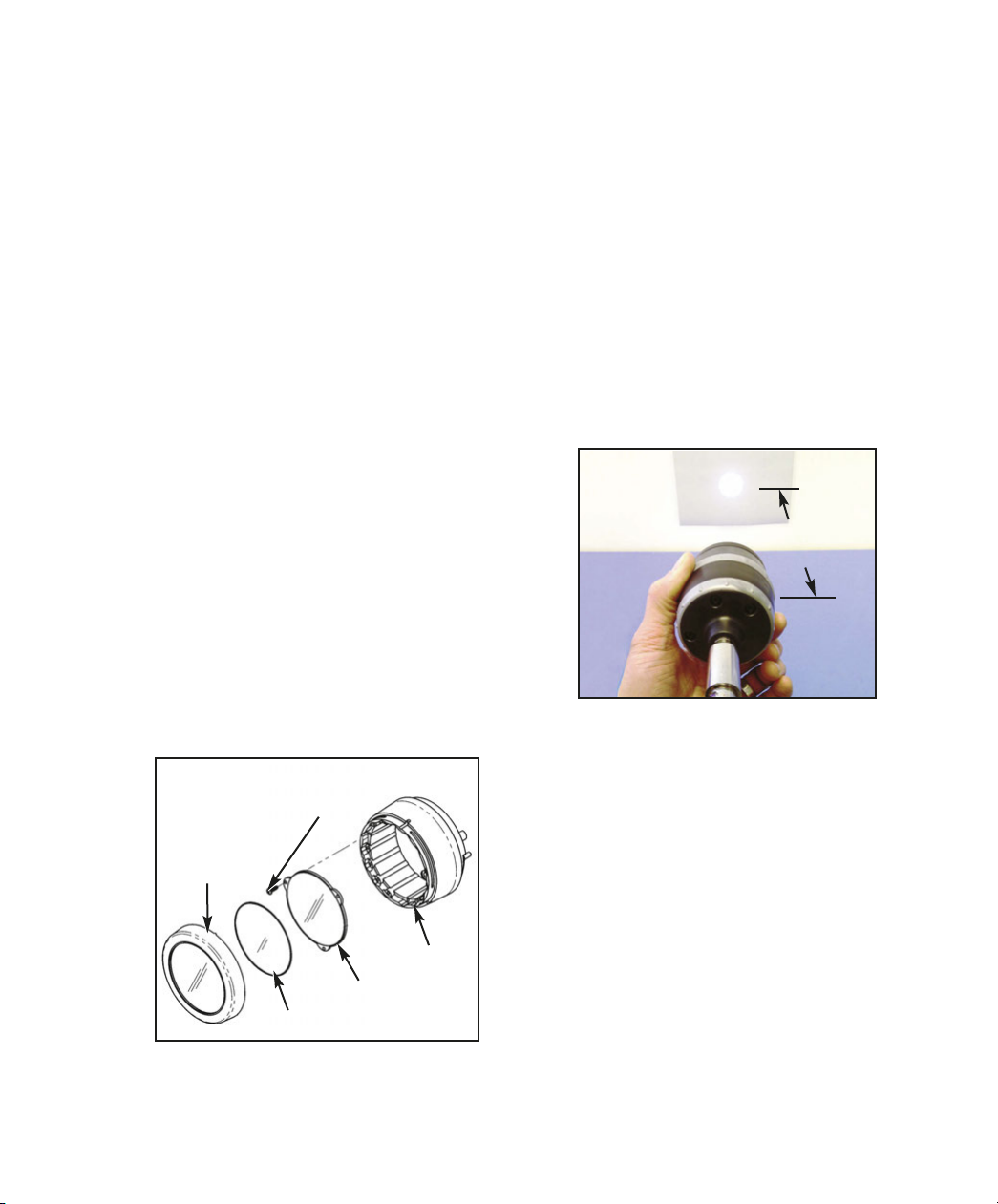

1. FRESNEL LENS REPLACE ENT:
Procure the optional Fresnel Lens
Replacement Kit, PN: AA-40LK, from
Aseptico. Follow these steps to replace
the Lens (see Figure 5):
a) Turn ALU-40TC power Off and unplug
Lamp from power source.
b) Pull Lens Cover (461936) off the front
of Lamp Head to expose the Fresnel
Lens (461935).
c) Use the Torx Key (490140) to remove
the three Torx Fasteners (510727). Set
Fasteners aside temporarily.
d) Remove old Fresnel Lens and replace
with new Lens, positioning new Lens,
rough side out, on the outer shelf on
the Front Housing (see Figure 7).
e) Attach Lens to Housing with the three
Fasteners from Step 1c above.
f) Replace Lens Cover.
2. LENS ADJUST ENT:
Follow these steps to adjust the position
of the Lens so that it emits the sharpest
beam (refer to Figures 6 & 7):
a) Position Lamp Head approximately
28" (71 cm) away from a flat test
surface. Turn Lamp On and observe
sharpness of projected light beam (see
Figure 5).
b) If outer edge of beam appears blurred
or undefined, reposition the Lens on
the next inboard shelf (see Figure 7) of
the Housing (refer to Step 1 for
complete instructions when detaching
and reattaching the Fresnel Lens).
c) Repeat Step 2b, moving the Lens
inward to the next shelf until the edge
of the beam shows optimum sharpness
and clarity. NOTE: There are a total of
five different Lens adjustment shelves
in the Front Housing (see Figure 7).
MAINTENANCE
Fig. 6 - Beam Adjustment
28" (71 cm)
Approx.
Fig. 5 - Fresnel Lens Replacement
PROTECTIVE
LENS COVER
FRESNEL
LENS
(FRONT
HOUSING)
FASTENER (X3)
(COLOR FILTER)
- If Required -

7
3. FUSE REPLACE ENT:
a) Remove the Fuse Holder from the
Power Inlet connector (see Figure 8).
b) Replace the two fuses in Fuse holder.
Replacement Fuses (2):
0.160A, 250V slo-blow fuse
(Fuse size: 5 x 20mm)
c) Reinstall the Fuse Holder.
NOTE: The ALU-40TC features auto-
sensing, global voltage compatibility.
The fuses indicated are correct for
100V-240V 50/60 Hz line voltages.
4. CLEANING:
a) Fresnel Lens:
Remove Lens Cover and Fresnel
Lens from Lamp Head. (I PORTANT:
Handle the Fresnel Lens by its edges
-- do not handle the active surface of
the Lens.) The acrylic Fresnel lens is
fragile and can be scratched. ust is
the most common contaminant and
should be removed using compressed
air. If additional cleaning is necessary,
apply a few drops of reagent-grade
isopropyl alcohol, professional lens
cleaning solution, or de-ionized water
with a small amount of dish soap, to a
lint-free lens tissue and gently wipe
Lens. Clean the Lens Cover using the
same method. Reinstall Fresnel Lens
and Lens Cover onto Lamp Head.
b) etal Components:
The metal exterior may be cleaned by
wiping with a soft cloth moistened with
mild detergent or disinfecting solution
such as isopropal alcohol.
c) Gooseneck & Electrical Cords:
Turn Lamp power Off. Wipe down the
gooseneck and electrical cords with a
cloth moistened with disinfecting
solution.
Turn the power off and unplug the
unit before following the steps below.
I PORTANT
The LE Assembly is a non-serviceable
component of the ALU-40TC Lamp.
Return the entire Lamp Assembly to
Aseptico if LE repairs are necessary.

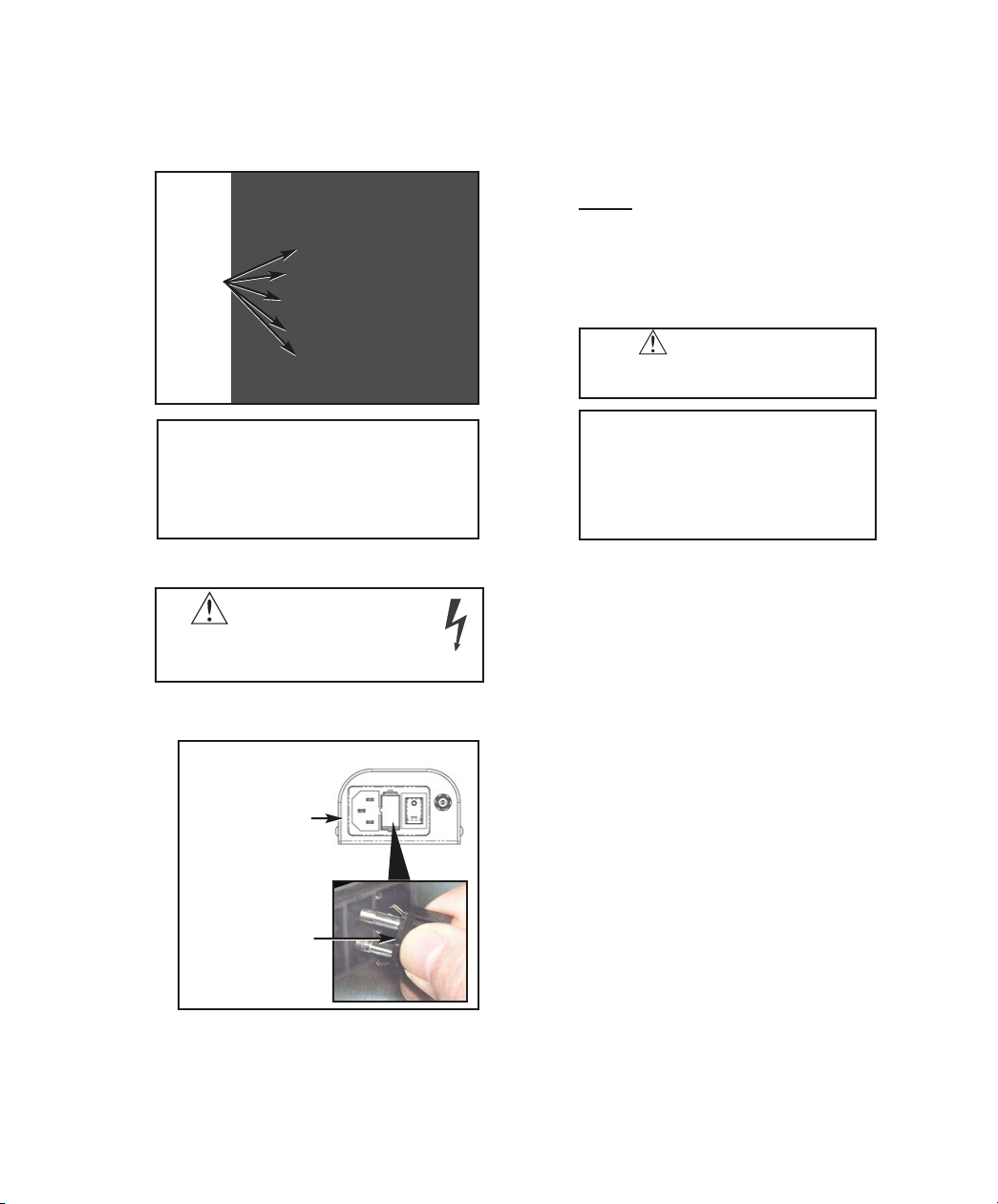

Fig. 7 - Lens Adjustment Shelves
SHELVES
(5)
WARNING
CAUTION:
• o not use excessive amounts of
fluid when cleaning.
• o not introduce any fluids to the
inside of the Lamp Head Housing
or the Power Supply Assembly.
WARNING:
Turn the power off and unplug the
unit before following the steps below.
Fig. 8 - Changing Fuses
ALU-40TC
POWER SUPPLY
(BOTTO VIEW)
FUSE HOLDER

8
ALU-40TC PARTS DIAGRAM
Figure 9 - Lamp Boom
ALU-40TC LA P HEAD:
Refer to Figure 11, page 12
1
2
3
4
5
6
7
9
11
10
8
12
13
5
14
11

9
PARTS LIST - Lamp Boom
Item Description Part Number Qty
FINAL ASSY, ALU-40TC 120374 1
LAMP HEA SUB ASSY 330355 1
SETSCREW 8-32X1/8 S/S CUP POINT 510278 1
GOOSENECK ALU-40TC ENTAL LAMP 461953 1
SETSCREW CONE PT HEX SOC M6 X 8MM BLK 510731 1
HEAT SHRINK 1/8 BLK 870118 1"
HEAT SHRINK 1/4 BLK 870120 2.5"
HOLE PLUG NYLON 1/2 IN BLACK 510202 1
M/S STNLS PH PHL 10-24 X 5/8 THR CUTTING 510732 1
EN CAP, MO IFIE BOOM, ALU-40 461959 1
CABLE COILE 2 CON UCTOR ALU-40TC 870319 1
HAN LE CLAMP LEVR, M8X1.0 FEM THR , BLK 850076 1
CLAMP, BOOM ALU-40TC 730646 1
BOOM, MO IFIE ALU-40TC 730645-01 1
1
2
3
4
5
6
7
8
9
10
11
12
13
Cont'd on page 11...
14

10
ALU-40TC PARTS DIAGRAM
Figure 10 - Lamp & Power Supply
15
16
20
23
24
42 19
18
37
21
16 33
36
28
35
34
26
27
28
23
25
32
31
29
30
40
38
39
45
43
44
41
17
46
47
46
22

11
BRACKET POLE POWER SUPPLY ALU-40TC 461945 2
C/S BTNSOC BLK 6-32 X 1/4 510009 8
OVERLAY POWER SUPPLY ALU-40TC 420921 1
TOP HOUSING POWER SUPPLY ALU-40TC 461943 1
TIE WRAP 4" PICO WHT 510137 1
STRAIN RELIEF 1/4 BLK FLEX 840003 1
HEAT SHRINK 1/2 BLK 870121 0.29'
IO E GENERAL 1N4004 1A 400V AXIAL O-41 880030 2
CONN CRIMP CONTACT 30-24 AWG 860266 4
CONN .079 HSG/POL 2 PIN 860267 1
CONN .079 HSG/POL 3 PIN 860268 1
WIRE PVC #24 STRAN E WHITE 870304-01 0.46'
WIRE PVC #24 STRAN E BLACK 870304-02 0.54'
TERM FEM CONN .187 X .032 22-16 860053 3
NUT HEX 6-32 STNLS (FOR GRN STU ) 510293 1
WASHER, INT STAR #6 (FOR GRN STU ) 510419 1
TERM INSUL RING #6 22-16 860004 1
WIRE PVC #22 GRN/YEL (54) 870260 0.21'
CONN JACK C POWER PCB MOUNT 860333 1
FUSE 5 X 20 SLO-BLO 0.160 AMP 830046 2
FUSE RAWER 2 POLE 840060 1
POWER INLET, FUSE SWITCHE 840059 1
POWER SUPLY 12V C 0.83A INPUT 85-264 VAC 840112 1
NUT NYLON 4-40 510554 4
WASHER FLAT NYLON .120I X.250 O X.0 510127 4
SPACER NYLON 1/4 RN X 7/16 L #6 510267 4
LABEL SERIAL NUMBER ALU-40TC 420295-13 1
BASE POWER SUPPLY ALU-40TC 461944 1
A APTER ALU-27 BOOM/G-NECKCMP 460119-08 1
A HESIVE LOCTITE 620 10Ml 490073 1
POST ALU-40TC 461991 1
CLAMP ASSY ALU-40TC LAMP 330590 1
POUCH TABLE CLAMP 461286 1
NS BUMPER .5 IA X .06 H BLK (USE AS NEE E ) 850077 2
NS COLOR FILTER ALU-40TC 461974 1
NS LINECOR REMOTE US BLACK 840107 1
NS A APTER US TO GERMAN GROUN E PLUG 840115 1
NS CASE CARRYING W/BLU LOGO 410084 1
PARTS LIST - Lamp & Power Suppl
35
37
38
39
40
36
Item Description Part Number Qty
15
16
17
18
19
20
21
22
23
24
25
27
28
29
30
31
32
33
34
26
41
(*NS = NOT SHOWN)
42
43
44
45
46
47

12
Figure 11 - Lamp Head
2
4
5
8
9
18
17
6
3
6
7
10
11
13
19 16
15
1
21
12
20
14

13
PARTS LIST - Lamp Head
Item Description Part Number Qty
LAMP HEA SUBASSEMBLY ALU-40TC 330355 1
LENS COVER ALU-40TC 461936 1
LENS FRESNEL ALU-40TC 461935 1
M/S M2-4 X 6 SIX LOBE THREA FORMING 510727 3
FRONT HOUSING ALU-40TC 461934 1
C/S BTNSOC BLK 6-32X3/4 510034 7
BALL STAINLESS 0.156 IA 510738 1
APERTURE WHEEL ALU-40TC 461932 1
C/S BTNSOC BLK 4-40X3/16 510488 1
WASHER SHIM .43 O X .115 I X .01 STNLS 510726 1
APERTURE A JUST RING ALU-40TC 461931 1
RES 100K TRIM POT 350V 1/2W 810430 1
WIRE #24 TEFLON 41/40 TINNE COPPER WHT 870314 2'
WIRE #24 TEFLON 41/40 TINNE COPPER BLK 870320 2'
PCB ASSY LAMP HEA ALU-40TC 330578 1
FTN UNIVERSAL JOINT M10-1.0 MALE THR S 730643 1
WASHER #6 NYL .140 I X .312 O X .032 THK 510573 1
REAR HOUSING PLATE ALU-40TC 461937 1
BRIGHTNESS A JUSTMENT RING ALU-40TC 461941 1
BRIGHTNESS A JUSTMENT GEAR ALU-40TC 461947 1
REAR HOUSING ALU-40TC 461933 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

14
TROUBLESHOOTING:
Problem:
Power is 'ON', but lamp does not
illuminate:
Light intensity appears dimmer than
normal:
Fuse is blown:
Correction:
- Turn intensity up.
- Replace fuses, 0.160 Amp, 5 x 20mm, 250V, slo-blow
- Check plug and electrical source.
- Turn intensity up.
- Clean Lens Cover and/or Fresnel Lens. (Note: Before
cleaning, turn power to Lamp ‘Off’.)
- Check plug and electrical source.
- LE Assembly might be damaged - Return entire Lamp
Assembly to Aseptico for repairs.
- Replace both fuses, 0.160 Amp, 5 x 20mm, 250V,
slo-blow

15
SPECIFICATIONS:
Lamp Height: 30" (76.2 cm)
Boom Length: 41" (104.1 cm)
Weight: 4.8 lbs (2.17 kg)
Table Clamp: Adjustable, up to 1.5"
(3.81cm) max. open
AC Input: 100-240V 0.160A
50-60 Hz
Auxiliary C Input: 12-24V 0.6A
Fuses: 0.160 Amp, 250V, slo-blow
(5 x 20 mm)
Consumption: 7.5 W max
uty Cycle: Continuous
LE Life: 10,000 Hrs minimum
(Lumen maintenance >70%
@ 30,000 Hrs - At worst
case operating temperature)
Lamphead Adjustments:
Intensity: 0% to 100% Adjustable
Aperture Size: 2-1/4" to 4-5/8" iameter
(5.72 cm to 11.74 cm)
Adjustable @ 27.56 in.
(70 cm) focal length
Beam Characteristics:
Color temperature: 6,500 Kelvin
Light Output: 1,500 ft-c @ 24" Typ
(16,145 lux @ 61 cm Typ)
Light istribution: 7 different aperture sizes
Nominal Working istances:
16" (40.6 cm) w/large
aperture, or 36" (91.4 cm)
w/small aperture
Light Source: LE Emitter
1013.3
hPa
697
hPa
10%
90%
10°C
(50°F)
45°C
(113°F)
OPERATING
TEMPERATURE
-20°C
(-4°F)
60°C
(140°F)
TRANSPORT & STORAGE
TEMPERATURE
Environmental Conditions:
Operating Temperature: 10 to 45°C (50 to 113°F)
Transportation & Storage Temperature:-20 to 60°C
(-4 to 140°F)
Relative Humidity: 10 to 90% non-condensing
Altitude: 0 to 3,048 meters (0 to 10,000 ft.)

16
SYMBOL DEFINITIONS:
Alternating current
angerous Voltage
Attention, consult
accompanying documents
Type B Equipment
o Not Throw Into Trash
Class II Equipment
Manufacturer
Authorized European
Representative
Protective Earth (Ground)
Temperature Limitation
Atmospheric Pressure Limitation
Humidity Limitation
Fuse Rating
0.160A
2X

17
Aseptico warrants this product against defects in material or workmanship for a period of
two (2) years, from date of original invoice. Some handpieces are warranted for one year
under the same conditions. Other handpieces and expendable components, such as air
turbines and light bulbs, are covered by shorter warranty periods, or have no warranty.
Aseptico's sole obligation under product warranty is (at its sole option and discretion) to
repair or replace any defective component or product in part or whole. Aseptico shall be
the sole arbiter of such action.
In the event of alleged defect under warranty, the purchaser is to notify Aseptico's
Customer Service epartment promptly. Customer Service will provide instructions,
usually directing that the product be returned for service. Shipment to Aseptico and the
cost thereof is always the responsibility of the purchaser.
Accidental misuse, inappropriate installation, or failure to perform directed maintenance
voids the warranty. eliberately defacing, modifying, or removing the serial number voids
the warranty.
Aseptico does not assume, under this warranty, any risks or liabilities arising from the
clinical use of its products, whether or not such use involves coincidental utilization of
products manufactured by others.
WARRANTY

P/N: 420923
Rev. E
ECO 14684
03/2019 PRINTE IN THE USA
P.O. Box 1548 • Woodinville, WA 98072
8333 216 th Street S.E. • Woodinville, WA 98072
[phone] • [phone]
www.aseptico.com • [email protected]
