Aseptico ADC-09CF User manual

ADC-09CF
Portable Hydraulic Dental Stool Kit
NSN: 6520-01-652-9171
OPERATION MANUAL
& PARTS LIST
ADC-09S
Portable Hydraulic Dental Stool

ADC-09CF / ADC-09S
2
TABLE OF CONTENTS:
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . .3
Setup Instructions . . . . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Disassembly & Repacking . . . . . . . . . . . . . . . . .6
Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Troubleshooting Guide . . . . . . . . . . . . . . . . . .10
Symbol Definitions . . . . . . . . . . . . . . . . . . . . . .10
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .11
Warranty & Repairs . . . . . . . . . . . . . . . . . . . . .11
Congratulations!
The Aseptico portable hydraulic dental stool
provides seating for a doctor or assistant during
field dentistry and medical treatments. The
adjustable seat height and padded upholstery
make this stool comfortable for extended use,
while its light weight ensures maximum portability.
The high-strength steel frame and rugged
construction ensure years of reliable service.
Please read the instructions provided in this
manual to receive the best and longest service
from your Aseptico equipment.
FEATURES:
• asy and quick set-up
• Adjustable seat height:
18.75” to 26.25” (47.6 to 66.7 cm)
• Maximum load capacity: 300 lb (136 kg)
• Quality vinyl covering
• Locking casters
• Disassembles into three (3) components for easy
storage and transport
• High-strength steel frame
• Made in the USA
ITEMS FURNISHED:
ADC-09CF
• Two (2) Portable Hydraulic Dental Stools
• Two (2) Soft padded cases
• One (1) Mil-spec hard shell case
• One (1) Operation Manual & Parts List
ADC-09S
• One (1) Portable Hydraulic Dental Stool
• One (1) Soft padded case
• One (1) Cardboard box
• One (1) Operation Manual & Parts List

ADC-09CF / ADC-09S
3
SAFETY PRECAUTIONS:
Aseptico accepts no liability for direct or consequential injury or damage resulting from improper use, aris-
ing in particular through the non-observance of the operating instructions, or improper preparation and
maintenance of this product.
WARNING: Use for intended purposes only. Failure to observe the operating instructions may result in
the user suffering serious injury. Before using this product, make sure that you have studied
and understood the operating instructions.
WARNING: Never sit on the edge of the stool seat -- always sit in the center of the seat.
CAUTION: Before using the Stool, ensure that the seat and base latches have securely locked the seat,
gas cylinder, and base components together.
CAUTION: Do not disassemble or alter the gas cylinder assembly.
CAUTION: All repairs are to be performed by authorized Aseptico service personnel only.
To prevent injury to people and damage to property, please heed relevant warnings and remarks. They
are marked as follows:
WARNING: Serious injury may result if ignored.
CAUTION: Damage to property or the environment may result if ignored.
NOTE: Important additional information and hints.

ADC-09CF / ADC-09S
4
SETTING UP THE STOOL:
1. Remove the stool components from the soft
case. Note that the Gas Cylinder is stowed on
the bottom of the Seat in a protective vinyl
sleeve. Place your hand under the wide (front)
edge of the Seat while lifting to keep the Gas
Cylinder from falling and causing injury.
2. Remove Gas Cylinder from vinyl sleeve and
place the small end in the socket on the bot-
tom of the Seat Assembly (Fig. 2). Lift slightly
to check that Seat Latch holds the Gas
Cylinder.
3. Turn Seat and Gas Cylinder Assembly over
and insert bottom of Gas Cylinder into socket
in center of Base. Straighten the Gas Cylinder
as required to have it seat all the way into the
Base then pull the ring on the Base Latch until
the Gas Cylinder drops in place; release the
Base Latch ring (Fig. 3).
4. Rotate the Backrest to the upright position (Fig
4).
5. Before using, lift the stool from the Seat to
check that all three components are latched
together (Fig. 5).
Fig.1 - Stoo Components
BAS
ASS MBLY
GAS
CYLIND R
ASS MBLY
S AT
ASS MBLY
Fig.2 - Attaching Cy inder to Seat
S AT
LATCH
BAS
LATCH
Fig.3 - Attaching Seat/Cy inder to the Base
Fig. 4 - Backrest Positioning
S AT
ASS MBLY
BAS
ASS MBLY
CYLIND R
ASS MBLY
Fig.5 - Test connections
LIFT FROM
S AT

ADC-09CF / ADC-09S
5

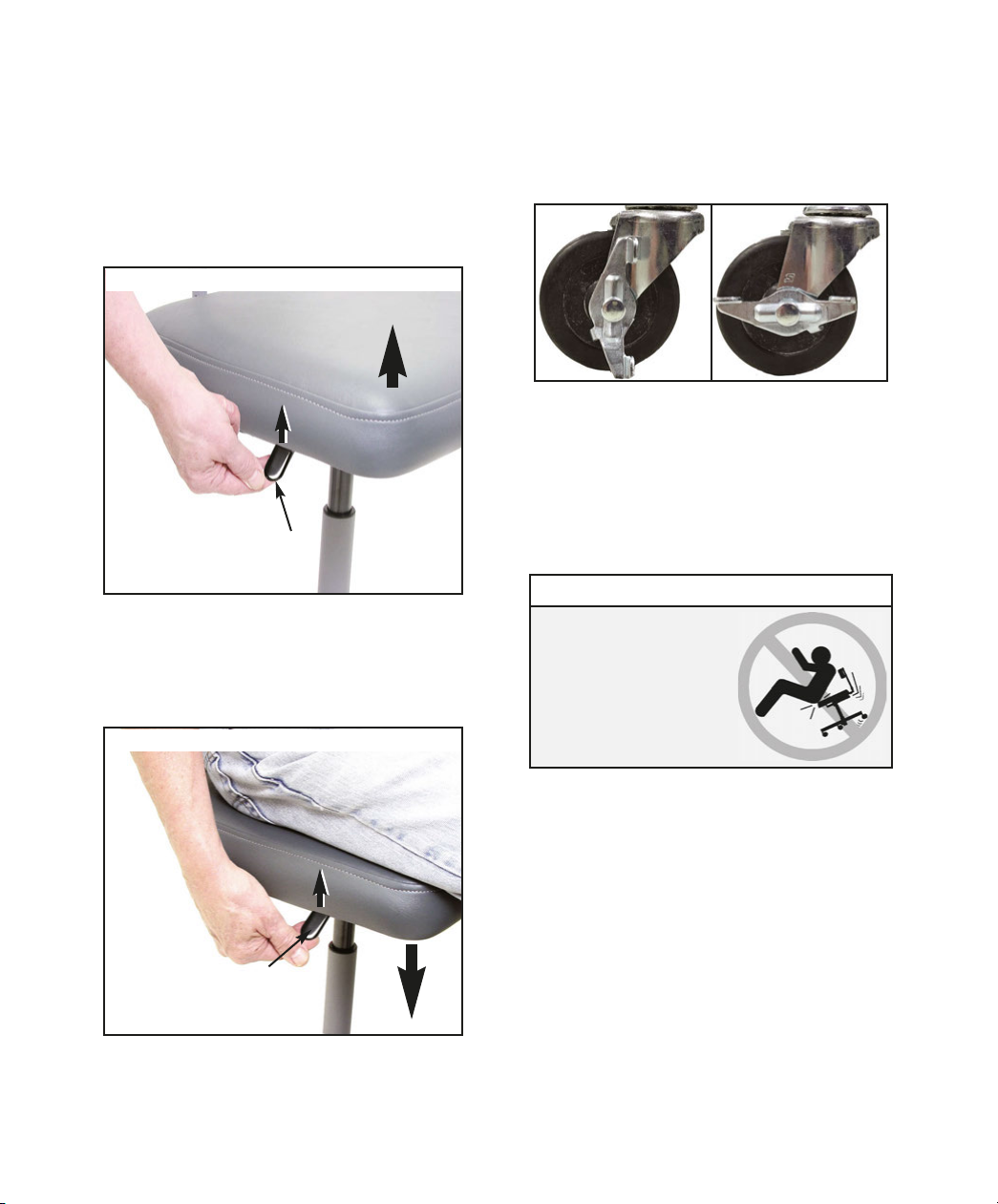

OPERATING THE STOOL:
1. RAISING THE SEAT:
Locate the Height Adjustment Lever under the
right-hand side of the seat (Fig. 6a). With the
Stool unoccupied, lift up on the Lever to raise
the seat to its desired height. Release the Lever
when the desired height is reached.
2. LOWERING THE SEAT:
Sit on the Stool and lift up on the Height
Adjustment Lever to lower the seat (Fig. 6b).
Release the lever when the seat reaches the
desired height.
3. LOCKING CASTERS:
Rotate the levers on the locking casters to the
vertical position to lock the casters (Fig 7a).
Rotate the levers to the horizontal position to
unlock the casters (Fig. 7b).
IMPORTANT: Always use the Stool on a hard
flat surface.
IMPORTANT: For maximum stability, the occu-
pant’s feet should be resting firmly on the floor
when making height adjustments to the stool.
WARNING: Never sit on the edge of the Stool -
always sit in the center of the Stool seat.
Fig.6a- Raising the Seat
H IGHT
ADJUSTM NT
L V R
Fig.6b- Lowering the Seat
H IGHT
ADJUSTM NT
L V R
Fig.7a Fig.7b
NEVER SIT ON THE
EDGE OF THE STOOL
SEAT - ALWA S SIT IN
THE CENTER OF THE
SEAT.
WARNING

ADC-09CF / ADC-09S
6

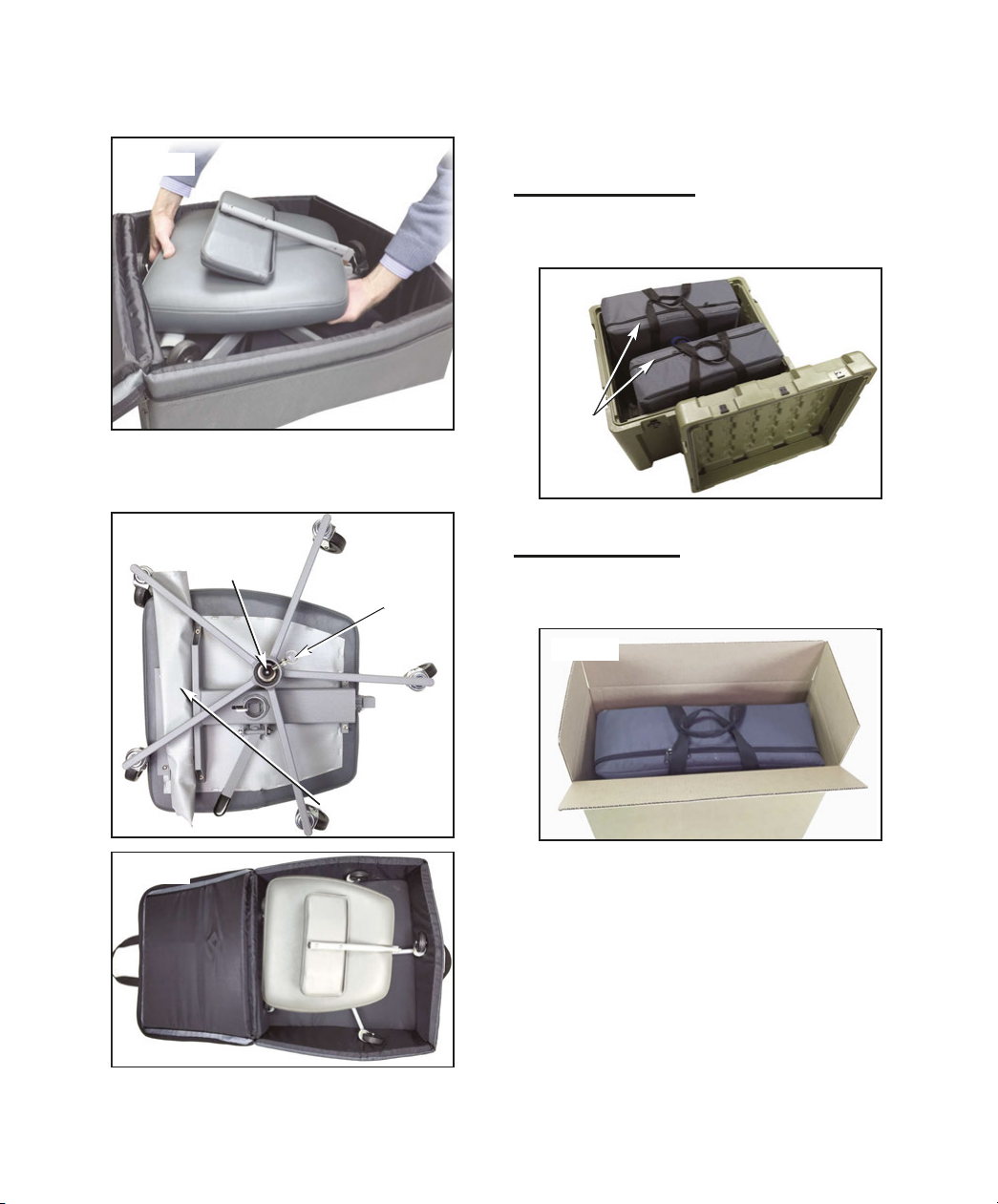

DISASSEMBLY & REPACKING:
1. Lower the Seat all the way down and fold the
Backrest down.
2. Pull the ring on Base Latch and lift Gas Cylinder
and Seat Assembly from Base (Fig. 8).
3. Turn Seat over, then pull back Seat Latch and
remove Gas Cylinder from Seat (Fig. 9).
4. Insert Gas Cylinder into vinyl pouch and place Gas
Cylinder into bracket on bottom of Seat. Orient the
Gas Cylinder so that ring on Gas Cylinder column
is held by notch in bracket (Fig. 10).
5. Place the Base in the soft case with the wheels
facing up and the Base Latch oriented in any posi-
tion XC PT the position indicated with an “X” in
Figure 11, to prevent the latch from hitting the seat
frame.
6. Hold the Gas Cylinder in place with one hand and
locate the cone-shaped Stud with the other hand
as shown in Figure 12.
Fig.9 - Removing Cy inder
PULL
LATCH
BACK
GAS
CYLIND R
Fig.10
Fig.11
BAS LATCH
OK
OK
OK
OK
Fig.8 - Removing Seat/Cy inder Subassemb y
GAS
CYLIND R
PULL
LATCH
RING
Fig.12
GAS CYLIND R
STUD

ADC-09CF / ADC-09S
7
7. Guide the Stud on the bottom of the seat into the
hole in the middle of the Base (Fig. 13).
8. All the stool components should fit together in the
soft case as shown in the bottom view (Fig. 14a)
and top view (Fig. 14b).
9. Pull soft case closed as required to assist zipper in
closing without strain. Soft bag is designed for a
snug fit to hold components of Stool firmly.
ADC-09CF ONL :
10.Pack two (2) Soft Cases into each Military Case
as shown in Figure 15.
ADC-09S ONL :
11.Repack the cardboard box as shown in Figure
16.
Fig.13
Fig.15
SOFT
CAS S
(X2)
Fig.14a
BAS LATCH
GAS CYLIND R
STUD
Fig.14b
Fig.16

ADC-09CF / ADC-09S
8

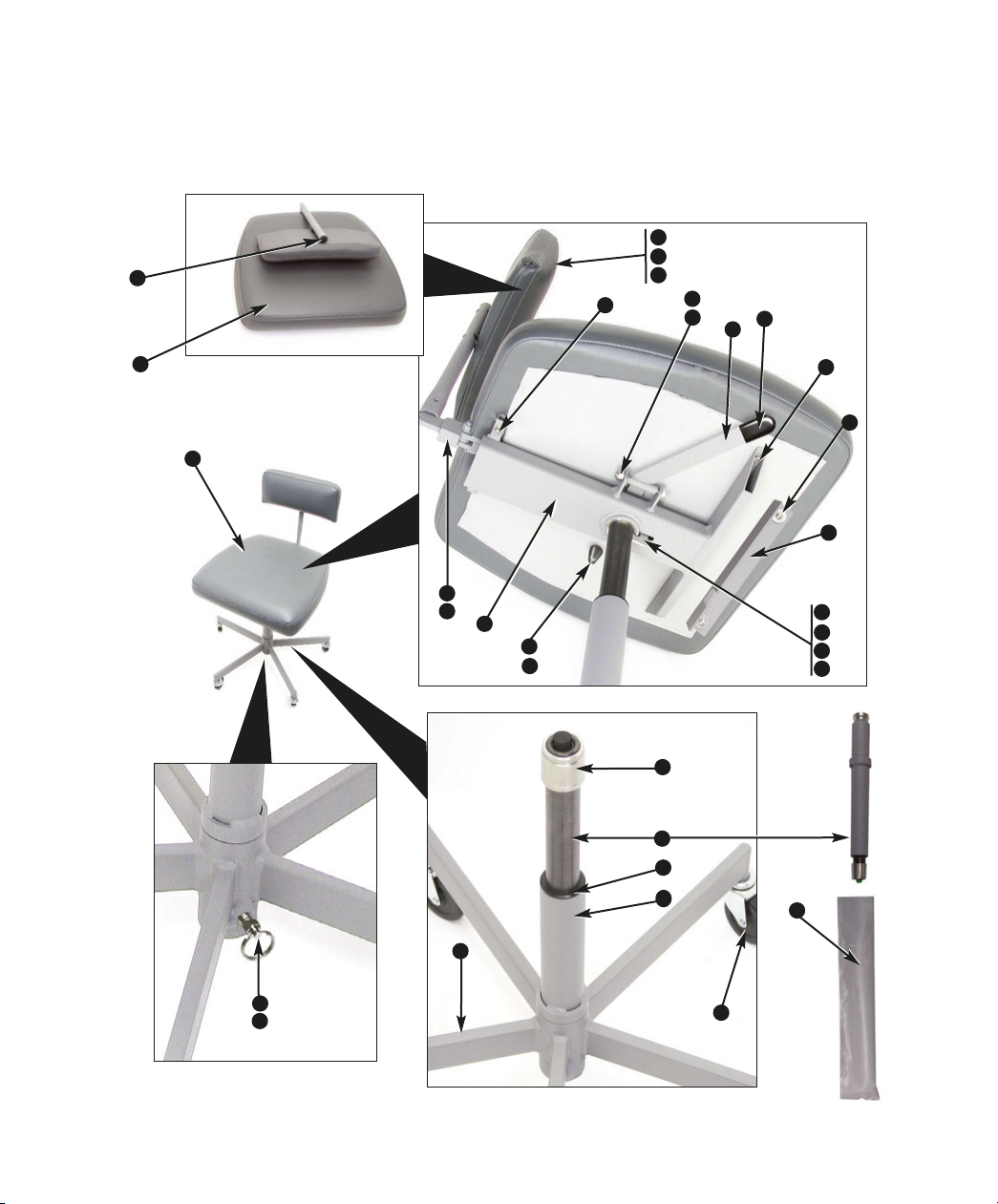

FINAL ASSEMBLY PARTS
1
3
4
24
25
12
9
2
7
8
16
17
22
23
20
5
6
13
15
14
10
15
33
31
32
28
29
21
30
34
19
18

ADC-09CF / ADC-09S
9
FINAL ASSEMBLY PARTS LIST
27
26
ADC-09CF
FINAL ASSY ADC-09 STOOL ADC-09S 21
BACKR ST CUSHION ASSY ADC-08 330074 21
C/S BTNSOC STNLS 1/4-20 X 1-1/4 510295 42
SPAC R NYLN 3/4 ODX.260 IDX125 510261 42
BACK SUPPORT ASSY PNTD ADC-08 330080 21
WOODSCR W FLAHDPHL #10 X 1.0L 510264 63
HOL PLUG 3/4 NYLON BLK 510263 21
S AT CUSHION ASSY ADC-08 330664 21
LATCH S AT ADC-09 STOOL 462366 21
C/S SOCHD STNLS 10-32X1-1/4 510140 42
BOX SHIP 24 X 12 X 22.5 (ADC-09S only) 450207 N/A 1
SPRING LATCH S AT ADC-09 STOOL 462395 21
L V R ASSY ADC-09 STOOL 330646 21
BOLT 1/4-20 X 2-1/4 510885 21
NUT NYLOC 1/4-20 STNLS H X 510296 42
S AT FRAM ADC-09 STOOL 330645 21
C/S SOCHD STNLS 10-32 X 7/8 510887 42
RING SPRING LATCH 510928 21
SPAC R THR AD D 463533 21
SOCK T UPP R STRUT 462362 21
GAS CYLIND R OFFIC CHAIR 730730 21
BUSHING COLUMN ADC-09 STOOL 462394 21
COLUMN STOOL ASSY ADC-09 330644 21
BAS ASSY ADC-09 STOOL 330643 21
CAST R 2 1/2" HARD RUBB R 730267 63
CAST R 2 1/2" HARD RUBB R LOCKING 730747 42
CAS SOFT ADC-09 STOOL 410213 21
CAS HARD (ADC-09CF only) 410214 1 N/A
STUD PACKAG 462422 21
BRACK T COLUMN STORAG 462423 21
SL V COLUMN 462484 21
C/S BRNSOC STNLS 10-32 X 7/8 510890 42
C/S BRNSOC STNLS 10-32 X 1 1/2 510891 21
C/S SOCHD STNLS 1/4-20 X 1 1/2 510817 21
NDCAP .187 X .625 X 1.00 VINYL BLACK 510906 21
1
IT M PART NO ADC-09CF QTY ADC-09S QTY
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
25
25
17
18
19
20
21
22
23
24
27
28
29
30
31
32
33
26
34
ADC-09S
26 11

ADC-09CF / ADC-09S
10
SYMBOL DEFINITIONS:
Consult Instructions For Use
Manufacturer
Authorized uropean
Representative
Caution, consult
accompanying documents
Part Number
Serial Number
Never Sit On The dge Of the
Stool Seat. Always Sit In The
Center Of The Seat.
INFORMATION CONC RNING TH ACCURACY AND
PR CISION OF THIS PRODUCT MAY B OBTAIN D
UPON R QU ST BY CONTACTING AS PTICO AT TH
ADDR SS SHOWN ON THIS PAG .
P.O. Box 1548 • Woodinville, WA 98072
8333 216 th Street S. . Woodinville, WA 98072
International [phone] • Toll Free(800) 426-5913
www.aseptico.com • [email protected]
TROUBLESHOOTING:
Problem: Correction:
Stool seat cannot be raised or lowered -OR-
Stool feels sluggish or jerky when the seat is
raised or lowered.
Disassemble Gas Cylinder from Stool (refer to page 6 for disassembly
instructions) and inspect Cylinder for damage or excessive dirt buildup
around Cylinder Piston. Replace Cylinder if necessary.
Air is leaking from the gas cylinder. Remove and replace Gas Cylinder. Refer to Parts List, page 9 for part
number and then contact Aseptico to reorder.

ADC-09CF / ADC-09S
11
CLEANING & MAINTENANCE:
Clean the upholstery by wiping with a soft cloth
moistened with a mild detergent. Although not rec-
ommended, bleach diluted to <10% with water can
be used but must be wiped dry immediately. The
use of solvents or other solutions may cause dam-
age and void the warranty.The use of barrier cov-
ers will greatly extend the life of the chair uphol-
stery.
SPECIFICATIONS:
ADC-09CF
Military Case Dimensions:
29.2'' W x 25'' L x 24'' H (74.2 x 63.5 x 61 cm)
Military Case Volume: 10.5 ft3 (297 l)
Weights:
Stools (2) + Soft cases (2) + Military case:
86 lb (39.0 kg)
Stool + Soft case: 23 lb (10.4 kg)
Military case: 40 lb (18.1 kg)
ADC-09S
Soft Case Dimensions:
22'' W x 22'' L x 8'' H (55.9 x 55.9 x 20.3 cm)
Weights:
Stool + Soft case + Cardboard box: 25 lb (11.3 kg)
Stool + Soft case: 23 lb (10.4 kg)
WARRANTY:
Aseptico warrants these products against defects
in material or workmanship for a period of two (2)
years, from date of original invoice. Some hand-
pieces are warranted for one year under the same
conditions. Other handpieces and expendable
components, such as air turbines and light bulbs,
are covered by shorter warranty periods, or have
no warranty. Aseptico's sole obligation under prod-
uct warranty is (at its sole option and discretion) to
repair or replace any defective component or prod-
uct in part or whole. Aseptico shall be the sole
arbiter of such action.
In the event of alleged defect under warranty, the
purchaser is to notify Aseptico's Customer Service
Department promptly. Customer Service will pro-
vide instructions, usually directing that the product
be returned for service. Shipment to Aseptico and
the cost thereof is always the responsibility of the
purchaser.
Accidental misuse, inappropriate installation, or
failure to perform directed maintenance voids the
warranty. Deliberately defacing, modifying, or
removing the serial number voids the warranty.
Aseptico does not assume, under this warranty,
any risks or liabilities arising from the clinical use of
its products, whether or not such use involves coin-
cidental utilization of products manufactured by
others.
REPAIRS:
Aseptico repairs carry a ninety (90) day limited
warranty against defects in material and workman-
ship. This warranty pertains only to the specific
repair. Any new and different defect in materials or
workmanship will be treated as a new repair. If the
product is not covered under warranty, Aseptico
offers Repair Services for a fee.

P/N: 421073
Rev. G
CO 14684
03/2019 PRINT D IN TH USA
P.O. Box 1548 • Woodinville, WA 98072
8333 216 th Street S. . • Woodinville, WA 98072
[phone] • [phone]
www.aseptico.com • [email protected]
