Instructions for safe operation
•Failure to observe the information in this manual may
result in personal injury or damage to equipment.
•To reduce the risk of injury of persons - use this door
set only as a pedestrian door.
•Do not use the equipment if repair or adjustment is
necessary.
•Disconnect supply when cleaning or other mainten-
ance is to be carried out.
•The operator can be used by children over 8 years of
age if they have been instructed by a person in charge
of their safety.
•The operator can be used by children 8 years of age
or younger if they are supervised by a person respons-
ible for their safety.
•The operator can be used by persons with impaired
physical, sensory or mental capacity if they have been
instructed by a person in charge of their safety.
•Cleaning and user maintenance shall not be made by
children.
•Do not let anyone climb on or play with the door or
the fixed/remote controls.
•The doorset can be operated automatically by sensors
or manually by activators.
1003090-en-12.0Issue 2020-10-094

Congratulations on your new automatic door!
ASSA ABLOY Entrance Systems AB has developed automatic doors for more than 50 years. State-of-
the-art technology and carefully tested materials and components provide you with a superior
product.
As with all other technical products, your automatic door requires periodic maintenance and service.
It is essential that you know your automatic door (system) and that you recognize the importance
of maintaining it in compliance with applicable standards for safety.
Your local ASSA ABLOY Entrance Systems-authorized representative is familiar with these standards,
as well as all applicable local codes and ASSA ABLOY Entrance Systems recommendations for power-
operated pedestrian doors. Service and adjustments performed by your
ASSA ABLOY Entrance Systems-authorized representative, will ensure safe and proper operation of
your automatic door unit.
Electronic equipment reception interference
The equipment may generate and use radio frequency energy and if not installed and used properly,
it may cause interference to radio, television reception or other radio frequency type systems.
If other equipment does not fully comply with immunity requirements, interference may occur.
There is no guarantee that interference will not occur in a particular installation. If this equipment
does cause interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Re-orient the receiving antenna.
•Relocate the receiver with respect to the equipment.
•Move the receiver away from the equipment.
•Plug the receiver into a different outlet so that equipment and receiver are on different branch
circuits.
•Check that protective earth (PE) is connected.
If necessary, the user should consult the dealer or an experienced electronics technician for additional
suggestions.
Environmental requirements
ASSA ABLOY Entrance Systems products are equipped with electronics and may also be equipped
with batteries containing materials which are hazardous to the environment. Disconnect power
before removing electronics and battery and make sure it is disposed of properly according to local
regulations (how and where) as was done with the packaging material.
Product liability
According to regulations, the following are the responsibility of the owner or caretaker of the
equipment
•that the equipment operates correctly, so that it gives sufficient protection in regard to safety
and health
•that the equipment is operated and regularly maintained, inspected and serviced by someone
with documented competence in the equipment and in applicable regulations
•that the provided “Service Log Book”and “Site Acceptance Test and Risk Assessment”documents
(PRA-0003) are kept available for maintenance and service records
•that inspection covers the emergency opening function (when applicable)
•that the closing force is appropriate for the door size on fire-approved door systems (when ap-
plicable).
5Issue 2020-10-091003090-en-12.0

Warranty
ASSA ABLOY Entrance Systems warrants its products to be free from defects in material and work-
manship under intended use and service for a warranty time of 12 months, beginning at time of
delivery. This warranty extends only to the original buyer of the equipment.
ASSA ABLOY Entrance Systems warrants that the software will operate substantially in accordance
with its functional descriptions and that it has been recorded on non-defective media.
The ASSA ABLOY Entrance Systems warranty does not apply to
•That the software will be error-free or operate without interruption
•General wear and tear on the system
•Fuse, disposable batteries and glass damage
•System deviations caused by installer other than ASSA ABLOY Entrance Systems
•System that has been altered or damaged by vandalism or misuse
•System that has been additionally equipped with non-ASSA ABLOY Entrance Systems original
branded parts and/or spare parts
•Unrequired visits due to poor client communication (door working when our technician arrives,
reset, power discontinuation)
•Adjustments (closing and opening speed and also detection field radars) due to customer re-
quests (excludes operational adjustments thought to create a hazard)
•Water damage
•Adverse weather conditions
•Any damage caused, directly or indirectly, by a circumstance beyond the control of the applicable
company within ASSA ABLOY Entrance Systems, such as industrial dispute, fire, natural disaster,
war, extensive military mobilization, insurrection, requisition, seizure, embargo, restrictions in
the use of power and defects or delays in deliveries by sub-contractors caused by any such cir-
cumstances
Please note:
•Non-compliance with manufacturers care and maintenance recommendations may void the
warranty.
•ASSA ABLOY Entrance Systems-authorized resellers shall extend this warranty to end-users only,
but have no authority to extend a greater or different warranty on behalf of
ASSA ABLOY Entrance Systems.
•A service agreement with ASSA ABLOY Entrance Systems will help secure the availability of a
fully operational system and will give priority at call-out, thus minimizing the time that the
equipment is unusable.
Service
Inspections should be done regularly by a trained and qualified person. The frequency of these in-
spections should be according to national regulations (or according to industry standard if there
are no national regulations). This is especially important when the installation concerns a fire-ap-
proved door or a door with an emergency-opening function. To extend the life of your investment
and ensure safe and reliable operation of the door, we recommend a minimum of 2 visits per year
or more, depending on usage and operating conditions. Environmental aspects shall also be con-
sidered.
As your entrances are part of your business flow, there’s every reason to keep them working well.
ASSA ABLOY Entrance Systems offers you a maintenance and modernization expertise to rely on.
Our Maintenance Programs and Modernization Services for entrance automation is backed by a ex-
tensive expertise for all types of pedestrian- and industrial door and docking systems, independent
of brand. At your disposal is a team of dedicated expert technicians, proven through decades of
maintenance, service and satisfied customers.
1003090-en-12.0Issue 2020-10-096

Intended use
The ASSA ABLOY RD3 and ASSA ABLOY RD4 are automatic revolving doors developed to provide
draught free access to buildings.
The door is designed to offer continuous use, a high degree of safety and maximum lifetime. The
system is self-adjusting to the effects caused by normal variations in the weather conditions and to
minor friction changes caused by e.g. dust and dirt.
This door may be used for escape routes, provided the door leaves are equipped with break-out
function, in which case the door leaves are pushed open in the escape direction.
The door can be used indoors or outdoors. Outdoor use with water resistant cover.
For installation and maintenance see Installation and Service manual 1004466.
Save these instructions for future reference.
Technical specification
ASSA ABLOY Entrance Systems ABManufacturer:
Lodjursgatan 10, SE-261 44 Landskrona, SwedenAddress:
ASSA ABLOY RD3 and ASSA ABLOY RD4Type:
230V, 50/60Hz, mains fuse max. 10AT or
100-120V, 50/60Hz, mains fuse max. 16AT
Mains power supply:
Drive unit max. 400W
LED spot lights max. 60W
LED panel lights max. 150W
Power consumption:
-20 to +50°CTemperature range:
IP20Degree of protection:
IP54Degree of protection, control
actuators:
Sound pressure:
Third party approvals from established certification organizations
valid for safety in use, see Declaration of Conformity.
Approvals:
How the ASSA ABLOY RD3 and ASSA ABLOY RD4 work
The door is designed so that operation is not affected or interrupted by winds or by users pushing
thedoors.TheuniqueCDCcontrolsystemwasdevelopedbyASSA ABLOY Entrance Systems specific-
ally for use with its products, and the result is a fully integrated entrance solution with no compromise
in design or function. The system ensures lowest operating/maintenance cost, highest safety and
best availability.
By adding the emergency break-out system, a clear, unimpeded evacuation path through the revolving
door can be achieved. The emergency break-out system can be integrated with a fire alarm. This re-
lease also ensures that the door leaves collapse only when required and not under wind pressure.
The break-out system can also be very useful under less dramatic circumstances, for example when
bringing long objects through the entrance.
7Issue 2020-10-091003090-en-12.0

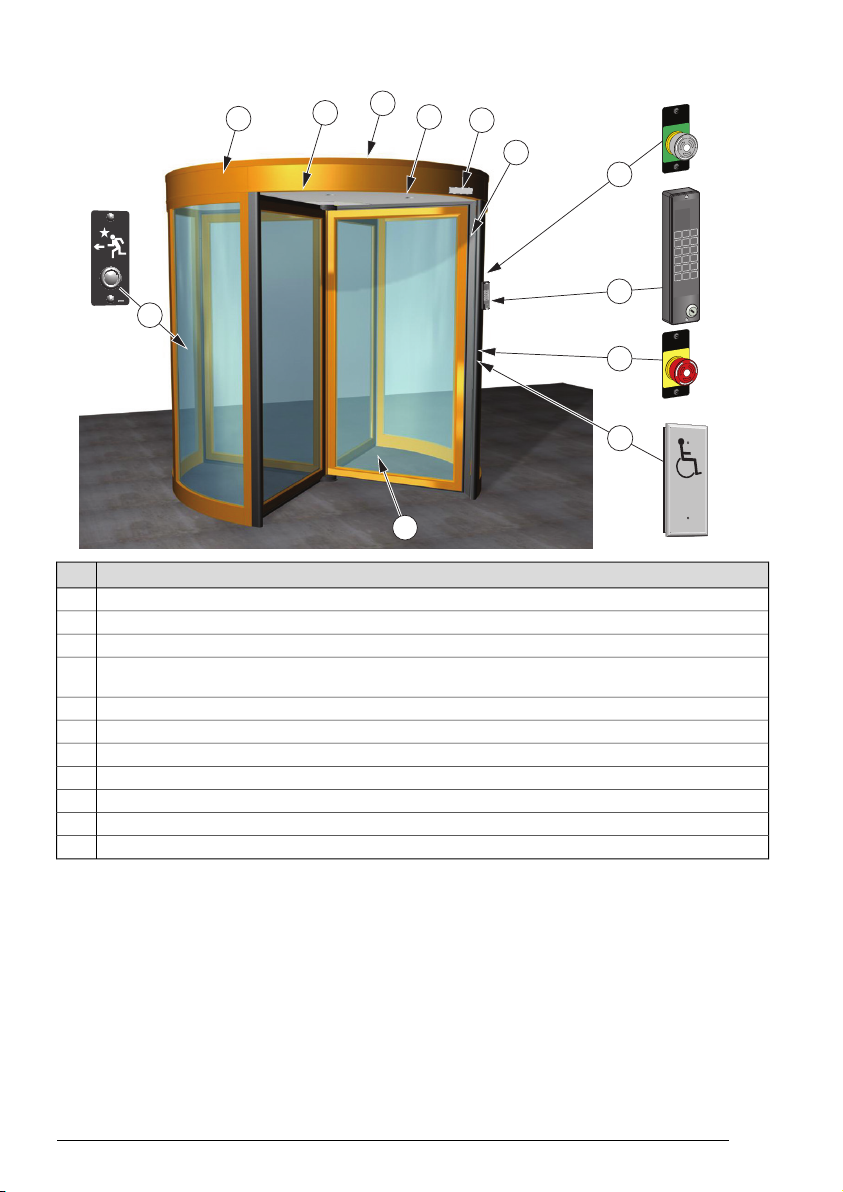

Main parts
ILL-02335
5
6
8
1
9
4
10
2
3
11
10
7
12
45
78
↑0
↓#
3
6
9
FSC
+
–
F2
02
FUNC
DATA
12
45
78
↑0
↓#
3
6
9
FSC
+
–
F2
02
01
FUNC
DATA
12
45
78
↑0
↓#
3
6
9
FSC
+
–
F2
02
FUNC
DATA
12
45
78
↑0
↓#
3
6
9
FSC
+
–
F2
02
01
FUNC
DATA
E
M
E
R
G
E
N
C
Y
S
T
O
P
I
N
E
M
E
R
G
E
N
C
Y
P
U
S
H
T
O
O
P
E
N
DescriptionNo.
Push button inside, the door will rotate 360°(option)1
Main control unit CDC 4 (behind fascia sheets)2
Vertical presence photocell sensor PDR (option)3
Dust protection roof (max. load 0 kg)
Do not walk or store any material on the roof!
4
Program Control Device (PCD) with ON/OFF key switch (standard place)5
Emergency stop button6
EMERGENCY OPENING button (option)7
Activation by disabled people: Recommended, if applicable (option)8
Door leaves with break-out function (option)9
Activation units10
Pressure sensitive safety edge11
1003090-en-12.0Issue 2020-10-098

Settings and operation PCD
The PCD (Program Control Device) is used to select what operating mode is active when the ON/OFF
switch is in the ON position. It is also used to check and set door configuration.
General information PCD
ILL-01890
12
45
78
0
↓#
3
6
9
FSC
+
–
F2
02
FUNC
DATA
12
45
78
0
↓#
3
6
9
FSC
+
–
F2
02
01
FUNC
DATA
FunctionKey
Numeric inputs0-9
Confirm access code input#
Setpoint selection upwards↑
Setpoint selection downwards↓
Setpoint value change upwards+
Setpoint value change downwards-
Function selectionF
Setpoint confirmation and storageS
Error clear (20, 30)
Clear display
Leave menu
C
ON/OFF switch
1 = ON
0 = OFF
ILL-01914
Information prompts on PCD display
FUNC
DATA
EAA156
P1 P2
P3
DescriptionPrompt
ON/OFF switch in OFF position.P1
Service request. Call ASSA ABLOY Entrance Systems
for service.
P2
Real time operation ON, see "Real time operation"
on page 13.
P3
The door configuration must be set by ASSA ABLOY Entrance Systems Service technicians.
9Issue 2020-10-091003090-en-12.0

Access code
To be able to operate the PCD it is required to login with an access code.
Login on the PCD
1 Press # to clear the display.
2 Enter the access code 1234. The display shows ==.
3 Press # to confirm the input.
If the access code is correct the display shows
LI (Login)
0 1 (Level 01)
In case of four consecutive failed login attempts, five minutes must pass before a new attempt can
be made.
Logout from the PCD
1 Press # to clear the display.
2 Enter the access code. The display shows ==.
3 Press # to confirm the input.
If the access code is correct the display shows
LO (Logout)
0 1 (Level 01)
4 Automatic logout ten minutes after the last key press.
5 Automatic logout can be inhibited by typing F561 on the PCD.
Change access code
At delivery the access code is 1234. To change, follow the procedure below.
1 Type #1234 #. If the access code is correct the display shows
LI (Login)
0 1 (Level 01)
2 Type F41. The display shows
F 4
L 1
3 Enter new code (4 digits).
4 Press Sto confirm.
5 Enter the new access code a second time.
6 Press Sto confirm.
1003090-en-12.0Issue 2020-10-0910

The ON/OFF switch
The ON/OFF switch can be used in any of the operating modes 01-06. In the ON (1) position, the
door operates according to selected operating mode.
Setting the switch to OFF (0) is indicated by prompt P1 on the display and is equivalent to selecting
the operating mode Locked (OFF) 01 (see page 12).

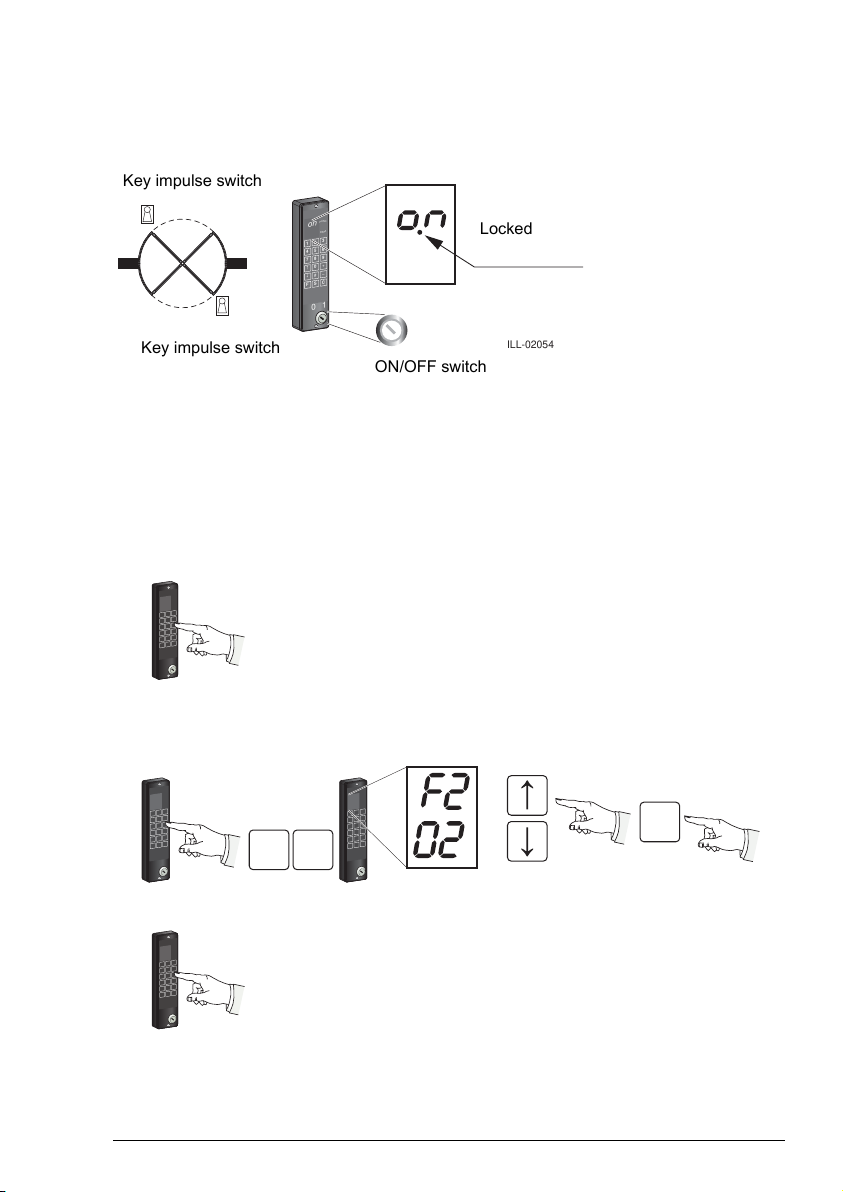

ILL-02054
12
45
78
0
↓#
3
6
9
FSC
+
–
FUNC
DATA
12
45
78
0
↓#
3
6
9
FSC
+
–
on
01
FUNC
DATA
Key impulse switch
Key impulse switch
Locked
ON/OFF switch
Key impulse switch (option)
If the door is locked with the ON/OFF switch it can be opened with a key switch (ask your local
ASSA ABLOY Entrance Systems Service). When the key switch is activated, the door unlocks, runs
360º and locks again.
Changing operating mode
1 Login on the PCD.
12
45
78
↑0
↓#
3
6
9
FSC
+
–
on
FUNC
DATA
#Access code#
ILL-01894
01
2 Type F2. (The display shows F2 plus current operating mode.)
3 Use the up or down arrow to change the operating mode 01-07.
4 Confirm the change and exit the operating mode selection function by pressing S.
12
45
78
↑0
#
3
6
9
FSC
+
–
F2 FUNC
DATA
ILL-01895
12
45
78
↑0
#
3
6
9
FSC
+
–
F2
02
FUNC
DATA
F
S
2
01
01
5 Logout from the PCD
12
45
78
↑0
↓#
3
6
9
FSC
+
–
on
FUNC
DATA
#Access code#
ILL-01894
01
11Issue 2020-10-091003090-en-12.0

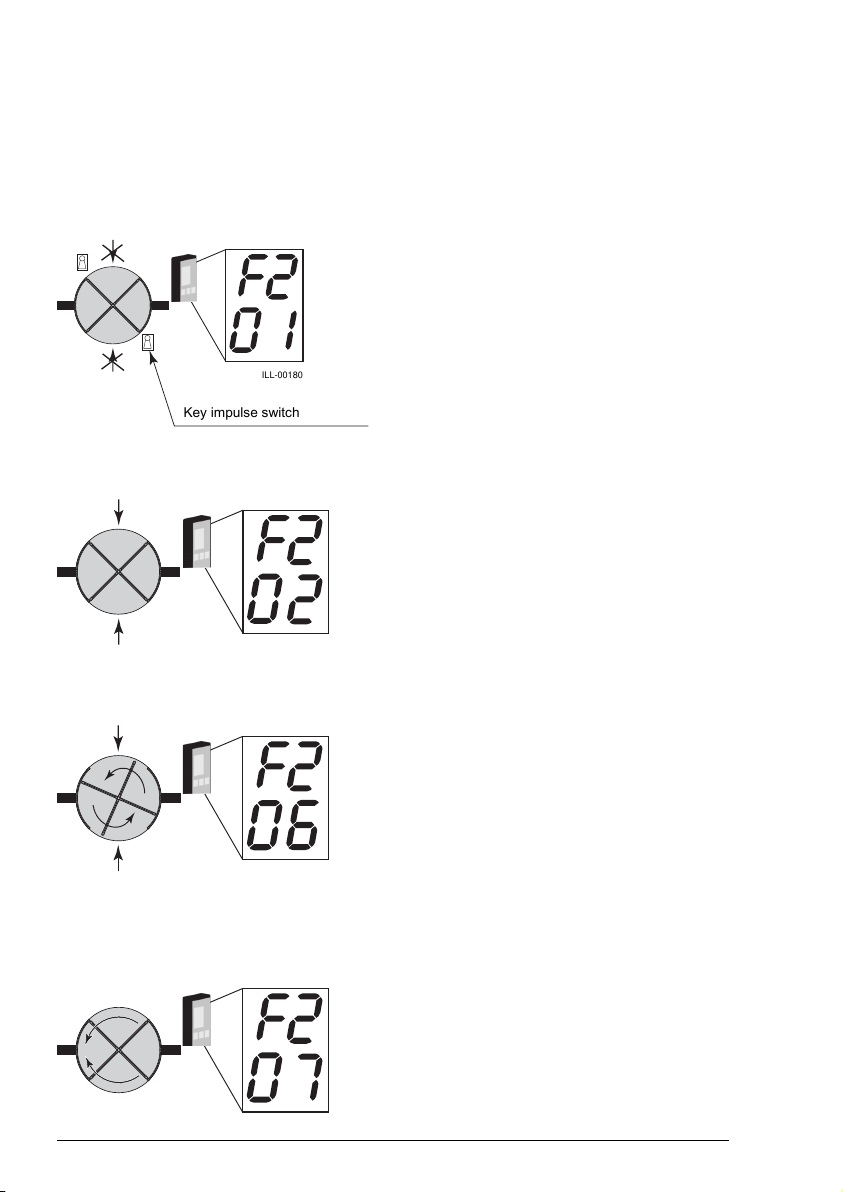

The different operating modes
Locked (Off) 01
The door rotates to its home position. If an electromechanical lock is fitted, the lock is activated. The
door can be opened with the key impulse switch, see Key impulse switch (option) on page 11.
Note! If the door is placed in an escape route, selecting operating mode Locked or setting the ON/OFF
switch in the OFF (0) position, disables by default the escape function.
The door may however be configured to make escape possible, also when the door is locked. See
How to check break-out configuration on page15.
ILL-00180
Key impulse switch
Automatic operation 02
The door is parked in standby position when there is no traffic. As soon as the outside or inside ac-
tivation units detect approaching traffic, the door starts rotating.
ILL-00189
Continuous rotation 06
The door rotates at a low speed. As soon as the outside or inside activation units detect approaching
traffic, the door accelerates to normal speed. The door returns to low speed when there is no traffic.
ILL-00190
Manual operation “Cleaning position”07
The door rotates forward as long as the key + is held down and backwards as long as the key - is held
down.
Note! During manual operation, safety devices are disconnected.
+
-
1003090-en-12.0Issue 2020-10-0912

Real time operation
ON
F556 =
F557 =
2
1
2
5
4
3
6
11
01
8
7
9
1
2
1
2
5
4
3
6
11
01
8
7
9
1
ON
Programming of real time operation must be done by ASSA ABLOY Entrance Systems
service technicians. Fill in form on next page.
The CDC-system has three different day schedules. Each day schedule may contain
up to 10 different operating modes. The week schedule informs the system of which
day schedule to run and in what order during a week. It is possible to make up to
16 exceptions from this week schedule for e.g. public holidays etc.
ON
F556 =
F557 =
2
1
2
5
4
3
6
11
01
8
7
9
1
2
1
2
5
4
3
6
11
01
8
7
9
1
Activation
Type F556 (Real time operation ON).
Prompt P3 lights up.
The door operates according to schedule.
ON
F556 =
F557 =
2
1
2
5
4
3
6
11
01
8
7
9
1
2
1
2
5
4
3
6
11
01
8
7
9
1
Deactivation
Type F557 (Real time operation OFF).
Prompt P3 extinguishes.
The door operates according to manually set operating mode.
EAA204
0 1
ON/OFF switch
The OFF (0) position overrides real time operation. The door will be locked. When
set to the ON (1) position, the door resumes operation according to schedule.
Manual setting of operating mode
If the door is running in real time operation and the operating mode is manually
changed, real time operation is automatically deactivated. To resume real time op-
eration type F556.
FUNC
DATA
EAA400
/↓
+/-
Summertime/Wintertime
To change from summertime to wintertime, type F53 and select option number 02
with arrow ↓/↑keys. Press + or - to select setting 00 or 01, (summertime off (winter-
time) is value 00 and summertime on is value 01) and press S (select). To check the
time change, see Real time clock.
13Issue 2020-10-091003090-en-12.0

Day schedule
Day schedule 3Day schedule 2Day schedule 1
111
222
333
444
555
666
777
888
999
101010
Week schedule
ScheduleWeek day
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Exceptions
Exception scheduleEnd exceptionStart exception
111
222
333
444
555
666
777
888
999
101010
111111
121212
131313
141414
151515
161616
1003090-en-12.0Issue 2020-10-0914

Read speed settings
FUNC
DATA
EAA254
↑ ↓
/
Type F3. The display shows S1.
Use ↑or ↓to select setpoint number to read.
Press Cto leave the menu.
Setpoint valueDescriptionSetpoint
1.0-6.0 rpmHigh speed setpointS1
0.2-2.5 rpmLow (handicap) speed setpointS2
Fixed at 0.5 rpmCreep speed setpointS3
1.0-2.5 rpmContinuous speed setpointS4
0.2-2.0 rpmManual speed setpointS5
01-09Door size parameterS9
How to check break-out configuration
FUNC
DATA
Type F53 and step to number 37 with ↑or ↓.
Read the value at the bottom of the display.
00 = Escape function is disabled when the door is locked. (default)
01 = Escape function is enabled when the door is locked.
Real time clock
The CDC system has a real time clock built in. The clock is used for event log recording and when
the door is running according to a real time operation schedule.
FUNC
DATA
EAA168
/↓
Read real time clock
Type F71. The display shows 11 and the paramet-
er value corresponding to year.
Use ↑or ↓to select parameter number and dis-
play the parameter value.
Press Cto leave the menu.
Summer and wintertime, see Summertime/Win-
tertime on page 13.
Year11
Month12
Day13
Hour14
Minute15
Second16
15Issue 2020-10-091003090-en-12.0

Safety
The safety systems are monitored to ensure the high safety level of the door.
The condition of the safety equipment is periodically tested. This monitoring is made during normal
running conditions and it does not affect the normal day-to-day operations of the door.

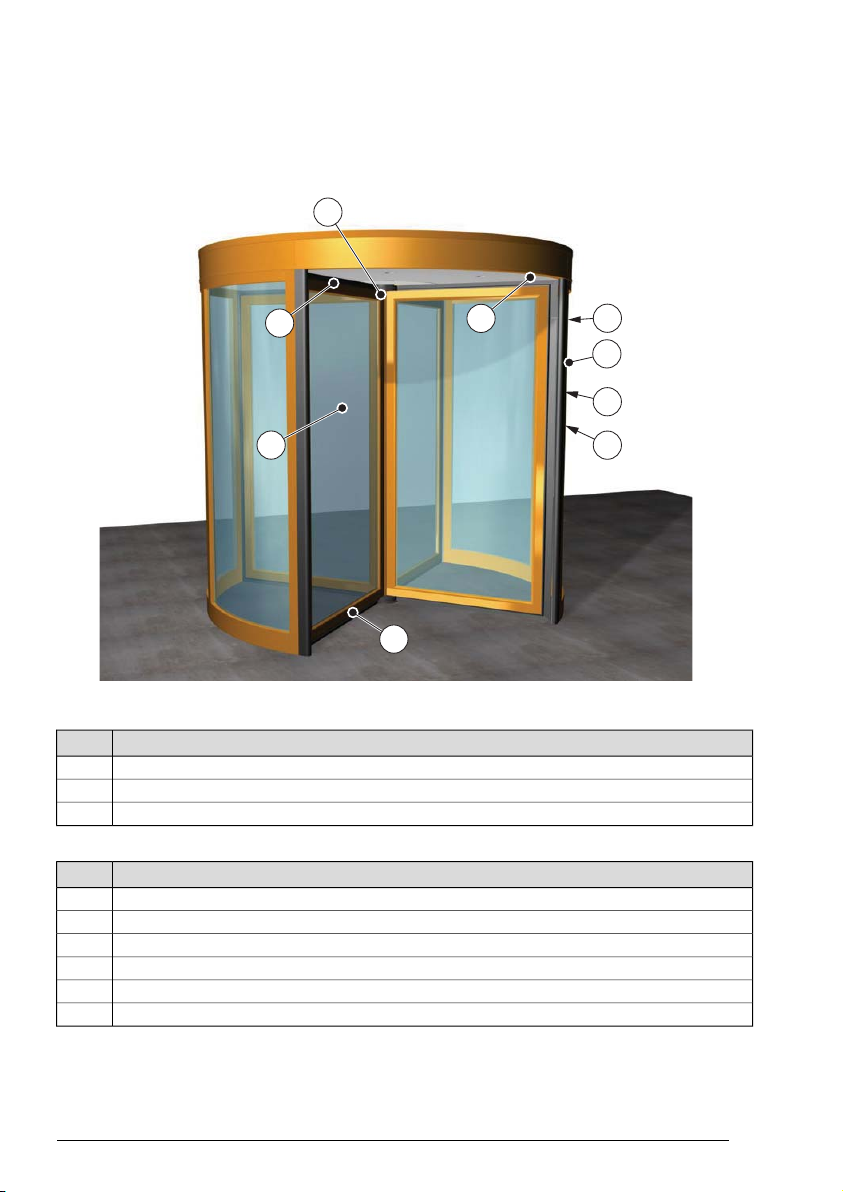

Safety devices on the door
1
3
B C
E
D
2
A
F
Standard
DescriptionNo
Pressure sensitive safety edges placed on the drum edges, see page 17.1
Force sensitive door leaves, see page 17.2
Emergency stop push button, see page 17.3
Options
DescriptionNo
Pressure sensitive safety edges placed on the door leaves, see page 28.A
Infrared presence sensing system, see page 28.B
Vertical presence photocell sensor PDR, see page 29.C
Break-out kit, see page 27.D
Push button for disabled, see page 29.E
Emergency opening push button, see page 27.F
1003090-en-12.0Issue 2020-10-0916

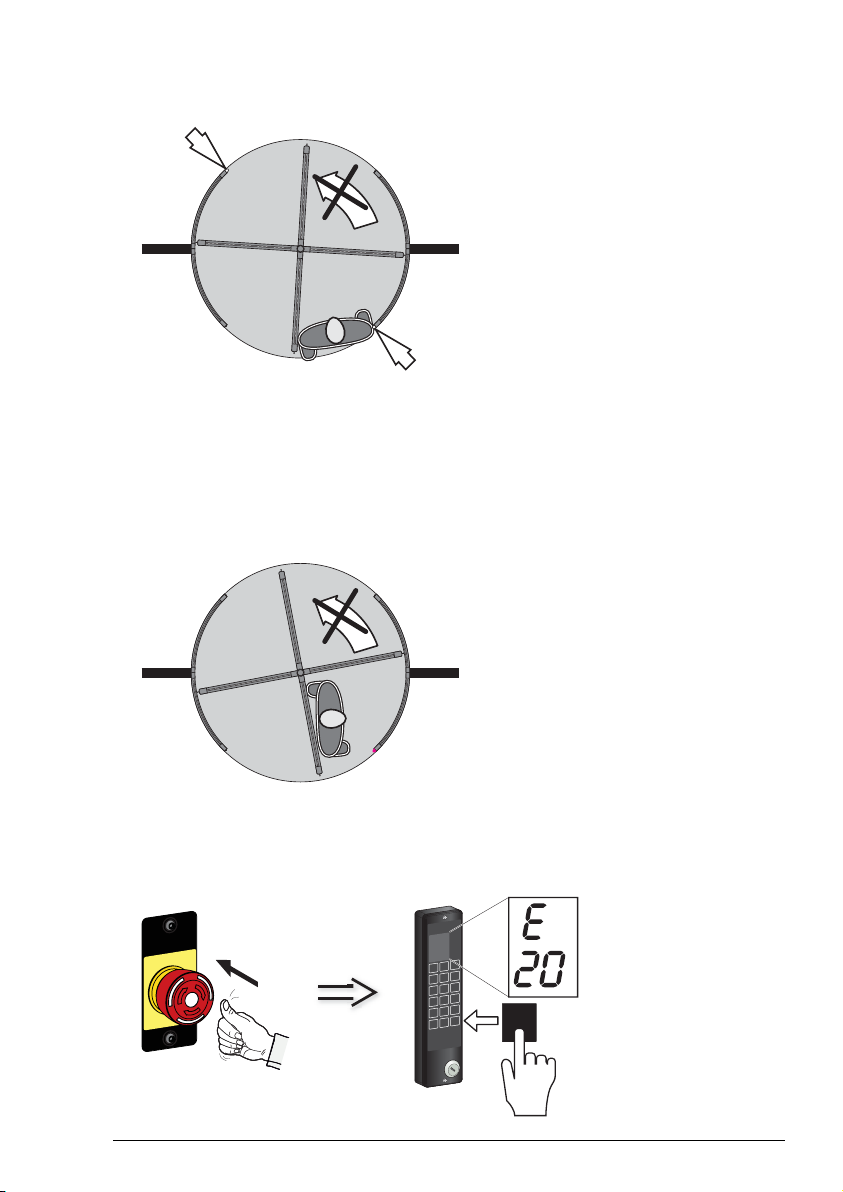

Pressure sensitive safety edges
•Pressure sensitive safety edges on the drum edges. These stop the rotation if compressed. When
the obstacle is removed, the rotation continues.
Force sensitive door leaves
•If the system detects an obstacle blocking the door, the motor is de-energized.
•The door makes three attempts to start with two seconds pause between each attempt and
then waits another 30 seconds before a final attempt is made.
•If the obstacle is cleared and the door pushed forward during the waiting period, operation is
resumed. In case the blocking persists, E30 is shown on the PCD and the door remains stationary.
To resume operation after the obstacle has been removed, the error can be cleared by pushing
the door forward or pressing Con the PCD.
ILL-00048
Emergency stop button
•The door rotation can be stopped by pressing the emergency stop button.
•To reset the door to normal operation - release the emergency stop button by rotating it in the
direction of the arrows and press Con the PCD.
C
PCD
ILL-02092
12
45
78
0
↓#
3
6
9
FSC
+
–
E
20
FUNC
DATA
01
E
M
E
R
G
E
N
C
Y
S
T
O
P
17Issue 2020-10-091003090-en-12.0

Regular safety checks
To help you fulfil the national/international requirements and to avoid malfunction and risk for in-
juries, we have provided the following checklist.
Do not use the equipment if repair or adjustment is necessary.
Disconnect supply when cleaning or other maintenance is to be carried out.
FUNCTION AND VISUAL INSPECTION
pH5-9
Scotch-Brite®
1
3
2
If problem
occurs
Daily Action
Inspect your door and check visually for
•condition of door seals and weather stripping
1
•condition of glazing rubbers
2
3
Check the safety sensors if any. If you are unsure of which type of sensor you have, please contact
your ASSA ABLOY Entrance Systems representative.
If equipped with break-out, test that all door leaves can be released and are not mechanically
jammed. Press Emergency opening button and fold the door leaves.
Note! If the door is placed in an escape route, tests must be performed regularly by
trained personnel or fire department, according to local laws.
Escape
doors
Contact your ASSA ABLOY Entrance Systems service representative. For contact information, see last page.=
1003090-en-12.0Issue 2020-10-0918

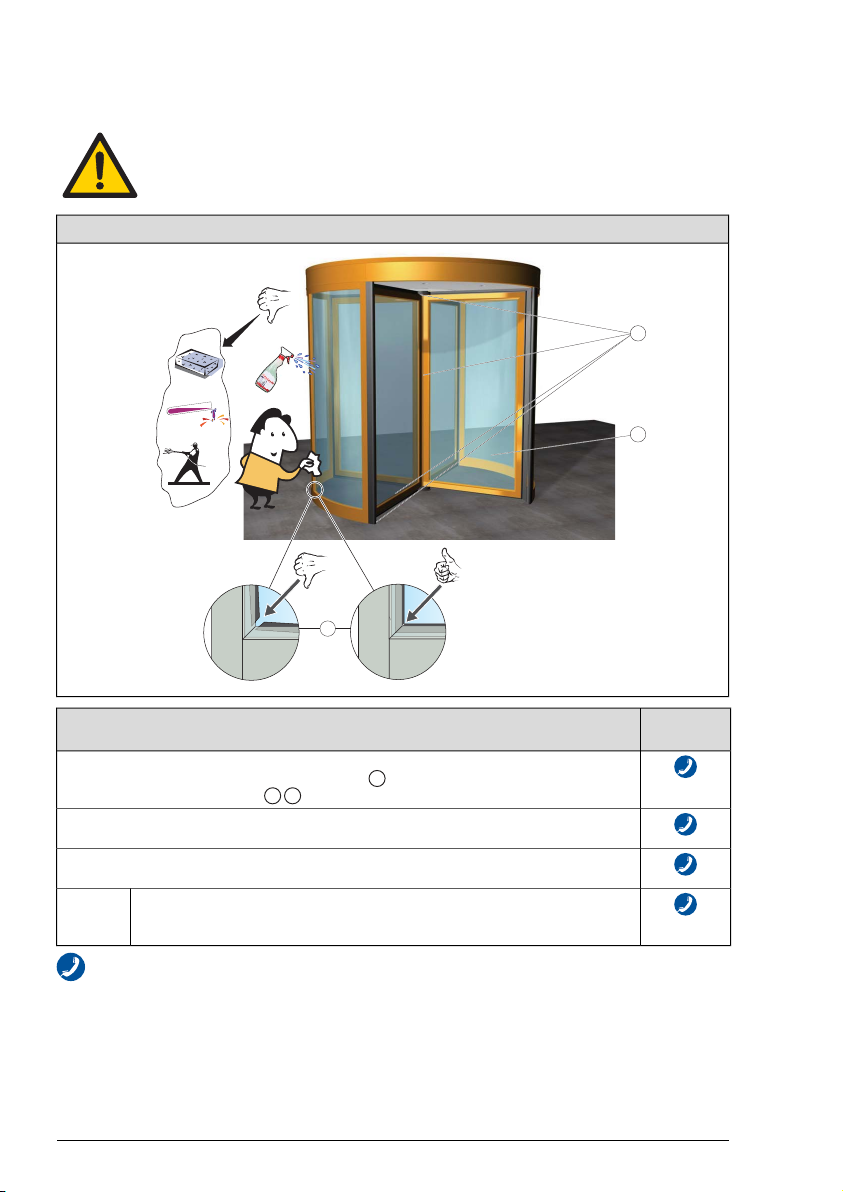

CLEANING
The best way to remove dust and dirt from the ASSA ABLOY RD3 and ASSA ABLOY RD4 and to
maintain the quality of the enamel layer, the surfaces should be cleaned three times/year (once/four
months period) with gentle (pH 5-9), non-polishing detergent and water. Use a soft non-abrasive
sponge. The cleaning should be documented. To avoid damages to the profiles the brushes must
be vacuum-cleaned weekly.
•Do not expose windows, doors or profiles to alkalis. Both aluminium and glass are sensitive
to alkalis.
•Do not clean with high-pressure water. Operator, programme selector and sensor may be
damaged and water may enter the profiles.
•Do not use detergents or abrasive additives.
•Do not scrub with materials like Scotch-brite, as this will cause mechanical damage.
19Issue 2020-10-091003090-en-12.0

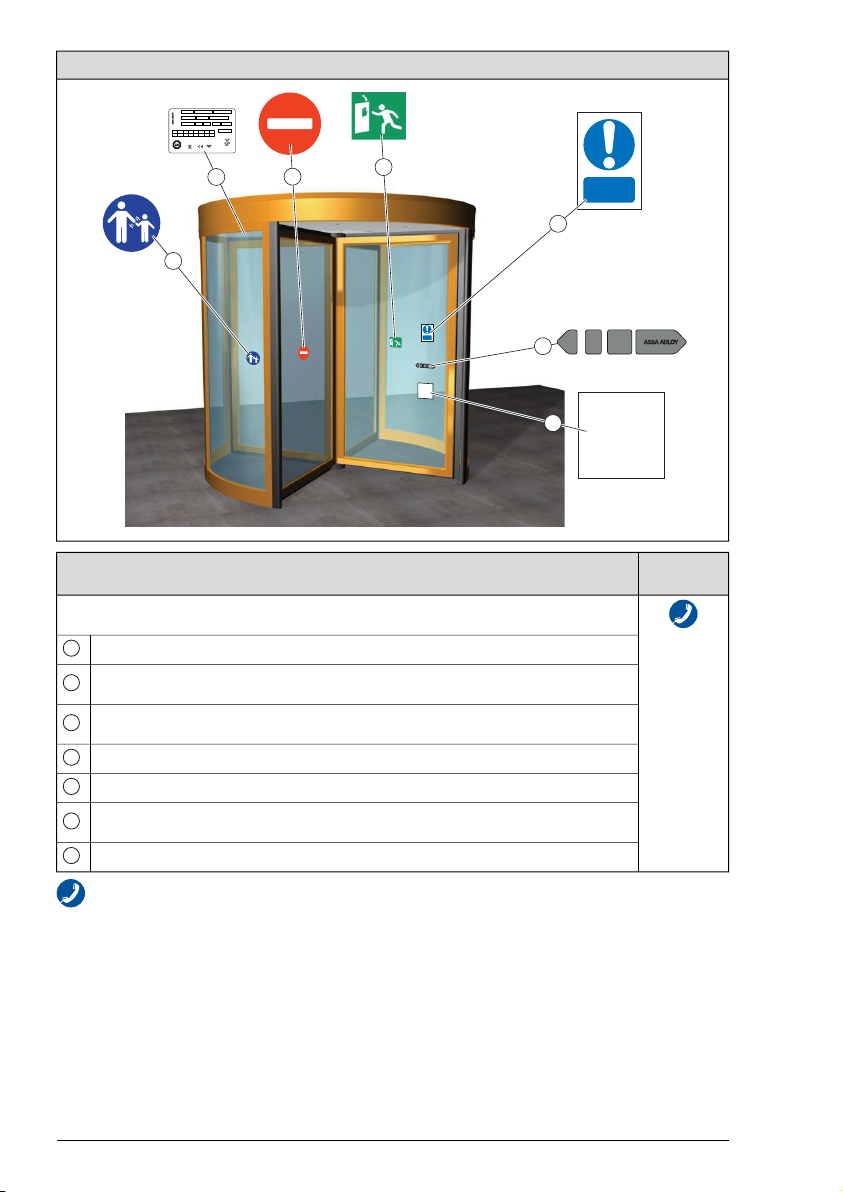

SIGNAGE
Automatic
door
Keepclear
No entry
E
Automatic
door
Keep clear
D
G
A
No entry
C
B
DESIGNATIONART.NO.
YEAR+WEEK
1004355
XXXXXXX XXXXXXXXXXXXX
TYPE
XXXXXXXXXX
TEMPERATURE
XXXXXXXXXXXXXXX
LOAD
XXXXX
PROD.ORDER
XXXXXXX
XXXXXX
XX/XX
Hz
PROJECT/SERIALNO.
XXXXXXXXXX
W
XXXX
AVAC
ASSAABLOY Entrance Systems AB LODJURSGATAN10 LANDSKRONASWEDEN FACTORYNO. X
xxxxxxx
xxxxxxx 1002
SÜD
1 2 3 4 5 6 7 8
CLASSIFICATION DIN 18650-1:2010
Part of the Besam range
assaabloyentrance.com
F
assaabloyentrance.com
If problem
occurs
Action
Check that all required signage is applied and intact. Mandatory indicates that the signage is re-
quired by European directives and equivalent national legislation outside the European Union.
Product label: Mandatory
A
No entry, identifying one-way traffic: Mandatory in GB and US, if applicable, not included
in the product.
B
Supervision of child (applied to both sides of the door): Mandatory according to national
regulations. Recommended, if the risk analysis shows use by children.
C
Keep clear
D
Emergency break-out: Mandatory, if approved for escape route.
E
ASSA ABLOY Entrance Systems door sticker: Mandatory, if applicable to highlight the
presence of the glass (applied to all glass sections that are moving).
F
Automatic door
G
Contact your ASSA ABLOY Entrance Systems service representative. For contact information, see last page.=
1003090-en-12.0Issue 2020-10-0920
