Assa Abloy Corbin Russwin DC8200 Series User manual

80-9380-8000-152 Rev 3 12/22
Installation Instructions
DC8200 Series
Universal Door Closer DC8210 Tri-Pack Standard
DC8200 Series Multi-Sized from 1 through 6
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65warnings.ca.gov.
Attention Installer: Improper installation may result in
damage to the product and void the factory warranty.
WARNING
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Copyright © 2006, 2009, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights
reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY
Access and Egress Hardware Group, Inc. is prohibited.
IMPORTANT:
yAn improperly installed or incorrectly adjusted door closer may cause property damage and/or
personal injury; and will void product warranty.
yTo avoid personal injury, DO NOT DISASSEMBLE THIS DOOR CLOSER BODY.
yDoor closers must be securely fastened to a properly reinforced door and frame with fasteners
provided.
yDoor closers with the “A1” HOLD OPEN ARM option are not permitted to be installed in fire door
assemblies.
BEFORE INSTALLING:
yThe Americans with Disabilities Act (ADA) requires that doors having door closers have an
opening force not to exceed 5 lbf. Use standard templating for regular arm and parallel arm
applications. Jamb mounted applications use the template for 140° door opening to achieve the
required opening force.
yThe door closer’s power size adjustment feature may require adjustment to its lowest setting to
comply with ADA opening force guidelines.
yAn auxiliary door stop, by others, is strongly recommended to avoid damage to the door closer
and adjacent property.
yDoors should be hung on ball bearing or anti-friction hinges/pivots.
yDoor closer must not be installed on the exterior of a door in an exterior wall of a building.
yADA compliant closers are: DC8200, DC8210, DC8220.
Size of Door & Door Closer
Type of
Installation Interior Exterior In-swinging
Exterior
Out-swinging
Recommended
Closer size
**Max. Opening
Force (lbs/f)
Regular
&
Top Jamb
2’4” — — 1 8
3’0” — — 2 14
3’6” 2’6” 3’0” 3 16
4’0” 3’0” 3’6” 4 22
4’6” 3’6” 4’0” 5 24
5’0” 4’0” 4’6” 6 26
Parallel
Arm
2’4” — — 1 8
2’6” — — 2 14
3’0” — 2’6” 3 16
3’6” — 3’0” 4 22
4’0” — 3’6” 5 24
4’6” — 4’0” 6 26
**These forces are for standard templating with bearing type hinges and do not account for pressure differentials and drafts.
DC8200
Regular Arm
Refer to Pages 2 & 3
DC8210
Parallel Arm
Refer to Pages 4 & 5
DC8220
Jamb Mount
Refer to Pages 6 & 7
To Determine
Hand of Door:
Approved 2022-12-12

2
80-9380-8000-152 Rev 3 12/22
DC8200 Series
Installation Instructions
Universal Door Closer
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Copyright © 2006, 2009, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights
reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY
Access and Egress Hardware Group, Inc. is prohibited.
1DC8200 Regular Arm Installation

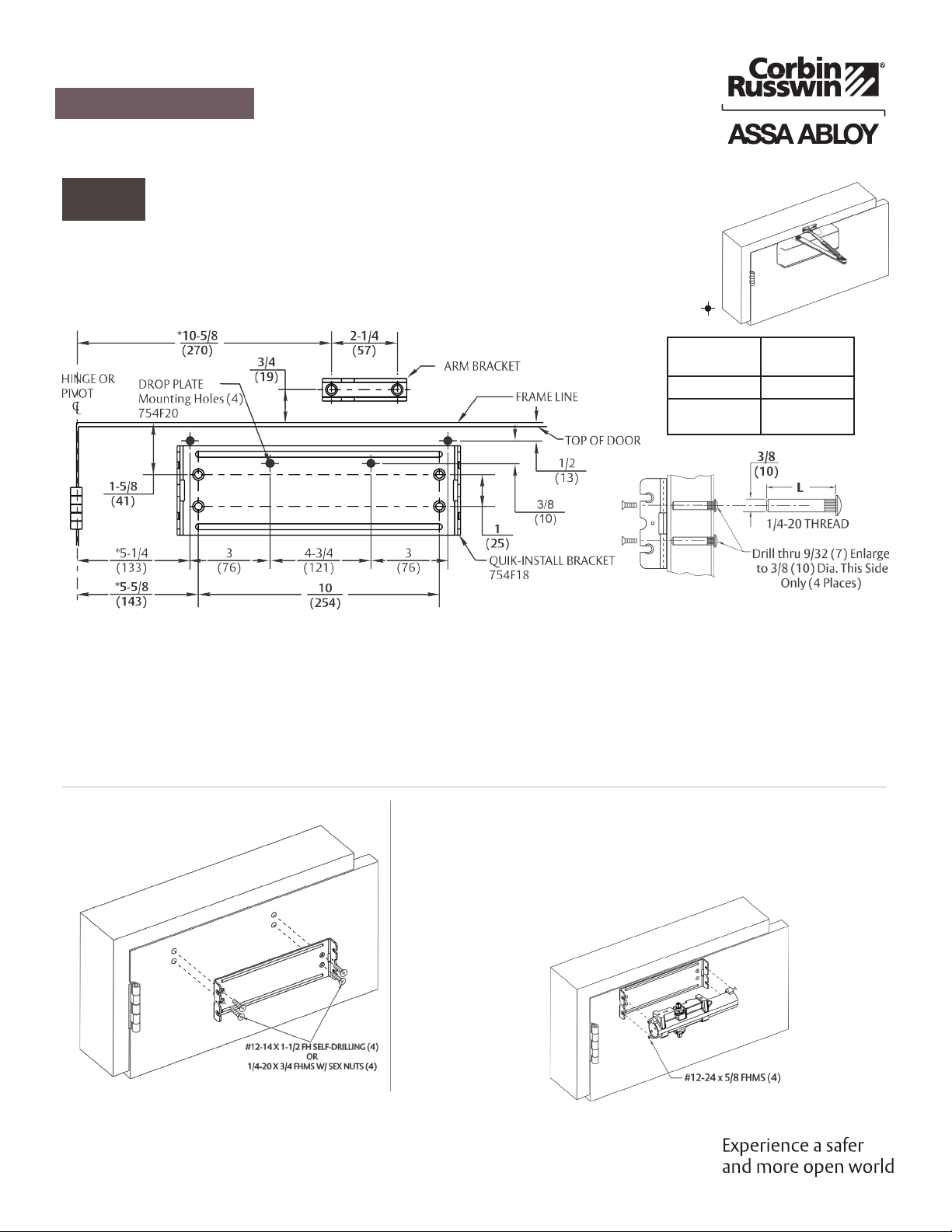

A. Template
Mark door and Jamb (for QUIK-INSTALL®bracket and arm bracket)
If top tail is 3" (76mm) or greater, use the template for the QUIK-INSTALL bracket provided.
If top rail is 1-3/4" (44mm) to 2-15/16" (75mm), use DROP PLATE (754F20) dimensions, denoted by the .
* To obtain extra closing force, add 3" (76mm) to dimensions marked.
This will limit the degree of door opening to 110°.
NOTES:
yCheck hand of door (Refer to page 1)
yRight hand application shown. Left hand opposite.
yDimensions given in inches (mm). Do not scale drawing.
yCloser must be installed in a true horizontal plane to ensure proper closer performance.
yDoor opening (up to 180°) is dependent upon door, frame, wall, and hinge/pivot conditions permitting.
yMinimum clearance required over door:
‒Non-Hold Open: 1-1/2 (39)
‒Hold Open: 1-11/16 (43)
Mounting Screw Specifications
Arm and Closer Bracket
#12-14 self-drilling screw
1/8 (3) diameter pilot hole
required for Wood Applications
Sex nuts, furnished
when ordered
}OR {
B. Mount QUIK-INSTALL Bracket C. Mount Closer Body to QUIK-INSTALL Bracket
yStart the four (4) mounting screws into the four (4) closer mounting holes.
yPlace the closer onto the QUIK-INSTALL bracket with the four (4) mounting
screws inserted in the four (4) QUIK-INSTALL bracket slots.
yTighten the four (4) mounting screws to fasten the closer body to the
QUIK-INSTALL bracket.
Door
Thickness
Sex Nut
Length “L”
1-3/8 (35) 1-9/32 (33)
1-3/4 (44) &
over
1-21/32 (42)
Approved 2022-12-12

3
DC8200 Series
Installation Instructions
Universal Door Closer
80-9380-8000-152 Rev 3 12/22
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Copyright © 2006, 2009, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights
reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY
Access and Egress Hardware Group, Inc. is prohibited.

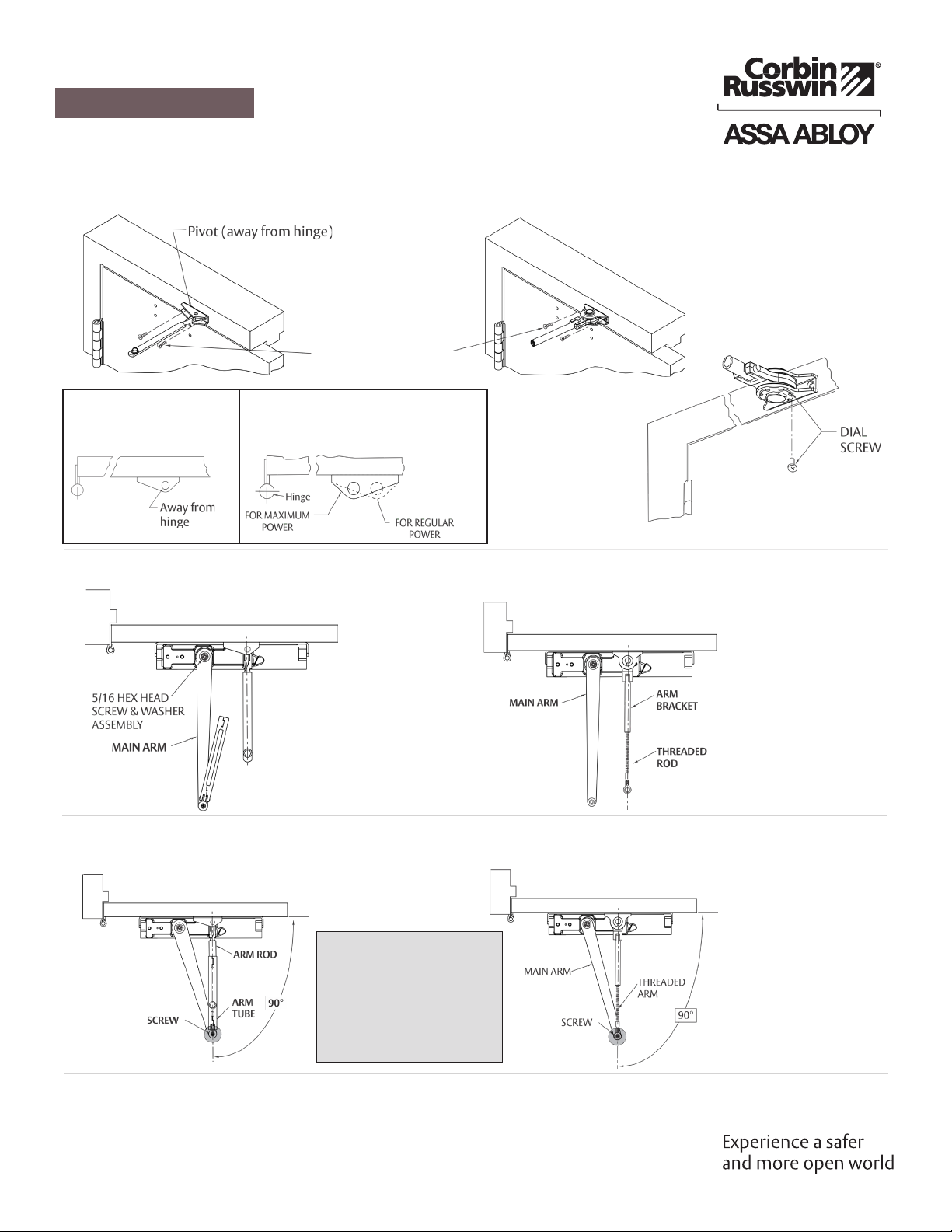

D. Attach Arm Bracket to Frame
#12-14 x 1-1/2"
FH Self Drilling (2)
Non-Hold Open Arm Only: Hold Open Arm (A1 Option Only):
Standard Position:
Normal mounting position.
Position with pivot point
away from hinge.
For Additional 15% Closing Force:
Reposition arm mounting bracket so
that pivot point is toward hinge.
E. Position Arm on Closer
F. Preload and Adjust Arm
G. Adjust Door Closer: Refer to Page 8
Hold Open Arm:
Position so that dial
screw is on UNDERSIDE
of bracket.
Non-Hold Open Arm Only:
Main arm projects straight out at 90° angle to door.
Install and tighten arm screw & washer assembly.
Hold Open Arm Only:
Main arm projects straight out at 90° angle to door. Remove
arm screw and washer from elbow joint and disassemble arm.
Thread the rod into the Arm Bracket as shown below. Install
and tighten arm screw & washer.
Non-Hold Open Arm Only:
Open door and slide arm rod into arm loop. Close door
and swing the adjusting arm so it is 90° to frame. With
7/16" wrench INSTALL and TIGHTEN SCREW SECURELY.
Hold Open Arm Only:
While door is closed, adjust the Threaded arm in the Arm
bracket until the bearing fits back onto elbow joint on the Main
Arm at 90° as shown below. RE-INSTALL AND TIGHTEN SCREW
SECURELY.
Extended Maintenance
Lubricate Arm periodically at
shaded points with a drop or
two of appropriate lubricant.
NOTE: When lubricating a
Hold Open Arm, DO NOT use
any lubricant on the Holding
Surface components.
Approved 2022-12-12

4
80-9380-8000-152 Rev 3 12/22
DC8200 Series
Installation Instructions
Universal Door Closer
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Copyright © 2006, 2009, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights
reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY
Access and Egress Hardware Group, Inc. is prohibited.
2DC8210 Parallel Arm Installation
A. Template
Mark door and Jamb (for QUIK-INSTALL® bracket and adapter plate)
If top tail is 5-1/4" (133mm) or greater, use the template for the QUIK-INSTALL bracket provided.
If top rail is 1-3/4" (44mm) to 5-1/8" (130mm), use DROP PLATE (754F25) dimensions, denoted by the .
NOTES:
yCheck hand of door (Refer to page 1)
yRight hand application shown. Left hand opposite.
yDimensions given in inches (mm).
Do not scale drawing.
yCloser must be installed in a true horizontal plane to
ensure proper closer performance.
yDoor opening (up to 180°) is dependent upon door,
frame, wall, and hinge/pivot conditions permitting.
* To obtain extra closing force, add 3" (76mm) to dimensions marked.
This will limit the degree of door opening to 110°.
Mounting Screw Specifications
Arm and Closer Bracket
#12-14 self-drilling screw
1/8 (3) diameter pilot hole
required for Wood Applications
Sex nuts, furnished
when ordered
}OR {
C. Mount Closer Body to QUIK-INSTALL Bracket
yStart the four (4) mounting screws into the four (4) closer mounting holes.
yPlace the closer onto the QUIK-INSTALL bracket with the four (4) mounting
screws inserted in the four (4) QUIK-INSTALL bracket slots.
yTighten the four (4) mounting screws to fasten the closer body to the QUIK-IN-
STALL bracket.
B. Mount QUIK-INSTALL Bracket
Door
Thickness
Sex Nut
Length “L”
1-3/8 (35) 1-9/32 (33)
1-3/4 (44)
& Over
1-21/32 (42)
Approved 2022-12-12

5
DC8200 Series
Installation Instructions
Universal Door Closer
80-9380-8000-152 Rev 3 12/22
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Copyright © 2006, 2009, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights
reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY
Access and Egress Hardware Group, Inc. is prohibited.
D. Mount Adapter Plate
Bracket on Jamb
Using holes spotted on soffit or stop in
Step A, mount adapter plate bracket.

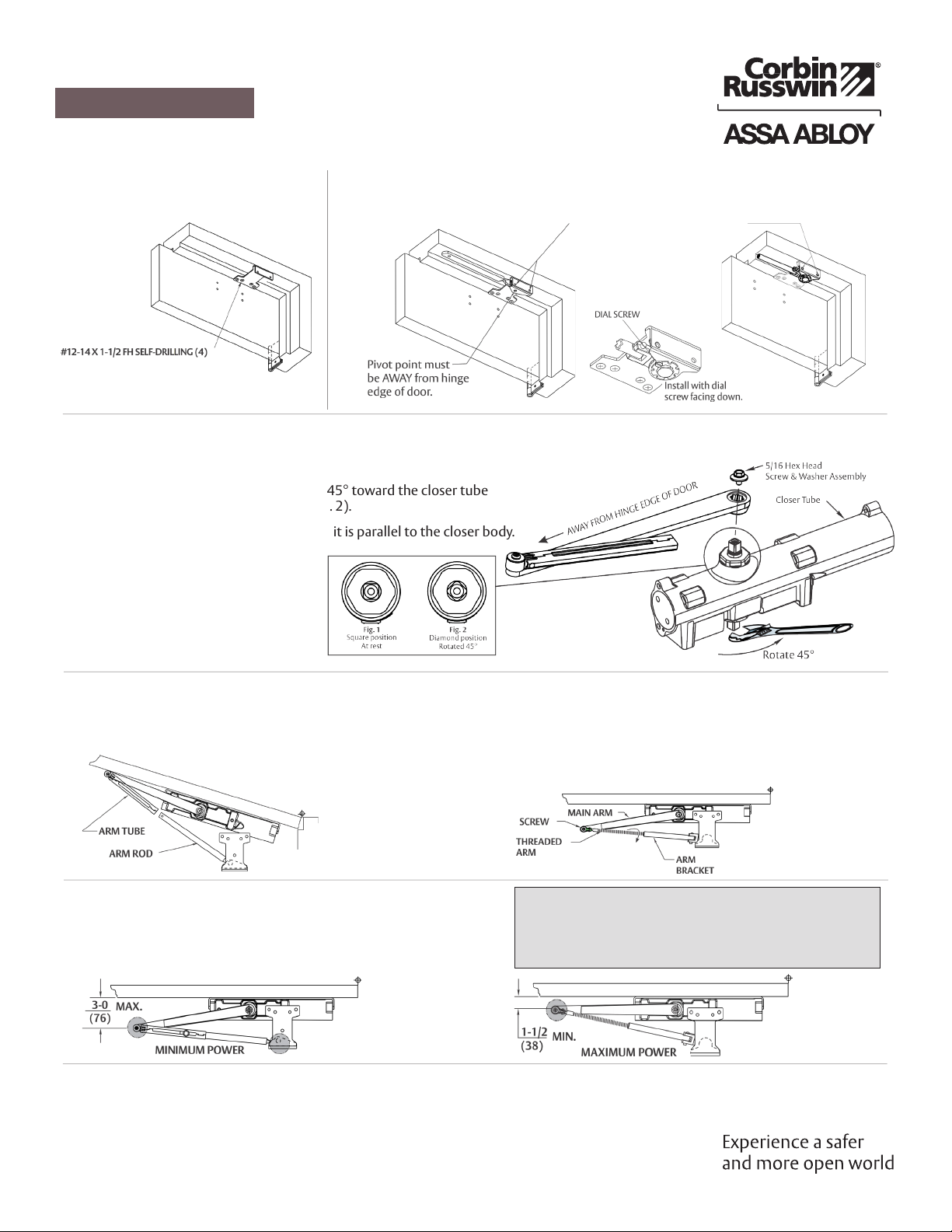

F. Position Arm on Closer
Using hex wrench provided, turn closing speed and latching speed
valves clockwise until completely closed. DO NOT OVER TIGHTEN.
Using wrench, turn under side of spindle 45° toward the closer tube
until it reaches the diamond position (Fig. 2).
Immediately place arm on spindle so that it is parallel to the closer body.
Install and tighten arm screw and
washer assembly. Reopen valves.
G. Connect and Position Arms
Open door and slide arm rod into arm loop. Close door,
swing arms so that they form a “V” position, as in Step H.
With 7/16” wrench, INSTALL AND TIGHTEN SCREW SECURELY.
H. Power Adjustment
To increase the power of the closer, re-adjust the arm so it is
nearer the door. To decrease power, re-adjust the arm so it is
farther away from the door and then secure screw in arm
loop (non-hold open) or elbow joint (hold open).
I. Adjust Door Closer: Refer to Page 8
Hold Open Arm Only:
Remove main arm screw from elbow joint and disassemble
arm. Thread the rod into the Arm Bracket as shown below.
While door is closed, adjust the Threaded Arm in the Arm
Bracket until the bearing fits back onto the elbow joint on the
Main Arm and forms a “V” as shown below.
RE-INSTALL AND TIGHTEN SCREW SECURELY.
Extended Maintenance
Lubricate Arm periodically at shaded points with a drop or
two of appropriate lubricant.
NOTE: When lubricating a Hold Open Arm, DO NOT use any
lubricant on the Holding Surface components.
E. Attach Arm Bracket to Frame
1/4-20 x 1/2 POHMS with Patch (2)
Non-Hold Open Arm Only: Hold Open Arm (A1 Option Only):
Approved 2022-12-12

6
80-9380-8000-152 Rev 3 12/22
DC8200 Series
Installation Instructions
Universal Door Closer
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Copyright © 2006, 2009, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights
reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY
Access and Egress Hardware Group, Inc. is prohibited.
3DC8220 Jamb Mount Installation
A. Template
Mark door and Jamb (for QUIK-INSTALL®bracket and adapter plate)
DO NOT USE THIS TEMPLATE WITH A DROP PLATE (754F24).
Use the template addendum (80-9380-8009-152) included with 754F24
Drop Plate orders.
Opening
Maximum A B Hinge Condition
110° 6-7/8
(175)
14
(356) Butts, Offset
Pivots, and
Swing Clear
Hinges
140° 5-1/8
(130)
12-1/2
(318)
180° 3-3/8
(86)
10-1/2
(267)
140° 5-1/8
(130)
12-3/8
(314) *Center Hung
Dimensions “A” and “B” are taken from
centerline of hinge as shown and apply to
pivot point of swing clear hinges. Offset
and center hung pivots.
*Must be single acting door.
Header
Width C D E F
Standard 1-1/2
(38)
3/4
(19)
2-3/8
(60)
4
(102)
Narrow 1-7/8
(48)
3/8
(10)
1-3/4
(45)
3-1/2
(89)
Mounting Screw Specifications
Arm and Closer Bracket
#12-14 self-drilling screw
1/8 (3) diameter pilot hole
required for Wood Applications
Sex nuts, furnished
when ordered
}OR {
C. Mount Closer Body to QUIK-INSTALL Bracket.
yStart the four (4) mounting screws into the four (4) closer mounting holes.
yPlace the closer onto the QUIK-INSTALL bracket with the four (4) mounting
screws inserted in the four (4) QUIK-INSTALL bracket slots.
yTighten the four (4) mounting screws to fasten the closer body to the
QUIK-INSTALL bracket.
B. Mount QUIK-INSTALL Bracket to
Jamb.
Door Thickness Sex Nut Length “L”
1-3/8 (35) 1-9/32 (33)
1-3/4 (44) & Over 1-21/32 (42)
NOTES:
yCheck hand of door (Refer to page 1)
yRight hand application shown. Left hand opposite.
yDimensions given in inches (mm). Do not scale drawing.
yCloser must be installed in a true horizontal plane to ensure proper closer performance.
yAll degrees of door opening is dependent upon door, frame, wall, and hinge/pivot conditions permitting.
Approved 2022-12-12

7
DC8200 Series
Installation Instructions
Universal Door Closer
80-9380-8000-152 Rev 3 12/22
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail]
Copyright © 2006, 2009, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights
reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY
Access and Egress Hardware Group, Inc. is prohibited.
D. Attach Arm Bracket to Door
Standard Position:
Normal mounting position.
Position with pivot point
away from hinge.
For Additional 15% Closing Force:
Reposition arm mounting bracket
so that pivot point is toward hinge.
E. Position Arm on Closer
F. Preload and Adjust Arm
Hold Open Arm Only (A1 Option):
While door is closed, adjust the Threaded Arm in
the Arm Bracket until the bearing fits back onto the
elbow joint on the Main Arm at 90° as shown below.
RE-INSTALL and TIGHTEN SCREW SECURELY.
G. Adjust Door Closer: Refer to Page 8
Non-Hold Open Arm Only: Hold Open Arm (A1 Option Only):
#12-14 X 1-1/2 FH Self-Drilling (2) or
1/4-20 X 3/4 FHMS W/ Sex Nuts (2)
Non-Hold Open Arm Only:
Open door and slide arm rod into arm loop. Close door,
swing arms so adjusting arm is 90° to frame. With 7/16”
wrench, INSTALL and TIGHTEN SCREW SECURELY.
Non-Hold Open Arm Only:
Main arm projects straight out at 90° angle to door. Install and
tighten arm screw & washer assembly.
Hold Open Arm Only:
Main arm projects straight out at 90° angle to door. Install
and tighten arm screw & washer assembly. Remove main arm
screw from elbow joint and disassemble arm. Thread the rod
into the Arm Bracket as shown here.
Extended Maintenance
Lubricate Arm periodically at
shaded points with a drop or
two of appropriate lubricant.
NOTE: When lubricating a
Hold Open Arm, DO NOT use
any lubricant on the Holding
Surface components.
Approved 2022-12-12

80-9380-8000-152 Rev 3 12/22

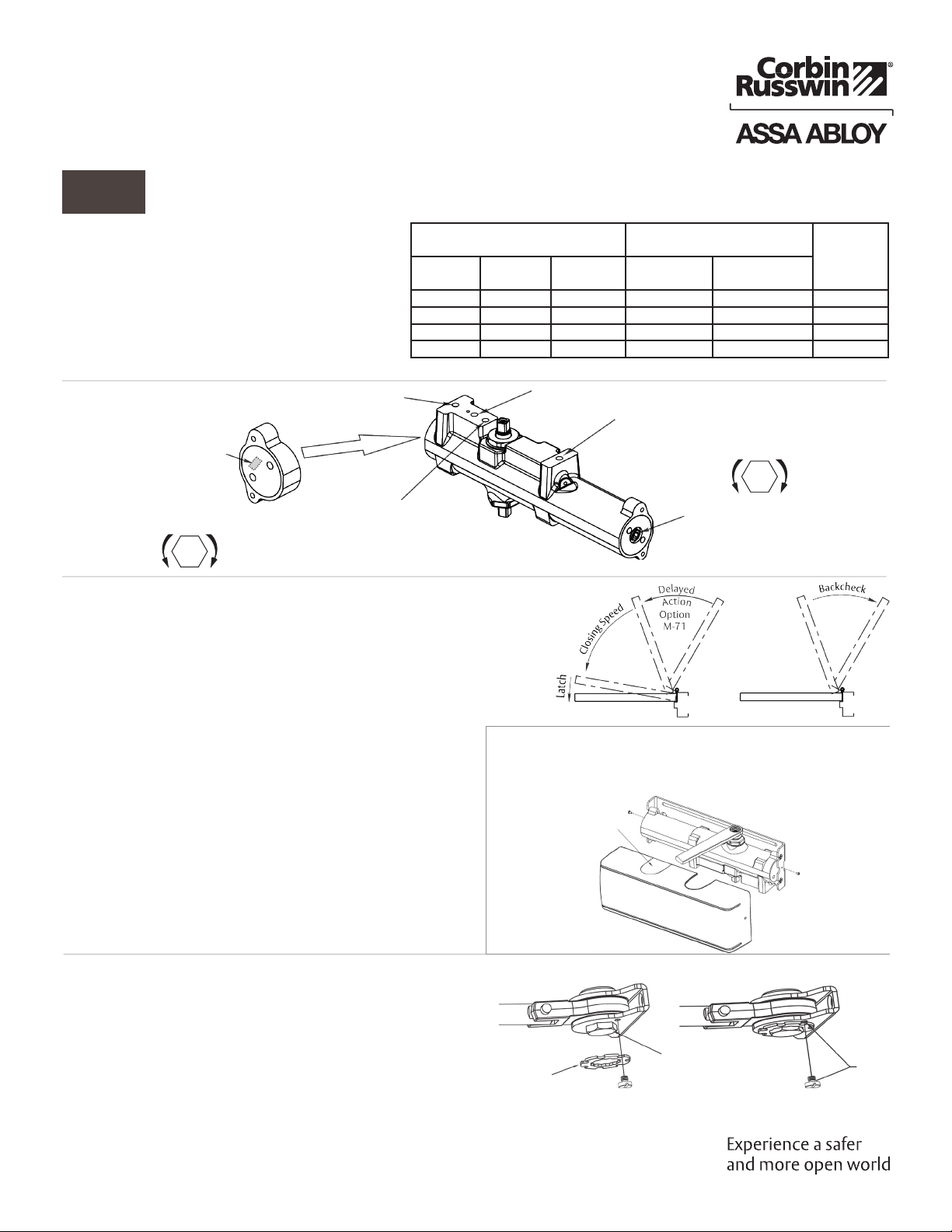

4DC8000 Closer Adjustment
Spring Adjustment Power
Locate spring power adjuster from illustration
below.
DC8200 Size 1 thru 6 Spring Power Adjustment Chart
yAll DC8200 closers are factory set at an
approximate Size 3.
yAdjust closer as needed for door size using this chart.
yReadjustment may be required to suit prevailing
conditions.
Size of Door Spring Power Adjustment
(No. of Full turns Clockwise) Approx.
Equivalent
Closer Size
Interior Exterior
In Swing
Exterior
Out Swing
Regular & TJ
Mounting
Parallel Arm
Mounting
2' 4" (712) 2' 6" (764) — 1 – 5 2 – 7 3
2' 6" (764) 3' 0" (915) — 5 – 8 7 – 11 4
3' 0" (915) 3' 6" (1067) 2' 6" (764) 8 – 13 11 – 15 5
3' 6" (1067) 4' 0" (1219) 3' 0" (915) 13 – 15 15 – 17 6
Latching
Speed Valve
Delayed Action Valve
(Option M71)
Closing Speed Valve
Backcheck Intensity Valve
Spring Power Adjuster
(1/4" Allen wrench)
Date Stamp
(on end of closer)
MM-YY
MM = Month
YY = Year
Closing Speed Valve (1/8" Allen Wrench Provided)
To adjust speed of door closing from fully open to a position 2” to 5”
from closed, turn Closing Speed Valve CLOCKWISE to SLOW closing,
COUNTERCLOCKWISE to SPEED closing.
Latching Speed Valve (1/8” Allen Wrench Provided)
After closing speed has been obtained, turn latching speed valve
CLOCKWISE to SLOW latching or COUNTERCLOCKWISE to SPEED
latching for last 2” to 5” of door travel.
NOTE: Set combination of CLOSING and LATCHING speeds to
between 3 and 7 seconds. Use of door by handicapped, elderly,
or small children may require even greater closing time.
Delayed Action Valve (1/8” Allen Wrench Provided)
Turn valve CLOCKWISE to SLOW closing, COUNTERCLOCKWISE to
SPEED closing. Delayed action may be adjusted from 20 seconds to
90 seconds, depending on degree of door swing. Delay occurs at
the beginning of the door closing cycle from fully open down to 70°,
where the closing speed valve then begins its control.
Backcheck Intensity Valve
Turn valve COUNTERCLOCKWISE to reduce backcheck or CLOCKWISE
to increase backcheck. (Backcheck should be set to give a soft
cushioning action, not a sudden stop.)
To Adjust Hold Open (A1 Option)
Open the door to desired position and tighten the hold open screw
firmly (For RH application, turn screw on underside CLOCKWISE.
For LH application, turn screw COUNTERCLOCKWISE.).
Place the hold open dial over the hex head of the bracket screw so that
one of the slots in the dial is directly over small screw hole tapped in
bracket. Seat the dial tightly over the bracket.
INSERT DIAL SCREW AND TIGHTEN SECURELY.
Installing Cover
ySlip cover over closer.
yHold tightly against QUIK-INSTALL Bracket surface.
ySecure on each side with 6-32 x 1/4" PBHMS screws.
Insert is removable.
Place in unused opening.
Plastic Cover
(Standard)
Dial
Hold Open
Screw
Dial
Screw
Use hex socket (1/8” Allen) wrench to adjust Latching
Speed, Closing Speed, and Delayed Action valves.
Faster
( + ) Slower ( – )
To regulate the intensity of backcheck action, use hex
socket (1/8" Allen) to turn valve clockwise to increase or
counterclockwise to decrease checking
Decrease
( – ) Increase ( + )
Approved 2022-12-12
