Assa Abloy Corbin Russwin IN120 User manual

FM353 10/18
Please read these instructions carefully to prevent missing important steps.
Please Note: Improper installations may result in damage to the lock and void the factory warranty.
Important: The accuracy of the door preparation is critical for proper functioning and security of this lock.
Misalignment can cause premature wear and a lessening of security.
For Technical Assistance call Corbin Russwin at 1-800-810-WIRE (9473)
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Attention Installer
IN120 WiFi
Mortise Lockset
Installation Instructions
WARNING
This product can expose
you to lead which is
known to the state of
California to cause cancer
and birth defects or other
reproductive harm. For
more information go to
www.P65warnings.ca.gov.
08/2018

IN120 Mortise Lock
1) Warning
Table of Contents
3
1) Warning................................................................................3
2) General Description.............................................................4
3) Specifications / Features ....................................................4
4) Product Illustrations............................................................5
5) Installation Instructions......................................................7
6) Operational Check.............................................................21
!
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
!
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced technician for help
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. This Class B digital
apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer-
ence that may cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des règlements
d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dis-
positif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
!
To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only.
!
To avoid possible damage from electrostatic discharge (ESD), some basic precautions should be used when handling
electronic components:
• Minimize build-up of static by touching and/or maintaining contact with unpainted metal surfaces such as door hinges,
latches, and mounting plates especially when mounting electronic components such as readers and controllers onto
the door.
• Leave components (reader and controller) protected in their respective anti-static bags until ready for installation
• Do not touch pins, leads or solder connections on the circuit boards
*Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representa-
tions or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and
installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable
codes and ratings.

IN120 Mortise Lock
4
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
• Inside Lever produces REX (request to exit) signal
and retracts latch and deadbolt
• ML20200 offers monitoring of deadbolt REX and
provides integrated monitoring of Door Position.
• May be used for indoor and outdoor applications
• ANSI/BHMA A156.25 Listed Grade 1 Compliant
2) General Description
3) Specifications / Features
The Corbin Russwin IN120 pairs a sleek, attractive design with the latest in access control technology to address
the evolving needs of today’s facilities. Featuring HID®multiCLASS SE®technology, this innovative WiFi lock
makes it easy and affordable to expand your access control system.
This product is operated by six (6) “AA” alkaline batteries, or can be hard-powered using an optional 12-24VDC
power supply connected by a harness through the door.
Corbin Russwin mortise locks are designed with quality components to provide high security, performance
and durability.
Hardware Specifications
Electrical Specifications:
• Latch – Stainless Steel
(Easily field reversible without disassembling lock body)
• Deadbolt – Stainless Steel
• Auxiliary Latch – Stainless steel, non-handed
• Door Thickness – 1-3/4” Standard; can be furnished for
other door thicknesses upon request. Consult factory.
• Case – 12 gauge heavy duty wrought steel
• Outside lever controlled by any combination of
contactless reader or mechanical cylinder
• WiFi (IEEE 802.11 b/g/n)
• Multiple time zone and holiday access scheduling
• First-in unlock or automatic unlock configuration,
based on specified time schedule
• Support for most advanced wireless encryption
and authentication standards such as WEP, WPA,
WPA2 and 802.1x*
• 2,400 users per lock; 10,000 event audit trail
• Privacy button
• 8200 lock body offers monitoring of deadbolt REX
and provides integrated monitoring of door position
Power requirements:
• Alkaline AA Batteries: 9V, 300mA
• Optional Hard Power (UL294 Listed Power
Supply Required): 9-24VDC, 300mA
*For specific security information, please contact your local
ASSA ABLOY Door Security Solutions sales consultant or
call 800-810-WIRE.
• HID®multiCLASS SE® technology offers support for
the following credentials:
• 2.4 GHz credential compatibility:
• 125 kHz credential compatibilty:
• HID Prox®
• Secure Identity Object™ (SIO) on Mobile
IDs (Bluetooth Smart)
• 13.56 MHz credential compatibility:
• iCLASS®
• iCLASS SE®(SIO-enabled)
• iCLASS Seos®
• SIO on MIFARE® Classic
• SIO on MIFARE® DESfire® EV1
• MIFARE® Classic
• DESfire® EV1
• NFC-enabled mobile phones
• UL 294 Access Control Ratings:
Destructive Attack Level 1
Line Security Level 1
Endurance Level 4
Standby Power Level 1
• UL Listed - UL 294 Indoor Use
• CUL Listed - S319: Class 1
NOTE: A weather-protective gasket is required for
outdoor applications.

IN120 Mortise Lock
5
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
4) Product Illustration
1
5
4
3
2
Reader Module
* *Specify finish
ITEM PART NUMBER/ORDER STRING DESCRIPTION COLOR/TRIM QTY
1* IN-120-EM01-[B]IP-B HID iCLASS®, HID iCLASS SE®(SIO-enabled), HID iCLASS®Seos™, HID MIFARE®
SE, HID DESfire®EV1 SE, HID Prox®, NFC-enabled mobile phones
Black 1
IN-120-EM01-[B]IP-W HID iCLASS®, HID iCLASS SE®(SIO-enabled), HID iCLASS®Seos™, HID MIFARE®
SE, HID DESfire®EV1 SE, HID Prox®, NFC-enabled mobile phones
White 1
IN-120-EM01-[B]IP-MB-[finish]** HID iCLASS®, HID iCLASS SE®(SIO-enabled), HID iCLASS®Seos™, HID MIFARE®
SE, HID DESfire®EV1 SE, HID Prox®, NFC-enabled mobile phones
Black with metal trim 1
IN-120-EM01-[B]IP-MW-[finish]** HID iCLASS®, HID iCLASS SE®(SIO-enabled), HID iCLASS®Seos™, HID MIFARE®
SE, HID DESfire®EV1 SE, HID Prox®, NFC-enabled mobile phones
White with metal trim 1
IN-120-EM01-[B]IPS-B All credentials supported by the IP option plus MIFARE Classic and DESfire EV1 Black 1
IN-120-EM01-[B]IPS-W All credentials supported by the IP option plus MIFARE Classic and DESfire EV1 White 1
IN-120-EM01-[B]IPS-MB-[finish]** All credentials supported by the IP option plus MIFARE Classic and DESfire EV1 Black with metal trim 1
IN-120-EM01-[B]IPS-MW-[finish]** All credentials supported by the IP option plus MIFARE Classic and DESfire EV1 White with metal trim 1
IN-120-EM01-[B]CP-B FeliCa, HID Prox®, NFC-enabled mobile phones Black 1
IN-120-EM01-[B]CP-W FeliCa, HID Prox®, NFC-enabled mobile phones White 1
IN-120-EM01-[B]CP-MB-[finish]** FeliCa, HID Prox®, NFC-enabled mobile phones Black with metal trim 1
IN-120-EM01-[B]CP-MW-[finish]** FeliCa, HID Prox®, NFC-enabled mobile phones White with metal trim 1
2 782F718 Inside Mounting Kit (mounting plate & hardware) 1
3 783F519 WiFi Controller 1
4 N/A AA battery 6
5 782F729 Inside Escutcheon Black 1
782F739 Inside Escutcheon White
783F725 FIN* Inside Escutcheon Black with metal trim
783F735 FIN* Inside Escutcheon White with metal trim
6 FM355 Field prep template (not shown) 1
7 T31202 Door manufacturers template (not shown) 1
-- FM353 Instructions (this manual) 1
*Specifying Bindicates BLE (Bluetooth) option when ordering

IN120 Mortise Lock
6
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Tools Required:
• Phillips Screw Driver #2, #3
• Flat Blade Screw Driver (Standard size)
• 1/8” Security Allen Wrench
• 7/64” Allen Wrench (supplied)
• Pin Hex Wrench (supplied)

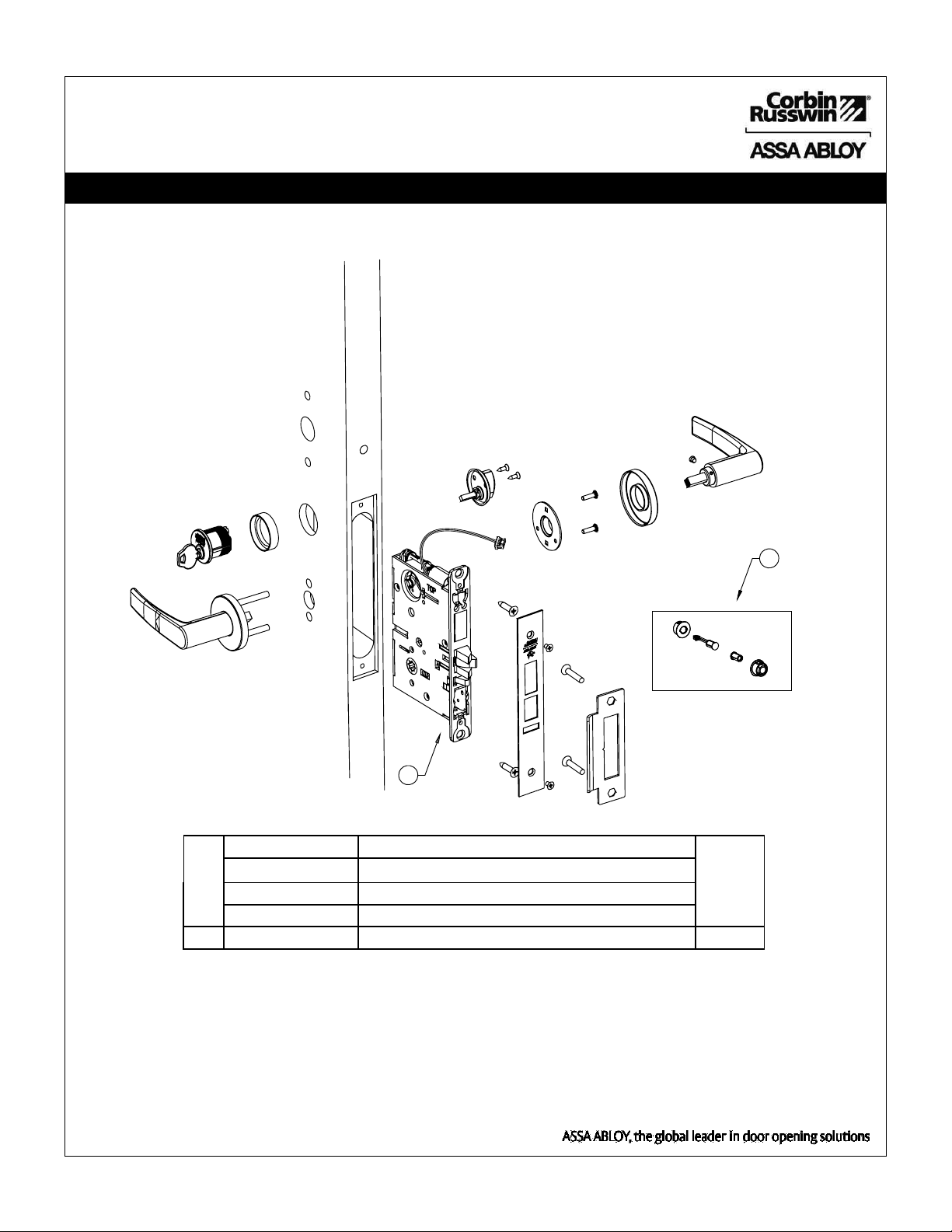

4) Product Illustration (Continued)
1 783F938 [handing]* 26D ML20133/ML20134 Lock Case - No Deadbolt 1
783F948 [handing]* 26D ML20135/ML20136 Lock Case - With Deadbolt
816F048 [handing]* 26D ML20233/ML20234 Lock Case - No Deadbolt (not shown)
816F058 [handing]* 26D ML20235/ML20236** Lock Case - With Deadbolt (not shown)
2 783F619 DPS (Door Position Switch) Kit*** 1
*Replace with handing (L, LR, R, RR)
1*
2
For parts not listed,
refer to ML2000 Parts
and Service Manual
**Required for Escape Return functionality (a residential requirement in Canada)
*** Not required for ML202xx

IN120 Mortise Lock
7
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions
Left Hand
Hinges Left.
Open Inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB”
Right Hand
Hinges Right.
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward
“RHRB”
Illustrations shown are as viewed from the outside or secure side of opening.
2. Door Preparation
Outside Face of Door Inside Face of Door
1. Verify Hand and Bevel of door
Prep door according to supplied door marker (FM355). For door manufacturer templates
visit www.corbinrusswin.com and reference template # T31202.

IN120 Mortise Lock
8
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

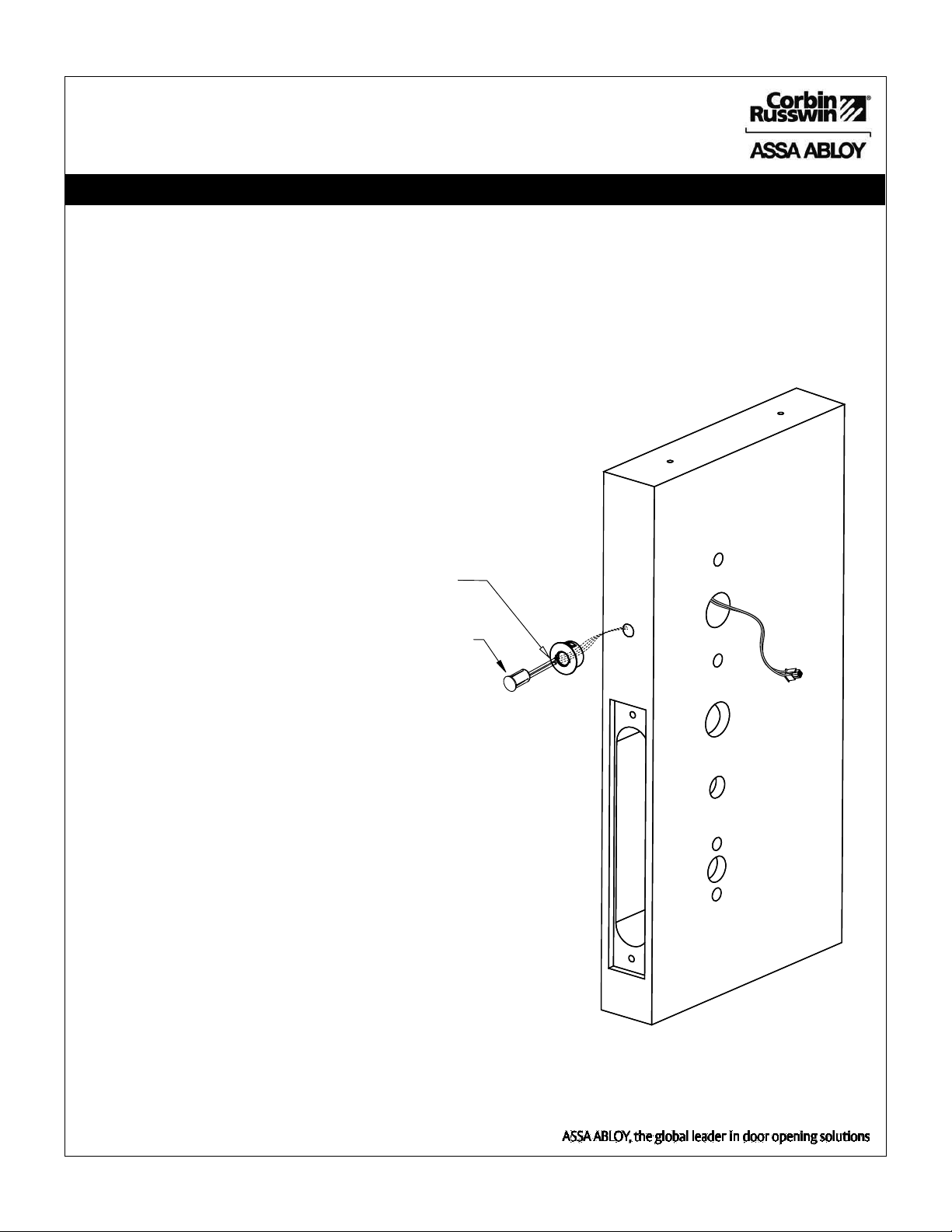

a. Push wires through raceway toward lock prep.
b. Push DPS firmly into place by hand.
Note: DO NOT TAP SWITCH WITH ANY TOOL.
c. Install magnet into door frame. Push firmly into place by hand.
See instruction A7983.
3. Install Door Position Switch* (DPS)
CAUTION: if DPS is not installed or is installed
improperly, door status monitoring features will
not function.
5) Installation Instructions (Continued)
Collar is used only
with metal doors
Door Status Switch
Inside of Door
*Only required on the ML201xx lock body (ML202xx has an integrated DPS)

IN120 Mortise Lock
9
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
a. Move the Red locking screw to side of lock-body
being locked (Fig. 1)
b. Push in latch then depress catch plate with screw
driver (Fig. 1)
c. Pull latch out of lock-body and turn latch over (Fig. 2)
Figure 2
RED Locking Screw
d. Push in latch while holding screw driver
behind latch tail (Fig. 3)
Note: Push in latch until catch plate is no
longer depressed (Fig. 4)
e. Rotate lock front to match bevel of door
as shown (Fig. 5)
Figure 5
Catch Plate
Figure 1
MAKE SURE CATCH PLATE IS
EVEN W/ TOP SURFACE
GOOD BAD
Figure 4
Figure 3
WARNING:
LOCK-IN CAN
OCCUR IF LATCH
IS NOT PROPERLY
INSTALLED
5) Installation Instructions (Continued)
4. Lock Handing Instructions

IN120 Mortise Lock
10
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
a. Feed wires through 1-5/16” diameter hole on INSIDE of door while installing lock body (Fig. 6a).
b. Pull wires through hole while inserting lock body. DO NOT push wires back into cylinder hole (Fig. 6b).
Important: Door must remain open during installation. Use door stop.
c. Install, but do not tighten two #12 x 1” combination screws through lock body (Fig. 6a).
Fig. 6a
Fig. 6b
Outside Face of Door
(2) #12 x 1”
Do not tighten
Inside Face of Door
From Lock Body
6. Install Cylinder:
a. Slide cylinder through collar. Thread cylinder into lock body
(Fig. 7a).
Note: Make sure cylinder is oriented correctly (Fig. 7a1).
b. Tighten cylinder clamp using 7/64” allen wrench (Fig. 7b).
c. Turn the key to make sure that lock functions correctly
(latch, deadbolt, and key).
Position cylinder so that the logo is right-
side up.
Correct Incorrect
Fig. 7a1
Fig. 7a
Fig. 7b
7/64" Allen Wrench
DPS
5. Install Lock Body in Door:

IN120 Mortise Lock
11
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

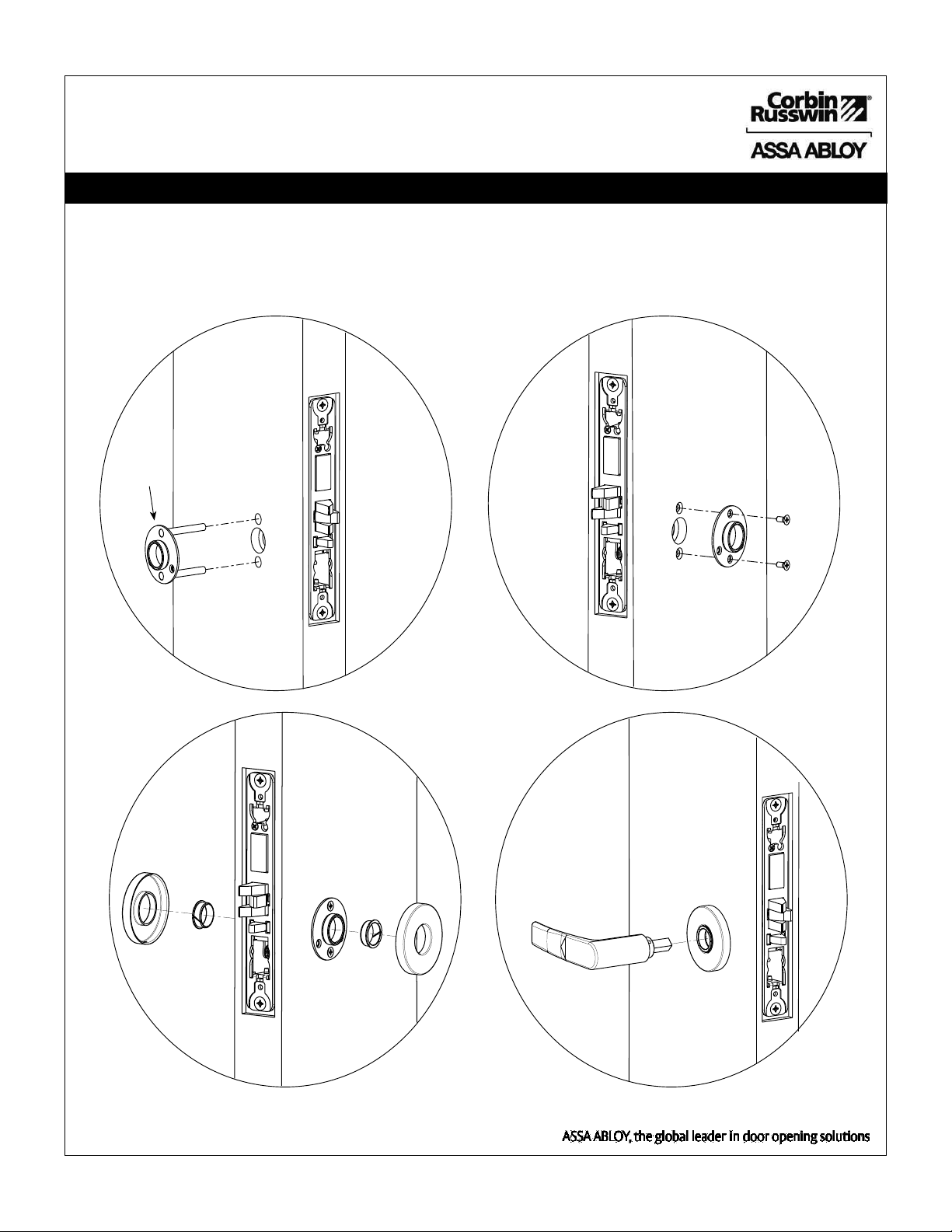

7a. Install Standard Lever Trim:
(Refer to 7b on following pages for Museo®Trim):
Step 2 Step 3
Fig. 8c
Inside Face of Door
Fig. 8a
Inside Face of Door
Fig. 8b
Outside Face of Door
Outside Adapter Plate
Fig. 8d
Outside Face of Door
Step 1a Step 1b
5) Installation Instructions (Continued)

IN120 Mortise Lock
12
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Fig. 9a
Inside Face of Door
Step 4
Step 5 Align adjustment bolt with threaded hole in lever
Adjustment bolt needs
to be threaded in farther.
Adjustment bolt needs
to be unthreaded.
Adjustment bolt fully aligned.
Notes:
• Unthread adjustment bolt approximately four turns
for a good starting point (after being fully tightened).
• Make sure O/S lever is fully inserted into adapter
plate before aligning adjustment bolt.
STANDARD MUSÉO
Lever
Use Correct Spindle Orientation
Good Bad
Lever Fig. 9b
5) Installation Instructions (Continued)
Inside Lever
Fig. 10a Fig. 10b Fig. 10c
Fig. 11
Step 6
Install I/S lever with set screw:

IN120 Mortise Lock
13
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
NOTE: Spindle can
be used to help
thread hub into lever
Adapter Plate Hub
Step 1
Thread adapter plate hub into
lever and fully tighten
Step 2
Install O/S trim assembly and inside adapter plate
Step 3
7b. Install Museo®Trim:
5) Installation Instructions (Continued)
Use Correct Spindle Orientation
BAD GOOD
Lever
Outside Face of Door
Align adapter plate hub with square
hole in lever; keeping hub as tight
as possible
Inside Face of Door
Fig. 12a Fig. 12b
Fig. 13

IN120 Mortise Lock
14
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
Install Armored Front:
a. Tighten (2) screws through lock body.
b. Attach armored front with two #8 x ¼” screws (Fig. 14c).
Install Spindle and Rose:
a. Align studs on rose with bushings in adapter plate.
Install I/S lever with set screw:
Step 4
Step 5
Step 6
Outside Face of Door
Fig. 14a
Fig. 14b
Fig. 14c

IN120 Mortise Lock
15
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
Step 1

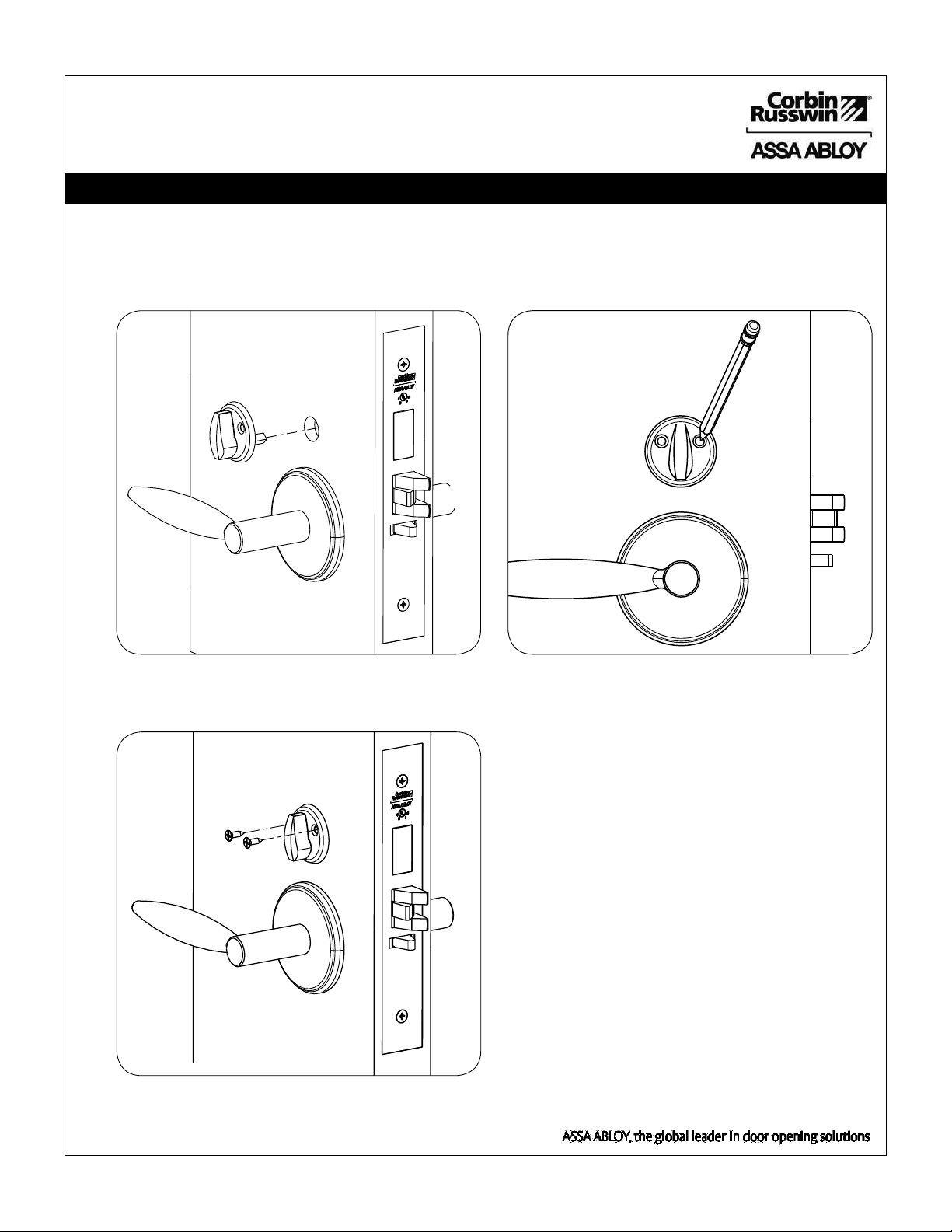

8. Install Turn Piece:
Step 2
Step 3
Fig. 14d Fig. 14e
Fig. 14f

IN120 Mortise Lock
16
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
Fig. 15a

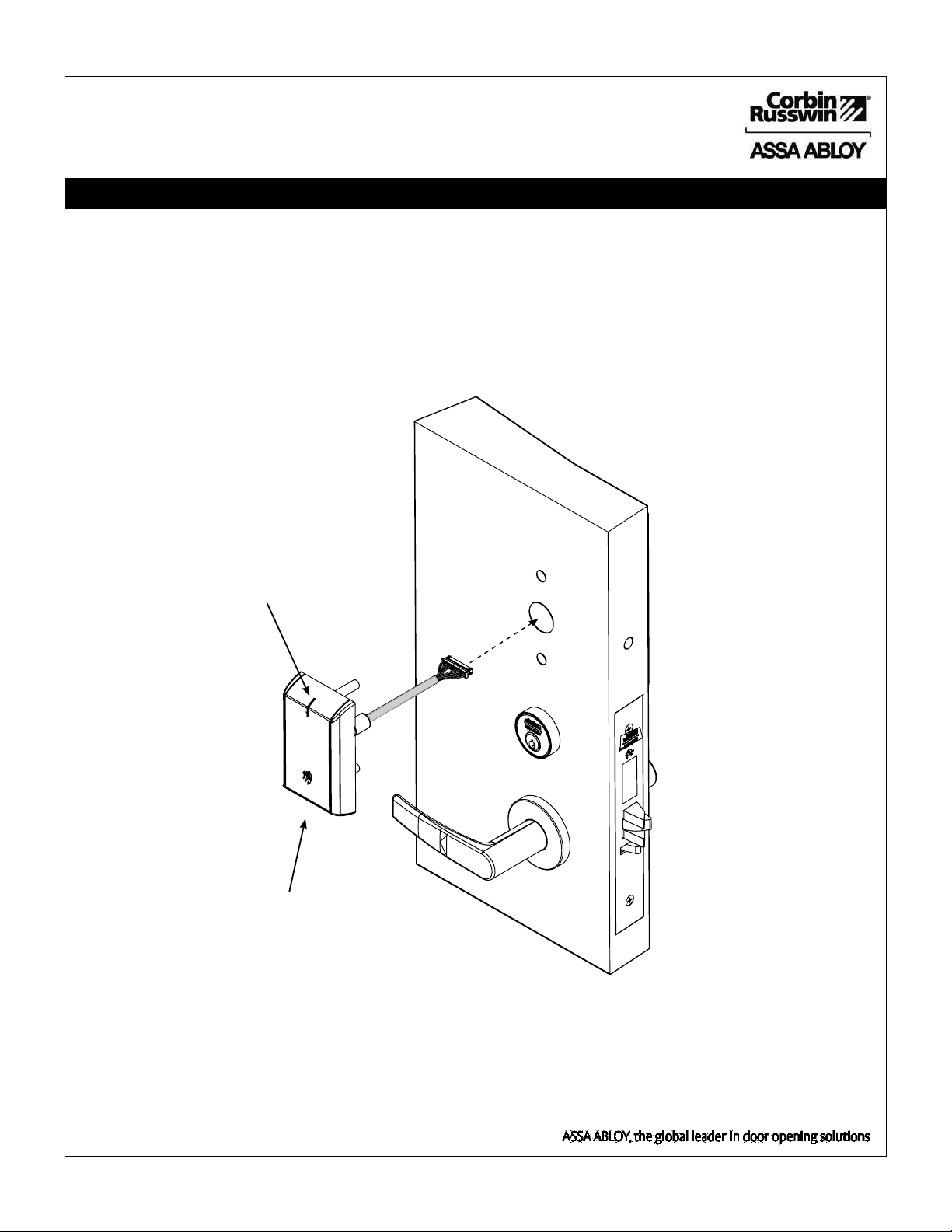

a. Orient the reader so the LED lens is at the top.
b. Feed the reader harness through the door (from outside to inside).
c. Install the reader to the outside of door by aligning the mounting posts with the door preparation holes.
Hold the reader flush against door while ensuring proper alignment.
9. Install Outside Reader and Inside Mounting Plate:
Outside Face of Door
Reader Assembly
with Harness
LED

IN120 Mortise Lock
17
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Inside Face of Door

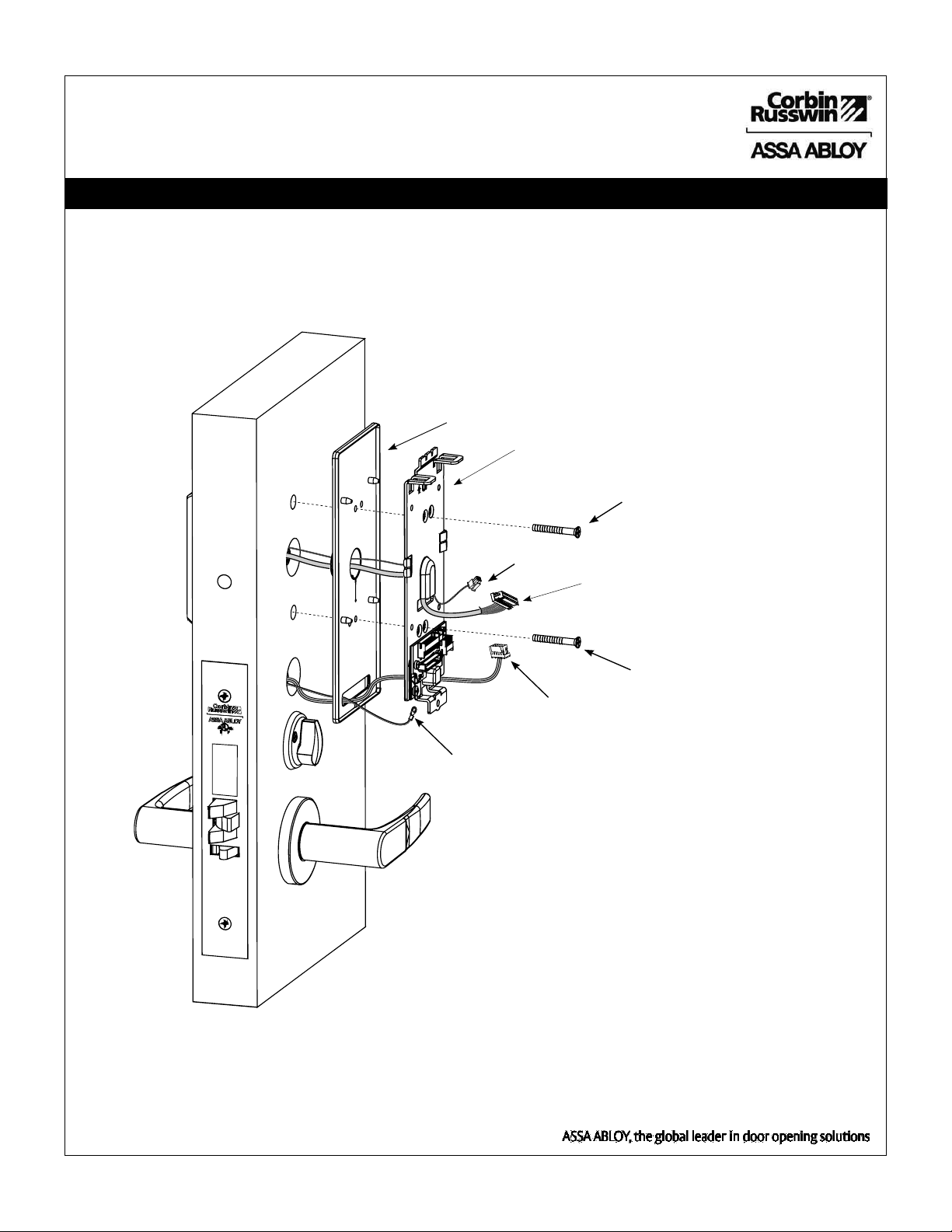

d. Next feed the cables/connectors through the inside mounting assembly (and gasket if required*).
e. Secure the mounting assembly while ensuring proper alignment of outside reader and tighten the
(2) through-bolts on the inside of the door to secure the reader (Fig. 15b).
*Gasket is required for outdoor installations.
Do not use gasket for fire-rated openings.
If installing with gasket; separate gasket from mounting plate to
feed cables/connectors through holes as indicated (Fig. 15b).
Once cables/connectors are fed through, reattach gasket to
mounting plate.
NOTE: Cable lengths exaggerated for illustrative purposes.
Gasket*
Mounting Plate
Reader Harness
Lock Body
Harness
Ground Lug
DPS
Through -
bolt
Through -
bolt
Fig. 15b
9. Install Outside (Reader) Escutcheon - (Continued)
5) Installation Instructions (Continued)

IN120 Mortise Lock
18
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

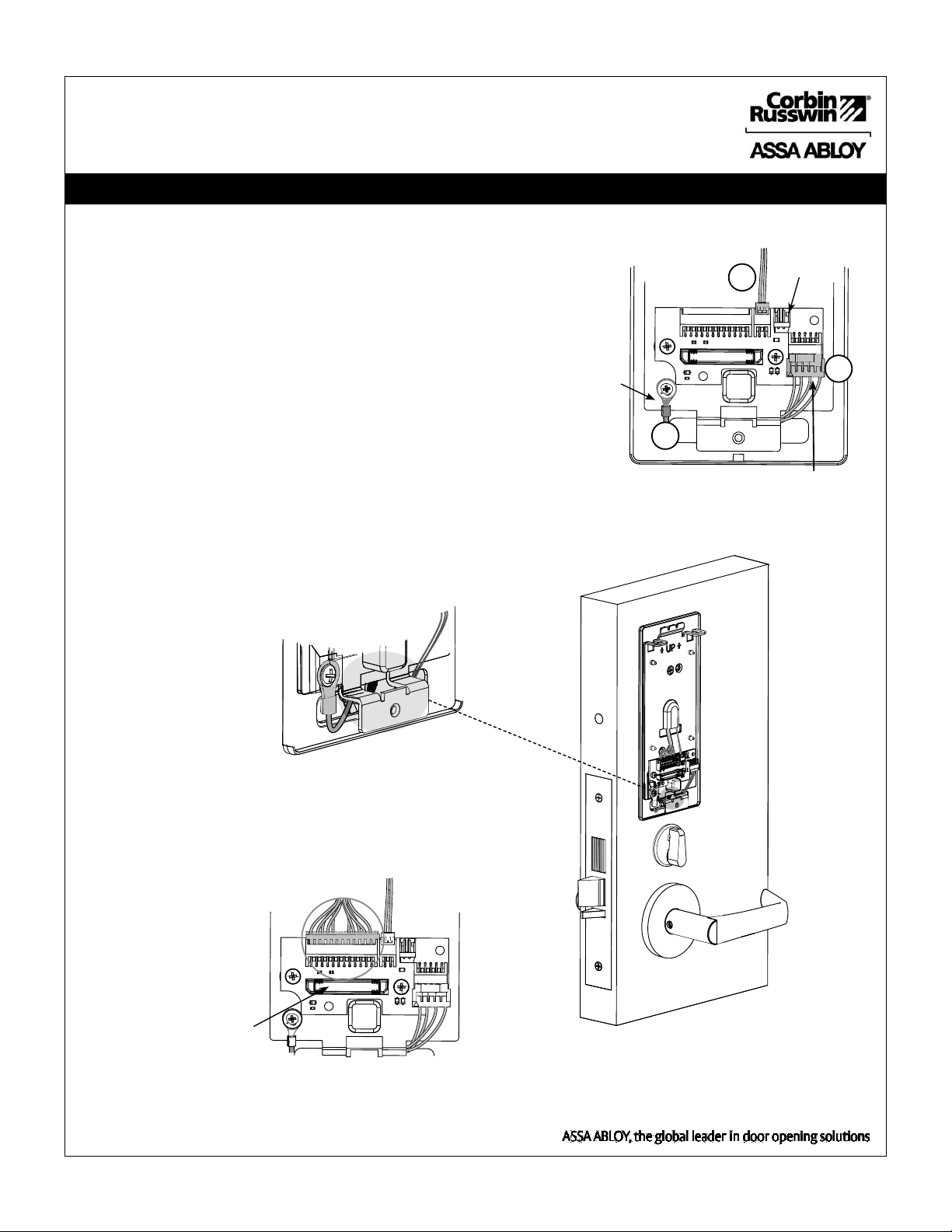

Secure the following connectors to their respective terminals (Fig. 16a, b):
A. Secure the 4-pin DPS connector. (Not required for ML202xx)
B. Secure the 10-pin lock body assembly connector.
C. Secure ground lug to #6-32 machine screw.
CAUTION - Do not touch or allow debris to enter connector contacts.
*NOTE: Optional 2-pin external 12-24VDC power connector.
Inside of Door
Fig. 16b
Fig. 16c
DPS (4-pin)
Reader
(24-pin)
Board-to-Board
Connector
A
Lock
Body
(10-pin)
12-24VDC
Power*
Fig. 16a
Ground
Anchor
B
C
3. Secure the 24-pin card reader connector (Fig. 16d).
Fig. 16d
IMPORTANT: Do not run wires through hole in plate (Fig. 16c, d) - this
will damage wires and the controller connector.
Route wires around flange, do not route wires through the
flange hole (Fig. 16c Detail).
5) Installation Instructions (Continued)
10. Installation of Connectors

IN120 Mortise Lock
19
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
1. Insert top tabs of controller into slots on mounting plate (Fig. 17).
2. Ensure proper alignment of board-to-board connectors while pivoting bottom of controller
toward door until tab on bottom snaps securely into place on mounting plate.
CAUTION: To avoid possible damage to board-to-board connectors, care should be taken
when securing controller to mounting plate. If there is resistance when securing,
detach controller to determine cause before re-attaching controller.
11. Install Inside Module Component Assembly
Fig. 17

IN120 Mortise Lock
20
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Fig. 19
5) Installation Instructions (Continued)
1. Place (6) “AA” alkaline batteries in the compartment, being
careful to align polarity properly.
2. After batteries are installed, there is a slight delay; then an
audible “beep” will sound and the lock motor will cycle.
Before installing batteries for the first time:
Remove pull tab from its position beneath the coin cell by
pulling on tab in direction of arrows printed on tab (Fig. 18).
Fig. 18
1. Assemble cover by hooking top edge on
inside mounting plate.
2. Carefully press bottom of cover toward door
without pinching any wires.
3. Fully secure cover by tightening the security
screw at bottom of cover (Fig.19), utilizing
the security allen wrench.
12. Installing Batteries
13. Inside Cover Installation
