ASUS M530w Level 3 &
Level 4 Service Manual
ASUS Proprietary1

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
Index
1. APPEARANCE ...............................................................................6
1.1 BOX APPEARANCE..................................................................................6
1.2 MAIN COMPONENT NAME & LOCATION........................................7
2. BLOCK DIAGRAM........................................................................10
3. HARDWARE EQUIPMENT...........................................................11
3.1 Digital multimeter ...................................................................................11
3.2 Oscilloscope.............................................................................................11
3.3 USB Download Cable .............................................................................11
3.4 Earpiece...................................................................................................11
3.5 PC ............................................................................................................11
4. DOWNLOAD PROCEDURE............................................................12
4.1 Introduction .............................................................................................12
4.2 Operation procedure................................................................................12
4.3 Repair method .........................................................................................13
5. LCM DISPLAY .................................................................................14
5.1 Introduction .............................................................................................14
5.2 Measure method ......................................................................................15
5.3 Repair method .........................................................................................15
6. USB/CHARGING..............................................................................16
6.1 Introduction .............................................................................................16
6.2 Repair method .........................................................................................16
7. KEYPAD...........................................................................................17
7.1 Introduction .............................................................................................17
7.2 Measure method ......................................................................................20
7.3 Repair method .........................................................................................20
ASUS Proprietary2

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
8. KEYPAD LED ..................................................................................22
8.1 Introduction .............................................................................................22
8.2 Measure method ......................................................................................22
8.3 Measure method ......................................................................................23
9. VIBRATOR.......................................................................................24
9.1 Introduction .............................................................................................24
9.2 Measure method ......................................................................................24
9.3 Repair method .........................................................................................25
10. ACOUSTICS ..................................................................................26
10.1 HANDSET................................................................................................26
10.1.1 Introduction ........................................................................................26
10.1.2 Measure method .................................................................................28
10.1.3 Repair method .................................................................................... 28
10.2 EARPIECE...............................................................................................30
10.2.1 Introduction ........................................................................................30
10.2.2 Measure method .................................................................................30
10.2.3 Repair method .................................................................................... 31
11. CAMERA ..................................................................................32
Introduction ...................................................................................................32
11.1 2M camera.............................................................................................32
11.1.1 Measure method .............................................................................. 32
11.1.2 Repair method .................................................................................33
11.2 VGA camera.............................................................................................33
11.2.1 Measure method ................................................................................. 34
11.2.2 Repair method .................................................................................... 34
12. SIM INTERFACE............................................................................35
12.1 Introduction .............................................................................................35
ASUS Proprietary3

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
12.2 Measure method ......................................................................................35
12.3 Repair method .........................................................................................35
13. MICRO-SD CARD..........................................................................36
13.1 Introduction .............................................................................................36
13.2 Measure method ......................................................................................36
13.3 Repair method .........................................................................................36
14. FLASH LIGHT LED........................................................................37
14.1 Introduction .............................................................................................37
14.2 Measure method ......................................................................................37
14.3 Repair method .........................................................................................38
15. RF REPAIR EQUIPMENT REQUIREMENTS .............................39
15.1 Software requirements............................................................................39
15.2 Hardware requirements..........................................................................39
15.3 Instrument requirements........................................................................39
15.4 Test Environments Setup........................................................................41
15.4.1 Instrument linking ...........................................................................41
15.4.2 Fixture..............................................................................................42
16. RF BLOCK DIAGRAM...................................................................43
16.1 GSM block diagram.............................................................................43
16.2 WCDMA block diagram......................................................................44
17. RF TX/RX PATH AND TEST POINTS...........................................45
ASUS Proprietary4

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
17.1 GSM Tx/Rx path and test points ........................................................45
17.2 WCDMA Tx/Rx path and test points.................................................48
18. PROCEDURES OF REPAIR.......................................................50
18.1 RF repair’s procedure..........................................................................50
18.2 Calibration and pretest error codes for debug..................................52
19. GENERAL RF DEBUG ..................................................................61
19.1 General GSM Tx debug.......................................................................61
19.2 General GSM Rx debug.......................................................................70
19.3 General WCDMA Tx debug................................................................ 77
19.4 General WCDMA Rx debug ...............................................................84
20. APPENDIX...................................................................................88
20.1 GSM/WCDMA wireless test................................................................88
20.2 Bluetooth test ........................................................................................90
20.3 WiFi test.................................................................................................92
ASUS Proprietary5

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦

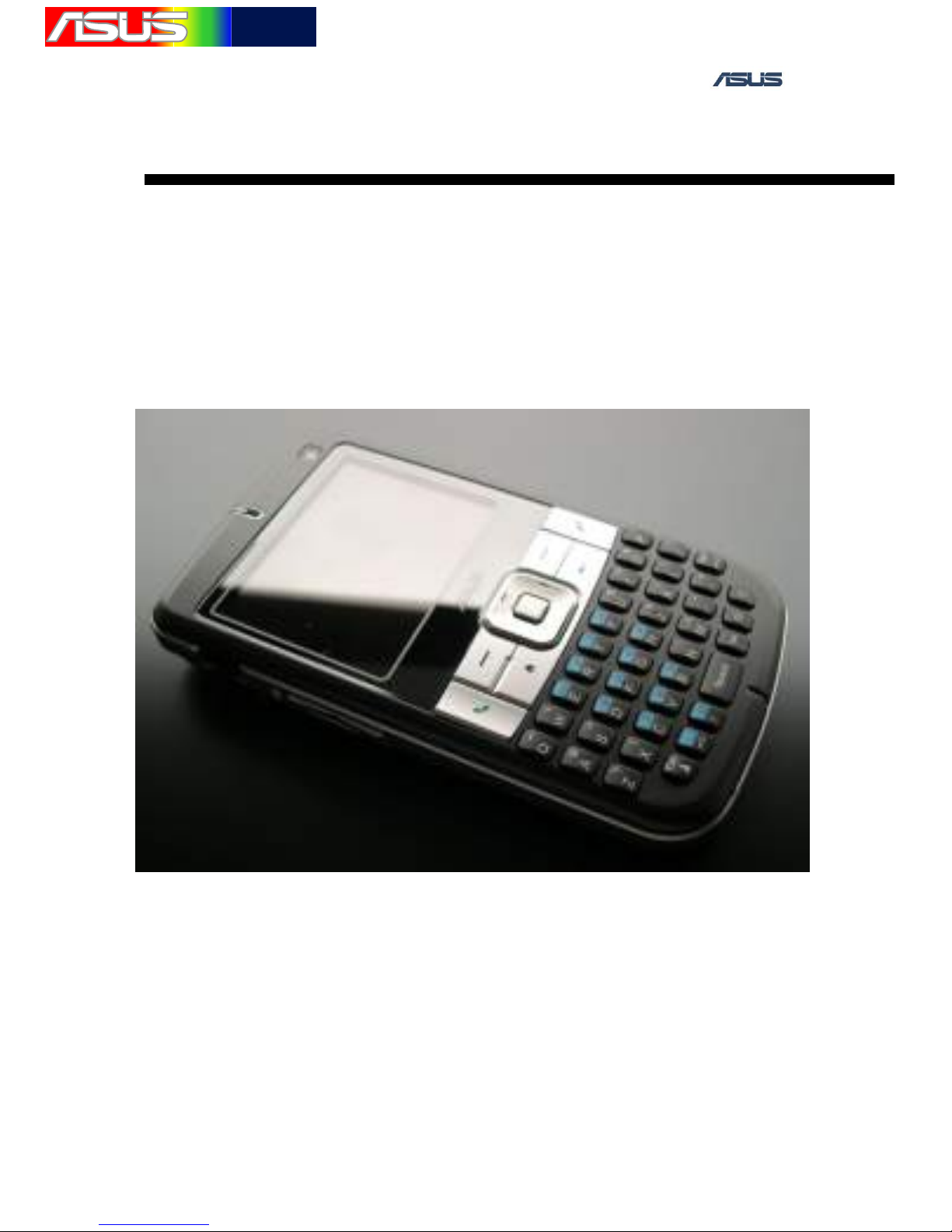

1. APPEARANCE
1.1BOXAPPEARANCE
ASUS Proprietary6

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦

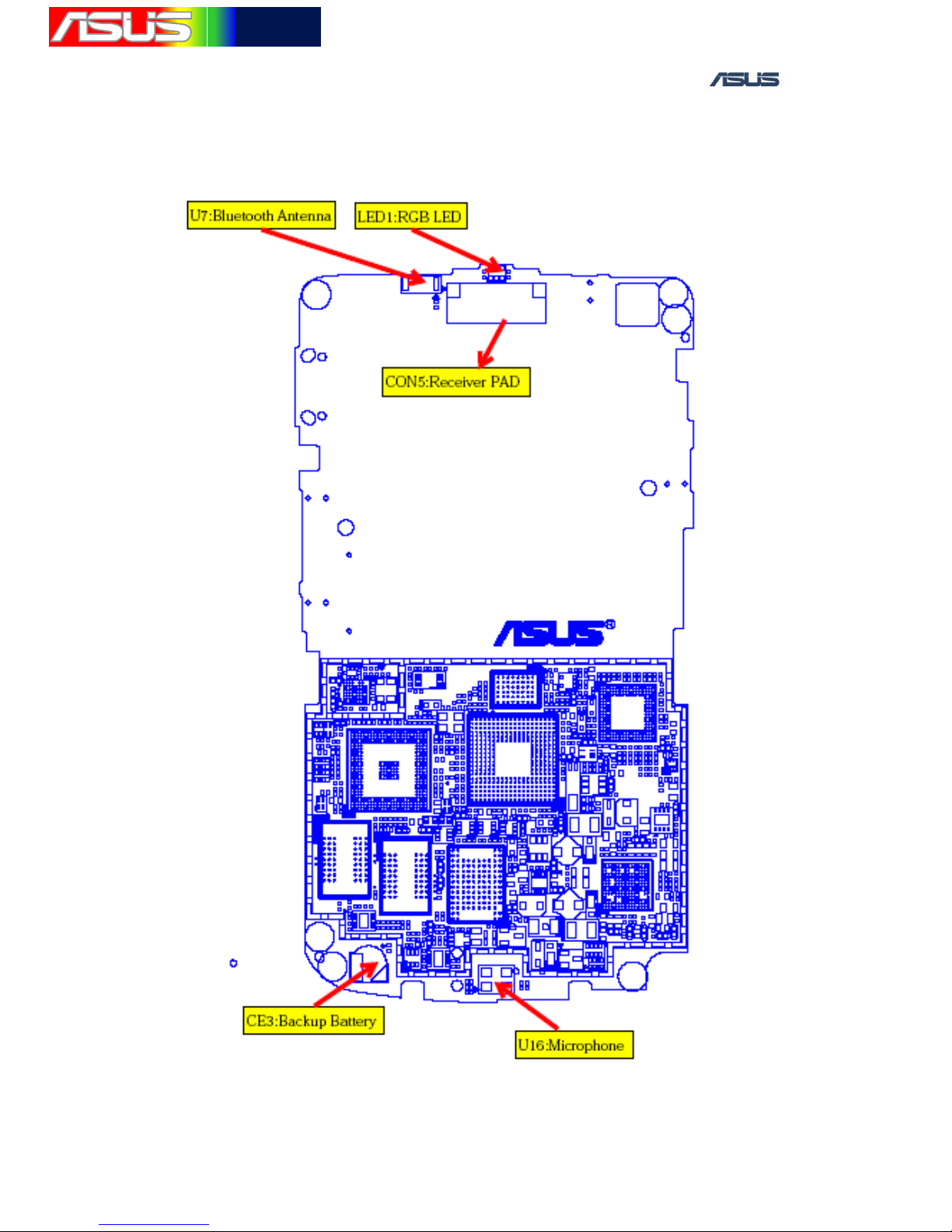

1.2 MAIN COMPONENT NAME & LOCATION
MainBoardTOPLAYER
(3) (4)
(1) (2)
(5) (6) (7) (8)
(1) Application CPU ( Bulverde PXA270)-U1
ASUS Proprietary7

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
(2)Communication CPU ( Hermon PXA900 )-U17
(3) PSRAM (MT45W1MW16PDGA-70WT)-U18
(4)Cedar Creak-U19
(5) (6)SDRAM-U2、U3
(7)NAND FLASH( M-Systems H3)-U4
(8)PMIC( DA9030 )-U20
ASUS Proprietary8

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
Main Board BOTTOM LAYER
TP83 TP82
TP36
TP75TP50 TP74TP40TP7 TP90 TP92
TP89TP46 TP35TP47 TP91 TP34
TP88 TP87 TP84 TP86 TP85
TP33
ASUS Proprietary9

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦

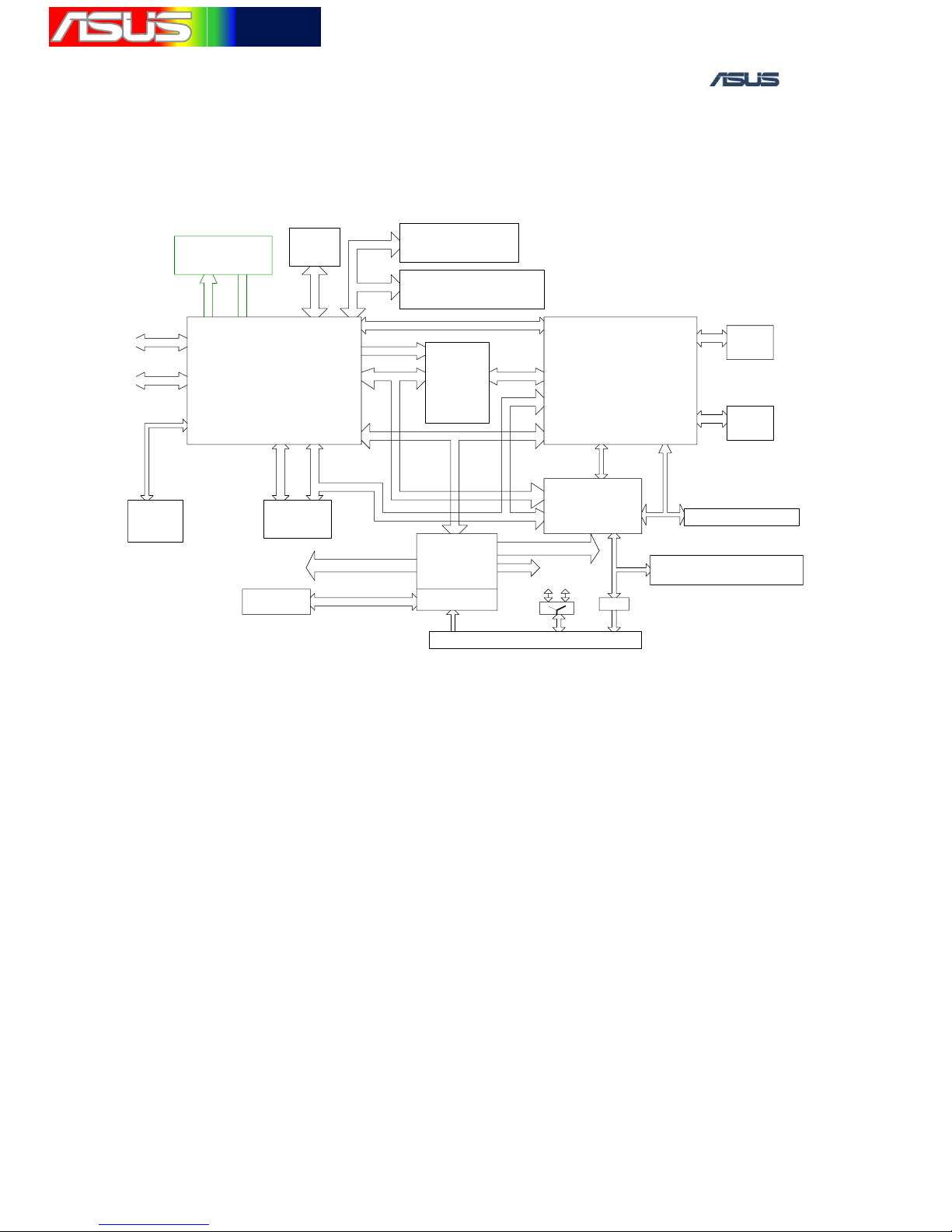

2. BLOCK DIAGRAM
USB SW.
Charger
Bulverde
PXA270 Hermon
PWR I2C
RGB IF
7x8
Qwerty
Keypad
2.46" QVGA
(Samsung/Infineon)
64MB SDRAM
256MB NAND Flash
Dual Camera
(2M+VGA)
FPC type
Battery
Bulverde power
(CSR BC-04)
BT
(Discrete TPBGA)
Micro-SD
(push type)
USB + Headset Jack
VCHG
HMN
USB
(Micron)
PSRAM
Hermon Power
speaker
(M-Systems H3)
320X240
Landscape
LCD
UART
USB
Audio
MIC + Speaker + Receiver
Cedar Creek
Codec+AFE
PMIC
(Arava)
RF Circuit
SIM
PCM
B
T
_
U
A
R
T
MSL
SSPSSP
I2C CIF
Headset
Amp.
BVD
USB
ASUS Proprietary10

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
3. HARDWARE EQUIPMENT
3.1 Digital multimeter
Check if the components are soldered well.
Check if the voltage levels are correct.
Check if the circuit is open or short.
3.2 Oscilloscope
Check the signals waveforms and voltage levels.

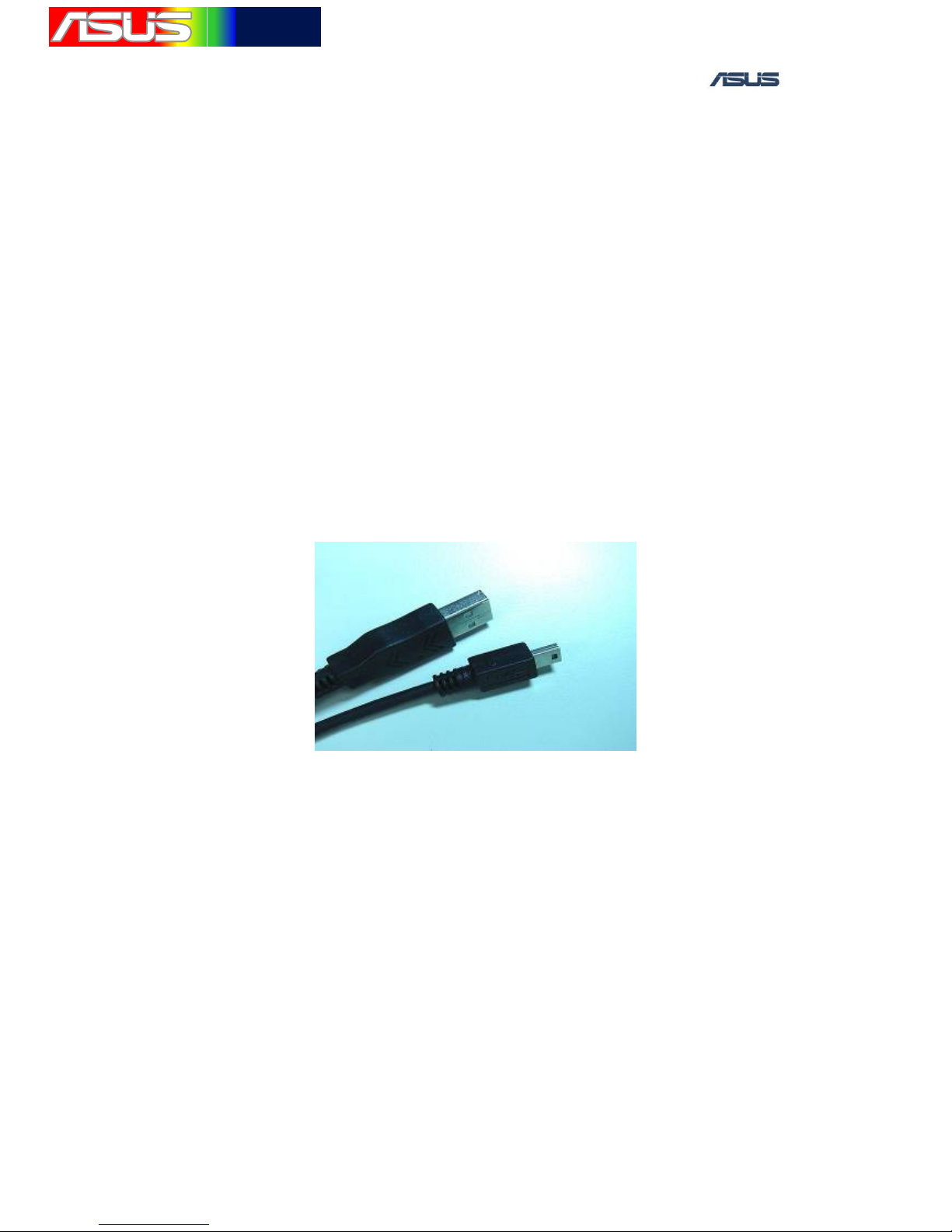

3.3 USB Download Cable
The software bin file can be downloaded into the handset by the M530w
USB download cable. The PC also can connect to the handset by it.
USB Download Cable
3.4 Earpiece
The earpiece can be used for the audio loop test.
3.5 PC
Install the download tool first and execute the download tool.
ASUS Proprietary11

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
4. DOWNLOAD PROCEDURE
4.1 Introduction
When the handset updates the software, we need to download the
software and data into the NAND flash. The download path is built
up by the USB to Serial port download cable.
4.2 Operation procedure
1. Set up the power supply voltage and current at 4V and 1A. Connect to
the battery connector positive and negative of the handset.
2. Press the POWER ON Key and Down button. The handset would
power up and enter the download mode.
Power on key
Down button
ASUS Proprietary12

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
3. The handset is connected the PC by the USB Download Cable.
4. Execute the ASUS 3G Download Tool.exe program, and press
“Browse” to select image.
5. Press Start button to burn image。
4.3 Repair method
1. Check if the USB Connector is soldered poorly or short.
2. Check if the fuse (F5) blew.
3. Check if the U2、U3 and U4（Flash & SDRAM）chips are placed
inversely, soldered poorly or short.
4. Check if the voltages VCC_SDRAM＝1.8V and VCC_NFIO
=1.8V are fed the SDRAM and NAND flash. If the VCC_SDRAM
and VCC_NFIO are abnormal, try to change a new DA9030
Power IC.
ASUS Proprietary13

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
ASUS Proprietary14
5. LCM DISPLAY
5.1 Introduction
The M530w LCM pixel resolution is 320 * 240. The backlight is white
LED, and the driver IC is MAX8595ZETA (U12).
Backlight Driver
LCM connector circuit (2)
BL_VBAT_IN BL_LX
21 L201
10UH
VBAT[5,10,11,14..16]
Backlight Driver
BL_DIODE_CA
BL_CA
BL_COMP
BL_AN
1 2
D206
ZHCS400
12
R223 0Ohm
BL_AN
12
R224 0Ohm
1
2
C210
3300P/50V
OUT
1
IN
2
CTRL
3
CS
4COMP 5
GND1 6
PGND 7
LX 8
G
N
D
2
9
U12
MAX8595ZETA
1
2
R215
1MOhm
1
2
C208
10UF/6.3V 1
2
C211
0.47U/25V
1
2
C212
0.1U/10V
1
2
R214
16.5Ohm/1%
LCD_BL_PWM[2]
12
R226 $0Ohm
GND
12 R227
$0Ohm
LCD_nRST/DE[2]
12 R229
0Ohm
12
R228
0Ohm
LCD_nRESET
nRESET_OUT[2,5,10]
LCD_nRST/DE[2]
LCD_DE
1OE
1
1A
2
2Y
3
GND
4
VCC 8
2OE 7
1Y 6
2A 5
U27
SN74AUC2G126DCUR
VDD_LCD_2V8
LCD_SSPTX_BUF
LCD_SSPCLK_BUF
SA_LCDD4][2
SA_LCDD15 [2]
1
2
R225
0Ohm
BL_CABL_AN
GND
GND
LCD_GND_1
2
1
L202
600Ohm/100Mhz
LCD_SSPCLK_BUF
21 L203
600Ohm/100Mhz
LCD_GND_2
1
2
34
5
6
P
N
Q13
FDG6331L_NL
LCD_B5
LCD_R2
LCD_R0
LCD_G1 LCD_G4 LCD_G2
LCD_G3
LCD_G5
LCD_G0
1
2
R
10
235
KOhm
BVD_G0
BVD_B4
BVD_B3
BVD_B1
LCD_R3 LCD_R4
LCD_R1
LCD_R5
BVD_G5
BVD_B2
BVD_B4
BVD_R4
BVD_R3
BVD_R1
BVD_G4
BVD_G2
1 2R234
220KOhm
BVD_B0
BVD_R2
BVD_G1
BVD_G3
BVD_R0
BVD_R4
LCD_B1 LCD_B0
LCD_B4LCD_B3 LCD_B2
VLCD_2V8
1 2
C220
1000PF/50V
SS_RC_3
GND
S
S
_
N
_
3
GND
GND
LCD_PWR_EN[2]
GND
GND
1
2
C21
$27PF
7/50V
LCD_SSPTX_BUF
1
2
C209
2.2UF/6.3V
AUD_WLAN_LCD_SSPCLK[2,5,9]
AUD_WLAN_LCD_SSPTX [2,5,9]
VDD_LCD_2V8
VLDO18_2V8 VDD_LCD_2V8
GND
SA_LCDD13[2] SA_LCDD15[2]
SA_LCDD0[2] SA_LCDD1 [2]
SA_LCDD6[2]
SA_LCDD14 [2]
SA_LCDD10[2]
SA_LCDD2[2]
SA_LCDD8[2]
SA_LCDD4 [2]
SA_LCDD9 [2]
SA_LCDD3 [2]
SA_LCDD12 [2]
LCD_PWR_EN[2]
SA_LCDD5 [2]
SA_LCDD7 [2]
SA_LCDD11[2]
LCD_SPI_nCS [2]
SA_LCD_FCLK_IN[2] SA_LCD_LCLK_IN [2]
SA_LCD_PCLK_IN[2]
VLCD_2V8
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
22
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
22 22
24 24
26 26
28 28
30 30
32 32
34 34
36 36
38 38
S
I
D
E
1
4
0
S
I
D
E
2
4
1
CON3
FPC_CON_39P

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
5.2 Measure method
1. Set up the power supply voltage and current at 4V and 1A.
Connect to the battery connector positive and negative of the
handset.
2. Press the POWER ON Key to power on the handset.
3. After entering the MMI Test Mode, select the “Main LCD”
test item. press the Down or up Button to display Red、Green、
Blue、White、gray and Black, and watch the color.
5.3 Repair method
1. When it does Black Screen, check if the LCM connector
soldered poorly or short.
2. When it does White or Black Screen, check if the LCM FPC
oblique or LCM connector no mounted properly.
3. When it does White Screen please check if the U27 is soldered
poorly or short.
4. When the backlight is no function, please check if the
MAX8595ZETA (U12)、C208、C210、C211、C212、L201、
D206、R214、R215、R223 and R224 are placed inversely,
soldered poorly or short.
5. If the above cases are not found, try to change a new LCM.
ASUS Proprietary15

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
6. USB/CHARGING
6.1 Introduction
The M530w power is supplied by the Lithium Ion battery. Therefore,
it has the charging function. The M530w can be charged from the
USB.
CON_USBC_D-
CON_USBC_D+
CON_VCHG_VBUS
1 2
F5
1.5A/32V
CON_VCHG_VBUS
OVP_VCHG_VBUS
USB
Connector
1TP35 tpc60t_np_72
1
2
C202
0.1UF/16V
1TP33 tpc60t_np_72
1
2
R207
750KOhm
1
2
C204
33PF/50V
1
2
C206
$33PF/50V
1
2
D203
$
V
9
M
L
A
0
4
0
2
L
W
H
1
2
C207
$33PF/50V
1
2
D202
$V9MLA0402LWH
1
2
C203
1UF/25V
1
2
C205
33PF/50V
1
1
2
2
3
3
4
4
5
5
NP_NC1 6
NP_NC2 7
SIDE1 8
SIDE2 9
SIDE3 10
SIDE4 11
USB1
USB_1X5P
1
2
D204
$
V
9
M
L
A
0
4
0
2
L
W
H1
2
D205
$
V
9
M
L
A
0
4
0
2
L
W
H
12
R205
470KOhm
1TP34 tpc60t_np_72
GNDGNDGND GND GND GND
GND
CON_USBC_D-
OTG_ID[2]
CON_USBC_D+
OVP_VCHG_VBUS[10]
CARKIT_DET[2]
GND
GND
6.2 Repair method
1. USB/Charger cannot recognized when they were plugged into the
USB CON，Check the contact between USB CON pins and the
pads on the main PCB.
2. USB/Charger cannot recognized when they were plugged into the
USB CON，Check if the fuse(F5) blew.
ASUS Proprietary16

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
7. KEYPAD
7.1 Introduction
The M530W has 54 keys，some of them are function key.

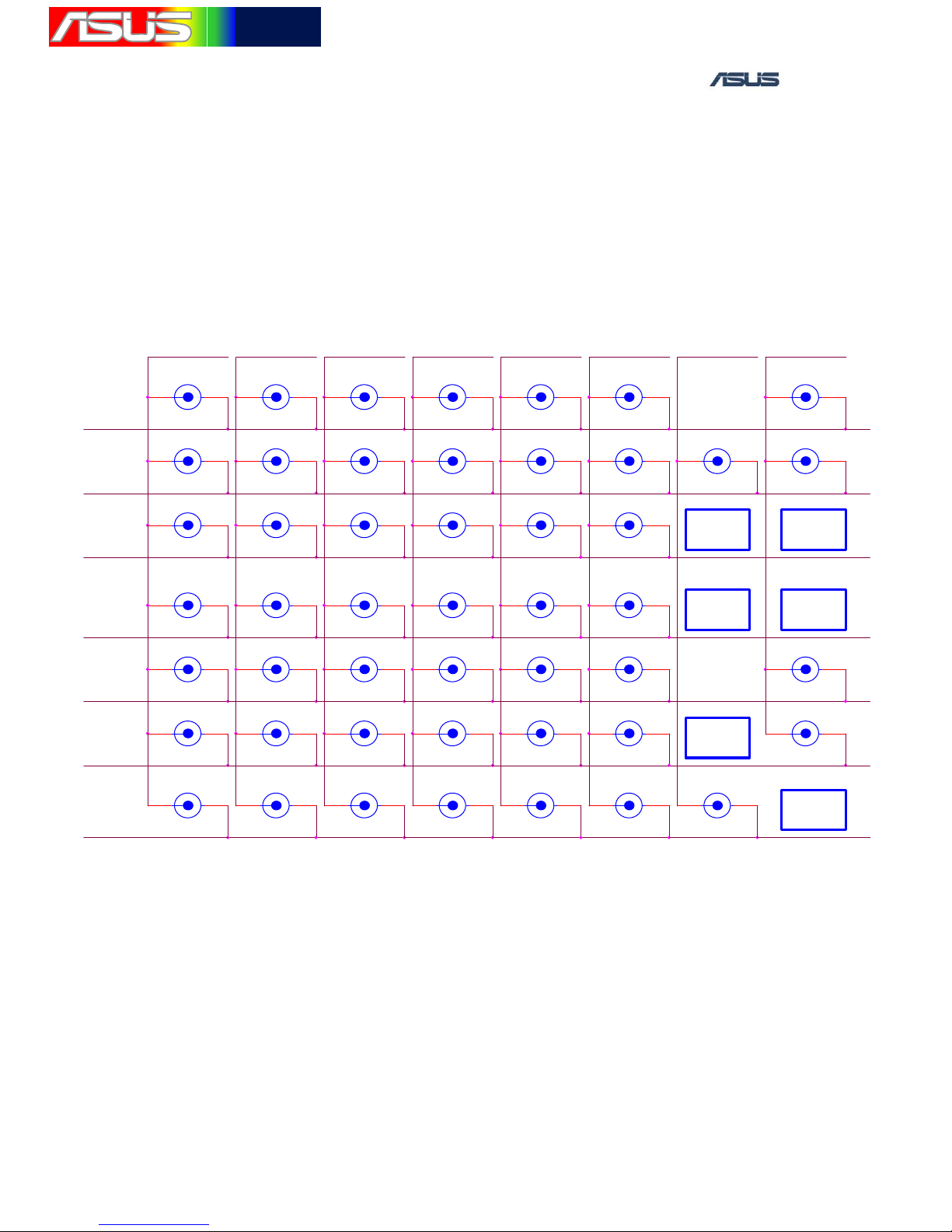

Keypad Matrix Circuit
1 2
KEY7
U
1 2
KEY8
I
1 2
KEY9
O
1 2
KEY10
P
1 2
KEY11
A
1 2
KEY12
S
1 2
KEY13
D
1 2
KEY14
F
1 2
KEY15
G
1 2
KEY16
H
1 2
KEY17
J
1 2
KEY18
K
1 2
KEY19
L
1 2
KEY20
ENTER
1 2
KEY21
Z
KP_MKOUT0
KP_MKOUT2
KP_MKOUT1
KP_MKOUT5
KP_MKOUT4
KP_MKOUT3
1 2
KEY22
X
1 2
KEY23
C
1 2
KEY24
V
1 2
KEY25
B
1 2
KEY26
N
1 2
KEY27
M
1 2
KEY28
,
1 2
KEY29
Dot
1 2
KEY30
Message
1 2
KEY6
Y
1 2
KEY5
T
1 2
KEY1
Q
1 2
KEY32
Fn
1 2
KEY31
L-shift
1 2
KEY33
Space
KP_MKIN7
1 2
KEY35
R-shift_CAP
1 2
KEY34
?
1 2
KEY36
Send
1 2
KEY37
Soft-L
1 2
KEY38
Home
1 2
KEY39
Soft-R
1 2
KEY40
Back
1 2
KEY41
End
1 2
KEY42
OK
1 2
KEY43
Up
1 2
KEY44
Down
KP_MKIN1KP_MKIN6 KP_MKIN4 KP_MKIN3 KP_MKIN2KP_MKIN5
1 2
KEY45
Left
1 2
KEY46
Right
KP_MKIN0
Side key
Camera
Side key
Vol. up
Side key
Vol.down
Jog Dial
push
Jog Dial
down
Jog Dial
up
1 2
KEY47
ZERO
1 2
KEY48
Brightness
KP_MKOUT6
1 2
KEY2
W
1 2
KEY3
E
1
KEY4
R
2
ASUS Proprietary17

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
1
2
C656
0.01UF/50V
1
2
C657
$0.01UF/50V
1
2
C660
$0.01UF/50V
1
2
C658
$0.01UF/50V
12 R664
0Ohm
12 R666
0Ohm
12 R665
0Ohm
12 R667
0Ohm
GND
GND
GND
GND
Volume Up
Volume Down
Power_ON
/OFF
PWR_nON_OFF_1 KP_MKIN1_SK
1
2
3
4
5
6
7
SW2
TACT_SWITCH_4P
6
1
2
3
4
5
SW1
TACT_SWITCH_4P
7
1
2
3
4
5
6
7
SW3
TACT_SWITCH_4P
GND
GND
GND
KP_MKOUT3[2]
KP_MKOUT2[2]
PWR_nON_OFF[10] KP_MKIN1[2]
Camera
GND
KP_MKOUT5[2] KP_MKOUT5_SK
12 R668
0Ohm
1
2
3
4
5
6
7
SW5
TACT_SWITCH_4P
KP_MKOUT3_SK
KP_MKOUT2_SK
GND
1
2
C659
$0.01UF/50V

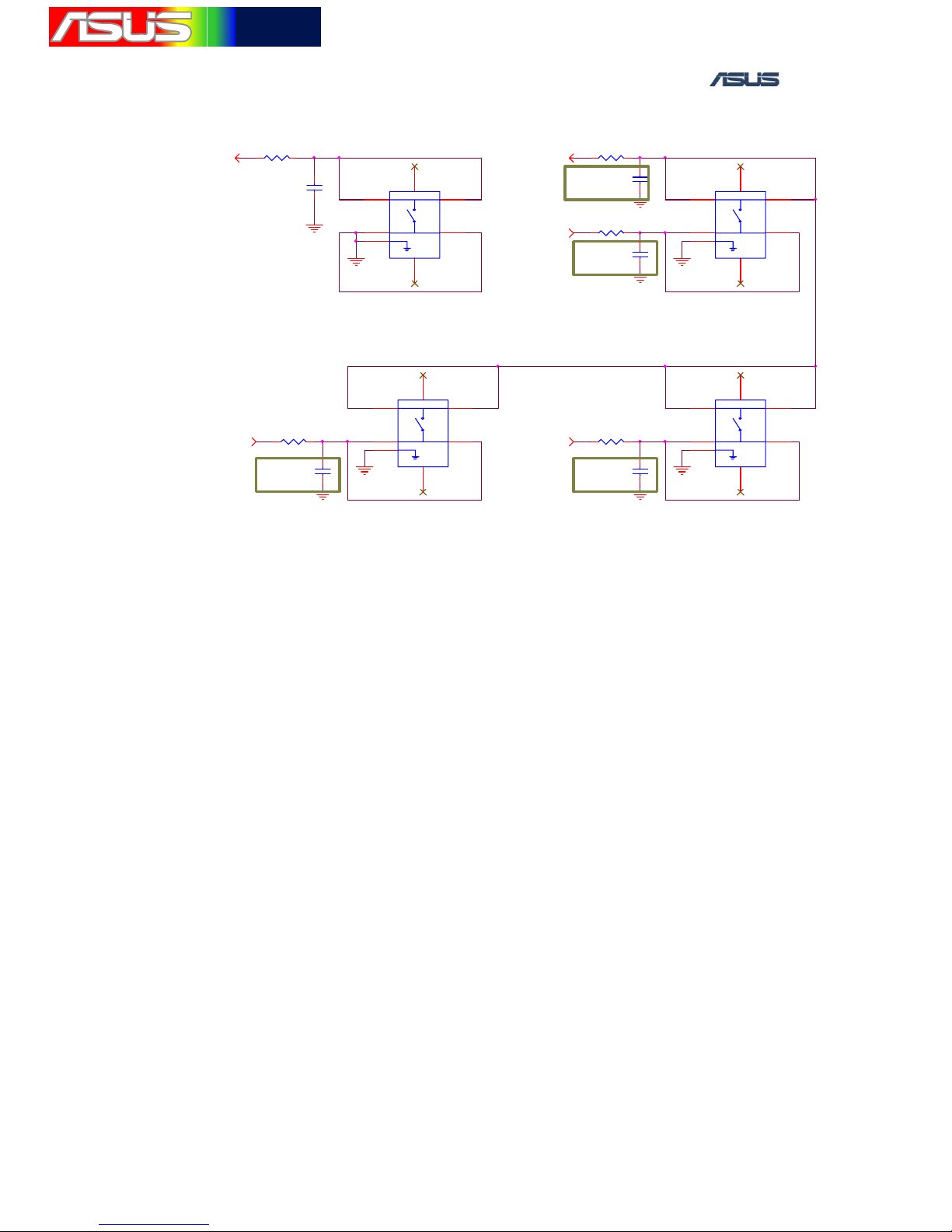

Function Key Circuit
ASUS Proprietary18

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
12
R658 0Ohm
KP_MKIN5_1
KP_MKIN3_1
KP_MKIN0_1
KP_MKIN6_1
KP_MKIN4_1
KP_MKIN1_1
KP_MKIN2_1
KP_MKIN7_1
1
2
R
N
9
A
1
0
0
K
O
h
m7
8
R
N
9
D
1
0
0
K
O
h
m
12
R654 0Ohm
12
R652 0Ohm
5
6
R
N
9
C
1
0
0
K
O
h
m
12
R651 0Ohm
12
R657 0Ohm
3
4
R
N
9
B
1
0
0
K
O
h
m
1
2
C651
1UF/6.3V/10%/0402
1
122
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
22 22
24 24
CON9
BtoB_CON_24P
12
R655 0Ohm
12
R653 0Ohm
12
R656 0Ohm
GND
GND
VLDO4_3V2
GND
KP_MKOUT0[2]
KP_MKOUT4[2] KP_MKOUT5[2]
KP_MKOUT3[2]
KP_MKOUT1[2] KP_MKOUT2[2]
KP_MKOUT6[2]
LED_DRV2[10] LED_DRV1[10]
KP_MKIN7[3]
KP_MKIN4[2]
KP_MKIN1[2]
KP_MKIN5[2]
KP_MKIN2[2]
KP_MKIN6[2]
KP_MKIN0[2]
KP_MKIN3[2]
KP_MKIN0_1
KP_MKIN2_1
KP_MKIN1_1
KP_MKIN4_1
KP_MKIN3_1
KP_MKIN5_1
KP_MKIN6_1
5
6
R
N
1
0
C
1
0
0
K
O
h
m
3
4
R
N
1
0
B
1
0
0
K
O
h
m7
8
R
N
1
0
D
1
0
0
K
O
h
m
1
2
R
N
1
0
A
1
0
0
K
O
h
m
KP_MKIN7_1
Keypad Connector Circuit
KP_MKOUT3
KP_MKOUT2
KP_MKOUT6
KP_MKIN0KP_MKIN0_JOG
KP_MKOUT2_JOG
KP_MKOUT3JOG
1
2
C652
$
0
.
0
1
U
F
/
5
0
V
1
2
C653
$
0
.
0
1
U
F
/
5
0
V
1
2
C654
$
0
.
0
1
U
F
/
5
0
V
1
2
C655
$
0
.
0
1
U
F
/
5
0
V
KP_MKOUT6_JOG
1 2R661 0Ohm
1 2R660 0Ohm
1 2R659 0Ohm
1 2R663 0Ohm
1
122
C
CTT
GND1
7GND2 8
GND3
9GND4 10
NP_NC1
11 NP_NC2 12
5
566
P_GND1
13 P_GND2 14
PUSH
SW4
SW_6P_8HOLD
GNDGND GND
JOG DIAL Circuit
ASUS Proprietary19

TSD ■Lv3Lv4 Repair Manual
華
華碩 碩電 電腦 腦
7.2 Measure method
1. Set up the power supply voltage and current at 4V and 1A.
Connect to the battery connector positive and negative of the
handset.
2. Press the POWER ON Key to power on the handset
3. After entering the MMI Test Mode, select the Keypad/Button test
item.
4. Press every key to verify if each key is OK.
5. Press Soft1 key will leave “Keypad/Button test”, therefore Soft1
key need press last.
7.3 Repair method
1. When the Keypad are no function, check if
a. Keypad connector (CON9) are soldered poorly, open or
short.
b. Serial Resistors ( R651~R658 ) are soldered poorly, open or
ASUS Proprietary20
