Asus X00QSA User manual

User Guide
15060-0JS00200
E14108

Third Edition/ March 2018
ASUS Phone (Mobile Phone)
Model: ASUS_X00QDA (ZE620KL)
Before you start, ensure that you have read all the
safety information and operating instructions in this
User Guide to prevent injury or damage to your
device.
NOTE: For the complete E-Manual and more
detailed information, refer to https://www.asus.
com/support/.
Front features
Touch screen
display
Receiver
LED indicator
Front camera
Proximity
sensor and
light sensor

Side features
Power key
Audio jack
Volume key
Speaker
Nano SIM/
microSD card
slot
Microphone
Microphone
USB Type-C port
NOTE: The USB Type-C port supports USB 2.0
transfer rate.

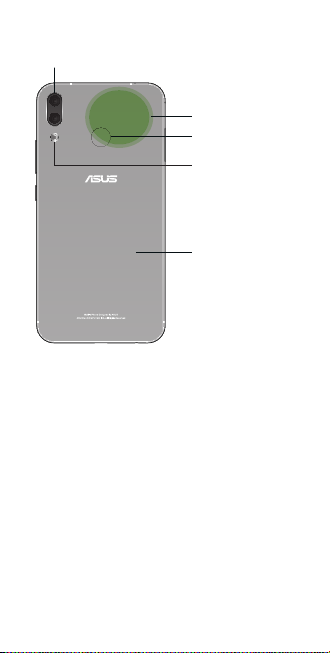

Rear features
Rear cameras
Rear cover
Fingerprint sensor
NFC detection area
Camera ash

Charging your ASUS Phone
To charge your ASUS Phone:
1. Connect the USB connector into the power
adapter’s USB port.
2. Connect the other end of the USB Type-C cable
to your ASUS Phone.
3. Plug the power adapter into a wall socket.
IMPORTANT!
• WhenusingyourASUSPhonewhileitis
plugged to a power outlet, the grounded
power outlet must be near to the unit and
easily accessible.
• WhenchargingyourASUSPhonethrough
your computer, ensure that you plug the USB
Type-C cable to your computer’s USB port.
• AvoidchargingyourASUSPhoneinan
environment with ambient temperature of
above 35 °C (95 °F).
2
3
1
NOTES:
• Forsafetypurposes,useONLY the bundled
power adapter and cable to avoid damaging
your device and prevent the risk of injury.
• Forsafetypurposes,useONLY the bundled
power adapter and cable to charge your ASUS
Phone.
• Theinputvoltagerangebetweenthewall
outlet and this adapter is AC 100V - 240V. The
output voltage of the USB Type-C cable is
+5V 2A,10W.

1. Push a pin into the hole on the nano SIM /
microSD card tray to eject it. Insert the nano
SIM or microSD card into the appropriate slot.
Installing a nano SIM / microSD card
To install a nano SIM / microSD card:
2. Push the tray to close it.
CAUTION!
• Donotusesharptoolsorsolventonyour
device to avoid scratches on it.
• UseonlyastandardnanoSIMcardonyour
ASUS Phone.
NOTE: The microSD card slot supports microSD
and microSDXC card formats.
IMPORTANT! You can only use the nano SIM 2 card
or the microSD card at a time.
Nano-SIM1
Nano-SIM2
Micro SD
Nano-SIM1

Using NFC
NOTE: NFC is only available in selected regions/
countries.
You can use NFC in the following three scenarios:
Reader mode: Your phone reads information from a
contactless card, NFC tag, or other NFC devices.
Place the NFC area of your phone on the contactless
card, NFC tag, or NFC device.
Card Emulation mode: Your phone can be used like
a contactless card.
Place the NFC area of your phone on the NFC area of
the NFC reader.

Peer-to-Peer mode: Transfers photos, contacts, or
other data between your phone and an NFC-enabled
smartphone.
Bring the NFC areas of both smartphones together,
without any space between them.
Federal Communications
Commission Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modications not expressly approved by
the party responsible for compliance could void the
user‘s authority to operate the equipment.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does

cause harmful interference to radio or television
reception, which can be determined by turning the
equipment o and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on a
circuit dierent from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
The antenna(s) used for this transmitter must not be
co-located or operated in conjunction with any other
antenna or transmitter.
The country code selection is for non-US models
only and is not available to all US models. Per FCC
regulation,allWiFiproductsthataremarketedinUS
must be xed to US-operated channels only.
The responsible party within the USA per 47 CFR Part
2.1077(a)(3):
ASUS COMPUTER INTERNATIONAL (America)
Address: CorporateWay,Fremont,CA94539,USA
Telephone: [phone]
RF Exposure Information (SAR)
This device has been tested and meets applicable
limits for Radio Frequency (RF) exposure.
Specic Absorption Rate (SAR) refers to the rate at
which the body absorbs RF energy. SAR limits are
1.6Wattsperkilogram(overavolumecontaining
a mass of 1 gram of tissue) in countries that follow
theUnitedStatesFCClimitand2.0W/kg(averaged
over 10 grams of tissue) in countries that follow the
Council of the European Union limit. Tests for SAR are
conducted using standard operating positions with

the device transmitting at its highest certied power
level in all tested frequency bands.
To reduce exposure to RF energy, use a hands-free
accessory or other similar option to keep this device
away from your head and body. Carry this device
at least 15 mm away from your body to ensure
exposure levels remain at or below the as-tested
levels. Choose the belt clips, holsters, or other
similar body-worn accessories which do not contain
metallic components to support operation in this
manner. Cases with metal parts may change the RF
performance of the device, including its compliance
with RF exposure guidelines, in a manner that has
not been tested or certied, and use such accessories
should be avoided.
The highest FCC SAR values for the device (ASUS_
X00QDA) are as follows:
• 1.04W/Kg@1g(Head)
• 0.37W/Kg@1g(Body)
• 1.17W/Kg@1g(Hotspot)
• 0.96W/Kg@10g(Specicproduct)
The FCC has granted an Equipment Authorization
for this device (ASUS_X00QDA) with all reported SAR
levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this device
is on le with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid
after searching on FCC ID: MSQX00QSA.

EU Radio Equipment Directive
Compliance
Simplied EU Declaration of Conformity
Hereby, ASUSTek Computer Inc. declares that the
radio equipment ASUS_X00QDA is in compliance
with Directive 2014/53/EU. Full text of EU declaration
of conformity is available at https://www.asus.com/
support/. (Search for ZE620KL)
RF Output Table
Items Maximum Radio-Frequency Output Power Table
Bluetooth Bluetooth BR/EDR (2402~2480 MHz) 9.47 dBm
Bluetooth LE (2402~2480 MHz) -0.2 dBm
WLAN
2.4GHz 802.11b (2412~2472 MHz) 18.90 dBm
2.4GHz 802.11g (2412~2472 MHz) 17.90 dBm
2.4GHz 802.11n HT20 (2412~2472 MHz) 16.90 dBm
5GHz 802.11a (5180~5320, 5500~5700
MHz)
17.97 dBm
5GHz 802.11n HT20 (5180~5320,
5500~5700 MHz)
17.83 dBm
5GHz 802.11n HT40 (5190~5310,
5510~5670 MHz)
17.94 dBm
5GHz 802.11ac-VHT20 (5180~5320,
5500~5700 MHz)
16.98 dBm
5GHz 802.11ac-VHT40 (5190~5310,
5510~5670 MHz)
16.91 dBm
5GHz 802.11ac VHT80 (5210~5290,
5530~5610 MHz)
16.92 dBm
NFC 13.553~13.567 MHz -14.78
dBuA/M
GSM
GSM 900 Burst (880~915; 925~960 MHz) 32.95 dBm
GSM 1800 Burst (1710~1785;
1805~1880 MHz)
30.21 dBm

NOTE: This RF output power table is for EU
member states, the EEA States, the EFTA States
and Turkey only. The frequency range and the
RF output power may dier from other non-EU
countries.
RF Output Table (ASUS_X00QD)
Items Maximum Radio-Frequency Output Power Table
WCDMA
WCDMABandI(1920~1980;2110~2170
MHz)
23.46 dBm
WCDMABandIII(1710~1785;
1805~1880 MHz)
22.98 dBm
WCDMABandVIII(880~915;925~960
MHz)
23.48 dBm
LTE
LTE Band I (1920~1980; 2110~2170
MHz)
23.51 dBm
LTE Band III (1710~1785; 1805~1880
MHz)
23.62 dBm
LTE Band VII (2500~2570; 2620~2690
MHz)
23.05 dBm
LTE Band VIII (880~915; 925~960 MHz) 23.18 dBm
LTE Band XX (832~862; 791~821 MHz) 22.75 dBm
LTE Band XXVIII (703~748; 758~803
MHz)
22.87 dBm
LTE Band XXXIV (2010~2025 MHz) 23.27 dBm
LTE Band XXXVIII (2570~2620 MHz) 23.38 dBm
LTE Band XL (2300~2400 MHz) 23.39 dBm
TheWi-Fioperatingintheband5150-5350MHzshall
be restricted to indoor use for countries listed in the
table below:
AT BE BG CZ DK EE FR
DE IS IE IT EL ES CY
LV LI LT LU HU MT NL
NO PL PT RO SI SK TR
FI SE CH UK HR

CE Marking
RF Exposure Information
This ASUS product has been tested and meets
applicable European SAR limits. The SAR limit is 2.0
W/kgincountriesthatsetthelimitaveragedover10
grams of tissue. The specic maximum SAR values for
this device are as follows:
• Head:1.047W/Kg
• Body:1.453W/Kg
Whencarryingthisdeviceorusingitwhilewornon
the body, either use an approved accessory such
as a holster or otherwise maintain a distance of 0.5
cm from the body to ensure compliance with RF
exposure requirements.
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at
high volume levels for long periods
For France, headphones/earphones for this device
are compliant with the sound pressure level
requirement laid down in the applicable EN 50332-
1:2013 and/or EN50332-2:2013 standard required by
French Article L.5232-1.

Using GPS (Global Positioning
System) on your ASUS Phone
To use the GPS positioning feature on your ASUS
Phone:
• Ensure that your device is connected to the
Internet before using Google Map or any
GPS-enabled apps.
• For rst-time use of a GPS-enabled app on
your device, ensure that you are outdoors to
get the best positioning data.
• WhenusingaGPS-enabledapponyour
device inside a vehicle, the metallic
component of the car window and other
electronic devices might aect the GPS
performance.
Safety information
CAUTION! Use of controls or adjustments or
performance of procedures other than those
specied herein may result in hazardous radiation
exposure.
ASUS Phone care
• UseyourASUSPhoneinanenvironmentwith
ambient temperatures between 0 °C (32 °F) and
35 °C (95 °F).
The battery
WARNING: Disassembling the battery by yourself
will void its warranty and may cause serious harm.
Your ASUS Phone is equipped with a high
performance non-detachable Li-polymer battery.
Observe the maintenance guidelines for a longer
battery life.

• Donotremovethenon-detachableLi-polymer
battery as this will void the warranty.
• Avoidcharginginextremelyhighorlow
temperature. The battery performs optimally in
an ambient temperature of +5 °C to +35 °C.
• Donotremoveandreplacethebatterywitha
non-approved battery.
• UseonlyASUSbattery.Usingadierentbattery
may cause physical harm/injury and may
damage your device.
• Donotremoveandsoakthebatteryinwateror
any other liquid.
• Nevertrytoopenthebatteryasitcontains
substances that might be harmful if swallowed
or allowed to come into contact with
unprotected skin.
• Donotremoveandshort-circuitthebattery,as
it may overheat and cause a re. Keep it away
from jewelry or metal objects.
• Donotremoveanddisposeofthebattery
in re. It could explode and release harmful
substances into the environment.
• Donotremoveanddisposeofthebattery
with your regular household waste. Take it to a
hazardous material collection point.
• Donottouchthebatteryterminals.
• Toavoidreorburns,donotdisassemble,
bend, crush, or puncture the battery.
NOTES:
• Riskofexplosionifbatteryisreplacedbyan
incorrect type.
• Disposeofusedbatteryaccordingtothe
instructions.
The charger
• UseonlythechargersuppliedwithyourASUS
Phone.

• Neverpullthechargercordtodisconnectit
from the power socket. Pull the charger itself.
Caution
Your ASUS Phone is a high quality piece of
equipment. Before operating, read all instructions
and cautionary markings on the (1) AC Adapter.
• DonotusetheASUSPhoneinanextreme
environment where high temperature or high
humidity exists. The ASUS Phone performs
optimally in an ambient temperature between
0 °C (32 °F) and 35 °C (95 °F).
• DonotdisassembletheASUSPhoneorits
accessories. If service or repair is required,
return the unit to an authorized service center.
If the unit is disassembled, a risk of electric
shock or re may result.
• Donotshort-circuitthebatteryterminalswith
metal items.
Operator access with a tool
If a TOOL is necessary to gain access to an OPERATOR
ACCESS AREA, either all other compartments within
that area containing a hazard shall be inaccessible
to the OPERATOR by the use of the same TOOL, or
such compartments shall be marked to discourage
OPERATOR access.
General Usage (typical body-worn)
(for Japan)
This device (front & rear side) should be operated
under a seperation distance of 5 mm from the
human body.
* The other four sides are not in close proximity to
the human body at the general use as described
above.

India E-waste (Management) Rules
2016
Thisproductcomplieswiththe“IndiaE-Waste
(Management) Rules, 2016”and prohibits use of lead,
mercury, hexavalent chromium, polybrominated
biphenyls (PBBs) and polybrominated diphenyl
ethers (PBDEs) in concentrations exceeding 0.1%
by weight in homogenous materials and 0.01 %
by weight in homogenous materials for cadmium,
except for the exemptions listed in Schedule II of
the Rule.
Regional notice for Singapore
This ASUS Phone
complies with IMDA
Standards.
India BIS - IS 16333 Notice
Language Input : Hindi, English, Tamil
Readability: Assamese, Bangla, Bodo(Boro), Dogri,
Gujarati, Hindi, Kannada, Kashmiri, Konkani, Maithili,
Malayalam, Manipuri(Bangla), Manipuri(Meetei
Mayek), Marathi, Nepali, Oriya, Panjabi, Santhali,
Sanskrit, Sindhi (Devanagari) ,Tamil, Telugu, Urdu
and English
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come
from our commitment to the highest standards for
protectingourenvironment.Webelieveinproviding
solutions for you to be able to responsibly recycle
our products, batteries, other components as well as
the packaging materials. Please go to http://csr.asus.
com/english/Takeback.htm for detailed recycling
information in dierent regions.

Proper disposal
Risk of explosion if battery is
replaced by an incorrect type.
Dispose of used batteries
according to the instructions.
DO NOT throw the battery in
municipal waste. The symbol of the
crossed out wheeled bin indicates
that the battery should not be placed
in municipal waste.
DO NOT throw this product in
municipal waste. This product has
been designed to enable proper
reuse of parts and recycling. The
symbol of the crossed out wheeled
bin indicates that the product
(electrical, electronic equipment
and mercury-containing button
cell battery) should not be placed
in municipal waste. Check local
regulations for disposal of electronic
products.
DO NOT throw this product in re.
DO NOT short circuit the contacts. DO
NOT disassemble this product.
WARNING
Cancer and Reproductive Harm-
www.P65Warnings.ca.gov
NOTE: For more legal and e-labelling information,
check on your device from Settings > About >
Legal information / Regulatory labels.

Copyright © 2018 ASUSTeK COMPUTER INC.
All Rights Reserved.
You acknowledge that all rights of this Manual remain with ASUS.
Any and all rights, including without limitation, in the Manual or
website, and shall remain the exclusive property of ASUS and/or its
licensors. Nothing in this Manual intends to transfer any such rights,
or to vest any such rights to you.
ASUSPROVIDESTHISMANUAL“ASIS”WITHOUTWARRANTYOF
ANY KIND. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS
MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE
SUBJECTTOCHANGEATANYTIMEWITHOUTNOTICE,ANDSHOULD
NOT BE CONSTRUED AS A COMMITMENT BY ASUS.
ASUS
Address: 4F, 150 Li-Te Rd., Peitou, Taipei,
Taiwan
Tel: [phone]
Fax: [phone]
Declaration
WedeclarethattheIMEIcodesforthisproduct,ASUS
Phone, are unique to each unit and only assigned to
this model. The IMEI of each unit is factory set and
cannot be altered by the user and that it complies
with the relevant IMEI integrity related requirements
expressed in the GSM standards.
Should you have any questions or comments regarding
this matter, please contact us.
Sincerely yours,
ASUSTeK COMPUTER INC.
Tel: [phone]
Fax: [phone]
Support: https://www.asus.com/support/
ZenTalk Fans Forum
(http://www.asus.com/zentalk/global_forward.php)
