Asus HS-1000W - Headset - Semi-open User manual

Content
Certication and safety
approvals ––––– 1
Unique Features ––––– 2
Product Accessories ––––– 3
Specication ––––– 4
Parts Introduction ––––– 5
User Guide Symbols ––––– 7
Getting Started ––––– 8
Important User Information ––––– 10
Trouble shooting ––––– 12
English
U7447_HS-1000W_QSG.indb 1 8/3/12 6:23:26 PM

1
Certication and safety approvals
HS-1000W is the wireless headset that delivers high quality
2.0-channel stereo audio with extra sound clarity and soft, deep
bass effects. It provides a voice back channel that allows you
to talk in conjunction with any kinds of PC voice applications.
Examples of such applications include Skype, MSN, on-line
gaming, and more. With the high performance audio and the
unique feature set, HS-1000W brings you a great value. With
carrying case, you can take the headset anywhere you want
more easily.
U7447_HS-1000W_QSG.indb 1 8/3/12 6:23:28 PM

2
English
Unique Features
• Unique 2.0-Channel design - Each ear cup contains specially
designed speaker driver to deliver extra audio clarity.
• USB Plug-and-Play wireless headset that supports PC music /
game sounds and back-channel voice simultaneously, no need
to switch back and forth.
• USB Dongle (Transmitter) direct plug-in to the PC for
instant use of VoIP, on-line game, DVD, and all kinds of
entertainment running Windows XP,Vista.
• Ease of use, no software installation needed.
• The headband is collapsible and can be put in the carrying
case.
• Long standing use, up to 8 hours of continuous listening time
per charge.
• Easy charging through mini USB cable.
• Microphone switch on / off control. Up to 100 feet distance
for effective use.
U7447_HS-1000W_QSG.indb 2 8/3/12 6:23:29 PM

3

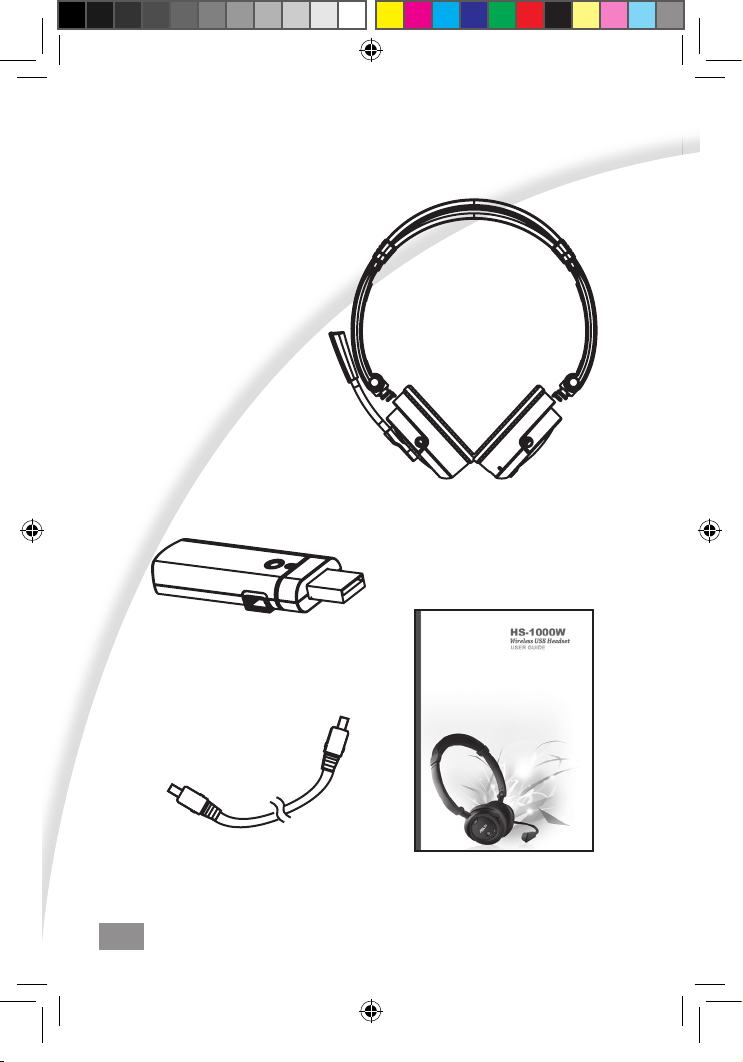

Product Accessories
PC USB Wireless Headset * 1pc
PC USB Dongle * 1pc
USB Charging Cable * 1pc User Guide * 1pc
U7447_HS-1000W_QSG.indb 3 8/3/12 6:23:31 PM

4
English
Specication
Model HS-1000W (HS-1000W-T, HS-1000W-R)
Wireless Technology WiStereoTM for advanced 2-way
digital transmission in the 2.4 GHz
frequency band
Listen Time (per charge) Up to 8 hours
Standby Time Approximately 3 months
Charge Time (full charge) Approximately 2.5 hours
Distance of Use Up to 100 feet
(in a typical environment)
Headset Weight 122 g
USB Dongle Weight 13 g
Charging Method Through mini USB cable
Battery Type Lithium Polymer
Headset Speaker 40mm Ultra High Performance
Frequency Response 20Hz ~20,000Hz (perfect for all
music, game, and voice)
Audio Quality Uncompressed audio for music
(CD-quality) and voice (extra
clarity)
Distortion (T.H.D.) ≤0.08% (professional grade audio
performance)
Operating and Storage
Environment Temperature 5ºC~35ºC
Maximum Range :
Results may vary according to environment.
U7447_HS-1000W_QSG.indb 4 8/3/12 6:23:32 PM

5
Parts Introduction
6
3
2
4
1
75
1 ] VOL + / VOL -
2 ] LED Indicator
3 ] Pair / Pick Up /
Hang Up
4 ] Power On / Off
5 ] Mini USB port
6 ] Microphone
7 ] Reset
U7447_HS-1000W_QSG.indb 5 8/3/12 6:23:34 PM

6
English
1 ] VOL + / VOL -
Press to increase the headset volume.
Press to decrease the headset volume.
2 ] LED Indicator
A red indicator represent charging mode.
A blue indicator represent mic off.
A green indicator represent signal connections.
3 ] Pair / Pick Up / Hang Up
Press pair button to connect the wireless headset and the
USB Dongle.
Answer SKYPE --- Press pair button to answer the call
Hang up SKYPE --- Press pair button to end the call
4 ] Power On / Off
Press this button to control power on / off.
5 ] Mini USB port
Connect the mini USB cable from dongle for recharging.
6 ] Microphone
mic on : Press the "power button" 0.3~3 seconds
mic off : Press the "power button" 0.3~3 seconds
7 ] Reset
Press to reset the headset, in case this headset is not
functioning properly.
U7447_HS-1000W_QSG.indb 6 8/3/12 6:23:35 PM

7
User Guide Symbols
Steady red light
• The headset is charging
Steady green light
• Devices are paired
Flashing green light
• Device are waiting for pairing (flashing fast)
• Device are not paired (flashing slow)
Flashing blue light alterately : mic off
U7447_HS-1000W_QSG.indb 7 8/3/12 6:23:36 PM

8
English
Getting Started
Charging
Notebook DC Out port
• First time use : Charge 4 hours before using the headset.
Plug in to charge Unpllug when finished
• Regular use : Charge the headset approximately 2.5 hours if
the battery was completely used up.
Once the battery is off, you can charge the battery thorough
the cable and listen at the same time.
The headset is charging
• Steady red light is turned off when the headset is fully
charged.
USB Port
* Please charging the battery by the way listed in the manual. (With the mini
USB cable thorough the USB Dongle.) Do not use the other way to charge
the battery due to the wrong volt charger will damage the cell and cause the
unexpected damage.
U7447_HS-1000W_QSG.indb 8 8/3/12 6:23:37 PM

9

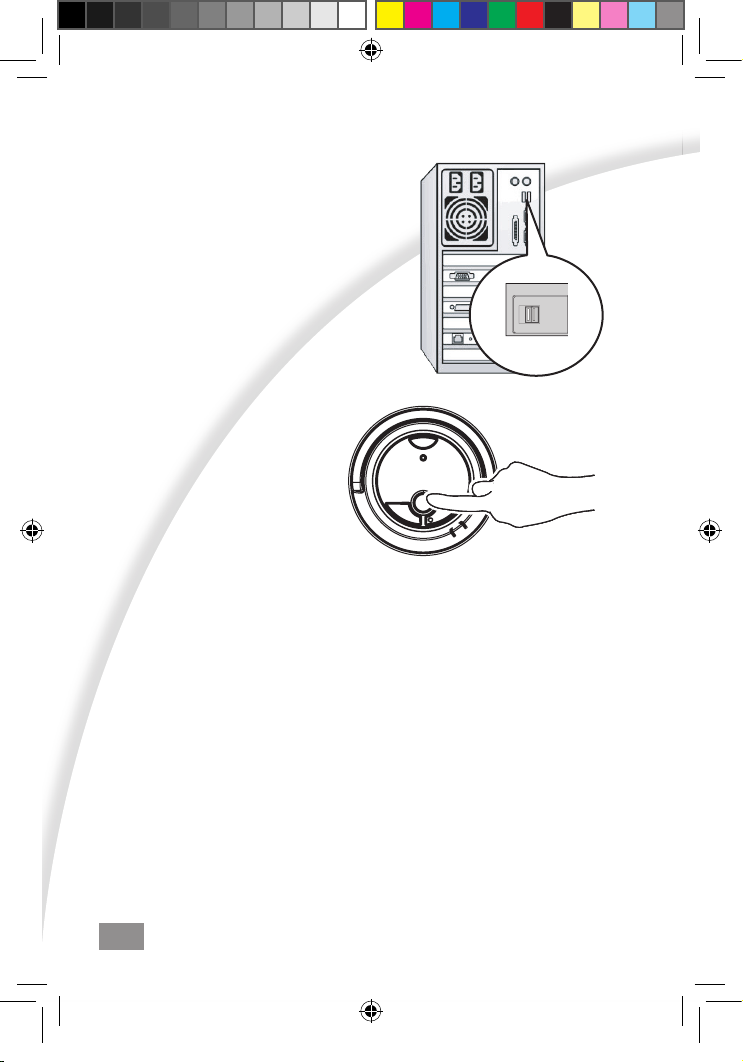

Connect the USB Dongle
• Connect the USB Dongle with
PC for signal transmission.
Turn on / off the headset
• Turn on : press the
power button
• Turn off : press the
power button for at least
3 seconds
• Steady red light is
turned off when the headset is fully charged.
• Mic on : Press the" power button" 0.3~3 seconds.
• Mic off : Press the "power button" 0.3~3 seconds.
• Press LINK button for 5 seconds for pairing ( press LINK
button for 5 seconds at dongle side at the same time )
• LINK button combined with SKYPE Answer and End
• Press and release momentarily for answer SKYPE
• Press LINK button for 2 seconds for end SKYPE
USB Port
PC
U7447_HS-1000W_QSG.indb 9 8/3/12 6:23:38 PM
