Atdec AD-WF-5040 User manual

AD-WF-5060 Page 1 of 2
REQUIRED TOOLS
• Phillips head screwdriver
• Power drill
• Suitable drill bit
• Driver bit for selected
wall fasteners
• Stud nder
• Spirit level
H
XX (x4)
I
XX (x4)
G
XX (x4)
H
Wall Plate
I
Display Bracket (x2)
G
Spirit
Level
(x1)
A
M5x14 (x4)
Screw
B
M6x14 (x4)
M6x30 (x4)
Screw
E
Short
Spacer
(x8)
F
Long
Spacer
(x8)
D
Multi
Washer
(x4)
C
M8x30 (x4)
M8x50 (x4)
Screw
Installation Guide
AD-WF-5040
Fixed Wall Mount 5040
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! This product supports a maximum load of 50kg (110lb).
! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.
! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total
weight of all equipment being mounted.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.
! Suits displays with mounting hole patterns from 75mm to 420mm wide by 70mm to 405mm high.
COMPONENT CHECKLIST
0 - 50kg
(0 - 110lb)
WEIGHT RANGE
NOTE:
! Wall Plate Mounting Fasteners are NOT supplied with Wall Mounts. Professional
installer to ensure correct Mounting Fastener type, location & quantity to suit
structure where Wall Mount is installed.
! ALWAYS use a washer between the chosen fastener and the wall plate.
! Mounting fasteners to be used as per manufacturers instructions, including
minimum engagement to achieve necessary performance.

AD-WF-5060 Page 2 of 2
NOTE:
• Choice and supply of appropriate wall plate fasteners is the
responsibility of the installer.
• Consult a preferred fastener supplier or a structural engineer to
select fasteners which are most appropriate for the weight of
the display and wall construction method.
• Wall plate must be level. Verify using a quality spirit level tool
or the included spirit level G.
• On a Stud Wall or Drywall use a good quality Stud Finder to
position mounting fasteners in the centre of studs.
• On a Masonry Wall avoid positioning Wall Plate mounting
fasteners in a mortar join.
J
G
Slot Dimension
Ø8 x 40mm
*Fasteners shown are not included
NOTE:
• Always use multi-washers D.
• Use the shortest combination of spacers (if necessary) ensuring the
display is not loose and screws are not forced too deep into the display.
B (M6X30) /
C (M8X30)
B (M6X30) /
C (M8X30)
D
E
D
F
F
E
D D
F
F
EE
D
F
D
B (M6X30) /
C (M8X30)
C (M8X50) C (M8X50) C (M8X50)
A (M4x14) /
B (M6X14)
D
“CLICK”
“CLICK”
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specications without notice. ©20210813
12 3

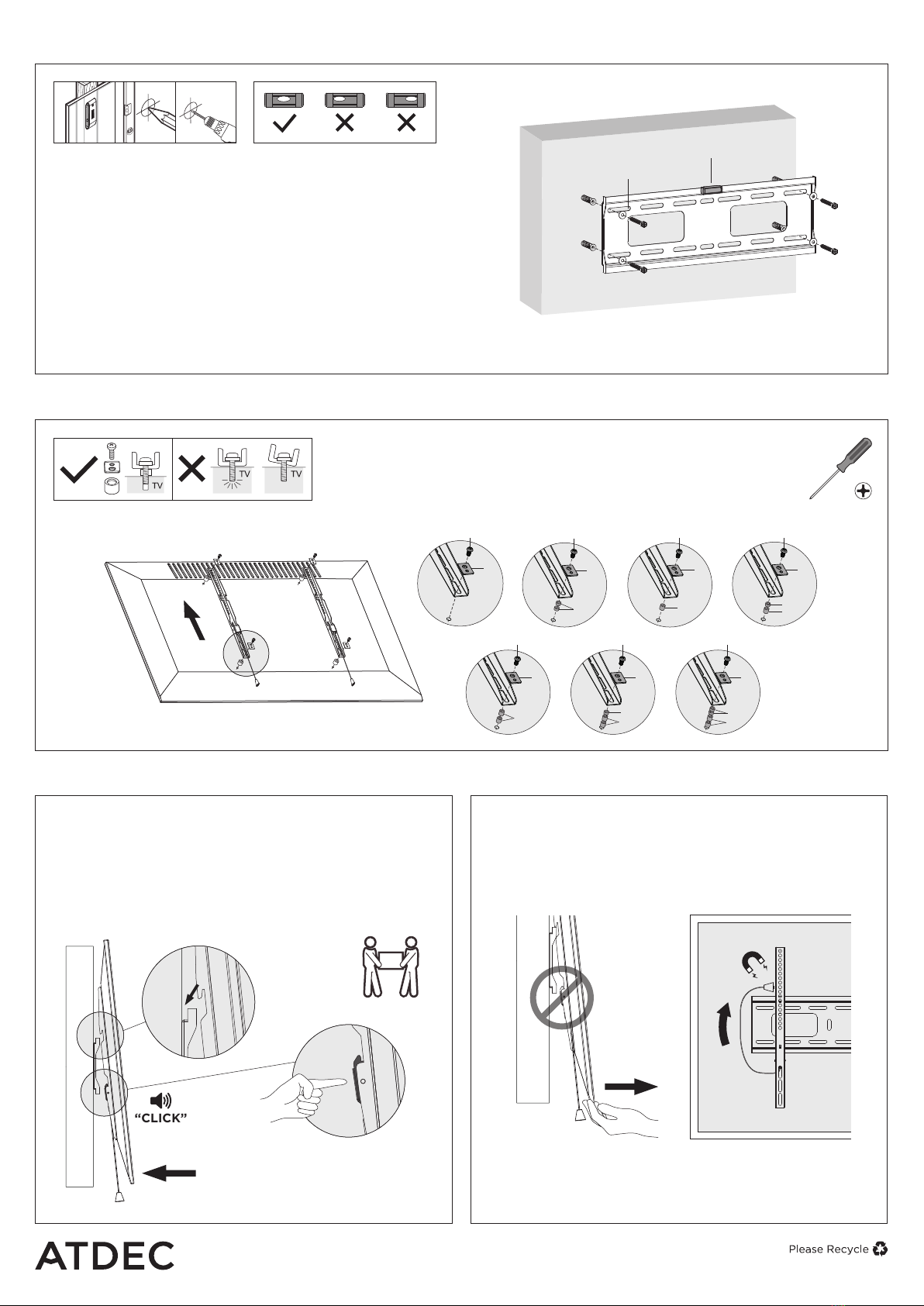

1. Mount the Wall Plate to the Wall
3. Hook the Display onto the Wall Plate 4. Check Security and Conceal Straps
3.1. Angle the display and hook the Display Brackets over the
top of the Wall Plate. This should be completed by two
people.
3.2. The silver locking tabs on the Display Brackets will make
a “click” sound to conrm a secure installation. You may
need to gently apply pressure to the lower half of the
display if this does not happen automatically.
4.1. Gently pull the display forwards from bottom of the
display to ensure the the locking tabs have engaged with
the wall plate and the display cannot be tilted upwards.
4.2. Conceal straps behind the display using the magnets at
the end of each strap to prevent accidental unlock and
dismount of the display.
NOTE:
Ensure the silver locking
tabs are pushed in prior
to mounting the display.
NOTE:
To unlock display from the Wall Plate for display removal
- retrieve the straps from their concealed position and pull
each strap down once briey until a “click” is heard.
2. Attach the Display Brackets to the Display
