ATEN CS1964 User manual

CS1964
4-Port USB3.0
4K DisplayPort Triple Display
KVMP
™
Switch
User Manual
www.aten.com

CS1964 User Manual
ii
EMC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
The device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
Warning: Operation of this equipment in a residential environment could
cause radio interference.
KCC Statement
RoHS
This product is RoHS compliant.

CS1964 User Manual
iii
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
International http://eservice.aten.com
International 886-2-8692-6959
China 86-400-810-0-810
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
1-949-428-1111

CS1964 User Manual
iv
Package Contents
The package consists of:
1 4-Port USB3.0 4K DisplayPort Triple Display KVMP
™
Switch
6 DisplayPort 1.2 Cables
1
(Certified)
2 USB 3.0 A-to-B Cables
2 Speaker Cables
2 Microphone Cables
1 Power Adapter
1 User Instructions
2
Check to make sure that all the components are present and that nothing was
damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
Note: 1. 4K video resolution needs the high quality DisplayPort Cable.
2. Features may have been added to the CS1964 since this manual was
printed. Please visit our website to download the most up-to-date
version of the manual.

CS1964 User Manual
v
Contents
EMC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
3. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Computers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LED Status Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Buzzer Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4. Hardware Setup
Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Hex-Display (DCC Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Hex-Display Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. Basic Operation
Manual Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Manual Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mouse Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Hotkey Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Hot Plugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Powering Off and Restarting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Port ID Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Alternative Manual Port Selection Settings. . . . . . . . . . . . . . . . . . . . . . . . 19

CS1964 User Manual
vi
6. Hotkey Operation
Port Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cycling Through the Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Going Directly to a Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Auto Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Hotkey Setting Mode (HSM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Invoking HSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Alternate HSM Invocation Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Alternate Port Switching Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Keyboard Operating Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
List Switch Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
USB Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Buzzer Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Hotkey Port Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Firmware Upgrade Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Restore Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Keyboard Emulation Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Mouse Emulation Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Mouse Port Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
HSM Summary Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7. Keyboard Emulation
Mac Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Sun Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8. The Firmware Upgrade Utility
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Starting the Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Upgrade Succeeded . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Upgrade Failed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9. Appendix
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

CS1964 User Manual
vii
About this Manual
This User Manual is provided to help you get the most from your CS1964 unit.
It covers all aspects of installation, configuration and operation. An overview
of the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the CS1964. Its purpose,
features and benefits are presented, and its front, side, and back panel
components are described.
Chapter 2, Hardware Setup, describes how to set up your installation. The
necessary steps are provided.
Chapter 3, Basic Operation, explains the fundamental concepts involved
in operating the CS1964.
Chapter 4, Hotkey Operation, details all of the concepts and procedures
involved in the Hotkey operation of your CS1964 installation.
Chapter 5, Keyboard Emulation, provides tables that list the PC to Mac
and PC to Sun keyboard emulation mappings.
Chapter 6, The Firmware Upgrade Utility, explains how to use the
CS1964's firmware with the latest available versions.
Chapter 7, Appendix, which provides specifications and other technical
information regarding the CS1964.

CS1964 User Manual
viii
Conventions
This manual uses the following conventions:
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
→Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start
→ Run means to
open the Start menu, and then select Run.
Indicates critical information.
International http://www.aten.com

1
Chapter 1
Introduction
Overview
The CS1964 4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch
combines Triple Display KVM switch with DisplayPort video interface, 2-port
USB 3.1 Gen 1 hub and 2.1 channel audio support for rich bass surround sound.
DisplayPort technology provides 4K UHD @ 60 Hz and 4K DCI @ 60Hz
resolution that displays the most vivid high-definition images available while
pumping out premium sound for music, movies, and games.
The CS1964 allows users to access four DisplayPort computers from a single
USB keyboard, USB mouse and three HDMI monitors. In addition to the front
panel pushbuttons, Hotkeys, and the mouse port-switching functionality, the
CS1964 offers serial commands to help switch ports and configure device
settings. A Power On Detection feature also ensures that if one computer is
powered off, the CS1964 will automatically switch ports to the next powered-
on computer.
With a built-in USB 3.1 Gen 1 hub, the CS1964 provides SuperSpeed 5 Gbps
transfer rates to all connected USB peripherals. The unit’s independent
(asynchronous) switching feature, allows the KVM focus to be on one
computer while the USB peripheral focus is on another computer. This
eliminates the need to purchase a separate USB hub or stand-alone peripheral
sharer – such as a print server, modem splitter, etc.
Featuring an unbeatable combination of ultra high 4K resolutions, a next
generation USB 3.1 Gen 1 hub and enhanced, user-friendly operations, the
CS1964 delivers the latest innovations in desktop KVM switching technology.

CS1964 User Manual
2
Features
One USB keyboard/mouse and three HDMI monitors control four
DisplayPort computers
Supports six displays by connecting two triple display KVM switches
Supports N-key Rollover
1
(NKRO) – Permits collision-free keying
Video DynaSync™ – An exclusive ATEN technology that eliminates boot-
up display problems and optimizes the resolution when switching among
different sources
Supports superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and
4K DCI (4096 x 2160 @ 60Hz)
Computer selection via pushbuttons, hotkeys, mouse
2
, and RS-232
Commands
3
Built-in 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer
rates
Supports Console keyboard emulation/bypass feature
Supports Console mouse emulation/bypass feature
Independent switching of KVM, USB peripheral, and audio focus
4
Multilingual keyboard mapping - supports English, Japanese, French, and
German keyboards
DisplayPort 1.2 compliant, HDCP compliant
Supports HD Audio
4
Full bass response for high-quality 2.1 channel surround sound systems
Power on detection – if a computer is powered off, the CS1964
automatically switches to the next powered-on computer
Hot pluggable – add or remove computers without powering down the
switch
Mac keyboard support and emulation
5
Auto Scan Mode for monitoring all computers
Firmware upgradeable
Note: 1. N-key Rollover supports up to 15 simultaneous keystrokes.
2. Mouse port switching is only supported under mouse emulation
mode with a USB 3-button mouse wheel.

Chapter 1. Introduction
3
3. Slide the DCC switch to the s position to allow the KVM switch
to receive RS-232 commands via an RJ-45-to-DB9 cable. Please
refer to the CS1964 RS-232 Commands document.
4. HD audio through DisplayPort-HDMI cannot be switched
independently.
5. PC keyboard combinations emulate Mac keyboards. Mac
keyboards only work with their own operating system.

CS1964 User Manual
4
Requirements
Console
Three HDMI monitors capable of the highest possible resolution
A USB mouse
A USB keyboard
Microphone and speakers
Computers
The following equipment must be available on each computer:
Three DisplayPort ports
Six DisplayPort ports for Hex-Display (DCC mode)
A USB Type A port
Audio ports
Cables
To guarantee video quality, we recommend using only ATEN DisplayPort
KVM cables which are certified by the VESA Compliance Program.
Note: 1. The quality of the display is affected by the quality of the cables. We
recommend the total length from the source to the monitor to not
exceed 3.3 meters (1.5 meters between the PC and the KVM switch.
1.8 meters between the KVM switch and the monitor). If you need
additional cables, please contact your dealer to purchase ATEN
approved cables.
2. If you are using DisplayPort cables that are only DP 1.1 compliant,
make sure the DisplayPort EQ setting of the monitor is set to auto or
DP 1.1.
Operating Systems
Windows
Mac
Linux

Chapter 1. Introduction
5
Components

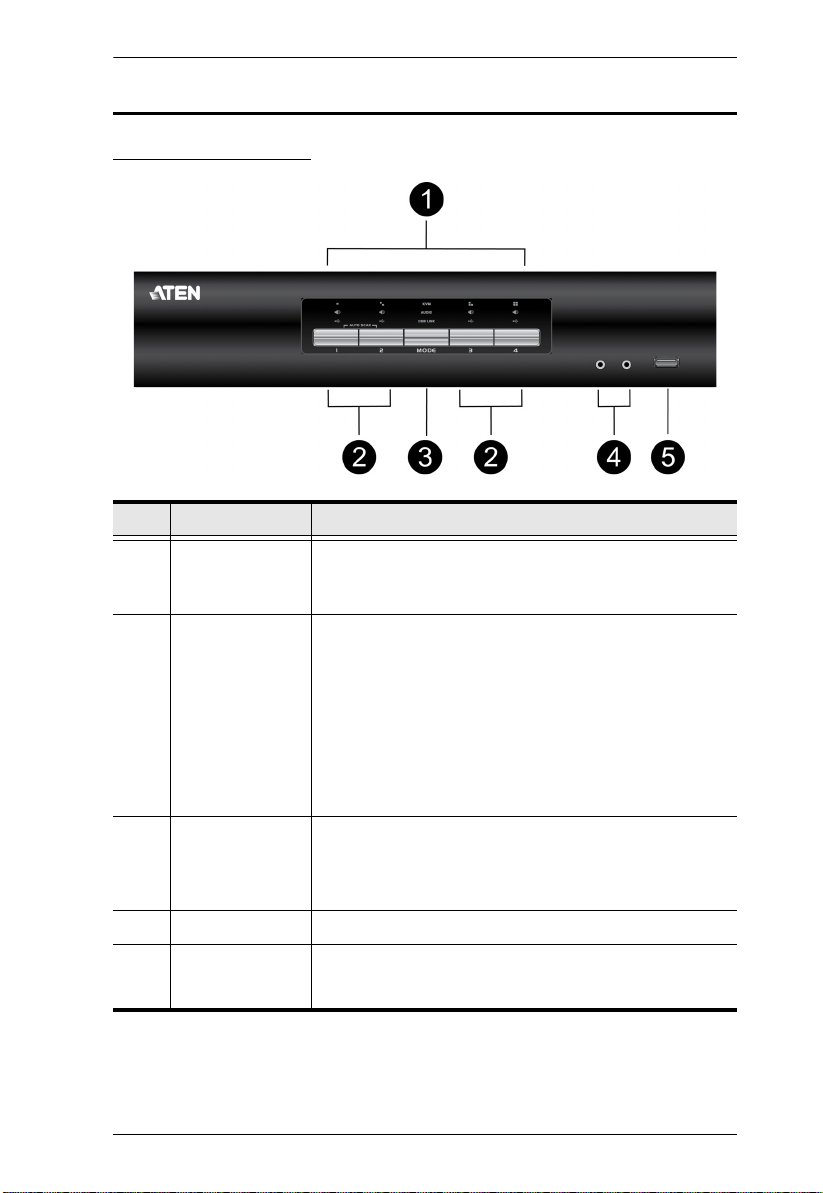

CS1964 Front View
No. Component Description
1 LED Status Panel This panel contains LED icons that light to indicate mode and port
status. The Mode and Port Selection Pushbuttons have three
corresponding LED icons that light to indicate status – KVM, Audio,
and USB. Refer to LED Status Panel on page 7 for more info.
2 Port Selection
Pushbuttons
For manual port selection (see Manual Switching, page 17):
 Press a port selection pushbutton for longer than two seconds to
bring the KVM, USB hub, and audio focus to the computer
attached to its corresponding port.
 Press a port selection pushbutton twice to bring the audio focus
to the computer attached to its corresponding port.
 Press a switch for less than two seconds to bring only the KVM
focus to the computer attached to its corresponding port.
 Press switches 1 and 2 simultaneously for 2 seconds to start
Auto Scan Mode (see Auto Scanning, page 23).
3 Mode Selection
Pushbutton
 This pushbutton allows you to cycle through the four focus
modes – complete, KVM, audio, and USB.
 Press and hold Mode Selection Pushbutton before powering on
and to enter Firmware Upgrade Mode.
4 Console Audio Ports Your console speakers and microphone plug in here.
5 USB 3.1 Gen 1
Peripheral Port
USB peripherals (printers, scanners, drives etc.) plug into this port.
This USB 3.1 Gen 1 port features 5 Gbps data transfer rates for
compatible USB peripherals.

CS1964 User Manual
6
CS1964 Rear View
No. Component Description
1 DCC Port
(Daisy Chain Control)
This RJ-45 port is used to connect two units together when
setting up DCC mode for a Hex-Display mode. See Hex-
Display (DCC Mode), page 14 for instructions.
2 Console Ports Section The cables from your keyboard, mouse, monitors,
microphone, and speakers plug in here. Each connector is
marked with an appropriate icon to indicate itself.
3 KVM Ports Section The cables that link the switch to your computers plug in
here. Each KVM port section is comprised of a microphone
jack, speaker jack, USB Type B socket and three
DisplayPort connectors
4 Power Jack The power adapter cable plugs into this jack.
5 USB 3.1 Gen 1
Peripheral Port USB peripherals (printers, scanners, drives etc.) plug into
this port. This USB 3.1 Gen 1 port features 5 Gbps data
transfer rates for compatible USB peripherals.
6 DCC Switch This switch is used to specify the Host and Client when
setting up two units in Hex-Display DCC mode. See Hex-
Display (DCC Mode), page 14 for instructions.
Slide the DCC switch to the s position to allow the KVM
switch to receive RS-232 commands via an
RJ-45-to-DB9 cable. Please refer to the CS1964 RS-232
Commands document.

Chapter 1. Introduction
7
LED Status Panel
The LED status panel is located above the pushbuttons. The LED columns
respectively correspond to the pushbuttons below.
Port LED Behavior
The LEDs of currently focused connectors (KVM, audio, USB link) will be
fully-lit.
The LED(s) of KVM connectors not currently focused but connected will be
half-lit.
The LED(s) of audio and USB link connectors not currently focused will be
dimmed.
No. Component
1 Mode Selection LED
2 Port LED
3 KVM Icon LED
4 Audio Icon LED
5 USB Link Icon LED
122
3
4
5

CS1964 User Manual
8
Mode Selection Pushbutton and Mode LED Behavior
Pressing the Mode Selection Pushbutton different number of times will light up
different Mode LED, which allows for the follow-up action shown in the table.
For more information on the follow-up actions, please refer to Manual
Switching on page 17.
Button Press Mode LED that Lights up Follow-Up Action
Once KVM, Audio, USB Press any of the Port Pushbutton to
select focus for all connectors
Twice KVM Press any of the Port Pushbutton to
select focus for KVM connector
Three times Audio Press any of the Port Pushbutton to
select focus for audio connectors
Four times USB Press any of the Port Pushbutton to
select focus for USB link

Chapter 1. Introduction
9
Buzzer Behavior
Refer to Buzzer Control on page 27 if you wish to turn the buzzer on or off.
Sound Description
1 beep
 Changing port
 Activating auto-scan mode
 Pausing/resuming auto-scan
1 long beep
 Powering on the unit
 Resetting the unit
2 beeps
 Interrupting auto-scan
 Entering keyboard emulation off mode
 Finishing USB synchronization

CS1964 User Manual
10
This Page Intentionally Left Blank

11
Chapter 2
Hardware Setup
Cable Connections
To set up your installation, refer to the installation diagram on the following
page (the numbers in the diagram on page 13 correspond to the steps below),
and do the following:
1. Plug your USB keyboard and USB mouse into the USB console ports
located on the unit’s rear panel.
2. Plug your monitor(s) into the HDMI console ports located on the unit’s
rear panel and power on the monitors.
3. Plug your microphone and speakers into the console microphone and
speaker jacks located on the unit’s front panel. Audio cables are required
on the CPU side for this connection to work.
4. Plug your microphone and speakers into the audio console ports located on
the unit’s rear panel. The microphone and speakers plugged into the front
panel have priority over those plugged into the rear panel.
5. Using the DisplayPort cable, plug the DisplayPort connector into an
available DisplayPort A socket on the KVM port section of the switch
(CPU 1, CPU 2, etc.), then plug the USB 3.0 cable, microphone/speaker
cables into their corresponding sockets. Using another DisplayPort cable,
plug the DisplayPort cable connector into the DisplayPort socket B in the
same KVM port section of the switch. Repeat for DisplayPort socket C.
6. At the other end of the cables from step 5, plug the microphone/speaker
cables into their respective ports on the computer.
1. Important safety information regarding the placement of this
device is provided on page 39. Please review it before
proceeding.
2. Make sure that power to all the devices you will be installing has
been turned off. You must unplug the power cords of any
computers that have the Keyboard Power On function.

CS1964 User Manual
12
7. At the other end of the DisplayPort cable and USB 3.0 cable from step 5,
plug the DisplayPort cable into its respective port on the computer. Repeat
steps 5, 6, and 7 for each triple-screen PC system you are installing.
8. (Optional) Plug your USB peripherals into the front or rear USB
peripheral ports.
9. Plug the power adapter that came with your switch into an AC power
source, then plug power adapter cable into the switch’s Power Jack.
10. Power on the computers.
Note:
By default, the switch links to the first computer that is powered on.
The total cable length from the PC to monitor (including KVM) cannot
exceed 3.3 meters.
Choosing high quality cables helps to ensure that 4K UHD (3840x2160
@ 60 Hz) or 4K DCI (4096x2160 @ 60 Hz) resolutions can be
reached.
It is highly recommended that the CS1964 is kept powered on at all
times.
