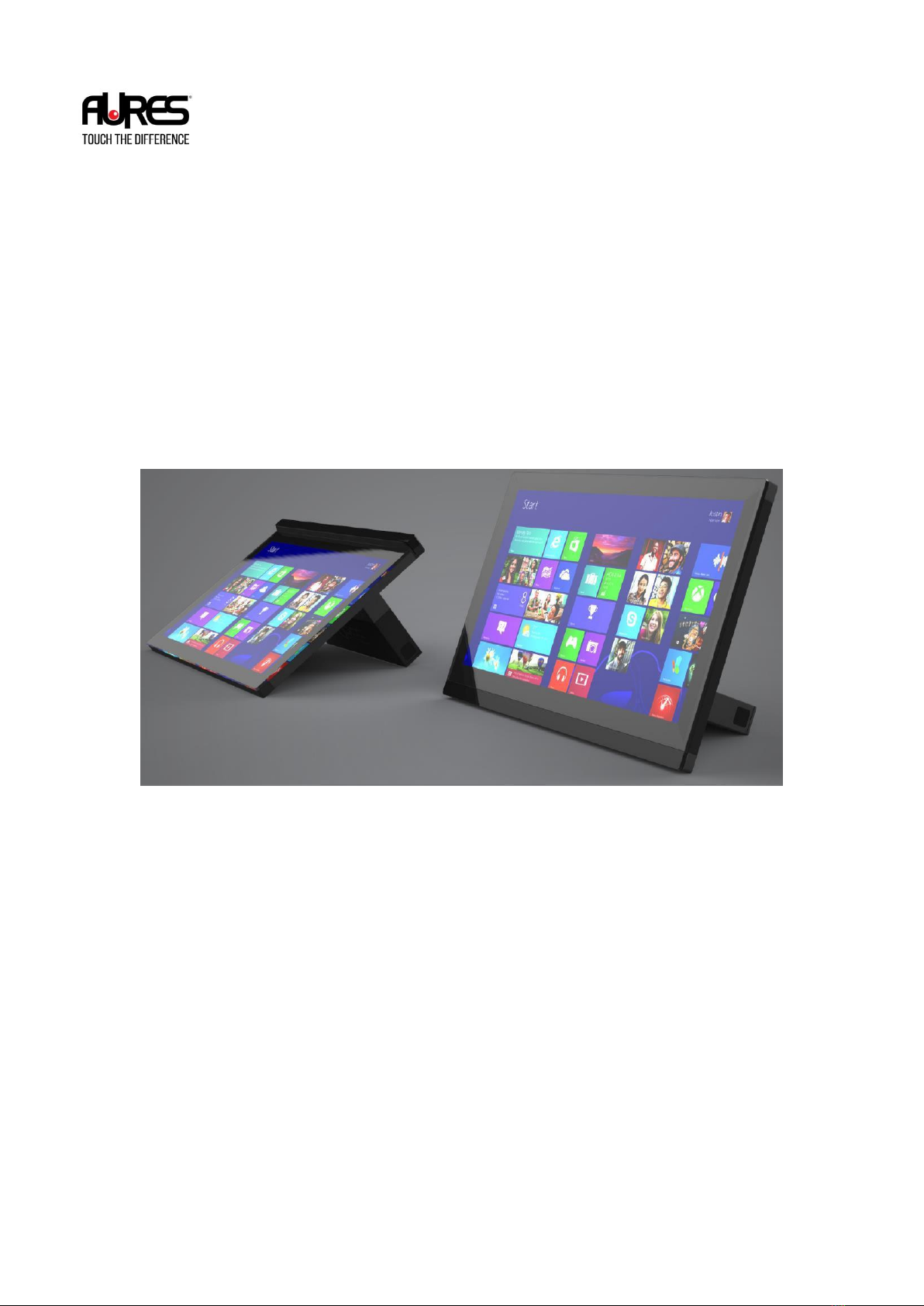

AURES TWIST-MB-1900 User manual

User Manual
TWIST POS System

i
Copyrights
©2018 All rights reserved. The information in this
document is subject to change without prior notice in
order to improve reliability, design and function and
does not represent a commitment on the part of the
manufacturer.
This document contains proprietary information
protected by copyright. All rights are reserved. No
part of this manual may be reproduced by any
mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.
All trademarks are property of their respective owners
Liability Disclaimer
In no event will the manufacturer be liable for direct,
indirect, special, incidental, or consequential
damages arising out of the use or inability to use the
product or documentation, even if advised of the
possibility of such damages.
Regulatory Information
FCC Notice
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the Federal Communications Commission
(FCC) Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
• Increase the separation between the equipment and
the receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or
television technician for help.
NOTE: THE MANUFACTURER IS NOT
RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS DEVICE. SUCH
MODIFICATIONS COULD VOID THE USER'S
AUTHORITY TO OPERATE THE DEVICE.
CE Notice
This device complies with EMC Directive
2004/108/EC and 2006/95/EC “Low Voltage
Directive” issued by the Commission of the
European Community.
UL Notice
This manual refers to UL certified products and
conforms to UL 60950-1 & CAN/CSA C22.2 No.
60950-1-07 STANDARD FOR Information
Technology Equipment - Safety - Part 1: General
Requirements.

ii
WEEE Notice
The WEEE mark applies only to countries within the
European Union (EU) and Norway.
This appliance is labeled in accordance with
European Directive 2002/96/EC concerning waste
electrical and electronic equipment (WEEE). The
Directive determines the framework for the return and
recycling of used appliances as applicable
throughout the European Union. This label is applied
to various products to indicate that the product is not
to be thrown away, but rather reclaimed upon end of
life per this Directive.
CAUTION :
Risk of Explosion if Battery is replaced by an
incorrect Type.
Dispose of Used Batteries According to the
instructions.
Safety
IMPORTANT SAFETY INSTRUCTIONS
To disconnect the machine from the electrical Power
Supply, turn off the power switch and remove the power
cable plug from the wall socket. The wall socket must
be easily accessible and in close proximity to the
machine.
Read these instructions carefully. Save these
instructions for future reference.
Follow all warnings and instructions marked on the
product.
Do not use this product near water.
Do not place this product on an unstable cart, stand, or
table. The product may fall, causing serious damage to
the product.
Slots and openings in the cabinet and the back or
bottom are provided for ventilation; to ensure reliable
operation of the product and to protect it from
overheating. These openings must not be blocked or
covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar
surface. This product should never be placed near or
over a radiator or heat register, or in a built-in
installation unless proper ventilation is provided.
This product should be operated from the type of power
indicated on the marking label. If you are not sure of the
type of power available, consult your dealer or local
power company.
Do not allow anything to rest on the power cord. Do not
locate this product where persons will walk on the cord.
Never push objects of any kind into this product through
cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the
product.

iii
Table of Contents
Copyrights............................................................................................................i
Liability Disclaimer...............................................................................................i
Regulatory Information........................................................................................i
FCC Notice ...........................................................................................................................i
CE Notice..............................................................................................................................i
UL Notice..............................................................................................................................i
WEEE Notice .......................................................................................................................ii
Safety...................................................................................................................................ii
Table of Contents............................................................................................... iii
1. Item Checklist..................................................................................................1
1.1 Standard Items..............................................................................................................1
2. System View ....................................................................................................2
2.1 Front and Side View......................................................................................................2
2.2 Top View ........................................................................................................................2
2.3 Dimension .....................................................................................................................3
2.4 I/O View..........................................................................................................................5
3. POS System Assembly & Disassembly.........................................................6
3.1 Open the System Cover ...............................................................................................6
3.2 Replace the Memory and/or Storage Disk Drive ........................................................7
3.3 Install the Power Adapter...........................................................................................10
4. Specification.................................................................................................. 11
5. Configuration................................................................................................. 13
5.1 Processor Module.......................................................................................................13
5.2 I/O Module ...................................................................................................................14
Appendix A: Driver Installation ........................................................................15

1
1. Item Checklist
1.1 Standard Items
a. System : TWIST
b. Power Adapter (65W)
c. Power Cable
d. RJ50-DB9 Cable 70cm (x2)
e. Manual CD
f. Safety Instructions Sheet
g. Website Address Sheet

2
2. System View
2.1 Front and Side View
3 2 1 3
Number
Description
1
Bezel Free 2.8mm Touch Glass and 13.3”LCD Panel
2
Power Button
3
USB 3.0 (Type A)
2.2 Top View
4
Number
Description
4
Plastic-Rubber Cable Cover

3

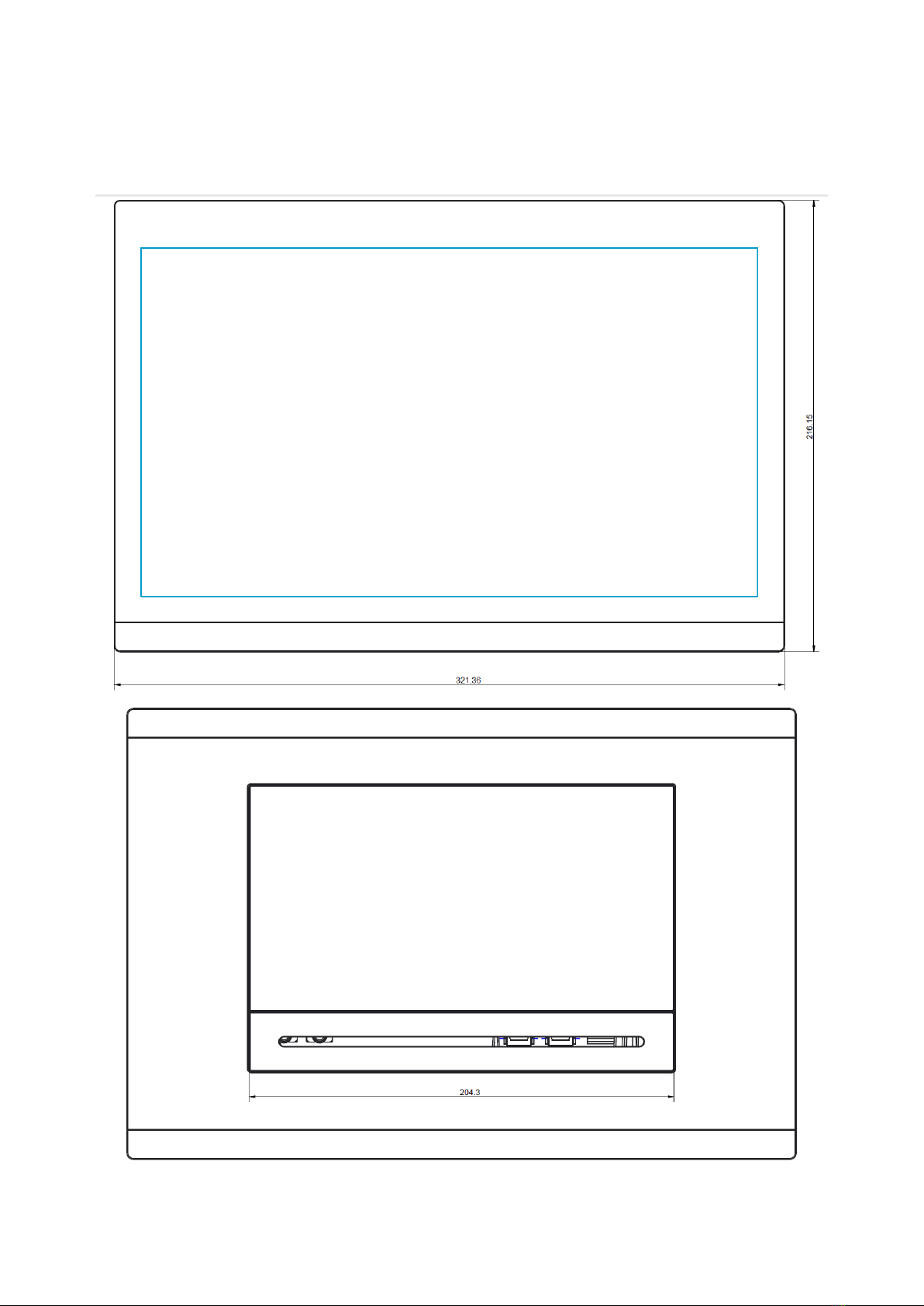

2.3 Dimension
(in mm)

4

5

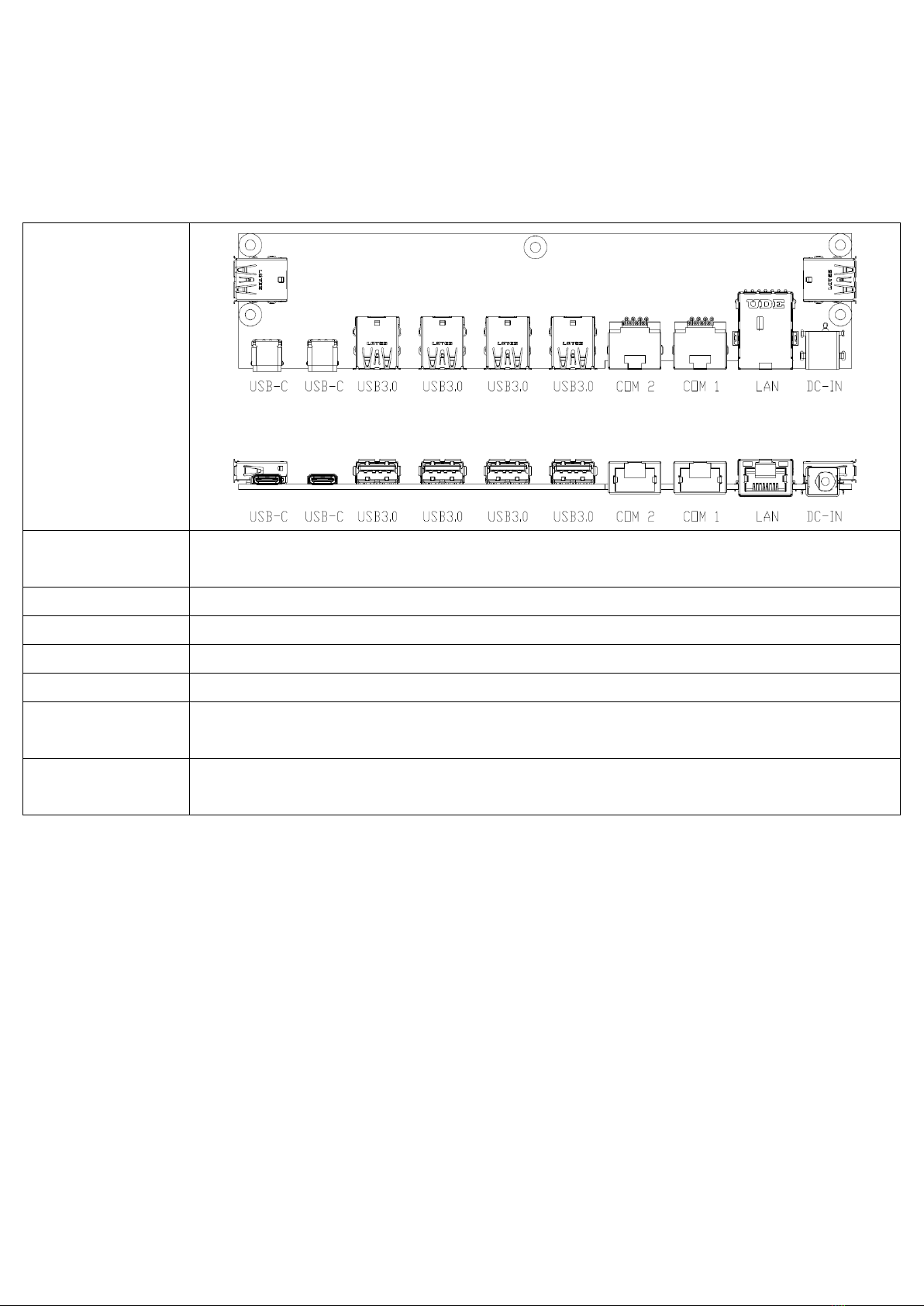

2.4 I/O View
g a b c d e f g
Front View
Number
Description
a
DC-IN jack
b
LAN (RJ45 Connector)
c
COM1~2 (from right to left) (RJ50 Connector)
d
4 x USB 3.0 (Type A)
e
USB-C (only 2 channel DisplayPort, but supports FHD)
with Video and Power in/out
f
USB-C (Power Deliver Out)
to Processor Module
Left & Right-side View
Number
Description
g
USB 3.0 (Type A)

6
3. POS System Assembly & Disassembly
3.1 Open the System Cover
Open the System Cover as depicted below.

7
3.2 Replace the Memory and/or Storage Disk Drive
TWIST POS System offers M.2 Solid State Drive (SSD).
*Please note that if you are replacing your SSD, you will need to reinstall your operating
system after replacing it.
Make sure the unit is powered off before starting.
Please follow the below steps to finish the replacement :
1. Remove the System Cover
To open the System Cover, please refer to the procedures described in Chapter
3-1 and remove it.

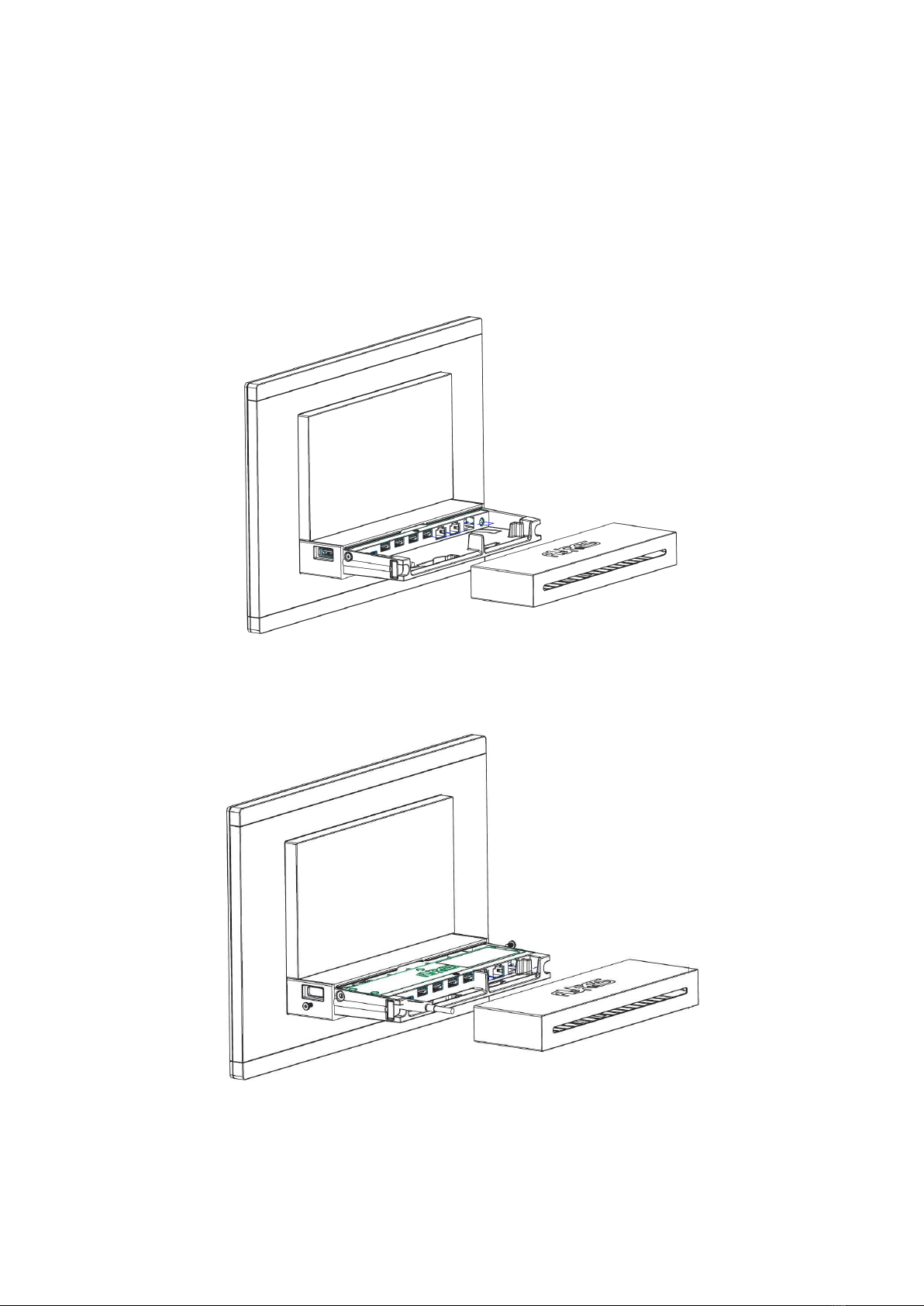

2. Detach the Processor Module

8

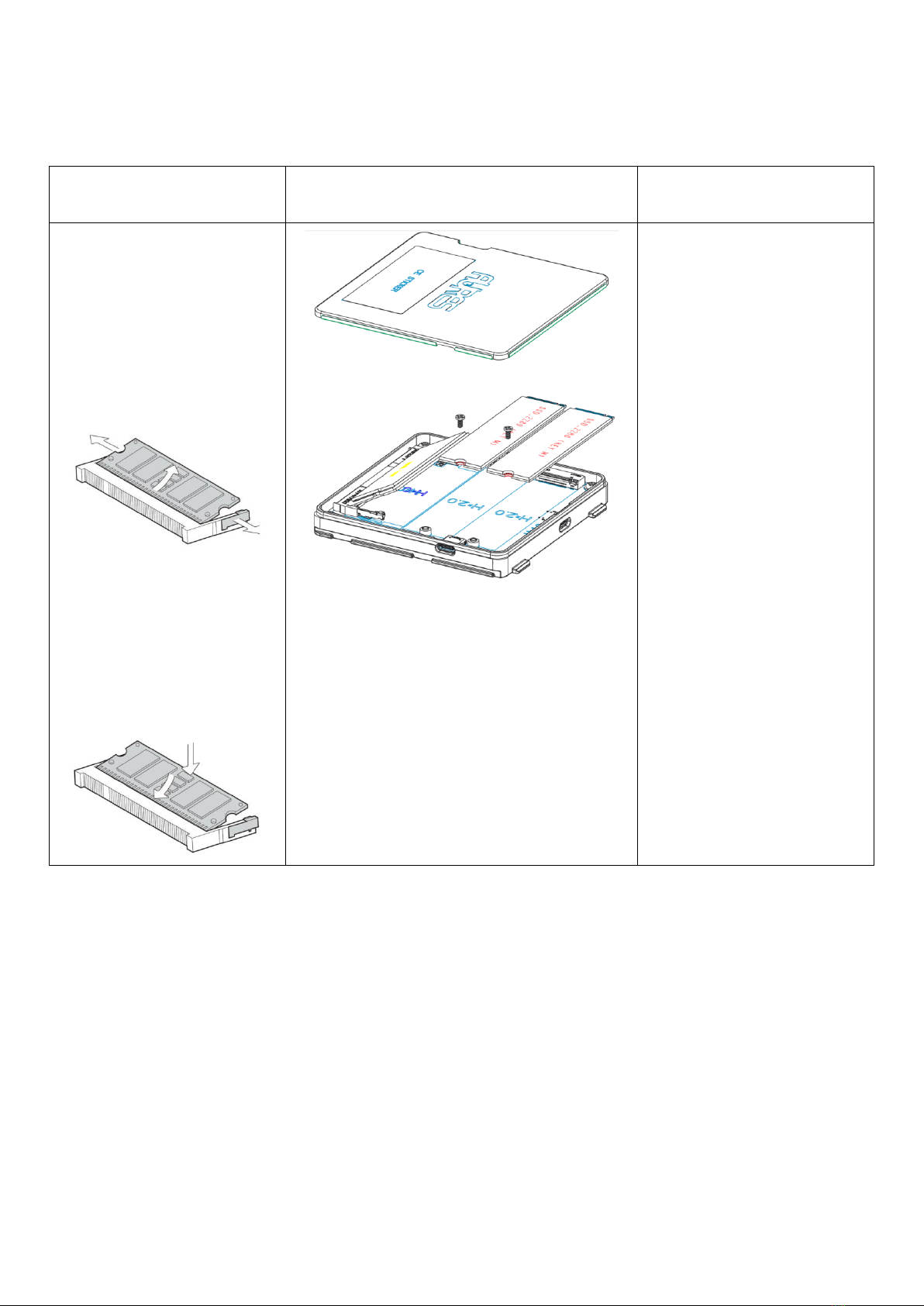

3. Replace the Memory and/or Storage Disk Drive
Replace the Memory
Replace the
Storage Disk Drive
(1) Locate the memory slot
inside the Processor
Module enclosure.
(2) Flip the ejector clips
outwards to remove
the memory module
from the memory slot.
(3) Slide the memory
module into the
memory slot and press
down until the ejector
clips snaps in place.
(1) Locate the storage slot
inside the Processor
Module enclosure.
(2) Screw off the
corresponding screw to
remove the SSD from
the storage slot.
(3) Secure the screw after
finishing replaced the
storage disk drive.
3. Close up the case of Processor Module

9

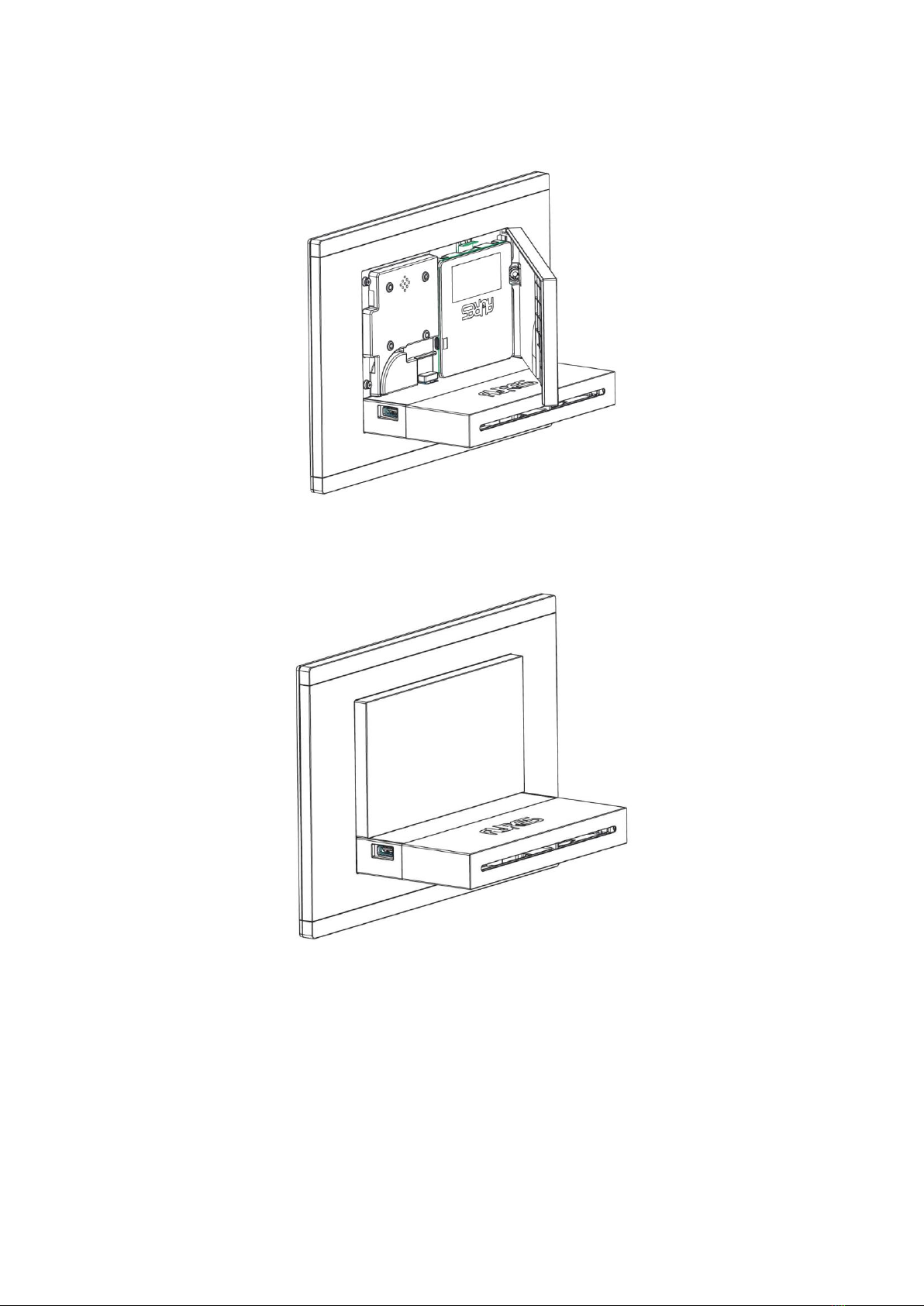

4. Install the Processor Module and System Cover into the unit
5. Connect the power supply and get ready to power on the system

10
3.3 Install the Power Adapter
The system is equipped with a 65W power adapter. Please follow below procedures to
get it plugged into the system.
1. Slide out the Cable Cover of the I/O Module.
2. Remove the two side-screws to release the I/O Module.
3. Locate the DC-IN Jack and connect the power cable properly.
4. Secure the I/O Module with the two side-screws and slide in the Cable Cover.

11
4. Specification
Model Name
TWIST
Model Number
ART-04152
JAZZ/TWIST-MB-1900
ART-04153
JAZZ/TWIST-MB-I3-6100U
ART-04154
JAZZ/TWIST-MB-I5-7300U
CPU support
Intel® Bay Trail-M
SoC Processor J1900
(2M Cache, up to 2.42 GHz)
Intel® Core™
i3-6100U Processor
(3M Cache, 2.30 GHz)
Intel® Core™
i5-7300U Processor
(3M Cache, up to 3.50 GHz)
System memory
1 x SO-DIMM DDR3L
4GB default
(Max 8 GB)
1 x SO-DIMM DDR4
4GB default
(Max 16 GB)
Storage
M.2 (Key M) 2280 128GB SSD (default)
*Support only single-sided component
Audio
1 x 2W Speaker
BIOS
Phoenix uEFI BIOS
AMI uEFI BIOS
LCD Panel
LCD size
13.3" FHD
Brightness in cd/m²
300
Maximal resolution
1920 x 1080
Aspect Ratio
16:9
Backlight Type
LED
Touch Panel
P-CAP Touch
2.8 mm Touch Glass
Touch Screen
10
Interface
USB
I/O
Power Button
1 x with power indicator
(Green power on and Amber is standby)
DC-IN jack
1 x radio jack connector for 19V DC input
Serial / COM
2 x RJ50 connector with RJ50 to DB9 cable for RS-232 port
powered COM with software select
none (Default setting) / +5V
at DB9 pin-1
LAN
1 x RJ45 port for Gigabit Ethernet
USB
6 x USB 3.0
USB-C
2 x USB-C

12
Power
Power Adapter
External 19V / 3.42A 65Watt Adapter
Certifications
EMI
FCC Class B / CE / LVD / RCM
Safety
UL
Environment
Operating temperature
0℃~ 35℃(32℉~ 95℉)
Storage temperature
-20℃~ 60℃(-4℉~ 140℉)
Humidity
5% ~ 80%, non-condensing
Dimension (W x D x H)
321.36 x 216.15 x 122.8 mm
Weight (N.W. / G.W.)
3 kg / 4 kg
OS support
Windows® 7 Professional for Embedded Systems,
Windows® Embedded POSReady 7,
Windows® Embedded 8.x Industry Retail
Windows® 10 Industry
* This specification is subject to change without prior notice.

13
5. Configuration

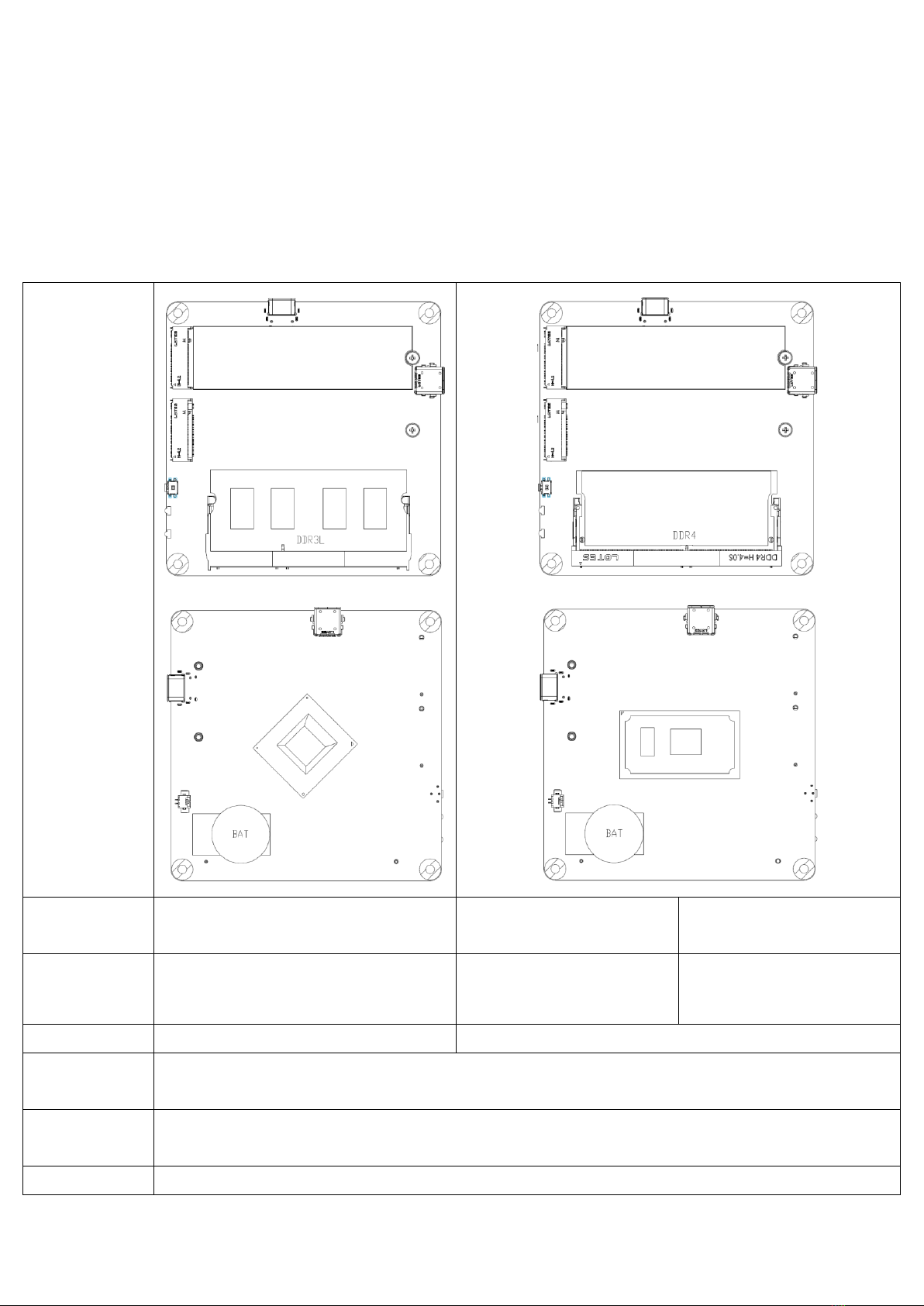

5.1 Processor Module
5.1.1 Layout, Connectors & Functions
SKU
ART-04152
JAZZ/TWIST-MB-1900
ART-04153
JAZZ/TWIST-MB-I3-6100U
ART-04154
JAZZ/TWIST-MB-I5-7300U
CPU
Intel® Bay Trail-M
SoC Processor J1900
(2M Cache, up to 2.42 GHz)
Intel® Core™
i3-6100U Processor
(3M Cache, 2.30 GHz)
Intel® Core™
i5-7300U Processor
(3M Cache, up to 3.50 GHz)
DIMM1
SO-DIMM DDR3L x 1
SO-DIMM DDR4 x 1
CN1_IN
USB-C Connector (Power Deliver In) to I/O Module
(ART-04155, JAZZ/TWIST-I/O-MODULE)
CN2_OUT
USB-C Connector (Power Deliver Out) to Display
(ART-04157, TWIST-BASE-BLACK)
CN3 & CN4
2 x M.2 Key-M 2280 Slot

14
5.2 I/O Module
5.2.1 Layout, Connectors & Functions
SKU
ART-04155
JAZZ/TWIST-I/O-MODULE
DC-IN1
DC-IN jack
LAN_CON1
LAN (RJ45 Connector)
COM1 & COM2
COM1~2 (from right to left) (RJ50 Connector)
USB1~6
4 x USB 3.0 (Type A)
CN1
USB-C (Power Deliver Out)
to Processor Module
CN2
USB-C (only 2 channel DisplayPort, but supports FHD)
with Video and Power in/out

15
Appendix A: Driver Installation
To download the most recent drivers and utilities, and obtain advice regarding the
installation of your equipment, please visit the AURES Technical Support Website:
www.aures-support.fr(French)
www.aures-support.fr/UK(English)
www.aures-support.fr/GE(German)
