Auriol HG06169A User manual

RADIO-CONTROLLED
BATHROOM CLOCK
Operation and safety notes
DRAADLOZE
BADKAMERKLOK
Bedienings- en veiligheidsinstructies
FUNK-BADEZIMMERUHR
Bedienungs- und Sicherheitshinweise
IAN 354149_2010
RADIO-CONTROLLED BATHROOM CLOCK

GB/IE/NI Operation and safety notes Page 5
NL/BE Bedienings- en veiligheidsinstructies Pagina 19
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 33

A
[1]
[3]
[2]

B
[4]
[7]
[6]
[5]

C
[8]

5GB/IE/NI
List of pictograms used ................................Page 6
Introduction .............................................Page 6
Intended use...............................................Page 7
Description of parts .........................................Page 7
Technical data .............................................Page 7
Scope of delivery...........................................Page 8
Safety instructions......................................Page 8
General safety information ...................................Page 8
Thermometer / Hygrometer...........................Page 10
Before initial use / replacing the battery............Page 11
Using the mounting hold, the bracket stand or the suction cups .......Page 12
Operation................................................Page 13
Receiving the DCF radio time signal ............................Page 13
Setting the time manually .....................................Page 14
Resetting the settings ........................................Page 14
Cleaning and care ......................................Page 15
Disposal..................................................Page 15
Simplified EU declaration of conformity .............Page 16
Warranty ................................................Page 17

6 GB/IE/NI
List of pictograms used
Direct current / voltage Temperature display
Fragile Humidity display
Radio control IP X4 Splashproof
RADIO-CONTROLLED BATHROOM CLOCK
Introduction
We congratulate you on the purchase of your new product. You have chosen a high
quality product. The instructions for use are part of the product. They contain important
information concerning safety, use and disposal. Before using the product, please
familiarise yourself with all of the safety information and instructions for use. Only use
the product as described and for the specified applications. If you pass the product on
to anyone else, please ensure that you also pass on all the documentation with it.

7GB/IE/NI
Intended use
The product is intended for use indoors at normal room temperatures only. The
product is not intended for commercial use. The product shows time and indoor
temperature and humidity.
Description of parts
[1] Mounting hold
[2] Suction cup
[3] Back case
[4] RESET button
[5] REC button
[6] SET button
[7] Battery compartment
[8] Bracket stand
Technical data
Temperature display: –40 to +60 °C
Humidity display: 0 to 100 %
Battery type: 1 x 1.5 V AA, LR6
Quartz movement: DCF RC movement
Radio signal: DCF77
Frequency band: 77.5 kHz
Degree of protection: IPX4 (splash-proof)

8 GB/IE/NI
Scope of delivery
Immediately after unpacking, please check the package contents for completeness
and if the product and all parts are in good condition.
1 Radio-controlled bathroom clock
1Battery 1 x 1.5 V AA, LR6 (included)
1 Operating instructions
1 Bracket stand (placed inside the back case) for placing the product on a flat
surface
Safety instructions
WARNING! Please read all safety information and instructions. Failure to
comply with the safety information and instructions may result in, fire and / or severe
injuries.
General safety information
WARNING! DANGER TO LIFE AND ACCIDENT HAZARD
FOR TODDLERS AND SMALL CHILDREN! Never allow children
to play unsupervised with the packaging material. There is a danger of
suffocation from the packaging material. Children frequently underestimate the
dangers.

9GB/IE/NI
This product can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the product in a safe way and understand the hazards involved. Children shall
not play with the product. Cleaning and user maintenance shall not be made by
children without supervision.
Do not use the product if it is damaged.
Repairs should only be carried out by specialist personnel.
Safety instructions for batteries / rechargeable batteries
mDANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of
children. If accidentally swallowed seek immediate medical attention.
Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns
can occur within 2 hours of ingestion.
DANGER OF EXPLOSION! Never recharge non-rechargeable batteries.
Do not short-circuit batteries / rechargeable batteries and / or open them.
Overheating, fire or bursting can be the result.
Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.

10 GB/IE/NI
Risk of leakage of batteries / rechargeable batteries
Avoid extreme environmental conditions and temperatures, which could affect
batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes
and mucous membranes with the chemicals! Flush immediately the affected areas
with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES! Leaked or damaged batteries /
rechargeable batteries can cause burns on contact with the skin. Wear
suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately
remove them from the product to prevent damage.
Remove batteries / rechargeable batteries if the product will not be used for a
longer period.
Risk of damage of the product
Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (–)
on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery
compartment before inserting!
Remove exhausted batteries / rechargeable batteries from the product
immediately.
Thermometer / Hygrometer
The product features has a digital display at the 6 o’clock position, which shows
the temperature and humidity alternatingly in 20-second intervals.

11GB/IE/NI
After unpacking the product and inserting the battery: It may take some time
before the temperature and humidity sensors have adjusted to their new
surroundings and correct values are displayed.
Before initial use / replacing the battery
Turn the product over. Place the product on a soft underlay to avoid scratching the
surface.
Hold the front case of the product in one hand and the back case [3] with the
other hand. Turn the back case in a counter-clockwise direction until the arrow is
facing the 11 o’clock position (as seen at the back) and matching the arrow on
the front case (fig. C).
Remove the back case [3]. Insert the battery into the battery compartment [7],
placing first the –contact and then pushing down at the +contact.
Place back the back case [3] with the arrow of the front case matching the one on
the back case.
Turn the back case [3] in a clockwise direction until it matches the mark at the top.
The product is now ready for use.
Radio signal:
HG06169A-B:
The DCF signal (time signal transmitter) consists of time pulses emitted by one of the
most accurate clocks in the world. This clock is located close to Frankfurt / Main,
Germany and it can usually achieve an accuracy within a hundredth of a second
relative to the time standard.

12 GB/IE/NI
Your radio-controlled wall clock receives these signals under ideal conditions up to a
distance of approx. 1.500 km around Frankfurt / Main. Reception of the radio signal
generally takes approx. 3 to 12 minutes.
Note: Reception may be considerably reduced by obstructions (e.g. concrete walls)
or sources of interference (e.g. other electrical products). In the event of reception
problems, change the position of the wall clock (e.g. to somewhere near a window).

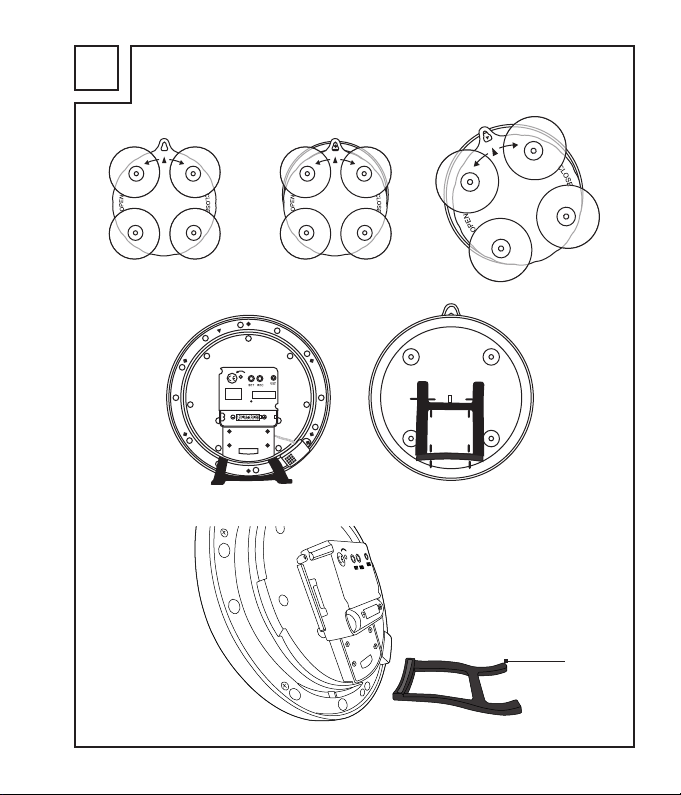

Using the mounting hold, the bracket stand or the
suction cups
You can hang the product on a wall using the mounting hold [1] at the back.
You can place the product on a flat surface using the bracket stand [8] placed
inside the back case [3]. Remove the bracket stand from the opened back case.
Place the semi-round part in the slot at the bottom of the front case. Close the back
case (see “Before initial use”).
The product can also be attached to a smooth, dry and flat surface (for example:
Mirror, glass, glazed tiles).
Porous, matte or uneven surfaces are not suitable (for example: Tiles with a relief
pattern or terracotta).
To achieve a stronger connection, wet the suction cups [2] before attaching the
product and clean the surface on which you intend to attach the product.
To remove the product, release all suction cups [2] first (for example, by inserting
a fingernail under the rim of each suction cup).

13GB/IE/NI
Operation
Receiving the DCF radio time signal
Insert a 1.5 V AA / LR6 battery with the correct polarity into the battery
compartment [7] on the back of the product.
The wall clock automatically starts to search for the DCF radio time signal. This
process takes about 3 to 12 minutes to complete.
Within 4 minutes, the hands will move to 12 o’clock. The radio signal reception
is initiated once all the hands have moved to the 12 o’clock position. After 3 to
10 minutes, the clock will receive the signal and set itself to the exact time.
The reception of the DCF radio time signal by the wall clock can also be started
manually.
Press and hold the REC button [5] at least 5 seconds. The wall clock attempts to
receive the DCF radio time signal. This process takes a few minutes to complete.
Note: If the wall clock was not able to receive the DCF radio time signal because of
errors, e.g. due your location to being at too great a distance from the transmitter or
for other reasons, you can set the time manually. The manually set value is overwritten
as soon as reception of the DCF radio time signal is successful.
Note: For products intended for Latvia, the display stops at “01:00”.

14 GB/IE/NI
Setting the time manually
Press and hold the SET button [6] at least 3 seconds. The wall clock switches into
manual mode.
Press and hold the SET button [6] again until the hands reach the correct position
for you to set the time.
Briefly pressing the SET button [6] moves the hands forward in one minute steps to
enable you to set the current time manually.
Note: Press SET button [6] with a pointed object (e.g. pencil).
Note: After 8 seconds without pressing the SET button [6], the wall clock switches
out of manual mode and keeps the time as normal. The manually set value is
overwritten as soon as the reception of the DCF radio time signal is successful.
Resetting the settings
Press the RESET button [4] to reset the radio clock settings. Alternatively, remove
the battery from the product and insert it again. The product now automatically
starts to search for the DCF radio time signal.
Note: Press RESET button [4] with a pointed object (e.g. pencil).

15GB/IE/NI
Cleaning and care
The product should only be cleaned on the outside with a soft dry cloth.
If the wall clock is not going to be used, remove the battery.
Note: When the battery voltage is depleted after about 9 months (depending on
reception quality), the second hand will stop moving. However, the hour and minute
will keep on showing the right time until the battery voltage is too low, after which the
clock will stop completely.
It is advised to change a new battery as soon as this occurs.
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at
local recycling facilities.
Observe the marking of the packaging materials for waste separation,
which are marked with abbreviations (a) and numbers (b) with following
meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98:
composite materials.
The product and packaging materials are recyclable, dispose of it
separately for better waste treatment.
The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to
dispose of your worn-out product.

16 GB/IE/NI
To help protect the environment, please dispose of the product properly
when it has reached the end of its useful life and not in the household waste.
Information on collection points and their opening hours can be obtained
from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance
with Directive 2006/66/EC and its amendments. Please return the batteries /
rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the
batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic
waste. They may contain toxic heavy metals and are subject to hazardous waste
treatment rules and regulations. The chemical symbols for heavy metals are as follows:
Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used
batteries / rechargeable batteries at a local collection point.
Simplified EU declaration of conformity
Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm,
GERMANY, declares that the product RADIO-CONTROLLED BATHROOM CLOCK,
HG06169A / HG06169B, is in compliance with Directives 2014/53/EU and
2011/65/EU.
The full text of the EU declaration of conformity is available at the following internet
address: www.owim.com

17GB/IE/NI
Warranty
The product has been manufactured to strict quality guidelines and meticulously
examined before delivery. In the event of product defects you have legal rights against
the retailer of this product. Your legal rights are not limited in any way by our warranty
detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product
show any fault in materials or manufacture within 3 years from the date of purchase,
we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales
receipt in a safe location. This document is required as your proof of purchase. This
warranty becomes void if the product has been damaged, or used or maintained
improperly.
The warranty applies to defects in material or manufacture. This warranty does not
cover product parts subject to normal wear, thus possibly considered consumables
(e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or
glass parts.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 123456_7890) available
as proof of purchase.

18 GB/IE/NI
You will find the item number on the rating plate, an engraving, on the front page
of the instructions for use (bottom left), or as a sticker on the rear or bottom of the
product.
If functional or other defects occur, please contact the service department listed either
by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will
be provided to you. Ensure that you enclose the proof of purchase (till receipt) and
information about what the defect is and when it occurred.
Service
Service Great Britain
Tel.: [phone]
E-Mail: [email protected].uk
Service Ireland
Tel.: [phone]
Service Northern Ireland
Tel.: [phone]
E-Mail: [email protected]

19NL/BE
Overzicht gebruikte pictogrammen................Pagina 20
Inleiding................................................Pagina 20
Beoogd gebruik ..........................................Pagina 21
Onderdelenbeschrijving....................................Pagina 21
Technische gegevens ......................................Pagina 21
Leveringsomvang .........................................Pagina 22
Veiligheidstips ........................................Pagina 22
Algemene veiligheidstips ...................................Pagina 22
Thermometer/Hygrometer..........................Pagina 24
Voor het eerste gebruik/Batterij vervangen .....Pagina 25
Gebruik de montagehouder, de standaard of de zuignappen ......Pagina 26
Bediening ..............................................Pagina 27
DCF-radiosignaal ontvangen ................................Pagina 27
Tijd handmatig instellen ....................................Pagina 28
Instellingen annuleren .....................................Pagina 28
Schoonmaken en onderhoud .......................Pagina 29
Afvoer..................................................Pagina 29
Vereenvoudigde EU-Conformiteitsverklaring.....Pagina 30
Garantie ...............................................Pagina 31
