AVer SF2111H-BR User manual

AVer SF2111H-BR
User Manual

Table of Contents
PREFACE ............................................................................................................................1
PRODUCT SPECIFICATIONS.............................................................................................1
PACKAGE CONTENTS.......................................................................................................4
PRODUCT INSTALLATION.................................................................................................5
MONITOR SETTING .............................................................................................................5
HARDWARE INSTALLATION AND I/OPIN ASSIGNMENT ..............................................................6
POWER OVER ETHERNET (POE)..........................................................................................7
IPASSIGNMENT..................................................................................................................8
FINDING IPCAMERA BY USING “NXU LITE RECORDING SOFTWARE”..........................................8
FINDING IPCAMERA BY USING “IP INSTALLER” .....................................................................11
USING DHCPSERVER/ROUTER NETWORK.........................................................................13
USING NON-DHCPSERVER/ROUTER NETWORK................................................................14
INSTALLACTIVEXCONTROL...............................................................................................17
USING THE IP CAMERA BROWSER INTERFACE..........................................................19
PREVIEW .........................................................................................................................19
SYSTEM >GENERAL.........................................................................................................21
SYSTEM >GENERAL >MAINTENANCE.................................................................................21
To Upgrade the IP Camera Firmware.......................................................................22
SYSTEM >GENERAL >DATE &TIME...................................................................................23
SYSTEM >USER MANAGEMENT .........................................................................................24
SYSTEM >USER MANAGEMENT >ACCOUNT........................................................................24
SYSTEM >NETWORK SETTING >SETTING...........................................................................26
SYSTEM >NETWORK SETTING >SEVER .............................................................................27
SYSTEM >NETWORK SETTING >DDNS.............................................................................28
SYSTEM >NETWORK SETTING >OTHER 1..........................................................................30
SYSTEM >NETWORK SETTING >OTHER 2..........................................................................32

SYSTEM >ADVANCE>HTTPS...........................................................................................37
SYSTEM >ADVANCE >SNMP ...........................................................................................39
SYSTEM >ADVANCE >ACCESS LIST ...................................................................................41
SYSTEM >ADVANCE >QOS/DSCP ...................................................................................42
SYSTEM >IMAGE..............................................................................................................43
SYSTEM >IMAGE>OSD....................................................................................................43
SYSTEM >IMAGE >PREFERENCE.......................................................................................44
SYSTEM >IMAGE >ADVANCED...........................................................................................45
SYSTEM >IMAGE >PRIVACY MASK ....................................................................................46
SYSTEM >VIDEO STREAM >GENERAL ...............................................................................47
SYSTEM >VIDEO STREAM>STREAM1.................................................................................48
SYSTEM >VIDEO STREAM >STREAM2...............................................................................50
SYSTEM >VIDEO STREAM >STREAM3...............................................................................52
SYSTEM >AUDIO..............................................................................................................53
SYSTEM >SD CARD.........................................................................................................54
EVENT >ARRANGEMENT >MOTION....................................................................................55
EVENT >ARRANGEMENT >PREFERENCE ............................................................................56
EVENT >SCHEDULE .........................................................................................................57
EVENT >DI/DO...............................................................................................................58
STATUS INFORMATION .......................................................................................................59
NETWORK CONFIGURATION..........................................................................................60
FACTORY DEFAULT .........................................................................................................62
TROUBLESHOOTING.......................................................................................................63
APPENDIX.........................................................................................................................64
COPYRIGHT......................................................................................................................65
NOTICE..............................................................................................................................65
WARNING..........................................................................................................................65
LIMITED WARRANTY .......................................................................................................66
GOVERNING LAW AND YOUR RIGHTS ..........................................................................67

1
Preface
The SF2111H-BR is an H.264 2-megapixel; full HD bullet camera designed for indoor and outdoor use
with a mechanical IR-cut filter and built-in LED IR illuminators. Unique external controls simplify
installation allowing easy corrections to focus and zoom after placement. Rated to IP66, SF2111H-BR
gives you the flexibility of a camera that can withstand both dust and driving rain, and can continue to
provide superior quality video during the day without compromising on nighttime performance.
Product Specifications
 Video out support
 2M-pixel, full HD Definition (1080p) 30fps support
 3D & 2D Digital Noise Reduction
 Digital Wide Dynamic Range
 Power over Ethernet (PoE)
 H.264/MJPEG/MPEG-4 compression formats
 microSD/SDHC card backup (SD card is an optional part)
 2-way audio
 3GPP mobile phone/PDA support
 Free bundled AVer NXU Lite recording software
 IR LED Built in 25 meters available
 Mechanism IR Cut FilterAvailable
Specifications
Hardware
CPU ARM 9, 32-bit RISC
RAM 256MB
Flash 16MB
Image Sensor 1/2.7” CMOS (2 megapixels)
Support DC IRIS Yes
Lens Type Vari-focal 3~9 mm Lens
ICR Mechanism IR cut Filter
LED Built-in 35 IR LED
IR Distance-25M
I/O 1 Sensor in /1 Relay out
Video Out 1

2
Hardware
Audio In 1
G.711 (64K) and G.726 (32K,24K) audio compression
Input : 3.5mm phone jack, audio in
Audio Out 1 / Output: 3.5mm phone jack
Power over Ethernet Yes
Power Consumption DC 12V: 5.8W (IR LED on) /3.8W (IR LED off)
PoE Class 0 (IEEE802.3af):
8.2W (IR LED on), 4.8W(IR LED off)
Dimensions 830 x 180H (mm)
Weight 1000g (w/o bracket)
Operation temperature -10℃~ 45℃
Network
Ethernet 10/100 Base-T
Network Protocol HTTP, HTTPS, NTP, UPnP, 3GPP(Video only), SAMBA,
Bonjour ,SNMP, QoS/DSCP, Access list, RTSP, TCP/ IP,
UDP, SMTP, FTP, PPPoE, DHCP,DDNS
System
Video Resolution 1920x1080, 1280x720, 640x480, 320x240, 176x144
Video Adjust Brightness, Contrast, Sharpness, Night Mode, D-WDR,
Noise reduction.
Triple Streaming Yes
Image Snapshot Yes
Full Screen Monitoring Yes
Privacy Mask Yes, 3 different areas
Compression Format H.264/ JPEG/ MPEG-4
Video Bitrates Adjust Yes (CBR/VBR)
Motion Detection Yes, 3 different areas
TriggeredAction Mail, FTP, Save to microSD/SDHC card, Relay, Samba
Pre/ Post Alarm Yes (Pre :5 secs/ Post: 10 secs)

3
System
Security Password Protection, QoS/DSCP, IP address filtering,
HTTPS encryption, data transmission
Firmware Upgrade HTTP mode (Can Be Upgraded Remotely)
Simultaneous Connection Up to 10
Audio Yes, 2-way (mono)
MicroSD/SDHC card management
Recording Trigger Motion Detection, IP Check, Network Breakdown (wire
only), Schedule, Alarm
Video Format AVI, JPEG
Video Playback Yes
Delete Files Yes
Web browsing requirement
OS Windows
®
XP (32-bit), 7 (32/64-bit)
Microsoft
®
IE 6.0 or above (32-bit only)
Hardware Suggested Intel
®
Dual Core 2.53GHz, RAM: 1024MB, Graphics
Card: 128MB
Mobil support iOS 4.3 or above, Android 1.6 or above.
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

4
Package contents

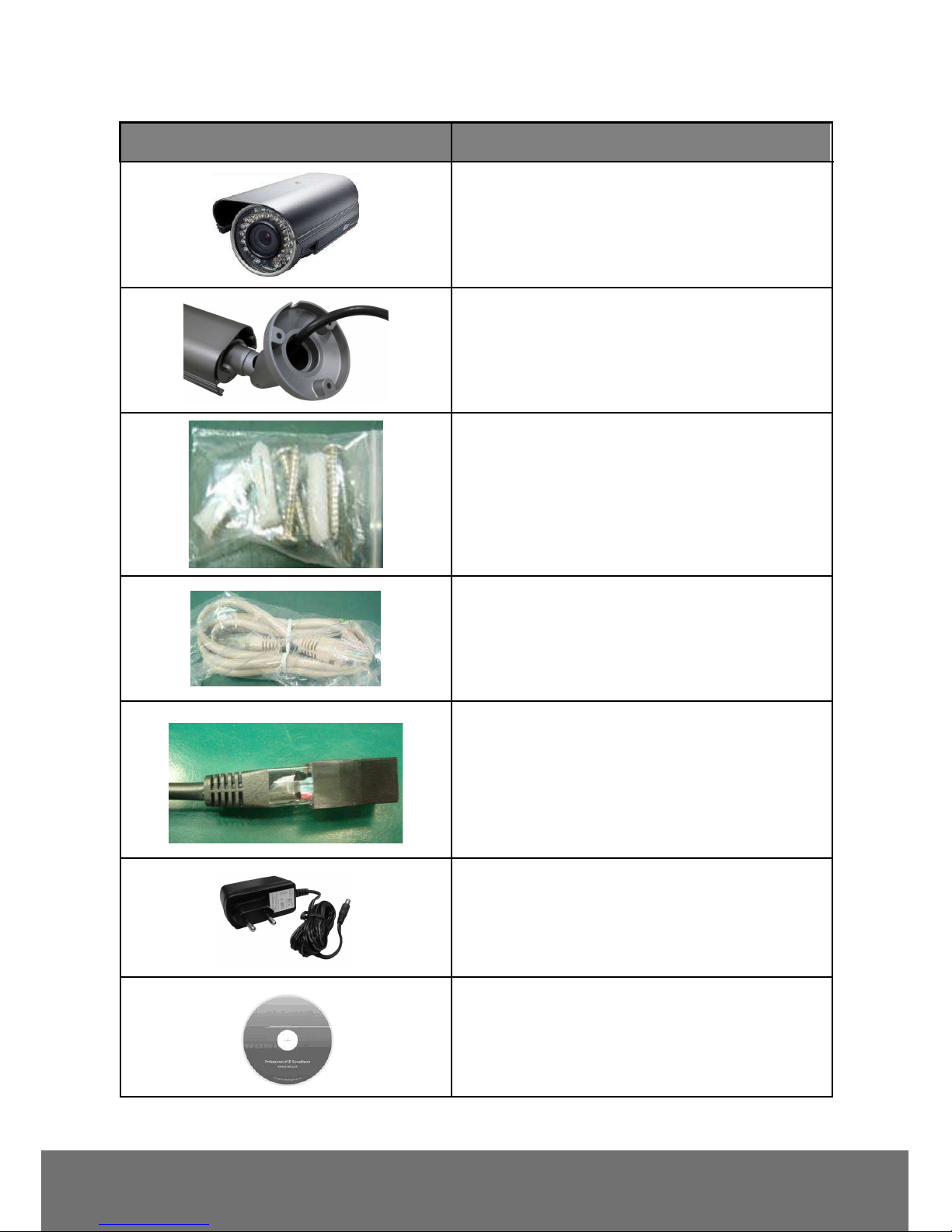

Item Descriptions
1. SF2111H-BR
2. Stand (The stand is well assembled while
shipped out)
3. Accessory pack
4. Ethernet cable
5. RJ45 socket
6. Power Adapter(DC 12V /1A)(Optional)
7. CD (User’s Manual and Quick Guide
included)

5
Product Installation
Monitor Setting
1. Right-click on the desktop. Select “ Properties”
2. Change “Color quality” to “Highest (32-bit)”.

6
Hardware Installation and I/O Pin Assignment
1. Connect a power adapter and IP camera to PC or local network.
2. The SF2111H-BR is equipped with an external vari-focal lens controller. Please adjust
“ZOOM”and “FOCUS”as following picture until the image gets clear.
