Ayrton domino WASH User manual

Digital Lighting
User Manual
DOMINO WASH:(EN - version NR)
www.ayrton.eu

CONTENTS
1. SAFETY INSTRUCTIONS 1
2. FEATURES 2
3. FIXTURE OVERVIEW 3
4. DRAWINGS 3
5. INSTALLATION INSTRUCTIONS 4
6. DMX-512 CONTROL CONNECTION 5
7. DMX-512 CONNECTION WITH DMX TERMINATOR 6
8. DEVICE DMX STARTADDRESS SELECTION 6
9. OPERTING INSTRUCTIONS OF THE INTERNAL DMX WIRELESS SYSTEM 6
10. DISPLAY 6
11. DMX PROTOCOL 7
12. ERROR MESSAGES 7
13. CLEANING AND MAINTENANCE 7
Keep This Manual For Future Needs

1
1. SAFETY INSTRUCTIONS
1.1. IMPORTANT SAFETY WARNINGS
This device has left the factory in perfect condition. In order to maintain this condition and to
ensure safe operation, it is absolutely necessary for the user to follow the safety instructions
and warning notes written in this user manual.
In order to install, operate and maintain the lighting fixture safely and correctly we suggest that
the installation and operation be carried out by qualified technicians and these instructions be
carefully followed.
CAUTION!
HIGH VOLTAGE. RISK OF SEVERE OR FATAL ELECTRIC SHOCK.
CAUTION!
ALWAYS DISCONNECT MAINS SUPPLY BEFORE REMOVING ANY FIXTURE
COVERS.
CAUTION!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE.
SENSITIVE PERSONS MAY SUFFERAN EPILEPTIC SHOCK.
CAUTION!
NEVER TOUCH THE DEVICE DURING OPERATION.
COVERS MAY BE HOT
CAUTION!
WARNING: CHANGES OR MODIFICATIONS TO THIS UNIT NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID
THE USER'SAUTHORITYTO OPERATE THE EQUIPMENT.
NOTE: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY
WITH THE LIMITS FOR A CLASS ADIGITAL DEVICE, PURSUANT TO PART 15
OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE
REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN
THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS
EQUIPMENT GENERATES, USES AND CAN RADIATE RADIO FREQUENCY
ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE
INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL
AREAIS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE
USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN
EXPENSE.
Important: Damage caused by the disregard of this user manual is not subject to warranty.
The dealer and manufacturer will not accept liability for any resulting defects or problems.
If the device has been exposed to temperature changes due to environmental conditions,
do not power on immediately. The resulting condensation could damage the device. Leave
the device powered off until it has reached room temperature.
Ensure the sealing rubber covers of power CON and XLR connectors are fitted properly
when the device is not in use，to avoid water ingress.
This device falls under protection-class I. Therefore, it is essential that the device be
earthed.
If either lenses or display are damaged (damage may include cracks or gashes in the
material) they must be replaced.
Electrical connections, such as replacing the power plug, must be performed by a qualified
person.
Make sure that the available voltage is not higher than that which is stated in this manual.

2
Make sure the power cord is never crushed or damaged by sharp edges. If this should be
the case, replacement of the cable must be done by an authorized dealer.
If the external flexible power cord of this device is damaged, it shall be exclusively replaced
by the manufacturer or their service agent or a similar qualified person in order to avoid
injury.
When the device is not in use or before performing maintenance, always disconnect the
device from the mains. Only handle the power cord from the plug. Never pull the plug out of
a socket by tugging the power cord.
When powered on for the first time, some smoke or smell may occur. This is caused by
coating on metal parts when heated and is normal. If you are concerned, please contact
your distributor.
Do not focus the beam onto flammable surfaces. The minimum distance between the
exiting lens of the device and the illuminated surface must be greater than 3 meter.
Important: Please be aware that damage caused by any modifications to the device are not
subject to warranty. Keep away from children and non-professionals.
1.2. GENERAL GUIDELINES
This device is a lighting effect for professional use on stages，in discotheques，theatres，
etc. the device was designed for indoor and outdoor use.
This fixture is only allowed to be operated within the maximum alternating current as stated
in the technical specifications in section 2 of this manual.
Handle the device with care, avoid shaking or using force when installing or maintaining the
device.
If you use the quick lock cam when rigging the device, make sure the quick lock fasteners
are located in the quick lock holes correctly and securely.
Operate the device only after having familiarized yourself with its functions.Do not permit
operation by persons not qualified for operating the device.Most damage isthe result of
unprofessional operation.
Please use the original packaging if the device is to be transported.
The applicable temperature for the device is between -20°C to 45°C.Do not use the device
outside of this temperature range.
The light source of this luminaire is not replaceable; when the light source reaches its end
of life the whole luminaire shall be replaced.
Important: For safety reasons, please be aware that all modifications to the device are
forbidden. If this device is operated in any way different to the ones described in this manual,
the product may suffer damage and the warranty becomes void. Furthermore, any other
operation may lead to short-circuits, burns, electric shocks etc.
2. FEATURES
POWER SUPPLY:
AC120-240V~, 50/60Hz
Power Consumption: 1500W
LIGHT SOURCE:
LED: White LED1050W，8000±400K Color Temperature @ S
White LED1050W，6800±400K Color Temperature @ TC
White LED1050W，6000±350K Color Temperature @ ST
Extremely long Life: >20,000H
MOVEMENT:
Pan movement: 540º/630ºOptional (16 bit)

3
Tilt movement: 270º(16 bit)
Advanced moving system: fast, stable and quite, auto X-Y repositioning
COLORS:
CMY+CTO+CTB+CTP color mixing, uniform, linear and speed can be adjustable
1 Color wheel: 6 dichroic filters + open, indexable
GOBOS:
1 Rotating gobo wheel: 7 interchangeable, rotating and indexable gobo + open
“Slot in & out”gobo wheel system
FEATURES:
3 Control channel modes: 39/37/61 channels
2 Operation modes: DMX-512, Master / Slave mode
Strobe effect with 1-25 flashes per second and pulse effect
1 Rotating Prisms: 4 Linear Prism
1 Animation effect: can make special dynamic effect
Blades system
Focus: Motorized focus
Frost: 0%~100% linear change frost
Iris: 5%~100% linear change iris，pulse iris effect
Dimmer: 0%~100% full range dimming
DISPLAY:
Advanced and convenient full-color LCD
Can be changed 180°reverse to fit for different installation position
SOFTWARE:
Upgrades: fast and convenient through DMX cable with DMX-512 controller
Reset DMX address, reset can all be done by the DMX controller
Running time of fixture on display for reference
OTHER SPEC:
Input signal isolation: guarantees stable signal transmission without interference
Advanced RDM function
WEIGHT
Net weight: 52 kg

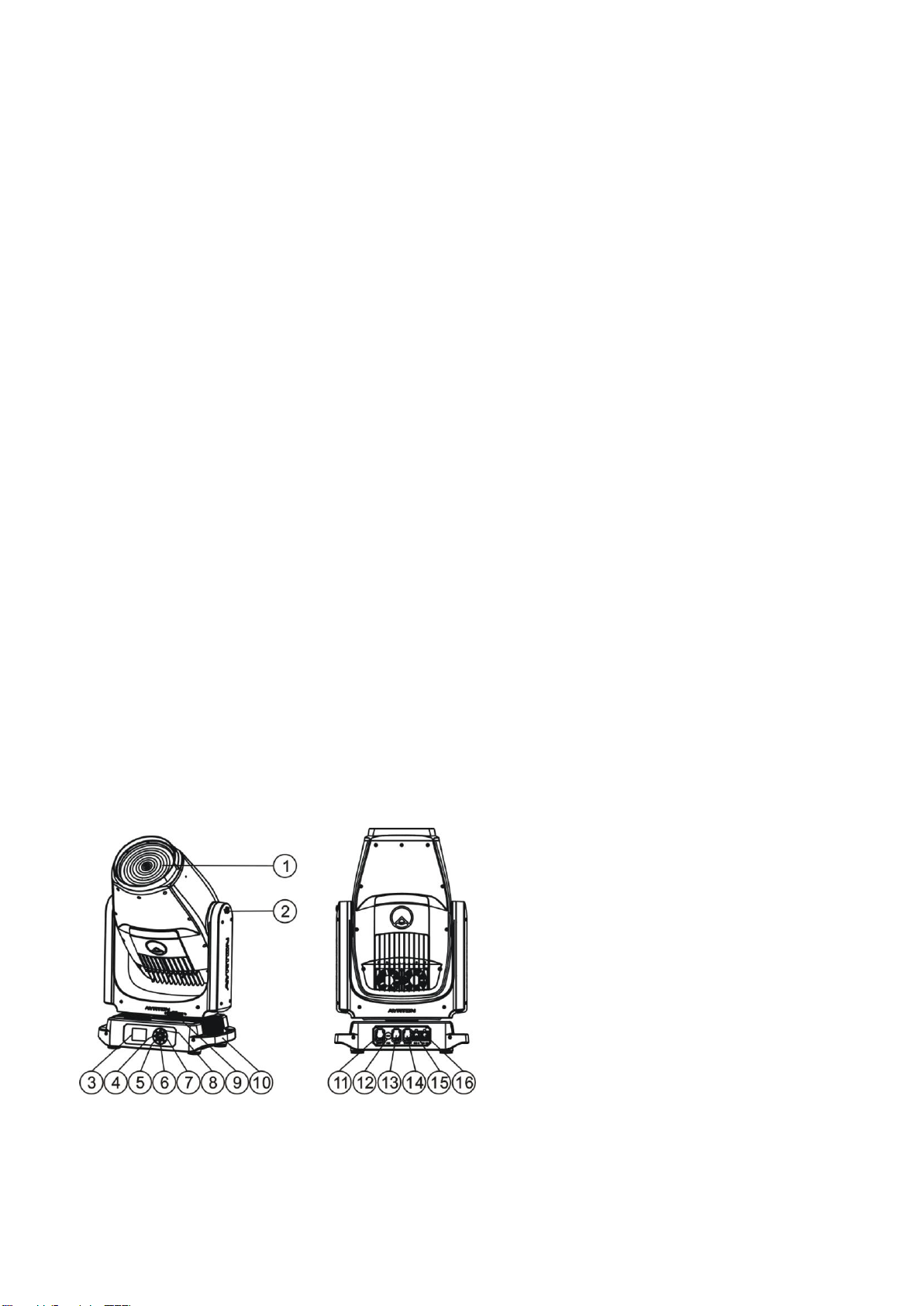

3. FIXTURE OVERVIEW
4. DRAWINGS
Scan the QR code on the cover page to download the related drawings:
4.1.Fixture Dimension
4.2.Color Wheel
4.3.Rotating Gobo Wheel
1) Lenses Assembly
2) Tilt Lock
3) Display
4) Left-button
5) Center-button
6) Down-button
7) Right-button
8) Up-button
9) Pan Lock
10) Handle
11) Power In
12) Fuse
13) RJ45 In
14) RJ45 Out
15) DMX In
16) DMX Out

4
4.4.Animation Dimension
5. INSTALLATION INSTRUCTIONS
5.1.Rigging the device

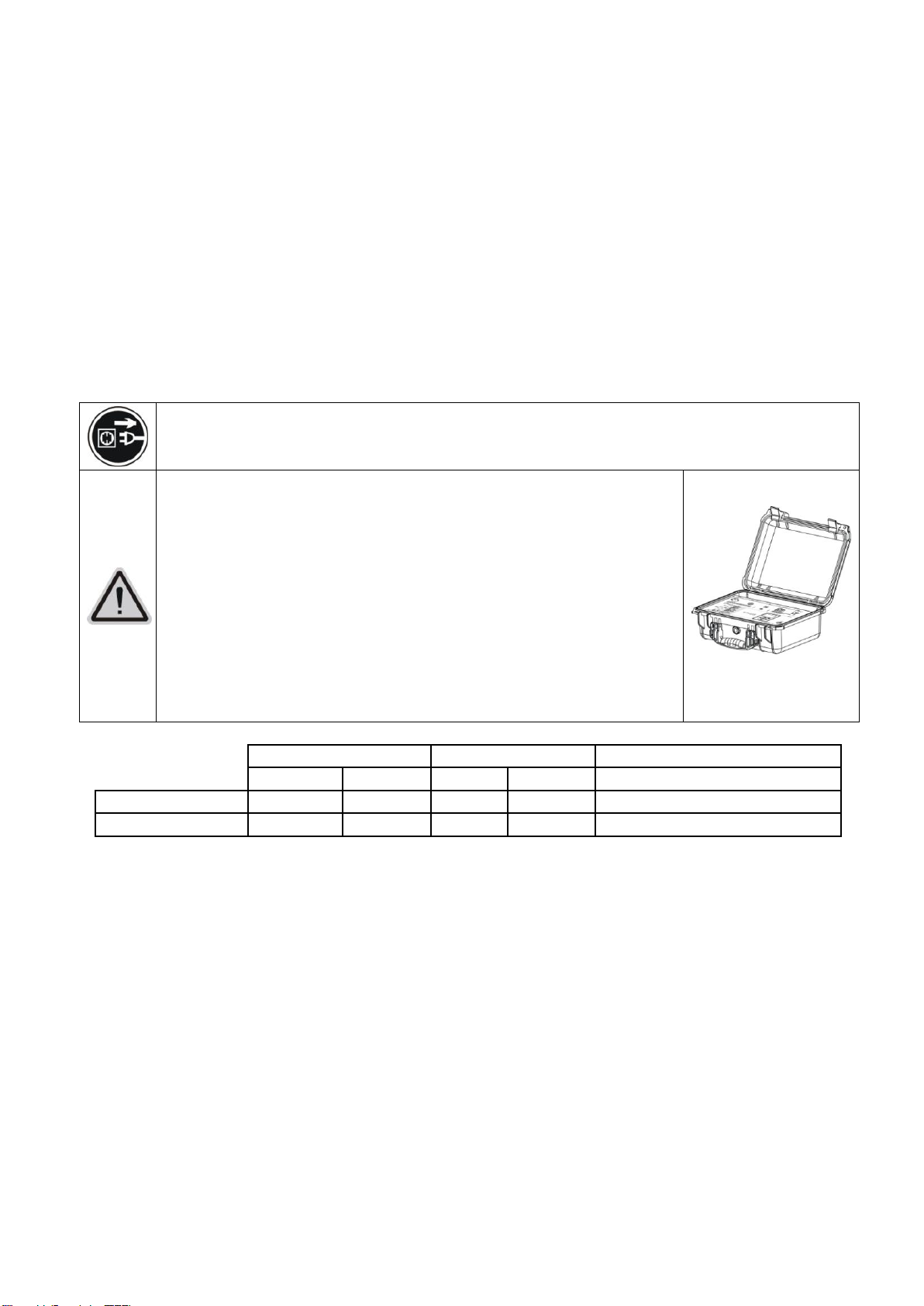

CAUTION!
PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURING THE
INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A
QUALIFIED PERSON.
The installation of the effect has to be built and constructed in a way that it can hold 10
times the weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an
appropriate safety rope.
Never stand directly below the device when mounting, removing or servicing the fixture.
The operator has to make sure the safety relating and machine technical installations are
approved by an expert before taking the device into operation for the first time.
These installations have to be approved by a skilled person once a year.
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the device. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
5.2 Rigging using the omega brackets
Important: This step is very important to ensure safe rigging of the fixture.
Fix the clamp to the bracket by tightening the M12 nut and bolt to the bracket through the
Ф13 hole in the middle of the bracket.
Insert the quick-lock fasteners of the first Omega holder into the respective holes on the
bottom of the device. Tighten the quick-lock fasteners fully clockwise.
Install the second Omega holder.
1) Omega bracket
2) Clamp
3) Safety rope
4) Quick-lock fastener

5
Pull the safety cable through the holes on the bottom of the base and over the trussing
system or another suitable rigging point. Insert the end into the carabiner and tighten the
safety screw.
5.3.RIGGING DRAWINGS
Important:
Overhead rigging requires extensive experience, including (but not limited to) calculating
working load limits, specifying installation/ rigging materials, and periodic safety inspection of
all installation material as well as the device. If you lack these qualifications, do not attempt the
rigging of this device yourself. Improper installation/ rigging can result in serious bodily injury.
Warnings! Please DO NOT let other external intense lights to shine through the fixture front
lens, it may cause significant internal damages！
When install fixture outdoor at day time (with power off), please make sure that the
fixture front lens is NOT facing the sun.
When use fixture outdoor at day time (with power on), please advoid fixture front lens
facing the sun.
When fixture is on standby outdoor at day time (with power on), please make sure the "sun
protection" mode is ON (default).
6. DMX-512 CONTROL CONNECTION
Connect the provided male side of the XLR cable to the female XLR output of your controller
and the female side of the XLR cable to the male XLR input of the device. You can connect
multiple devices together in a serial fashion. The cable needed should be two core, screened
cable with XLR input and output connectors. Please refer to the diagram below.
Address 1 Address 40 Address 79
Be sure this fixture is kept at
least 0.1m away from any
flammable materials (decoration
etc.).
Always use and install the
supplied safety cable as a safety
measure to prevent accidental
damage and/or injury in the
event the clamp fails.

6
7. DMX-512 CONNECTION WITH DMX TERMINATOR
8. DEVICE DMX START ADDRESS SELECTION
All fixtures should be given a DMX starting address when using a DMX signal, so that the
correct fixture responds to the correct control signals. This digital starting address is the
channel number from which the fixture starts to “listen” to the digital control information sent out
from the DMX controller. The allocation of this starting address is achieved by setting the
correct address number on the display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures, or set different
addresses for each fixture individually.
If you set the same address on all devices, all the devices will start to“listen”to the same control
signal from the same channel number. In other words, changing the settings of one channel will
affect all the fixtures simultaneously.
If you set a different address, each unit will start to“listen”to the channel number you have set,
based on the quantity of control channels of the unit. That means changing the settings of one
channel will affect only the selected device.
In the case of the LED moving head, in 39 channel mode, you should set the starting address
of the first unit to 1, the second unit to 40 (39 + 1), the third unit to 79 (39 + 40), and so on.
9. OPERTING INSTRUCTIONS OF THE INTERNAL DMX WIRELESS SYSTEM
Scan the QR code on the cover page to download the MANUAL to check.
10. DISPLAY
The Display offers several features：you can set the starting address，run the pre-programmed
program or reset the device.
The main menu is accessed by double clicking -button until the display starts
flashing.Browse through the menu by pressing the -button，-button，-button or
- button .
Press for 2 seconds in order to exit menu, double click for confirm.After accessing
the edit mode，the unit will automatically exit to the main menu after 15 seconds from the last
button press.
For installations where the DMX cable has to run over a long
distance or is in an electrically noisy environment, such as in a
discotheque, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital control signal
caused by electrical noise. The DMX terminator is an XLR plug
with a 120 Ω resistor connected between pins 2 and 3, which is
then plugged into the output (female) XLR socket of the last
fixture in the chain. Please see illustrations below.

7
When the unit is powered on，if no data signal is connected after 1 minute，then the display will
switch off automatically.
Scan the QR code on the cover page to download the MANUAL to check the DISPLAY MENU.
11. DMX PROTOCOL
Scan the QR code on the cover page to download the DMX CHART.
12. ERROR MESSAGES
Scan the QR code on the cover page to download the MANUAL to check.
13. CLEANING AND MAINTENANCE
.
CAUTION!
DISCONNECT FROM MAINS BEFORE STARTING MAINTENANCE OPERATION.
CAUTION!
ALWAYS RUN AN IP TEST USING THE AYRTON IP TEST
KIT FOLLOWING ANY MAINTENANCE OPERATION!
FAILURE TO COMPLY WITH THIS CLAUSE WILL VOID THE
WARRANTY!
THE OPERATOR MUST FOLLOW STRICTLY THE VACUUM
AND PRESSURE SETTING VALUES AS BELOW, OR USE
THE CORRESPONDING PRESET FIXTURE MENU TO RUN
THE IP TEST.ANY OVERPRESSURE OPERATION MAY
CAUSE ACCIDENTAL DAMAGE OR INJURY.
AYRTON IP TEST KIT
Minimum value
Maximum value
Steady time (Hold time)
Kpa
Psi
Kpa
Psi
S
Vacuum
-35
-5.08
-40
5.80
10
Pressure
25
3.63
30
4.35
10
Once the covers removed and before set them back, check the cover gasket to avoid any leak
due to gasket damage.
Cross tightening the die-casting covers HEX screws at the right torque value.
Use a Torque Screwdriver set at 1,4Nm (12,4in/lbf) to fasten correctly the (10) HEX head
screws for each cover.
The following points have to be considered during inspection:
1) All screws for installing the devices or parts of the device have to be tightly connected and
must not be corroded.
2) There must not be any deformations to the housing, lenses, rigging and installation points
(ceiling, suspension, trussing).
3) Motorized parts must not show any signs of wear and must move smoothly without issue.
4) The power supply cables must not show any damage, material fatigue or sediment.
Further instructions depending on the installation location and usage have to be adhered to by
a qualified installer and any safety concerns have to be removed.
In order to ensure the device remains in good condition and does not fail prematurely, we
suggest regular maintenance.

8
1) Clean the outside lens each week to avoid loss of output due to accumulation of dust/ dirt on
the lens.
2) Clean the fans each week to ensure maximum airflow and efficient thermal cooling. This will
ensure the light source is operated in the best possible condition.
3) A detailed electrical check by an approved electrician every quarter to make sure that the
circuit contacts are in good condition. This will prevent poor circuit contacts and the
resultant overheating.
We recommend frequent cleaning of the device. Please use a moist, lint- free cloth. Never use
alcohol or solvents.
Please refer to the instructions under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
Errors and omissions for all information given in this user manual are expected.
All information is subject to change without prior notice.

scan for more on
www.ayrton.eu
Digital Lighting
2 Rue de Vitruve - 91140 - Villebon-sur-Yvette - France
