Ayrton ZONDA 9 WASH User manual

User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS

1
CONTENTS
1. SAFETY INSTRUCTIONS 2
2. FEATURES 4
3. FIXTURE OVERVIEW 6
4. DIMENSIONAL DRAWINGS 7
5. INSTALLATION INSTRUCTIONS 8
6. DMX-512 CONTROL CONNECTION 11
7. DMX-512 CONNECTION WITH DMX TERMINATOR 11
8. DEVICE DMX START ADDRESS SELECTION 12
9. DISPLAY 12
10. DMX PROTOCOL 31
11. ERROR MESSAGES 37
12. CLEANING AND MAINTENANCE 38
!
!
!
!
!
!
!
!
!
!
!

2
1. SAFETY INSTRUCTIONS
1.1 IMPORTANT SAFETY WARNING
This device has left the factory in perfect condition.In order to maintain this condition and to
ensure safe operation，it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.
In order to install，operate，and maintain the lighting fixture safely and correctly we suggest that
the installation and operation be carried out by qualified technicians and these instructions be
carefully followed.
CAUTION!
HIGH VOLTAGE. RISK OF SEVERE OR FATAL ELECTRIC SHOCK
CAUTION!
ALWAYS DISCONNECT MAINS SUPPLY BEFORE REMOVING ANY FIXTURE
COVERS
CAUTION!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE. SENSITIVE PERSONS
MAY SUFFER AN EPILEPTIC SHOCK
CAUTION!
NEVER TOUCH THE DEVICE DURING OPERATION! COVERS MAY BE HOT
CAUTION!
Warning：Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE：This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Important:
Damage caused by the disregard of this user manual is not subject to warranty.The
dealer and manufacturer will not accept liability for any resulting defects or problems.
•If the device has been exposed to temperature changes due to environmental conditions，
do not power on immediately.The resulting condensation could damage the device.Leave
the device powered off until it has reached room temperature.
•This device falls under protection-class I.Therefore，it is essential that the device be
earthed.
•If either lenses or display are damaged (damage may include cracks or gashes in the

3
material) they must be replaced.
•Electrical connections，such as replacing the power plug，must be performed by a
qualified person.
•Make sure that the available voltage is not higher than that which is stated in this manual.
•Make sure the power cord is never crushed or damaged by sharp edges.If this should be
the case，replacement of the cable must be done by an authorized dealer.
•If the external flexible power cord of this device is damaged，it shall be exclusively
replaced by the manufacturer or their service agent or a similar qualified person in order
to avoid injury.
•When the device is not in use or before performing maintenance，always disconnect the
device from the mains.Only handle the power cord from the plug.Never pull the plug out
of a socket by tugging the power cord.
•When powered on for the first time，some smoke or smell may occur.This is caused by
coating on metal parts when heated and is normal.If you are concerned，please contact
your distributor.
•Do not focus the beam onto flammable surfaces.The minimum distance between the
exiting lens of the device and the illuminated surface must be greater than 1 meter.
Please be aware that damage caused by any modifications to the device are not subject to
warranty.Keep away from children and non-professionals.
1.2 GENERAL GUIDELINES
•This device is a lighting effect for professional use on stages，in discotheques，theatres，
etc.the device was designed for indoor use only.
•This fixture is only allowed to be operated within the maximum alternating current as
stated in the technical specifications in section 2 of this manual.
•Handle the device with care，avoid shaking or using force when installing or maintaining
the device.
•If you use the quick lock cam when rigging the device，make sure the quick lock fasteners
are located in the quick lock holes correctly and securely.
•Operate the device only after having familiarized yourself with its functions.Do not
permit operation by persons not qualified for operating the device.Most damage is the
result of unprofessional operation.
•Please use the original packaging if the device is to be transported.
•The applicable temperature for the device is between -10°C to 45°C.Do not use the device
outside of this temperature range.
•The light source of this luminaire is not replaceable; when the light source reaches its end
of life the whole luminaire shall be replaced.
For safety reasons，please be aware that all modifications to the device are forbidden.
If this device is operated in any way different to the ones described in this manual，the
product may suffer damage and the warranty becomes void.Furthermore，any other
operation may lead to short-circuits，burns，electric shocks etc.
1.3 NOTE
•Before packing and transportation, please make sure the 2 zoom locks are enaged as
shown below：

4
•Please unlock all the above mentioned locks before powering on the fixture.
2. FEATURES
POWER SUPPLY
•AC120-240V~，50/60Hz
•Power Consumption：1400W
LIGHT SOURCE
•LED：37 pcs 4 in 1 RGBW LEDs
•Extremely long Life：>20,000H
MOVEMENT
•Pan movement：540º/630ºOptional (16 bit)
•Tilt movement：270º(16 bit)
•Advanced moving system：fast，stable and quite，auto x-y repositioning
COLORS
•Excellent color mixing and rainbow effect
FEATURES
•3 Control channel modes：26/26/63 channels
•2 Operation modes：DMX-512，Master / Slave mode
•Strobe effect with 1-25 flashes per second and pulse effect
•Dimmer：0%~100% full range dimming
DISPLAY

5
•Advanced and convenient full –color LCD
•Can be changed 180° reverse to fit for different installation position
SOFTWARE
Upgrades：fast and convenient through DMX cable with DMX-512 controller
Reset DMX address，remote lamp control，reset can all be done by the DMX controller
Running time of fixture on display for reference
OTHER SPEC
Input signal isolation：guarantees stable signal transmission without interference
Advanced RDM function
WEIGHT
Net weight：29 kg
DMX CHANNEL CHART

6

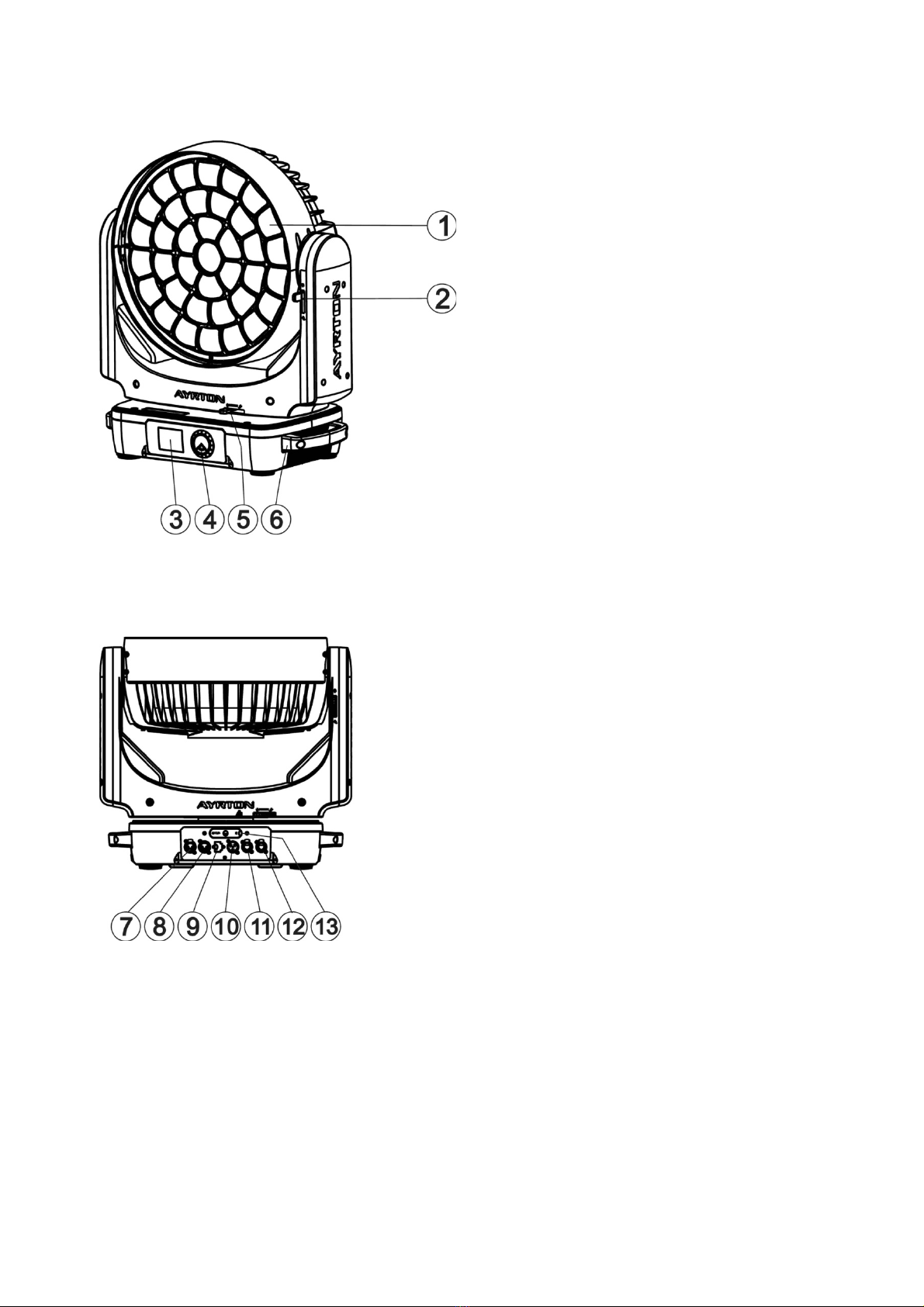

3. FIXTURE OVERVIEW
1) Lenses Assembly
2) Tilt Lock
3) Display
4) Clicking Jog Wheel
5) Pan Lock
6) Handle
7) DMX Out
8) DMX In
9) USB
10) Power In
11) RJ45 Out
12) RJ45 In
13) Battery

7

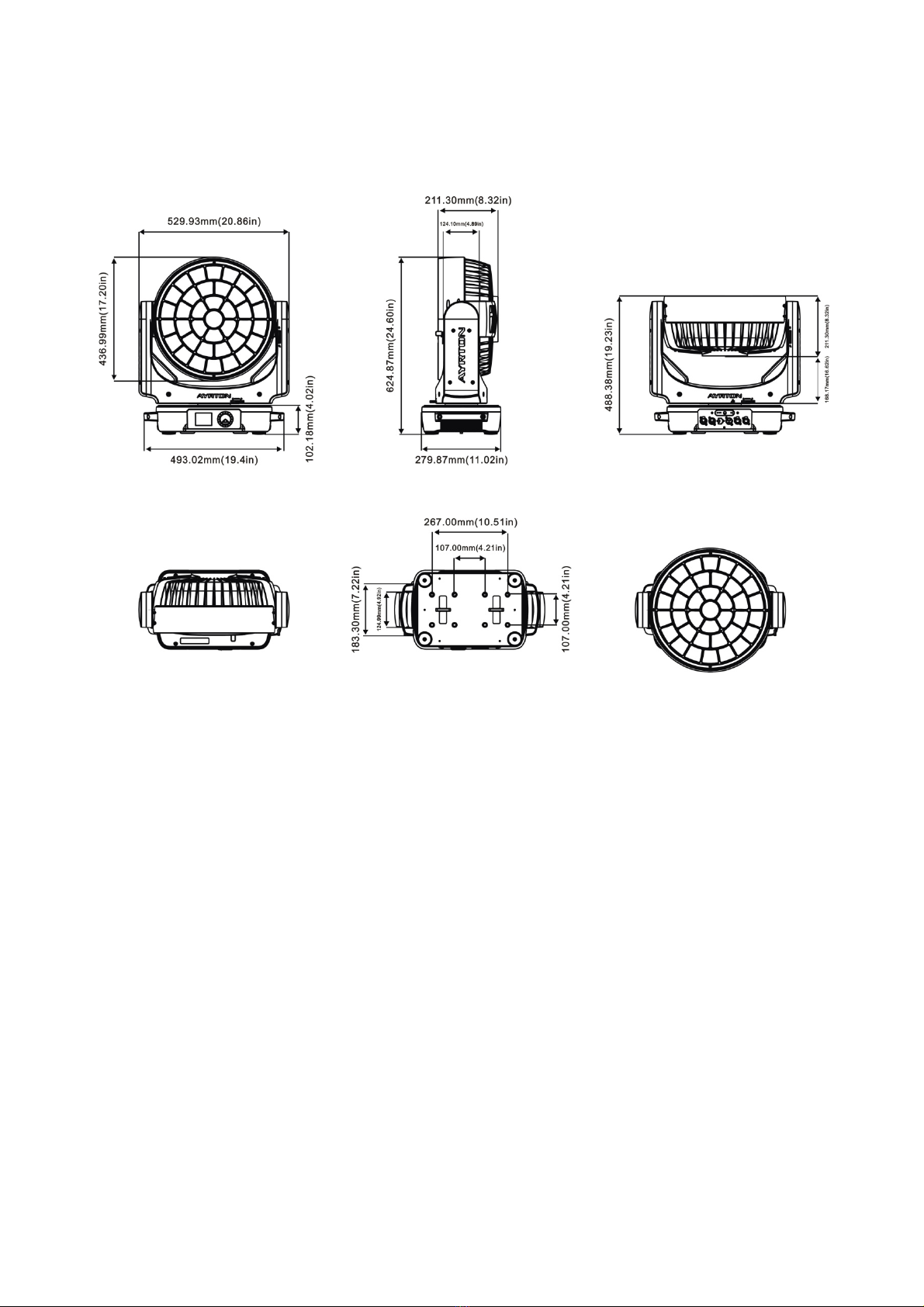

4. DIMENSIONAL DRAWINGS
4.1. Fixture Dimension

8
5. INSTALLATION INSTRUCTIONS
5.1. Rigging the device
CAUTION!
PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURING
INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A
QUALIFIED PERSON.
•The applicable temperature for the lighting is between -10°C to 45°C. Do not use the
lighting under or above the temperature.
•The installation of the effect has to be built and constructed in a way that it can hold 10
times the weight for 1 hour without any harming deformation.
•The installation must always be secured with a secondary safety attachment，e.g.an
appropriate safety rope.
•Never stand directly below the device when mounting，removing or servicing the fixture.
•The operator has to make sure the safety relating and machine technical installations are
approved by an expert before taking the device into operation for the first time.
•These installations have to be approved by a skilled person once a year.
•Overhead mounting requires extensive experience，including amongst others calculating
working load limits，installation material being used，and periodic safety inspection of all
installation material and the device.If you lack these qualifications，do not attempt the
installation yourself.Improper installation can result in bodily injury.

9

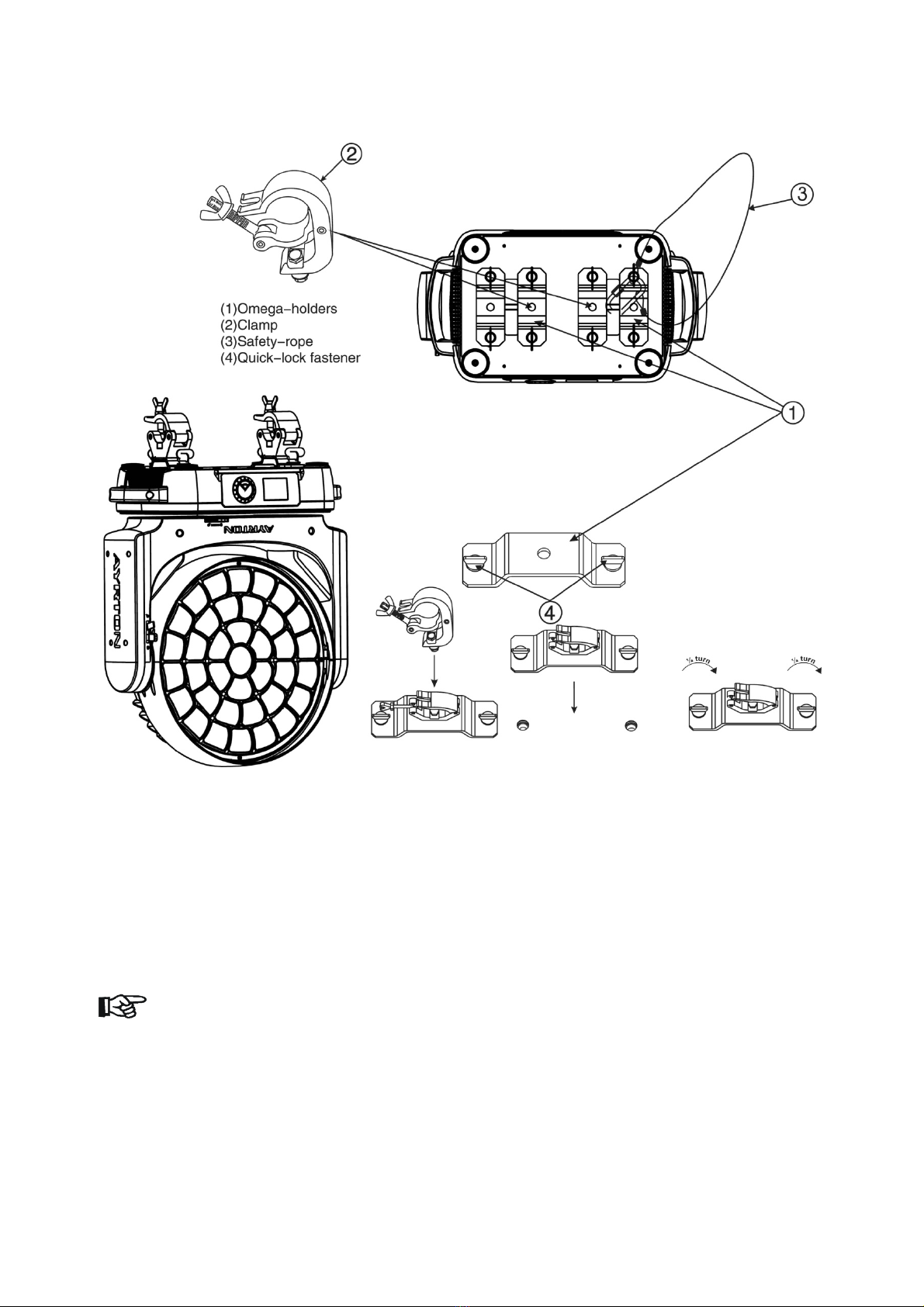

5.2. Rigging using the omega brackets
•Fix the clamp to the bracket by tightening the M12 nut and bolt to the bracket through the
Ф13 hole in the middle of the bracket.
•Insert the quick-lock fasteners of the first Omega holder into the respective holes on the
bottom of the device.Tighten the quick-lock fasteners fully clockwise.
•Install the second Omega holder.
•Pull the safety cable through the holes on the bottom of the base and over the trussing
system or another suitable rigging point. Insert the end into the carabiner and tighten the
safety screw.
Important：
This step is very important to ensure safe rigging of the fixture.

10

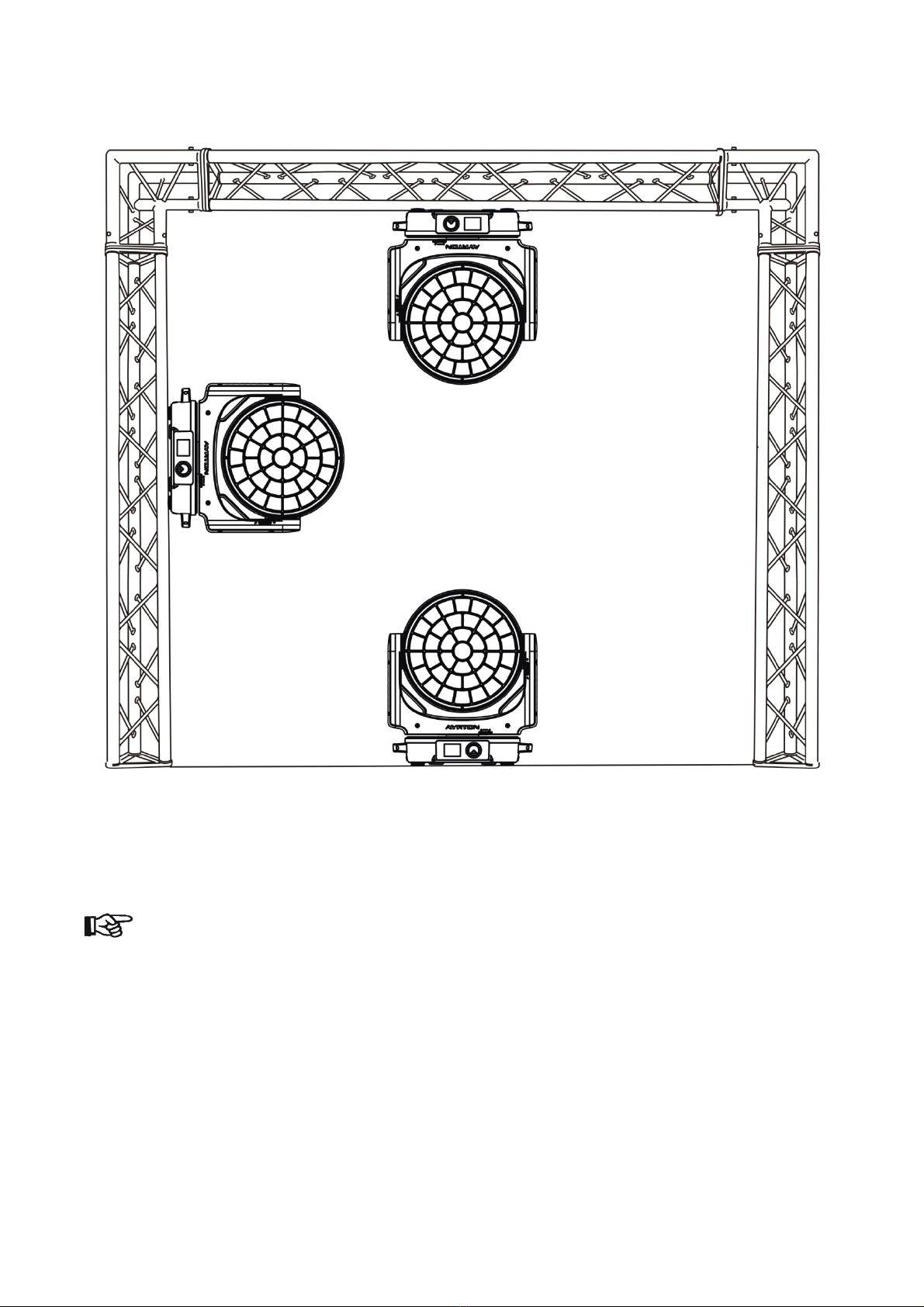

5.3. RIGGING DRAWINGS
•Be sure this fixture is kept at least 0.1 m away from any flammable materials (decoration
etc.).
•Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Important：
Overhead rigging requires extensive experience，including (but not limited to)
calculating working load limits，specifying installation/ rigging materials，and periodic
safety inspection of all installation material as well as the device.If you lack these
qualifications，do not attempt the rigging of this device yourself.Improper installation/
rigging can result in serious bodily injury.

11
6. DMX-512 CONTROL CONNECTION
Connect the provided male side of the XLR cable to the female XLR output of your controller
and the female side of the XLR cable to the male XLR input of the device.You can connect
multiple devices together in a serial fashion.The cable needed should be two core，screened cable
with XLR input and output connectors.Please refer to the diagram below.
Address 53 Address 27 Address 1
7. DMX-512 CONNECTION WITH DMX TERMINATOR
For installations where the DMX cable has to run over a long distance or is in an electrically
noisy environment，such as in a discotheque，it is recommended to use a DMX terminator.This
helps in preventing corruption of the digital control signal caused by electrical noise.The DMX
terminator is an XLR plug with a 120 Ωresistor connected between pins 2 and 3，which is then
plugged into the output (female) XLR socket of the last fixture in the chain.Please see
illustrations below.

12
8. DEVICE DMX START ADDRESS SELECTION
All fixtures should be given a DMX starting address when using a DMX signal，so that the
correct fixture responds to the correct control signals.This digital starting address is the channel
number from which the fixture starts to“listen”to the digital control information sent out from the
DMX controller.The allocation of this starting address is achieved by setting the correct address
number on the display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures，or set different
addresses for each fixture individually.
If you set the same address on all devices，all the devices will start to“listen”to the same control
signal from the same channel number.In other words，changing the settings of one channel will
affect all the fixtures simultaneously.
If you set a different address，each unit will start to“listen”to the channel number you have set，
based on the quantity of control channels of the unit.That means changing the settings of one
channel will affect only the selected device.
In the case of the LED moving head，in 26 channel mode，you should set the starting address of
the first unit to 1，the second unit to 27 (26 + 1)，the third unit to 53 (26+ 27)，and so on.
9. DISPLAY
The Display offers Jog Wheel features：you can set the starting address，run the pre-programmed
program or reset the device.
The main menu is accessed by double clicking the Jog Wheel of Jog Wheel until the display
starts flashing.Browse through the menu by turning Jog Wheel clockwise or counterclockwise.
Press the Jog Wheel for 2 seconds in order to select the desired menu or exit menu, double click
the Jog Wheel for confirm.After accessing the edit mode，the unit will automatically exit to the
main menu after 15 seconds from the last button press.Clockwise is positive direction while
counterclockwise is opposite direction.
When the unit is powered on，if no data signal is connected after 1 minute，then the display will
switch off automatically.The Display does not need external power to operate in case there is
battery，hold down the Jog Wheel for 6 seconds and the Display will turn on by using the unit’s
battery.
PS：No response when quick press the Jog Wheel.
CAUTION!
THE BATTERY MUST BE A LI-ION RECHARGEABLE BATTERY,
THE SPECIFICATION IS AS FOLLOWING:

13
To install the battery for the first time，please make sure the unit is not connected to AC power.
Install the battery in the battery holder，then remove the battery and install it back .
This procedure must be done only for the first battery installation .
Default settings shaded
Address
Address
DMX Address：xxx
Decimal Universe：xxxxx
Net：xx
Sub-Net：x
Universe：x
DMX Address
Decimal Universe
Net
Sub-Net
Universe
Mode
User Mode
Stand Mode
Basic Mode
Extend Mode
User Mode A
User Mode B
User Mode C
User’s mode to change
channel numbers
Edit User ModeA/B/C
Max channel
PAN
:
Preset User modes A,B,C
:
Options
Status
No DMX Mode
Pan Reverse
Tilt Reverse
Pan Degree
Feedback
Init PAN
Init TILT
Pan/Tilt Spd
Hibernation
DMX Output
Close/Hold/Auto
ON/OFF
ON/OFF
630/540
ON/OFF
ON/OFF
ON/OFF
Medium/Fast/Slow
OFF , 01M~99M
ON/OFF
Auto run if no DMX
Pan Reverse movement
Tilt Reverse movement
Pan Degree Select
Movement Feedback
Init PAN
Init TILT
Movement Speed
Stand by Mode
DMX Output
Service PIN
Service PIN
RDM UID
Set Ip
Set Mask
DHCP
Cross Load SW
USB Update
Clr LED Timer
Clr Error Info
Password=XXX
Xxxxxx
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
Service Password”=050”
RDM UID
Set Ip
Set Mask
DHCP
Cross Load SW
USB Update
Clr LED Timer
Clr Error Info
Fans Control
Fans Speed
Auto
Stage
Silence
Fans Speed select

14
Super Silence
Constant Fans
ON/OFF
Constant Fans
Disp.Setting
Shutoff Time
Flip Display
Key Lock
DispFlash
02~60m 05m
ON/OFF
ON/OFF
ON/OFF
Display shutoff time
Reverse 180 degree
Key Lock
DispFlash
Signal Select
DMX
WDMX
Art - Net
sACN
DMX
WDMX
Art-Net
sACN
Temp. C/F
Celsius
Fahrenheit
Temperature switch
between /
Initial Pos.
PAN =XXX
Initial effect position
Wireless DMX
Activate WDMX
Rest WDMX
Activate WDMX
Rest WDMX
Refresh Select
1.2K
2.4K
16K
25K
Refresh Select
Trigger
DMX Value Disp.
Set to Slave
Auto Program
PAN……
Slave1,Slave2,Slave3
Master / Alone
DMX Value Disp.
Set to Slave
Auto Program
ResetDefault
ON/OFF
Restore factory set.
Reset User
Address
DMX
address:001-XXX
:
DMX address setting
Mode
Stand Mode
Basic Mode
Extend Mode
User Mode A
User Mode B
User Mode C
User’s mode to change
channel numbers
Fans Speed
Auto
Stage
Silence
Super Silence
Fans Speed select
Constant Fans
ON/OFF
Constant Fans
Info
Time Info.
Current Time
Ttl Life Hrs
Last Run Hrs
LED Hours
Timer PIN
Clr Last Run
XXXX(Hours)
XXXX(Hours)
XXXX(Hours)
XXXX(Hours)
Password=XXX
ON/OFF

15
Temp. Info
XXX/
Temp. Info
Fan Info.
xxxx RPM
Fan information
Software Ver
V1.0……
Software version
Network
IP,Mask,Mac
Network
Error Info.
Error Record 1
:
Error Info.
Test
Home
All
Pan&Tiltr
ZOOM
Reset All
Reset Pan&Tilt
ZOOM
Test Channel
PAN ……
Test function
Manual Ctrl.
PAN =XXX
:
Fine adjustment of the
lamp
Calibration
-Password-
PAN
:
Password “050”
Calbrate and adjust the
effects to standard/right
position
Preset
Select Prog.
Prog. Part 1 = Program 1 ~ 10 Program 1
Prog. Part 2 = Program 1 ~ 10 Program 2
Prog. Part 3 = Program 1 ~ 10 Program 3
Select programs to be run
Edit Prog.
Program 1
:
Program 10
Program Test
Step 01=SCxxx
Step 64=SCxxx
Testing program
Program in loop
Save and exit
Edit Scenes
Edit Scene 001
~ Edit Scene 250
Pan,Tilt,……
--Fade Time--
--Secne Time--
Input By Outside
Save and automatically
return manual scenes edit
Scenes Input
XX~XX
Scenes Input
9.1 Address
9.1.1. Set DMX Address
With this function，you can adjust the desired DMX-address via the Display.
1. Double click the Jog Wheel to access main menu.
2. The display will show“ADDRESS”.
3. Double click the Jog Wheel then display“Set DMX Address”.
4. Turn the Jog Wheel clockwise then display“DMX Address：xxx”、“ Decimal Universe
“xxxxx”、“ Net：xx”、“ Sub-Net：x”、“ Universe：x”.
5. Long press 2 seconds the Jog Wheel to back to last menu – “Set DMX Address”， then
back to main menu by long press again.

16
9.2 Mode
9.2.1. User Mode
With this function，you can create user defined channel orders.
1．Double click the Jog Wheel to access main menu，turn the Jog Wheel clockwise to
display“USERS MODE”.
2．Double click the Jog Wheel to edit.
3．Turn the Jog Wheel clockwise to display“User mode”， Double click the Jog Wheel to
edit.
4．When in“Extend Mode”， turn the Jog Wheel to select“Basic mode”，“ Stand Mode”，
“User Mode A”，“ User Mode B”and“User Mode C”.
5．Long press 2 seconds the Jog Wheel to back to last menu –“User Mode”， then back to
main menu by long press again.
9.2.2. Edit User Mode
With this function，you can adjust the rest user defined channel order.
1．Double click the Jog Wheel to access“USERS MODE”menu，turn the Jog Wheel until
display“Edit User”.
2．Double click the Jog Wheel to access“Edit User”menu.
3．Set up“Max Channel=xxx”and select channel value.
4．Set up“Mode B”and“Mode C”by the same way.
5．Long press 2 seconds the Jog Wheel to back to last menu – “Edit User”， then back to
main menu by long press again.
9.3 Options
9.3.1. Status
No DMX Status
With this function，when the drive is not DMX signal，it runs automatism，close，hold and
music，the default is hold.
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show“No DMX
Status”.
5. Double click the Jog Wheel to access“No DMX Status”， The display will show
“Hold”， Turn the Jog Wheel to select“Close”，“ Auto”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.
Pan Reverse
With this function you can reverse the Pan-movement.
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show“Pan
Reverse”.
5. Double click the Jog Wheel to access“Pan Reverse”， The display will show“OFF”，
Turn the Jog Wheel to select“NO”.

17
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.
Tilt Reverse
With this function you can reverse the Tilt-movement.
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show“Tilt
Reverse”.
5. Double click the Jog Wheel to access“Tilt Reverse”， The display will show“OFF”，
Turn the Jog Wheel to select“NO”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.
Pan Degree
With this function，you can select pan degree for 630 or 540.
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show“Pan
Degree”.
5. Double click the Jog Wheel to access“Pan Degree”， The display will show “540”，
Turn the Jog Wheel to select“630”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.
Feedback
With this function，you can feedback switch of pan movement or tilt movement.
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show“Feedback”.
5. Double click the Jog Wheel to access“Feedback”， The display will show “ON”， Turn
the Jog Wheel to select“OFF”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.
Init PAN
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show“Init PAN”.
5. Double click the Jog Wheel to access“Init PAN”， The display will show “ON”， Turn
the Jog Wheel to select“OFF”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.

18
Init TILT
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show“Init TILT”.
5. Double click the Jog Wheel to access“Init TILT”， The display will show “ON”， Turn
the Jog Wheel to select“OFF”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.
Pan/Tilt Spd
With this function，you can select scan mode from 1 to 4.
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show“Pan/Tilt
Spd”.
5. Double click the Jog Wheel to access“Pan/Tilt Spd”，The display will show“Medium”，
Turn the Jog Wheel to select“Medium”，“ Fast”，“ Slow”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.
Hibernation：Standby mode
The device and step motors will be power off if the fixture stay without DMX signal for 15
mins (Factory default).And the fixture will be reset before working once it receive DMX
signal again.
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show
“Hibernation”.
5. Double click the Jog Wheel to access“Hibernation”， The display will show “OFF”，
Turn the Jog Wheel to select“01M”，“02M”. . . “99M”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.
DMX Output
With this function，you can select DMX Output.
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select“Status”.
4. Double click the Jog Wheel to access“Status”menu，The display will show“DMX
Output”.
5. Double click the Jog Wheel to access“DMX Output”， The display will show“OFF”，
Turn the Jog Wheel to select“ON”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Status”， then back to main
menu by long press again.

19
9.3.2. Service PIN
Password
The Password for this function is“050”.
RDM UID
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select “Service
PIN”.
4. Double click the Jog Wheel to access“Service PIN”menu，The display will show“RDM
UID”.
5. Double click the Jog Wheel to access“RDM UID”， The display will show “Xxxxxx”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Service PIN”， then back to
main menu by long press again.
Set IP
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select “Service
PIN”.
4. Double click the Jog Wheel to access“Service PIN”menu，The display will show“Set
IP”.
5. Double click the Jog Wheel to access “Set IP ”， The display will show
“XXX.XXX.XXX.XXX”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Service PIN”， then back to
main menu by long press again.
Set Mask
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select “Service
PIN”.
4. Double click the Jog Wheel to access“Service PIN”menu，The display will show“Set
Mask”.
5. Double click the Jog Wheel to access “Set Mask ”， The display will show
“XXX.XXX.XXX.XXX”.
6. Long press 2 seconds the Jog Wheel to back to last menu –“Service PIN”， then back to
main menu by long press again.
DHCP
1. Double click the Jog Wheel to access main menu.
2. Turn the Jog Wheel clockwise then display“Options”.
3. Double click the Jog Wheel to access“Options”， turn the Jog Wheel to select “Service
PIN”.
4. Double click the Jog Wheel to access“Service PIN”menu，The display will show
“DHCP”.
5. Double click the Jog Wheel to access“DHCP”， The display will show “ON”， Turn
the Jog Wheel to select“OFF”.
