Ayrton magicpanelR User manual

USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS
AYRTON – Le Parc de l’Evénement – 1, Allée d’Effiat – 91160 LONGJUMEAU – France
www.ayrton.eu

1
Contents
1. Features ............................................................................................................................................................. 2
2. Fixture Overview.............................................................................................................................................. 3
3. SAFETY INSTRUCTIONS............................................................................................................................. 3
3.1) Important safety warns ........................................................................................................................ 3
3.2) GENERAL GUIDELINES................................................................................................................... 4
4. INSTALLATION INSTRUCTIONS.............................................................................................................. 5
4.1) Mounting the device.............................................................................................................................. 5
5. DMX-512 control connection .......................................................................................................................... 8
6. DMX-512 connection with DMX terminator................................................................................................. 9
7. Projector DMX start address selection .......................................................................................................... 9
8. Operting instructions of the internal DMX wireless system ...................................................................... 10
9. Control Board ................................................................................................................................................. 11
9.1 Address................................................................................................................................................... 13
9.1.1 Set DMX Addr ........................................................................................................................... 13
9.2 Users mode............................................................................................................................................. 13
9.2.1 User mode................................................................................................................................... 13
9.2.2 Edit User..................................................................................................................................... 13
9.3 Options ................................................................................................................................................... 13
9.3.1 Status .......................................................................................................................................... 13
9.3.2 Service PIN................................................................................................................................. 15
9.3.3 Fans Control .............................................................................................................................. 16
9.3.4 Disp.Setting ................................................................................................................................ 16
9.3.5 Signal Select ............................................................................................................................... 17
9.3.6 LED Control .............................................................................................................................. 17
9.3.7 Set Universe ............................................................................................................................... 17
9.3.8 Temp. C/F .................................................................................................................................. 17
9.3.9 Initial Pos. .................................................................................................................................. 18
9.3.10 Wireless DMX.......................................................................................................................... 18
9.3.11 Trigger...................................................................................................................................... 18
9.3.12 ResetDefault............................................................................................................................. 19
9.4 Info......................................................................................................................................................... 19
9.4.1 Time info. ................................................................................................................................... 19
9.4.2 Temp. Info.................................................................................................................................. 20
9.4.3 Software ver ............................................................................................................................... 20
9.4.4 Network ...................................................................................................................................... 20
9.5 Test ......................................................................................................................................................... 20
9.5.1 Home........................................................................................................................................... 20
9.5.2 Test Channel .............................................................................................................................. 21
9.5.3 Manual Ctrl. .............................................................................................................................. 21
9.5.4 Calibration ................................................................................................................................. 21
9.6 Preset...................................................................................................................................................... 21
9.6.1 Select Prog.................................................................................................................................. 21
9.6.2 Edit Prog. ................................................................................................................................... 21
9.6.3 Edit Scenes ................................................................................................................................. 21
9.6.4 Scenes Input ............................................................................................................................... 21
10. INSTRUCTIONS ON USE: ........................................................................................................................ 23
11. ERROR MESSAGE ..................................................................................................................................... 29
12. CLEANING AND MAINTENANCE ......................................................................................................... 30
13. TECHNICAL SPECIFICATIONS............................................................................................................. 30

2
Thank you for your patronage. We are confident that our excellent products and service can
satisfy you. For your own safety, please read this user manual carefully before installing the
device.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that the
installation and operation should be done by the verified technician and follow the instruction
strictly.
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the box you should find:
1. One safety rope
2. Manual
Please check carefully that there is no damage caused by transportation. Should there be any,
consult your dealer and don’t install this device.
1. Features
·25 x 10W high power LEDs
·Extremely Long Life:100,000 Hr and low power consumption
·3 DMX channel mode: 20/18/116 channels
·Pan/tilt movement: 8 bit and 16 bit resolution
For smooth and precise resolution
Pan: 540°/630° optional, Tilt: 265°movement
High speed of pan/tilt movement, speed of pan/tilt movement is adjustable
Scan position memory, auto reposition after unexpected movement
·Strobe effect with 18 flashes per second and pulse effect
·General dimming and blackout for all four colors
·Excellent RGBW mixing and rainbow effect
·Control board with full color LCD graphic display and touch-keyboard
·Dimmer intensity from 0%~100%
·Display: Can be changed 180° reverse to fit for different installation position.
·Rechargeable Back up Battrty for Display
·Wireless receiver pre-installed
·Preset program: 7 built in programs can be called up via DMX controller
·Software-upload by optional accessory via DMX line

3
2. Fixture Overview
3. SAFETY INSTRUCTIONS
3.1) Important safety warns
This device has left the factory in perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.
If the device has been exposed to temperature changes due to environmental changes, do not
switch it on immediately. The arising condensation could damage the device. Leave the device
switched off until it has reached room temperature.
1: Lens
2: Display
3: Left-button
4: Down-button
5: ENTER-button
6: Right-button
7: Mode/Esc-button
8: Up-button
9: Handle
10: Antenna – Wireless DMX
11: 5-Pin DMX out
12: 5-Pin DMX in
13: RJ45 out
14: RJ45 in
15: Fuse
16: Power in
17: Power out

4
This device falls under protection-class I. Therefore it is essential that the device be earthed.
If protection screen,lens or ultraviolet screen in the fixture is apparently damaged or is damaged
to exceed their own effective degree, such as cracked and gashed, it must be replaced.
The electric connection must carry out by qualified person.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced
by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Please be aware that damages caused by manual modifications to the device are not subject
to warranty. Keep away from children and non-professionals.
3.2) GENERAL GUIDELINES
This device is a lighting effect for professional use on stages, in discotheques, theatres, etc., the
device was designed for indoor use only.
This fixture is only allowed to be operated with the max alternating current which stated in the
technical specifications in the last page of this manual.
Lighting effects are not designed for permanent operation. Consistent operation breaks may
ensure that the device will serve you for a long time without defects.
Do not shake the device.Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed to extreme
heat, moisture or dust. Please don't project the beam onto combustible substances.The minimum
distance between light-output from the projector and the illuminated surface must be more than
0.5 meter.

5
If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners
turned in the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional
operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden.
If this device will be operated in any way different to the one described in this manual, the
product may suffer damages and the guarantee becomes void. Furthermore, any other operation
may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc.
4. INSTALLATION INSTRUCTIONS
Do not operate this device with open cover
4.1) Mounting the device
The applicable temperature for the lighting is between -10°C to 45°C. Do not use the lighting
under or above the temperature.
The installation of the effect has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate
safety rope.
Never stand directly below the device when mounting, removing or servicing the fixture.
The operator has to make sure the safety relating and machine technical installations are approved
by an expert before taking the device into operation for the first time.
These installations have to be approved by a skilled person once a year.
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the device. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
T h e$el ec tr i c $c o n n e c ti o n $ m u s t$o n l y $ b e$ c a rr i ed $ o u t$ b y $a $ q u al i f i ed $ el ec tri c i a n .$

6
Before mounting make sure that the installation area can hold a minimum point load of 10 times the device’s
weight.
Connect the fixture to the mains with the power plug.
Installation via the Omega holders
a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in
the middle of the bracket.
b) Insert the quick-lock fasteners of the first Omega holder into the respective holes on the
bottom of the device. Tighten the quick-lock fasteners fully clockwise.
c) Install the second Omega holder.
d) Pull the safety-rope through the holes on the bottom of the base and over the trussing system
or a safe fixation spot. Insert the end in the carabine and tighten the safety screw.
Notice: this step is quite important to ensure that the fixture will not drop out by the
damage of the clamp.

7
Dimensional Drawings:

8
Layout Drawings:
Mounting points
Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental damage
and/or injury in the event the clamp fails.
Overhead mounting requires extensive experience, including amongst others calculating working
load limits, a fine knowledge of the installation material being used, and periodic safety
inspection of all installation material and the fixture. If you lack these qualifications, do not
attempt the installation yourself. Improper installation can result in bodily injury.
5. DMX-512 control connection
Connect the provided XLR cable to the female 5-pin XLR output of your controller and the other
side to the male 5-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened
cable with XLR input and output connectors. Please refer to the diagram below.

9
Address 41 Address 21 Address 1
6. DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in
preventing corruption of the digital control signal by electrical noise. The DMX terminator is
simply an XLR plug with a 120 Ωresistor connected between pins 2 and 3,which is then plugged
into the output XLR socket of the last fixture in the chain. Please see illustrations below.
7. Projector DMX start address selection
All fixtures should be given a DMX starting address when using a DMX signal, so that the
correct fixture responds to the correct control signals. This digital starting address is the channel
number from which the fixture starts to “listen” to the digital control information sent out from
the DMX controller. The allocation of this starting address is achieved by setting the correct
number on the display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures, or make different
address for each fixture individually.
If you set the same address, all the units will start to “listen” to the same control signal from the
same channel number. In other words, changing the settings of one channel will affect all the
fixtures simultaneously.
If you set a different address, each unit will start to “listen” to the channel number you have set,
based on the quantity of control channels of the unit. That means changing the settings of one
channel will affect only the selected fixture.

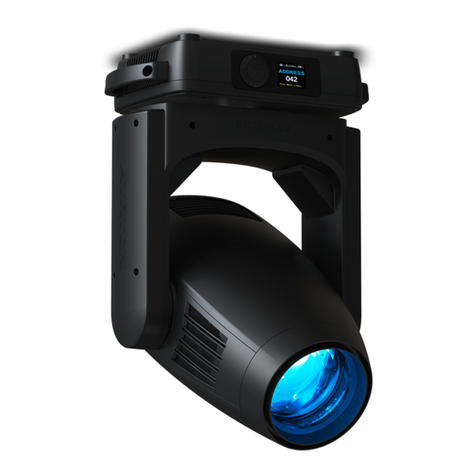

In the case of the led move head, which is a 20 channel fixture, you should set the starting
address of the first unit to 1, the second unit to 21(20 + 1), the third unit to 41 (20+ 21), and so
on.

10
8. Operting instructions of the internal DMX wireless system
1. Equipments:
DMX 512 controller, wireless transmitter, and the fixtures with wireless receiver.
2. Message from the LED indicator:
1) Rapid flashing red/Green: logging in to a transmitter
2) Slow flashing Red/Green: Logged on a transmitter and the DMX line is idle (No DMX is
connected to transmitter).
3) Solid Green: Logged on to a transmitter and receiving DMX data.
4) Solid Red: Not logged on to a transmitter (free)
3．WDMX in the menu of the fixture:
On a fixture installed with wireless system, in order to switch between wireless control system
and traditional DMX control (with cable), a new menu WDMX is added to the display board.
ON: (Activate WDMX)
1) When the fixture is on power，and the WDMX is activated to ON status, but did not
connect to the controller and did not log in to the transmitter, the fixture will search for the DMX
signal source. If the fixture is connected to the DMX controller it can be controlled by DMX
controller; if it is log in to the wireless transmitter, it can be controlled by the Transmitter
2) When the fixture is power off, and the WDMX is in ON status, if the fixture is connected
to DMX controller. After the fixture is power on, it can be controlled only by the DMX
controller which connected. The fixture can log in the wireless transmitter, and receive only
radio signal from transmitter, but not DMX from the transmitter.
OFF: (De-activate WDMX)
In this status, wireless system is not activated, so the fixture can not log in the transmitter.
REST: (reset WDMX memory);
Can remove the fixture from the connection with the transmitter, the fixture become free and
ready to log in any transmitter.
4. Setup the wireless system:
1) Connect the transmitter with the DMX controller
2) To make the fixture installed with wireless receiver log in to the transmitter
a) Initially, the indicator on the receiver fixture should be in Solid red
b) Press and hold the configuration button on transmitter for less than 3 seconds the
red/green LEDs on the transmitter and the receiver fixture will flash rapidly for about
5~ 10 seconds while the system goes through its setup procedure.
c) Once the receiver fixture is logged in to the transmitter (T1), the fixture with wireless
receiver will keep the memory, even if restart the power, this unit will log in the
transmitter (T1) automatically.
3) Use the DMX 512 to control the fixture
5．Remove the receivers from transmitter (T1) and to log in to another transmitter (T2)
Case 1: Remove a receiver:
a) On the control board of the fixture, enter menu to activated the function of REST;
b) The LED for wireless on the fixture should turn to Solid red; the receiver can log out from
the transmitter (T1);
c) press the configuration button on transmitter(T2) for less than 3 second, then the fixture
will start to connect with the transmitter(T2)
Case 2: Remove all receivers from a transmitter (T1) to log in to T2;
a) Press and hold the configuration button on the T1 as least 5 seconds, can clear the

11
connection with all the fixtures.
b) All the red/green LEDs on the receiver fixtures will turn to Solid red to indicate that the
receivers are unassigned and removed from the transmitter ( T1);
c) Press and hold the configuration button on the T2 less then less than 3 second , the fixtures
will connect with the T2
PS: 1. Please log the receivers out from the transmitter after every job, so that the receivers are in
free un assigned state and ready to be assigned to a transmitter.
2. Do not connect the fixture which is under the communication of wireless system to the
DMX controller, otherwise it will cause interference from the DMX controller.
9. Control Board
The Control Board offers several features: you can simply set the starting address , run the
pre-programmed program or make a reset.
The main menu is accessed by pressing the -button until the display starts flashing.
Browse through the menu by pressing the -button , -button , -button or
-button. Press the Enter-button in order to select the desired menu. You can change the
selection by pressing the the -button , -button , -button or -button.
Confirm every selection by pressing the -button. You can leave every mode or access the
display menu via the internal battery by pressing the -button for 5 minute; The functions
provided are described in the following sections. it will exit from flash 10 seconds after the last
keypress. Press this key under edit mode, . The functions provided are described in the following
sections.
Address
Set Dmx Addr
A001~AXXX
DMX address setting
Users Mode
User Mode
Stand Mode
Basic Mode
Extend Mode
User Mode A
User Mode B
User Mode C
User’s mode to change channel
numbers
Edit User
Max channel
PAN
:
Preset User modes
:
Options
Status
Addr via DMX
No DMX Mode
Pan Reverse
Tilt Reverse
Pan Degree
Tilt Degree
Feedback
Pan/Tilt Spd
Mic Sens.
Hibernation
ON/OFF
Close/Hold/Auto/Music
ON/OFF
ON/OFF
630/540
270/540
ON/OFF
Speed 1~ 4
0~99%
OFF, 01M~99M，15M
Add. via DMX
Auto run if no DMX
Pan Reverse movement
Tilt Reverse movement
Pan Degree Select
Tilt Degree Select
Movement Feedback
Reset Pan/Tilt
Sensitivity of Mic.
Stand by Mode

12
Service PIN
Service PIN
RDM PID
Set Ip
Set Device ID
Set LED BIN
Change To BIN
Password=XXX
Xxxxxx
xxx.xxx.xxx.xxx
xx
LED BIN
LED BIN
Service Password“=050”
RDM PID Code
KlingNet Device ID
IP Addr
LED BIN
LED BIN
Fans Control
Head Control
Auto
High
Low
Head Fans Speed Mode Select
Disp.Setting
Shutoff Time
Flip Display
Key Lock
DispFlash
02~60m 05m
ON/OFF
ON/OFF
ON/OFF
Display shutoff time
Reverse 180 degree
Key Lock
No Signal Rash
Signal Select
DMX
WDMX
Art--Net
DMX
Wireless DMX
Art-Net
LED Control
Kling-Net OFF
Kling-Net RGB
Kling-Net RGBW
KlingNet confer
Kling-Net confer RGB
Kling-Net confer RGBW
Set Universe
xx
Art-Net Universe NO.
Temp. C/F
Celsius
Fahrenheit
Temperature switch
between /
Initial Pos.
PAN =XXX
Initial effect position
Wireless DMX
Activate WDMX
Act&Data Out
Rest WDMX
Activate WDMX
Act & Data Out
Reset Wireless DMX Mem
Trigger
DMX Value Disp.
Set To Slave
Auto Program
Music Ctrl.
PAN……
Slave1,Slave2,Slave3
Master / Alone
Master / Alone
DMX value display
Slave setting
Auto program
Music control
ResetDefault
ON/OFF
Restore factory set.
Info
Time Info.
Current Time
Ttl Life Hrs
Last Run Hrs
Timer PIN
Clr Last Run
XXXX(Hours)
XXXX(Hours)
XXXX(Hours)
Password=XXX
ON/OFF
Temp. Info
Head Temp.
XXX/
Software Ver
V1.0.4……
Software version
Network
IP,Mask,Mac
Network setting
Test
Home
All
Pan&Tilt
Reset all motors
Reset Pan/Tilt
Test Channel
PAN ……
Test function
Manual Ctrl.
PAN =XXX
:
Fine adjustment of the lamp
Calibration
-Password-
PAN
:
Password “050”
Calbrate and adjust the effects
to standard/right position
Preset
Select Prog.
Prog. Part 1 = Program 1 ~ 10 Program 1
Prog. Part 2 = Program 1 ~ 10 Program 2
Prog. Part 3 = Program 1 ~ 10 Program 3
Select programs to be run

13
Edit Prog.
Program 1
:
Program 10
Program Test
Step 01=SCxxx
Step 64=SCxxx
Testing program
Program in loop
Save and exit
Edit Scenes
Edit Scene 001
~ Edit Scene 250
Pan,Tilt,……
--Fade Time--
--Secne Time--
Input By Outside
Save and automatically return
manual scenes edit
Scenes Input
XX~XX
Automat. scenes rec
Default settings shaded
9.1 Address
9.1.1 Set DMX Addr
With this function, you can adjust the desired DMX-address via the Control Board.
1. Access the main menu.
2. Tap the <Up/Down>button until“Set DMX Addr”is displayed.
3. Press ENTER, the display will show “Set DMX Addr”.
4. Tap the <Up/Down>button，the display will show “A001~AXXX”
5. Press ENTER to confirm or press <MODE/ESC> to return to the main menu.
9.2 Users mode
In this menu, user can select different channels list by different sequence:
For example, after the user enter this manual, if select Auto Program = CH 22, means in this
User’s mode, the “Dimmer” is in Channel 16.
9.2.1 User mode
With this function, you can create user defined channel orders.
9.2.2 Edit User
With this function, you can adjust the rest user defined channel order.
1．Access the main menu.
2．The display show “Edit User”frist channel, Press <Up/Down> the display will show
“Edit User”.
3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3 Options
9.3.1 Status
Addr via DMX
With this function, you can adjust the desired DMX-address via an external controller.
1. Access the main menu.
2. Press <Up/Down>, the display will show “Addr via DMX”.
3. Press< ENTER>, the display will show“Addr via DMX”.
4. The display show “ON”,Press <Up/Down>, the display will show “OFF”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
No DMX Mode
With this function, when the drive is not DMX signal, it runs automatism, close, hold and
music, the default is hold.
1. Access the main menu.
2. Press <Up/Down>, the display will show “No DMX Mode”.
3. Press< ENTER>, the display will show“No DMX Mode”.

14
4. The display show “Hold”,Press <Up/Down>, the display will show “Close”, “Auto”,
“Music”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Pan Reverse
With this function you can reverse the Pan-movement.
1. Access the main menu.
2. Press <Up/Down>, the display will show “Pan Reverse”.
3. Press< ENTER>, the display will show“Pan Reverse”.
4. The display show “OFF”,Press <Up/Down>, the display will show “ON”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Tilt Reverse
With this function you can reverse the Tilt-movement.
1. Access the main menu.
2. Press <Up/Down>, the display will show“Tilt Reverse”.
3. Press< ENTER>, the display will show“Tilt Reverse”.
4. The display show “OFF”,Press <Up/Down>, the display will show “ON”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Pan Degree
With this function, you can select pan degree for 630 or 540.
1. Access the main menu.
2. Press <Up/Down>, the display will show“Pan Degree”.
3. Press< ENTER>, the display will show“Pan Degree”.
4. The display show “540”,Press <Up/Down>, the display will show “630”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Tilt Degree
With this function, you can select pan degree for 270 or 540.
1. Access the main menu.
2. Press <Up/Down>, the display will show“Tilt Degree”.
3. Press< ENTER>, the display will show“Tilt Degree”.
4. The display show “270”,Press <Up/Down>, the display will show “540”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Feedback
With this function, you can feedback switch of pan movement or tilt movement.
1. Access the main menu.
2. Press <Up/Down>, the display will show“Feedback”.
3. Press< ENTER>, the display will show“Feedback”.
4. The display show “ON”,Press <Up/Down>, the display will show “OFF”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Pan/Tilt Spd
With this function, you can select scan mode from 1 to 4.
1. Access the main menu.
2. Press <Up/Down>, the display will show“Pan/Tilt Spd”.
3. Press< ENTER>, the display will show“Pan/Tilt Spd”.

15
4. The display show “Speed 1”,Press <Up/Down>, the display will show “Speed 2”,
“Speed 3”, “Speed 4”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Mic Sens.
With this function, the default is 70%, you can select the desired microphone sensitivity
from 0 % to 99 %.
1. Access the main menu.
2. Press <Up/Down>, the display will show“Mic Sens.”.
3. Press< ENTER>, the display will show“Mic Sens.”.
4. The display show “70%”,Press <Up/Down>, the display will show “0~99%”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Hibernation ——Standby mode
The lamp and step motors will be power off if the fixture stay without DMX signal for 15
mins (Factory default).And the fixture will be reset before working once it receive DMX
signal again.
1. Access the main menu.
2. Press <Up/Down>, the display will show“Hibernation”.
3. Press< ENTER>, the display will show“Hibernation”.
4. The display show “15M”,Press <Up/Down>, the display will show “01M”，
“02M”…. “99M”or“OFF”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.2 Service PIN
Service PIN——The Password for this function is “50”.
RDM PID—— With this function you can call up various submenus via RDM.
This device is RDM ready. RDM stands for "remote device management" and makes
remote control of devices connected to the DMX-bus. ANSI E1.20-2006 by ESTA
specifies the RDM standard as an extension of the DMX512 protocol.
Manual settings like adjusting the DMX starting address are no longer needed. This is
especially useful when the device is installed in a remote area.
RDM ready and conventional DMX devices can be operated in one DMX line. The RDM
protocol sends own packages in the DMX512 data feed and does not influence conventional
devices.
If DMX splitters are used and RDM control is to be used, these splitters must support RDM.
The number and type of RDM parameters depend on the RDM controller being used.
Set IP
1. Access the main menu.
2. Press <Up/Down>, the display will show“Set IP.”.
3. Press< ENTER>, the display will show“Set IP”.
4. The display show“xxx.xxx.xxx.xxx”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.

16
Set Device ID
1. Access the main menu.
2. Press <Up/Down>, the display will show“Set Device ID.”.
3. Press< ENTER>, the display will show“Set Device ID”.
4. The display show“xx”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Set LED BIN
1. Access the main menu.
2. Press <Up/Down>, the display will show“Set LED BIN”.
3. Press< ENTER>, the display will show“Set LED BIN”.
4. The display show “LED BIN”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Change To BIN
1. Access the main menu.
2. Press <Up/Down>, the display will show“Change To BIN”.
3. Press< ENTER>, the display will show“Change To BIN”.
4. The display show“LED BIN”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.3 Fans Control
Head Control
With this function, you can set the speed of the running fans. The selections have Auto、
High and Low.
1. Access the main menu.
2. Press <Up/Down>, the display will show“Head Control”.
3. Press< ENTER>, the display will show“Head Control”.
4. The display show “Auto”,Press <Up/Down>, the display will show “High”, “Low”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.4 Disp.Setting
Shutoff Time
With this function you can shut off the color LCD display after 2 to 60 minutes. Turn the
encoder in order to select the desired shut off time. The default is 5 minute.
Flip Display
With this function you can the entire display to be flipped by 180˚ to allow for better view
when the fixture is hung from truss or a ceiling. This function is disabled as default.
1．Access the main menu.
2．Press <Up/Down>, the display will show“Flip Display”.
3．Press< ENTER>, the display will show“Flip Display”.
4．The display show “OFF”,Press <Up/Down>, the display will show “ON”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Key Lock
With this function you can activate the automatic keylock status. If this function is activated,
the keys will be locked automatically after exiting the edit mode for 15 seconds. keeping
press the [MENU] key for 3seconds if you do not need this function.

17
1．Access the main menu.
2．Press <Up/Down>, the display will show“Key Lock”.
3．Press< ENTER>, the display will show“Key Lock”.
4．The display show “OFF”,Press <Up/Down>, the display will show “ON”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
DispFlash
With this function you can the entire display to be flipped by 180˚ to allow for better view
when the fixture is hung from truss or a ceiling. This function is disabled as default.
1．Access the main menu.
2．Press <Up/Down>, the display will show“DispFlash”.
3．Press< ENTER>, the display will show“DispFlash”.
4．The display show “OFF”,Press <Up/Down>, the display will show “ON”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.5 Signal Select
1．Access the main menu.
2．Press <Up/Down>, the display will show“Signal Select”.
3．Press< ENTER>, the display will show“Signal Select”.
4．The display show “DMX”,Press <Up/Down>, the display will show “WDMX”,
“Art--Net”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.6 LED Control
1．Access the main menu.
2．Press <Up/Down>, the display will show“LED Control”.
3．Press< ENTER>, the display will show“LED Control”.
4．The display show “Kling-Net OFF”,Press <Up/Down>, the display will show
“Kling-Net RGB”, “Kling-Net RGBW”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.7 Set Universe
1．Access the main menu.
2．Press <Up/Down>, the display will show“Set Universe”.
3．Press< ENTER>, the display will show“Set Universe”.
4．The display show “xxx”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.8 Temp. C/F
With this function, Display the temperature for Celsius or Fahrenheit.
1．Access the main menu.
2．Press <Up/Down>, the display will show“Temp. C/F”.
3．Press< ENTER>, the display will show“Temp. C/F”.
4．The display show “Celsius”,Press <Up/Down>, the display will show “Fahrenheit”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.

18
9.3.9 Initial Pos.
With this function, Display initial effect position.
1．Access the main menu.
2．Press <Up/Down>, the display will show“Initial Pos.”.
3．Press< ENTER>, the display will show“Initial Pos.”.
4．The display show “XXX”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.10 Wireless DMX
From factory, this projector is prepared for wireless data transmission (W-DMX). If you wish to
de-activate W-DMX control, you can select the function “De-activate WDMX” by turning the
encoder. With the function “rest”, you can log out the projector from the wireless sender.
1．Access the main menu.
2．Press <Up/Down>, the display will show“Wireless DMX”.
3．Press< ENTER>, the display will show“Wireless DMX”.
4．The display show “Activate WDMX”, Press <Up/Down>, the display will show
“Act&Data Out”,“Rest WDMX”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.11 Trigger
DMX Value Disp.
With this function you can display the DMX 512 value of each channel. The display
automatically shows the channel with a value changing.
1. Access the main menu.
2. Tap the <Up/Down>button until“DMX Value Disp.”is displayed.
3. Press ENTER, the display will show “DMX Value Disp.”.
4. Tap the <Up/Down>button，choose each channel.
5. Press ENTER to confirm or press <MODE/ESC> to return to the main menu.
Set To Slave
With this function, you can define the device as slave.
1. Access the main menu.
2. Tap the <Up/Down>button until“Set To Slave”is displayed.
3. Press ENTER, the display will show“Set To Slave”.
4. Tap the <Up/Down>button，the display will show “Slave1”, ”Slave2”, ”Slave3”.
5. Press ENTER to confirm or press <MODE/ESC> to return to the main menu.
Auto Program
With this function, you can run the internal program. You can select the desired program
under “Select program”. You can set the number of steps under “Edit program”. You
can edit the individual scenes under “Edit scenes”. With this function, you can run the
individual scenes either automatically, i.e. with the adjusted Step-Time.
1. Access the main menu.
2. Tap the <Up/Down>button until“Auto Program”is displayed.
3. Press ENTER, the display will show“Auto Program”.
4. Tap the <Up/Down>button，the display will show “Master1”, ” Alone”.
5. Press ENTER to confirm or press <MODE/ESC> to return to the main menu.
Music Ctrl.

19
With this function, you can run the internal program sound-controlled.
1. Access the main menu.
2. Tap the <Up/Down>button until“Music Ctrl.”is displayed.
3. Press <ENTER>, the display will show“Music Ctrl.”.
4. Tap the <Up/Down>button，the display will show “Master1”, ” Alone”.
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.12 ResetDefault
With this function, you can select restore factory set for ON or OFF, the default is OFF.
1．Access the main menu.
2．Press <Up/Down>, the display will show“ResetDefault”.
3．Press< ENTER>, the display will show“ResetDefault”.
4．The display show “OFF”,Press <Up/Down>, the display will show “ON”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.4 Info
9.4.1 Time info.
Current Time
With this function, you can display the temporary running time of the device from the last
power on. The display shows “XXXX”, “XXXX” stands for the number of hours. The
counter is resetted after turning the device off.
1. Access the main menu.
2. the display will show “Time Information”.
3. Press <Up/Down>, the display will show “Current Time”.
4. Press< ENTER>, the display will show“Current Time”.
5. The display will show “XXXX”(Hours) ；
6. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Ttl Life Hrs
With this function, you can display the running time of the device. The display shows
“XXXX”, “XXXX” stands for the number of hours.
1. Access the main menu.
2. Press <Up/Down>, the display will show “Ttl Life Hrs”.
3. Press< ENTER>, the display will show“Ttl Life Hrs”.
4. The display will show “XXXX”(Hours) ；
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Last Run Hrs
With this function, you can display last the running time of the lamp. The display shows
“XXXX”, “XXXX” stands for the number of hours
1. Access the main menu.
2. Press <Up/Down>, the display will show “Last Run Hrs”.
3. Press< ENTER>, the display will show“Last Run Hrs”.
4. The display will show “XXXX”(Hours) ；
5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Timer PIN
With this function, you can display the timer password.
1. Access the main menu.
