Azbil TY7043D User manual

AB-7051
1
Specifications/Instructions
Neosensor (Two-Wire 4-20mA Output Sensor)
Room Temperature Sensor Model TY7043D
Room Humidity Sensor Model HY7043D
Room Temperature/Humidity Sensor Model HTY7043D
General
Neosensor (two-wire 4-20mA output sensor) is a series of
electronic room sensors including temperature sensor
(Model TY7043D), humidity sensor (Model HY7043D), and
temperature/humidity sensor (Model HTY7043D).
Neosensor is coordinated in terms of design and dimension
with Neostat electronic room temperature/humidity controller.
Pt100 resistance thermometer sensor (JIS* C1604 Class A)
for temperature sensing element and polymer capacitive
humidity sensor (FP3developed by Azbil Corporation) for
humidity sensing element enhance accuracy and reliability of
Neosensor sensing. Neosensor is thus suitable for various
applications such as commercial building or other indoor
uses.
Note that the specification data of Neosensor the Pt100, 1-5V,
and 0-10V output sensors is not included in this document.
Refer to the following document.
AB-7050 Specifications/Instructions:
Neosensor
Room Temperature Sensor Models TY7043, TY7053,
Room Humidity Sensor Model HY7043,
Room Humidity/Temperature Sensor Model HTY7043
JIS: Japanese Industrial Standards
Features
Wide temperature and/or humidity sensing range with
high accuracy.
Excellent long-term stability.
High environmental resistance.
Quick response and high repeatability.
Compact (thin) and lightweight.
CE Marking certified product:
Neosensor Models TY7043D, HY7043D and HTY7043D
conform to all the applicable standards of CE Marking.

AB-7051
2
Safety Instructions
Please read instructions carefully and use the product as specified in this manual. Be sure to keep this manual near by for ready
reference.
Usage Restrictions
This product is targeted for general air conditioning. Do not use this product in a situation where human life may be affected. If
this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact our
sales representative. Azbil Corporation will not bear any responsibility for the results produced by the operators.
Warnings and Cautions
WARNING Alerts users that improper handling may cause death or serious injury.
CAUTION Alerts users that improper handling may cause minor injury or material loss.
Signs
Alerts users possible hazardous conditions caused by erroneous operation or erroneous use. The symbol inside 
indicates the specific type of danger.
(For example, the sign on the left warns of the risk of electric shock.)
Notifies users that specific actions are prohibited to prevent possible danger. The symbol inside graphically
indicates the prohibited action.
(For example, the sign on the left notifies that disassembly is prohibited.)
Instructs users to carry out a specific obligatory action to prevent possible danger. The symbol inside graphically
indicates the actual action to be carried out.
(For example, the sign on the left indicates general instructions.)
CAUTION
Use the product under the operating conditions (temperature, humidity, power, vibration, shock, mounting direction,
atmospheric condition, etc.) as listed in the specifications.
Failure to do so might cause fire or device failure.
Use the product within the rated operating ranges as listed in the specifications.
Failure to do so might cause device failure.
Before wiring, be sure to turn off the power to the product.
Installation and wiring must be performed by qualified personnel in accordance with all applicable safety standards.
All wiring must comply with applicable codes and ordinances.
Do not disassemble the product.
Doing so might cause device failure.
Dispose of the product as industrial waste in accordance with your local regulations.
Do not reuse all or part of this product.
IMPORTANT:
Operating conditions such as wind velocity and load resistance affect Neosensor sensing accuracy. Refer to
Specifications and Installation sections for its installation.
Product sensing accuracy is preset before shipment. Output of the product, used even in normal air, may be
shifted depending on the operating conditions. Periodic inspection therefore is recommended.
Corrosive gas or organic solvent may shift the humidity output or damage the humidity sensing element.
Before using the product (Models HY7043D, HTY7043D) in abnormal atmosphere, consult with our sales
personnel.

AB-7051
3
Model Numbers
Base model
number Shape Type Power supply
Humidity
output
Temperature
output Fixed Output line
Company
logo Description
HTY70 Room temperature/humidity sensor
TY70 Room temperature sensor
HY70 Room humidity sensor
4 Neosensor
3 
D 24 V DC
0 Temperature sensing only
4 4 mA to 20 mA humidity output
0 Humidity sensing only
4 4 mA to 20 mA temperature output
0 
0 Lead wire connection
With company logo
-1 Without company logo
Regarding the available model numbers, refer to the table below.
Available model numbers
Model number Sensor type Company logo
HTY7043D4400 Yes
HTY7043 D4400-1 Humidity (4-20 mA) + Temperature (4-20 mA) sensor Neosensor No
HY7043D4000 Yes
HY7043D4000-1 Humidity (4-20 mA) sensor Neosensor No
TY7043D0400 Yes
TY7043D0400-1 Temperature (4-20 mA) sensor Neosensor No

AB-7051
4
Part Numbers of Optional Devices
Mount Neosensor with the following optional items (sold separately). Order necessary items.
Item Part number/Model number
Wall-direct mounting kit Part No. 83165803-001Dedicated mounting kit
Thermoplate mounting kit Part No. 83165803-011
Thermoplate for individual room
control Models QY1100C, QY1100D (with rotary switch)
Model DY2000A1022 For one Neosensor, lengthwise mount
Model DY2000A1023 For one Neosensor, crosswise mount
Model DY2000A2023 For two Neosensor, crosswise mount
(94mm (H) x 192mm (W)), attached to outlet box
Model DY2000A2024 For two Neosensor, crosswise mount
(106mm (H) x 198mm (W)), attached to outlet box
Thermoplate
Model DY2000A3022 For three Neosensor, crosswise mount
Model DY2000A1021 For one Neosensor, square mount
Model DY2000A2021 For two Neosensor, crosswise mount
Auxiliary device
Thermoplate for open wiring
Thermoplate for open wiring is
used for open wiring installation. Model DY2000A3021 For three Neosensor, crosswise mounting

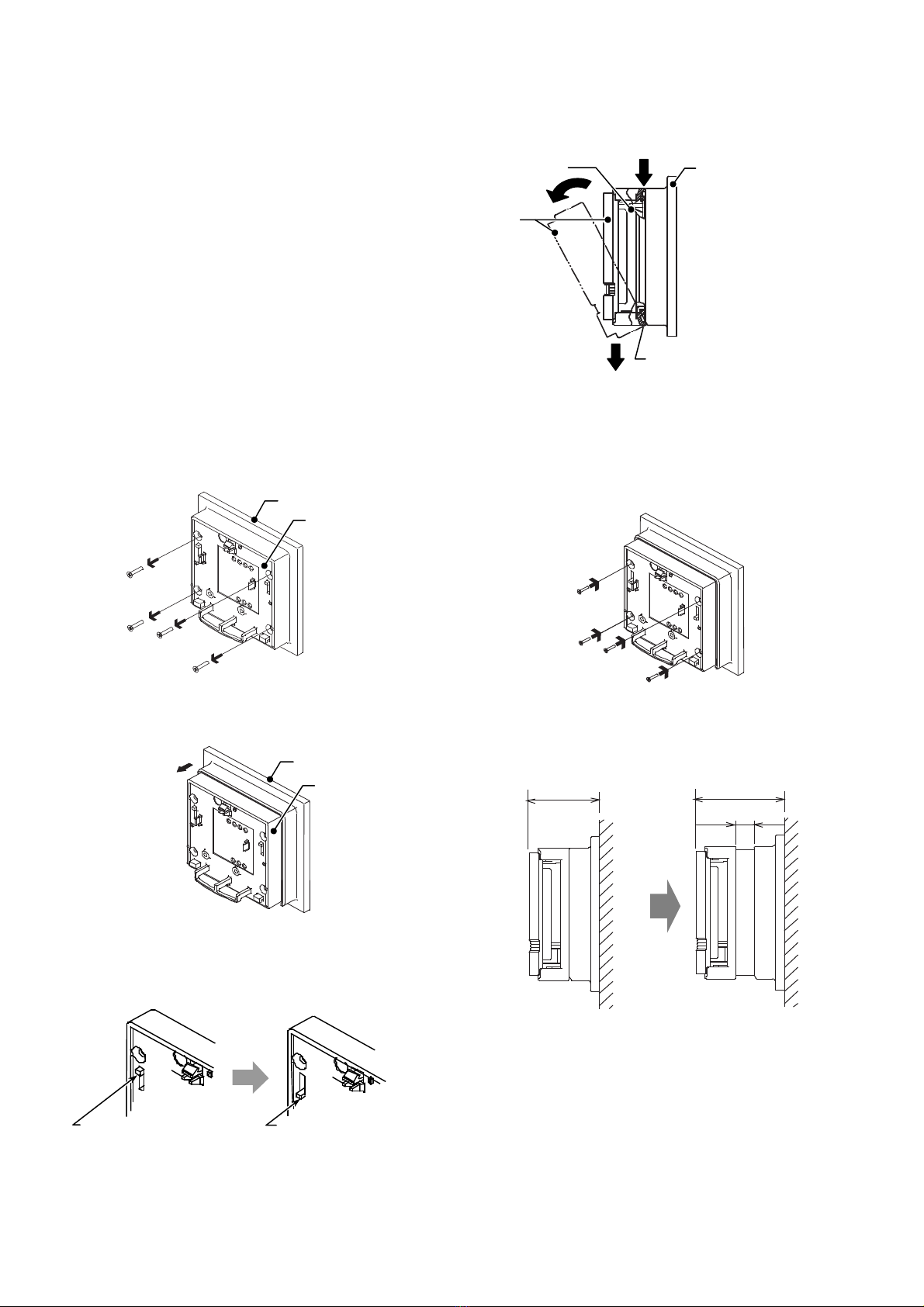

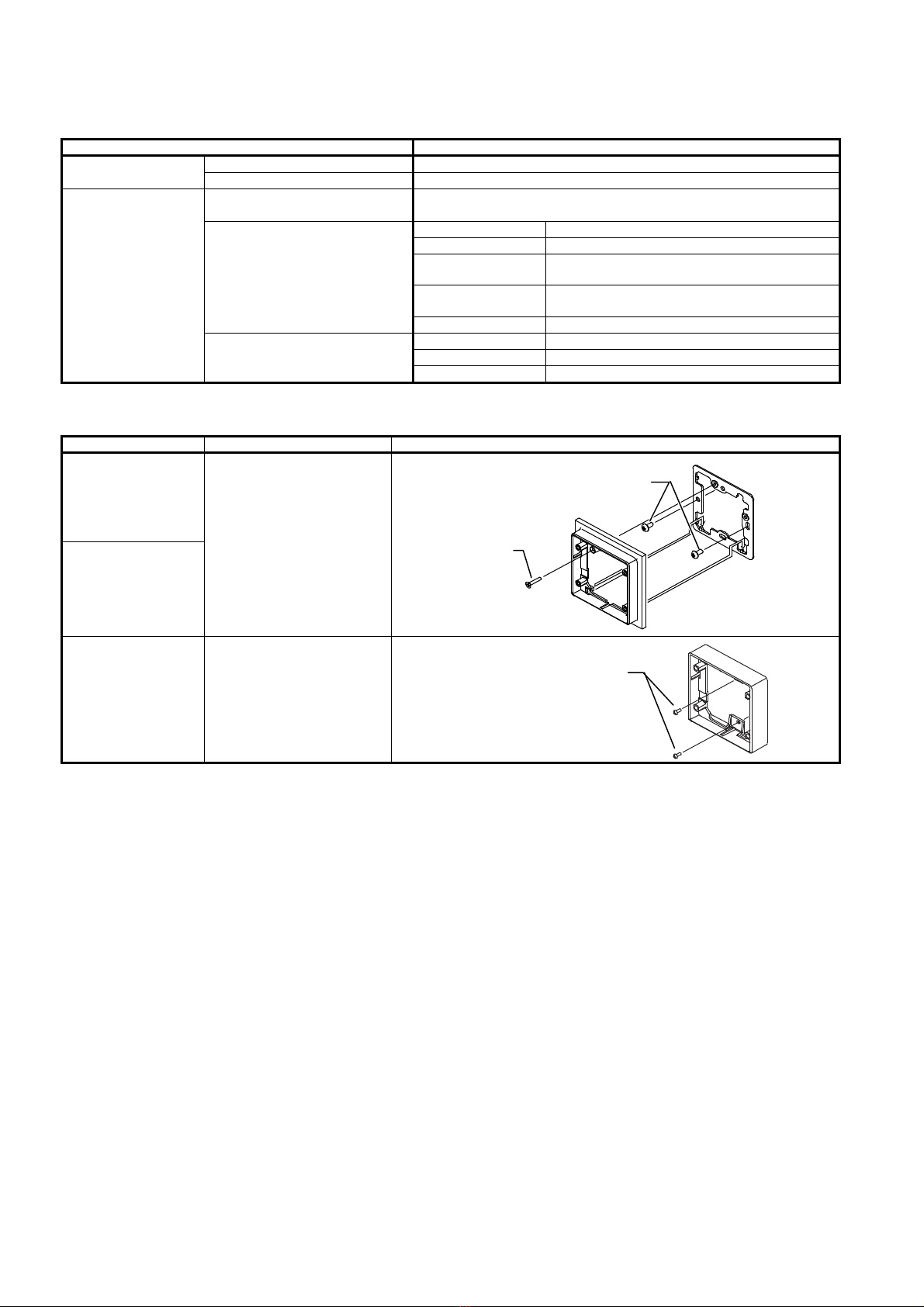

Dedicated mounting kits for each mounting method
Mounting method Mounting kit Contents
Mounting directly on a
wall
Mounting onto
Thermoplate for open
wiring
Wall-direct mounting kit
(Part No. 83165803-001)
Mounting onto
Thermoplate
Thermoplate mounting kit
(Part No. 83165803-011)
One flat-head machine
screw (M3 16)
Main unit
Mounting plate
Two pan-head machine screw (M4

8)
Man unit
Two tapping screws (M2.6 8)

AB-7051
5

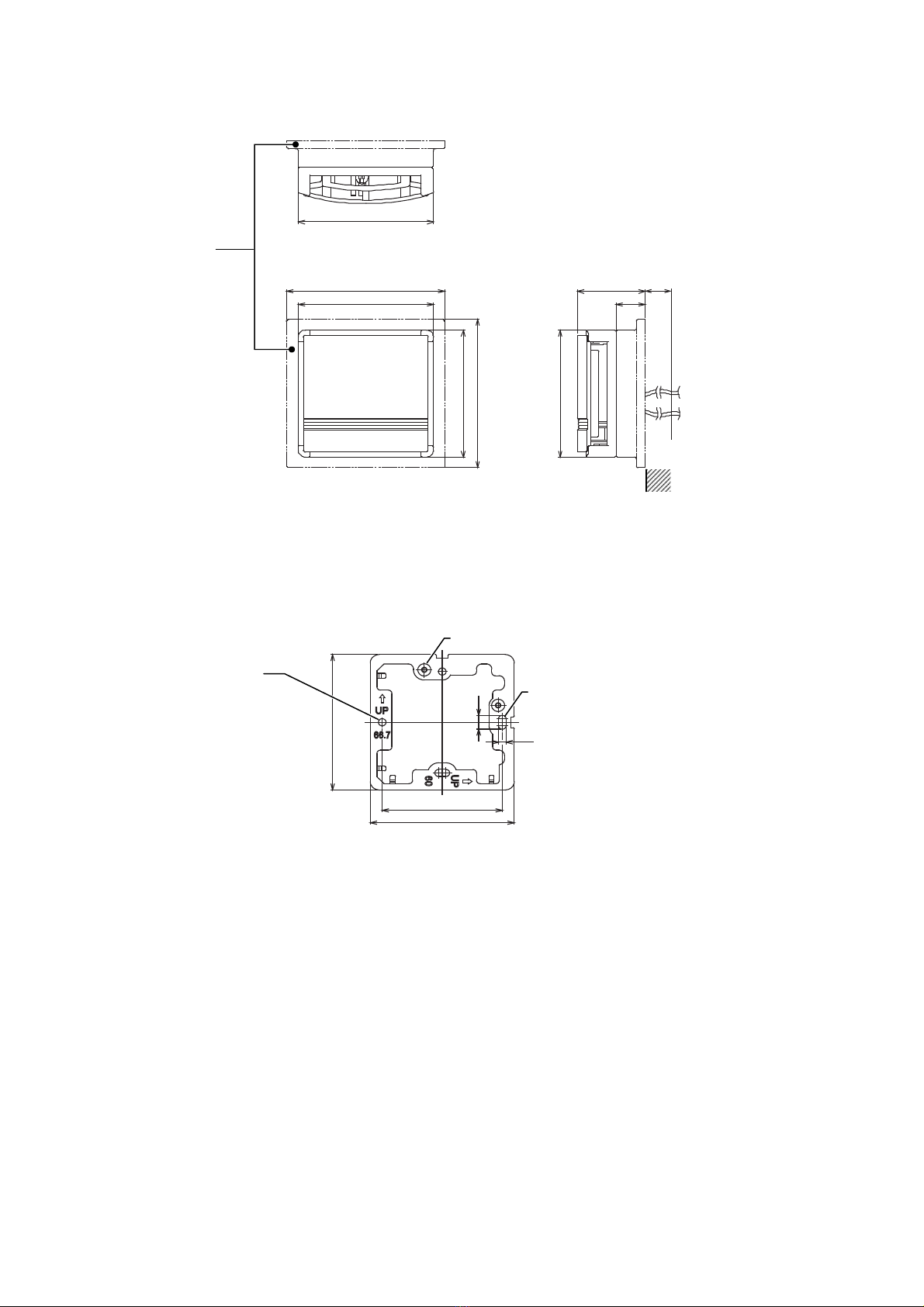

Specifications
Item Specification
Temperature 0 C to 50 CMeasuring range
Humidity 0 %RH to 100 %RH (15 C 35 C)
Temperature 4 mA DC to 20 mA DC, 2-wire type (linear to 0 C to 50C)
(Max. allowable load: 500 or lower)
Output signal
Humidity 4 mA DC to 20 mA DC, 2-wire type (linear to 0 %RH to 100 %RH)
(Max. allowable load: 500 or lower)
Temperature 0.3 C (at 15 C to 35 C, 50 %RH)
0.5 C (at 0 C to 50 C, 50 %RH)
Required conditions
24 V DC input power voltage, 250 resistive load, 0.15 m/s wind velocity, and
60 minute warm-up time
Note that the wind velocity other than 0.15 m/s lowers the sensing accuracy.
Model TY7043D at 0.35 m/s wind velocity -0.7 C
Model HTY7043D at 0.35 m/s wind velocity -0.9 C
If using Neosensor under conditions not specified above, ask our salesperson.
Sensing accuracy
Humidity 3 %RH (at 30 %RH to 70 %RH, 25 C)
5 %RH (at 20 %RH to 80 %RH, 15 C to 35 C)
Required conditions
24 V DC input power voltage, 250 resistive load, 0.15 m/s wind velocity, and
60 minute warm-up time
Note that the wind velocity other than 0.15 m/s lowers the sensing accuracy.
Model HY7043D at 0.35 m/s wind velocity +2.4 %RH
Model HTY7043D at 0.35 m/s wind velocity +2.8 %RH
If using Neosensor under conditions not specified above, ask our salesperson.
Temperature 4.5 min. or lessTime constant
(at 0.15 m/s wind velocity) Humidity 40 sec. or less
For temperature
sensing
Rated operating condition: 0 C to 50 C, 0 %RH to 100 %RH (non-condensing)
Limit operating condition: -10 C to 60 C, 0 %RH to 100 %RH (non-condensing)
Transport/storage condition: -20 C to 70 C, 5 %RH to 95 %RH (non-condensing)
Environmental conditions
For humidity
sensing
Rated operating condition: 15 C to 35 C, 20 %RH to 80 %RH (non-condensing)
Limit operating condition: -10 C to 60 C, 0 %RH to 100 %RH (non-condensing)
Transport/storage condition: -20 C to 70 C, 5 %RH to 95 %RH (non-condensing)
Power supply 24 V DC 10 %
Power consumption 550 mW per 4-20 mA output point
Withstand voltage 1 mA or less leakage current at 500 V AC for 1 min.
Insulation resistance 500 V DC, 20 Mor higher
Installation With the mounting kit (sold separately).
Connection Lead wire (0.75 mm2300 mm long) connection
Materials / color Cover: PC resin / Pale gray
Base: Modified PPE resin / Pale gray
Weight Approx. 110 g
Accessory 4 main unit mounting screws (M3 16)
CE Marking Conformity
Models TY7043D, HY7043D and HTY7043D comply with the following Electromagnetic Compatibility (EMC).
EMC: EN61326-1 Class B, Table 1 (For use in a basic electromagnetic environment)
(CISPR11: 2003, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11)
