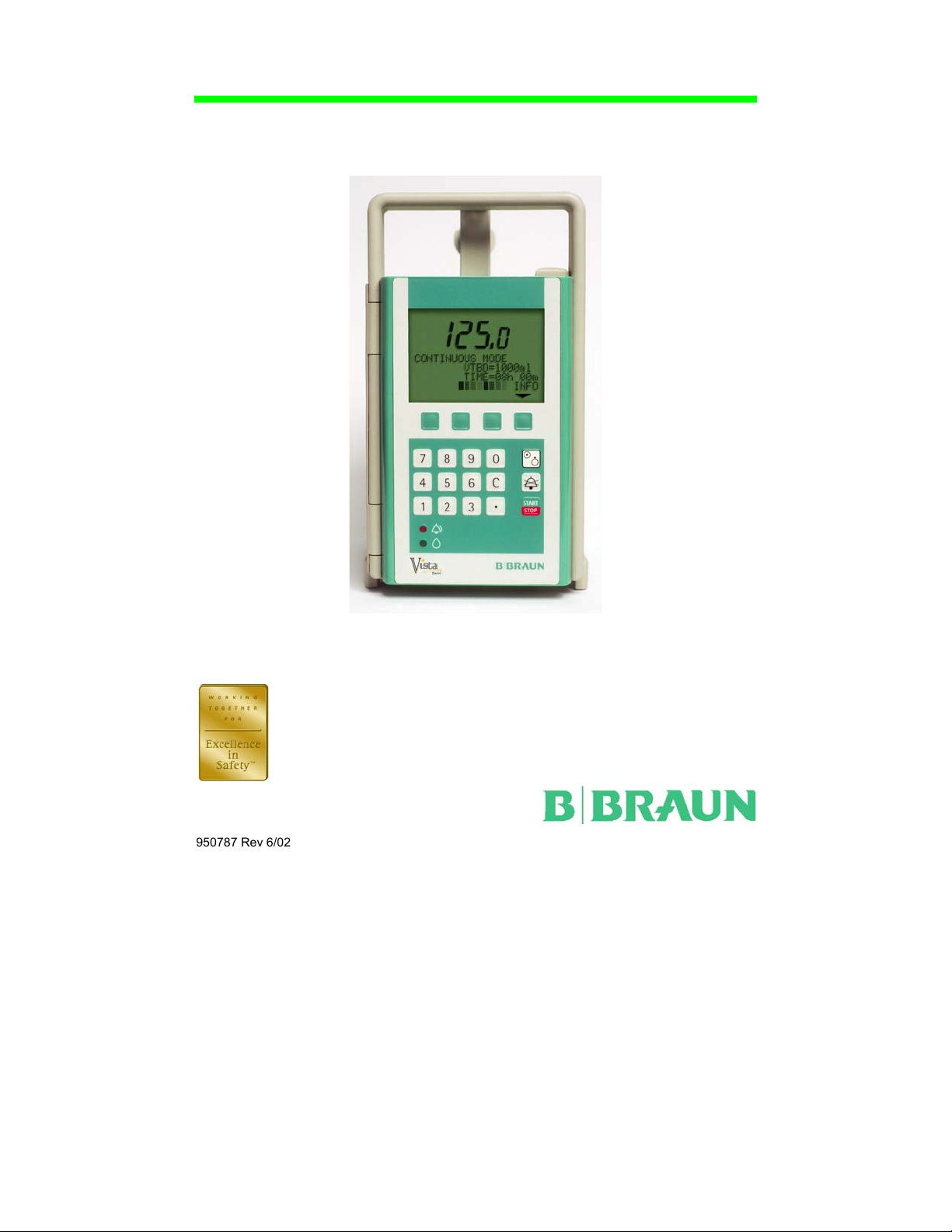

B. Braun Vista basic User manual

Vista™basic
950787 Rev 6/02
Instructions for Use
Rx Only

WARRANTY
Vista™basic Instructions for Use 1/25
950787 Rev 6/02
WARRRANTY
B. Braun provides 24 months
warranty as of the date of delivery
for every Vista™basic Infusion
Pump. This includes the repair or
replacement of damaged parts as
a result of design/manufacturing
errors or material defects.
Modifications or repairs to the unit
by the owner or third parties
invalidate the warranty.
The warranty does not cover the
elimination of faults attributable to
incorrect/inexpert handling,
normal wear and tear, or
rechargeable batteries.
The CE mark confirms compliance
with the “Council Directive on
Medical Products 93/42/EEC”
dated the 14th of June, 1993.
B. Braun Melsungen AG
RESPONSIBILITY OF
MANUFACTURER
Manufacturer, assembly, and
installation personnel or instructors
can only be held responsible for any
effects on device safety, reliability,
and performance if
♦Installation, expansion work,
readjustments, modifications, or
repairs are carried out by
personnel authorized by the
above,
♦The electrical wiring for AC power
satisfies the requirements of VDE
0100, 0107, and/or the IEC
publications, or regional and/or
national variations,
♦The device is operated in line with
the Instructions for Use, and
♦Regular technical inspections
(Preventative Maintenance) are
carried out every 2 years as
outlined in the Service Manual.
INSPECTION ON DELIVERY
Despite careful packaging, the risk
of transport damage cannot be
entirely excluded. Upon delivery,
please check that nothing is
missing. Do not use a damaged
device! If the device is damaged,
contact the Service Department.
See “Maintenance, Storage, &
Service.”
Packaging: The pump packaging is
reusable.
Package Contents: Vista basic
Infusion Pump, drop sensor, power
cable, pole clamp, Instructions for
Use.

Vista™basic Contents
Vista™basic Instructions for Use 2/25
950787 Rev 6/02
CONTENTS
Warranty..................................................................................... 1
Warnings & Cautions.................................................................. 3
Introduction ................................................................................ 5
Preparing the Infusion ................................................................ 7
Continuous Mode ....................................................................... 8

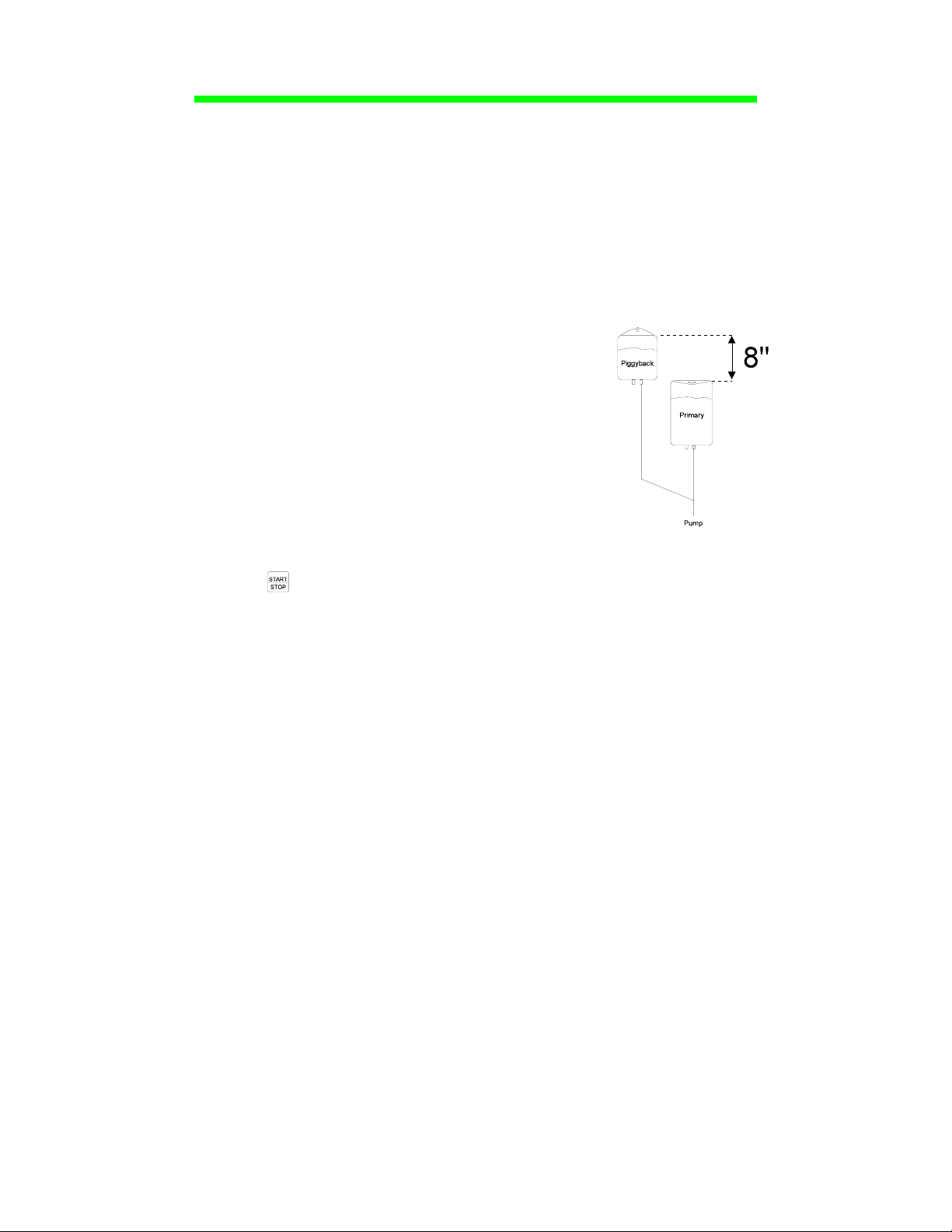

Options: Piggyback.......................................................................... 11
Ramp/Taper Mode ............................................................ 12
Program Mode ............................................................ 14
Delay A Mode ................................................................... 15
Dosage Calculation........................................................... 16
Bolus Mode, Interval Bolus (Intermittent Mode)................ 17
Total Infused, Standby ................................................. 18
Occlusion Pressure, Drop Sensor, Battery ....................... 19
Data Lock, Contrast Selection .......................................... 20
Adjust Clock, Loudness .................................................... 21
Alarms ........................................................................................ 22
AC, 12V, Battery, & CC Interface ............................................... 23
Maintenance, Storage, & Service............................................... 24
Specifications ............................................................................. 25
The Vista basic is a volumetric infusion
pump intended to provide accurate and
continuous flow of parenteral and
enteral fluids.
Qualified medical staff should decide
how the device should be used based
on its features and specifications.
For more details, please read the
Instructions for Use.
Rx only.

WARNINGS & CAUTIONS
Vista™basic Instructions for Use 3/25
950787 Rev 6/02
The following should be observed to avoid patient/user injury. This Instructions
for Use manual contains detailed instructions and warnings on the use of the
Vista™basic Infusion Pump. Please read it completely prior to using this device.
This manual is intended to reinforce the teaching given to the user by a trained
health care professional or an authorized B. Braun representative.
WARNINGS
♦B. Braun will assume no
responsibility for incidents which
may occur if the product is not used
in accordance with product labeling.
♦Make sure the pump is stable, either
fastened securely to the IV pole or
resting on a flat surface.
♦Prior to use, always check the
audible and visual alarms (and staff
call, where applicable).
♦Connection of pump tubing to the
patient should only be made after
the tubing is loaded and the unit is
turned on. Disconnect tubing from
patient when changing solution
containers to avoid the danger of
incorrect dosage.
♦Ensure there are no kinks in the
tubing.
♦Always read and follow the
instructions that accompany the
source container and IV
administration sets you are using.
Carefully follow the instructions for
loading, removing, and reloading the
set, as well as the recommended set
change intervals.
♦Change pumping section on tubing
every 24 hours. Do not use tubing
for more than 72 hours or per
current facility protocol.
♦Always check pump data prior to
starting infusion.
♦Do not operate this device in
environments where there is an
explosion hazard! A possible
explosion hazard exists if the pump
is used in the presence of
flammable anesthetics.
♦The EMC-limits (Electro-magnetic
compatibility) according to IEC/EN
60601-1-2 and IEC/EN 60601-2-24
are maintained. If the equipment is
operated near other equipment
which may cause high levels of
interference (e.g. HF surgical
equipment, nuclear spin tomography
units, mobile telephones, etc.)
maintain the recommended
protective distances for these
devices. Under certain conditions,
malfunctions may occur which lead
to a device alarm with permanent
alarm tone. Interference may occur
e.g. at electro-magnetic fields > 10
[V/m] resp. electro-magnetic
discharges > [8 kV].
♦Monitoring of the patient and
infusion status is necessary to
ensure the infusion is being
delivered as anticipated. The Vista
basic has been designed to stop
fluid flow to the patient under certain
alarm conditions. Also, prior to
starting an infusion, verify that no
drops are falling in the drip chamber
and the programmed information is
correct.

WARNINGS & CAUTIONS
Vista™basic Instructions for Use 4/25
950787 Rev 6/02
♦After starting an infusion, make sure
drops are falling in the drip chamber.
If no drops are falling, make sure the
roller clamp is open. If the roller
clamp is open and still no drops are
falling, replace and dispose of the
set.
♦The air detector cannot recognize
the introduction of air at 3-way
stopcocks, infusion ports, and other
lines/tubes below the pump.
♦See section entitled “Drop Sensor”
for additional information on using
the device without a drop sensor.
♦To avoid mechanical or electronic
damage, do not steam autoclave or
immerse the pump in any fluids or
cleaning solutions. Always
disconnect electrical power cord
from outlet before cleaning to
prevent electrical shock.
CAUTIONS
♦Rx only.
♦Do not attempt to infuse two fluids
simultaneously using the Vista™
basic.
♦Variations in pressure, e.g. caused
by change in level of fluid container,
may affect the accuracy of the
device.
♦If several pieces of infusion
equipment are connected together,
it is possible there may be mutual
influence. Possible incompatibilities
can be found in the instructions for
use for the drug or for the other
appliances.
♦Use only equipment, accessories,
parts, and disposables that are
intended for use with the Vista
basic.
♦Do not clean, disinfect, or sterilize
any part of the device by autoclaving
or with ethylene oxide gas. Doing
so may damage the device and void
the warranty. Only external parts of
the pump should be disinfected.
See “Maintenance, Storage, &
Service” for suggested cleaning
solutions.
♦Technical specifications are not
guaranteed with any other tubing
than that approved for use with the
Vista basic.
♦Any analog and digital components
connected must demonstrate that
they meet EN specifications (i.e. EN
60950 for data processing
equipment and EN 60601 for
electrical medical equipment).
♦Only an authorized system
configuration technician responsible
for meeting the specifications of
standard EN 60601-1-1 may
connect additional devices to the
signal inputs or outputs.
SAFETY STANDARD
The Vista basic meets all safety
standards for medical electrical devices,
corresponding to IEC 60601-1 and IEC
60601-2-4.
NOTE: IEC 60601-1 corresponds to
European Standard EN 60601.

INTRODUCTION
Vista™basic Instructions for Use 5/25
950787 Rev 6/02

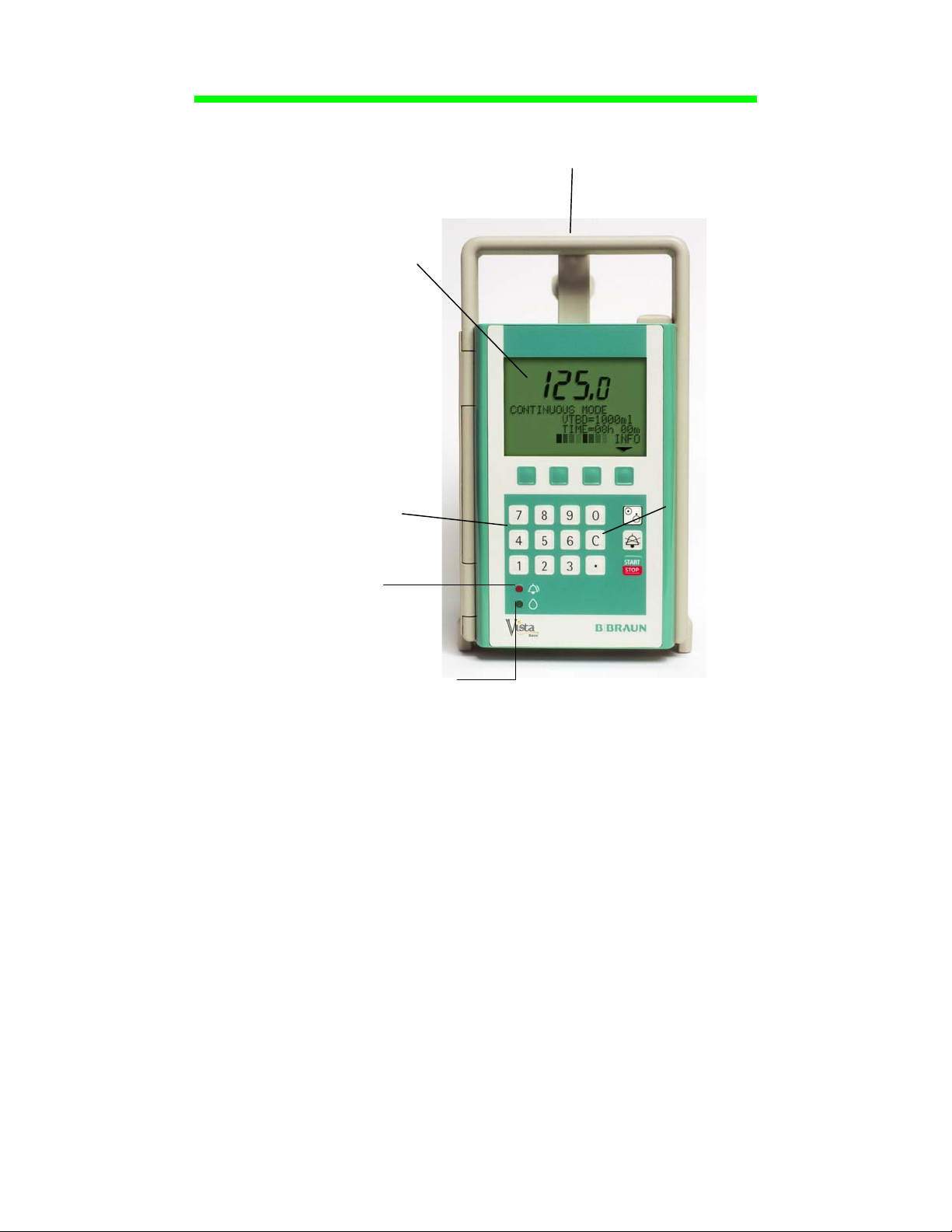

Handle for carrying
Display
All essential information is
displayed in plain language.
Green background lighting
illuminates only when
connected to AC power, or, in
battery operation, only when a
key is pressed.
Keyboard
Allows data entry
Clear Key
Resets a
value to
zero
Alarm Light
Lights up during an alarm.
Display will also show
flashing AAA.A.
Infusing Light
Indicates pump is infusing

INTRODUCTION
Vista™basic Instructions for Use 6/25
950787 Rev 6/02

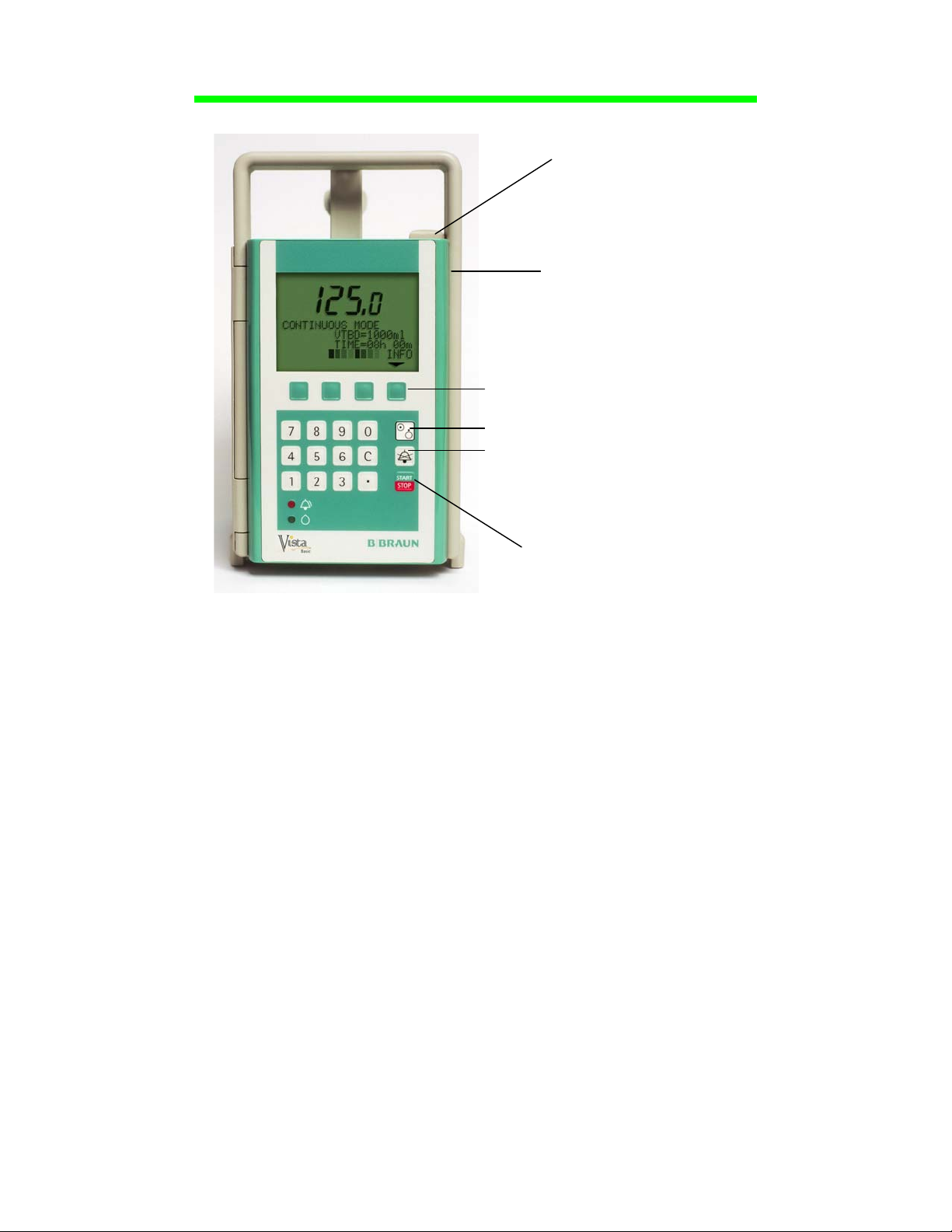

Door Open Button
Aluminum Case
Easy upkeep, drip proof, and
resistant to disinfectants
Function Keys
Allow choices of YES, NO, OK,
INFO, OPTS, etc.
ON/OFF
(
Power
)
Ke
y
Alarm Silence Key
Silences alarm tone for 2
minutes
START/STOP Ke
y

PREPARING THE INFUSION
Vista™basic Instructions for Use 7/25
950787 Rev 6/02
Prepare the Pump
1. Check for cleanliness, completeness, and damage. If unit appears
damaged, do not use it.
2. Attach the pump to an IV pole by turning the knob on the pole clamp
clockwise, or place the pump on a flat, stable surface.
3. Plug the pump’s power cord into an electrical outlet.
Turn on the Pump
1. Press (ON/OFF).
2. Listen for 3 loud beeps.
3. Check screen for completeness of all pixels on the display. The Alarm ()
and Infusing (6) lights will blink once.
Load the Set
1. Prepare the solution container and prime the administration set according to
the instructions provided on the set package. Close the roller clamp.
2. Check that the drip chamber is about 1/3 full
and there is no air in the set.

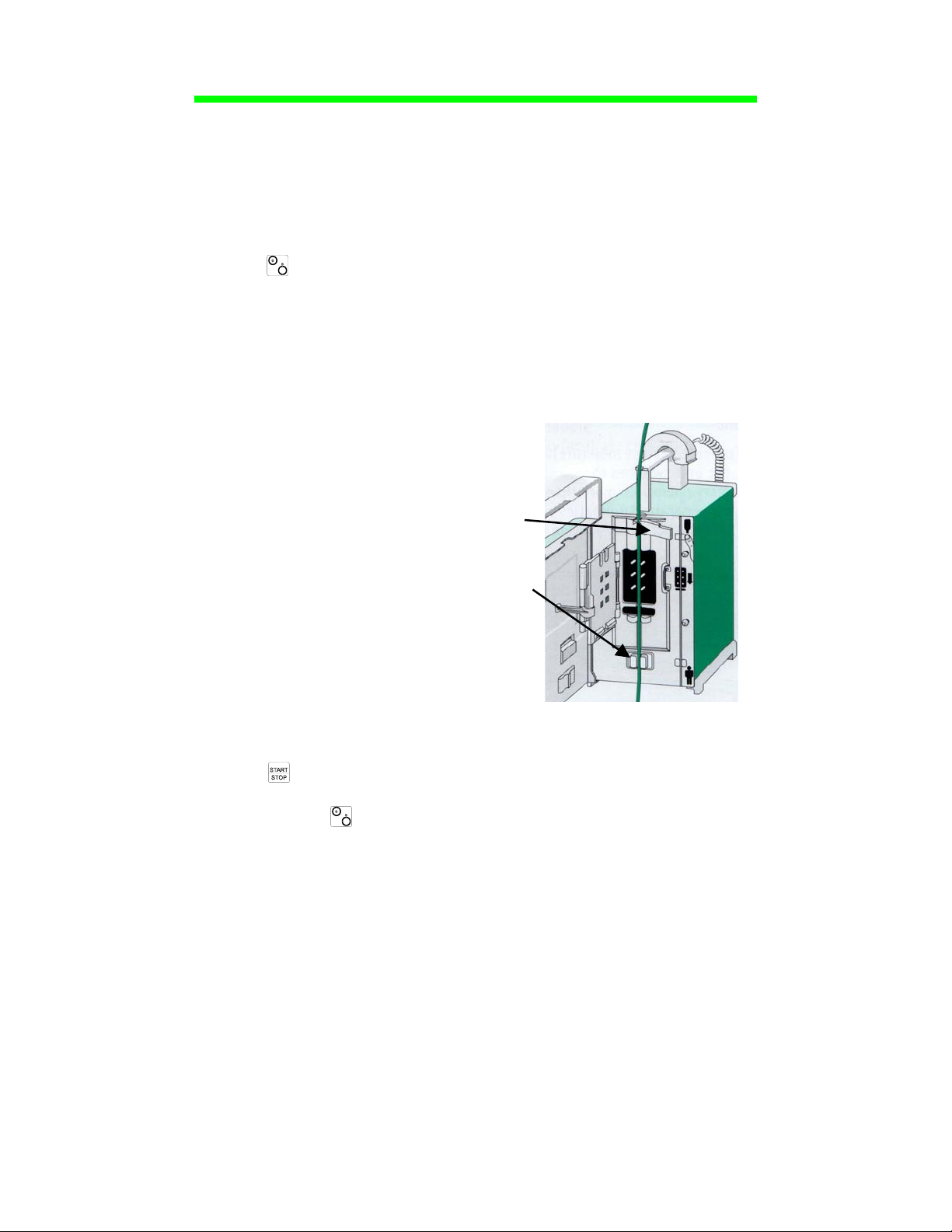

3. Open the pump door by pressing the Door
Open Button on the top right corner of the
pump.
4. Push and hold open the clamp at the top of
the fluid path.
5. Insert tubing in clamp and release clamp.
6. Thread the tubing down the fluid path, making
sure the tubing is pressed into the Air-in-Line
detector at the bottom of the fluid path. The
roller clamp should be below the pump.
7. Close the door and open the roller clamp.
Check that no drops are falling in the drip
chamber.
8. Place drop sensor on drip chamber (optional).
9. Connect set to patient site.
Turning off the Pump
1. Press to stop the infusion.
2. Close the roller clamp.
3. Press and hold for 2 seconds.

Continuous Mode
Vista™basic Instructions for Use 8/25
950787 Rev 6/02
When the pump is turned on, it may display: Tubing Type VISTA Pump Set
Confirm you are using a Vista™ Pump Set, then press YES.
The pump may then display: Is This a New Therapy?
YES
Begins in Continuous Mode with all
data cleared.
NO
Returns to the beginning of the last
program with all data retained.
The pump may then display: Prime Set?
YES
Press YES to begin priming set.
•Press STOP to end priming.
•Press EXIT to begin Continuous
Mode.
NO
Begins in Continuous Mode with all
data cleared.
Press the green key below your
answer.
YES
Press YES to begin priming set.
•Press STOP to end priming.
•Press EXIT to return to the
beginning of the last program with
all data retained.
NO
Returns to the beginning of the last
program with all data retained.
CONTINUOUS MODE
This section explains how to program a Continuous Mode infusion. For
directions on how to program other Modes and Options, refer to those sections
later in this manual.
There are three ways to enter infusion data in Continuous Mode:
RATE and VTBD (Volume To Be Delivered)
1. Enter rate in ml/hr.
2. Press VTBD (Volume To Be Delivered).
3. Enter bag volume in ml.
4. Press OK. (To leave screen without saving changes, press EXIT.)
5. Press to begin the infusion. Check for drops in the drip chamber.

Continuous Mode
Vista™basic Instructions for Use 9/25
950787 Rev 6/02
VTBD and TIME
1. Press VTBD.
2. Enter bag volume in ml.
3. Press OK. (To leave screen without saving changes, press EXIT.)
4. Press TIME.
5. Enter infusion time in hours and minutes.
NOTE: For a 2 hour infusion, enter 2, 0, 0. The pump will show: Time: 02h00m
6. Press OK. (To leave screen without saving changes, press EXIT.) The
pump calculates the rate and asks: Accept Rate?
7. Press OK.
8. Press to begin the infusion. Check for drops in the drip chamber.
RATE and TIME
1. Enter rate in ml/hr.
2. Press TIME.
3. Enter infusion time in hours and minutes.
4. Press OK. (To leave screen without saving changes, press EXIT.)
5. Press to begin the infusion. Check for drops in the drip chamber.
To Change the Rate
1. Press to stop the infusion.
2. Press . The display will reset to 000.0 ml/h.
3. Enter a new rate.
4. Press to begin the infusion. Check for drops in the drip chamber.
To Change the Rate While Infusing
1. Enter a new rate.
2. Press OK.
NOTE:If the OK key is not pressed within 10 seconds of the change, the infusion will
continue at the old rate.

Continuous Mode
Vista™basic Instructions for Use 10/25
950787 Rev 6/02
KEEP VEIN OPEN RATE
After an infusion is complete, the pump will alarm and begin pumping at 1.0 ml/hr
or the current infusion rate, whichever is less.
1. Stop the infusion.
2. Turn off the pump or reset the program.
INFORMATION KEY
This key is only available while the pump is infusing.
1. Press INFO.
2. The Total Infused value and the Total Time of the infusion completed are
displayed.
3. Press INFO again and the Battery Left and Total Operation time of the pump
is displayed.
4. The pump will return to the main infusion screen after 10 seconds.

OPTIONS Piggyback
Vista™basic Instructions for Use 11/25
950787 Rev 6/02
The Vista™basic contains many options to allow custom programming. To
access the various options, press OPTS while the pump is stopped. Pressing
OPTS each time will move you to the next option. Eventually, the OPTS key will
bring you back to the mode from which you began.
Depending on the model, some modes/options may have been disabled and will
not appear on the display when the OPTS key is pressed.
PIGGYBACK
The Piggyback feature allows programming of a secondary (Piggyback) infusion.
The pump automatically switches from the Piggyback to the Continuous Mode
infusion when the Piggyback program is complete. The option is only available if
there is data in the Continuous Mode.
1. Connect the Piggyback set to the injection site on the
tubing above the pump on the primary set. Open the
roller clamp on the Piggyback set.
2. Hang the Piggyback solution container at least 8 inches
above the primary solution container.
3. Program the continuous infusion in the Continuous Mode
(see “Continuous Mode”).
4. Press OPTS.
5. Press ON to turn the Piggyback feature on.
6. Press END. PIGY will now be displayed in the lower left corner.
7. Press PIGY.
8. Enter the Piggyback infusion data as you would Continuous Mode data.
9. Press to start the Piggyback infusion.
10. Check that drops are falling in the Piggyback drip chamber.
CAUTION:Do not attempt to infuse both Continuous and Piggyback fluids at the same time. Use
primary sets with check valves.
NOTE:To prevent incorrect delivery, the programmed Piggyback volume to be delivered must equal
the amount of fluid in the Piggyback container. Automatic Piggyback is not intended for the infusion
of fluids requiring flushing before and after administration.
NOTE:If the Piggyback container is not empty, the remaining Piggyback fluid will be delivered at the
Continuous Mode rate once the pump transitions back to the Continuous Mode.

OPTIONS Piggyback, Ramp/Taper Mode
Vista™basic Instructions for Use 12/25
950787 Rev 6/02
To Exit Piggyback
1. Press to stop the infusion.
2. Press END.
3. Press OPTS.
4. Press OFF to turn Piggyback off
5. Press END to return to Continuous Mode.
RAMP/TAPER MODE
The Ramp/Taper Mode is designed to deliver infusions, such as Total Parenteral
Nutrition (TPN), which require gradual ramp up and taper down rates. The pump
automatically calculates the rate changes required to match the volume, total
time, and ramp/taper time parameters.
1. Press OPTS until display shows RAMP TAPER MODE.
2. Press ON.
3. Enter the total bag VOLUME to be delivered.
4. Press OK.
5. Enter the RAMP UP time, in hours and minutes.
NOTE:The pump defaults to 01h00m. To change, press , and enter the time.
6. Press OK.
7. Enter the TAPER DOWN time, in hours and minutes.
NOTE:The pump defaults to 01h00m. To change, press , and enter the time.
8. Press OK.
9. Enter the TOTAL Time for the infusion.
10. Press OK
Note:The pump calculates the maximum rate and asks: Accept Rate?
11. Press OK.
12. Press to start the infusion. Check for drops in the drip chamber.
To Review or Change Ramp/Taper Mode Data
1. Press OPTS until display shows RAMP TAPER MODE.
2. Press ON.
3. Review the data on each screen and press OK if data is correct or press
to clear the current data and re-enter new data. Press OK to accept
new data.

OPTIONS Ramp/Taper Mode
Vista™basic Instructions for Use 13/25
950787 Rev 6/02
To Clear Ramp/Taper Mode
1. Press OPTS until display shows RAMP TAPER MODE.
2. Press CLR.
3. Press YES to clear all the data in Ramp/Taper Mode.
4. Press ON and continue to program a new Ramp/Taper program.
To Exit Ramp/Taper Mode
1. When infusion is complete, press to stop the KVO.
2. Press EXIT.
3. Press END to return to Continuous Mode.
Fast Taper
The infusion can be interrupted to begin an early taper down process during the
Ramp/Taper Mode Infusion.
1. Stop the infusion.
2. Press FAST.
3. Enter the FAST Taper Time in hours and minutes.
4. Press OK.
5. Press to start the infusion. Check for drops in the drip chamber.

OPTIONS Program Mode
Vista™basic Instructions for Use 14/25
950787 Rev 6/02
PROGRAM MODE
Program Mode is for infusions requiring up to 9 separate rates and volumes to be
delivered one after another. This is designed to deliver infusions for stepped
oncology drugs, circadian medication delivery, and other custom programs.
1. Press OPTS until display shows PROGRAM MODE.
2. Press ON.
3. Enter the rate of the first Step.
4. Press OK.
5. Enter the volume of the first Step.
6. Press OK.
7. Continue to enter the rates and volumes for Steps 2-9.
8. If less than 9 Steps are needed, press OK with a rate of zero.
9. Press OK to accept the total Program Volume.
NOTE: Pressing CHNG on this screen returns to Step 1 for review and changes.
10. Press to start the infusion. Check for drops in the drip chamber.
To Review or Change Program Mode data
1. Press OPTS until display shows PROGRAM MODE.
Note:If Program Mode is infusing, stop the infusion and press EXIT.
2. Press ON.
3. Review the data on each screen and press OK if data is correct or press
to clear the current data and re-enter new data. Press OK to accept
new data.
4. OR, press CHNG on Accept Program Volume screen (see #9 NOTE above).
To Clear Program Mode
1. Press OPTS until display shows PROGRAM MODE.
Note:If Program Mode is infusing, stop the infusion and press EXIT.
2. Press CLR.
3. Press YES to clear all the data in Program Mode.
4. Press ON and continue to program a new Program.
To Exit Program Mode
1. When infusion is complete, press to stop the KVO.
2. Press EXIT.
3. Press END to return to Continuous Mode.

OPTIONS Delay A Mode
Vista™basic Instructions for Use 15/25
950787 Rev 6/02
DELAY A MODE
The start of Continuous, Piggyback, Ramp/Taper, and Program Modes may all
be delayed. The Vista™basic also provides an option to extend the Infusion
Complete alarm at the end of the infusion.
1. Program the infusion.
2. Press OPTS until display shows DELAY A MODE.
3. Press ON.
4. Enter in how many hours and minutes the infusion should begin.
NOTE:This is NOT a clock time like 12:30 pm.
5. Press OK.
6. Enter how long, in hours and minutes, after the end of the infusion the pump
should wait before alarming.
7. Press OK.
8. Press YES if the pump should run at KVO during the delay times. Press NO
if the pump should not infuse during the delay times.
9. Review the data and press OK. To change the data, press EXIT and begin
with #3 above.
10. Press to begin the delayed infusion.
To Exit Delay A Mode
1. Stop the infusion.
2. Press OPTS until display shows DELAY A MODE.
3. Press OFF.
4. Press END to return to the previously active mode.

OPTIONS Dosage Calculation
Vista™basic Instructions for Use 16/25
950787 Rev 6/02
DOSAGE CALCULATION
This feature allows a rate to be calculated given the concentration and dose.
1. Press OPTS until display shows DOSAGE CALC.
2. Press ON.
3. If concentration unit desired is other than the one displayed, press button
under the mcg? until units desired appear in the CONCENTRAT. (0*/ml) line.
4. Enter the concentration of the solution. If the concentration of the solution is
not known, go to #6 below. Press C to clear current data and re-enter new
data.
5. Press OK.
6. To calculate the concentration of the solution, use ←to move the * to the mg
field. Enter the amount of drug in the solution. Then press →to move the *
to the ml field. Enter the amount of solution.
7. Press OK.
8. Enter the body weight if part of the dosing parameters, then press OK. If
body weight is not part of the dosing parameters, press OK with 0 in the body
weight field.
9. If time unit desired is other than the one displayed, press button under the
/h? until time unit desired appears in the first line. Enter the dose or use Æto
move the * to the rate field and enter the rate.
10. Press OK.
11. Press to begin the infusion.
To Review Data During Infusion
1. Press INFO twice.
To Exit Dosage Calculation
1. Stop the infusion.
2. Press OPTS until display shows DOSAGE CALC.
3. Press OFF.
4. Press END.

OPTIONS Bolus Mode, Interval Bolus (Intermittent Mode)
Vista™basic Instructions for Use 17/25
950787 Rev 6/02
BOLUS MODE
This feature allows a bolus to be given during a Continuous Mode infusion.
1. Press OPTS until display shows BOLUS MODE.
2. Press ON.
3. Press RATE.
4. Enter the rate at which the bolus should infuse, then press OK.
5. Press END.
6. To give a bolus during the infusion, press BOL.
7. Enter the amount of bolus to be given in ml.
8. Press OK.
Bolus Without Entering a Volume
1. During the infusion, press BOL and hold down until a second BOL is
displayed to the right.
2. Continue to hold down the first BOL while also pressing the second BOL.
A bolus will be given as long as both BOL keys are held down. The pump
will display the amount of bolus being administered and will beep once after
each milliliter delivered.
INTERVAL BOLUS (INTERMITTENT MODE)
The basal/KVO rate and entire bag volume must be entered in CONTINUOUS
MODE first.
1. Press OPTS until display shows BOLUS MODE.
2. Press ON.
3. Press TIME.
4. Enter the time between the start of each dose, then press OK.
5. Press RATE.
6. Enter the rate at which the dose is to be given, then press OK.
7. Press VTBD.
8. Enter the volume of each dose, then press OK.
9. Press END.
10. Press . The pump will deliver at the basal/KVO rate for the interval time,
then begin delivery of the first dose.

OPTIONS Total Infused, Standby Function
Vista™basic Instructions for Use 18/25
950787 Rev 6/02
TOTAL INFUSED
The Total Infused information screen displays the total amount of fluid in ml that
has been pumped since the last time the Total Infused was cleared.
To Clear the Total Infused
1. Press OPTS until display shows Tot Infused=.
2. Press .
3. Press END.
STANDBY
This function allows the pump to be put on standby while retaining all set infusion
data. This function is only available in Continuous Mode.
1. Press OPTS until display shows STANDBY
2. Press ON.
3. Enter time in hours and minutes the pump is to stand by.
4. Press C to clear the current data and re-enter new data. Press OK to
accept new data.
4. Press OK.
The pump will count down to zero and then alarm Pump Stopped!
To Exit Standby Function
1. Press EXIT to return to Continuous Mode.
Note:If countdown has already started, press END to return to Continuous
Mode.

OPTIONS Occlusion Pressure, Drop Sensor, Battery
Vista™basic Instructions for Use 19/25
950787 Rev 6/02
OCCLUSION PRESSURE
The pressure at which a downstream occlusion alarm will be triggered may be
varied. The higher the pressure limit, the less sensitive the pump is to changes
in fluid resistance.
1. Press OPTS until display shows OCCLUSION PRESSURE.
2. Press (--) to change pressure to Low. Press (+) to change pressure to High.
3. Press END to return to Continuous Mode.
NOTE:Low corresponds to approximately 8 PSI and high to approximately 17 PSI.
High pressure limits may increase the severity of an infiltration without alarming.
DROP SENSOR
Using a drop sensor eliminates the need for pre-setting a VTBD in Continuous
Mode and senses upstream occlusions and empty solution containers.
NOTE: Turning the Drop Sensor feature off forces volumes to be entered and prevents
sensing of upstream occlusions.
To Turn On the Drop Sensor
1. Press OPTS until display shows DROP SENSOR.
2. Press ON.
3. Press END to return to Continuous Mode.
To Turn Off the Drop Sensor
1. Press OPTS until display shows DROP SENSOR.
2. Press OFF.
3. Press END to return to Continuous Mode.
BATTERY CAPACITY
This is an indicator of the remaining battery time in hours and minutes. This
screen also indicates the amount of time the pump has been in operation.
1. Press OPTS until display shows Battery Left =.
2. Press END to return to Continuous Mode
