1. This child seat must be used with a harness system suitable for
children of 9kg to 18kg in weight (approx. 9 months to 4 years of
age).
2. This child seat can be used without harness for children of 15kg to
36 kg (approx. 4 years to 12 years of age).
3. Please read these instructions carefully for proper installation;
incorrect installation could cause serious injuries. In this case, the
manufacturer shall not be held liable.
4. This child safety seat is only suitable for vehicles fitted with a
3-point safety belt, approved under European standards (UN/
ECE 16 or equivalent regulation). Under no circumstances shall this
seat be fitted only with a 2-point lap belt.
5. In no event shall this seat be fitted in the front seat rearwards
(opposite to direction of travel) whenever an airbag is active.
6. Do not use this seat without its cover and harness pads.
7. Fitting the child with warm clothing into this safety seat may
reduce the effectiveness of the restraint system.
8. Protect this seat from direct sunlight, since it may become hot and
injure the child.
9. When damaged or improperly used, replace the seat or the
harness components.
Child restraint system
WARNING
Please read this Instructions Manual BEFORE fitting the child seat
and keep it for future reference.
IMPORTANT INFORMATION
Please read the following
instructions carefully before
installing the product.

19www.babyauto.com
10. Do not leave heavy objects within the vehicle since these may
injure the child in the event of an accident.
11. Check that the buckle is properly fastened. It is important that
in the event of an emergency the child can be released quickly.
12. Make sure the seat does not become caught by the vehicle´s
door or reclining seat. Likewise, check that the seat is properly
and sufficiently fitted.
13. Never try to remove, change or add pieces to the seat or harness
since their basic and security functions may be seriously
affected.
14. Always fasten this safety seat into the vehicle with the seat belt,
even when not in use. Never leave your child unattended when
seated or not.
15. Contact our Customer Service for any question about installing
this child safety seat: [phone].
16. Please keep this safety seat away from corrosive products.
17.The manufacturer guarantees the quality of its products but not
the quality of second-hand products or those registered under
other trademarks.
Group 1/2/3
Correct installation /
proper
Incorrect installation /
improper
3-point lap and
diagonal seat belt
2-point lap seat belt
Only suitable for this
particular seat WHEN having
a lap and diagonal seat belt
(3 anchor points)
Optional installation
1. USE IN VEHICLES
EN

20 NICO

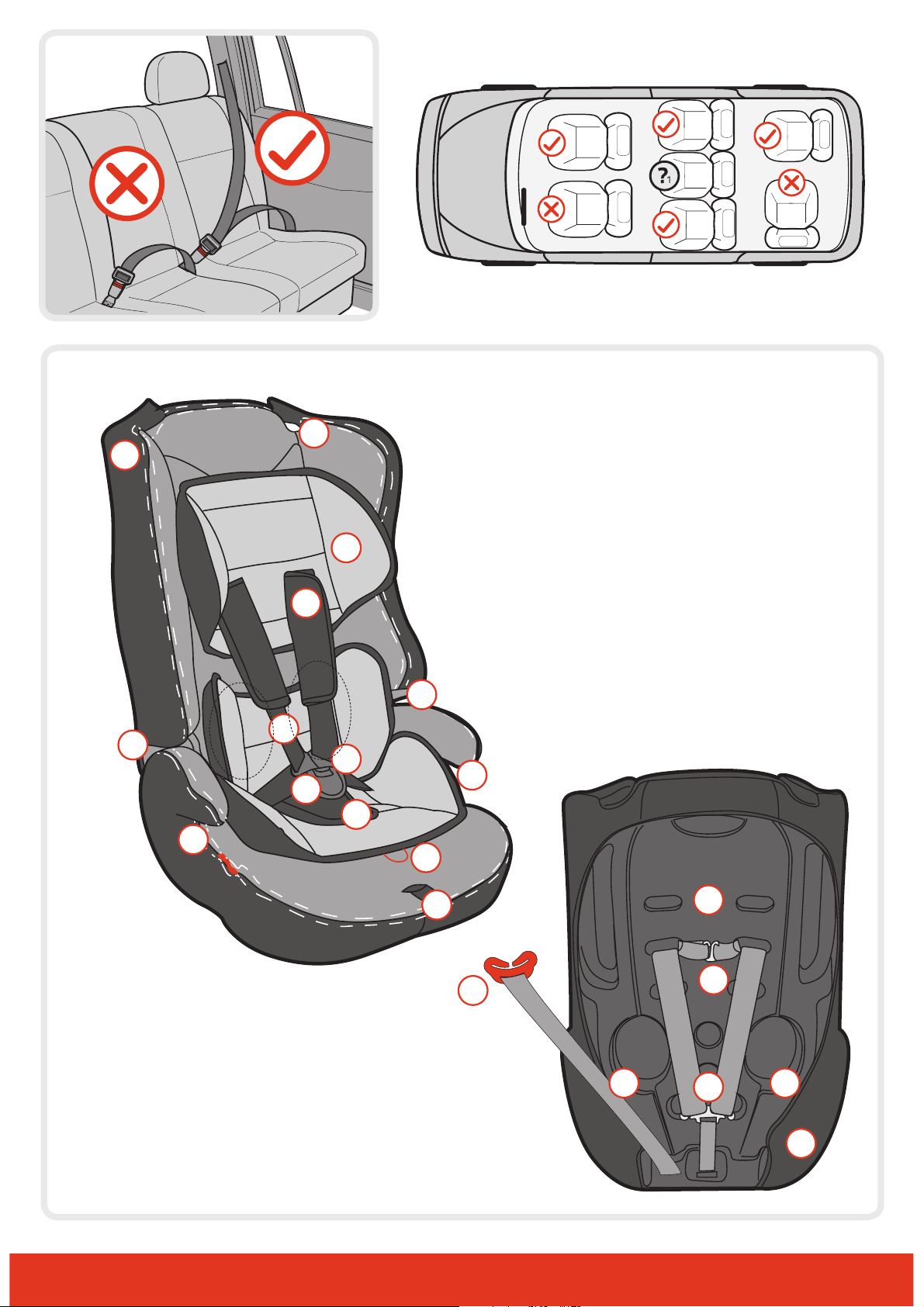

A. Diagonal belt hook.
B. Group 1 Ergo seat cushion
C. Harness pads.
D. Harness straps.
E. Abdominal belt hook.
F. Locking buckle.
G. Buckle release-button.
H. Buckle pad.
I. Abdominal belt hook.
J. Harness adjustment button.
K. Harness adjuster strap.
L. Height adjuster lever.
M.Harness pad connector.
N. Group 1 Abdominal belt hook
O.Metal harness connector.
P. Cover.
Q. Best height adjuster (15-36 Kg.)
2. SEAT PARTS AND FITTINGS
3. INSTALLING CHILD SEAT. GROUP 1.
Only suitable for Group 1, approx. 9
months to 4 years of age (9-18 Kg.)
WARNING

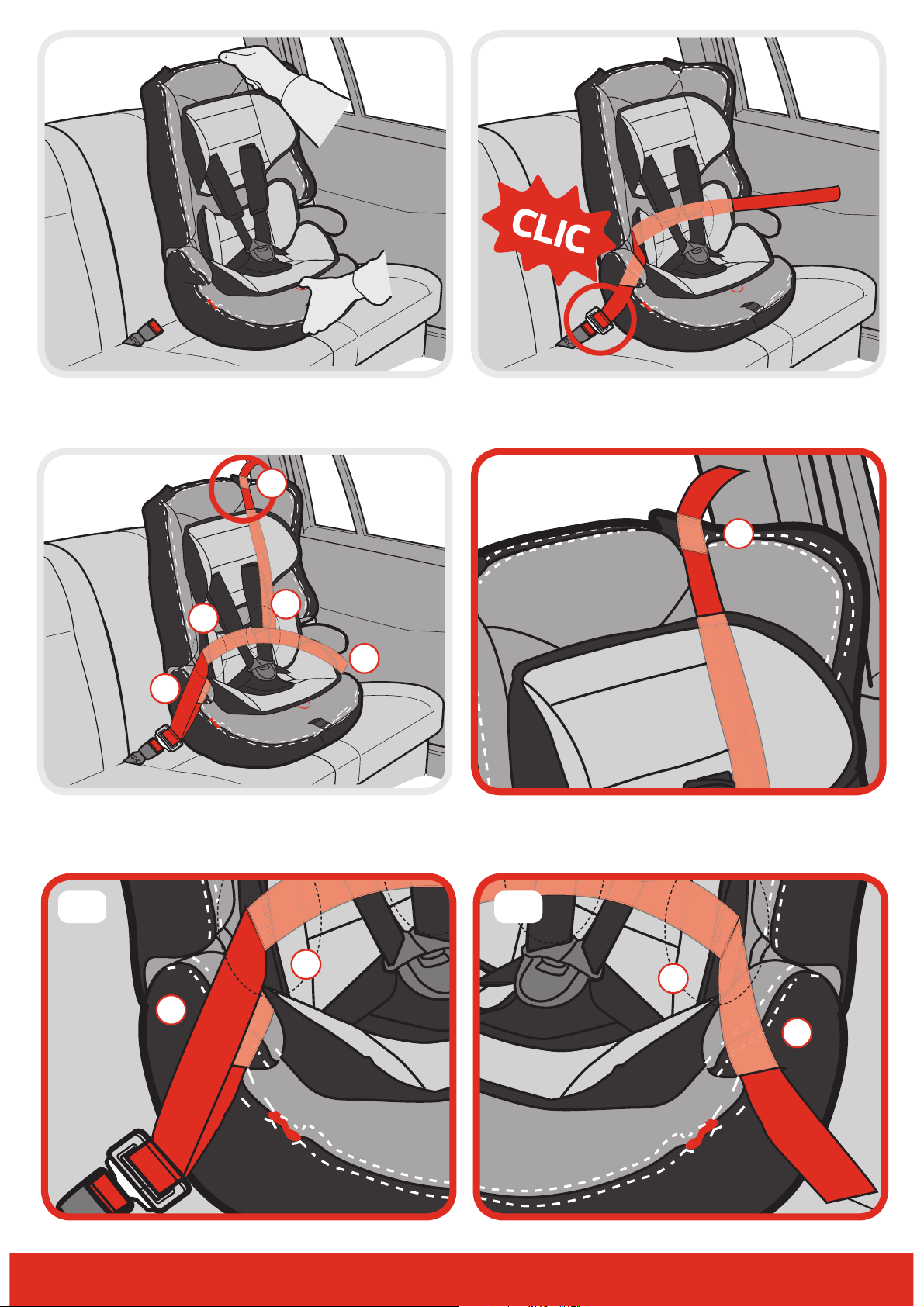

1. Fit this child seat into the vehicle´s seat, making sure it is firmly
pressed against the vehicle seat backrest (3.1).
2. Slip the belt through the Nguides in the plastic backrest. Fasten the
seat belt into the vehicle´s buckle until it “clicks”, making sure the
child seat is properly installed (3.2).
3. Fasten the belt, ensuring that the lap belt goes through Iguide
under the armrest, the diagonal shoulder belt passes through A
guide in the headrest and then over the armrest (3.3, 3.4, 3.5 &
3.6).
4. Place your knee on the seat of the child seat and hold the diagonal
shoulder belt. Pull it upwards to tighten it as much as possible (3.7).
5. Finish tightening the vehicle seat belt by pulling the diagonal
shoulder belt upwards until there is no slack and the child seat is
securely installed (3.8).
Child restraint system

21www.babyauto.com
Ensure that the belt has no slack.
6. Make sure the vehicle’s safety belt is not twisted, also check that
the seat cover does not impede the movement of the vehicle’s
safety belt or prevent the installation of the seat in any way. To
release your child unbuckle the vehicle safety belt as described in
the instructions.
4. HOW TO INSTALL THE CHILD CAR SAFETY SEAT. GROUP 2 & 3.
Use Group 2&3 only from approx.
4 to 12 years of age (15-36 kg)
WARNING

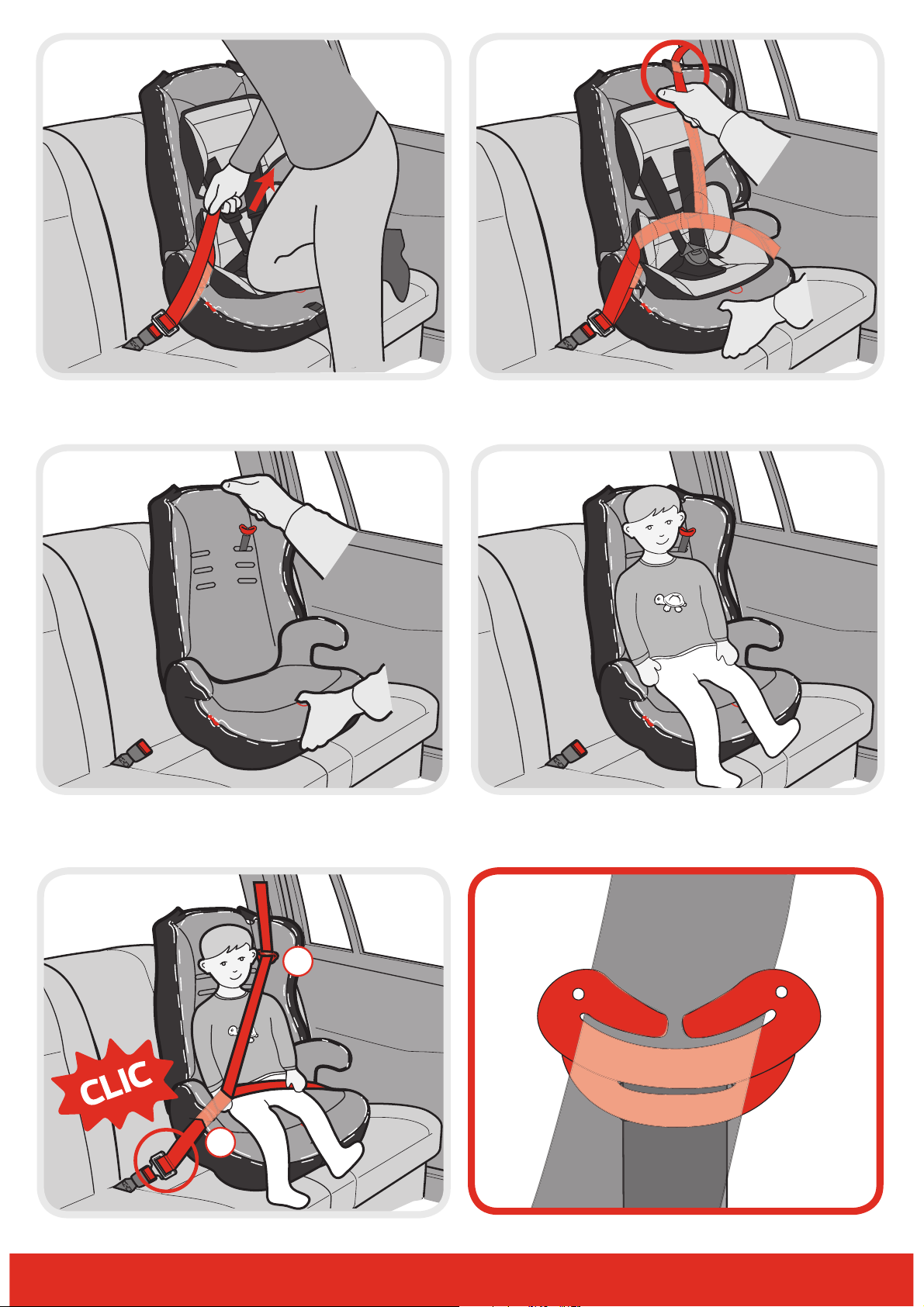

1. Place the child seat on the seat of the vehicle, ensuring it is pressed
firmly against the back of the vehicle seat (4.1).
2. Place the child in the child restraint seat with height adjuster Q at
the child’s shoulders (4.2).
3. Fasten the belt, ensuring that the lap belt goes through the guide
under both armrests and that the diagonal shoulder belt passes
through Qheight adjuster on the childrens shoulder and under the
armrest that is next to the vehicle anchor point. Fasten the seat
belt into the vehicle´s buckle until it “clicks”, making sure the child
seat is properly installed (4.3 y 4.4).
4. Make sure the vehicle’s safety belt is not twisted, also check that
the seat cover does not impede the movement of the vehicle seat
belt or prevent the installation of the seat in any way. To release
your child unbuckle the vehicle safety belt as described in the
instructions.
Before installing the seat it is necessary to remove harness straps,
crotch straps and lap straps (Chapter 6). Subsequently, install the
seat belt height adjustment as shown below.
Ensure that the belt has no slack.
EN
Group 1/2/3

22 NICO

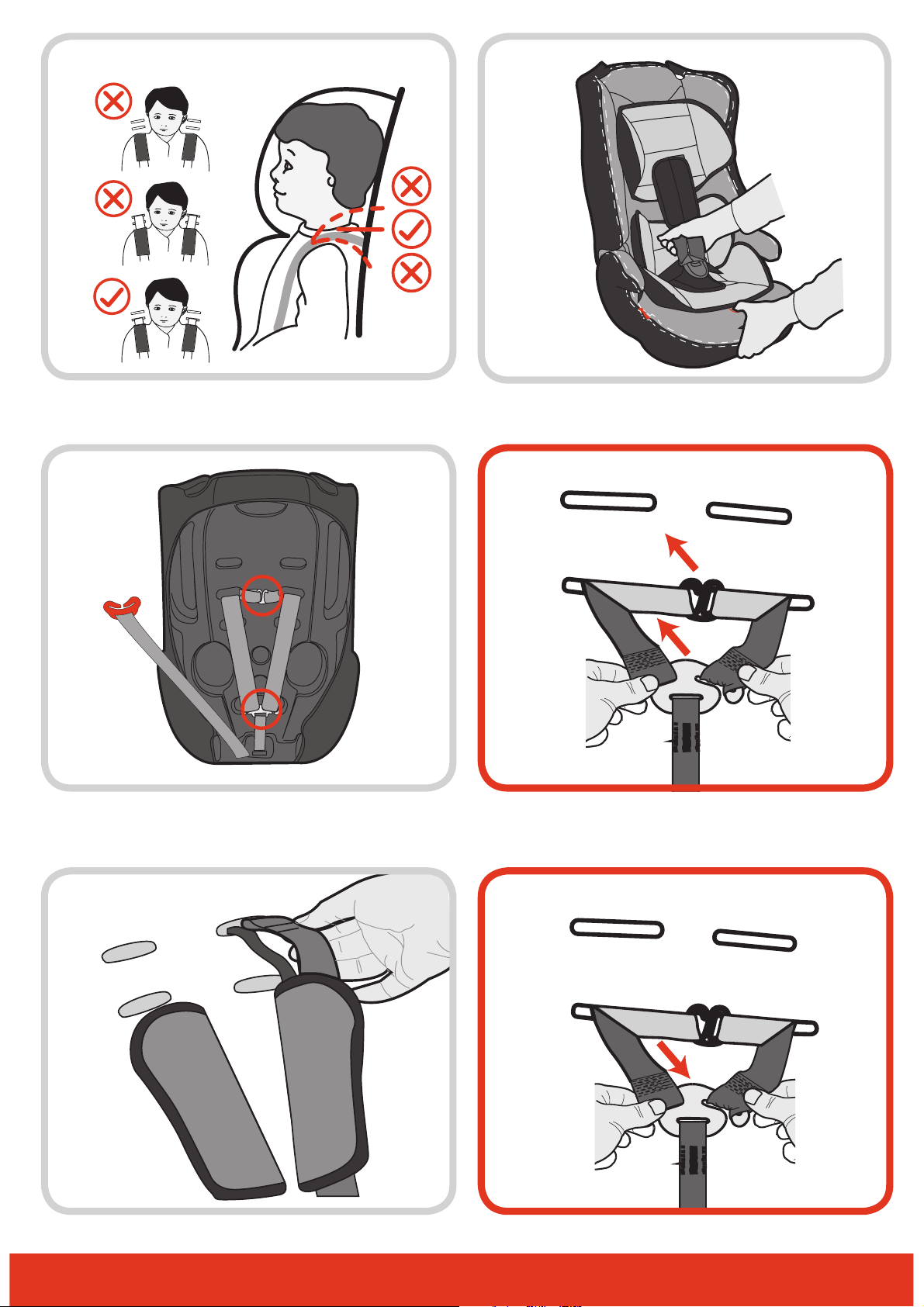

5. ADJUST THE HARNESS TO THE HEIGHT OF THE CHILD.
WARNING
Changing the harness height
1. Adjust the height of the harness, by pressing the harness
adjustment button and pulling the harness straps towards you to
loosen them (5.2).
2. en unhook one of the harness connector straps at the back of
the seat and pull the loose strap towards the front of the seat (5.3
& 5.4).
3. Insert the harness strap into the Lslot of the fabric and backrest
at the front of the seat. en insert the harness strap into the
appropriate upper or lower slot at the rear of the seat (5.5).
4. Reinsert the harness strap in the harness connector on the back of
the seat. At the same time reinsert the harness protective tape to
the harness connector protector (5.6).
5. en, do the same with the other harness strap. Verify that the 2
harness straps go through the slots at the same height. Do not use
the upper guides of the child seat. ese should only be used to
guide the vehicle’s safety belts.
Fastening the harness

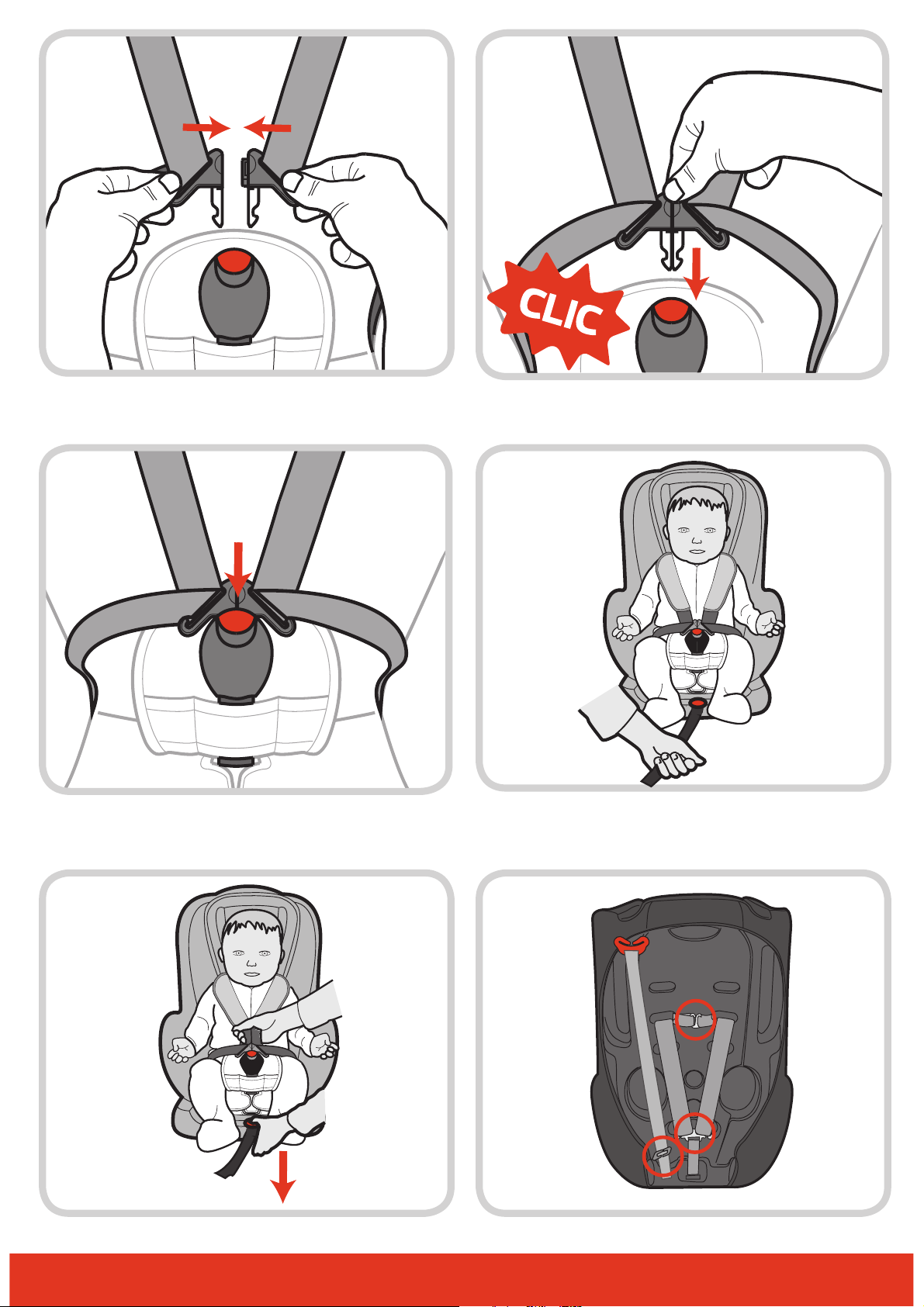

1. Join the 2 buckle metal connectors (5.7).
2. Pass both connectors through the slot in the upper part of the
buckle until you hear a “click” (5.8).
3. Always make sure the harness is properly fastened by pulling the
harness straps upwards.
4. To unfasten the harness press the red button on the buckle
downwards (5.9).
Always check that the harness straps are suitable for the height of
your child. The shoulders of the child should always be just below the
back slots at a suitable height (5.1).
Child restraint system

23www.babyauto.com
Tightening the harness
1. Pull the harness straps up to remove the slack from the lap section
of the harness, then pull the harness regulating strap until the
harness is fully stretched (5.10).
2.e harness should be as tight as possible without causing
discomfort to your child.
3. Make sure the lap section of the harness is positioned as low as
possible, surrounding your child’s hips and not his stomach.
4. A harness that is not properly tightened can be dangerous. Check
the harness adjustment and tighten whenever you put your child in
the child safety seat.
Loosening the harness
1. e harness is loosened by pressing the adjustment button of the
harness (under the seat cover) at the front of the seat. (5.11)
2. Press the lever that is marked with “press” down with one hand
while holding both harness straps with your other hand.
3. Pull the harness straps towards you to loosen the harness.
4. Be careful when adjusting the harness strap not to trap the harness
adjustment strap when you press the button down.
6. SEAT AND HARNESS REMOVAL.

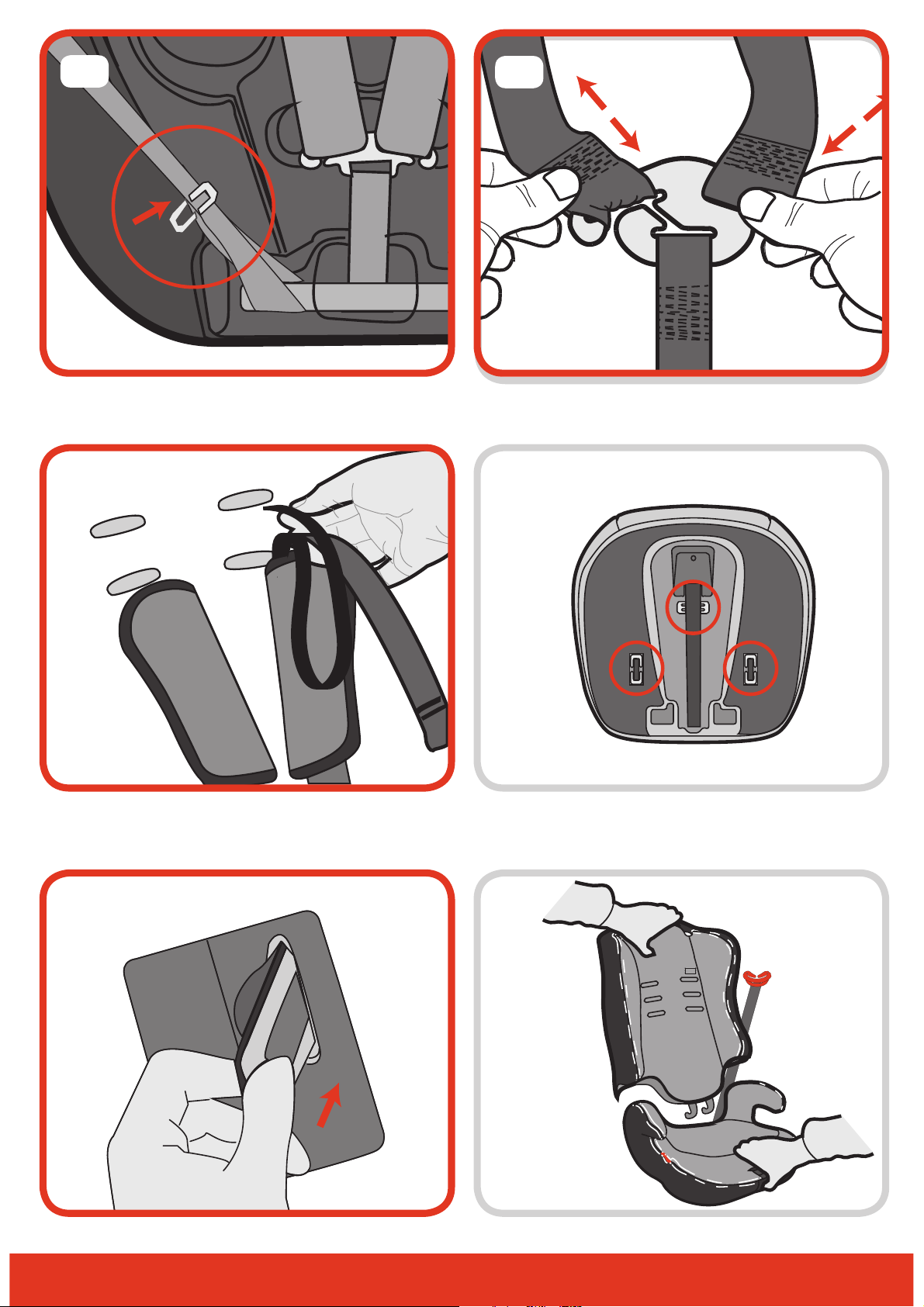

Remove the seat harness
1. Release the height adjustment tape removing it from the mounting
plate (6.1 & 6.2).
2. From the back of the seat, unhook the harness protector connector
tapes and detach the harness from the metal connector of the
harness, pull the connector tape to detach completely from the
seat (6.3 & 6.4).
Remove the cover buckle protector and the lower harness
1. Turn the plate attached to the safety buckle so that they coincide
with the nearest slot and insert into the slots of the seat base and
then pass through the slots in the cover (6.5 & 6.6).
EN
Group 1/2/3

24 NICO
7. CLEANING AND MAINTENANCE
WASHING INSTRUCTIONS:
· e cover is removable and washable at 30º.
Dry in the fresh air only.
· Wash in washing machine (cold).
· Do not use bleach.
· Dry clean, with any solvent except
trichloroethylene.
· Do not use dryer.
· Do not iron.
Remove the backrest cover
1. Release the elastic strap from the seat backrest, slide the cover,
and remove the cover from the backrest. Now you can wash the
covers.
Removing the elevator cover.
1. First separate the backrest from the elevator. Release the elastic
strap and remove the cover. Now you can wash the covers. (7.1)
1. Wash the straps and plastic parts with neutral detergent and
warm water.
2. Ensure that no soap enters the buckle or metal parts.
3. Do not use chemicals or bleach on any part of the chair.
4. Dry thoroughly before use.
If you have any question about using or installing this product, or if you
need a spare part contact our Customer Service.
Cleaning the seat
Child restraint system

25www.babyauto.com
BABYAUTO guarantees its products against all manufacturing faults for
a period of 2 years as of the date of purchas, in accordance with Law
23/2003, of 10 July 2003, relating to Consumer Goods Sale Guarantees.
1.e guarantee does not include defects or disorders produced by
inappropriate use or non-compliance with the installation and
maintenance safety norms described on the instruction leaflets come
with the products.
2.Repairs free of charge for any original defects and for the damages
caused by them.
3.In the event that the repair carried out is not satisfactory and the object
is not in optimum condition to fulfill the use to which it was destined,
the holder of the guarantee will have the right to a substitution of the
article for another of similar characteristics, or to the full refund of the
price paid.
4.e guarantee is considered automatically cancelled if the article
purchased has been repaired, or tried to be repaired, by any person not
authorised by our company.
8. GUARANTEE
EN
Group 1/2/3

www.babyauto.com
BABYAUTO GROUP
Parque Empresarial Zuatzu
Edificio Donosti, 2ª planta Oficina 3
20018 San Sebastián (Gipuzkoa) Spain
t. (00 34) 943 833 013
f. (00 34) 943 833 004
e. [e-mail]
