1Notes to the User
1.1. Scope of this
manual
This manual describes the construction, function and installation of the Balluff Uni-Standard
inductive coupler. It applies to the following models:
Base BIC 1I3-P2A50-M30MI3-SM4ACA and
Remote BIC 2I3-P2A50-M30MI3-SM4ACA (see type designation code)
The manual is intended for qualified technicians. Read this manual before installing or
operating the devices.
1.2. Typographical
Conventions
The following typographical conventions are used in this guide.
Enumerations
Enumerations are shown as a list with preceding dash.
•Entry 1,
•Entry 2.
Actions
Action instructions are indicated by a preceding triangle. The result of an action is indicated
by an arrow.
Action instruction 1
Action result
Action instruction 2
Syntax
Numbers
•Decimal numbers are shown without additional indicators (e.g. 123),
•Hexadecimal numbers are shown with the additional indicator hex (e.g. 00hex).
Cross references
Cross-references indicate where further information on the topic can be found
1.3. Symbols
Attention!
This symbol indicates a security notice which must be observed.
Note
This symbol indicates general notes.
1.4. Abbreviations
BIC
EMC
FE
Balluff Inductive Coupler
Electromagnetic Compatibility
Function Grpound
1.5. Differing views
Product views and images in this manual may differ from the product described. They are
intended to serve only as illustrations.

www.balluff.com
3
2Safety
Important!
Before commissioning, carefully read the operating manual.
2.1. Proper Use
The device is designed to replace a plug connection in order to ensure contact-free energy
transmission.The system must not be used in applications in which the safety of persons is
dependent on the function of the device.
Warranty and liability claims against the manufacturer are rendered void by:
•Unauthorized tampering
•Improper use
•Use, installation or handling contrary to the instructions provided in this operating
manual
2.2. Authorized
Personnel
Installation and commissioning may only be performed by trained specialist personnel.
2.3. Obligations of the
Operating
Company
The operating company must ensure that the locally applicable safety regulations are
observed.The device corresponds to EMC Class A and can cause radio interference. The
operating company must take appropriate precautions to prevent radio interference.
The device may only be used with an approved power supply. (see "Technical Data"). Only
approved cables may be used.
2.4. Malfunctions
In the event of defects and device malfunctions that cannot be rectified, the device must be
taken out of operation and protected against unauthorized use.
2.5. Meaning of the
Warning Notices
The warning notices in this guide and the measures described for avoiding dangers must be
observed.The warning notices contain the following signal words that indicate the severity of
the danger:
•Danger:
Indicates an immediate danger that will result in a severe injury or death of persons if not
observed.
•Warning:
Indicates a potential danger that may result in a severe injury or death of persons if not
observed.
•Caution:
Indicates a potential danger that may result in light injury to persons or damage to
property if not avoided.
•Attention:
Indicates a situation that may result in property damage if not avoided.
When working with this product, the following warning notices apply:
Caution!
Risk of burning on hot surfaces!
The active surface heats up even under normal operating conditions.
Keep away hands and objects from the active surface.
Avoid contact of metal objects on the active surface. Fire hazard
2.6. Certification
With the CE marking, we confirm that our products meet the requirements of EC
directives 2004/108/EC (EMC) and the EMC law.
In our EMC laboratory, which is accredited by DATech for testing electromagnetic
compatibility, evidence has been provided that the Balluff products satisfy the EMC
requirements of the generic standards:
EN 61000-6-4 (Interference emission) and
EN 61000-6-2 (Immunity to interference)

Balluff Inductive Coupler
Base BIC 1I3-P2A50-M30MI3-SM4ACA und
Remote BIC 2I3-P2A50-M30MI3-SM4ACA
Remote BIC 2I3-P2A50-M30MI3-BPX0C-002-M4CA
www.balluff.com
4
3Construction and Function
3.1. Construction
The system is designed for applications with up to 8 sensors. It consists of the following two
components:
•Base (transmitter)
•Remote (receiver)
The components are enclosed in a brass housing protected acc. to IP 67
Sensors
For the standard version of electronic sensors, the following are to be observed:
•Make certain that the total power consumption of the sensor is not greater than that of
the base.
•Only use sensors with a voltage of 24 V DC
Mechanical switches
For the standard version of mechanical switches, the following are to be observed:
•Use switches for small load currents
•Use switches with a residual current I <0.1 mA in the open switching state
•The total resistance of the circuit should be less than 1 kOhm
3.2. Function
This set transfers power from the base to the remote via an air bridge; the base then
receives data back from the remote. The base and remote must match one another with
respect to size.
The sensors are wired to the remote. The remote is only inductively coupled to the base,
however. The base transmits the energy for the sensors to the remote. The signal from the
sensors is transmitted to the base by the remote.
The energy available for the sensors is dependent on the distance and on the offset
between base and remote and is, therefore, limited. For this reason, the total current
consumption of the connected sensors must not exceed the maximum power output of the
remote.
3.3. Features,
Advantages
•The cable length between the remote and consumers is limited depending on the cable
resistance.
•LED indicator on the remote and base for operational readiness and operating voltage
•Angle offset is possible between base and remote
•Simple wiring of e.g. rotary tables, replaceable punch heads etc.
•M12 plug connection on the systems
•Control of capacitive loads
•More power in the same structural shape
•Large operating voltage range
3.4. Display
If the supply voltage is applied correctly, the green LEDs on the base and remote illuminate.
If the green LEDs on the base only flash, the supply voltage is too low.
As soon as the yellow LED on the base illuminates, data transmission is also secured.
As soon as the remote moves out of the secured working range, its green LEDs begin to
flash and the yellow LED on the base switches off.

www.balluff.com
5
4Indication
Base indicators
Indicators
Function
Green –static
Supply voltage OK
Green –flashing
Supply voltage too low
Yellow –off
No connection between base and remote, no data transmission
Yellow –static
Connection between base and remote OK, data transmission
secured
Remote indicators
Indicators
Function
Green –static
Supply voltage OK
Green –flashing
No connection between base and remote, no data transmission
Green LED status indicator "Power on"
Yellow LED status indicator "InZone"
Status indicator –"Power on"

Balluff Inductive Coupler
Base BIC 1I3-P2A50-M30MI3-SM4ACA und
Remote BIC 2I3-P2A50-M30MI3-SM4ACA
Remote BIC 2I3-P2A50-M30MI3-BPX0C-002-M4CA
www.balluff.com
6
5Installation and Connection

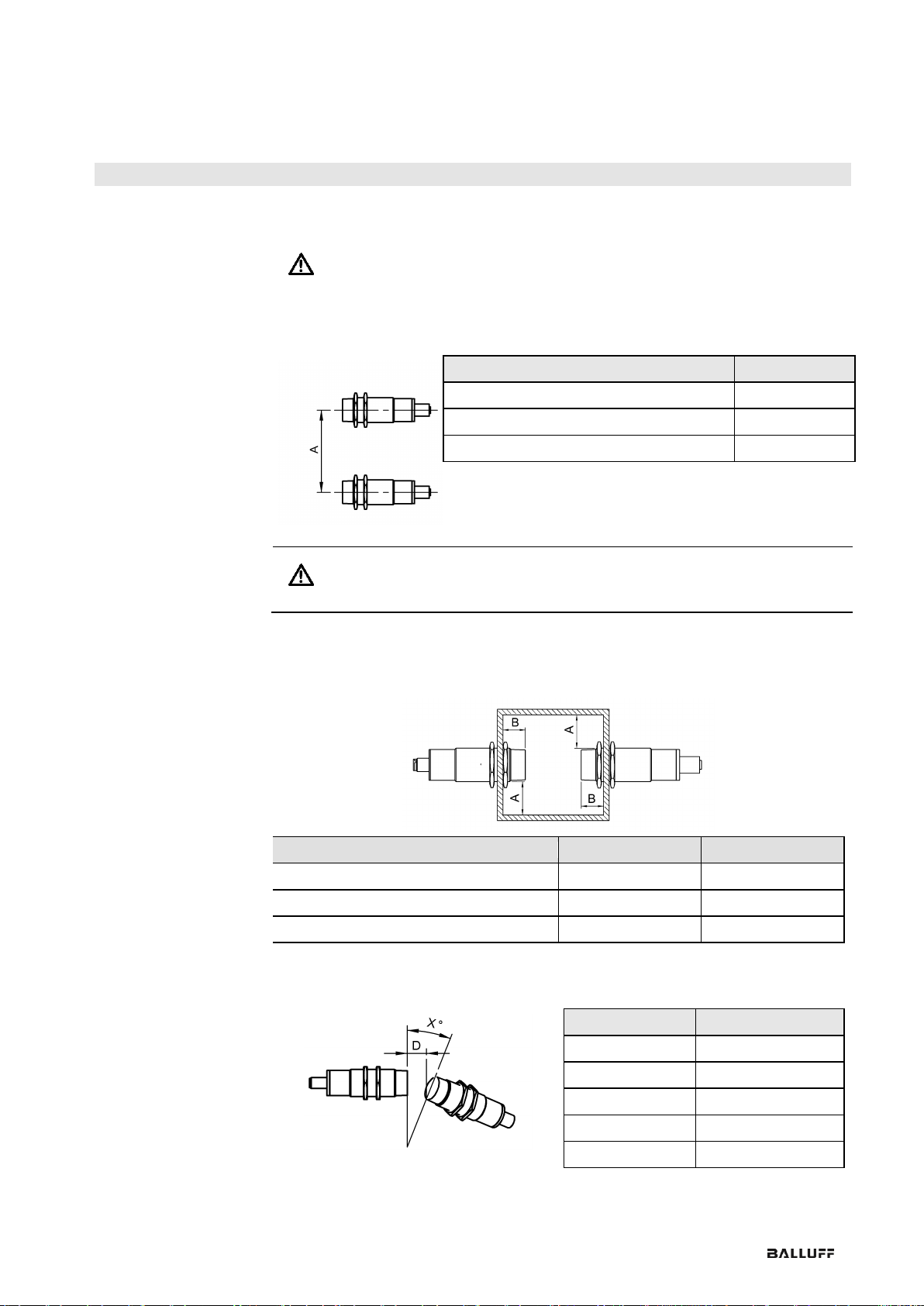

5.1. Mutual
Interference
Attention!
Improper mounting may affect the function of the system and lead to damage.
The spacings specified for installation must be adhered to.
To prevent mutual interference with adjacent bases or remotes, the specified minimum
distances must be adhered to:
Type
A (mm)
BIC 1I3-P2A50-M30MI3-SM4ACA
100
BIC 2I3-P2A50-M30MI3-SM4ACA
100
BIC 2I3-P2A50-M30MI3-BPX0C-002-M4CA
100
5.2. Installation in
Metal
Attention!
Device damage due to induction effects!
Metallic objects on the coil cap cause the objects to be heated.
Install the components so that no metallic objects can collect on the coil cap.
When installing in metal, the specified minimum distances to the surrounding sides of the
metallic object must be maintained. Otherwise, the transmission distance between
transmitter and receiver changes.
The transmission distance can also be influenced by the type of metal.
Type
A (mm)
B (mm)
BIC 1I3-P2A50-M30MI3-SM4ACA
30
20
BIC 2I3-P2A50-M30MI3-SM4ACA
30
20
BIC 2I3-P2A50-M30MI3-BPX0C-002-M4CA
30
20
5.3. Angle Offset
The permissible angle offset ensures proper function, even in difficult installation
conditions:
Distance D (mm)
Angle X
1
18°
2
12°
3
10°
4
5°
5
0°

www.balluff.com
7
5Installation and Connection

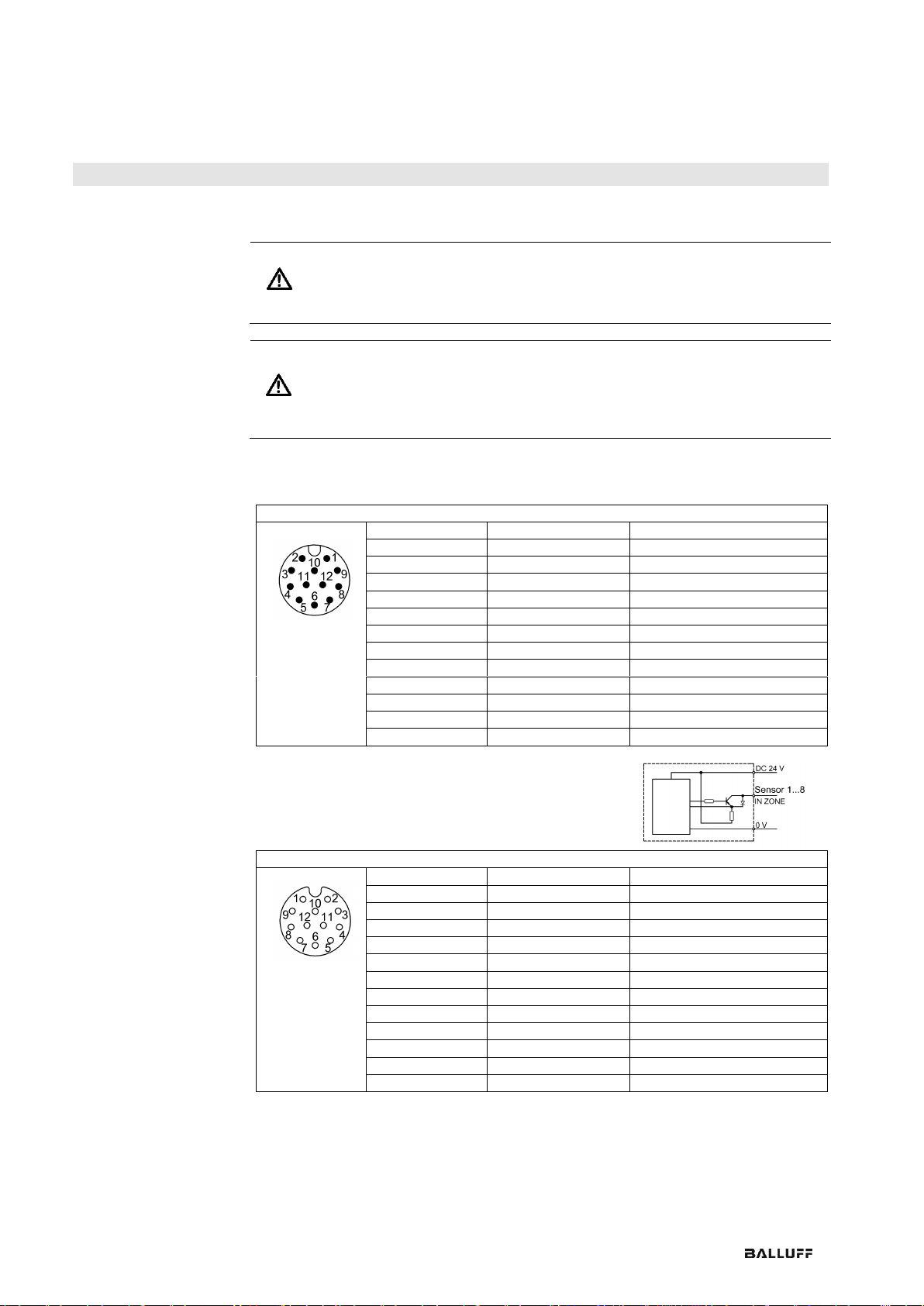

5.4. Connection
Attention!
Device damage due to incorrect voltage supply!
Malfunctions may occur if the ripple is too high or if the output voltage is not
regulated.
Use only approved, regulated voltage supplies.
Attention!
The remote (receiver) may be damaged by voltage spikes if cables that are too
long are used!
To satisfy the EMC requirements, the receiver cable must not be longer than 10 m.
If a longer cable is used nevertheless, take all necessary measures to protect the
receiver from voltage spikes.
Electrical
connections –
base
The base is wired via a "type 2" characteristic acc. to IEC 61131-2.
Power (M12, 12-pin male plug)
PIN
Signal
Meaning
1
+24 V
Input voltage
2
GND
Ground
3
Signal 1
Signal 1
4
Signal 2
Signal 2
5
Signal 3
Signal 3
6
Signal 4
Signal 4
7
Signal 5
Signal 5
8
Signal 6
Signal 6
9
Signal 7
Signal 7
10
Signal 8
Signal 8
11
InZone
12
NC
Not used
Electrical
connections –
remote
The working side functions via a transistor output circuit
with high-side switch and short-circuit protection.
Power (M12, 12-pin female plug)
PIN
Signal
Meaning
1
+24 V
Output voltage
2
GND
Ground
3
Signal 1
Signal 1
4
Signal 2
Signal 2
5
Signal 3
Signal 3
6
Signal 4
Signal 4
7
Signal 5
Signal 5
8
Signal 6
Signal 6
9
Signal 7
Signal 7
10
Signal 8
Signal 8
11
InZone
InZone
12
NC
Not used

Balluff Inductive Coupler
Base BIC 1I3-P2A50-M30MI3-SM4ACA und
Remote BIC 2I3-P2A50-M30MI3-SM4ACA
Remote BIC 2I3-P2A50-M30MI3-BPX0C-002-M4CA
www.balluff.com
8
6Installation and Connection

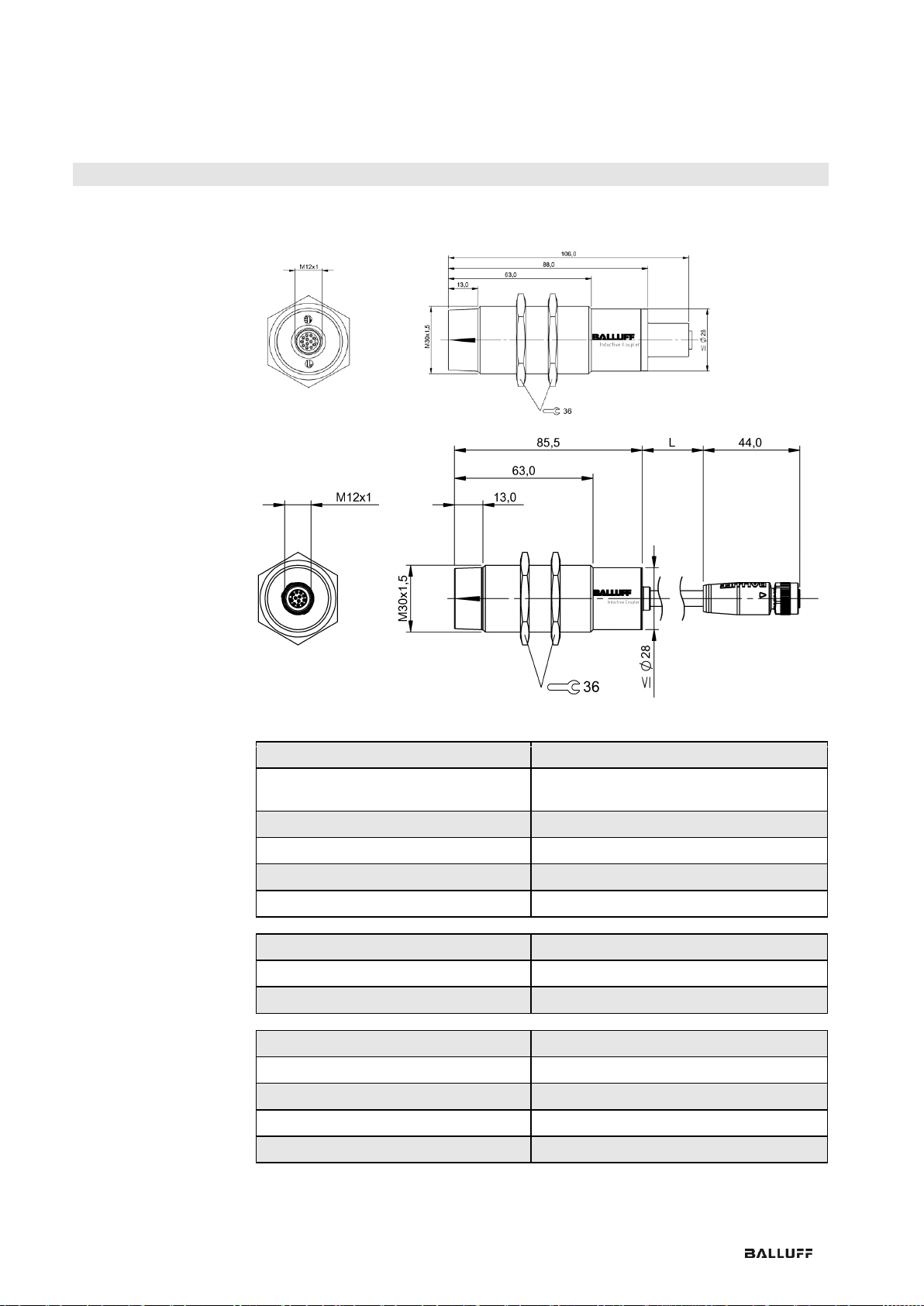

6.1. Dimensions –Base
6.2. Mechanical Data –
Base
Housing material
Brass
Degree of protection per IEC 60529
IP 67 (only in plugged-in and screwed-down state)
Connection type
M12, A-coded
Dimensions (D x L in mm)
M30 X 100
Weight
Approx. 160 g
Tightening torque
70 Nm
6.3. Operating
Conditions –Base
Transmission distance
1…5 mm
Ambient temperature Ta
0 °C…55 °C
Storage temperature
-25 °C…75 °C
6.4. Electrical Data –
Base
Operating voltage
24 V DC +-10% , acc. to EN 61131-2
Operating current at 24 V
Max. 1 A
Standby current
Max. 100 mA
Overload protected
Yes
Operating current per output
50 mA

www.balluff.com
9
7Installation and Connection
7.1. Dimensions –
Remote
Connector
SM4ACA
Cable
BPX0C-002-M4CA
7.2. Mechanical Data –
Remote
Housing material
Brass
Degree of protection acc. to IEC 60529
IP 67 (only in plugged-in and screwed-down
state)
Connection type
M12, A-coded / Cable PUR
Dimensions (D x L in mm)
M30 X 100
Weight
Approx. 160 g
Tightening torque
70 Nm
7.3. Operating
Conditions –Remote
Transmission distance
1…5 mm
Ambient temperature Ta
0 °C…55 °C
Storage temperature
-25 °C…75 °C
7.4. Electrical Data –
Remote
Operating voltage
24 V DC +-5 %
Output current
500 mA
Short-circuit protected
Yes
Output peak current
Max. 800 mA
Operational readiness
< 100 ms

Balluff Inductive Coupler
Base BIC 1I3-P2A50-M30MI3-SM4ACA und
Remote BIC 2I3-P2A50-M30MI3-SM4ACA
Remote BIC 2I3-P2A50-M30MI3-BPX0C-002-M4CA
www.balluff.com
10
8Accessories
8.1. Connectors
PUR
BCC M41C-0000-1A-049-PX0C14-XXX
For base
XXX -> cable length
PVC
BCC M41C-0000-1A-049-VX8C14-XXX
For base
XXX -> cable length
PUR
BCC M41C-0000-2A-049-PX0C14-XXX
For remote
XXX -> cable length
8.2. Mounting
Accessories
BES 30,0-BS-1
BES 30-HW-1
8.3. Passive Splitters
BPI 4M303P-5K-00-SM48T
BPI 8M303P-5K-B0-SM4CT
BPI 4M4A5P-2K-B0-SM6LT
BPI 8M4A4P-2K-B0-SM6CT

www.balluff.com
11
9Type Designation Code
9.1. Type
Designation
Code
BIC 1I3-P2A50-M30MI3-XXXXXX_002-M4CA
Balluff Inductiv Coupler
Base (1) Remote (2)
I3= Input 8-fach
Technology (PNP), variant (24 V),
power class (500 mA)
Housing shape (M30x1,5)
Housing material (M = brass) and length
SM4ACA:
Connector M12, axial
Number of pins and coding
BPX0C:
Cablel PUR, Number of wire
Cable lenght
Pig Tail
Number of wire
9.2. Order Code
Description
Order code
BIC 1I3-P2A50-M30MI3-SM4ACA
BIC0009
BIC 2I3-P2A50-M30MI3-SM4ACA
BIC000A
BIC 2I3-P2A50-M30MI3-BPX0C-002-M4CA
BIC005J

Balluff Inductive Coupler
Base BIC 1I3-P2A50-M30MI3-SM4ACA und
Remote BIC 2I3-P2A50-M30MI3-SM4ACA
Remote BIC 2I3-P2A50-M30MI3-BPX0C-002-M4CA
www.balluff.com
12
Note

www.balluff.com
www.balluff.com
Balluff GmbH
Schurwaldstrasse 9
73765 Neuhausen a.d.F.
Deutschland
Tel.: [phone]
Fax: [phone]
[email protected]
Nr. 885659-726 E •04.130719 •Edition A21 •Replaces Edition K18 •Subject to modification.
