Bauhn ALPB80-0719 User manual

INSTRUCTION MANUAL
Model Number: ALPB80-0719
Low Prole TV Wall Mount
1300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS

21300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
Congratulations on choosing to buy a BAUHN®product. All products
brought to you by BAUHN®are manufactured to the highest standards of
performance and safety and, as part of our philosophy of customer service
and satisfaction, are backed by our comprehensive 1 Year Warranty. We
hope you will enjoy using your purchase for many years to come.
Welcome
Version 1.0

3
1300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
Contents
Welcome 2
Warranty Details 4
General Safety Instructions 5
Product Overview 6
Wall Mounting Instructions 7
Repair and Refurbished Goods or Parts Notice 11

41300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
Low Prole TV Wall Mount
Warranty Details
Register your purchase at www.aldi.com.au/en/about-aldi/product-registration
to stay updated with important product information
The product is guaranteed to be free from defects in workmanship and parts
for a period of 12 months from the date of purchase. Defects that occur within
this warranty period, under normal use and care, will be repaired, replaced
or refunded at our discretion. The benefits conferred by this warranty are in
addition to all rights and remedies in respect of the product that the consumer
has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and to compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.

5
1300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read these instructions carefully before assembling and using the Low
Prole TV Wall Mount to ensure your personal and other people’s
safety and to avoid any property loss. If you do not understand these
directions, or have any questions in relation to the safety of the installation,
we recommend you contact a qualied professional. For all other general
inquiries, please contact our After Sales Support centre (see details at the
bottom of the page).
• Check carefully to ensure that there are no missing or defective parts.
• Never use defective parts. Our customer service representatives can
quickly assist you with installation queries and replacement for missing or
defective parts.
• Do not use this product for any other purpose than what is specied in
this manual.
• Improper installation may cause damage or serious injury. We assume no
liability for any eventual damage or injury caused by incorrect assembly,
mounting or use, or by noncompliance with these instructions.
• This product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, unless they have been
given supervision or instruction by a person responsible for their safety.
• This product is not a toy. Before installing the Low Prole TV Wall Mount,
make sure to keep the product away from infants and children. Supervise
young children to ensure they do not play with the product or its parts.
• This product is intended for indoor use only. Do not install outdoors.
General Safety Instructions

61300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
Supplied Parts and Hardware
The illustration below is to help you identify the parts; some parts are not
shown at the same scale.
Product Overview
Low Prole TV Wall Mount
TV Mounting Rail
Wall Plate
(A)
Self-Tapping Screws
ST8x50mm 6pcs
(G)
Bolts
M5x25mm 4pcs
(J)
Bolts
M8x15mm 4pcs
(F)
Bolts
M5x12mm 4pcs
(B)
Masonry Plugs
10x50mm 6pcs
(H)
Bolts
M6x12mm 4pcs
(K)
Bolts
M8x30mm 4pcs
(I)
Bolts
M6x25mm 4pcs
(C)
Flat Washers
M5-M6-M8 4pcs
(D)
Alignment Washers
D8x14mm 4pcs
(E)
Washer
Ø20xØ8.5x1.6mm 6pcs
• Supports 800 x 400mm
max VESA Hole pattern.
• Suitable for TVs sized
42-80” (106-203cm),
weighing up to 65kg.
• Low prole, extending
only 30mm (approx.)
from the wall.

7
1300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
Wall Mounting Instructions
IMPORTANT!
• This product can be mounted to a brick, concrete or stud wall. DO NOT
attach it to a hollow plasterboard wall or decorative wall divider.
• If you want to install the wall mount to a wood stud wall, use a
commercially available stud nder to locate the studs in the wall. If you
have any doubts regarding this installation, consult a professional installer
for advice.The wall must be structurally sound and strong enough to
hold the weight of the TV and wall mount. If your builder approves
mounting to a wood stud wall, follow the instructions on page 9.
• Be aware of the health hazard associated with asbestos bres potentially
present in the wall structure when drilling.
• If you want to install the wall mount to a steel stud wall, purchase suitable
steel stud fasteners from your local hardware store. DO NOT use the
supplied large self-tapping screws in steel studs.
• Before installing the wall mount, make sure you have read and
understood all instructions. Also ensure that the wall is strong enough to
hold the weight of the TV as well as the wall mount.

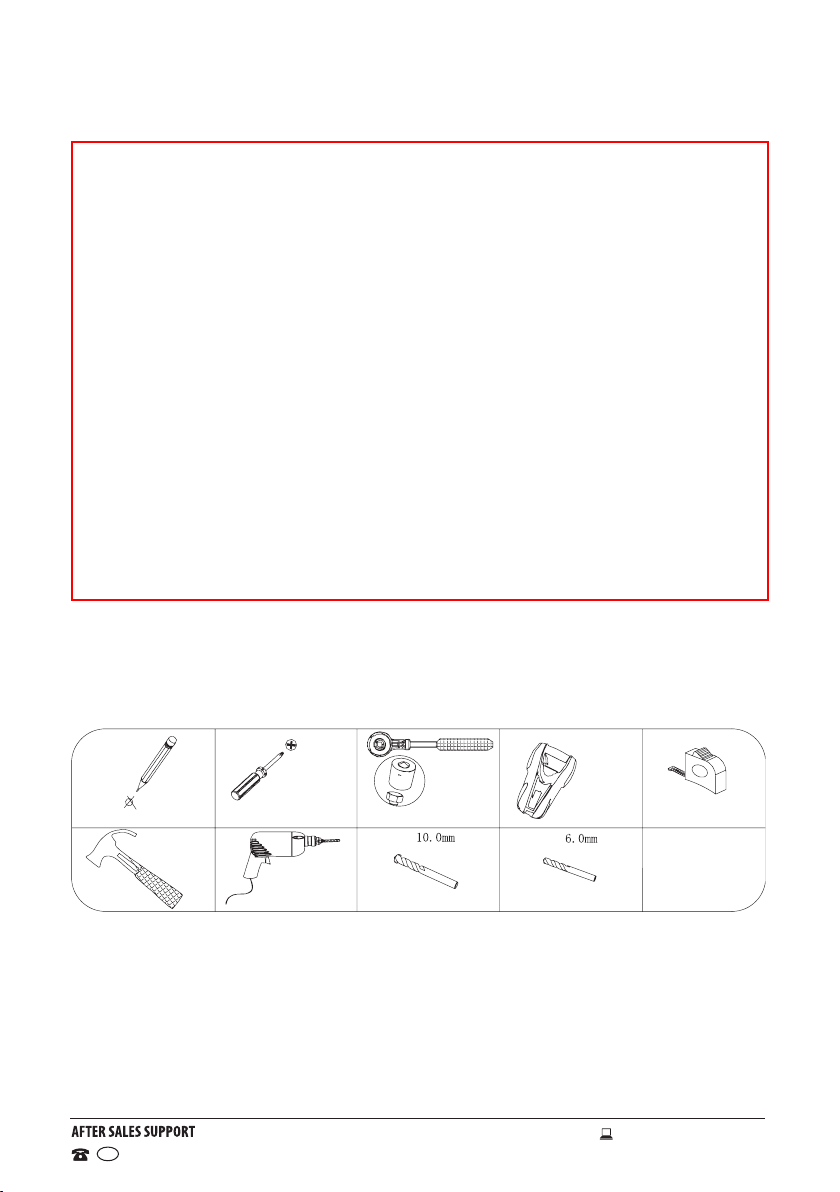

Tools Needed for Wall-Mounting:
Electric drill
(Hammer Drill
Recommended for Masonry)
Measuring tapePhilips-head screwdriverPencil
Hammer Masonry bitT wist bit
Stud detectorSocket Wrench

81300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
Wall Mounting Instructions (Cont.)
Step 1: Attaching the Wall Plate
Mounting to a Brick or Concrete Wall
• Choose a solid wall area far away from any water source and direct
sunlight. Avoid hollow areas or the mortar joints between bricks.
• Using the wall plate and its built-in spirit level, outline the location of the
six holes on the wall (see Diagram 1). Ensure the holes are level.
• Using an appropriate the masonry plug, pre-drill a 50mm deep hole in
each marked location.
• Place the masonry plugs (B) into the holes and gently tap them with a
hammer until they are ush with the wall.
• Position the wall plate and insert the self-tapping screws (A) and at
washers (E) into the plugs. Secure the wall plate to the wall, making sure
the upper and lower raised sections of the plate sit away from the wall.
Mounting to a Stud Wall
• Locate the edges of studs in the wall using a commercially available stud
nder and mark the centre of the studs. Conrm the presence of the
studs by drilling a small diameter pilot hole.
• Using the wall plate and its built-in spirit level, outline the location of the
six holes on the studs (see Diagram 1). Ensure the wall plate is level.
• Position the wall plate and screw the self-tapping screws (A) and at
washers (E) into the studs. Secure the wall plate to the wall, making sure
the upper and lower raised sections of the wall plate sit away from the
wall (see Diagram 2).
NOTE: All 6 screws must be rmly installed to support the heavy load of a
T V.
Diagram 1: Mark drill hole positions in a brick/concrete (left) or wood stud (right) wall.

9
1300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
Wall Mounting Instructions (Cont.)
Diagram 2: Secure the wall plate to a brick/concrete (left) or wood stud (right) wall
using the appropriate installation hardware.
Step 2: Mounting the Rails to a Television
• Using a blanket or towel to protect the front of the screen, place your at
screen TV, and face down on the oor or a suitable table.
• On the rear of the TV, locate the screw holes used for attaching a wall
bracket. Position the two mounting rails vertically over these holes,
ensuring the hooks of the rails (with the square holes either side) are
toward the top of the TV (see Diagram 3, below).
• Determine the correct size screws (F/G/H/I/J/K) to suit the screw holes in
the screen.
NOTE: If the television manufacturer included different screws, use them, not
the ones that are included with this bracket.
• Insert the appropriate screws and alignment washers (C) and secure the
rails to the television using a screwdriver.
NOTE: If the screw reaches the end of its travel but has not rmly secured
the rail, then you may need to use thicker washers (not supplied) to reduce
the depth the screw travels inside the chassis of the TV.
D
C
F-K
Diagram 3
13mm

10 1300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
Wall Mounting Instructions (Cont.)
IMPORTANT!
Fixing a at panel TV to a wall mount requires specialist knowledge. We
assume no liability for any injury or material damage incurred due to
incorrect assembly or use. Make sure to follow all instructions and if you
require professional advice, please consult a relevant tradesperson.
IMPORTANT!
At least two people are required to nish the mounting procedure. Do
not attempt to assemble this wall mount independently to avoid incorrect
assembly or any possible injury this may cause.
Step 3: Attaching the Television to the Wall Plate
• Loosen the screws on the rail so
that the rail can sit securely on
the wall plate.
• Safely lift the TV and hook the
mounting rails onto the top edge
of the wall plate.
• Gently allow the screen to sit
against the wall plate.
• Tighten the screws on the rails to
lock it to the wall plate.

11
1300 886 649 Model: ALPB80-0719 Product Code: 9365 07/2019
www.tempo.org
AUS
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be
returned to the supplier for repair.
Please be aware that if your product is capable of retaining user-generated data
(such asfiles stored on a computer hard drive, telephone numbers stored on a
mobile telephone, songs stored on a portable media player, games saved on a
games console or files stored on a USB memory stick) during the process of repair,
some or all of your stored data may be lost.We recommend you save this data
elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them
withrefurbished goods of the same type or use refurbished parts in the repair
process.
Please be assured though, refurbished parts or replacements are only used
where they meet ALDI’s stringent quality specications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate
your complaint. Please telephone us on 1300 886 649 or write to us at:
Tempo (Aust) Pty Ltd ABN 70 106 100 252
PO Box 6056 Frenchs Forest, NSW 2086, Australia
Tempo Help Desk: 1300 886 649 (Aust)
(Operating Hours: Monday-Friday 8:30am-6pm; Saturday 9am-6pm AEST)
Email: [email protected]g
Low Prole TV Wall Mount

Warranty returns
Should you for any reason need to return this product
for a warranty claim, make sure to include all accessories
with the product.
Product does not work?
If you encounter problems with this product, or if it fails
to perform to your expectations, please contact
our After Sales Support Centre on 1300 886 649 before
returning it to the store for a refund.
