Baumatic BWC157 User manual

This manual contains important information including safety and
installation instructions of the appliances. Please read it carefully before
use and follow all safety information & instructions. It is recommended
to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
INSTRUCTION MANUAL
Ver.:1/2014
Built-under Series
BWC157 BWC319 BWC646 BWC6178

--CONTENTS--
IMPORTANT SAFETY INFORMATION....................................................1
DESCRIPTION OF APPLIANCE AND INSTALLATION ............................3
22L.................................................................................................................................................................. 3
58L.................................................................................................................................................................. 3
145L-Height:87cm.................................................................................................................................... 4
ACCESSORY INSTALLATION BEFORE OPERATING ..............................5
UNPACKING AND CLEANING THE WINE COOLER.......................................................................... 5
LOCK & UNLOCK THE DOOR (FOR OPTION)..................................................................................... 5
OPERATING THE WINE COOLER............................................................6
WORKING CLIMATE .................................................................................................................................. 6
WINE STORAGE.......................................................................................................................................... 6
CONTROL PANEL ..................................................................................................................................... 7
POWER ON/OFF CONTROL.................................................................................................................... 8
UNLOCKING THE CONTROL PANEL..................................................................................................... 8
INTERIOR LIGHTING ON/OFF CONTROL ........................................................................................... 8
TEMPERATURE DISPLAY WINDOW...................................................................................................... 8
TEMPERATURE SETTING ......................................................................................................................... 9
SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY................................................................. 9
CARE AND MAINTENANCE..................................................................10
CLEANING THE WINE COOLER............................................................................................................10
POWER FAILURE.......................................................................................................................................10
MOVING THE WINE COOLER ...............................................................................................................10
ENERGY SAVING TIPS.............................................................................................................................10
TROUBLESHOOTING ...........................................................................11
REVERSE THE DOOR SWING ...............................................................12
For 22L/58L/145L....................................................................................................................................12


INSTRUCTION MANUAL
•Please removed all packaging, stickers and films from the products surface and clean the
product’s surfaces with a damp cloth and mild deturgent before using for the first time.
•Let the appliance stand upright for approximately 24 hours before connecting it to the
power source, which helps to reduce the possibility of a cooling-system malfunction from
handling during transportation.
IMPORTANT SAFETY INFORMATION
Before using the appliance, please properly position and install it as described in this
manual. To avoid the risk of re, electrical shock, or injury when using the appliance,
follow these basic precautions:
•This appliance is for domestic purposes only and is intended to be used exclusively
for the storage of sealed bottled wines and beverages.
•The appliance must be positioned so that the plug is accessible.
•Make sure the voltage/current marked on the rating label corresponds with your
supply voltage. Plug into a grounded 3-pin outlet, do not remove grounding pin, do
not use an adapter, and do not use an extension cord.
•Do not connect or disconnect the electric plug with wet hands.
•To disconnect the appliance, grip the plug and pull it from the wall outlet. Never
pull out by the cord.
•It is recommended that a separate circuit, serving only your appliance be provided.
•Unplug the appliance or disconnect power before cleaning, maintenance or
servicing. Failure to do so can result in electrical shock or death.
•If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualied person in order to avoid a hazard.
•The fuse (or circuit breaker) size should be 10 amps or higher.
•This appliance can be used by children aged from 8 years and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.


INSTRUCTION MANUAL
•To ensure proper ventilation for the appliance, the front of the unit must be
completely unobstructed. Locate the unit away from direct sunlight and sources of
heat (stove, heater, radiator, etc.).
•Do not attempt to repair or replace any part of the appliance unless it is specically
recommended in this manual. All other servicing should be referred to a qualified
technician.
•Ensure enough peoples to move and install the appliance to avoid any damage to the
appliance or injury to the peoples.
•It is important for the appliance to be leveled in order to work properly. You may
adjust the appliance’s feet to level it.
•Never clean the appliance parts with ammable uids which may create a re hazard
or explosion. And do not store or use gasoline or other ammable vapors and liquids
in the vicinity of the appliance.
•Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners
may damage or discolor the interior.
•Do not use this appliance for other than its intended purpose.
•Do not use electrical appliance inside the appliance.
•The use of attachments not recommended by the manufacturer may be hazardous.
•Please keep the products away from the re or similar glowing substance before you
dispose the appliance.
•GWP( Global Warming Potential): R600a=3
•When you dispose the appliance, take off the door and leave the shelves in place
so that children may not easily climb inside. And make sure the coolant circuit,
particularly the heat exchanger at the back/bottom of the unit is not be damaged.
•The recycle symbol on the product or its packaging indicates that this product
is not to be handled as normal household waste and it is to be taken to a
recycling collection point for electrical and electronic goods.


INSTRUCTION MANUAL

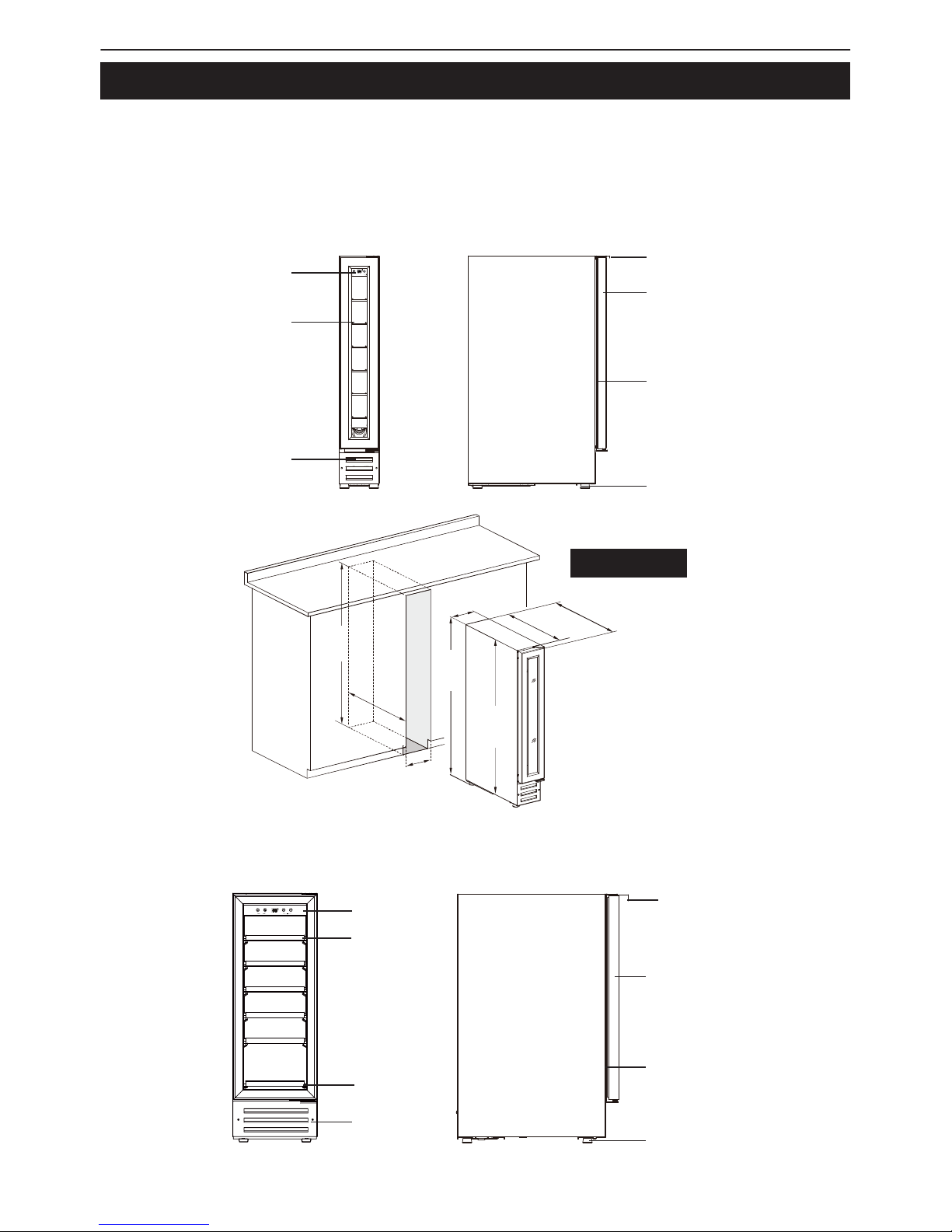

DESCRIPTION OF APPLIANCE AND INSTALLATION
The following pictures only show description of appliance. The dimension and shelf
quantity may dier among the models of the same series.
22L
Control Panel
Chrome Shelf
Front Louver
Adjustable Foot
Outside Canbinet
Handle
Door
Gasket
Single Zone
•Height Adjustable:
870-890mm
33½”
(850mm)
34¼”
(870mm)
>20⁄”
(525mm)
>34¼”
(870mm)
5⁄”
(150mm)
6⁄”
(155mm)
20⁄”
(525mm)
18¾”
(475mm)
58L
Control Panel
Deep Shelf
Shallow Shelf
Front Louver Adjustable Foot
Outside Cabinet
Handle
Door
Gasket
Single Zone


INSTRUCTION MANUAL
33½”
(850mm)
5⁄”
(150mm)
34¼”
(870mm)
>22⁄”
(570mm)
>34¼”
(870mm)
11⁄”
(295mm)
11⁄”
(300mm)
22⁄”
(570mm)
20½”
(520mm)
•Height Adjustable:
870-890mm
145L-Height:87cm
Control Panel
Control Panel
Single Zone
Deep Shelf
Deep Shelf
Shallow Shelf
Shallow Shelf
Front Louver
Front Louver
Outside Canbinet
Outside Canbinet
Door
Door
Handle
Handle
Gasket
Gasket
Foot
Foot
Adjustable
Adjustable
Dual Zone


INSTRUCTION MANUAL
•Height Adjustable:
870-890mm
ACCESSORY INSTALLATION BEFORE OPERATING
UNPACKING AND CLEANING THE WINE COOLER
•Remove the exterior and interior packing materials.
•Let the appliance stand upright for approximately 24 hours before connecting
it to the power source, which helps to reduce the possibility of a cooling-system
malfunction from handling during transportation.
•Use a soft cloth to clean the interior surface with lukewarm water.
•Install the door handle provided with the appliance by following these steps:
1st Step Before install the small handle, nd 2 screws and the handle which
are packed as accessories in the instruction manual bag.
2nd Step Tighten the 2screws to x the small handle on left top of the door frame.
LOCK & UNLOCK THE DOOR (FOR OPTION)
●Lock is an optional function. If your Wine Cooler has such function, a key should be
attached inside the packing of this Manual.
Door
Handle
Screws(x2)


INSTRUCTION MANUAL
●Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock
it, please turn clockwise. Please save the key well.
OPERATING THE WINE COOLER
WORKING CLIMATE
•The appliance is designed for operating from SN to N climate (see below climate class
chart). It is recommended to maintain the ambient around 22-25°C which helps the
appliance working with low power consumption.
Climate Class Ambient Temperature
SN 10 - 32 °C (50ºF-90ºF)
N 16 - 32 °C (61ºF-90ºF)
ST 18 - 38 °C (64ºF-100ºF)
T 18 - 43 °C (64ºF-109ºF)
•If the ambient temperature is above or below the designed climate range, the
performance of the unit may be affected. For example, the appliance operating in
extreme cold or hot conditions may cause interior temperatures to uctuate, and the
temperature set 5-22°C may not be reached sometimes.
WINE STORAGE
•The standard shelves are designed perfectly for Bordeaux bottle storage. The
maximum loaded bottles may vary subject to the different size or dimension wine
bottles you store.

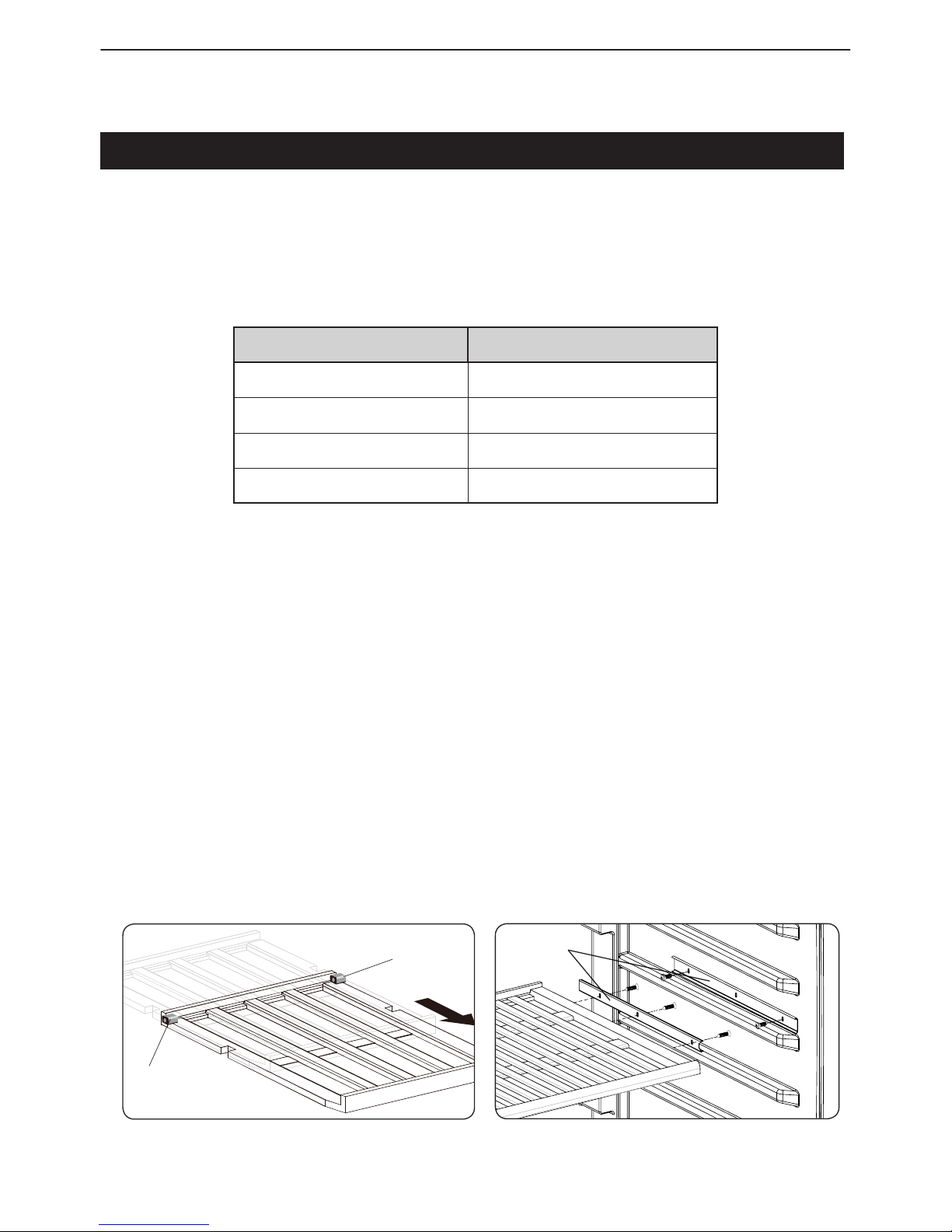

•The shelves can be pulled out by 1/3 approximately for easy access to the wine
storage.There are two designs for the pull-out shelves:
1. The shelves are without telescopic rails, but with a plastic Stopper on each sides of
the shelf track to prevent bottles from falling.
2. The shelves are with Telescopic Rails which has stoppers by themselves.
Stopper
Stopper
Telescopic
Rails


INSTRUCTION MANUAL
•To prevent damaging the door gasket, make sure to have the door opened fully all
the way before pulling the shelves out.
•Please store wine in sealed bottles.
•Do not cover the shelves with aluminum foil or any other shelf material which may
prevent air circulation.
•Should the wine cooler be left empty for long periods it is suggested that the
appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to
circulate inside the cabinet in order to avoid possible condensation, mold or odours
forming.
•Recommended temperatures for chilling/storing your wines.
Wine Type Recommender Temp
Red Wines 15 - 18ºC (59ºF-64ºF)
Dry⁄White Wines 9 - 14ºC (48ºF-57ºF)
Rose Wines 10 - 11ºC (50ºF-52ºF)
Sparkling Wines 5 - 8ºC (41ºF-46ºF)
CONTROL PANEL
•For Single Zone
Power Lighting
Display Window
Lock ⁄ Unlock ºC/ºF Interchange


INSTRUCTION MANUAL
•For Dual Zone
Power Lighting
TempUp
Upper Zone
Display Window
Bottom Zone
Display Window
Zone Select
TempDown
Lock ⁄ Unlock
ºC⁄ºF
Interchange
POWER ON/OFF CONTROL
•When the appliance is plugged in to a power outlet, it powers on automatically.
•Touch the power mark and hold for 10 seconds to turn off (or turn on) the
appliance.
•No matter it is under a locked or unlocked situation, you can turn o the appliance by
touching the power mark and holding for 10 seconds.
Warning: To avoid damaging the compressor, please do not turn on the
appliance again within 5 minutes after you turn it o.
UNLOCKING THE CONTROL PANEL
•To unlock the control panel, touch the power mark and lighting mark
with 2 ngers at the same time and hold for 3 seconds . When unlocked a buzz sound
will be heard.
•The control panel will be automatically locked with a buzz sound heard after 10
seconds without being touched.
•Under the locked situation, the control panel will not react to any touching order for
Lighting On/O and Temperature Setting.
INTERIOR LIGHTING ON/OFF CONTROL
•Under the unlocked situation, touch the lighting mark to turn on (or turn o) the
interior cool LED lighting.
•The lighting will stay on unstil it is manually turned o.
TEMPERATURE DISPLAY WINDOW
•The temperature is displayed in digital which is the best way to be read out. The
digital is shown as the set temperature when you are setting the temperature, and it


INSTRUCTION MANUAL
will change to be the real temperature of the inside cabinet after 10 seconds without
being touched.
•When the temperature probe is out of order, the display window will show with “HH”
or “LL” instead of a digital gure while continuous buzz sound will be heard. In case
of this happens, this appliance is considerately designed to keep periodical running
of compressor and fans which helps to keep the coldness of the inside cabinet to
protect your stored wines.
Warning: To avoid destroying your stored wines, it is strongly recommended
to have the appliance repaired immediately, as the spare periodical running can not
ensure the appliance to achieve the temperature you have set.
TEMPERATURE SETTING
For Single Zone
•The temperature setting range is 5-22 ºC (41-72 ºF).But model BBC6178 is 2-20ºC(36-
68ºF)
•Directly touch the or mark to set the wine cooler temperature as you want.
•The rst touch on or mark will recall the previous set temperature displayed.
•Touch the mark to increase the set temperature by 1ºC (or by 1ºF). On the
contrary, touch the mark to decrease the set temperature by 1ºC (or by 1ºF).
•The digital will change to display the real temperature of the inside cabinet after 10
seconds without being touched.
For Dual Zone
•The temperature setting ranges are 5-12 ºC (41-54 ºF) for the upper zone and 12-22
ºC (54-72 ºF) for the bottom zone.
•You need to select the set zone by touching the mark before touching the mark
or to set the desired temperature. The zone temperature will ash when it is
ready to be set.
•The rst touch on mark or will recall the previous set temperature displayed
in the digital window.
•Touch the mark to increase the set temperature by 1ºC (or by 1ºF). On the
contrary, touch the mark to decrease the set temperature by 1ºC (or by 1ºF).
•The digital will change to display the real temperature of the inside cabinet after 10
seconds without being touched.
Note:
For the rst time to use the appliance or to restart the appliance after having been
shut off for a long time, you may find a few degrees variance between the set
temperature and the displayed temperature. It will be normal after a few hours
running


INSTRUCTION MANUAL
SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY
For Single Zone
Touch the marks with 2 ngers at the same time and hold for 5 seconds, you
can interchange the Fahrenheit and Celsius display.
For Dual Zone
Directly touch the mark , you can interchange the Fahrenheit and Celsius display
for both zones at the same time.
CARE AND MAINTENANCE
CLEANING THE WINE COOLER
•Turn o the power, unplug the appliance, and remove all items including shelves.
•Wipe the inside surfaces with a sponge and baking soda solution. The solution should
be about 2 tablespoons of baking soda to 1 quart (approx. 1 litre) of warm water.
•Wash the shelves with a mild detergent solution. Allow wooden shelves to dry before
placing back into the wine cooler.
•Wring excess water out of the sponge or cloth when cleaning area of the controls, or
any electrical parts.
•Wipe the outside cabinet with warm water and mild liquid detergent. Wipe dry with
a clean soft cloth.
•Do not use steel wool or steel brush on the stainless steel. These will scratch the
stainless steel with steel particles and rusting may occur.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the
temperature of your appliance if you minimize the number of door openings. If the
power is going to be o for a longer period of time, you need to take the proper steps
to protect your wines.
MOVING THE WINE COOLER
•Remove all items.
•Securely tape down all loose items (shelves) inside your appliance.
•Turn the adjustable leg up to the base to avoid damage.
•Tape the door shut.
•Be sure the appliance stays secure in the upright position during transportation. Also
protect outside of appliance with a blanket, or similar item.
ENERGY SAVING TIPS
•The appliance should be located away from heat producing appliances, and away
from direct sunlight.


INSTRUCTION MANUAL
•Ensure that the unit is adequately ventilated. Never cover air vents.
•Only open the door when necessary. Avoid leaving the door open for long periods or
opening/closing the door frequently.
TROUBLESHOOTING
If you feel the appliance is not working properly, follow these instructions to try to
see if you can solve the problem simply by yourself before calling for service.
No. PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE
 The wine cooler does not operate
Not plugged in
The appliance is turned o
The circuit breaker tripped or a blown fuse
 The wine cooler is not cold enough
Check the temperature control setting
External environment may require a higher setting
The door is opened too frequently
The door is not closed completely
The door gasket does not seal properly
Automatically turnon and
turno frequently
The room temperature is hotter than normal
A large amount of contents has been added to the wine
cooler
The door is opened too frequently
The door is not closed completely
The temperature control is not set correctly
The door gasket does not seal properly
 The lighting does not work
Not plugged in
The circuit breaker tripped or a blown fuse
The lighting is turned o
 Too much vibration
Check to assure that the appliance is level
Check to assure no parts inside the cabinet or in the
compressor chamber are loose
The wine cooler seems to make
too much noise
The rattling noise may come from the flow of the
refrigerant which is normal
As each cycle ends you may hear gurgling sounds
caused by the ow of refrigerant
Contraction and expansion of the inside walls may
cause popping and crackling noises
The appliance is not level
 The door will not close properly
The wine cooler is not level
The door was reversed and not properly installed
The gasket is dirty
The shelves are out of position

The display window is shown with “HH”
or “LL” instead of a digital gure
and⁄or with continuous buzz sound
The temperature probe is out of order


INSTRUCTION MANUAL
REVERSE THE DOOR SWING
Note:
Door Reversal is NOT available for a unit with Control Panel on Door.
The following operation is only for a unit with Control Panel inside the cabinet.
For 22L/58L/145L
Remarks:
•The instruction is based on a unit with Right Hinge installed already.
To reverse the door from right hinge to left hinge, you need to get ready 2 new spare
parts: an Upper Left Hinge, and a Bottom Left Hinge.
•All removed parts is suggested to be saved in case of door re-reversal.

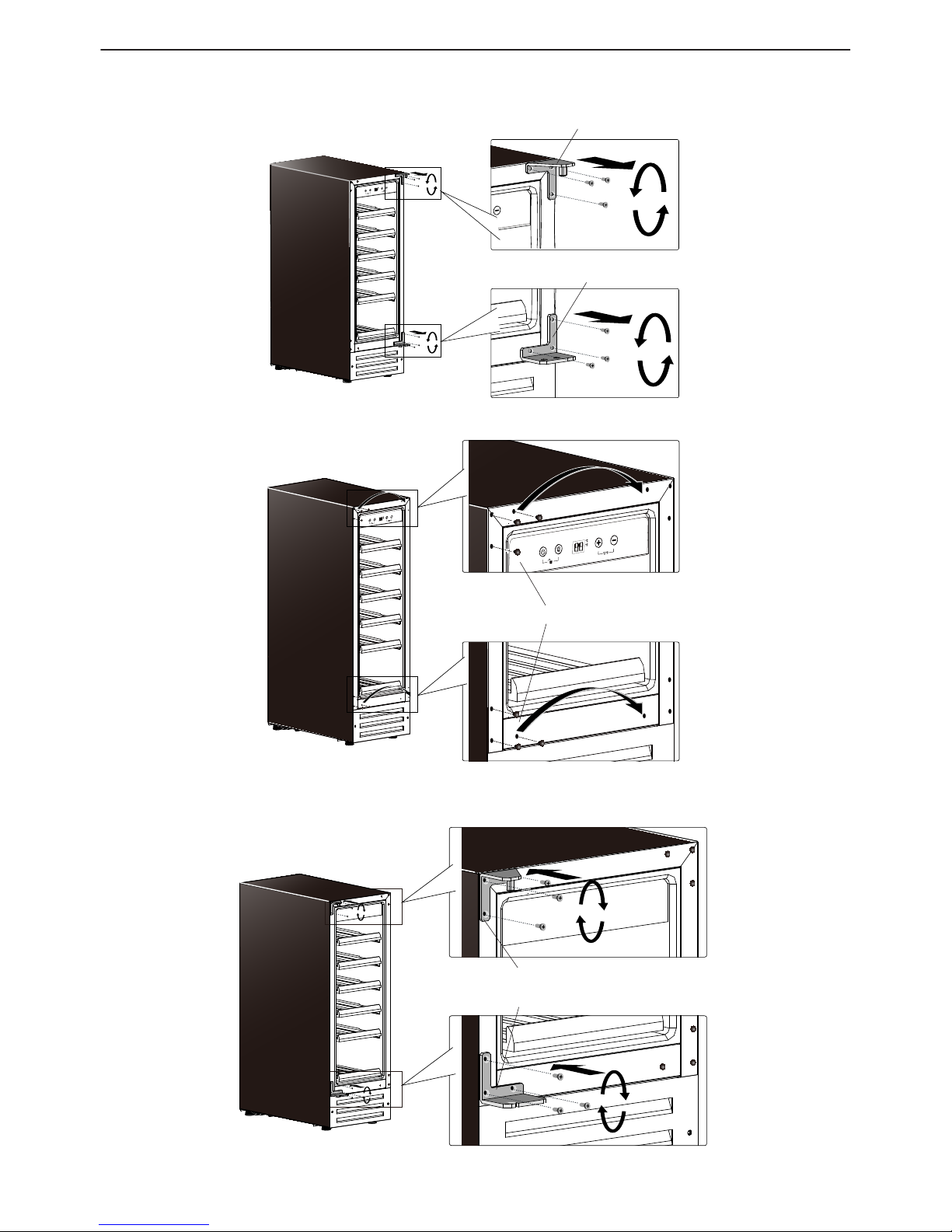

1.Open the door, and loosen the 2 screws from Pvot Hnge of the Bottom Rght Hnge.
60oMin.
Bottom Right Hinger
Screw
Pivot Hinge
2.Carefully remove the door from the Upper Rght Hnge and prevent t from scratchng. Take out
the Pvot Hnge from the door hnge hole.
60oMin. Pivot Hinge
Bottom Right Hinger
Door
Upper Right Hinger


INSTRUCTION MANUAL
3.Unscrew the Upper Rght Hnge and Bottom Rght Hnge from the cabnet. Keep them well for
door re-nstallaton. Upper Right Hinge
Bottom Right Hinge
4.Pull out the 6 Plastc Caps at the front left corner of the cabnet. And move them all to the
rght sde.
Plastic Caps (6pcs)
5.Install the Upper Left Hnge and Bottom Left Hnge to the left sde of the cabnet. Make sure the
screws are tghtened.
Upper Left Hinge
Bottom Left Hinge


INSTRUCTION MANUAL

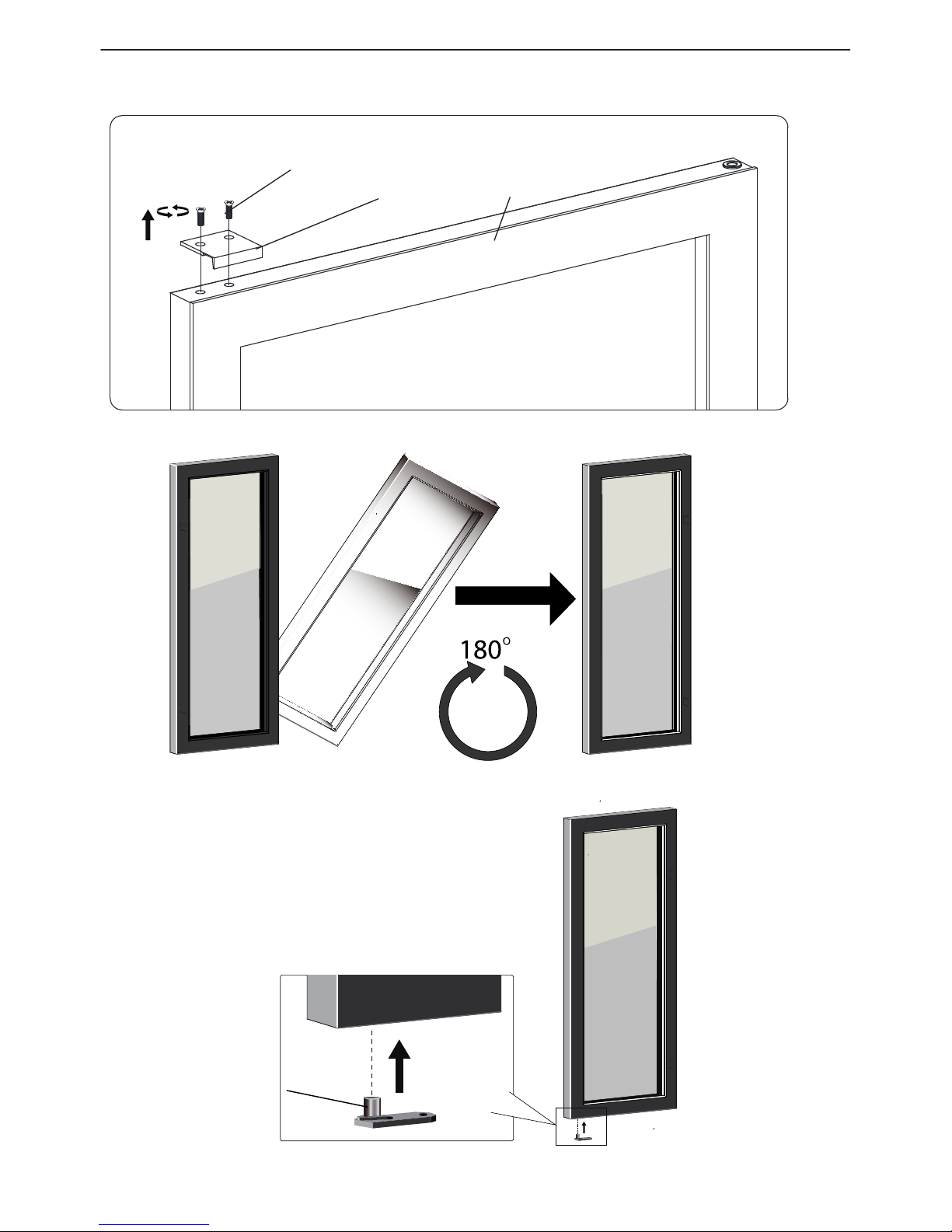

6. Loose the 2 screws wth a cross screwdrver.Keep these screws and the handle well
on one sde for usng later.
7.Turn the door by 180o upsde down) .
8.Insert the Pvot Hnge nto the bottom hnge hole of the door.
Door
Handle
Screws(x2)
Pivot Hinge


INSTRUCTION MANUAL
9.Install the door to the left hnge sde by tghtenng the Pvot Hnge wth the 2 screws.
10. To reinstall the handle to the left top of door frame.
END
Pivot Hinge
Screws (2pcs)
Bottom Left Hinge
Door
Handle
Screws(x2)
