Baumatic P470SS User manual

I 1
P470SS 46 cm combi
steamer touch
control oven.

User Manual for your Baumatic
P470SS
46 cm combi steamer touch
control oven with personalised
recipes.
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 25/02/08
2

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 - 9
Product and aperture dimensions 8
Product specifications 8
Standardaccessories 9
Electricaldetails 9
Description of the oven and accessories 10-11
Controlpanel 11
Using your oven for the first time 11-12
Before first use 11
Selecting the operating language 11-12
Settingthetimeofday 12
Ovenburnoff 12
Setting the minute minder 13
Setting the duration function 14
Setting the start and end time function 15

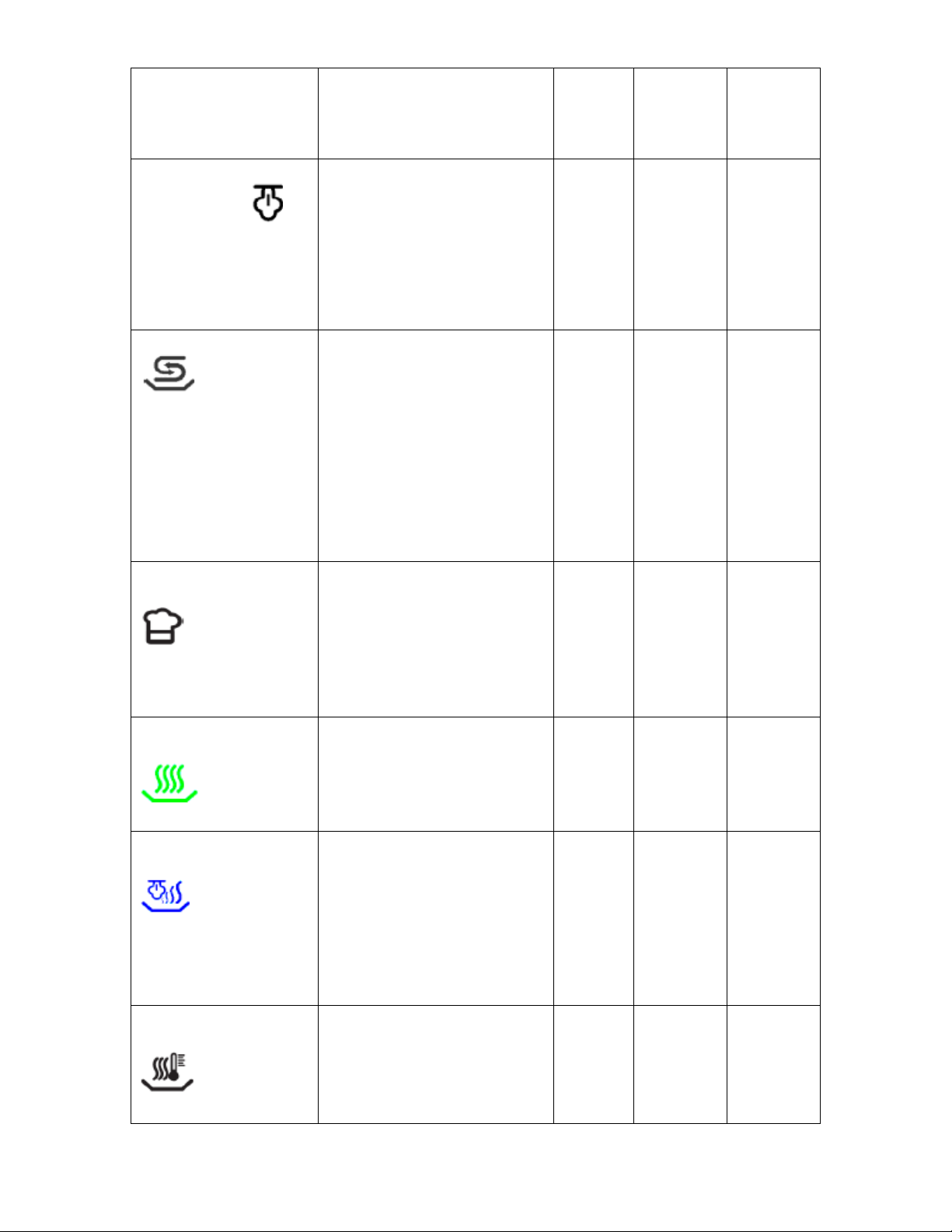

Oven function and temperature selection 16-22
Ovenfunctions 17-18

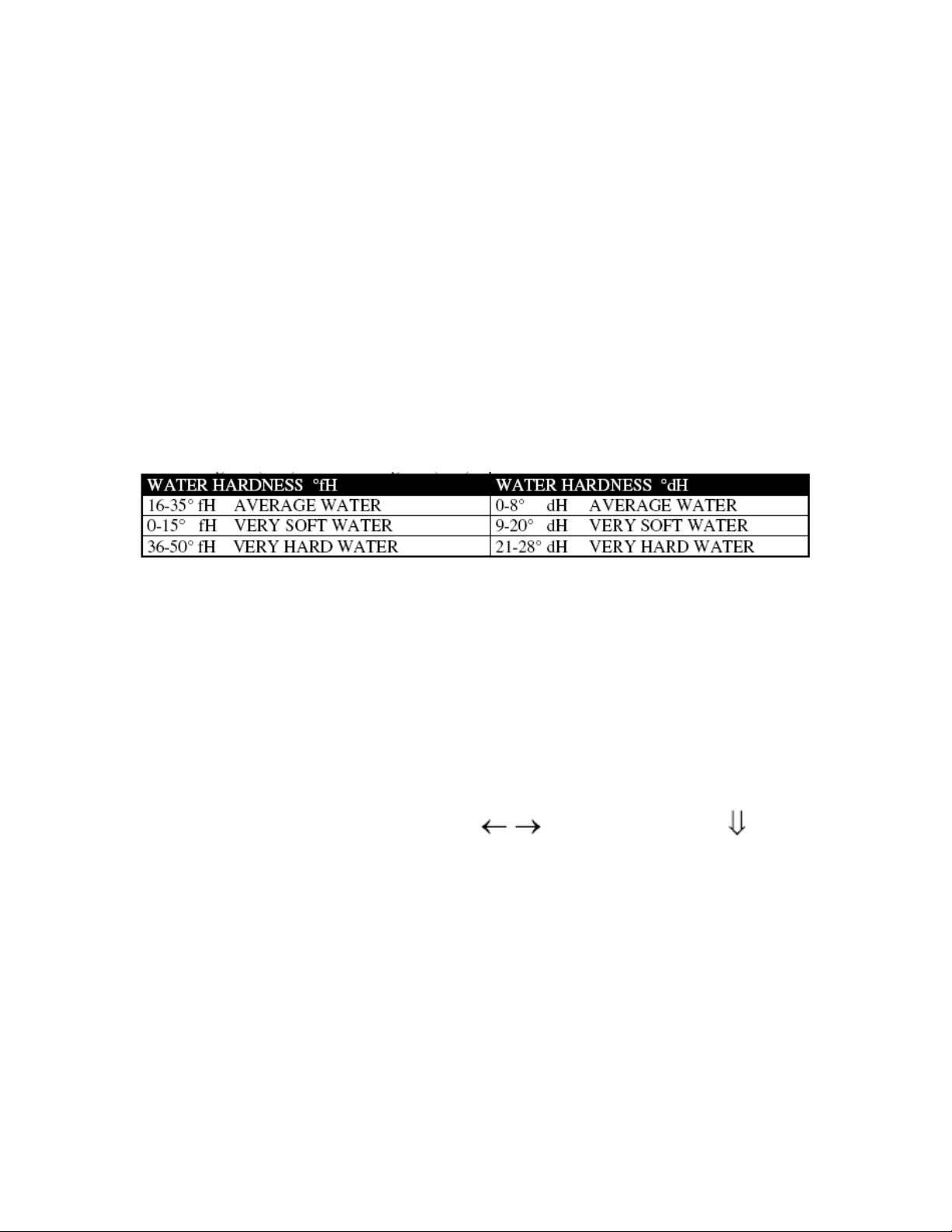

Waterhardness 18
Cookingwithsteam 19
Adding hot air + steam cooking mode 19-20
Cookingguidelines 20
Warnings 20-21
Accessories 21-22
Cookingcharts 22-24
Memorising cooking programmes 25
Recalling saved cooking programmes 25-26
Deleting saved cooking programmes 26
Cooking with the food probe 26-28
Menuoptions 29-31
Cleaning and maintenance 32-38
Oven cavity cleaning cycle 33
Boilerdescaling 33-34
Boilerwash 35
Removing the side racks 36
Replacing the oven bulb 37
Removing the oven door for cleaning 37-38
Installation 39-41
Electricalconnection 39
Installing the oven into the kitchen cabinet 40
Ventilationrequirements 41
My appliance isn’t working correctly 42-44
Contact details 45

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Technical
Department.
General Information
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: You must not install the appliance in a location
where the ambient temperature will fall below 5°C.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oFor use in leisure accommodation vehicles, please refer to
the appropriate information given in the installation instructions
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic Service
Engineers or their authorised service agent.
5

6
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.

Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
oIn the parts destined to come into contact with foodstuffs, this
appliance is in accordance with the requirements of the EC
directive 89/109 transposed in the Italian Legislative Decree No.
108 of 25/01/92.
oCE: Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.
7

Specifications

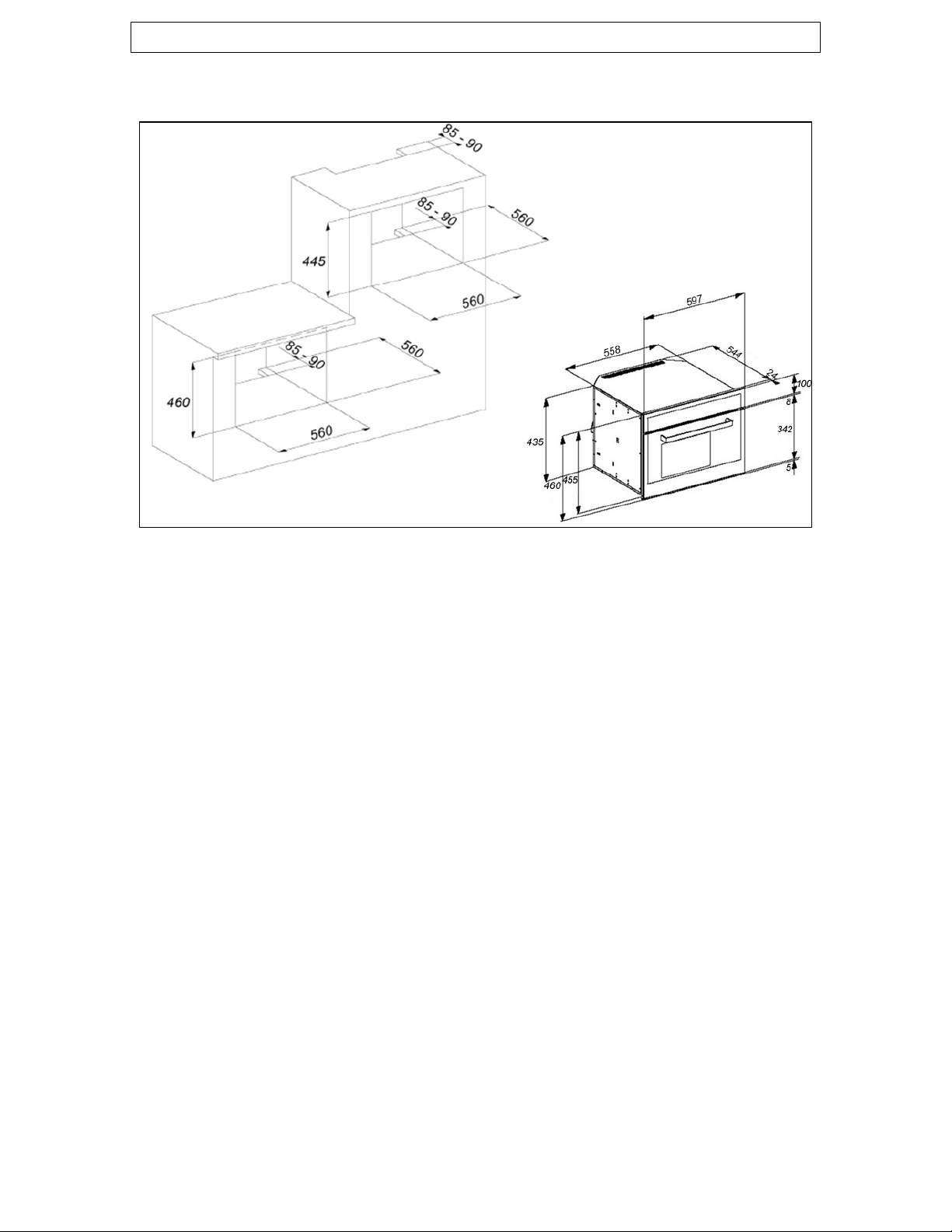

P470SS product and aperture dimensions
Product Dimensions Aperture Dimensions
Height: 460 mm 450 mm (built in)
460 mm (built under)
Width: 597 mm 560 mm
Depth: 550 mm 560 mm
Cooling fan
oA tangential cooling fan is fitted inside of this appliance, to make
the internal temperature of the oven stable and the external
surface temperature lower.
Product specifications
oTouch control operation
oMulti language text display (English, French, Italian, Spanish,
and German)
oElectronically controlled thermostat
oCooling fan
oSafety lock
oMark resistant coating
oTriple-glazed removable door
8

9
Standard accessories
oRemovable side racks
oSafety shelves
oNon perforated drip pan with handle
oPerforated drip pan
oFood probe
Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 13 A (double pole switched fused
outlet with 3mm contact gap
Max Rated Inputs: 2.2 kW
Mains Supply Lead: 3 x 1.5mm²
Oven Light Bulb: 25 W/ E14 300°C screw type
pigmy
For future reference please record the following information which can
be found on the Rating Plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the oven door and looking on the right hand side of
the oven chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

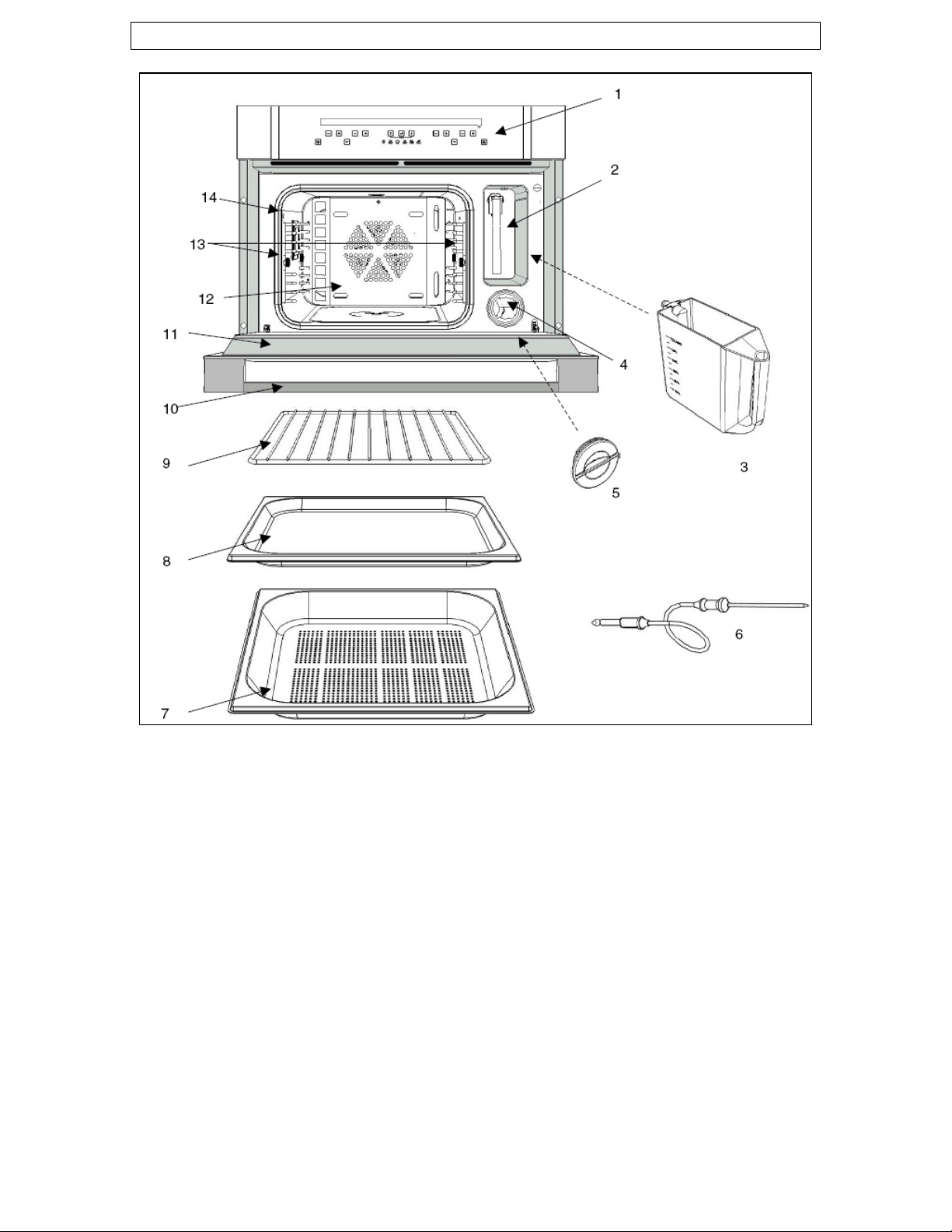

Description of the oven and accessories
1. Control panel and display
2. Water jug compartment
3. Water jug
4. Water filter compartment
5. Water filter cap
6. Food probe
7. Perforated drip pan
8. Non perforated drip pan
9. Shelf
10. Door handle
11. Door
12. Oven cavity
13. Oven shelf side racks
14. Food probe connection point
10

Control Panel
1. Oven function thermostat buttons
2. Food probe thermostat buttons
3. Programmed cooking time selection buttons
4. Timer/language selection buttons
5. Oven light ON/OFF button
6. Oven ON/OFF button
7. Oven function selection buttons
8. Confirmation button
9. Oven setting selection buttons
Using your oven for the first time
Before first use
oThe appliance should be disconnected from your mains
supply before commencing any cleaning process.
oThoroughly clean the oven cavity with warm soapy water, using
either a sponge or soft cloth. No abrasive cleaners should be
used. You should then dry the oven cavity before connecting
your appliance to your mains supply.
oIMPORTANT: The installation instructions contained in this
booklet MUST be followed. The installation MUST be completed
by a qualified installer.
11

Selecting the operating language
oPress the oven ON/OFF button (6).
oThe display will light up and will show the message “WAIT”. DO
NOT touch any other button until the language selection menu
appears.
oSelect the language that you wish the oven to operate in by
using the language selection buttons (4).
oOnce the display shows your desired choice of language, press
the confirmation button (8) to confirm your choice.
Setting the time of day
oUse the timer selection buttons (4) to set the time of day. If you
hold down these buttons, then the timer will scroll more rapidly.
oOnce the display shows the correct time of day, press the
confirmation button (8) to confirm your choice.
oOnce you have set the time of day, press the oven ON/OFF
button (6) again. The display will show COOKING
SELECTION and MENU.
Oven burn off
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should select the
Professional Cooking function and set the temperature to 230°C.
You should read page 16 to see how to set a cooking function
and temperature.
oIt is perfectly normal for a smell to be produced during this
process.
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave the oven on maximum setting for 30 – 40
minutes.
12

Setting the minute minder
You are able to set the minute minder, regardless of whether an oven
function has been selected. You can set a period of time using the
minute minder and an alarm will sound when this period of time has
elapsed.
oPress the oven ON/OFF button (9).
oUse the timer selection buttons (4) to switch on the timer.
oA symbol will begin to flash, the display will show the word
ALARM and the digits 00.00 will appear.
oUse the timer selection buttons (4) to adjust the countdown
time between 00h01m and 23h59m.
oRelease the timer selection buttons (4) and after a few
moments, the countdown will begin.
oWhilst the countdown time is in operation, the display will
continue to show the symbol, the oven will return to showing
the time of day.
oIt is possible to adjust the countdown time whilst it is in
progress. To do this press one of the timer selection buttons (4),
the will begin to flash. Use the timer selection buttons (4) to
adjust the countdown time and then release them.
oWhen the countdown is complete, the oven will emit an acoustic
signal for 5 minutes. The display will show the word ALARM,
00.00 and the symbol will flash. To silence the acoustic signal,
press any key apart from the oven ON/OFF button (9).
oImportant: If you have an oven function in progress, the oven
will continue to heat when the audible signal sounds you will
need to switch the oven off manually, using the ON/OFF button.
oIf you want to cancel the timer setting whilst the countdown is in
progress, press the timer selection buttons (4) simultaneously.
The symbol will go out.
13

14
Setting the duration function
This function will allow you to set a countdown time similar to the
minute minder function. However the oven will no longer continue to
heat, once the countdown period has elapsed.
oPress the oven ON/OFF button (6).
oSelect an oven function by using the oven function selection
buttons (7).
oOnce the display shows the oven function that you require, press
the confirmation button (8) to confirm your choice.
oEach oven function has a preset temperature assigned to it;
however it is possible to adjust this preset temperature using the
oven function thermostat buttons (1).
oUse the programmed cooking time selection buttons (3) to set
the length of time that you want the oven to cook for.
oThe timer will initially count in minutes and seconds, and then if
you continue to increase the cooking time, it will then count in
hours and minutes. The maximum cooking time that can be set
is 10 hours.
oPress the confirmation button (8) to confirm your cooking time.
After a few moments, the countdown will begin.
oWhen the countdown is complete, the oven will emit an acoustic
signal for 5 minutes and show COOKING FINISHED on the
display.
oPress the oven ON/OFF button (6) to cancel the audible signal
and switch the oven off.

15
Setting the start and end time function
This function will allow you to set a time in the future that the will
oven switch on at and a time that the oven will switch off at.
oPress the oven ON/OFF button (6).
oSelect an oven function by using the oven function selection
buttons (7).
oOnce the display shows the oven function that you require, press
the confirmation button (8) to confirm your choice.
oEach oven function has a preset temperature assigned to it;
however it is possible to adjust this preset temperature using the
oven function thermostat buttons (1).
oUse the programmed cooking time selection buttons (3) to set
the length of time that you want the oven to cook for.
oThe timer will initially count in minutes and seconds, and then if
you continue to increase the cooking time, it will then count in
hours and minutes. The maximum cooking time that can be set
is 10 hours.
oImmediately press the oven setting selection buttons (9) until
END OF COOKING appears on the display, press the confirmation
button (8) to confirm your choice.
oWhen the message SET TIME appears on the display, use the
programmed cooking time selection buttons (3) to set the time
of day that you want the oven to switch off at. Press the
confirmation button (8) to confirm your choice.
oA message will appear on the display every 15 seconds, showing
the time remaining until the oven switches on.
oIf you want to delete the programmed cooking time, press the
programmed cooking time selection buttons (3) simultaneously.
oWhen the countdown is complete, the oven will emit an acoustic
signal for 5 minutes and show COOKING FINISHED on the
display.
oPress the oven ON/OFF button (6) to cancel the audible signal
and switch the oven off.

16
Oven function and temperature selection
This option allows you to select the preset cooking functions that the
oven offers and the temperature that the oven will cook at.
oSelect an oven function by using the oven function selection
buttons (7).
oOnce the display shows the oven function that you require, press
the confirmation button (8) to confirm your choice.
oEach oven function has a preset temperature assigned to it;
however it is possible to adjust this preset temperature using the
oven function thermostat buttons (1).
oPress the confirmation button (8) to commence the oven
function that you selected previously. The phrase COOKING IN
PROGRESS will appear on the display.
oIf you do not press the confirmation button (8) within 5
minutes, then the oven will shut off.
oThe degree symbol “°” will flash on the display; this indicates
that the oven is heating to the temperature that has been set.
When the set temperature is reached, the degree symbol will
remain fixed.
oYou should not place food in the oven until the degree symbol
“°” has stopped flashing.
oIf you want to change the oven function, use the oven functions
selection button (7), and then press the confirmation button (8)
to confirm your choice.
oPress the oven ON/OFF button (6) to switch the oven off.

Oven functions
Function name
and symbol
Function description Min.
–
max
temp.
Default
temp.
Food
probe
default
temp.
STEAM
COOKING
Steam from the boiler flows
into the oven cavity. The
steam heats the oven
cavity and cooks the food.
This cooking mode is ideal
for cooking any type of
vegetables. It preserves
the colour and taste of the
food.
40 –
100°C
100°C 70°C
REGENERATION
Steam and hot air heat the
oven cavity. This allows the
food to be cooked quickly
but without becoming dried
out. There is a circular
heating element and a fan
that distributes the heat
evenly. This cooking mode
is suitable for heating
previously cooked food,
pre-cooked food or frozen
food. *
60 -
130°C
110°C 70°C
PROFESSIONAL
COOKING
The cooking is carried out
in phases, with steam
cooking being followed by
hot air cooking. This
cooking mode is suitable
for raising any type of
dough, or for cooking bread
and focaccia bread. *
100 –
230°C
205°C 70°C
HOT AIR
COOKING
The air inside the oven
cavity is heated by a
circular heating element. A
fan ensures that the hot air
is distributed uniformly
throughout the cavity.
40 –
230°C
175°C 70°C
HOT AIR +
STEAM
The same as hot air
cooking mode, but with the
option of adding steam to
the oven cavity manually
by pressing the
confirmation button (8).
You can stop the steam by
pressing the same button
again. **
80 -
230°C
175°C 70°C
LOW
TEMPERATURE
Low temperature cooking,
ideal for slow cooking over
a relatively long period of
time. Ideal for cooking
meat tenderly and
delicately. ***
60 -
100°C
90°C 70°C
17

*After using the appliance in these cooking modes, you must
allow time for the oven cavity to cool properly before selecting these
modes of cooking again. Otherwise the oven may not generate steam
properly.
** After 15 minutes, the steam will be shut off automatically by the
oven.
*** The meat probe must be used whilst using low temperature
cooking mode.
Water hardness
oBaumatic recommend that you fill the water jug with distilled
water. If this is unavailable then cold drinking water should be
used.
oThe oven can be adjusted to take into account the hardness of
the water that you are filling the water jug with.
oThe left hand column shows water hardness measured in French
degrees. The right hand column shows water hardness measured
in German degrees.
oYour oven is automatically set to the AVERAGE WATER setting. If
your water supply is harder or softer than the figures quoted for
the AVERAGE WATER SETTING, then you must adjust the oven
settings to take this into account.
oTo adjust the water hardness setting, switch the oven on using
the oven ON/OFF button (6). SELECT COOKING MENU
will appear on the display.
oUse the oven setting selection buttons (9) to select SETTINGS.
Press the confirmation button (8) to confirm your choice.
oUse the oven setting selection buttons (9) to select WATER
HARDNESS. Press the confirmation button (8) to confirm your
choice.
oUse the oven setting selection buttons (9) to select VERY SOFT,
AVERAGE or VERY HARD. Press the confirmation button (8) to
confirm your choice.
18

Cooking with steam
IMPORTANT: This process MUST be followed when you are using a
cooking function that involves steam.
oFill the water jug with distilled water, or if this is unavailable cold
drinking water.
oFill the water jug up to the 1.2 l mark. DO NOT fill the jug right
to the top. Otherwise the water that is pumped back into the jug
at the end of a cooking cycle may overflow.
oInsert the water jug into the water jug compartment.
oPush the water jug down completely, this ensures a perfect seal
between the tube located in the jug and the hydraulic circuit
inside of the oven.
oALWAYS ensure that the NON perforated drip pan is inserted
underneath the perforated drip pan. This will catch any
condensation, juice or food that falls from the perforated drip
pan.
oIf you are using a cooking function that doesn’t involve steam,
then you can leave the water jug inside of the water jug
compartment. It will not affect the cooking abilities of the oven.
Adding steam during hot air + steam cooking mode
The hot air + steam cooking mode allows you to add steam at any
time during cooking. This allows you to maintain the right degree of
humidity inside of the oven cavity.
oOnce the hot air + steam cooking mode and a temperature has
been selected, the message PRESS TO ADD STEAM will
appear on the display.
oIf you press the confirmation button (8) the symbol will
appear on the display, to indicate that the steam generator is
active.
oAfter a few moments, steam will begin to flow into the oven
cavity. The steam is introduced into the cavity periodically, with
brief pauses in between for up to 15 minutes.
oWhen the symbol goes out, the steam generator is no longer
in operation.
19

oIt is possible to switch off the steam generator before the 15
minute period has elapsed, by pressing the confirmation button
(8) again. PRESS TO STOP STEAM will appear on the display
to remind you that it is possible to do this.
Cooking guidelines
oPlease refer to the information given on food packaging for
guidance on cooking temperatures and times. Once familiar with
the performance of your appliance, temperatures and times can
be varied to suit personal preference.
oIf you are using the hot air cooking function, then you should
follow the information given on the food packaging for this
particular mode of cooking. It may be listed as fan oven cooking
on the food packaging.
oMake sure that frozen foods are thoroughly thawed before
cooking, unless the instructions on the food packaging advise
that you can “cook from frozen”.
oYou should pre-heat the oven and not place food inside of it until
the pre-heating period is over. You can choose not to pre-heat
when using the hot air cooking function; however you should
extend the cooking time given on the food packaging by
approximately ten minutes.
oBefore cooking, check that any unused accessories are removed
from the oven.
oPlace cooking trays in the centre of the oven and leave gaps
between the trays to allow air to circulate.
oTry to open the door as little as possible to view the dishes.
oThe oven light will remain on during cooking.
Warnings
oKeep the oven door closed when using any oven function.
oDo not use aluminium foil to cover the trays supplied with the
oven.
oYou should also never line the base of your oven with aluminium
foil.
20
