BDI 8177 User manual

1
B1 - Hex Wrench
x 1
B2 - Hex Wrench
x 1
corridor
8177 and 8179
Corridor is engineered for easy assembly.
Carefully follow this procedure to prevent any
damage.
Placement and Maintenance
Corridor is designed for indoor use on level floors.
Clean wood veneer with a moist cloth. Clean
glass with glass cleaner.
NOTE: This instruction sheet is intended for the Corridor collection;
model 8179 is shown for illustration.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some
components are shipped inside the cabinet. The assembly
workspace should be a non-marring surface such as carpet. For
missing hardware pieces, please contact BDI Customer Service
at [email protected]. For all other concerns, please
contact your BDI Retailer.
For your convenience, wheel assembly is pre-installed. Wheels can
be removed if desired.
Component List
Designed by Matthew Weatherly.
These distinctive product congurations are protected by US and
international patents, trade dress, and/or copyright laws.
BDI are trademarks of Becker Designed, Inc.
All Rights reserved. ©2013, BDI
Made in China. 8177_8179REV120613v1
assembly instructions
bdiusa.com [e-mail]
C - Cabinet
x 1
G - 1/4-20 x 60 mm
Machine Screw
x 6
H - M4 x 35 mm
Machine Screw
8177 x 6
8179 x 8
F - Metal Rail
x 2
E - Metal Leg
x 2
D - 1/4-20 x 10 mm
Machine Screw
x 16
I - Door Pull
8177 x 3
8179 x 4
A - Phillips Screwdriver
x 1
M - Back Panel
x 2
L - Adjustable Shelf
x 2
K - Glass Top
x 1
J - Rubber Bumper
x 8
Removal of wheels:
Detach Wheel Assembly from
Metal Leg (E) by removing the
Leveler and Screw.
Reinstall Leveler to Metal Leg
(E).
E
E

2assembly instructions
bdiusa.com [e-mail]
corridor
8177 and 8179
Step 2
Build Base Assembly
Slide Metal Leg (E) into Metal Rail (F) and attach by using Hex
Wrench (B1) and Screw (D).
Step 3
Carefully lay Cabinet (C) on its back. Using Hex Wrench (B1),
attach the base assembly to the bottom of the Cabinet (C) with
Screw (D) and Screw (G). *Note: Each of the metal legs has
levelers that can be adjusted using the Hex Wrench (B2).
G x 6
D x 8
D D
DD
E E
FF
Æ Æ
Æ Æ

3assembly instructions
bdiusa.com [e-mail]
corridor
8177 and 8179
Step 4
Install Door Pulls and Rubber Bumpers
Position the cabinet upright and install Door Pulls (I) using Screw (H)
and Screwdriver (A). Install Rubber Bumper (J) at least one (1) inch from
edges of the cabinet as shown in illustration 1.1.
Step 5
Install Glass
Place Glass Top (K) on top of Cabinet (C). Position glass flush with
cabinet front doors.
K
H
H
1.1
J
J
J
J
J
J
J
I
J

4assembly instructions
bdiusa.com [e-mail]
corridor
8177 and 8179
Step 5
Install Back Panels
Install both Back Panels (K) to the backside of the cabinet by inserting top
edge in upper channel then tipping bottom edge forward and into lower
channel.
NOTE: Velcro straps are included for your convenience to facilitate wire
management.
Only for Corridor 8177:
Removing the drawer
Pull the Top Drawer as far out as it will go. Locate the finger latch in the rail
of the slide on each side of the Drawer. Press the Left Latch down and lift the
Right Latch up simultaneously and slide the Top Drawer the rest of the way
out. (Be careful of grease residue on drawer slides)
The shelf pins located inside the
left and right cabinet space may be
repositioned using Screwdriver (A),
allowing you to raise or lower each
Adjustable Shelf (L) to the desired
level.
2
1

5assembly instructions
bdiusa.com [e-mail]
corridor
8177 and 8179

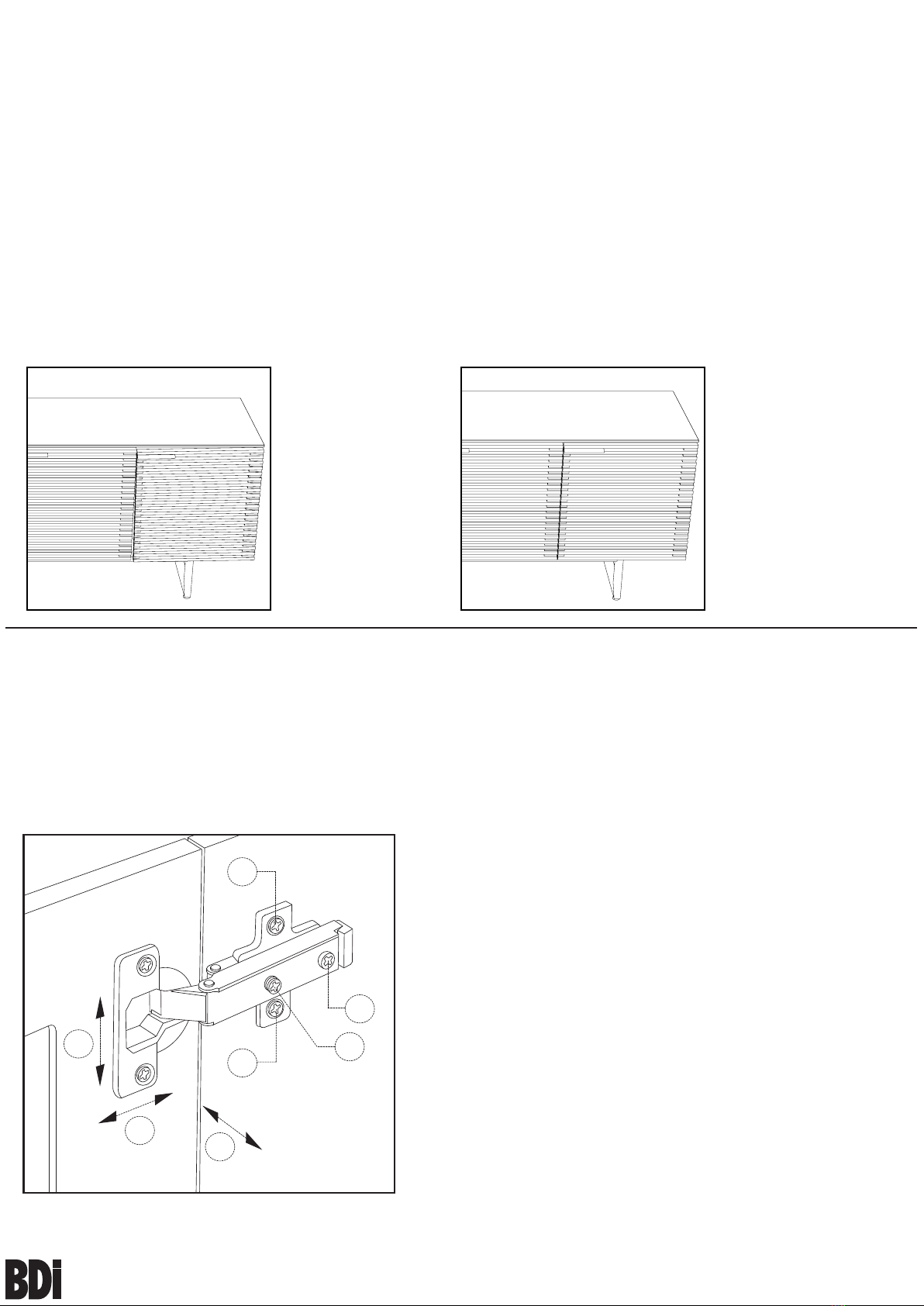

STEP 2 - Adjust Door Hinges (if needed)
The doors on your cabinet should be evenly spaced and the doors should open and close freely without rubbing
against the door frame.
If the cabinet’s doors appear out of alignment, this condition can be corrected with minor adjustment to the
European hinges on each door.
Because these hinges are infinitely adjustable, adjusting one hinge element can sometimes cause the need for
adjustments to other elements. But with a few adjustments, you can modify the orientation of the cabinet doors
to make sure that they hang perfectly within your cabinet.
Use the Phillips Screwdriver (A) supplied to adjust Corridor's
door hinges:
• By adjusting Screw 1, the door will move LEFT or
RIGHT within the frame. Make minor adjustments
at both top and bottom hinges for best results.
• By adjusting Screw(s) 2, the door will move UP or
DOWN within the frame (the top and bottom hinges
must be adjusted the same degree). NOTE: Loosen
Screws 2 one complete turn, raise or lower door, then
hold in position while tightening Screws 2 (on both
hinges).
• By adjusting Screw 3 the entire door will move IN or
OUT, opening or closing the gap between the door
frame and cabinet. (This screw rarely needs adjustment.)
Fine tuning your new BDI Corridor Home Theater Furniture
These steps are to be followed after you have unpacked and completed the simple assembly instructions
for your Corridor AV cabinet. Due to jostling in freight or perhaps an uneven floor, the doors on your Corridor
cabinet may not appear to be in perfect alignment. Making a few minor adjustments can rectify this situation.
Be aware that depending on your situation, patience and a bit of trial and error are required. The high-quality
European hinge hardware is infinitely adjustable, but changing one element can cause the need for further
adjustments. Through a little adjustment, you can modify the orientation of the cabinet doors to make sure that
they are sitting perfectly on your Corridor unit.
STEP 1 - Level your Corridor unit
Levelers are integrated into each leg assembly and are accessed at the bottom of each cabinet leg using Hex
Wrench (B2). If your floor is uneven, you may extend one or more levelers to attain a level, stable cabinet
placement. Turning the leveler clockwise will extend the leveler; turning it counter-clockwise will retract it.
CORRECT! Door is
sitting squarely and
evenly spaced on tops
and sides.
INCORRECT! Door is
out of alignment with
the rest of the unit.

1.
2.
3.
3.
1.
2.
*
2.
*
