Novia®is engineered for easy assembly. Carefully follow this
procedure to prevent any damage.
Placement and Maintenance
Novia®is designed for indoor use on level floors. Clean glass with
glass cleaner; steel parts and wood veneer with a moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. The assembly
workspace should be a non-marring surface such as carpet. For
missing hardware pieces, please contact BDI Customer Service
at [email protected]. For all other concerns, please
contact your BDI Retailer.
Step 2
Install Glass Panel (D) on top of Assembled Cabinet (E).
Component List
Designed by Matthew Weatherly
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
“Novia” and BDI are trademarks of Becker Designed, Inc.
All Rights reserved. ©2009, BDI
Made in China. 8429-2REV100609v2
a s s e m b l y instructions
b d i u s a .c o m customerservice@b d i u s a .c o m
B - Phillips Screwdriver
x 1
E -Assembled Cabinet x 1
A - 4mm Hex Driver
x 1
C - Leveler Wrench x 1
F - Knob Screw x 4
I - Back Panel x 2
G - Knob x 4
H - Adjustable Shelf x 2
D - Glass Panel x 1
For more information about the adjustable
levelers and troubleshooting, be sure to
check out “Fine tuning your new BDI Novia
Home Theater Furniture” at the end of these
instructions.
Novia®
8429-2

2assembly instructions
b d i u s a .c o m c u s t o m e r s e r v i c e @b d i u s a .c o m
1.
2.
Step 3
Install Knob (G) to the front side of door and drawer using Knob
Screw (F) and Phillips Screwdriver (A).
The shelf pins located inside the left and
right cabinet space may be repositioned,
allowing you to raise or lower the shelf to the
desired level.
Install Adjustable Shelf (H) inside the
left and right cabinet compartments.
Note: To place the Adjustable Shelf
(H) inside the cabinet, the shelf
must be tilted sideways to clear
the door opening.
Step 4
Install Back Panel (I) to the rear side of cabinet in the
pre-determined slots. Velcro straps are included as wire
management for your convenience.
I
B F G
Optional Flat Panel TV Mount
This BDI cabinet is compatible with BDI’s Flat-
Panel TV Mount #9970 (sold separately),
with the following features:
attaches easily to the back of the cabinet•
accommodates most TVs up to 60”•
swivel allows for rotating for optimal viewing•
allows adjustable TV mounting height•
accepts and route cables to and from the TV•
For more information, visit www.bdiusa.com
H

3assembly instructions
b d i u s a .c o m c u s t o m e r s e r v i c e @b d i u s a .c o m
Fully extend drawer and locate
plastic lever on drawer slide.
Simultaneously on the LEFT side of drawer, lift UP on plastic lever
AND on the RIGHT side of drawer, push DOWN on plastic lever
and pull STRAIGHT OUT the entire drawer assembly. Remove
drawer slides from interior side panels using a Phillips Screwdriver
(A).
+
Four of the six leg levelers are accessible near
the bottom of the side panels using the Leveler
Wrench (C).
Two of the six adjustable leg levelers on the
bottom, mid section of the cabinet are accessible
from inside the cabinet using the Allen Wrench
(A).
Step 5
Leveling
There are a total of 6 adjustable levelers on the bottom of
the cabinet, which may be adjusted depending on your leveling
situation.
Step 6
Center channel speaker option A.
The upper center drawer assembly may be removed in order to
accommodate a larger center channel speaker. In order to do
this, follow the steps below.
Drawer Note: Optional glass panel insert is available. Contact
BDI Customer Service at: [email protected]
C
A

4assembly instructions
b d i u s a .c o m c u s t o m e r s e r v i c e @b d i u s a .c o m
Thank you for choosing BDI.
Your BDI home theater cabinet is engineered to include a range of adjustments. Please read and retain this
guide so that you can fully enjoy the look and use of your cabinet for years to come.
Unless manual leveling is required or you wish to prevent the cabinet from rolling, you may prefer to keep the
cabinet’s levelers up and off the floor. This allows easier cabinet movement for greater access to rear panels
and wire-management, and permits easier cleaning/vacuuming underneath the cabinet.
By following the steps in this guide, you can be sure that your BDI cabinet is in optimum tune and adjustment. If
you need additional assistance, contact BDI at [email protected].
Fine tuning your BDI Home Theater Furniture
After unpacking and assembling your cabinet, inspect it to be sure that it is sitting level on the floor, that all
doors appear level, and that they open and close freely without rubbing or binding.
Due to uneven floors or perhaps gentle jostling during shipment, your BDI cabinet may not appear to be in
perfect alignment when first assembled or when loaded with heavier electronic equipment. Such alignment
issues are usually minimized or eliminated with only a few minor adjustments.

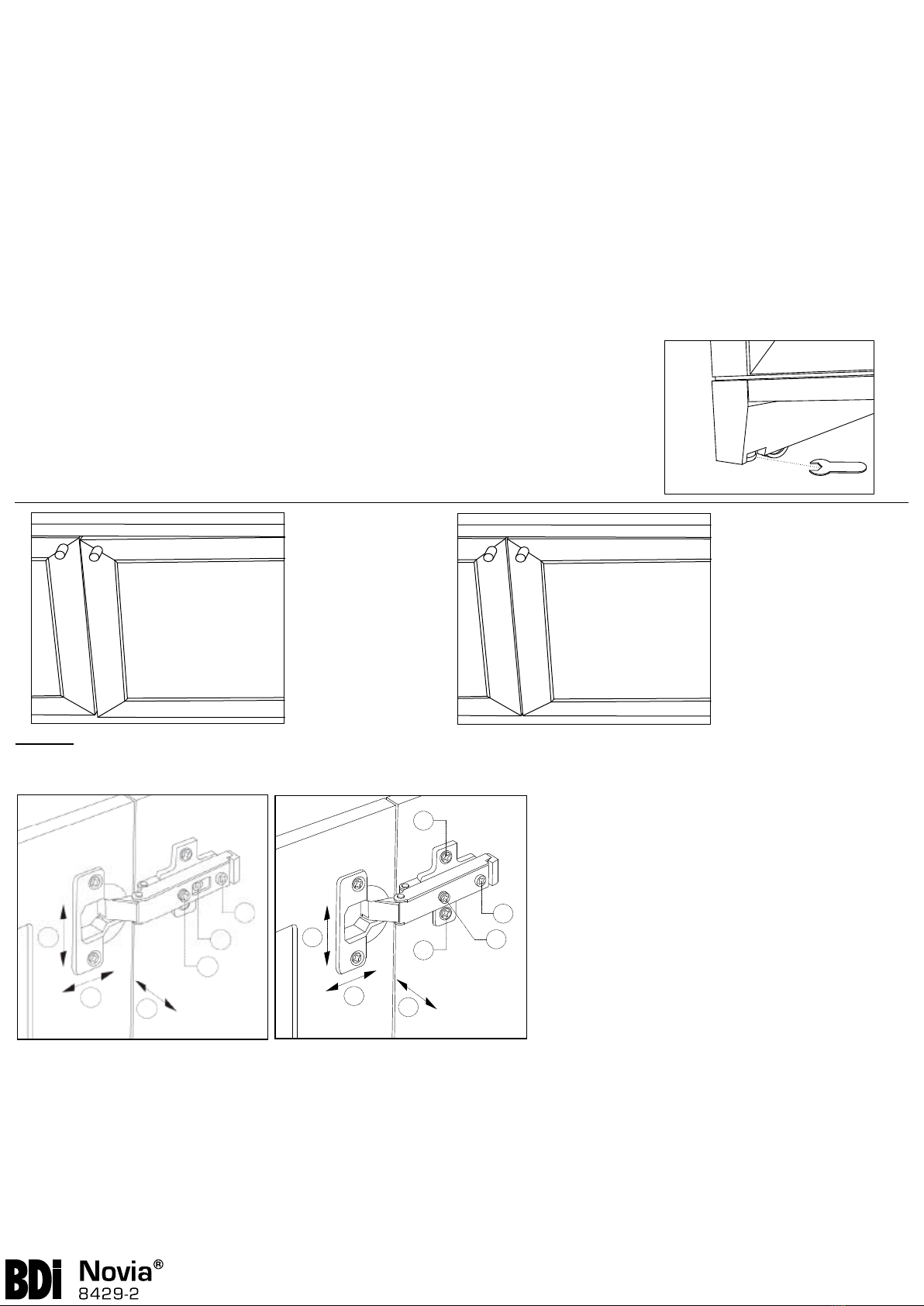

STEP 1 - Level the cabinet (if needed)
Levelers are integrated into each leg assembly and are accessed from outside
the cabinet. If your floor is uneven, you may extend one or more levelers (with the
provided Leveler Wrench (C)) to attain a level, stable cabinet placement. Turning
the leveler clockwise will extend the leveler; turning it counter-clockwise will
retract it.
STEP 2 - Adjust Door Hinges (if needed)
The doors on your cabinet should be evenly spaced and the doors should open and close freely without rubbing
against the door frame.
If the cabinet’s doors appear out of alignment,
this condition can be corrected with minor
adjustment to the European hinges on each
door.
Because these hinges are infinitely adjustable,
adjusting one hinge element can sometimes
cause the need for adjustments to other
elements. But with a few adjustments, you can
modify the orientation of the cabinet doors to
make sure that they hang perfectly within your
cabinet.
Use a Phillips screwdriver to adjust Novia’s door hinges:
 •ByadjustingScrew 1, the door will move LEFT or RIGHT within the frame. Make minor adjustments at
both top and bottom hinges for best results.
 •ByadjustingScrew(s) 2, the door will move UP or DOWN within the frame (the top and bottom
hinges must be adjusted the same degree).
NOTE: If your hinges have a Slotted Mounting Plate (as shown in Figure 2): Loosen Screws 2 one
complete turn, raise or lower door, then hold in position while tightening Screws 2 (on both hinges).
 •ByadjustingScrew 3 the entire door will move IN or OUT, opening or closing the gap between the
door frame and cabinet. (This screw rarely needs adjustment.)
INCORRECT! Door is
out of alignment with
the rest of the unit.
CORRECT! Door is
sitting squarely and
evenly spaced on tops
and sides.
1.
2.
3.
3.
1.
2.
*
2.
*
2. 2.
3.
1.
1.
Figure 2Figure 1
3.
