Title GV Fabric Installation Manual
Part Number 13-06157-030
Revision 2019-07-24, 09:40

iii
GV Fabric
Installation Manual
Electrostatic Discharge (ESD) Protection

Electrostatic discharge occurs when electronic components are improperly handled and can
result in intermittent failure or complete damage adversely affecting an electrical circuit. When
you remove and replace any card from a frame always follow ESD-prevention procedures.
• Ensure that the frame is electrically connected to earth ground through the power cord or
any other means if available.
• Wear an ESD wrist strap ensuring that it makes good skin contact. Connect the grounding
clip to an unpainted surface of the chassis frame to safely ground unwanted ESD voltages.
If no wrist strap is available, ground yourself by touching the unpainted metal part of the
chassis.
• For safety, periodically check the resistance value of the antistatic strap, which should be
between 1 and 10 megohms.
• When temporarily storing a card make sure it is placed in an ESD bag.
• Cards in an earth grounded metal frame or casing do not require any special ESD
protection.
Certification and Compliance
Safety of Laser Modules
This equipment incorporates modules containing Class 1 lasers. These modules are certified by
the manufacturer to comply with:
• IEC/EN 60825-1 Safety of laser products
• IEC 60950-1 Safety of information technology equipment
Restriction on Hazardous Substances (RoHS)

iv
Notices
Electromagnetic Compatibility
This equipment has been tested for verification of compliance with FCC Part 15, Subpart B
requirements for Class A digital devices.
This equipment has been tested and found to comply with the requirements of the EMC
directive 2004/108/CE:
• EN 55022 Class A radiated and conducted emissions
• EN 61000-3-2 Harmonic current emission limits
• EN 61000-3-3 Voltage fluctuations and flicker limitations
• EN 61000-4-2 Electrostatic discharge immunity
• EN 61000-4-3 Radiated electromagnetic field immunity - RF
• EN 61000-4-4 EFT immunity
• EN 61000-4-5 Surge immunity
• EN 61000-4-6 Conducted immunity
• EN 61000-4-8 EMP immunity
• EN 61000-4-11 Voltage-dips, short-interruption and voltage variation immunity
Note: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. 
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. 
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense.

v
GV Fabric
Installation Manual
Environmental Information
European (CE) WEEE directive.
This symbol on the product(s) means that at the end of life disposal it should not be mixed with
general waste.
Visit www.grassvalley.com for recycling information.
Grass Valley believes this environmental information to be correct but cannot guarantee its
completeness or accuracy since it is based on data received from sources outside our company.
All specifications are subject to change without notice.
If you have questions about Grass Valley environmental and social involvement (WEEE, RoHS,
REACH, etc.), please contact us at [e-mail].

vi
Notices

1
Introduction
Introduction to GV Fabric (GVF-1032-100G & GVF-516-100G models)

GV Fabric is a COTS (commercial-off-the-shelf) IP switch enabling format agnostic signal
routing for small to enterprise-wide installations. Operation has been rigorously tested with
Grass Valley IP edge devices and in typical workflow scenarios, thus ensuring all the main
equipment for an “end-to-end”IP solution can now be sourced from a single leading supplier.
Its seamless integration with proven and established GV Convergent router control and Orbit
configuration and monitoring systems dramatically reduces deployment timelines, system
upgrading, fault finding and customizing workflows. GV Fabric's scalable technology means it's
equally at home in spine-and-leaf or monolithic type structures both for single or redundant
network schemes. It's non-blocking architecture exhibits zero packet loss at very low latency
and is fully compliant with PTPv2 timing protocol for device and network timing offering
alternative clock distribution schemes including transparent and boundary clock mechanisms.
Two versions of GV Fabric are available: A 1 RU full rack width 32x QSFP28 port switch and a 1
RU half-rack width 16x QSFP28 port switch providing the equivalent of up to 2048x2048 HD
(256x256 4K UHD-1) and 1024x1024 HD (128x128 4K UHD-1) signal switching capacities,
respectively. All ports are fully independent and auto-sensing supporting Ethernet speeds of
1/10/25/40/50 and 100 GbE.
GVF-1032-100G Front View
GV Fabric 100 GbE 1 RU Ethernet switch, 32 QSFP28 ports with 2 power supplies (AC). Includes
rail kit.
GVF-516-100G Front View
GV Fabric 100 GbE 1 RU half-width Ethernet switch, 16 QSFP28 ports with 2 power supplies
(AC). Rail kit must be purchased separately.

2
Introduction
Speed and Switching Capabilities
Speed and Switching Capabilities
The table below describes maximum throughput and interface speed per system model.
Management Interfaces, PSUs and Fans
The table below lists the various management interfaces, PSUs and fans per system model.
GVF-1032-100G Rear View
GVF-516-100G Rear View
Model
10/25GbE SFP28
Interfaces*
40/50/56/100GbE QSFP28
Interfaces*
Max
Throughput
GVF-1032-100G 64
(using QSFP to SFP
splitter cables)
32 6.4Tb/s
GVF-516-100G 64
(using QSFP to SFP
splitter cables)
16
(or 32 50GbE interfaces when using
QSFP to 2xQSFP splitter cables)
3.2Tb/s
Model USB MGT Console PSU Fan
GVF-1032-100G Rear Rear (2 ports) Rear 2 Units 4 Units
GVF-516-100G Front (mini USB) Front (1 port) Front 2 Units (non
replaceable)
4 Units (non
replaceable)

3
Installation
System Installation and Initialization
Installation and initialization of the system require attention to the normal mechanical, power,
and thermal precautions for rack-mounted equipment.
The installation procedure for the system involves the following phases:
Note: The rack mounting holes conform to the EIA-310 standard for 19-inch
racks. Take precautions to guarantee proper ventilation in order to maintain
good airflow at ambient temperature.
Note: Unless otherwise specified, Grass Valley products are designed to
work in an environmentally controlled data center with low levels of gaseous
and dust (particulate) contamination. 
The operation environment should meet severity level G1 as per ISA 71.04 for
gaseous contamination and ISO 14644-1 class 8 for cleanliness level.
Step Procedure See
1 Follow the safety warnings Safety Warnings
2 Pay attention to the air flow consideration within the system and
rack
Air Flow
3 Make sure that none of the package contents is missing or
damaged
Package Contents
4 Mount the system into a rack enclosure 19”System Mounting
Options
5 Power on the system Initial Power On
6 Perform system bring-up System Bring-up
7 [Optional] FRU replacements FRU Replacements

4
Installation
Air Flow
Air Flow
GVF-1032-100G air flow pattern:
• Connector (front) side inlet to power side outlet - marked with red power supplies/fans
FRUs' handles.
Note: The following information does not apply to GVF-516-100G. In the
GVF-516-100G systems, the fan units are non-replaceable.
Note: All servers and systems in the same rack should be planned with the
same airflow direction.
All FRU components need to have the same air flow direction. A mismatch in
the air flow will affect the heat dissipation.
GVF-1032-100G Air Flow Direction Marking - Connector Side Inlet to Power Side Outlet

5
[PRODUCT NAME]
[DOCUMENT TYPE]
Package Contents
Before installing your new system, unpack it and check against the parts list below that all the
parts have been sent. Check the parts for visible damage that may have occurred during
shipping.
The GVF-1032-100G package content is as follows:
•1-System
•1-Railkit
• 1 - Power cable for each power supply unit - Type C13-C14
• 1 - Cable retainer for each power supply unit
• 1 - DB9 to RJ-45 2m harness
The GVF-516-100G package content is as follows:
•1-System
• 1 - Power cable for each power supply unit - Type C13-C14
• 1 - DB9 to RJ-45 2m harness
19" System Mounting Options
• By default, the GVF-1032-100G systems are shipped with the static rail kit described GVF-
1032-100G Static Rail Kit.
•TheGVF-516-100G system is shipped without a rail kit and a designated rail kit can be
purchased separately.
• For installation instructions, see GVF-516-100G Side by Side Mounting Rail Kit.
GVF-1032-100G Static Rail Kit

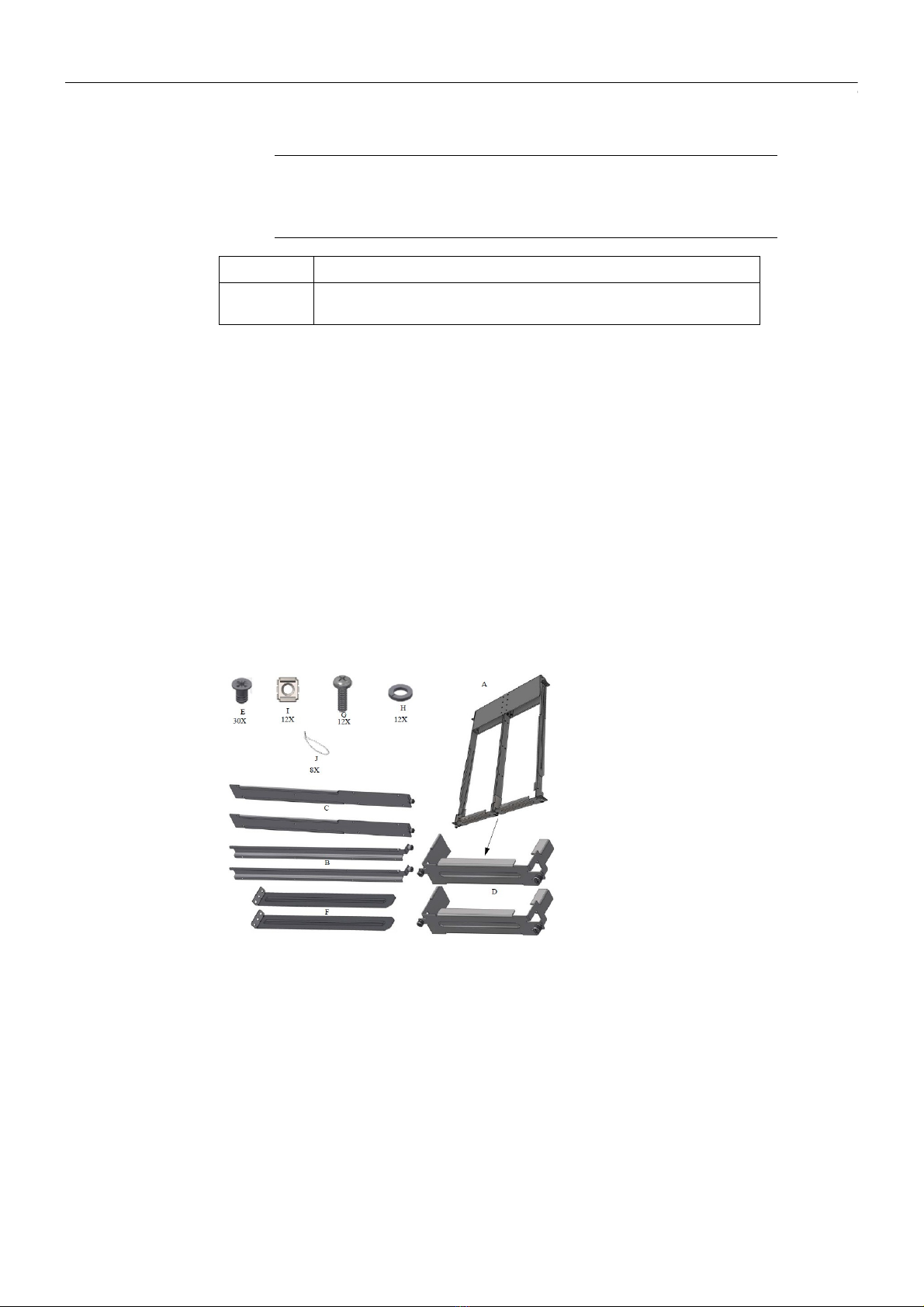

The following parts are included in the static rail kit (see figure below):
• 2x Rack mount rails (A)
• 2x Rack mount brackets (B)
•2xRackmountblades(C)
• 8x M6 Standard cage nuts¹ ² and 8x M6 Standard pan-head Phillips screws¹ (D)
• 4x Phillips100 DEG F.H TYPE-I ST.ST 6-32 X 1/4 screws with a round patch (E)
¹ Other threads are available by special order: M5, 10-32, 12-24. ² G-type cage-nut is available by
special order.
Note: A designated rail kit for the GVF-516-100G systems can be purchased
separately
Note: If anything is damaged or missing, contact your sales representative
at [e-mail]

6
Installation
19" System Mounting Options
Rack Rail Kit Parts
Prerequisites:
Before mounting the system to the rack, select the way you wish to place the system. Pay
attention to the airflow within the rack cooling, connector and cabling options.
While planning how to place the system, consider the two installation options shown in the
figure below, and review the following points:
• Make sure the system air flow is compatible with your installation selection. It is important
to keep the airflow within the rack in the same direction.

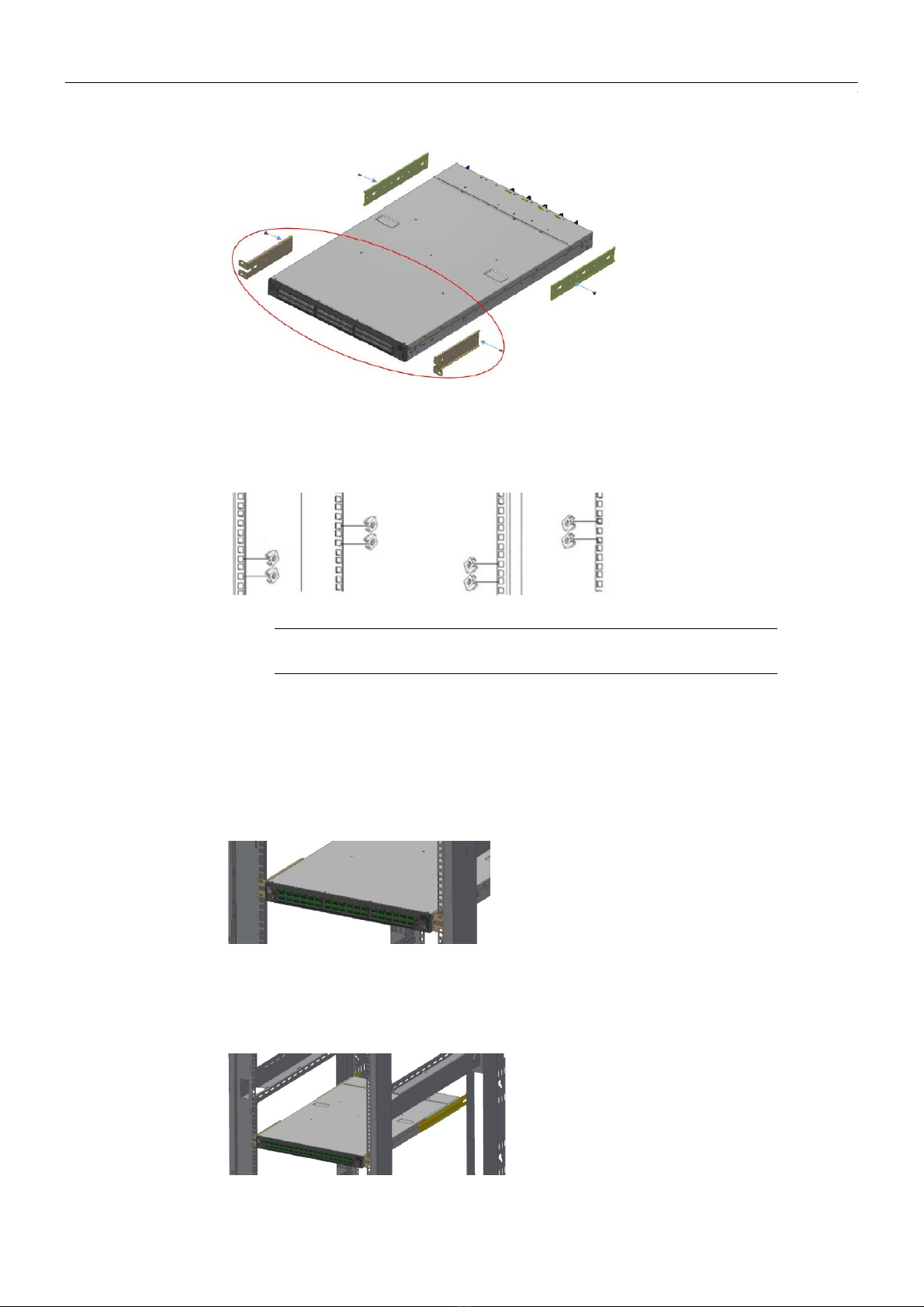

• The FRU side is extractable. Mounting the rack brackets inverted to the FRU side (Option 2)
will allow you to slide the FRUs, in and out.
Installation and Mounting Brackets

7
[PRODUCT NAME]
[DOCUMENT TYPE]

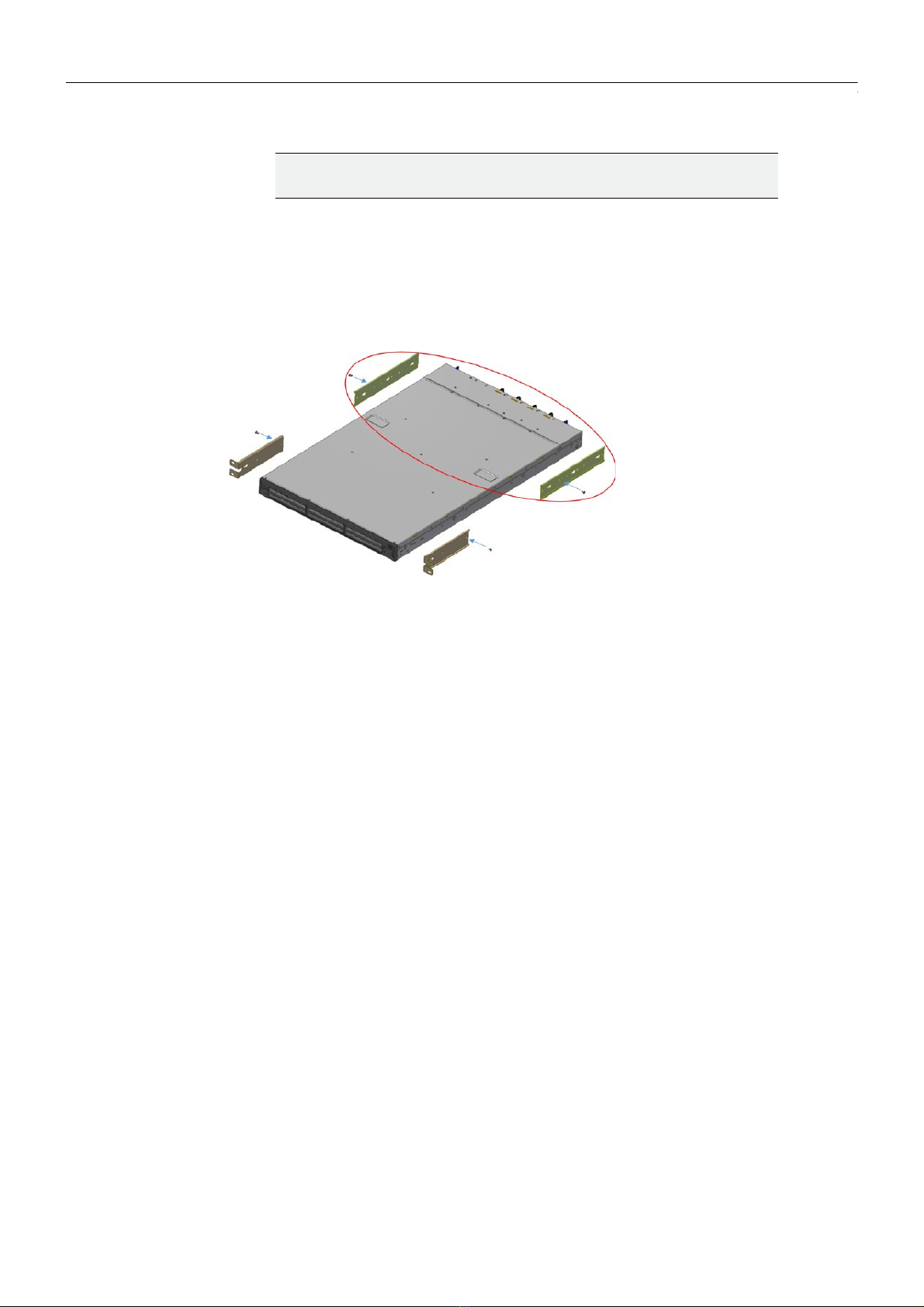

To mount the system into the rack:
1. Attach the left and right rack mount rails (A) to the switch, by gently pushing the switch
chassis' pins through the slider key holes, until locking occurs.
2. Secure the chassis in the rails by screwing 2 flat head Phillips screws (E) in the designated
points with a torque of 1.5±0.2 Nm.
Attaching the Rails to the Chassis
3. Attach the left and right rack mount brackets (B) to the switch, by gently pushing the
switch chassis' pins through the slider key holes, until locking occurs. Secure the system in
the brackets by screwing the remaining 2 flat head Phillips screws (E) in the designated
points with a torque of 1.5±0.2 Nm.
IMPORTANT: At least two people are required to safely mount the
system in the rack

8
Installation
19" System Mounting Options
Attaching the Brackets to the Chassis
4. Install 8 cage nuts in the desired slots of the rack: 4 cage nuts in the non-extractable side
(in the top and bottom holes only) and 4 cage nuts in the extractable side.
Installing the Cage Nuts
While your installation partner is supporting the system's weight, perform the following steps:
5. Mount the system into the rack enclosure, and attach the brackets installed on the system
to the rack's posts. Secure the brackets to the rack's posts by inserting four M6 screws in the
designated cage nuts, as described in the figure below. Do not tighten the screws yet.
Attaching the Brackets to the Rack
6. Slide the two blades into the left and right rails, and adjust them to fit your rack's depth.
Use four M6 screws (D) to fix the blades into the rack. Do not tighten the screws yet.
Sliding the Blades in the Rails
Note: While each rack U (unit) consists of three holes, the cage nut should
be installed vertically with its ears engaging the top and bottom holes only.

9
[PRODUCT NAME]
[DOCUMENT TYPE]
7.Secure the system in the rack by tightening the 8 screws inserted in Step 5 and Step 6 with
a torque of 4.5±0.5 Nm.
Removing the System from the Rack
To remove a unit from the rack:
1 Turn off the system and disconnect it from peripherals and from the electrical outlet.

While your installation partner is supporting the system's weight:
2 Loosen the screws attaching the brackets to the rack. Do not remove them yet.
3 Loosen the screws attaching the blades to the rack, and pull the blades towards you, while
your partner is holding the system.
4 Extract the loosened screws from Step 2 and dismount the system from the rack.
5 Remove the rails and brackets from the chassis by unscrewing 8 screws.

10
Installation
19" System Mounting Options
GVF-516-100G Side Slide Mounting Rail Kit
The following parts are included in the rail kit (see figure below):
• 1 metal frame for two systems (A)
• 2 system mounting blades with 8 screw holes - the kit contains enough rails to install 2
systems (B)
• 2 system mounting blades with 7 screw holes - the kit contains enough rails to install 2
systems (C)
• 2 blank (installed) covers (D)
• 30 flat head 4-40 screws - the kit contains enough screws to install 2 systems (E)
• 2 frame rail slides (F)
• 10 (+2 spare units) M6 pan head screws (G)
• 10 (+2 spare units) M6 spring washers (H)
• 10 (+2 spare units) M6 spring steel cage nuts (I)
• 6 (+2 spare units) cable-ties (J)
Prerequisites:
Before mounting the system to the rack, select the way you wish to place the system. Pay
attention to the airflow within the rack cooling, connector and cabling options.
• The installation kits come with enough system mounted rails and flat head screws to install
two systems.
• The 2 system metal frame will fit into racks with from 23.6" (600mm) to 31.5" (800mm)
space between the vertical supports.
• You may choose to install your system in the right or in the left part of the metal frame. The
following instructions apply to installation in the right part. For installation in the frame's
left part, follow the same instructions, while replacing "right" with "left", and vice versa.
Note: A designated rail kit for the GVF-516-100G systems can be purchased
separately.
This section is relevant to short-depth systems that allow such a form of
installation only.
Model Description
GVF-5XX-RK2 Rack installation kit for GV Fabric 1U half width switches allows
installation of one or two switches side-by-side into standard depth racks

11
[PRODUCT NAME]
[DOCUMENT TYPE]
To Mount The System into the Rack:
1. Insert the SE (single ended) plugs to the dedicated inlets in the system's rear panel.
2. Carefully position the SE (single ended) cables one on top of the other, and use three
cable ties to pair them together (shown in figure).
Coupling the Cables with Cable-ties
Coupled Cables - Rear View
3. Place the coupled cables in the designated area within the right flat blade (the blade with
7 screw holes).
Cables within the Rail
4. While holding the cables stably together in the blade's rail with one hand, use your other
hand to secure the blades to the chassis. Screw the right blade with eight 4-40 flathead
screws, and the left blade with seven 4-40 flathead screws. The recommended torque is
0.49-0.54 Nm.
IMPORTANT: At least two people are required to safely mount the
system in the rack.
Note: While pairing the cables, make sure the cables are paired in symmetry
to the switch, in order to avoid damaging the cables.
Note: In the next step you will be attaching the mounting rails to the switch
sides. Before doing that, make sure the cables are laid properly within them.
Avoid using excessive pressure, as it can damage the cables.

12
Installation
19" System Mounting Options
Attach the Blades to the System
Attached Rail with Threaded Cables - Top View
5. Slide the two frame slides into the dedicated rails in the metal frame.
Sliding the Frame Sliders into the Rails
6. Install ten cage nuts in the desired slots of the rack: three cage nuts in the front part of
each cabinet post, and two cage nuts in the rear part of each cabinet post.

13
[PRODUCT NAME]
[DOCUMENT TYPE]

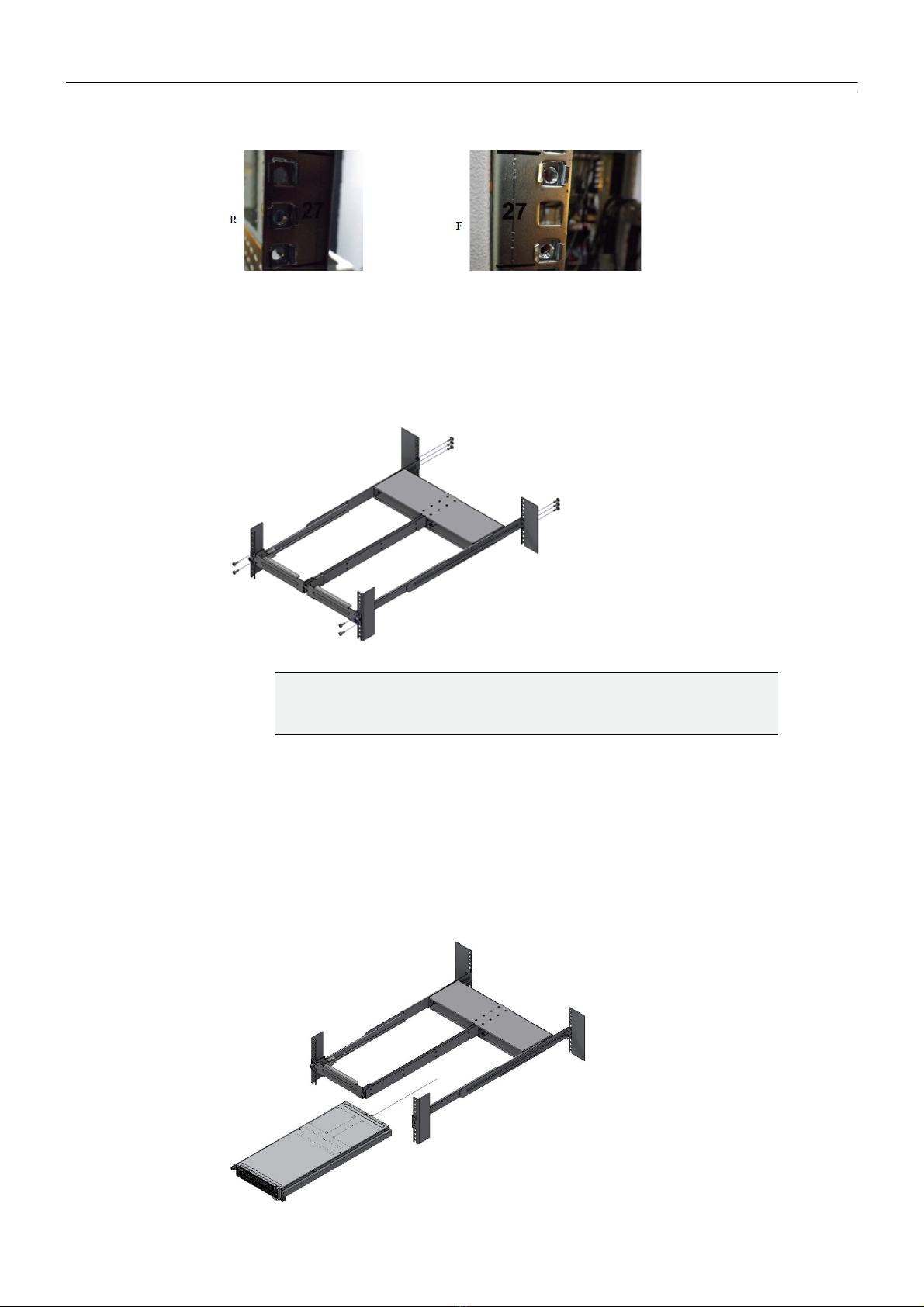

Installing the Cage Nuts
7. Attach the frame to the rack by using ten spacer cage nuts, and screw ten M6 pan head
screws - four in the front part of the rack, and 6 in its rear part. The recommended torque is
6.55-7.35 Nm. See figure above.
8. Place the frame in the cabinet.
Attaching the Frame to the Rack
9. Remove the blank cover from the selected slot in the frame, and mount the system by
sliding its mounting blades into the frame. Repeat this step to install an additional system in
the other side of the frame, if needed.
10. Tighten the capture nuts to secure the system in the frame. The recommended torque
on the right screw is3.0-3.36 Nm while on the left screw recommended torque is 0.89-0.98
Nm.
Sliding the System's Blades in the Rails
IMPORTANT: Do not remove both of the blank covers at the same
time. When no system is installed, at least one of them should be
present to support the frame's partition.

14
Installation
19" System Mounting Options
