BenQ 0.4 Wall Mount-WM04G3 User manual

BenQ America Corp.
15375 Barranca Parkway. Suite A-205. Irvine, CA 92618 Tel: [phone] www.BenQ.us
BenQ is a registered trademark of BenQ Corp. DLP® is a registered trademark of Texas Instruments. All rights reserved.
Product names, logos, brands, and other trademarks featured or referred to in this materials are the property of their respective trademark holders.
Specifications subject to change without notice.
Education Deal Registration – http://promotions.benq.us/education/
B2B Deal Registration - http://promotions.benq.us/dealregistration/
Fast and Easy Installation to
Keep Things Lookin’ Great!
Designed to provide an easy and quick
solution to mount a BenQ short-throw
projector, this installer-friendly wall mount
is smartly constructed with premium steel
and aluminum to provide the strongest
hold and stylishly polished with a pristine
white nish to keep any room lookin’
great! Together with an adjustable tilt
angle of up to ± 10 degrees, you’ll get to
enjoy the most exible viewing support
for just about any setting!
*Custom specications may vary by model. Please refer to the
specication chart to review each model in detail.
Wall Mount for BenQ Short Throw Projector!
Wall Mount 04-19-12-BQus
Sideways Rotation
Horizontal Angle Motion
Top to Bottom Angle Displacement Horizontally Lateral Motion
Adjust Projection Angles

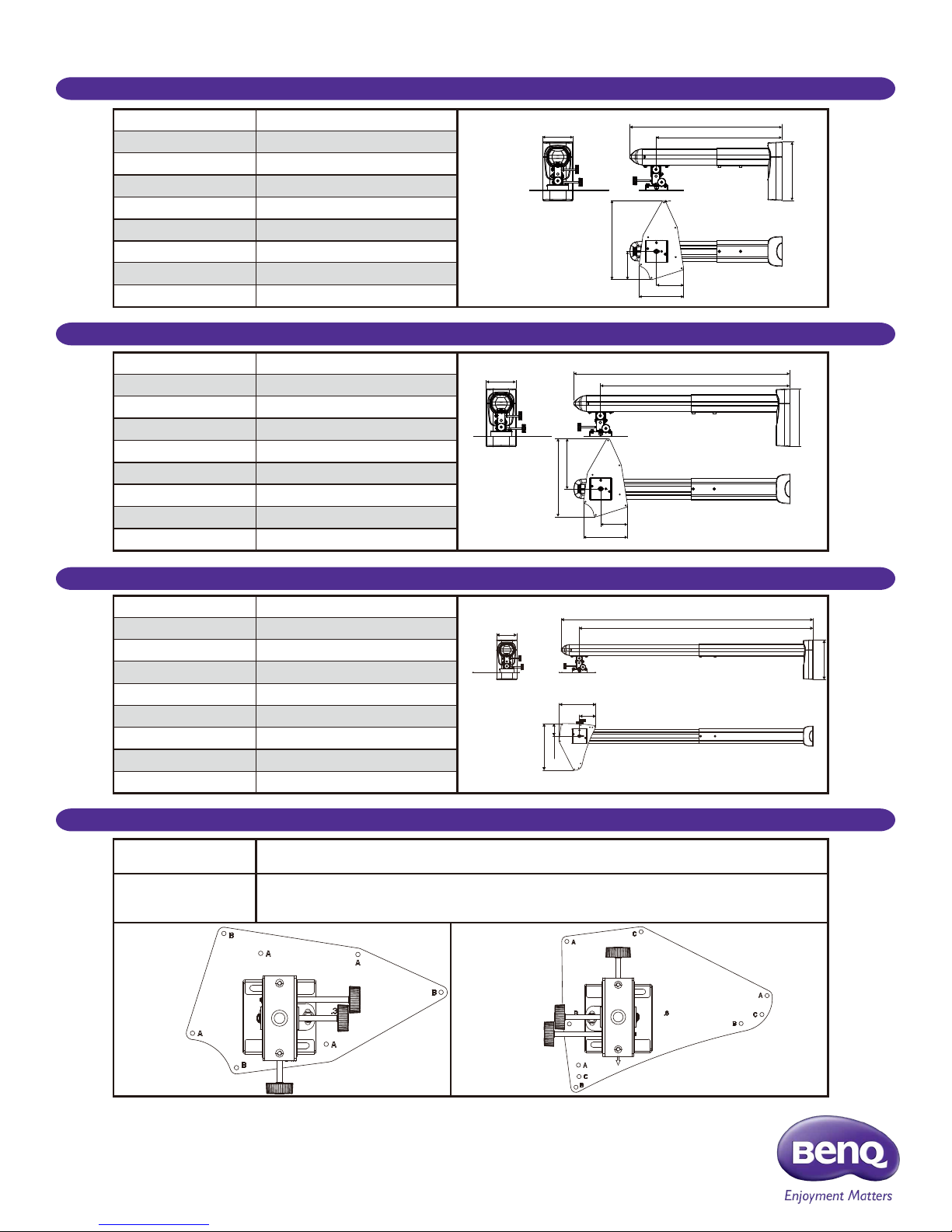

Ultra Short Throw Wall Mount (0.3 Throw Ratio, P/N 5J.J3A10.021)
Ultra Short Throw Wall Mount (0.4 Throw Ratio, P/N 5J.J4V10.011)
Short Throw Wall Mount (0.6 Throw Ratio, P/N 5J.J4R10.011)
Guide sheet for hole drilling Please visit www.benq.com for the latest guide sheet for hole drilling
Wall Mount for BenQ Short Throw Projector
5
Connection plate A Mark A ==> MX880UST
Mark B ==> MX850UST / MW851UST
Connection plate B
Ultra Short Throw Wall Mount (5J.J3A10.021)
Ultra Short Throw Wall Mount (5J.J4V10.011)
Ultra Short Throw Wall Mount (5J.J4R10.011)
Lens Direction Lens Direction
Connection plate A Connection plate B
Mark A ==> MP772ST /MP776ST / MP782ST/ MX810ST/ MW811ST/ MX812ST / MX813ST
Mark B ==> MW814ST/LX60ST/LW61ST/MX815ST/MX816ST
Mark C ==> MP780ST/MW860USTi/MP780ST+
Guide sheet for hole drilling Please visit www.benq.com for the latest guide sheet for hole drilling
187mm
291mm
100mm
163.5mm
558mm
max.460mm min.285mm
110mm
215mm
7-Ø5
215mm
803mm
max:705mm min:415mm
110mm
187mm
291mm
100mm
163mm
110mm
1368mm
max:1270mm min:665mm
90mm
200mm
254mm
68mm
215mm
Connection plate A
Steel/Aluminum alloy
3.6 kg (7.93 lbs)
460mm (18.11”)
+/-10˚
Rotation angle
15kg (33.07bs)
M4
+/-10°
110 x 215 x 558 mm (4.3” x 8.5” x 21.9”)
Material
Weight
Size (W x H x L)
Maximum distance from wall
Load
Screw
Tilt angle
BConnection plate
Steel/Aluminum alloy
5.1 kg (11.24 lbs)
1270mm (50”)
+/-10˚
Rotation angle
12kg (26.46lbs)
M4
+/-10°
110 x 215 x 1368mm (4.3” x 8.5” x 53.8”)
Material
Weight
Size (W x H x L)
Maximum distance from wall
Maximum distance from wall
Load
Screw
Tilt angle
AConnection plate
Steel/Aluminum alloy
4.02 kg (8.86 lbs)
705mm (27.7”)
Rotation angle
12kg (26.46lbs)
M4
+/-10°
110 x 215 x 803mm (4.3” x 8.5” x 31.6”)
Material
Weight
Size (W x H x L)
Load
Screw
Tilt angle
+/-10˚
English English
