BenQ PointWrite PW31U User manual

PW31U

2
Ta b l e o f c o n t e n t s
Shipping Contents........ 3
Prepare for Setup ........ 4
Environmental Condition ........................4
Instructions for Surface ...........................5
PointWrite Module
Installation on
Projector....................... 7
About PointWrite
Pen................................. 8
Installing the Batteries..............................8
Replacing the Pen Tip...............................8
Setup Software
Installation .................... 9
Setup Software
Installation
Complete .................... 10
Connecting the
PointWrite to PC....... 11
Set up for Interactive
Function ...................... 12
Configuration Setting. ............................12
Alignment Instructions...........................13
PointWrite Calibration..........................14
Start for Interactive Function...............15
Specifications.............. 16

Shipping Contents 3

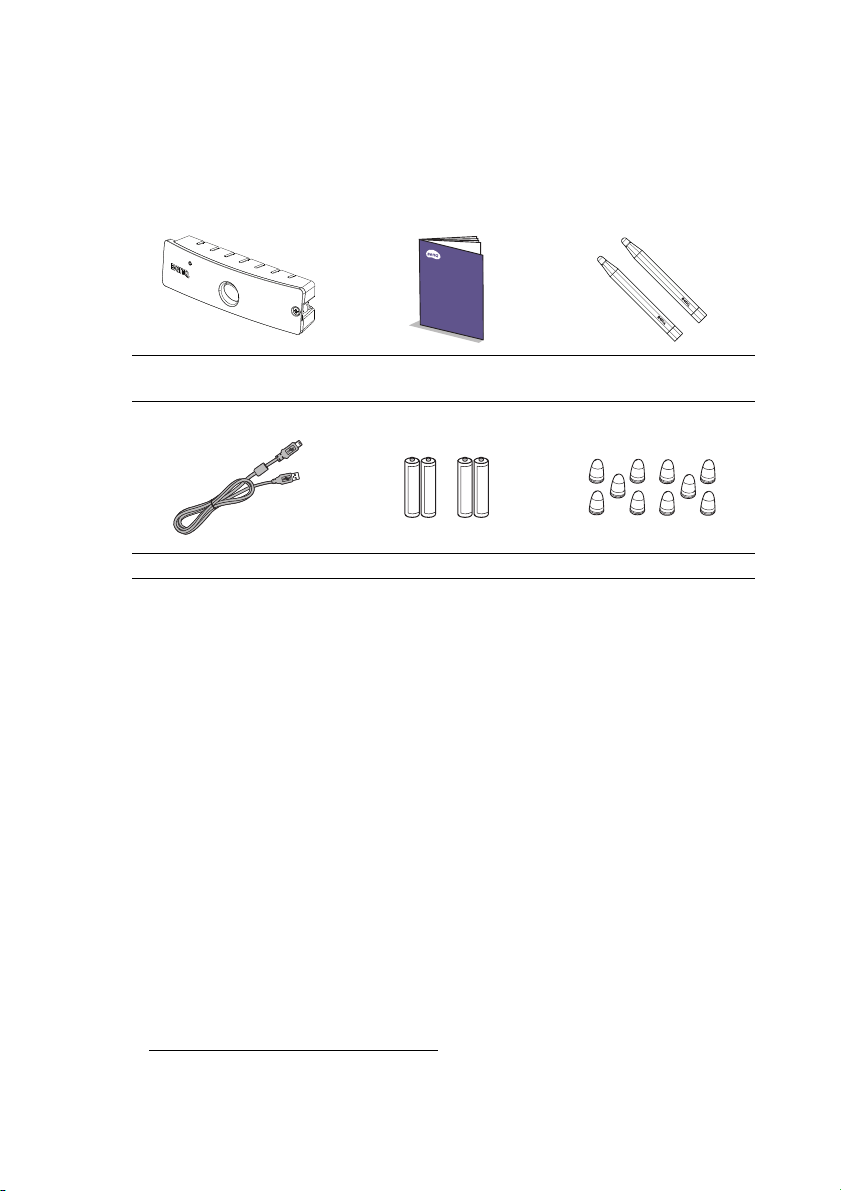

Shipping Contents

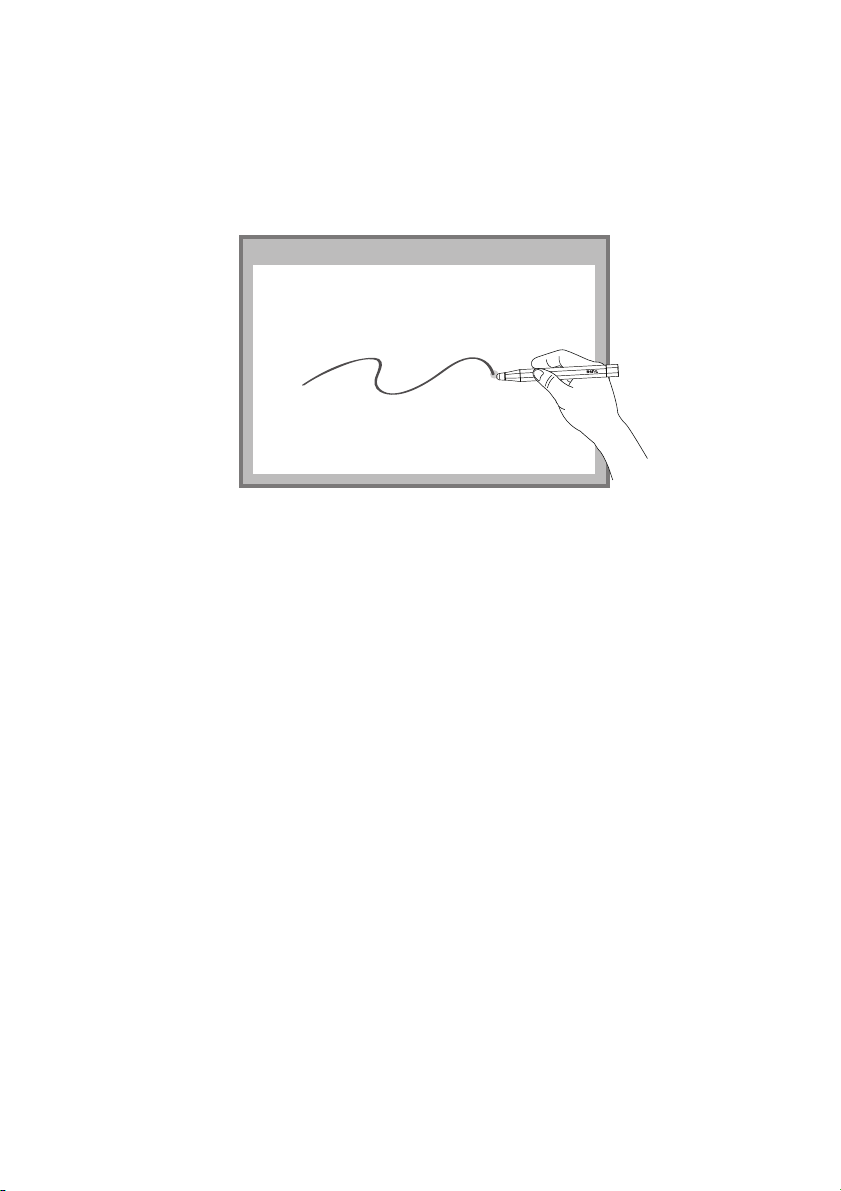

The PointWrite is a built in Interactive Whiteboard on the projector. To use the
PointWrite correctly, please find the standard accessories below and follow the
instructions in this manual.
1. PointWrite (PW31U): Interactive Whiteboard Sensor.
2. Quick Start Guide: PointWrite easy to use instructions..
3. Two PointWrite Pens (PointWrite Pen G2)1: PointWrite Pen is a pen type wireless
mouse. Before using the pen, insert the batteries into the pen.
4. Mini USB Cable: Connects the PointWrite to PC.
5. Batteries: AAA size batteries.
6. Extra Pen Tips
123
PointWrite Quick manual Two PointWrite pens
(PointWrite Pen G2)
456
Mini USB cable Two sets of batteries Extra pen tips
1. PointWrite Pen G2 is only compatible with selected PointWrite modules.

Prepare for Setup4
Prepare for Setup
Environmental Condition
For an BenQ projector with the scalable interactive functionality, transforming any flat
surface into a virtual interactive whiteboard.
For an optimal interactive writing quality, follow these guidelines:
1. Close window curtains.
2. Select a projection area away from direct sunlight to prevent writing interference.
3. Keep infrared devices, such as: infrared microphones, away from the front side of the
screen to prevent interference.
4. Remove accessories, such as: watches or necklaces, with a reflective surface to
prevent interference.

Prepare for Setup 5

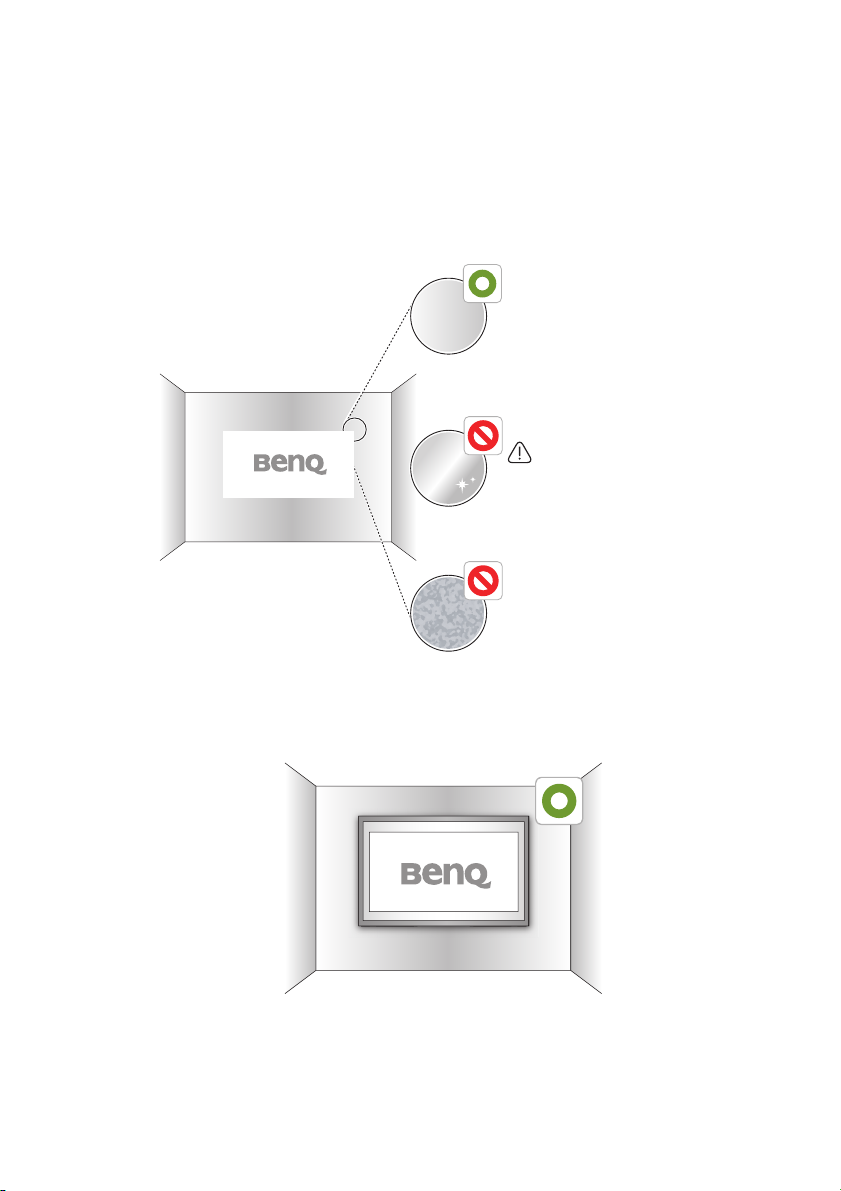

Instructions for Surface
Optimal interactive quality will be dependent on the selected surface condition. It is
important to choose a flat and non-reflective surface to secure the writing performance.
Selecting a wall surface
• Select a wall that is straight and flat, avoid any protruding objects on it.
• Project on a smooth, semi-gloss painted surface to reduce glare from the projector, to
achieve optimal touch quality and to reduce wear on the pen nib.
Selecting a board surface
Attach a dry-erase board to the wall if you’re projecting on a textured wall surface. A dry-
erase board is a flat surface that works well with your interactive projector and allows you
to write smoothly in digital ink.
Semi-gloss surface
Glossy surface
Glossy surface will increase
the external light intensity and
interference may happen.
Non-smooth surface or
with protruding object on
the surface.

Prepare for Setup6
Instructions for a board surface
Consider the following factors when selecting a board to project to optimized the
interactive quality.
• The board surface require to be semi-glossy or matt.
• The board with glossy and reflected surface is not recommended, the surface will
increase the external light intensity and unexpected interference may happen.
Caution: For a existing glossy board, it is recommend to use the projection film to coverage the existing
surface to get a better interactive quality.

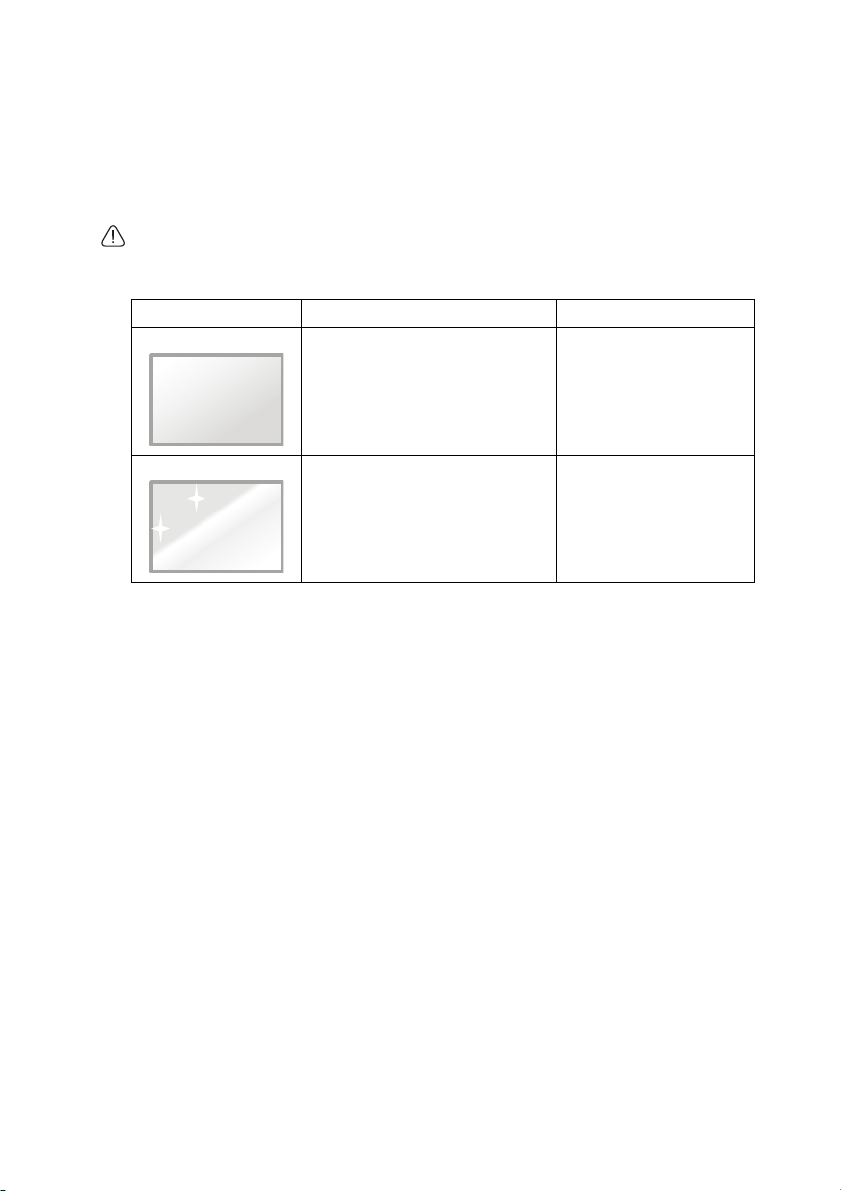

Comparison of the board surface
Surface Board material Performance
Semi glossy/Matt
Dry erase board
Best!
The surface will eliminate
reflection intensity.
Glossy
• General whiteboard
• With Galvanized steel
• With Ceramic steel panel
Risk!
Interference may happen
during writing.

PointWrite Module Installation on Projector 7
PointWrite Module Installation on Projector
Attach the PointWrite to the projector as illustrated and tighten the screw to secure the
PointWrite.
1. Remove the cover on the projector as illustrated.
2. Connect the cable to the PointWrite and install the PointWriter as illustrated
3. Tighten the screw to secure the PointWrite.

About PointWrite Pen8
About PointWrite Pen
The PointWrite Pen provides the following 4 actions:
Click: Touch an icon or a menu on the screen.
Double Click: Touch an icon or a menu on the screen two times.
Right Button Click: Touch an icon or menu for at least 1.5 seconds.
Drag: Touch and drag an object on the screen.
Installing the Batteries
Caution: When inserting the batteries into the PointWrite Pen, make sure the battery polarities are correct.
Remark:
To save the battery power, the pen will power off automatically when pen nib is pressed
over than 30 seconds.
Replacing the Pen Tip
1. Removing the pen tip
Hold the pen tip with your fingers. Shake and pull the pen tip out of the pen.
2. Inserting the pen tip
Push the pen tip gently, but not abruptly.

Setup Software Installation 9
Setup Software Installation
When you are the first time to use this PointWrite Module, please install set-up Software
for Configuration setting.
1. https://www.benq.com/en-us/business/support/products/projector/pointwrite-
pw31u/download.html
Go to BenQ Website >> Search PW31U >> Go to “Download Page”.
2. Follow the on-screen instructions to setup software.
3. Complete the installation.

Setup Software Installation Complete10
Setup Software Installation Complete
The PointWrite icon will be created on the desktop.
The installation folder will be created on C: directory.
• 64-bit Windows: C:\Program Files (x86)\BenQ\PointWrite 3.0
• 32-bit Windows: C:\Program Files\BenQ\PointWrite 3.0
Remark:
Only First time using the PointWrite module need to install set-up Software
for Configuration setting, the subsequent users can only plug the USB cable to connect
to PC to start the interaction quickly without Setup Software installation.

Connecting the PointWrite to PC 11

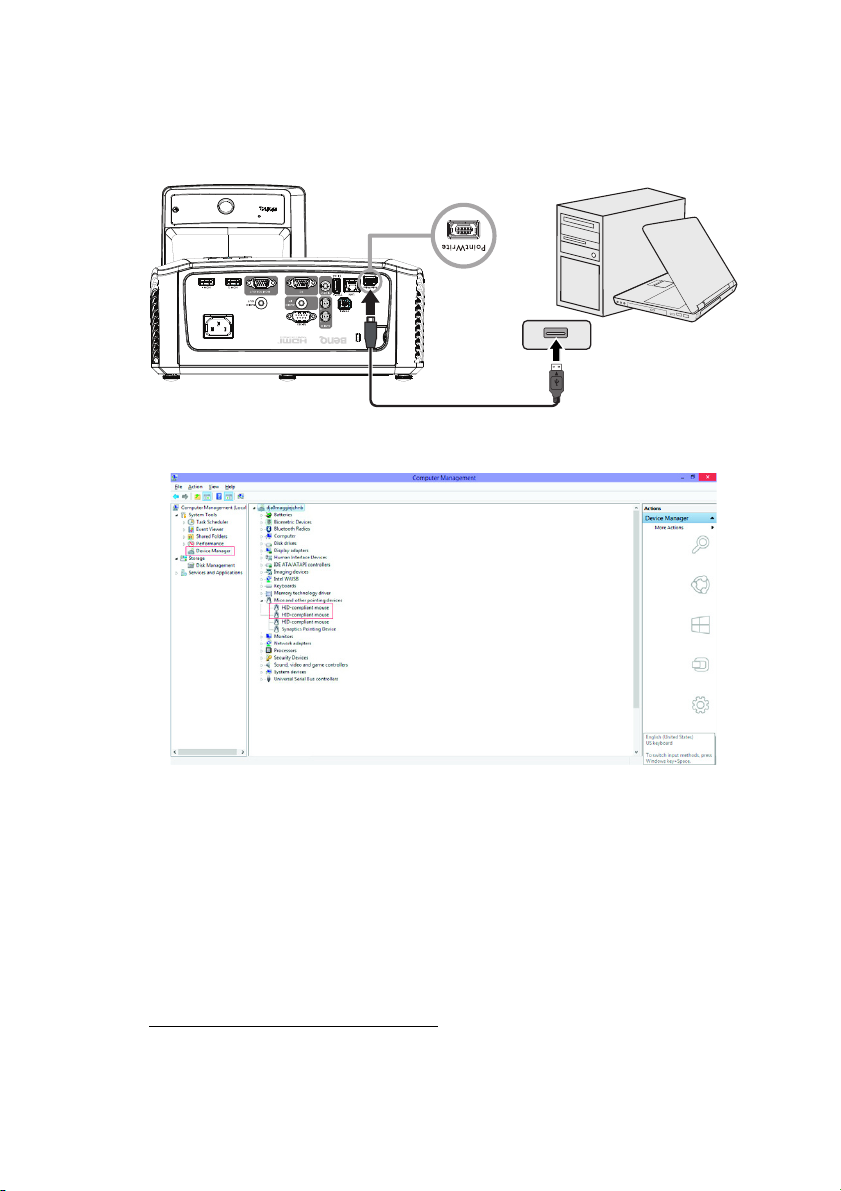

Connecting the PointWrite to PC
Use the USB cable2to connect the PointWrite to PC. Plug the USB mini-B end into the
projector and plug the USB type-A end into PC.
Check "Device Manager" from your computer to make sure that PointWrite device is
recognized by your computer.
2. A USB cable of 5 meters is provided. Use a USB repeater cable If you need to extend
the length.

Set up for Interactive Function12

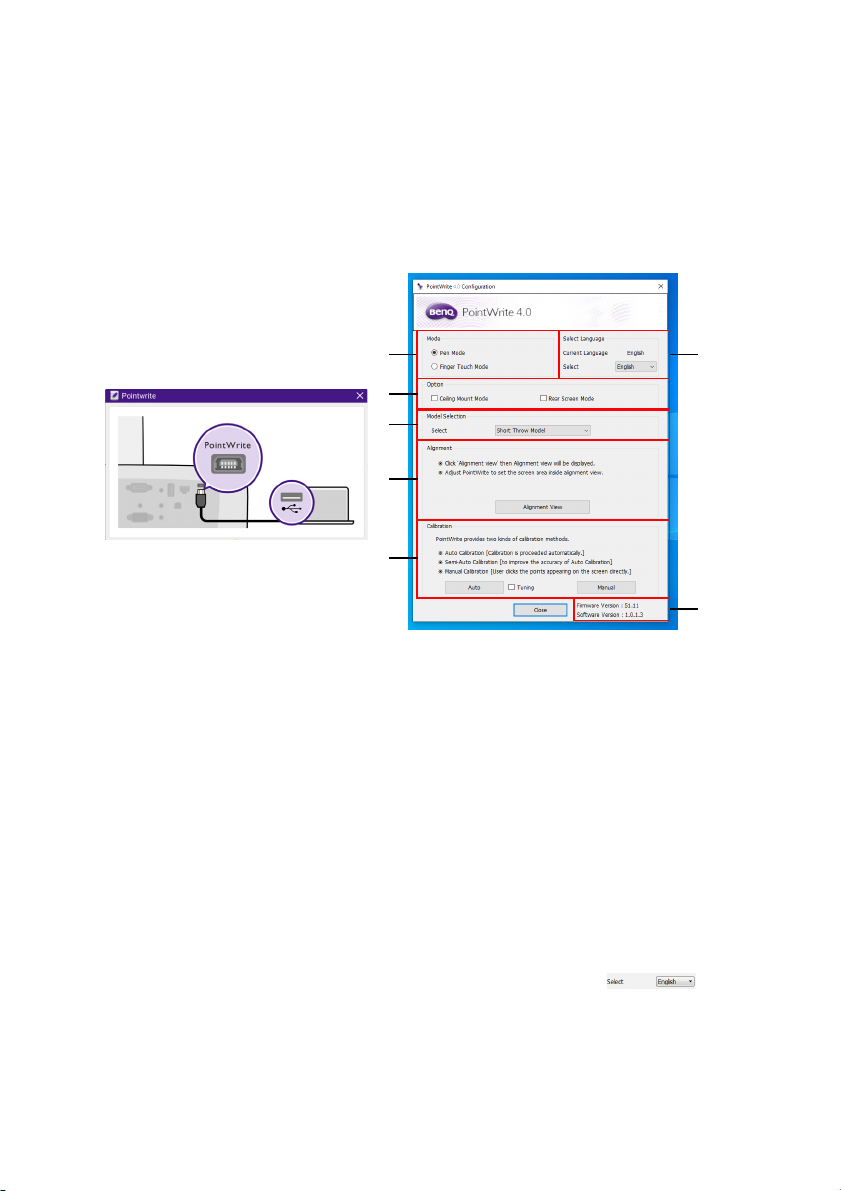

Set up for Interactive Function
To use the PointWrite, the proper setting of the PointWrite configuration is needed. The
Configuration setting window will help you to set up PointWrite correctly.
If PoinWrite module is not proper installed in projector, the PoinWrite set-up SW cannot
be execute. And the connected message will pop up to remind installation status.
Configuration Setting.
1. PointWrite Mode:
•Pen Mode: Default selection
•Finger Touch Mode: Only available when PointWrite Module works with
BenQ PointWrite Touch module. When selecting Finger Touch mode, pen and
finger can be used simultaneously.
2. PointWrite Option:
• Ceiling Mount Mode: Click this item if you mount the projector on the ceiling.
When the projector is placed on the table, do not click this item.
• Rear Screen Mode: If the projector is installed on the rear screen system, click
this item.
3. Model selection: Select the projector model.
4. PointWrite Alignment: See "Alignment View" on page 13.
5. PointWrite Calibration: See "PointWrite Calibration" on page 14.
6. PointWrite Language: The default language is the same as the language for your
operating system. If you want to change the language, click on and
then language list will display. After selecting your preferred language, quit the
PointWrite and start the PointWrite again.
7. Information: Shows the camera firmware version.
1
2
7
3
6
4
5

Set up for Interactive Function 13
Alignment Instructions
Alignment View
The PointWrite Alignment function is to set the orientation of the PointWrite to the
screen.
Alignment View: When clicking on the "Alignment View", the screen image is displayed
on the alignment view as illustrated.
If the screen image is not in the center, the calibration will fail. Please make sure the
PointWrite module is attached to the projector properly.
• Right side conflict • Left side conflict• Upper side conflict

Set up for Interactive Function14
PointWrite Calibration
PointWrite provides two kinds of calibration methods: auto calibration and manual
calibration.
Auto calibration: Click on and the calibration process will run automatically.
When you choose this method, white image is shown on the screen and the pattern image
is displayed.
Manual calibration: Click on and calibration window will be projected on the
screen.
Tuning: Check “Tuning” and do “Auto calibration” then the “ tuning” function become
effective.
Under this selection Setup Software starts calibration process like below
1) Run auto calibration
2) After finishing auto calibration, manual calibration is run automatically then click manual
calibration points
Through these two process, PW31U does auto calibration by referring manual calibration
result and gets more precise result.
* Usage of "Tuning": even though try auto calibration many times, but offset ( pen position
to cursor ) appears always.
Use the PointWrite pen to click on the center of calibration cursor immediately after
it appears. Then the next cursor will display. Repeat this process until the last calibration
cursor disappears.
Caution: In rare circumstances, auto calibration may fail or accuracy may be low. In this case, please execute
the manual calibration.

Set up for Interactive Function 15
Start for Interactive Function
After completing calibration, you can use PointWrite pen as mouse function or launch
QWrite software for writing and annotation.
Remark:
*QWrite™ is BenQ exclusive annotation software, please go to BenQ Website to
Download QWrite software.
Notice:
1. To secure the quality of interactive function, we suggest users to adjust projector's
input signal (computer output signal) to the same as projector's Native resolution.
2. If computer's output signal changed upon switching to different PC due to the output
limitation of Graphic card, we suggest to install the set-up SW and redo the
PointWrite Calibration.

Specifications16
Specifications
Item Description
PointWrite
Model name PW31U
Technology Image Processing Technology
Refresh Rate 60 Hz
Response Time Max 0.016 sec
Auto Calibration Yes
Calibration Accuracya
a. The accuracy of auto calibration will be impacted depending on your environment.
Max +/-2 Pixel
Operating Distance Follow Projector Specification
Multi-User 10 pens simultaneously
Multiple Operation 2 Units
PC Connection Mini USB
Power Source PC USB Power
Max USB Cable Length 15 m (5 m USB cable + Repeater)
OS Supported Windows: Win 8, 10, 11
Mac: 10.12 or later
Storage Temp/Humidity -10°C ~ 60°C / 5%~95% RH (Max.)
Operating Temp/Humidity 5°C ~ 40°C / 10%~85% RH (Max.) non-condensing, inside
projector
Dimensions 118.3 mm x 31.3 mm x 23.6 mm
Weight 45.0 g +/- 2 g
Compatible model Selected BenQ Ultra short throw models (Throw ratio 0.35
and 0.33)
PointWrite Pen
Power AAA Battery*2
Length 164 mm
Diameter 16 mm
Weight 27 g (without batteries)
Color Black
