Best WPP9IQ User manual

In USA - BEST Hartford, Wisconsin
In CANADA - BEST Drummondville, QC, Canada
Model WPP9
ENGLISH........................................2
FRANÇAIS...................................24
ESPAÑOL.....................................48
REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register
For additional Information visit www.BestRangeHoods.com

- 2 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact
the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power offat service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only steel ductwork.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the
risk of electrical shock by providing an escape wire for the electric current.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely understood, or if
doubt exists as to whether the appliance is properly grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 3 -
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn offthe burner.
BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
!
CAUTION
1. For indoor use only.
2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust
air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
3. Take care when using cleaning agents or detergents.
4. Avoid using food products that produce flames under the Range Hood.
5. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and
vapors.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. offpower unit.
7. Your hood motor has a thermal overload which will automatically shut offthe motor if it becomes
overheated. The motor will restart when it cools down. If the motor continues to shut offand
restart, have the hood serviced.
8. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24” and
a maximum of 36” above the cooking surface.
9. Two installers are recommended because of the large size and weight of this hood.
10. This product is equipped with a thermostat which may start blower automatically. To reduce
the risk of injury and to prevent power from being switched on accidentally, switch power offat
service panel and lock or tag service panel.
11. Please read specification label on product for further information and requirements.
12. EXTERNAL BLOWER MODELS ONLY: To reduce risk of fire and electric shock, install this
range hood only with Best Exterior Blower Models EB6, EB9, EB12 or EB15 or Best In-Line
Blower Models ILB3, ILB6, ILB9 or ILB11. Other blowers cannot be substituited. (Blower sold
separately)

- 4 -
CLEANING AND MAINTENANCE
Proper maintenance of the Range Hood will assure proper performance of the unit.
Motor
The motor is permanently lubricated and never needs oiling. If the motor bearings make
excessive or unusual noise, replace the motor with the exact service motor. The impeller
should also be replaced.
Grease Filter
The grease filters should be cleaned frequently. Use a warm detergent solution. Grease
filter are dishwasher safe.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration
of the filter may occur if using phosphate detergents, or as a result of local water condi-
tions - but this will not affect filter performance. This
discoloration is not covered by the warranty. See
“INSTALL FILTERS” section for removal and instal-
lation instructions.

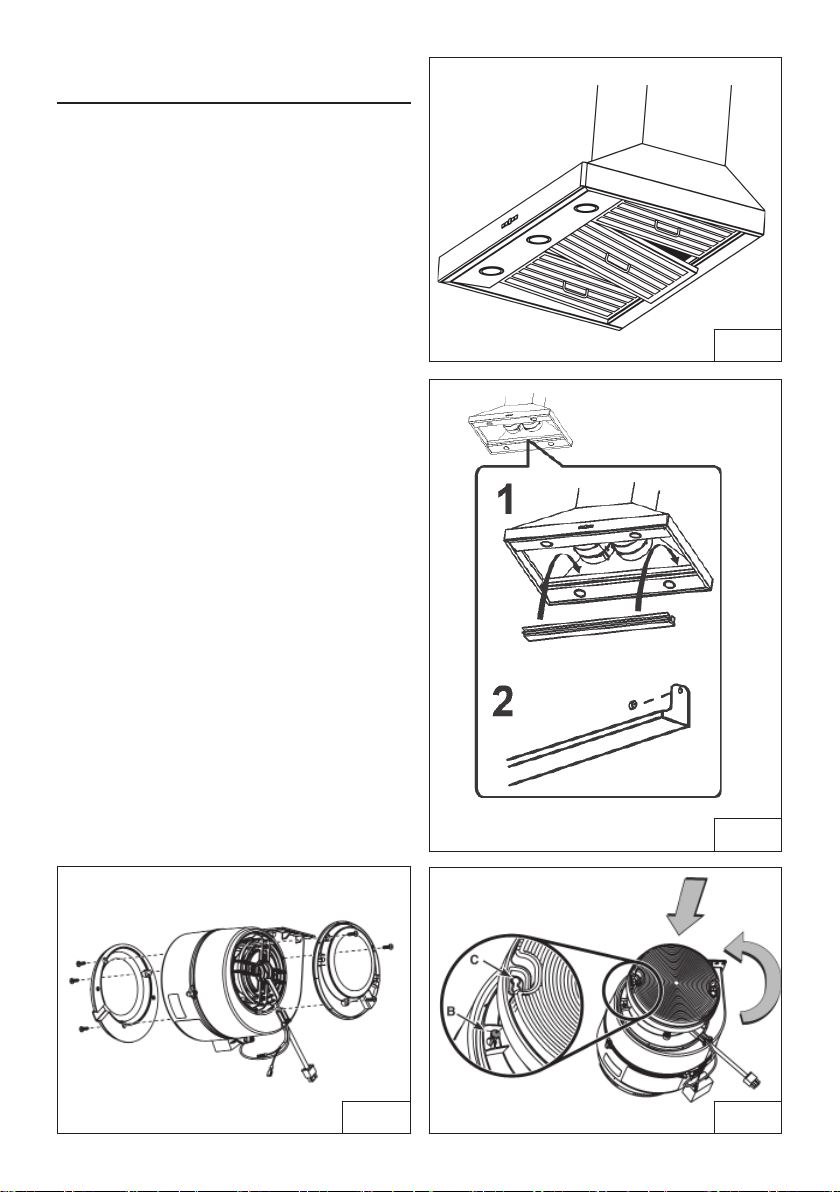

Drip Tray
The drip tray should be cleaned once a month or
as needed. To remove the drip tray, first remove the
baffle grease filters. Unscrew the thumbscrews and
grasp both ends of the drip tray. Gently lift the drip
tray up until the bottom of it clears the track. Pull
the drip tray forward, being careful not to spill the
contents, and move it to a nearby trash receptacle.
To clean the drip tray, drain and wipe all excess
grease with a dry paper towel. Wash with warm
soapy water or in the dishwasher. Dry with a clean
cloth. To replace the drip tray, lift it up and into
the track on the hood. Reinstall thumbscrews and
baffle grease filters.
Non-ducted Recirculation Filter
The non-ducted recirculation filter should be
changed every 6 months. Replace more often if your cooking style generates extra grease,
such as frying and wok cooking. See “INSTALL FILTERS” section for removal and installa-
tion instructions.
Stainless Steel Cleaning
DO:
• Regularly wash with clean cloth or rag
soaked with warm water and mild soap or
liquid dish detergent.
• Always clean in the direction of original
polish lines.
• Always rinse well with clear water (2 or 3
times) after cleaning. Wipe dry completely.
• You may also use a specialized household
stainless steel cleaner.
DON’T:
• Use any steel or stainless steel wool or
any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction
residues reach the hood. During construc-
tion/renovation, cover the range hood to
make sure no dust sticks to the stainless
steel surface.
Avoid: When choosing a detergent
• Any cleaners that contain bleach will attack stainless steel
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rap-
idly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc.,
are highly explosive and should never be used close to a range.

- 5 -

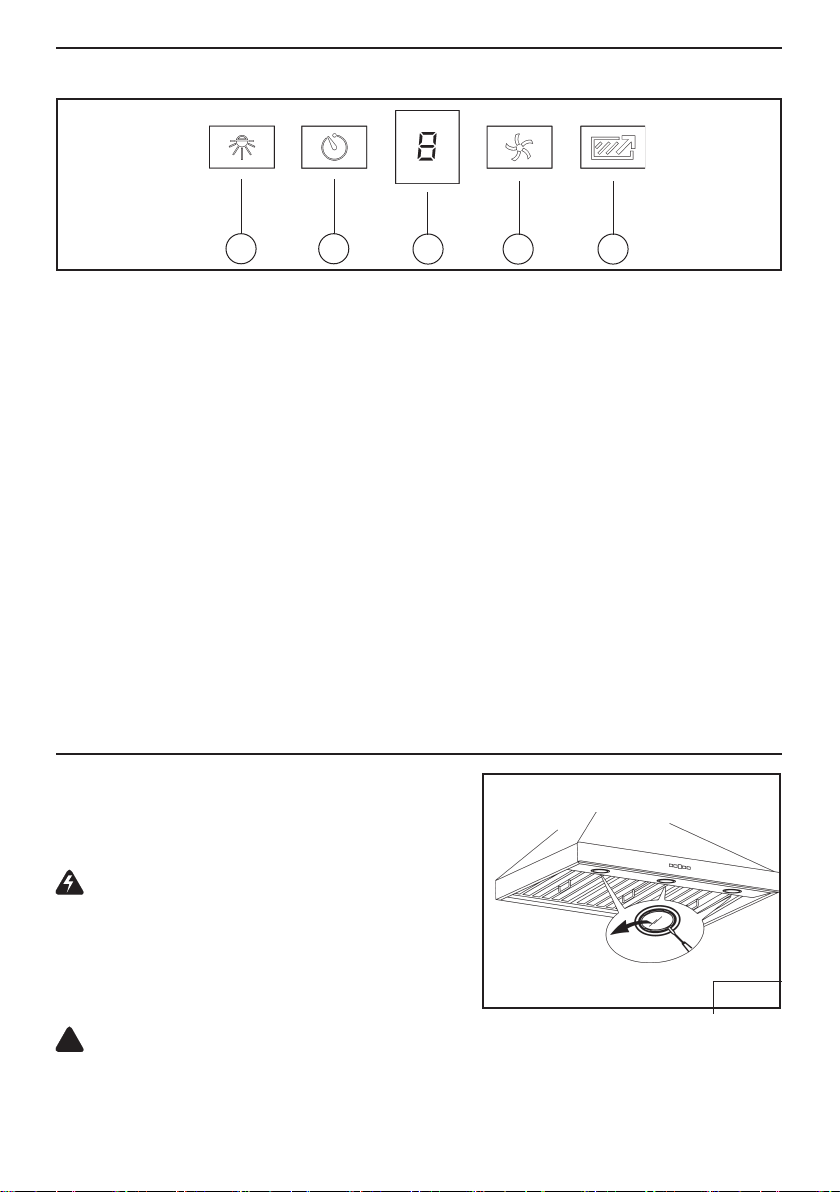

OPERATION
AC BD R
Button A = turns the lights on/low/high/off.
Button B = Activates/Deactivates the delay-offfeature. Press once (when blower is on)
to activate the delay-offfeature. The selected speed level that is displayed in display “C”
will blink when this feature is activated. After 10 minutes, the blower will then turn off.
Delay can be deactivated at any time by pressing the button again.
Display C = Indicates the selected speed of the blower 1, 2, 3, or b for boost.
“-” indicates the need to clean the grease filter.
Button D = Turns on the blower. Hood will turn on to the last speed selected. The blower
speed will change each time the button is pushed (from 1 to “b”). To turn the blower off,
press and hold button for approximately 2 seconds.
Button R = Filter clean indicator reset. Press and hold for 2 seconds to reset the indicator.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that
will turn on or speed up the blower if it senses excessive heat above the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF.
When this occurs, it is impossible to turn the blower OFF with its switch. If you
must stop the blower, do it from the main electrical panel.
Controls (Fig.1)
HALOGEN BULBS
This range hood requires 3 or 4 halogen bulbs
(based on size of hood)
(Type T4, 120 Volt, 25 Watt Max, G9 Base).
WARNING: Always switch offthe electrical
supply before carrying out any operation on
the appliance.
To change bulbs:
1. Open the cover by gently prying from proper
slots (Fig.2).
2. Remove the bulb by pulling sideways
(DO NOT ROTATE). CAUTION: Bulb may be hot.
3. Replace with Type T4, 120 Volt, 25 Watt Max,
G9 Base halogen bulbs. Do not touch replacement bulbs with bare hands!
!
FIG. 2

- 6 -
PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flues
1 - Parts Bag (B080810995) containing:
1 - Flue Mounting Bracket Set
2 - Mounting Screws (3,9 x 6mm Flat Head)
2 - Mounting Screws (3,9 x 9,5mm Pan Head)
4 - Mounting Lag Screws (6 x 60mm)
2 - Mounting Screws (4,8 x 38mm Pan Head)
2 - Drywall Anchors
2 - Thumbscrews for Drip Tray
1 - Installation Instructions
3 - Filters for 36” and 42” or 4 - filters for 48” and 54”
2 - Drip Tray

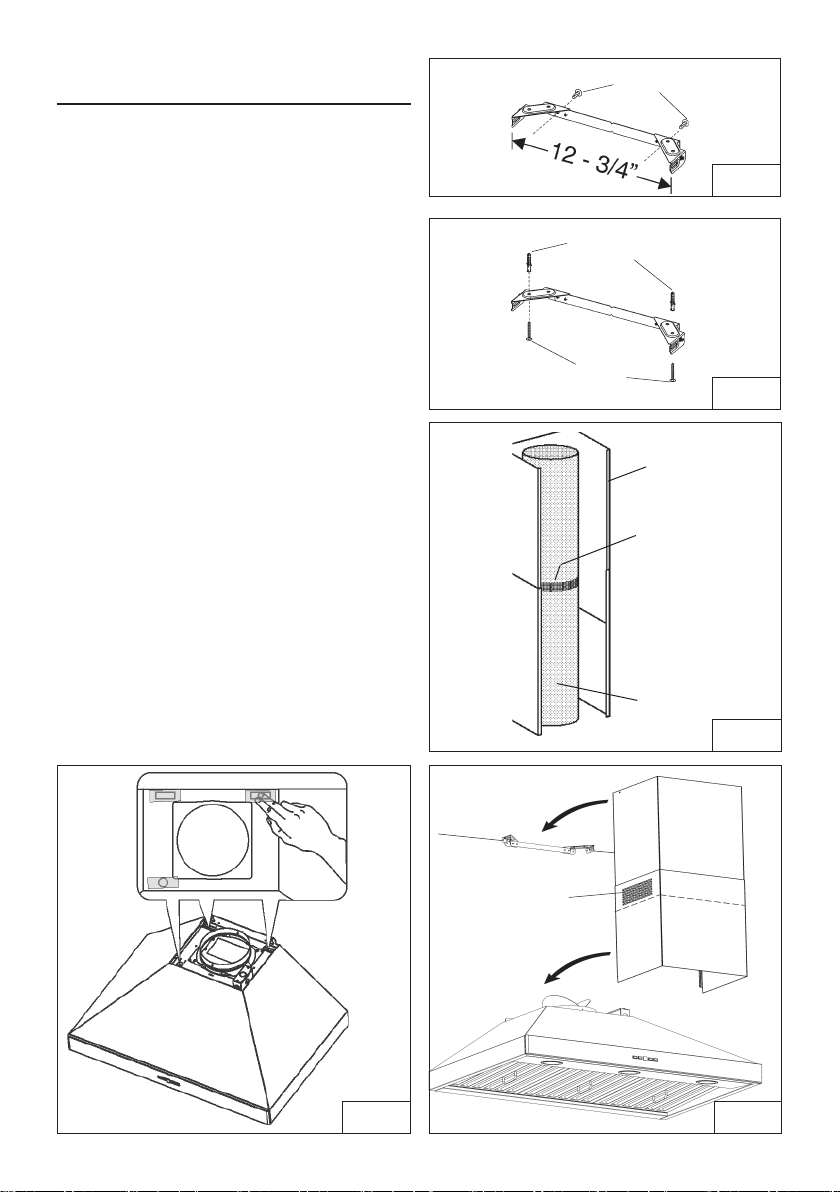

FLUE MOUNTING
BRACKET SET
2 MOUNTING SCREWS
(4,8x38mm Pan Head)
DECORATIVE
FLUES
2 MOUNTING SCREWS
(3,9x9,5mm Pan
Head)
2 DRYWALL
ANCHORS
4 MOUNTING LAG
SCREWS (6x60mm)
2 MOUNTING SCREWS
(3,9x6mm Flat Head)
FIG. 3
3 FILTERS
2 DRIPTRAY
2 THUMBSCREWS
FOR DRIP TRAY

- 7 -

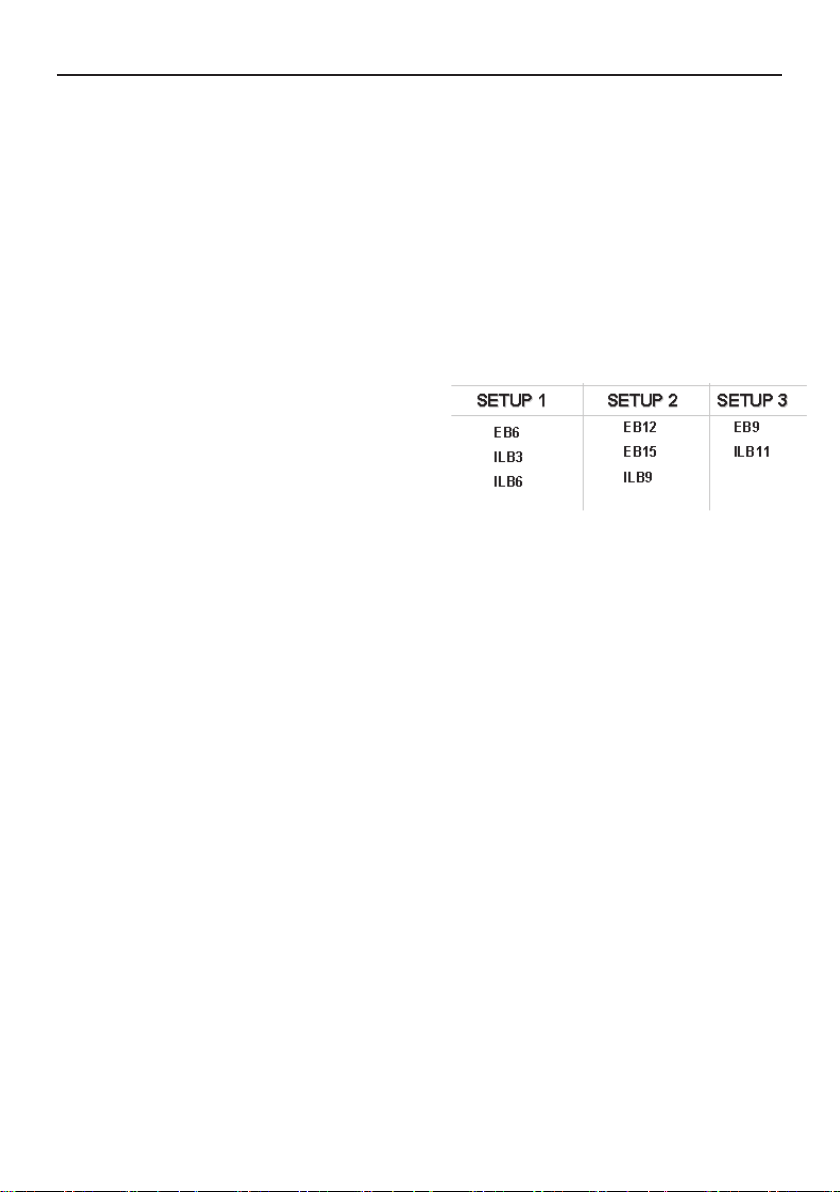

EXTERIOR AND IN-LINE BLOWER SELECTION WPP9E Series
CAUTION: To reduce risk of fire and electric shock, install this range hood only with Best
Exterior Blower Models EB6, EB9, EB12 or EB15, and Best In-Line Blower Models ILB3,
ILB6, ILB9 or ILB11. Other blowers cannot be substituited.
The blower must be UL listed for Canadian and U.S. use, and evaluated for use with solid
state speed control, rated 120V, 60 Hz, 6.0 A max.
HOOD
24” TO 36” ABOVE
COOKING SURFACE
DECORATIVE
FLUE
10” ROUND
DUCT
INSTALL THE DUCTWORK WPP9E Series
NOTE: To reduce the risk of fire, use only metal ductwork.
1. Choose the location where the Exterior Blower or In-Line Blower will be mounted. See
illustrations below for mounting location suggestions and restrictions.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as
few of them as possible. Larger ducting may be required for best performance with long
duct runs.
4. After the Exterior or In-Line Blower has been installed, connect round metal ductwork and
work back towards the hood location. Use duct tape to seal joints between ductwork sec-
tions.
OK
OK
SUGGESTED MOUNTING LOCATIONS
EXTERIOR BLOWER
CAUTION: MAY NOT FIT
UNDER EAVES OF SINGLE
STORY HOMES
EXTERIOR
BLOWER
10” ROUND
DUCT
EXTERIOR
BLOWER
10” ROUND
ELBOW
10”
ROUND
DUCT
FIG. 4
5 - 3/8” CENTER-
LINE OF DUCT TO
WALL

- 8 -
IN-LINE BLOWER
FIG. 5
INSTALL THE DUCTWORK
(WPP9IQ and WPP9IQT)
NOTE: To reduce the risk of fire, use only
metal ductwork.
1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most efficiently.
It is recommended that there be a minimum
of 6” of straight duct from to an elbow for
8” duct and 12” for 10” duct.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use
as few of them as possible.
4. Install a roof or wall cap. Connect 8”
WPPIQ (or 10” WPPIQT) round metal
ductwork to cap and work back towards
hood location. Use duct tape to seal the
joints between ductwork sections (Fig.6).
24” TO 36” ABOVE COO-
KING SURFACE
ROOF CAP
WALL
CAP
8” OR 10” ROUND
ELBOW
HOOD
DECORATIVE
FLUE
8” OR 10” ROUND
DUCT
FIG.6
8” DUCT (5 - 1/8”)
10” DUCT (5 - 3/8”)
CENTERLINE OF
DUCT TO WALL

- 9 -
INSTALL THE HOOD
Remove the plastic protective film from
all exterior surfaces, decorative flues and
filters, prior to final installation
1. Construct wood wall framing that is flush
with interior surface of wall studs (Fig.7).
Make sure:
a) the framing is centered over installation
location.
b) the height of the framing will allow the hood
to be secured to the framing within the
dimensions shown.

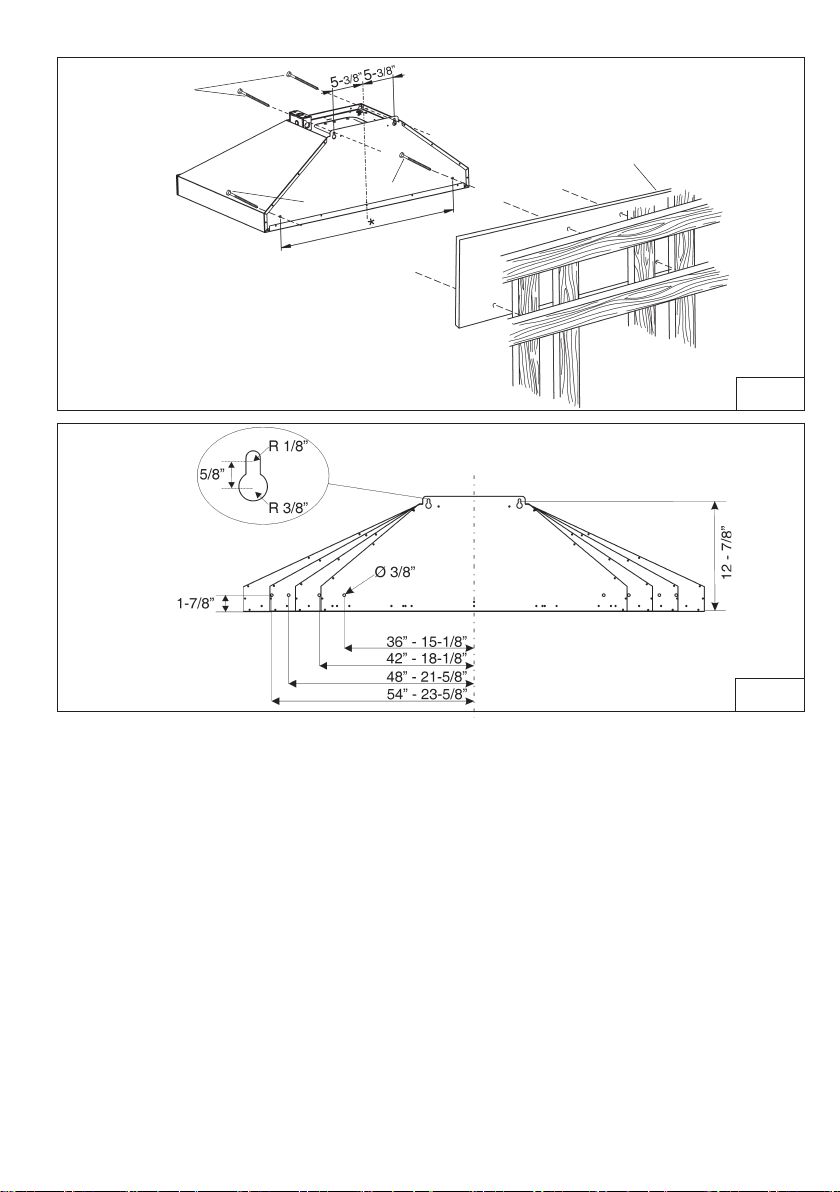

2. Install the (2) 6 x 60mm screws for the top
of the hood at the dimensions shown in
Fig.8-9. Use the two outer keyhole slots,
do not completely tighten the screws.
3. Hang the hood onto the screws.
4. Level the hood and secure (2) 6 x 60mm
screws at the outer locations of the hood.
Tighten all (4) screws.
Notes:
a. Minimum hood distance above cook top
must not be less than 24”. A maximum of
36” above cook top is highly recommended
for best capture of cooking impurities. Dis-
tances over 36” are the installer and user
discretion.

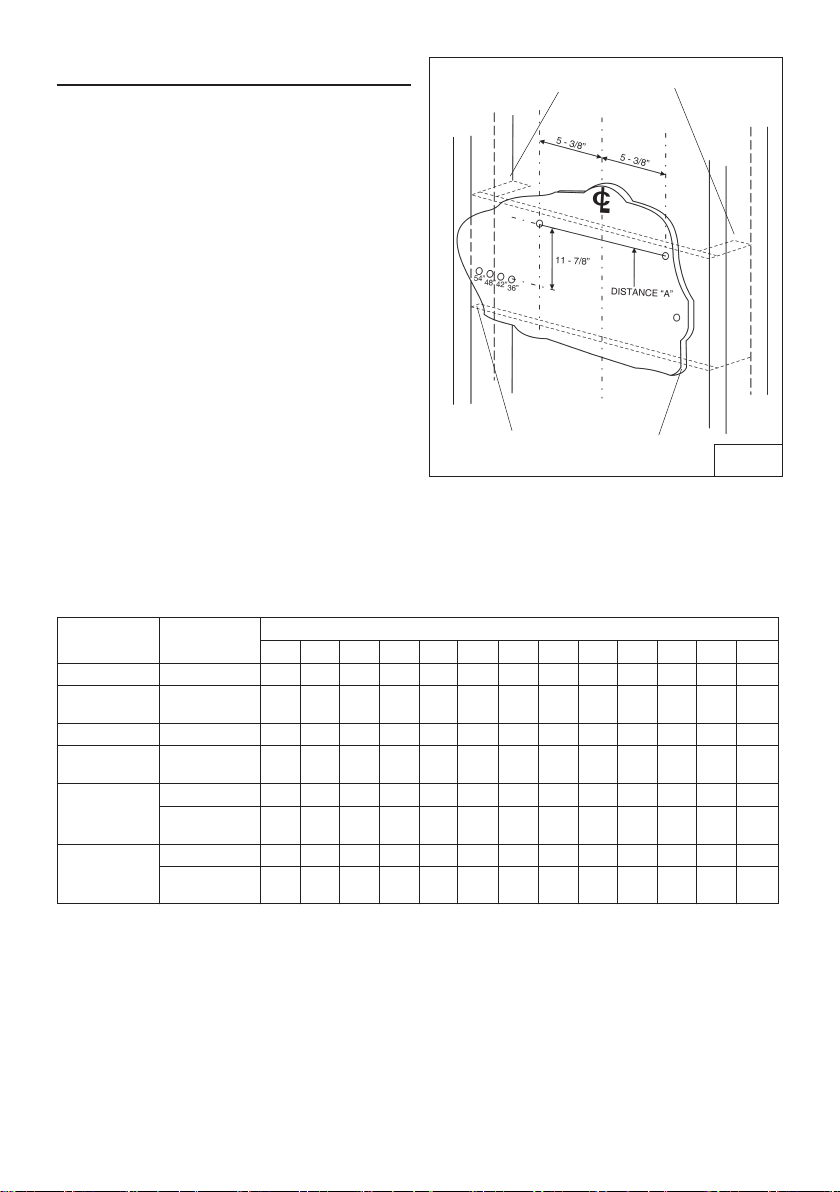

FIG. 7
FRAMING BEHIND WOOD
CROSS SUPPORT
WOOD CROSS
SUPPORT BEHIND
DRYWALL
DRYWALL
Ceiling
Height
Duct
Method
DISTANCE ABOVE 36” HIGH COOK TOP - TO BOTTOM OF HOOD (see notes below)
24” 25” 26” 28” 29” 30” 31” 32” 33” 34” 35” 36”27”
XXXX--- ---X8 Feet Ducted
Non- Ducted
XX
XXXX
X* XXXXXX9 Feet Ducted
Non- Ducted XXXXXXX
XXXXXXX10 Feet
(see note b) Ducted
Non- Ducted
XX
XXXXXXXXX
X* XXXX
11 Feet
(see note a & b)
Ducted
Non- Ducted XXXXX
X = Possible Installation Heights
X* = Possible Installation Heights but the Non-Duct Filter Slots will be exposed on WP-
P9IQ36SB & WPP9IQ42SB
Notes:
a. Minimum hood distance above cook top must not be less than 24”. A maximum of 36”
above cook top is highly recommended for best capture of cooking impurities. Distanc-
es over 36” are at the installer and the users discretion; and if ceiling height and flue
lenght permit.
b. Requires optional 10’ flue extension, model AEWPP9SBN.
--- --- --- ---
--- --- --- --- --- --- --- --- ---
X* X*
XX
--- --- --- ---
--- --- --- ---
X* X*
XX
--- --- --- ---
--- --- --- ---
--- --- --- --- --- ---
--- --- --- --- --- ---

- 10 -
MOUNTING LAG
SCREWS (6x60mm)
WALL
FRAMING
MOUNTING LAG
SCREWS (6x60mm)
FIG. 8
FIG. 9

- 11 -

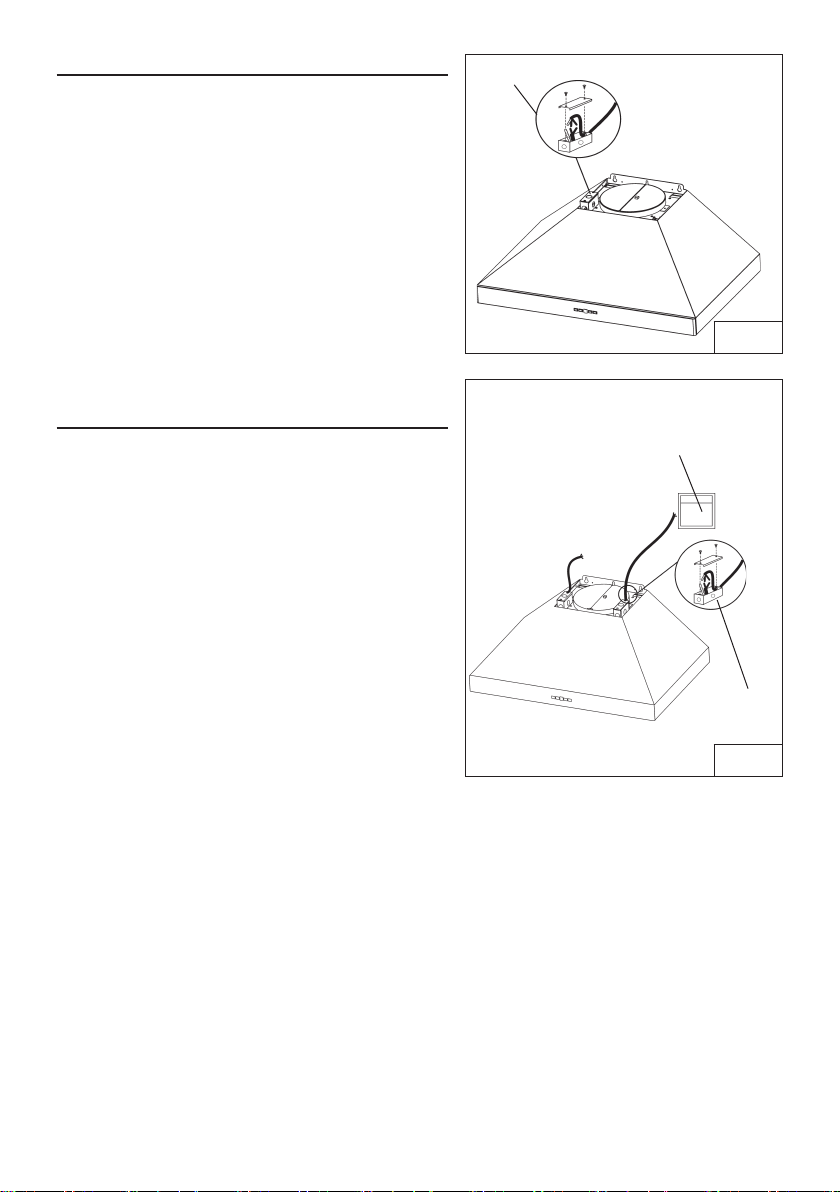

WIRING (WPP9IQ and WPP9IQT)
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical codes.
1. Remove the wiring box cover. Remove a
knockout from the wiring box (Fig.10).
2. Secure the conduit to the wiring box through a
conduit connector.
3. Make electrical connections. Connect white to
white, black to black and green to green.
4. Replace wiring box cover and screws. Make
sure that wires are not pinched between cover
and box.
ADDITIONAL EXTERNAL
BLOWER WIRING (WPP9E)
1. Run 2-wire plus ground power cable from the
exterior blower to the hood’s wiring box marked
“motor connection” (Fig.11).
2. Remove the cover from the wiring box and
remove one knockout.
3. Feed 6” of cable through the knockout opening
and secure the cable to the wiring box with an
appropriate connector.
4. Make electrical connections at the hood. Con-
nect white-to-white, red-to-black and green-
to-ground.
5. Replacethewiringbox coverand screws.Make
sure wires are not pinched between the cover
and box.
Exterior blower connection:
1. Make electrical connections at the exterior blo-
wer (see instructions provided with the exterior
blower).
WIRING BOX
COVER
EXTERIOR BLOWER
BLOWER CONNECTION AT HOOD
BOX MARKED
“MOTOR CON-
NECTION”
CONNECT:
WHITE-TO-WHITE,
RED-TO-BLACK,
GREEN-TO-GROUND.
FIG.11
FIG.10

- 12 -
MOUNTING SCREWS
(4,8x38mm)
MOUNTING SCREWS
(3,9x9,5mm Pan Head)
INSTALL FLUE MOUNTING
BRACKET
DUCTED AND NON-DUCTED
1.Assemble the flue mounting bracket, adju-
sting outside width as shown. (Fig.12)
2.Carefully center the mounting bracket
directly over the range hood location.
3.Secure the bracket assembly to the cei-
ling using (2) 4.8 x 38mm mounting
screws and drywall anchors (Fig.13). Make
sure the bracket is pushed into the corner,
tightagainst thewall if necessary,and cente-
redover thehood. Completethe installation.
DUCTED INSTALLATION ONLY
Note: Rooms with 10 or 11 foot ceil-
ings require flue extension model
AEWPP9SB, available from your local
dealer. Discard the upper flue supplied
with the range hood and replace it with
the longer flue extension.
1. Attach ductwork to damper/duct connector.
2. Run 8” WPPIQ or 10” WPPIQT & WPPE
diameter metal ductwork to the outside
location (Fig.14).
3. Install an appropriate wall or roof cap with
damper to exhaust the air to the outside.
4. Tape all duct joints with aluminum duct tape.
5. Tape all openings on top surface of range
hood (Fig.15).
6. Install upper and lower decorative flues
onto the range hood. Vents are concealed
on 8-foot ceilings. Vents maybe exposed
on 9-foot ceilings (Fig.16).
8” or 10” ROUND
METAL DUCT
DECORATIVE
FLUE
DUCT TAPE
CEILING
CONCEALED
VENTS
DRYWALL
ANCHORS
FIG. 12
FIG. 13
FIG. 14
FIG. 16FIG. 15

- 13 -
NON-DUCTED INSTALLATION AVAILABLE
ONLY FOR SINGLE BLOWER VERSION
(WPP9IQ only)
Note:
a. Purchase Model ANKWPP9 Non-ducted
Recirculation Kit from your local dealer.
b. Rooms with 10 or 11 foot ceilings require
Flue Extension Model AEWPP9SBN,
available from your local dealer. Discard
the upper flue supplied with the range
hood and replace it with the longer flue
extension.

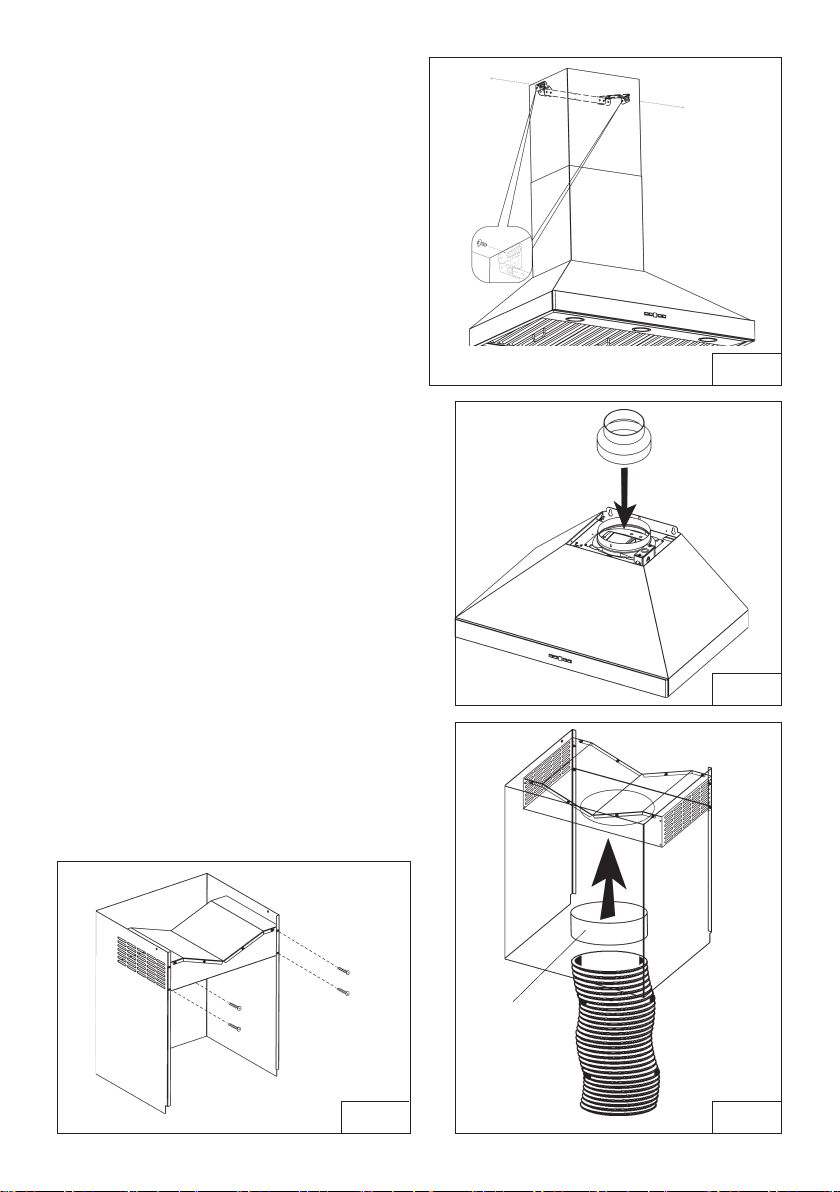

1. Attach the 6”-to-8” adapter to blower
discharge and tape joint with aluminum
duct tape (Fig.18).
2. Tape all openings on top surface of range
hood (Fig.15).
3. Install the plenum to the upper decorative
flue using (4) 3.9 x 6mm flat head screws
provided as shown (Fig.19).
4. Attach 6” expandable ducting to the plenum
using the adapter and tape joints with
aluminum duct tape (Fig.20).
5. Slide upper flue into lower flue.
6. Attach flue assembly to hood.
7. Attach flex duct to plenum through the duct
connector (Fig.20).
8. Attach upper flue to flue bracket using (2)
3.9 x 6mm flat head screws.
MOUNTING SCREWS
(3,9x6mm Flat Head)
FIG. 18
FIG. 19 FIG. 20
DUCT CON-
NECTOR
7. Secure upper flue to flue mounting bracket
with (2) 3.9 x 6mm screws (Fig.17).
FIG. 17

- 14 -
INSTALL FILTERS AND DRIP
TRAY
DUCTED AND NON-DUCTED HOODS
1.To remove the GREASE filter, (Fig.21) push
the filter towards the front so that it clears the
filter channel, then pull down on the handle
to disengage the filter from the hood. Tilt the
filter downward and remove.
2.To install the DRIP TRAY (Fig.22), lift it
up and into the track on the hood. Install
thumbscrews and baffle grease filters.
3.To install the GREASE filter, align rear filter
tabs with spring in the hood. Pull down
handle, push filter into position and release.
Makesure the filter is securely engagedafter
installation.
NOTE: Prior to use, remove protective film
from the filter frame.
NON-DUCTED HOODS (SINGLE MOTOR
VERSION WPP9IQ only)
1. Non-ducted recirculation filters not includ-
ed. They must be purchased separately
(ANKWPP9 Kit).
2. Using no.6 x 1/2” screws, install one filter
support on each side (provided) of the
internal blower (Fig.23).
3. Position each filter over its support, insert
both pins (B) into the round slot (C) on filter
side and rotate to lock in place (Fig.24).
Non-ducted recirculation filters
The non-ducted recirculation filters should be
changed every 6 months. Rotate the filters to
remove and replace.
FIG. 21
FIG. 23 FIG. 24
FIG. 22

- 15 -

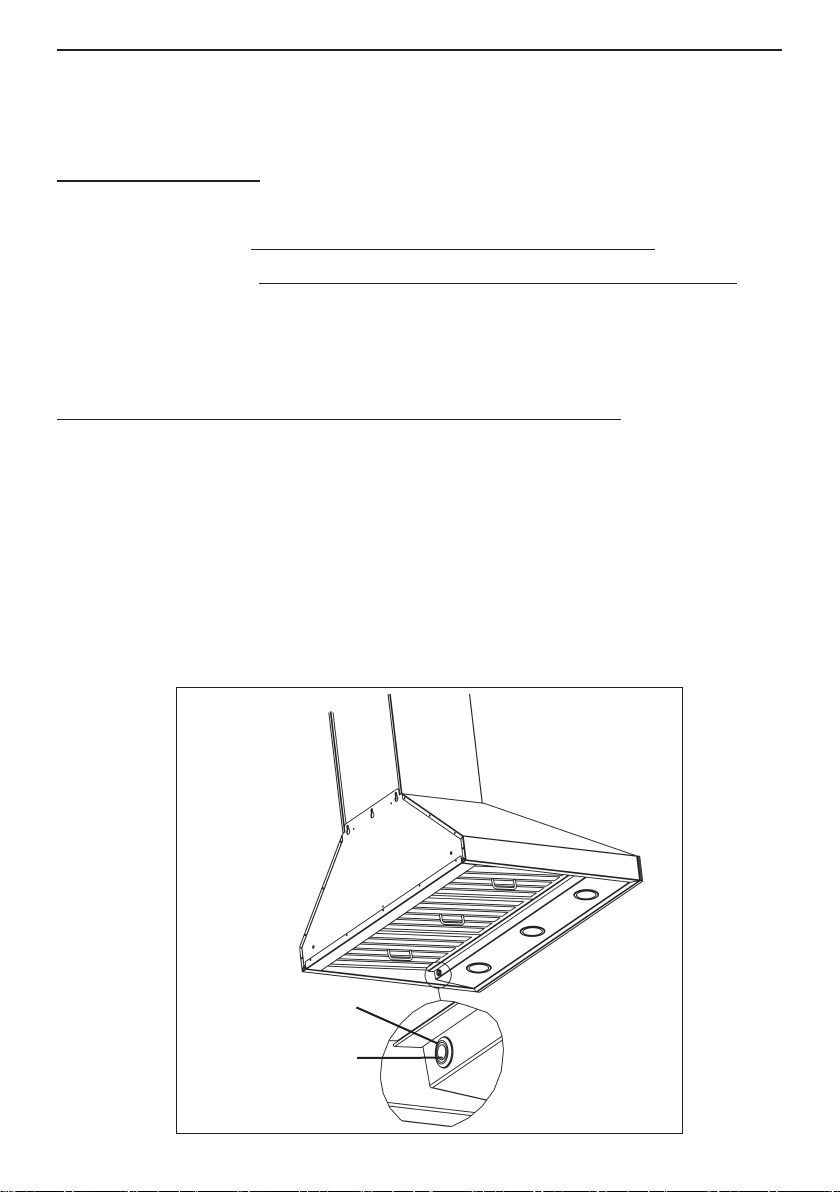

CALIBRATION
LIGHT
CALIBRATION
BUTTON
CALIBRATE IQ BLOWER SYSTEMTM
INTERNAL BLOWER DUCTED UNITS ONLY
After the hood is installed and wired, engage the calibration process (our Guaranteed Performance
System Technology to ensure full-rated airflow is being delivered). Prior to calibration, ensure that
all filters, light bulbs and duct system are installed.
CALIBRATION PROCESS
Hold the calibration button for 3 seconds; calibration button will light up and stay on for up to 13
minutes. The blower will start and begin the calibration process. When calibration is complete, one
of two things will occur:
1. The blower turns offand calibration button light stays on = Successful calibration. Press the button
to turn offthe LED. Note: The LED will also turn offif you select any blower speed on the control.
2. The blower turns offand calibration button light blinks continuously = Too much restriction in the
ductwork is preventing the IQ Blower System™ from achieving the rated airflow. The blower is
automatically set to maximum intensity.
NOTE: Common items that cause restrictions: restricted damper flap (backdraft damper, wall
cap, roof cap), too many elbows, duct size less than 80% of hood outlet, poor transition, use of
flex ducting and/or crushed ducting.
Three options are available if your hood system has too much restriction:
1. Accept airflow as is.
a. Press the calibration button to accept airflow as is. The IQ Blower System™ is nowconfigured
to the highest possible performance. The blinking calibration light goes out. Note: The LED
will also turn offif you select any blower speed on the control.
2. Correct duct restriction, clear the original calibration data, and repeat the calibration
process.
a. Correct the duct restriction.
b. Clear the original calibration data by holding calibration button for 10 seconds. The light will
blink 3 times to confirm and the blower configuration will go back to default settings.
c. Repeat calibration process from the beginning.
3. Clear calibration data to reset hood to default factory setting and achieve standard high
pressure blower performance.
a. Clear calibration data and reset hood to factory default setting by holding calibration
button for 10 seconds. The light will blink 3 times to confirm and the blower configuration
will go back to default settings.

- 16 -
WPP9 Programming Mode Procedure
WPP9E Programming Mode Procedure
The range hood is designed to work with several different blowers models. Before using the
hood, the control must first be programmed to your blower model, in order to achieve proper
operating speed:
1.Find the SETUP number that corresponds to the blower model that is installed with your
range hood.
2.There must be power to the hood but the blower and lights must be turned off.
3.Push simultaneously LIGHT SWITCH and RESET SWITCH for 5 sec: the display shows a
“P” blinking three times and then shows alternately the “P” and the setup selected.
4.Select the desired setup with BLOWER SWITCH (321) or RESET SWITCH
(123).
5. Push TIMER SWITCH to confirm.
6. The display (“P”) blinks two times ( 2 sec on - 0,5sec off) recording the selected setup.
Description of “Speed Level”
Setup 1 is for motors with a rating
up to 3.0 amp
Setup 2 is for motors with a rating
between 3.1 amp and 5.0 amp
Setup 3 is for motors with a rating
greater than 5.1 to 6 amp

- 17 -
Limited Warranty
Warranty Period and Exclusions: Broan-NuTone, LLC(the “Company”) warrants to the consumer purchaser of its product (“you”) that
the product (the “Product”) will be free from material defects in the materials or its workmanship for a period of five (5) years from the
date of original purchase (or such longer period as may be required by applicable law) or a period of two (2) years from the date of
service for any labor provided on the Product.
The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this
limited warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES AND BULBS, FUSES, FILTERS, DUCTS,
ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and
service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence,
accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty
installation, or installation or use contrary to recommendations or instructions, (f) damage caused by exposure to salt air, (g) damage in
transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, (j) damage caused by fire, flood or other act of God, or
(k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to consumers in North America.
This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.
No Other Warranties: This Limited Warranty contains the Company’s sole obligation and your sole remedy for defective Products. The
foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND
CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIESAND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT
LIMITATIONTHOSE OF MERCHANTABILITYAND FITNESS FOR APARTICULAR PURPOSE. To the extent that applicable law prohibits
the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period
specified for the express warranty above. Some jurisdictions (which may include the Province of Quebec or specific US states) do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of
the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.
Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under
applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such
prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.
Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace,
without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty
under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You
are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the
Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly
pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned,
refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts
will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty
period (or such longer period as may be required by applicable law).
Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product. If the Product or component
is no longer available, replacement may be made with a similar product of equal or greater value, at Company’s sole discretion. This
is your sole and exclusive remedy for breach of this limited warranty.
Exclusion of Damages: THE COMPANY’S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE
COMPANY’S OPTION, SHALL BE YOURSOLEAND EXCLUSIVE REMEDY UNDER THISLIMITED WARRANTYAND THE COMPANY’S
SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL
OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdic-
tion. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.
This warranty covers only replacement or repair of defective Products or parts thereof at the Company’s main facility and does not
include the cost of field service travel and living expenses.
Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not
constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.
The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those
incurred with the Company’s prior written permission.
How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number
stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe
the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original
purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company’s most current written
limited warranty for your particular product will control.
PRODUCT SPECIFICATIONS
All illustrations and specifications in this catalog are based on the latest product information available at time of production. Broan-NuTone,
LLC and BEST® reserves the right to make changes at any time, without notice, in prices, colors, materials, equipment, specifications
and models, place of manufacture and to discontinue models or equipment.
Best
Broan-NuTone, LLC- 926 W. State Street, Hartford, WI 53207
1-800-637-1453
Best®, 550 Lemire Blvd., Drummondville, QC, Canada (1-866-737-7770) www.bestrangehoods.com

- 18 -

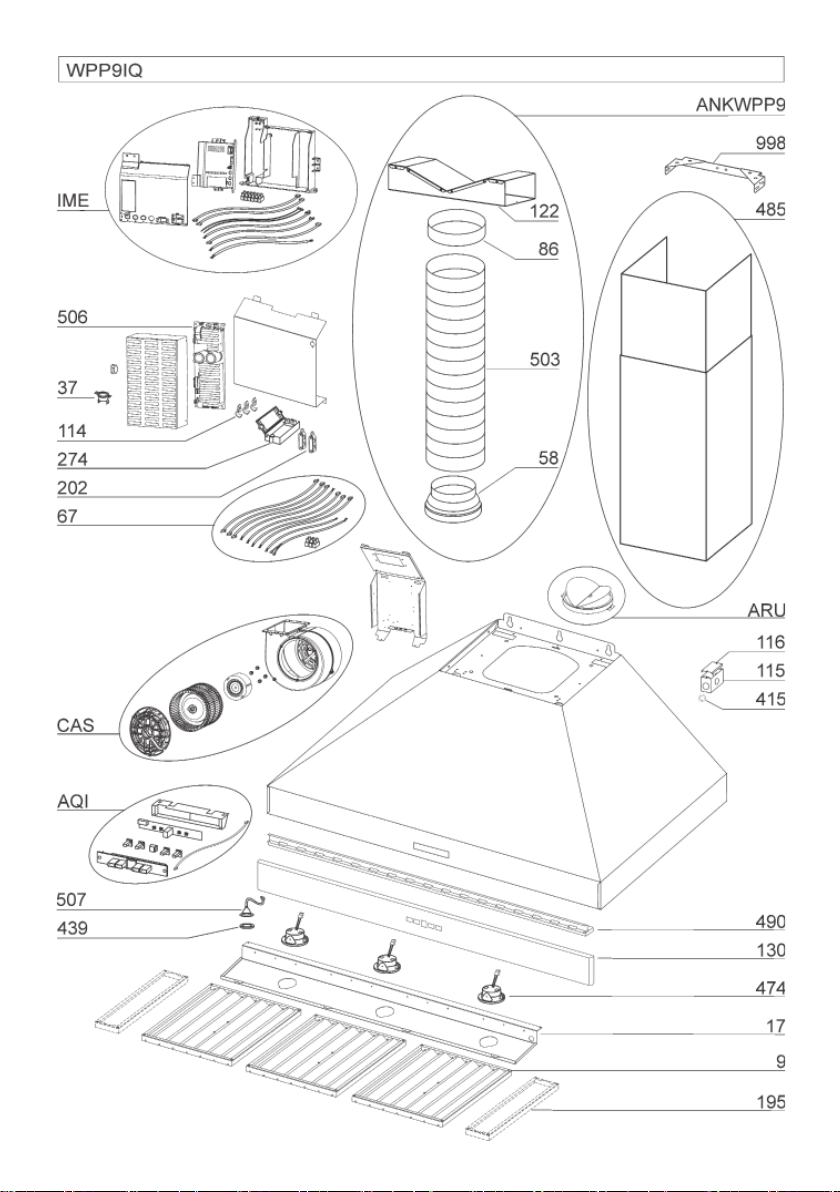

KEY NO. PART NO. DESCRIPTION
9 B08087951 Grease Filters
17 BE3351882 Light Diffuser Support 36”
17 BE3351898 Light Diffuser Support 42”
37 B02300804 Heat Sentry
67 B06102602 Wires Assembly
114 B032904990 Wire Clamp
115 BE3350233 Wiring Box
116 BE3334252 Wiring Box Cover
130 BE3405180 Front trim 36”
130 BE3405184 Front trim 42”
195 BE3351870 Filter Spacers 42” only
202 B03292290 Wire Clamp
274 B03295035 Fuse Box
415 B03292596 Fairlead
439 B02320034 Grommet
474 B02300918 Halogen Lamp
485 B08016372 Decorative Flue Assembly
490 BE3405182 Drip Tray 36”
490 BE3405185 Drip Tray 42”
506 97019432 BLDC Driver
507 B06102584 Calibration Button Assembly
* B080810995 Fitting Set (Includes Key No. 998)
AQI B06102596 Switch Box Assembly
ARU B08092501 Duct Connector Assembly 8”
IME B06145225 Electrical Installation Assembly
CAS B06002259 Blower Assembly
ANKWPP9 B08999177 Non-Ducted Kit (Includes Key No. 58, 86, 122, 503)
58 B03294170 Outlet Reduction
86 B03292300 Outlet Flange
122 B08093448 Riser
503 B02011557 Expandable Duct
AFCROUND2 99111455 Non-Duct Filter Supports
* Not shown assembled.
SERVICE PARTS
MODEL WPP9IQ

- 19 -

- 20 -
KEY NO. PART NO. DESCRIPTION
9 B08087951 Grease Filters
17 BE3351882 Light Diffuser Support 36”
17 BE3351898 Light Diffuser Support 42”
17 BE3351906 Light Diffuser Support 48”
17 BE3351915 Light Diffuser Support 54”
37 B02300804 Heat Sentry
67 B06102603 Wires Assembly 36” or 42”
67 B06102606 Wires Assembly 48” or 54”
114 B032904990 Wire Clamp
115 BE3350233 Wiring Box
116 BE3334252 Wiring Box Cover
130 BE3405180 Front trim 36”
130 BE3405184 Front trim 42”
130 BE3405187 Front trim 48”
130 BE3405190 Front trim 54”
195 BE3351870 Filter Spacers 42” and 54” only
202 B03292290 Wire Clamp
274 B03295035 Fuse Box
415 B03292596 Fairlead
439 B02320034 Grommet
474 B02300918 Halogen Lamp
485 B08016379 Decorative Flue Assembly
490 BE3405182 Drip Tray 36”
490 BE3405185 Drip Tray 42”
490 BE3405188 Drip Tray 48” (2 required)
490 BE3405191 Drip Tray 54” (2 required)
506 97019434 BLDC Driver
507 B06102584 Calibration Button Assembly
* B080810995 Fitting Set (Includes Key No. 998)
AQI B06102596 Switch Box Assembly
ARU BE3405192 Duct Connector Assembly 10”
IME B06145225 Electrical Installation Assembly
CAS B06002259 Blower Assembly
* Not shown assembled.
SERVICE PARTS
MODEL WPP9IQT
