BH FITNESS X1 ELLIPTICAL User manual

X1 Elliptical Owner�s Manual
BH FITNESS
20155 Ellipse, Foothill Ranch, CA 92610
Phone: [phone] (USA & Canada)
Fax: [phone]
Email: [email protected]
Web: www.bhnorthamerica.com and www.bhfitness.com
Issued: 4 August 2008 (v2)

X1 Elliptical
1
IMPORTANT SAFETY INSTRUCTIONS
User Safety
1. Users should pass a full medical examination before they begin an exercise program. Work at the
recommended exercise level. Do not over exert yourself. If you feel any pain or discomfort, stop
exercising immediately and consult your doctor.
2. Verify that all of the parts are attached and that the nuts, bolts, pedals and bar are correctly tightened
before use.
3. Do no wear loose clothing or high heels. Tie up shoe laces.
4. The maximum weight of a user is 275 pounds (124 Kg).
5. Keep hands away from moving parts.
6. Supervise children at all times. Children are curious and vulnerable to accidents. Do not use the unit
as a toy. Close supervision is necessary when this unit is used by or near children, invalids or
disabled persons.
7. The owner is responsible for explaining safety instructions to each user.
8. The unit can only be used by one person at a time.
Unit Safety
For safety, maintain a minimum clearance around the unit. Maintain 18 inches on the front and on each
side of the unit plus 24 inches at the rear of the unit.
Install and use the unit on a flat, stable surface, with some type of protection for the floor or carpet. Do
not place it alongside walls or furniture. Check the unit before each use.
Please read all of the instructions before assembling or using this unit.
To reduce the dangers and risk of electric shock always unplug the unit from its electrical power
immediately after using, before cleaning, opening, disassembling or doing maintenance.
WARNING: To reduce the risk of fire, electric shock, injury to persons or inflicting the harm of a burn:
1. Turn all the controls to the off position, prior to removing the electrical plug from the outlet.
2. The unit should never be left unattended when plugged in. Unplug the unit from the electrical power
before leaving the room, when unused and before adding or removing parts.
3. Do not operate the unit under a blanket or pillow. Excessive heating can occur and cause fire,
electric shock, injury to persons or inflicting the harm of a burn.

X1 Elliptical
2
IMPORTANT SAFETY INSTRUCTIONS
4. Close supervision is necessary when this unit is used by or near children, invalids or disabled
persons.
5. Use the unit only as described in this manual. Only use attachments recommended by the
manufacturer.
6. Never operate this unit if it has a damaged electrical cord or plug. Do not operate this unit if it is not
working properly. Do not operate this unit if it has been dropped or damaged. Do not operate this unit
if it has been dropped into water. Return the unit to a service center for examination and repair.
7. Do not pull or carry the unit by the electrical cord. Do not use the cord as a handle.
8. Keep the electrical cord away from heated surfaces.
9. Never operate the unit when the air openings are blocked. Keep the air openings free of lint, hair and
the like.
10. Do not drop or insert any objects into any openings.
11. Do not use outdoors.
12. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
13. Connect the unit to a properly grounded 110-120V, 15 or 20 Amp dedicated outlet only.
Adapter Safety
The Adapter may have a polarized plug (one blade is wider than the other). This plug will fit only one way
into a polarized outlet. If the plug does not fully fit into the outlet, then reverse the plug. If it still does not
fit then contact a qualified electrician to install the correct outlet. Do not change the plug in any way.
Please save these instructions.

X1 Elliptical
3
ASSEMBLY

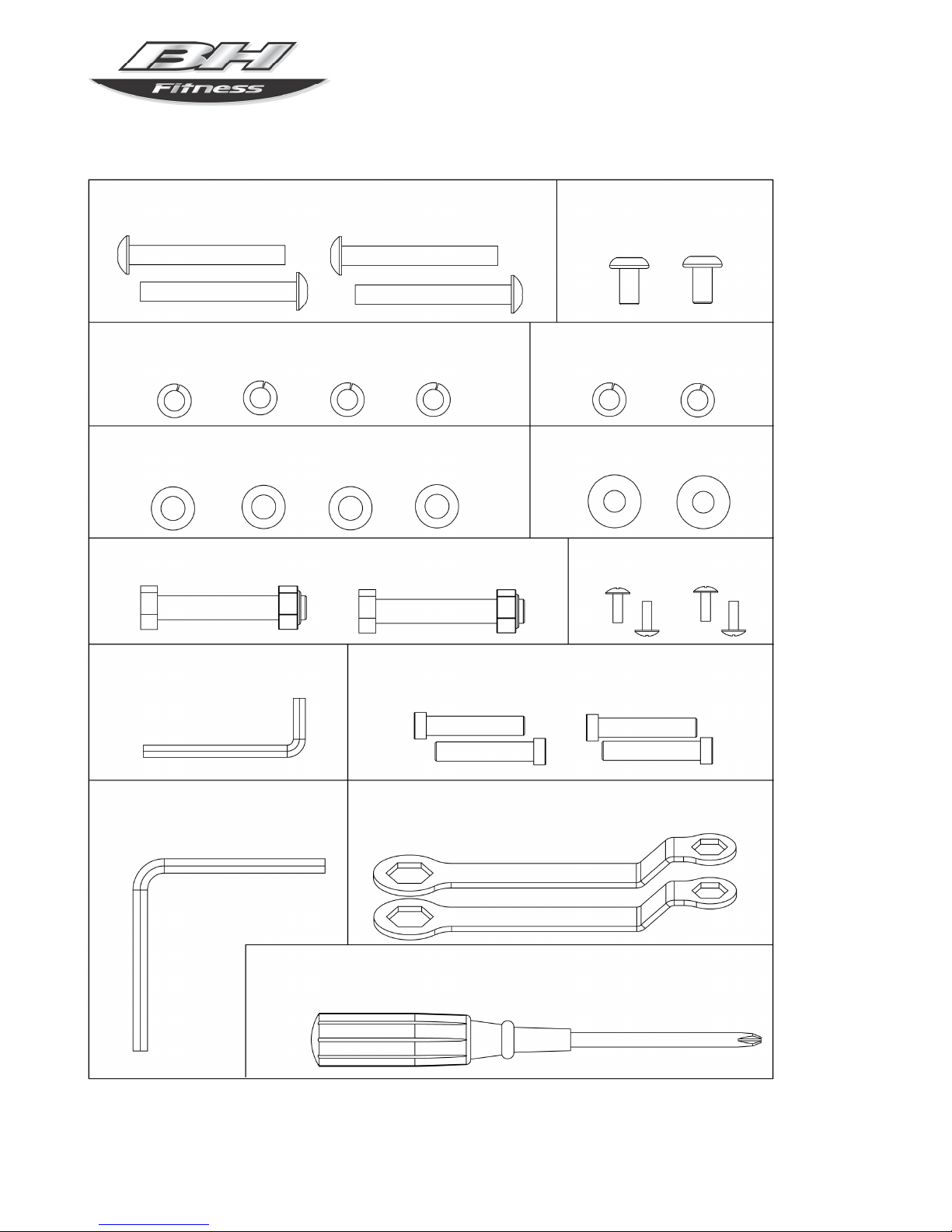

1. A. SMALL PARTS (Screw Bag)
Allen Bolt M8x60 (146) - 4PCS Truss Hex Screw M8x15
(143) -2PCS
Spring Washer M8x2.0t Nickel-plated (139) - 4PCS Spring Washer M8x2.0t
Black (67) - 2PCS
Washer ∮18x∮9x2.0t (147) - 4PCS Washer ∮22x∮9x2.0t
(144)-2PCS
Truss Philips Screw M4x12
(55) - 4PCS
CKS Hex Screw M8x42 (148) - 4PCS
Hex Wrench 5MM (155) -
1PCS
Hex Wrench 6MM (151)-1PCS Lug Open Spanner Wrench (150) - 2PCS
Screwdriver (149)-1PCS
Allen Bolt M10x60 (141) - 2PCS
Nylon Nut M10 (142) - 2PCS

X1 Elliptical
4
ASSEMBLY

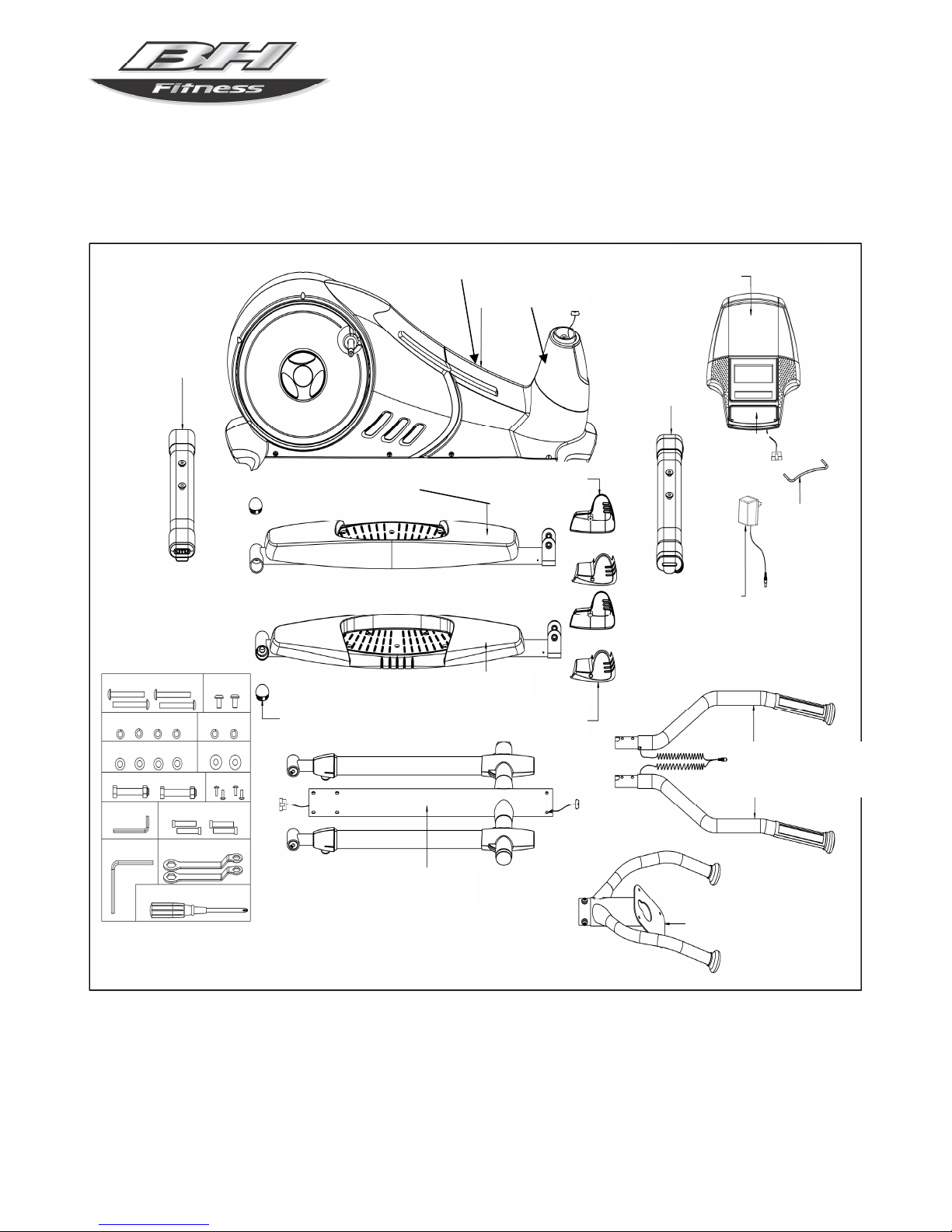

1. B. ASSEMBLY PARTS
Frame (1) Decoration
. Cover(47)
Computer (122)
Rear Stabilizer
(113)
Front
Stabilizer
(106)
Pedal Cover (B)(124)Left Pedal (56)
Computer
(119)
Newspaper
Holder Iron
String (134)
Adaptor (128)
Right Pedal (57)
Pedal Cover (A) (123)Tube End (131)
Left Handrail (91)
Right Handrail (92)
SMALL PARTS (Screw Bag)
Upright (60) + Rocker (64)
Computer Frame (100)

X1 Elliptical
5
ASSEMBLY
2. Assemble the Stabilizer
Assemble the Front Stabilizer
Lift the Frame (1) up onto packaging foam or an equivalent support.
Step A-B: Assemble the front stabilizer (106) to the frame (1) with washer (147), spring washer
(139) and screw (146) according to the drawing. Use hex wrench (155) to tighten the screw.
Assembly Parts Finished
Step A Step B
(146,139,147) (106)
(1)
(106)
(155)
(146) Allen Bolt M8x60 -4PCS (139) Spring Washer M8x2.0t
Nickel –plated - 4PCS
(147) Washer∮18x∮9x2.0t
- 4PCS
(146,139,147)

X1 Elliptical
6
ASSEMBLY
Assemble the Rear Stabilizer
Step A-B: Assemble the rear stabilizer (113) to the frame (1) with washer (147), spring washer
(139) and screw (146) according to the drawing. Use hex wrench (155) to tighten the screw
(146).
Remove the (foam) support under the frame (1).
(113)
(1)
Step A Step B
(146,139,147)
(147,139,146)

X1 Elliptical
7
ASSEMBLY
3. Assemble the Upright + Rocker
Step A: Use lug open spanner (150) to unscrew and remove the screw (138), spring washer
(139) and Arc washer (140).
Step B: Slide the upper front decoration cover (47) onto the upright (60) and connect the
middle control wire (62) with lower control wire (19).
Assembly
Parts
Finished
Step A Step B
Step C
(1)
(47)
(60, 64)
(150)
(138,139,140)
(19)
(62)
Step C: Secure the upright (60) and
frame (1) with bolts (138), spring
washers (139) and arc washers (140).
Use lug open spanner wrench (150)
to secure the bolts (138).
Push down the upper front decoration
cover (47).
(138,139,140)
(150)
(47)
(60)
(47)
(60)
(1)

X1 Elliptical
8
ASSEMBLY
4. Assemble the Computer Frame
Step A: Use hex wrench (151) to unscrew the screws (135). Remove the screws (135, spring
washers (136) and arc washers (137).
Step B: If a “fishing line” is installed into computer frame (100), then tie it to control wire (62).
Pull the wire (62) from the top of (60) into the bottom of computer frame (100) up to the top of
(100).
Secure the computer frame (100) and upright (60) with arc washers (137), spring washers (136)
and screws (135). Tighten screws (135) with hex wrench (151).
Assembly Finished
Step A Step B
(100)
(135,136,137) (151)
(135,136,137) (151)
(100)
(60)
(62)

X1 Elliptical
9
ASSEMBLY
5. Assemble the Computer
Step A: Unscrew the screws (120) from the computer (122) with screwdriver (149).
Step B: Connect the upper control wire (121) with middle control wire (62).
Step C: Secure computer (122) and computer frame (100) with screws (120) and tighten the
screws (120) with screwdriver (149).
Step D: Insert the newspaper holder iron string (134) into the computer (119).
Assembly
Parts
Finished
Step A Step B
Step C Step D
(149)
(122)
(120)
(121) (62)
(149)
(120)
(122)
(119)
(134)

X1 Elliptical
10
ASSEMBLY

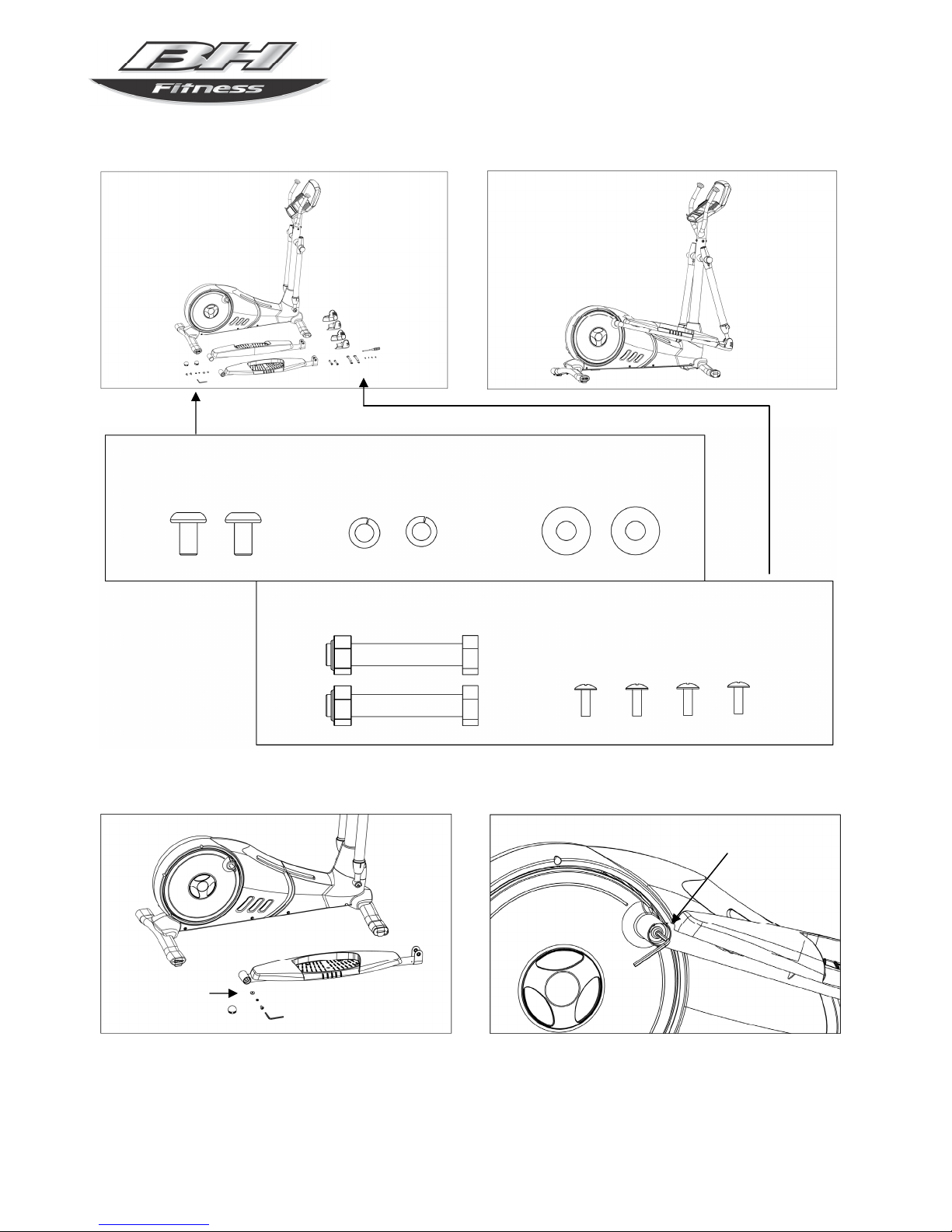

6. Assemble the Pedals
Step A-B: Secure the right pedal (57) and frame (1) with washer (144), spring washer (67)
and screw (143). Tighten the screws (143) with hex wrench (151).
Assembly Finished
(143)Truss Hex Screw
M8x15-2PCS
(67)Spring Washer M8x2.0t
Black-2PCS
(144)Washer ∮22x∮9x2.0t
-2PCS
(141)Allen Bolt M10x60-2PCS
(142)Nylon Nut M10 -2PCS (55)Truss Philips Screw M4x12 -4PCS
Step A Step B
(143,67,144)
(131) (151)
(1)
(57)
(1) (143, 67, 144)
(151)

X1 Elliptical
11
ASSEMBLY

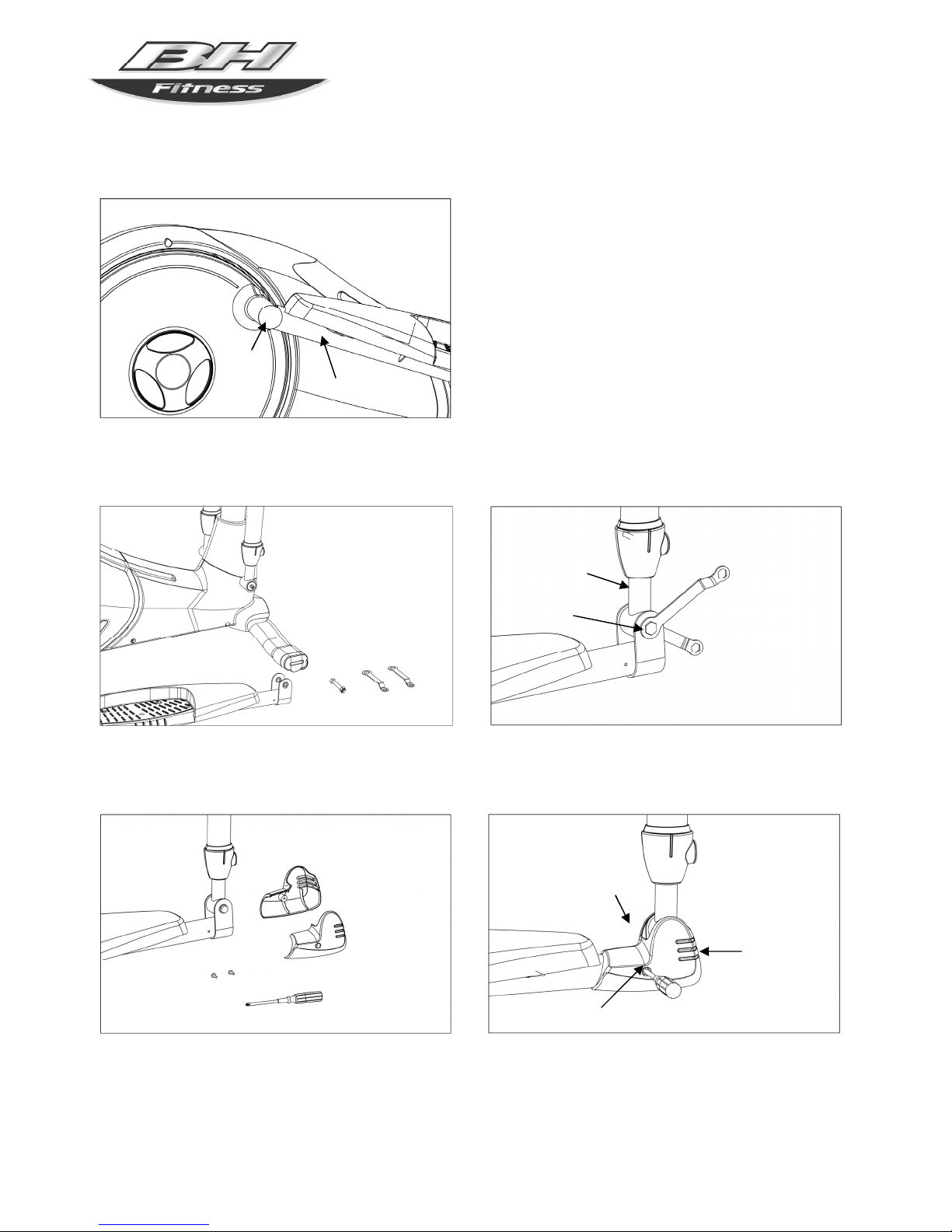

Step C: Insert the tube end (131) into the right pedal (57).
Step D-E: Bolt (141) is positioned on the outboard side. Nut (142) is positioned on the inboard
side. Secure the right pedal (57) and rocker flex part (83) with bolt (141) and nylon nut (142).
Use 2 lug open spanners (150) to tighten bolt (141) and nylon nut (142) at the same time.
Step F-G: Secure the pedal cover (A) (123), pedal cover (B) (124) and right pedal (57) with
screw (55) and tighten screw (55) with screwdriver (149).
Step H: Repeat Step A –G to assemble left pedal (56).
Step C
(131)
(57)
Step D Step E
Step F Step G
(57)
(141,142)
(150)
(57)
(141,142)
(150)
(150)
(83)
(57)
(124)
(123)
(149)
(55)
(57)
(149)
(123)
(124)
(55)

X1 Elliptical
12
ASSEMBLY
7. Assemble the Handrails
Step A-B: Look for “left” or “right” labels on the handrails (91, 92) and rockers (64). If there are
labels, make the label “L” on the left handrail (91) and rocker (64) correspond to each other.
Secure the left handrail (91) and rocker (64) with screw (148). Tighten the screw (148) with hex
wrench (151).
Step C: Repeat Step A –B. If there are labels, make the label “R” on the right handrail (92)
and rocker (64) correspond to each other. Assemble the right handrail.
Step D: Insert the hand pulse sensor wire (96) into hand pulse recess in the computer (119).
Assembly Finished
(148) CKS Hex Screw M8x42-4PCS
Step A Step B
Step D
(91)
(148) (151)
(64) (91)
(151)
(148)
(64)
(96)
“L” Label
“L” Label

X1 Elliptical
13
ASSEMBLY

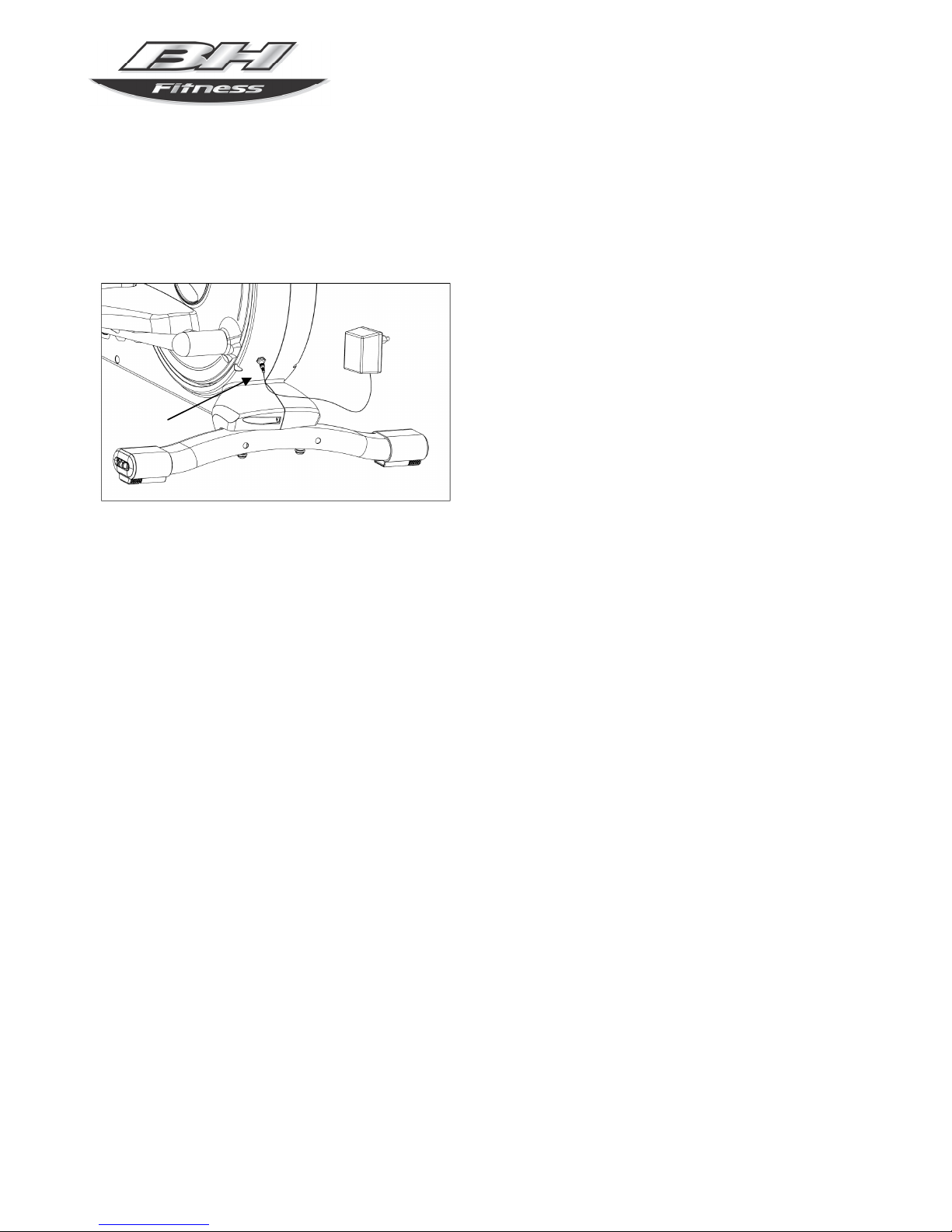

8. Connect the Electrical Adapter.
Step A: Connect one end of the adapter into the lower rear of the unit. Insert the other end
into a 110 – 120V dedicated outlet.
Step A
(128)

X1 Elliptical
14
COMPUTER OPERATION
1. Display
2. Power Up
Note: The Adapter must be installed before the Computer Screen will display. When turned on,
the display with emit a long beep as all LCD displays light up.
Note: When there is no signal or data input for 4 minutes, the machine will enter sleep mode.
Pedaling the machine or pressing a key selection will wake-up the elliptical.
Quick Start
Quick Start may be used at power-up and with all workout modes. Quick Start at power up will
set the elliptical to manual workout mode.
Note: Quick start will set work out parameters such as time, distance, calories to default values.
LCD Screen
Keys

X1 Elliptical
15
COMPUTER OPERATION
Pause
Workout can be paused by pressing . A flashing “P” will be displayed in upper left corner
of panel indicating workout is paused. Workout will resume when
is pressed again.
Heart Rate Monitoring
Heart rate calculation
Before beginning any test, calculate your maximum heart rate. The maximum number of
heartbeats that a person must not exceed is referred to as the maximum heart rate and this value
drops with age. A simple formula to calculate this is to subtract your age, in years, from the
number 220. To ensure that you are exercising correctly, try to keep between 65% and 85% of
your maximum heart rate value.
For example, the maximum heart rate that a 30 year old user must not exceed is:
220 – 30 = 190 heart beats per minute (BPM).
190 x 0.65 = 123 heart beats per minute.
190 x 0.85 = 161 heart beats per minute. Do not exceed 85%.
So the heart rate exercise range for a 30 year old is between 123 and 161 BPM.
Stop exercising if your pulse is 85% of your maximum heart rate.

X1 Elliptical
16
COMPUTER OPERATION
3. Key Functions
KEY FUNCTIONS DESCRIPTION
Dual function key, starts & pauses workouts.
Note: Quick start is initiated when start key is
selected prior to selecting a program or workout
parameters: TIME, DISTANCE, etc.
Operates only when in pause mode. Holding key
for 3 seconds will reset elliptical to power-up
condition.
Decrease value of selected workout parameter:
TIME, DISTANCE, etc.
Allows selection of workout mode: Manual,
Program, User, Target HR.
Increases value of selected workout parameter.
Allows selection of workout mode: Manual,
Program, User, Target HR.
The Pulse Recovery function is used to measure
your Health Index according to your heart rate
change in the first minute after exercising.
To input desired value or workout mode. May
advance flashing prompt to next parameter or
mode for selection.

X1 Elliptical
17
COMPUTER OPERATION
4. WORKOUT
WORKOUT SELECTION:
These are basic workout modes:
Manual, Pre-program, User.
After turning on the product, press or to switch among Manual, Pre-program,
User.
Press to select desired mode.
After turning on the product, press to enter exercise status and press to
pause and hold to reset. Press or to switch among Manual,
Pre-program, User.
Press to select desired mode.
WORKOUT PARAMETERS:
After selecting desired workout mode: Manual, Program, User & Target HR, you may pre-set
several workout parameters for desired results.
RPM
SPEED
TIME
DISTANCE
WATTS
CALORIES
PULSE
Note: Some parameters are not adjustable in certain programs.
Once a program has been selected, pressing , will make “ Time “ parameter flash.
Using you may select desired time value. Press to input value.
Flashing prompt will move to the next parameter. Continue use of
until desired values are set.
Press to begin workout.

X1 Elliptical
18
COMPUTER OPERATION
Parameters: Time, Distance, etc. maybe reset after program begins by pressing .
when in pause mode,” Time” will flash and can be used to adjust time.
can be used to clear value. Press to move flashing prompt to next
value. Repeat sequence for other parameters. Press to resume workout.
Workout Parameter Ranges

X1 Elliptical
19
COMPUTER OPERATION
5. Manual Workout “Manual”
Default program when elliptical is Quick started at power-up. Press to adjust resistance
levels.
Operating Manual Program
After turning on the unit, press or to switch to “Manual, press twice.
1St parameter “Time” will flash so value can be adjusted using .
Press to save value & move to next parameter to be adjusted. Continue through
all desired parameters, press to begin workout. Repeat if necessary to begin workout.
NOTE: Parameters can be reset at any time during the workout.
Continued on next page.
