BinTec RS123 User manual

Manual
bintec RS Series
New Generation
Copyright© Version 10.1.4 (SVN4082), 2016 bintec elmeg GmbH
bintec elmeg GmbH Manual
bintec RS Series 1

Legal Notice
Warranty
This publication is subject to change.
bintec elmeg GmbH offers no warranty whatsoever for information contained in this manu-
al. bintec elmeg GmbH is not liable for any direct, indirect, collateral, consequential or any
other damage connected to the delivery, supply or use of this manual.
Copyright © bintec elmeg GmbH.
All rights to the data included, in particular the right to copy and propagate, are reserved by
bintec elmeg GmbH.
Manual bintec elmeg GmbH
2bintec RS Series

Table of Contents
Chapter1 Installation............................1
1.1 bintec RS353j, bintec RS353jw and bintec RS353j-4G . . . . . . . . . . 1

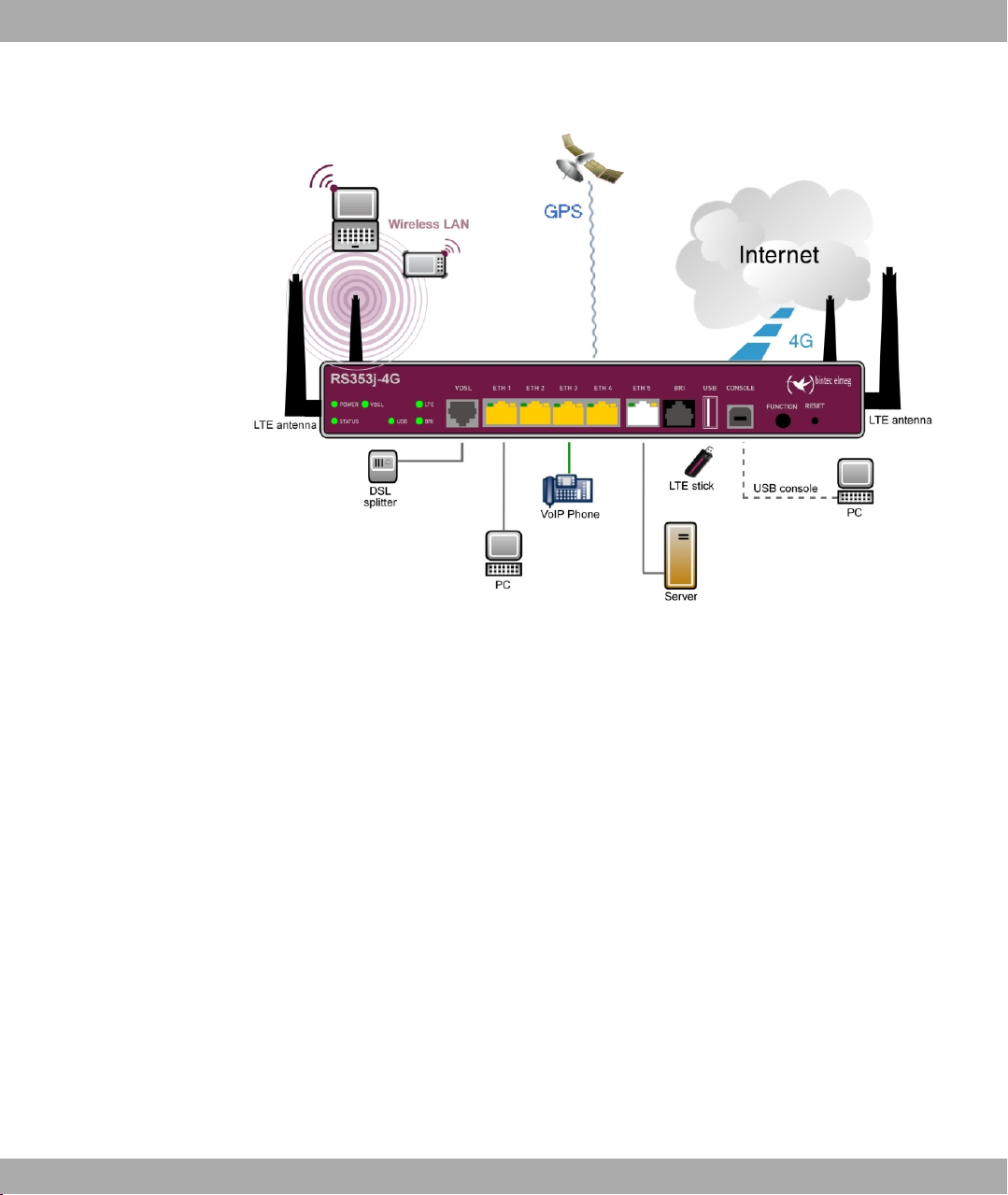

1.1.1 Setting up and connecting . . . . . . . . . . . . . . . . . . . . . . 1
1.1.2 Connectors ............................ 4
1.1.3 LEDs............................... 5
1.1.4 Scopeofsupply .......................... 7
1.1.5 General Product Features . . . . . . . . . . . . . . . . . . . . . . 8
1.1.6 Reset............................... 9
1.2 bintec RS123, bintec RS123w, bintec RS353a and bintec RS353aw. . . 10
1.2.1 Setting up and connecting . . . . . . . . . . . . . . . . . . . . . 10
1.2.2 Connectors ........................... 13
1.2.3 LEDs.............................. 14
1.2.4 Scopeofsupply ......................... 16
1.2.5 General Product Features . . . . . . . . . . . . . . . . . . . . . 17
1.2.6 Reset.............................. 19
1.3 Support information . . . . . . . . . . . . . . . . . . . . . . . . 20
1.4 Cleaning............................. 20
1.5 PinAssignments......................... 20
1.5.1 USB console interface. . . . . . . . . . . . . . . . . . . . . . . 20
1.5.2 Ethernet interface. . . . . . . . . . . . . . . . . . . . . . . . . 21
1.5.3 xDSLinterface.......................... 21
1.5.4 ISDNS0port........................... 22
1.5.5 USBinterface.......................... 23
1.6 Inserting the SIM card . . . . . . . . . . . . . . . . . . . . . . . 23
Chapter 2 Basic configuration . . . . . . . . . . . . . . . . . . . . . . 25
2.1 Presettings ........................... 25
bintec elmeg GmbH Table of Contents
bintec RS Series i

2.1.1 IPConfiguration......................... 25
2.1.2 Softwareupdate......................... 26
2.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . 26
2.3 Preparation........................... 26
2.3.1 Gatheringdata.......................... 27
2.3.2 ConfiguringaPC......................... 29
2.3.3 Modify system password. . . . . . . . . . . . . . . . . . . . . . 30
2.4 Setting up an internet connection . . . . . . . . . . . . . . . . . . 31
2.4.1 Internet connection over internal xDSL modem . . . . . . . . . . . . 31
2.4.2 Internet connection over UMTS/LTE. . . . . . . . . . . . . . . . . 31
2.4.3 Other internet connections . . . . . . . . . . . . . . . . . . . . . 32
2.4.4 Testing the configuration. . . . . . . . . . . . . . . . . . . . . . 32
2.5 Setting up wireless LAN . . . . . . . . . . . . . . . . . . . . . . 32
2.6 SoftwareUpdate......................... 33
Chapter 3 Access and configuration. . . . . . . . . . . . . . . . . . . 35
3.1 AccessOptions.......................... 35
3.1.1 AccessviaLAN ......................... 35
3.1.2 Access via the Console Interface . . . . . . . . . . . . . . . . . . 38
3.1.3 AccessoverISDN ........................ 39
3.2 Login.............................. 40
3.2.1 User names and passwords in ex works state . . . . . . . . . . . . 40
3.2.2 Logging in for Configuration . . . . . . . . . . . . . . . . . . . . 41
3.3 Configuration options . . . . . . . . . . . . . . . . . . . . . . . 41
3.3.1 GUI (Graphical User Interface) . . . . . . . . . . . . . . . . . . . 42
3.3.2 SNMPshell........................... 51
Chapter4 Assistants........................... 52
Table of Contents bintec elmeg GmbH
ii bintec RS Series

Chapter 5 System Management . . . . . . . . . . . . . . . . . . . . . 53
5.1 Status.............................. 53
5.2 GlobalSettings ......................... 56
5.2.1 System............................. 56
5.2.2 Passwords ........................... 59
5.2.3 DateandTime.......................... 61
5.2.4 SystemLicences......................... 66
5.3 Interface Mode / Bridge Groups . . . . . . . . . . . . . . . . . . 68
5.3.1 Interfaces............................ 70
5.4 Administrative Access . . . . . . . . . . . . . . . . . . . . . . 74
5.4.1 Access............................. 74
5.4.2 SSH .............................. 75
5.4.3 SNMP ............................. 79
5.5 Remote Authentication . . . . . . . . . . . . . . . . . . . . . . 81
5.5.1 RADIUS ............................ 81
5.5.2 TACACS+............................ 87
5.5.3 Options............................. 90
5.6 Configuration Access . . . . . . . . . . . . . . . . . . . . . . . 91
5.6.1 AccessProfiles.......................... 91
5.6.2 Users.............................. 95
5.7 Certificates ........................... 99
5.7.1 CertificateList.......................... 99
5.7.2 CRLs.............................. 108
5.7.3 Certificate Servers . . . . . . . . . . . . . . . . . . . . . . . . 110
Chapter 6 Physical Interfaces . . . . . . . . . . . . . . . . . . . . . 111
6.1 EthernetPorts.......................... 111
6.1.1 Port Configuration . . . . . . . . . . . . . . . . . . . . . . . . 112
bintec elmeg GmbH Table of Contents
bintec RS Series iii

6.2 ISDNPorts ........................... 114
6.2.1 ISDN Configuration . . . . . . . . . . . . . . . . . . . . . . . . 115
6.2.2 MSN Configuration . . . . . . . . . . . . . . . . . . . . . . . . 117
6.3 DSLModem........................... 120
6.3.1 DSL Configuration . . . . . . . . . . . . . . . . . . . . . . . . 120
6.4 UMTS/LTE............................ 123
6.4.1 UMTS/LTE............................ 123
Chapter7 LAN............................. 134
7.1 IPConfiguration......................... 134
7.1.1 Interfaces............................ 134
7.2 VLAN.............................. 147
7.2.1 VLANs ............................. 149
7.2.2 Port Configuration . . . . . . . . . . . . . . . . . . . . . . . . 150
7.2.3 Administration.......................... 151
Chapter 8 Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . 152
8.1 WLAN ............................. 152
8.1.1 RadioSettings.......................... 152
8.1.2 Wireless Networks (VSS) . . . . . . . . . . . . . . . . . . . . . 163
8.1.3 ClientLink............................ 172
8.1.4 BridgeLinks........................... 176
8.2 Administration.......................... 177
8.2.1 BasicSettings.......................... 178
8.3 Configuration........................... 178
8.3.1 WLAN - Configuration example . . . . . . . . . . . . . . . . . . . 178
Chapter 9 Wireless LAN Controller . . . . . . . . . . . . . . . . . . 181
9.1 Wizard ............................. 181
Table of Contents bintec elmeg GmbH
iv bintec RS Series

9.1.1 BasicSettings.......................... 182
9.1.2 RadioProfile .......................... 183
9.1.3 Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . 183
9.1.4 Start automatic installation . . . . . . . . . . . . . . . . . . . . . 185
9.2 Controller Configuration . . . . . . . . . . . . . . . . . . . . . . 187
9.2.1 General............................. 187
9.2.2 Slave AP Autoprofile . . . . . . . . . . . . . . . . . . . . . . . 189
9.3 Slave AP configuration . . . . . . . . . . . . . . . . . . . . . . 191
9.3.1 Slave Access Points . . . . . . . . . . . . . . . . . . . . . . . 192
9.3.2 RadioProfiles.......................... 196
9.3.3 Wireless Networks (VSS) . . . . . . . . . . . . . . . . . . . . . 203
9.4 Monitoring............................ 211
9.4.1 WLANController......................... 212
9.4.2 Slave Access Points . . . . . . . . . . . . . . . . . . . . . . . 213
9.4.3 ActiveClients .......................... 215
9.4.4 Wireless Networks (VSS) . . . . . . . . . . . . . . . . . . . . . 217
9.4.5 Client Management . . . . . . . . . . . . . . . . . . . . . . . . 217
9.5 Neighbor Monitoring . . . . . . . . . . . . . . . . . . . . . . . 218
9.5.1 NeighborAPs.......................... 218
9.5.2 RogueAPs ........................... 219
9.5.3 RogueClients.......................... 220
9.6 Maintenance .......................... 221
9.6.1 Firmware Maintenance . . . . . . . . . . . . . . . . . . . . . . 222
Chapter10 Networking......................... 224
10.1 Routes............................. 224
10.1.1 IPv4 Route Configuration . . . . . . . . . . . . . . . . . . . . . 224
10.1.2 IPv6 Route Configuration . . . . . . . . . . . . . . . . . . . . . 230
10.1.3 IPv4 Routing Table . . . . . . . . . . . . . . . . . . . . . . . . 233
10.1.4 IPv6 Routing Table . . . . . . . . . . . . . . . . . . . . . . . . 234
bintec elmeg GmbH Table of Contents
bintec RS Series v

10.1.5 Options............................. 234
10.2 IPv6 General Prefixes . . . . . . . . . . . . . . . . . . . . . . 236
10.2.1 General Prefix Configuration . . . . . . . . . . . . . . . . . . . . 236
10.3 NAT .............................. 238
10.3.1 NATInterfaces.......................... 238
10.3.2 NAT Configuration . . . . . . . . . . . . . . . . . . . . . . . . 239
10.3.3 NAT - Configuration example. . . . . . . . . . . . . . . . . . . . 246
10.4 LoadBalancing ......................... 248
10.4.1 Load Balancing Groups . . . . . . . . . . . . . . . . . . . . . . 248
10.4.2 Special Session Handling . . . . . . . . . . . . . . . . . . . . . 253
10.4.3 Load balancing - Configuration example . . . . . . . . . . . . . . . 256
10.5 QoS .............................. 259
10.5.1 IPv4/IPv6 Filter . . . . . . . . . . . . . . . . . . . . . . . . . 259
10.5.2 QoS Classification . . . . . . . . . . . . . . . . . . . . . . . . 263
10.5.3 QoS Interfaces/Policies . . . . . . . . . . . . . . . . . . . . . . 266
10.6 AccessRules .......................... 273
10.6.1 AccessFilter .......................... 275
10.6.2 RuleChains........................... 279
10.6.3 Interface Assignment . . . . . . . . . . . . . . . . . . . . . . . 281
10.7 DropIn............................. 283
10.7.1 DropInGroups ......................... 283
Chapter 11 Routing Protocols. . . . . . . . . . . . . . . . . . . . . . 286
11.1 RIP............................... 286
11.1.1 RIPInterfaces.......................... 286
11.1.2 RIPFilter............................ 288
11.1.3 RIPOptions........................... 291
Chapter12 Multicast........................... 294
Table of Contents bintec elmeg GmbH
vi bintec RS Series

12.1 General............................. 295
12.1.1 General............................. 296
12.2 IGMP.............................. 296
12.2.1 IGMP.............................. 297
12.2.2 Options............................. 299
12.3 Forwarding ........................... 301
12.3.1 Forwarding ........................... 301
Chapter13 WAN............................. 303
13.1 Internet+Dialup......................... 303
13.1.1 PPPoE............................. 305
13.1.2 PPTP.............................. 312
13.1.3 PPPoA............................. 317
13.1.4 ISDN.............................. 323
13.1.5 UMTS/LTE............................ 331
13.1.6 IPPools ............................ 336
13.2 ATM .............................. 337
13.2.1 Profiles............................. 338
13.2.2 Service Categories . . . . . . . . . . . . . . . . . . . . . . . . 342
13.2.3 OAM Controlling . . . . . . . . . . . . . . . . . . . . . . . . . 345
13.3 Real Time Jitter Control . . . . . . . . . . . . . . . . . . . . . . 349
13.3.1 Controlled Interfaces . . . . . . . . . . . . . . . . . . . . . . . 349
Chapter14 VPN............................. 351
14.1 IPSec.............................. 351
14.1.1 IPSecPeers........................... 352
14.1.2 Phase-1 Profiles . . . . . . . . . . . . . . . . . . . . . . . . . 370
14.1.3 Phase-2 Profiles . . . . . . . . . . . . . . . . . . . . . . . . . 379
14.1.4 XAUTHProfiles ......................... 384
14.1.5 IPPools ............................ 386
bintec elmeg GmbH Table of Contents
bintec RS Series vii

14.1.6 Options............................. 387
14.2 L2TP.............................. 391
14.2.1 TunnelProfiles.......................... 391
14.2.2 Users.............................. 395
14.2.3 Options............................. 401
14.3 PPTP.............................. 402
14.3.1 PPTPTunnels.......................... 402
14.3.2 Options............................. 410
14.3.3 IPPools ............................ 411
14.4 GRE.............................. 412
14.4.1 GRETunnels .......................... 412
Chapter15 Firewall........................... 415
15.1 Policies............................. 416
15.1.1 IPv4 Filter Rules . . . . . . . . . . . . . . . . . . . . . . . . . 416
15.1.2 IPv6 Filter Rules . . . . . . . . . . . . . . . . . . . . . . . . . 419
15.1.3 Options............................. 422
15.2 Interfaces............................ 424
15.2.1 IPv4Groups........................... 424
15.2.2 IPv6Groups........................... 425
15.3 Addresses ........................... 426
15.3.1 AddressList........................... 426
15.3.2 Groups............................. 428
15.4 Services ............................ 429
15.4.1 ServiceList........................... 429
15.4.2 Groups............................. 431
15.5 Configuration........................... 432
15.5.1 SIF - Configuration example . . . . . . . . . . . . . . . . . . . . 432
Table of Contents bintec elmeg GmbH
viii bintec RS Series

Chapter16 VoIP............................. 437
16.1 SIP............................... 437
16.1.1 Options............................. 437
16.2 RTSP.............................. 438
16.2.1 RTSPProxy........................... 438
Chapter 17 Local Services . . . . . . . . . . . . . . . . . . . . . . . 440
17.1 DNS .............................. 440
17.1.1 Global Settings . . . . . . . . . . . . . . . . . . . . . . . . . 442
17.1.2 DNSServers .......................... 444
17.1.3 StaticHosts........................... 447
17.1.4 Domain Forwarding . . . . . . . . . . . . . . . . . . . . . . . 448
17.1.5 DynamicHosts ......................... 450
17.1.6 Cache ............................. 450
17.1.7 Statistics ............................ 451
17.2 HTTPS............................. 452
17.2.1 HTTPSServer.......................... 452
17.3 DynDNSClient ......................... 453
17.3.1 DynDNSUpdate......................... 453
17.3.2 DynDNS Provider . . . . . . . . . . . . . . . . . . . . . . . . 455
17.4 DHCPServer .......................... 457
17.4.1 IP Pool Configuration . . . . . . . . . . . . . . . . . . . . . . . 457
17.4.2 DHCP Configuration . . . . . . . . . . . . . . . . . . . . . . . 458
17.4.3 IP/MACBinding ......................... 463
17.4.4 DHCP Relay Settings . . . . . . . . . . . . . . . . . . . . . . . 464
17.4.5 DHCP - Configuration example . . . . . . . . . . . . . . . . . . . 465
17.5 DHCPv6Server ......................... 468
17.5.1 DHCPv6Server ......................... 470
17.5.2 DHCPv6 Global Options . . . . . . . . . . . . . . . . . . . . . 472
bintec elmeg GmbH Table of Contents
bintec RS Series ix

17.5.3 Stateful Clients . . . . . . . . . . . . . . . . . . . . . . . . . 473
17.5.4 Stateful Clients Configuration. . . . . . . . . . . . . . . . . . . . 474
17.6 WebFilter............................ 475
17.6.1 General............................. 476
17.6.2 FilterList ............................ 478
17.6.3 Black / White List . . . . . . . . . . . . . . . . . . . . . . . . . 480
17.6.4 History ............................. 481
17.7 CAPIServer........................... 481
17.7.1 User .............................. 481
17.7.2 Options............................. 483
17.8 Scheduling ........................... 484
17.8.1 Trigger............................. 484
17.8.2 Actions............................. 491
17.8.3 Options............................. 502
17.8.4 Configuration example - Time-controlled Tasks (Scheduling) . . . . . . 503
17.9 Surveillance........................... 506
17.9.1 Hosts.............................. 506
17.9.2 Interfaces............................ 509
17.9.3 PingGenerator ......................... 510
17.10 ISDN Theft Protection . . . . . . . . . . . . . . . . . . . . . . 512
17.10.1 Options............................. 512
17.11 UPnP.............................. 514
17.11.1 Interfaces............................ 515
17.11.2 General............................. 516
17.12 HotSpot Gateway . . . . . . . . . . . . . . . . . . . . . . . . 517
17.12.1 HotSpot Gateway . . . . . . . . . . . . . . . . . . . . . . . . 519
17.12.2 Options............................. 523
17.13 Wake-On-LAN.......................... 524
17.13.1 Wake-On-LAN Filter . . . . . . . . . . . . . . . . . . . . . . . 524
17.13.2 WOLRules ........................... 528
Table of Contents bintec elmeg GmbH
xbintec RS Series

17.13.3 Interface Assignment . . . . . . . . . . . . . . . . . . . . . . . 530
17.14 BRRP ............................. 531
17.14.1 Virtual Routers . . . . . . . . . . . . . . . . . . . . . . . . . . 532
17.14.2 VR Synchronisation . . . . . . . . . . . . . . . . . . . . . . . 538
17.14.3 Options............................. 539
Chapter 18 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 541
18.1 LogoutUsers.......................... 541
18.1.1 LogoutUsers.......................... 541
18.2 Diagnostics........................... 542
18.2.1 PingTest............................ 542
18.2.2 DNSTest............................ 543
18.2.3 Traceroute Test . . . . . . . . . . . . . . . . . . . . . . . . . 544
18.3 Software &Configuration . . . . . . . . . . . . . . . . . . . . . 544
18.3.1 Options............................. 545
18.4 Reboot............................. 549
18.4.1 SystemReboot ......................... 549
18.5 FactoryReset.......................... 550
Chapter 19 External Reporting . . . . . . . . . . . . . . . . . . . . . 551
19.1 Syslog ............................. 551
19.1.1 SyslogServers ......................... 551
19.2 IPAccounting.......................... 554
19.2.1 Interfaces............................ 554
19.2.2 Options............................. 554
19.3 AlertService........................... 556
19.3.1 AlertRecipient.......................... 556
19.3.2 AlertSettings .......................... 559
19.4 SNMP ............................. 561
bintec elmeg GmbH Table of Contents
bintec RS Series xi

19.4.1 SNMP Trap Options . . . . . . . . . . . . . . . . . . . . . . . 561
19.4.2 SNMP Trap Hosts . . . . . . . . . . . . . . . . . . . . . . . . 563
19.5 SIA............................... 563
19.5.1 SIA............................... 563
Chapter20 Monitoring.......................... 565
20.1 InternalLog........................... 565
20.1.1 System Messages . . . . . . . . . . . . . . . . . . . . . . . . 565
20.2 IPSec.............................. 566
20.2.1 IPSecTunnels.......................... 566
20.2.2 IPSec Statistics . . . . . . . . . . . . . . . . . . . . . . . . . 568
20.3 ISDN/Modem .......................... 569
20.3.1 CurrentCalls .......................... 569
20.3.2 CallHistory ........................... 570
20.4 Interfaces............................ 571
20.4.1 Statistics ............................ 571
20.5 WLAN.............................. 574
20.5.1 WLANx............................. 574
20.5.2 VSS .............................. 576
20.5.3 Client Management . . . . . . . . . . . . . . . . . . . . . . . . 579
20.5.4 BridgeLinks........................... 580
20.5.5 ClientLinks........................... 582
20.6 Bridges............................. 585
20.6.1 br<x>.............................. 585
20.7 HotSpotGateway ........................ 585
20.7.1 HotSpot Gateway . . . . . . . . . . . . . . . . . . . . . . . . 585
20.8 QoS .............................. 586
20.8.1 QoS .............................. 586
Table of Contents bintec elmeg GmbH
xii bintec RS Series

Index ............................ 588
bintec elmeg GmbH Table of Contents
bintec RS Series xiii

Table of Contents bintec elmeg GmbH
xiv bintec RS Series

Chapter 1 Installation
Caution
Please read the safety notices carefully before installing and starting up your device.
These are supplied with the device.
1.1 bintec RS353j, bintec RS353jw and bintec
RS353j-4G
1.1.1 Setting up and connecting
Note
All you need for this are the cables and antennas supplied with the equipment.
Caution
The use of the wrong mains equipment may damage your device. You should only use
the power supply unit provided! If you require foreign adapters/mains units, please
contact our bintec elmeg service.
Incorrect cabling of the ISDN and ETH interfaces may also damage your device. Con-
nect only the ETH interface of the device to the LAN interface of the computer/hub or a
WAN interface if available and the ISDN interface of the device only to the ISDN con-
nection.
Note
If you connect an unconfigured device to an ISDN connection in parallel to a PBX, the
PBX cannot take any calls until an ISDN number is configured on the device. If no
entry is specified, every incoming ISDN call is accepted by the ISDN Login service.
bintec RS353jw is equipped with two external WLAN antennas, bintec RS353j-4G is
bintec elmeg GmbH 1 Installation
bintec RS Series 1

equipped with two external LTE UMTS antennas and one external GPS antenna.
Fig. 1: Connection options using the example of bintec RS353j-4G
When setting up and connecting, carry out the steps in the following sequence:
(1) Antennas
Screw the external WLAN antennas (only bintec RS353jw) supplied to the connec-
tions provided for this purpose. With bintec RS353j-4G screw the two external
UMTS antenna and the GPS antenna to the connections provided.
(2) ETH1-4
Connect the first switch port (ETH1, yellow connector) your device through the sup-
plied Ethernet cable to your LAN to configure the device. The device automatically
detects whether It is connected to a switch or directly to a PC. Connect more
devices, LANs or WANs to the Port ETH1 up ETH4 on.
(3) VDSL
Connect the VDSL interface (VDSL, grey connector) of your device to the DSL out-
put of the splitter using the DSL cable (grey cable) supplied.
(4) Power connection
Connect the POWER interface of your device via the supplied power cord to your
power supply.
You can set up further connections as required:
• ETH5
1 Installation bintec elmeg GmbH
2bintec RS Series

Connect the ETH5 interface (white connector) of your device via a RJ45 cable to your
LAN/WAN interface.
• BRI
Connect the BRI interface (black connector) of the device to your ISDN socket using the
ISDN BRI cable provided.
• USB
Connect a wireless flash drive to the USB port on your device.
• USB CONSOLE
For alternative configurations, connect the USB console type B of your device via a USB
cable to the PC. A suitable cable is available as an accessory.
The device is now ready for configuration with the GUI. Chapter Basic configuration on
page 25 provides a detailed step-by-step guide to the basic functions on your device.
Installation
The devices are optionally equipped with straps in the housing on the wall, as a table top
unit or for installation in 19 inch cabinet.
Use as a table-top device
Attach the four self-adhesive feet on the bottom of the device. Place your device on a solid,
level base.
The 19- inch cabinet installation
Screw your device using the supplied brackets and screws into the cabinet.
Wallmounting
To attach the bintec RS353x series on the wall, use the tabs on the back side of the hous-
ing.
Warning
Before drilling, make sure that there are no building installations where you are drilling.
If gas, electricity, water or waste water lines are damaged, you may endanger your life
or damage property.
Kensington Lock
The devices offer the possibility of a Kensington lock to secure. You will find the required
bintec elmeg GmbH 1 Installation
bintec RS Series 3

notch on the right side of the housing.
1.1.2 Connectors
The devices have about a 4-port gigabit switch-port, a gigabit LAN/WAN connection, a VD-
SL connection, an ISDN BRI interface, a USB port (type A), as well as a USB console port
(type B).
The connections are arranged as follows:
Fig. 2: bintec RS353j-4G front panel
Front panel connections
1 VDSL (gray) VDSL interface
2 ETH1 / ETH2 / ETH3 /
ETH4 (yellow)
10/100/1000 Base-T Ethernet interfaces
3 ETH5 (white) 10/100/1000 Base-T Ethernet interfaces
4 BRI (black) BRI connection
5 USB USB connection type A
6 USB CONSOLE USB console type B
7 FUNCTION Function button
8 RESET Reset button
On the back of the device the mains connection and the on/off switch is located. bintec
RS353j-4G has connectors for two external Wi-Fi antenna. The devices bintec RS353j-4G
have a connectors for the GPS antenna and 2 ports for the LTE/UMTS antenna. The con-
nectors for the LTE/UMTS antenna are located on the sides of the device.
The connections are arranged as follows:
1 Installation bintec elmeg GmbH
4bintec RS Series
