AVENTOS HK top
Lift Systems Reimagined

Reimagined for
Easy Installation
An eye for detail and another on the big picture – that's what's needed to
develop a lift system that is not only compact in design but also impresses
with easy installation. That is what makes AVENTOS HK top the
perfect solution for cabinetry where every detail counts.

Contents
AVENTOS HK top
5Solutions for All Applications
6Specifications for Frameless & Face
Frame
10 Specifications for Narrow Aluminum
14 Ordering Information for TIP-ON
16 Assembly
17 Adjustments
18 Face Frame Mounting Brackets
19 Assembly Aids
20 SERVO-DRIVE for HK top
36 Part Number Index

© 2021 Blum, Inc. Subject to technical modifications without notice
4

There are many good reasons why AVENTOS lift systems are an excellent choice for wall cabinets.
Since the cabinet doors open upwards, AVENTOS provides an excellent view into the cabinet interior enabling comfortable and
ergonomic access to storage items.
The AVENTOS program opens up a whole new world of design possibilities for kitchen and office spaces. Even the widest and
heaviest doors can be accommodated. Wide base cabinet designs can now be mirrored in the wall cabinets above to create a
more uniform look.
Solutions for All Applications AVENTOS
>
Online Resource for Planning
Easy Planning
Blum offers many online tools to help you with your kitchen planning and ordering.
Online Product Configurator (OPC) offers a parts list and planning information
based on your specifications. Once complete, your results can then be exported to
a shareable document.
OPC is easily accessible on our website at blum.com/configurator
Dimensions in millimeters (inch equivalents as noted) © 2021 Blum, Inc. 5

Step 1 – Determine the Power Factor for the Application
Determine power factor
To select the correct lift mechanism for a given application, the power factor must first be calculated by using the formula below.
Use the table at the bottom of the page to convert ounces into decimal form for easy calculation.
Power factor = cabinet height multiplied by door weight*
Example:
Cabinet height: 20" (within possible range)
Door weight including twice the handle weight = 13 lb 14 oz (14 oz = .9 lb see chart below)
Power factor = 20 x 13.9
Power factor = 278
A power factor of 278 requires lift mechanism 22K2700
*Including twice the handle weight
NOTE: AVENTOS planning tools available at blum.com/planning
Weight conversion chart
oz123456789101112131415
lb .1 .1 .2 .3 .3 .4 .4 .5 .6 .6 .7 .8 .8 .9 .9
508 (20")
Door weight + twice handle weight = 13 lb 14 oz
Warning: Risk of injury by spring-loaded lever arm!
▬ Arm has built in safety feature to prevent opening and closing
▬ Secure lever arm before installing cabinet
AVENTOS HK top Ordering Information
for Frameless and Face Frame
AVENTOS
2
3
1
4
NOTE: For wide cabinets, we recommend an
additional lift mechanism be attached to the
center panel to prevent the middle of the front
from sagging when open.
▬ Self-positioning mechanism with locating
template eliminates complicated installation
▬ Integrated opening angle adjustment
between 75° and 107°
▬ Cabinet height from 250 (10") to 610 (24")
▬ Cabinet width range 381 (15") to 1828 (72")
▬ Interior cabinet depth minimum of 187 (7-3/8")
▬ Optional: TIP-ON for AVENTOS
▬ If using a third lift mechanism for wider
applications (power factor increases by up to
50%), we recommend a trial application.
Power factor = cabinet height (inch) x door weight*(lb)
© 2021 Blum, Inc. Subject to technical modifications without notice
6

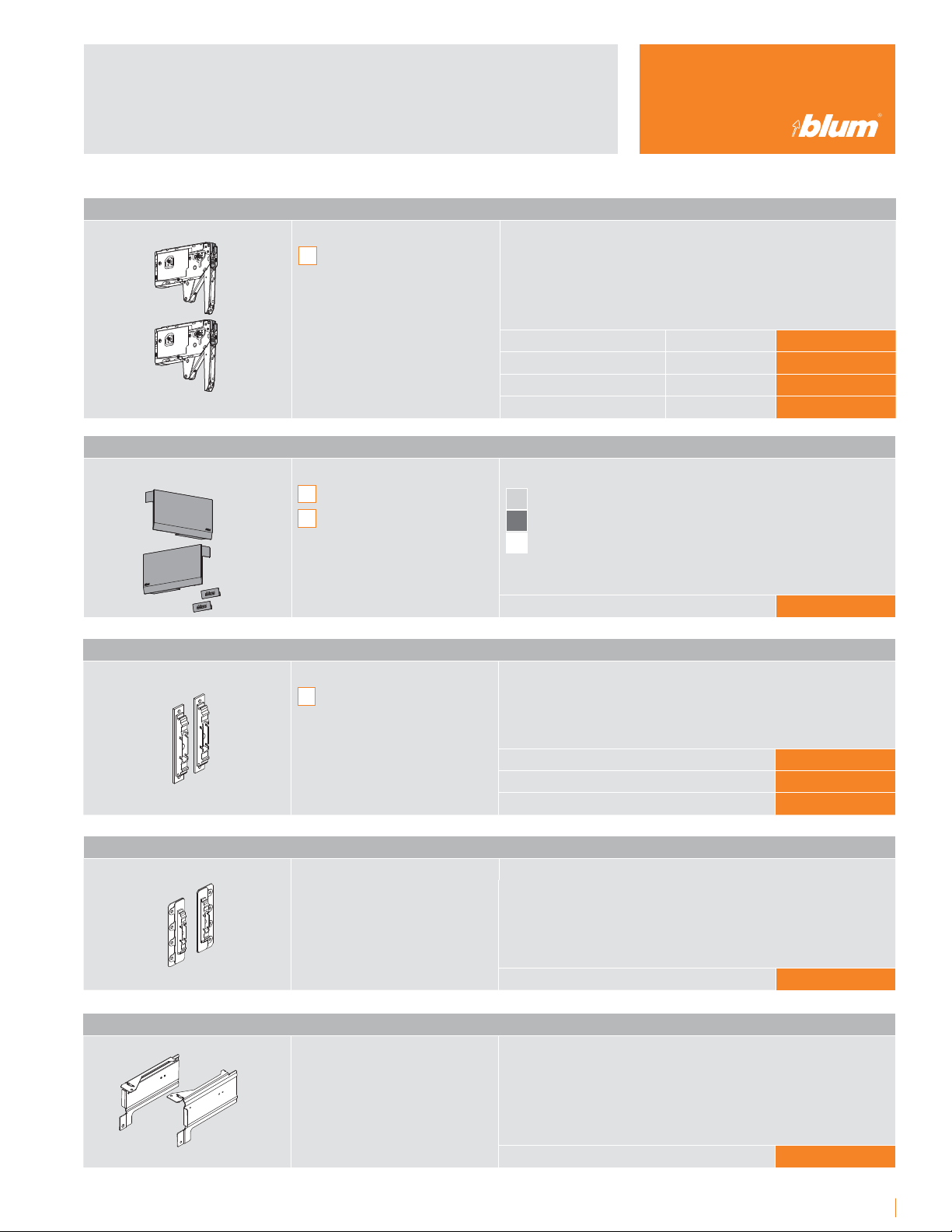

Step 2 – Select the Required Components
Lift mechanism sets
Set includes:
1Lift mechanism (qty 2)
▬ #7x 35 ( 1 - 3 / 8 " ) w o o d s c r e w
(qty 8)
NOTE: Symmetrical with wood screws including positioning
template. Max front weight 39 lb for two lift mechanisms.
Power factor range Opening angle Part no.
36 – 139 107° 22K2300
80 – 240 107° 22K2500
150 – 450 107° 22K2700
270 – 781 107° 22K2900
Cover set
Set includes:
2Right and left cover plate
3Non-handed cover cap (qty 2)
NOTE: Light Gray, Dark Gray and Silk White options available
Cover set 22K8000.NA
Wood or wide aluminum door hardware set
Set includes:
4Arm assembly mounting
plate (qty 2)
Part no.
Wood or wide aluminum hardware set 20S4200
Installation screw for wood doors 606N or 606P
Installation screw for wide aluminum doors 7072A
Mounting plate with bracket set
Set includes: For use with large overlay five-piece doors
Part no.
Mounting plate with bracket set 20S4F01
AVENTOS HK top Ordering Information AVENTOS
Face frame mounting bracket set
Set includes: NOTE: See page 18 for more information
Part no.
HK top frame mounting bracket set 22K6001
Part no.
▬ Mounting plate with bracket
(qty 2)
▬ Right and left brackets
▬ M4 X 30 lift mounting screws
Light Gray (HGIG)
Dark Gray (TGIG)
Silk White (SWIG)
Dimensions in millimeters (inch equivalents as noted) © 2021 Blum, Inc. 7

AVENTOS HK top Planning Specifications
for Frameless and Face Frame
AVENTOS
Lift mechanism clearance
Door and hardware clearance
Face Frame Application
Door and hardware clearance
Frameless Application
187 min.
572 max.
192 min.
250 (10") to 610 (24")
Z
door height + 1.5
173 min.
235 min.
Lift mechanism positioning
Attachment for lift mechanism for wood screws including positioning template.
Minimum gap
NOTE: Min gap assumes door radius of 1
Overlay up to 25.4
gap 1.5
Minimum bottom reveal
Door and Hardware Clearance
1.5 min.
2min.
Decorative molding clearance
Door thickness 16 19 22 26
maximum X 68 57 47 33
Xdoor thickness
SERVO-DRIVE SERVO-DRIVE
187 min.
572 max.
192 min.
250 (10") to 610 (24")
door height + 1.5
173 min.
235 min.
Z
1
2
SERVO-DRIVE
91
30 30
NOTE: Z = door height x 0.29 + door thickness minus
top panel thickness
NOTE: Z = door height x 0.29 + door thickness minus
top frame width
© 2021 Blum, Inc. Subject to technical modifications without notice
8

Arm assembly mounting plate location
Frameless and face frame applications
NOTE: Attach mounting plate with four 606N or 606P wood screw
for wood doors or 7072A for wide aluminum doors
Follow the assembly instructions on page 16
32 3232
12.5 +overlay
62 + overlay
Arm assembly mounting plate choices
Mounting plate Slab door
Five-piece door
Mounting plate with bracket
for large overlay five-piece
doors
Five-piece door
NOTE: Hole locations offset by 19
(example: 12.5 + overlay - 19 =
hole location from side)
more than 6
12.5
12.5
40
8
128
16 32 32 32
16
8
108
32 32 32
19
12.5
AVENTOS HK top Planning Specifications AVENTOS
Dimensions in millimeters (inch equivalents as noted) © 2021 Blum, Inc. 9

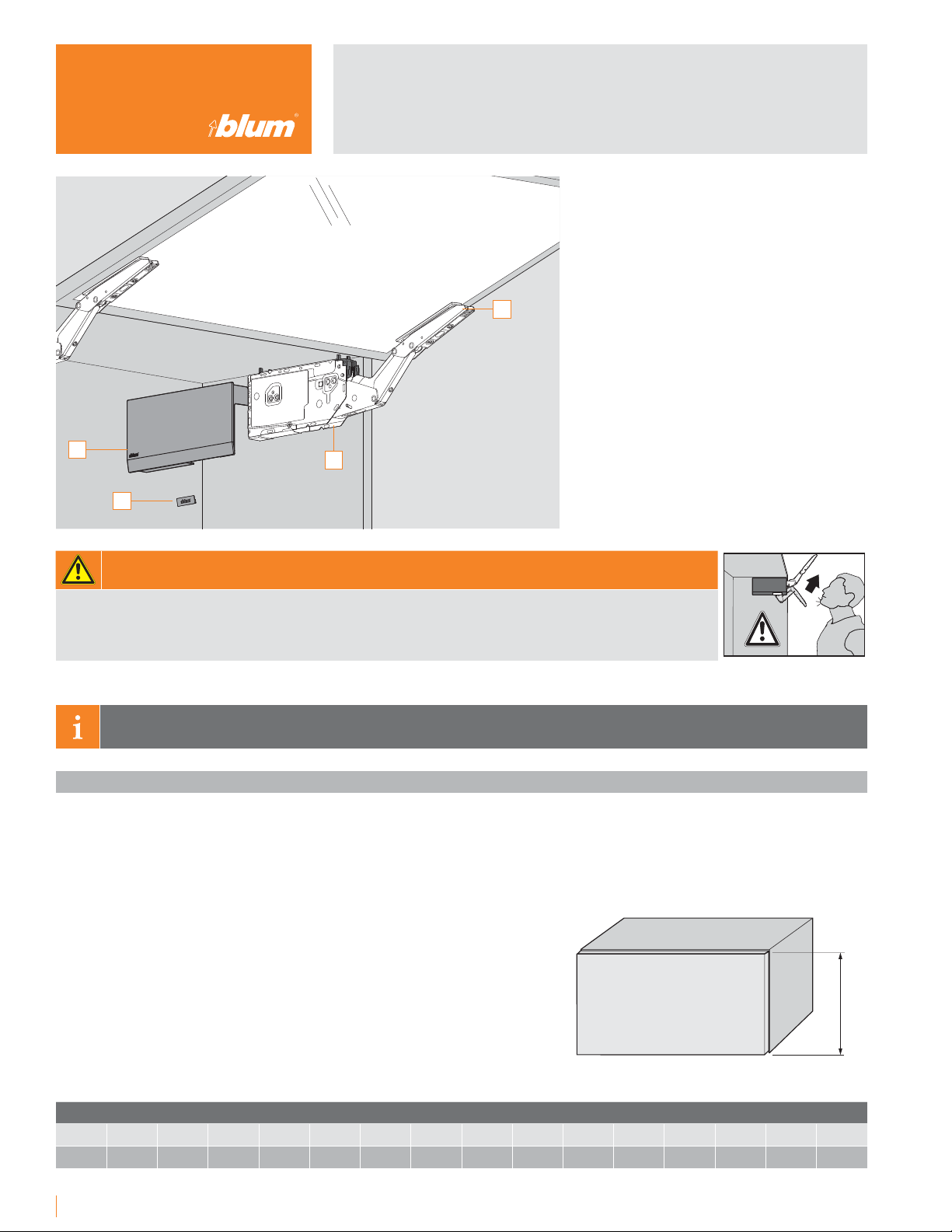

Step 1 – Determine the Power Factor for the Application
Warning: Risk of injury by spring-loaded lever arm!
▬ Arm has built in safety feature to prevent opening and closing
▬ Secure lever arm before installing cabinet
Determine power factor
To select the correct lift mechanism for a given application, the power factor must first be calculated by using the formula below.
Use the table at the bottom of the page to convert ounces into decimal form for easy calculation.
Power factor = cabinet height multiplied by door weight*
Example:
Cabinet height: 20" (within possible range)
Door weight including twice the handle weight = 13 lb 14 oz (14 oz = .9 lb see chart below)
Power factor = 20 x 13.9
Power factor = 278
A power factor of 278 requires lift mechanism 22K2700
*Including twice the handle weight
NOTE: AVENTOS planning tools available at blum.com/planning
Weight conversion chart
oz123456789101112131415
lb .1 .1 . 2 .3 .3 .4 .4 .5 .6 .6 .7 .8 .8 .9 .9
508 (20")
Door weight + twice handle weight = 13 lb 14 oz
AVENTOS HK top Planning Specifications
for Narrow Aluminum
AVENTOS
2
3
1
4
NOTE: For wide cabinets, we recommend an
additional lift mechanism be attached to the
center panel to prevent the middle of the front
from sagging when open.
▬ Self-positioning mechanism with locating
template eliminates complicated installation
▬ Integrated opening angle adjustment
between 75° and 107°
▬ Cabinet height from 250 (10") to 610 (24")
▬ Cabinet width range 381 (15") to 1828 (72")
▬ Interior cabinet depth minimum of 187 (7-3/8")
▬ Optional: TIP-ON for AVENTOS
▬ If using a third lift mechanism for wider
applications (power factor increases by up to
50%), we recommend a trial application.
Power factor = cabinet height (inch) x door weight*(lb)
© 2021 Blum, Inc. Subject to technical modifications without notice
10

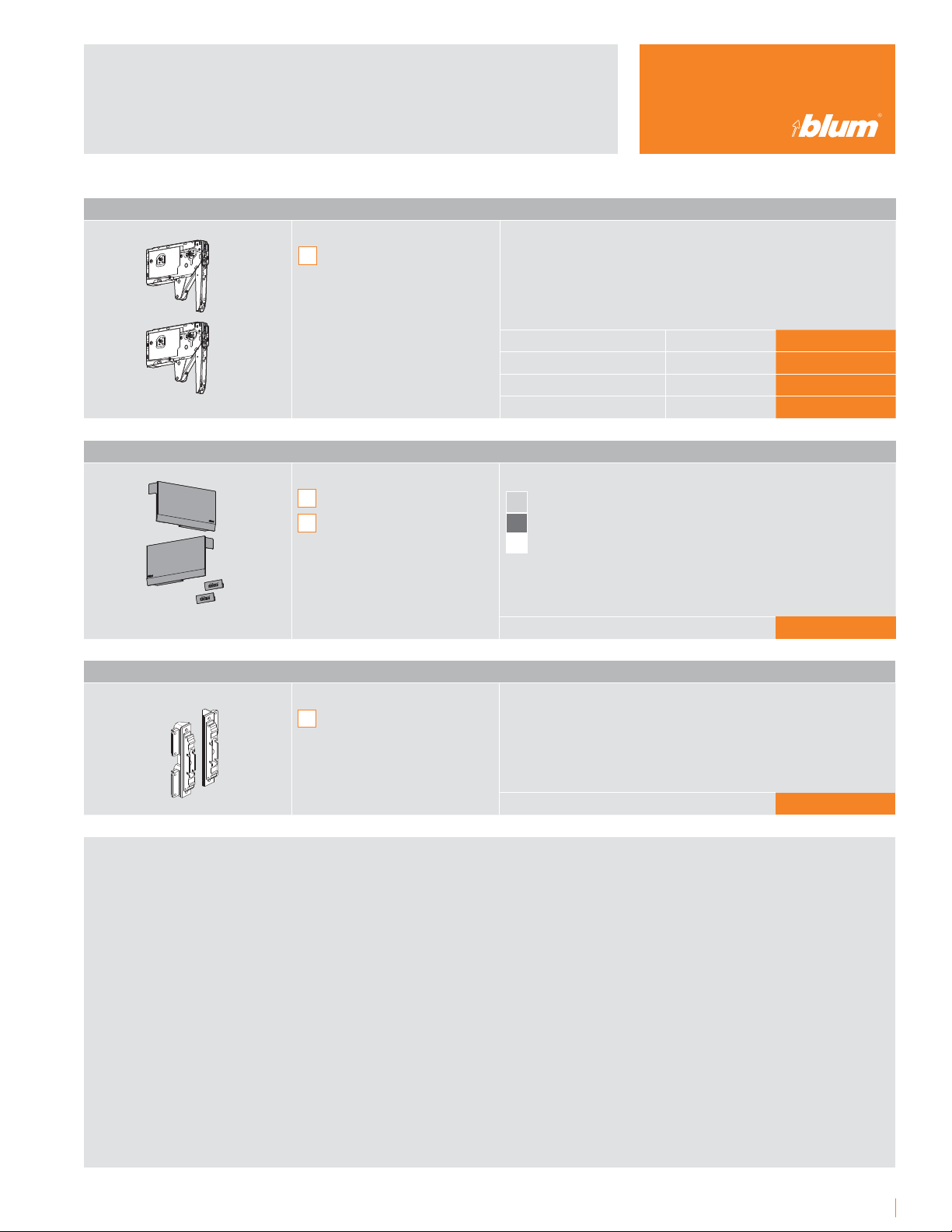

AVENTOS HK top Ordering Information AVENTOS
Step 2 – Select the Required Components
Lift mechanism sets
Set includes:
1Lift mechanism (qty 2)
▬ #7x 35 (1-3/8") wood screw
(qty 8)
NOTE: Symmetrical with wood screws including positioning
template. Max front weight 39 lb for two lift mechanisms.
Power factor range Opening angle Part no.
36 – 139 107° 22K2300
80 – 240 107° 22K2500
150 – 450 107° 22K2700
270 – 781 107° 22K2900
Cover set
Set includes:
2Right and left cover plate
3Non-handed cover cap (qty 2)
NOTE: Light Gray, Dark Gray and Silk White options available
Part no.
Cover set 22K8000.NA
Narrow aluminum door hardware set
Set includes:
4Arm assembly mounting plate
(qty 2)
▬ 699.110 – Aluminum scew for
narrow aluminum lever arm
mounting plate (qty 8)
Part no.
Narrow aluminum door hardware set 20S4200A
Light Gray (HGIG)
Dark Gray (TGIG)
Silk White (SWIG)
Dimensions in millimeters (inch equivalents as noted) © 2021 Blum, Inc. 11

AVENTOS HK top Planning Specifications
for Narrow Aluminum
AVENTOS
Minimum gap
NOTE: Min gap assumes door radius of 1
and a maximum top overlay of 25.4
Minimum bottom reveal
Door and Hardware Clearance
1.5 min.
2min.
Decorative molding clearance
Door thickness 16 19 22 26
maximum X 70 59 49 35
Xdoor thickness
Lift mechanism clearance Lift mechanism positioning
Attachment for lift mechanism for wood screws including positioning template.
1
2
SERVO-DRIVE
91
30 30
Door and hardware clearance
Door and Hardware Clearance and Positioning
187 min.
572 max.
192 min.
250 (10") to 610 (24")
Z
door height + 1.5
173 min.
235 min.
SERVO-DRIVE
NOTE: Z = door height x 0.29 + door thickness minus
top panel thickness
© 2021 Blum, Inc. Subject to technical modifications without notice
12

AVENTOS HK top Planning Specifications
Follow the assembly instructions on page 16
AVENTOS
Arm assembly mounting plate attachment
Arm assembly mounting plate location
62.5 + overlay
64 15.5
overlay
reveal (1 to 4)
15 to 19
12.5
11.4
31
19 to 22
90°
– 0.1
Ø7
1.1
31 33
38
overlay - 4.5
R4
7. 5 1. 4 min.
38
Dimensions in millimeters (inch equivalents as noted) © 2021 Blum, Inc. 13

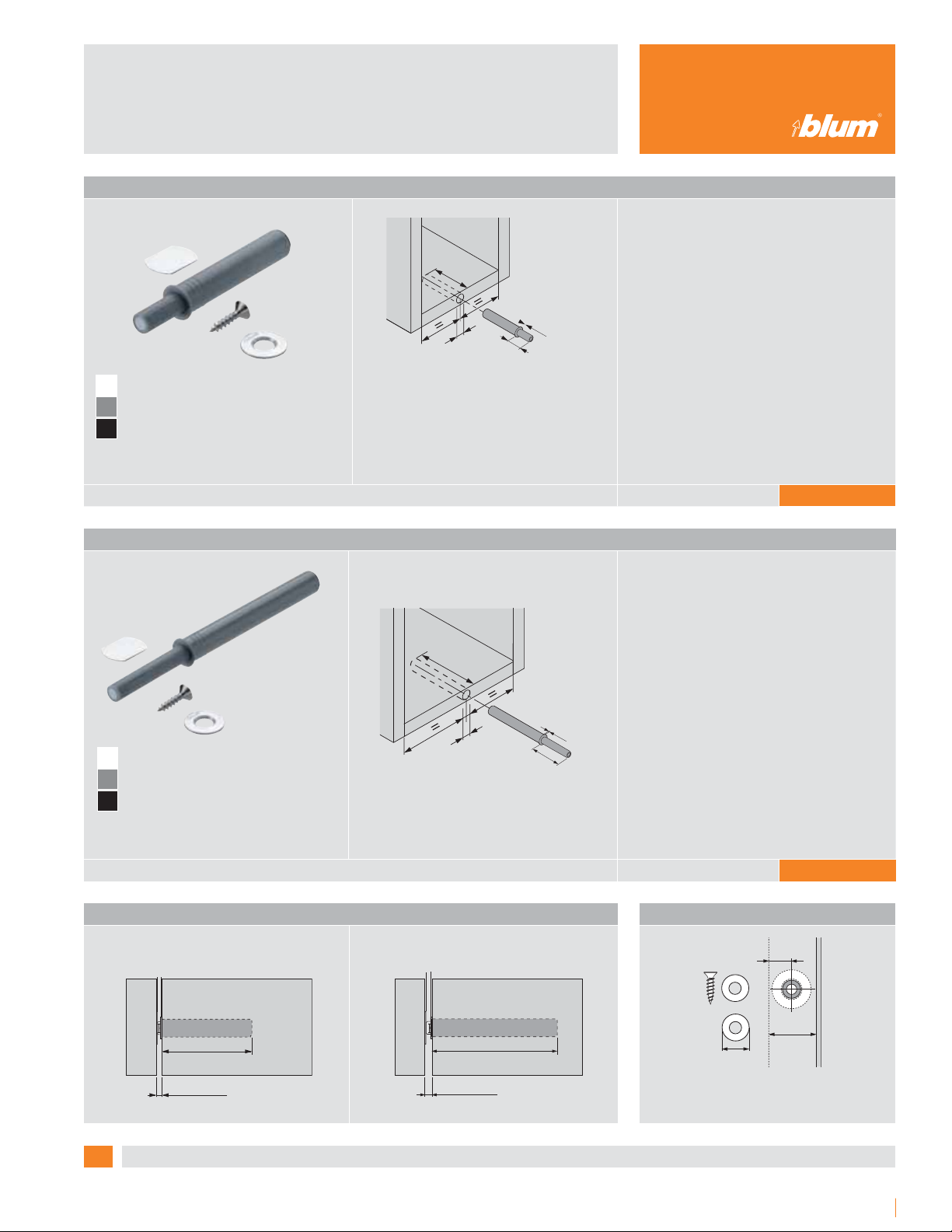

AVENTOS HK top Ordering Information
for TIP-ON
AVENTOS
Lift mechanism sets
Set includes: NOTE: Symmetrical with wood screws including positioning
template. Max front weight 39 lb for two lift mechanisms.
Power factor Opening angle Part no.
36 – 139 107° 22K2300T
80 – 240 107° 22K2500T
150 – 450 100° 22K2700T
270 – 781 100° 22K2900T
Cover set
Set includes: NOTE: Light Gray, Dark Gray and Silk White options available.
Part no.
Cover set 22K8000.NA
Wood or wide aluminum door hardware set
Set includes:
Part no.
Wood or wide aluminum hardware set 20S4200
Installation screw for wood doors 606N or 606P
Installation screw for wide aluminum doors 7072A
Narrow aluminum door hardware set
Set includes:
Part no.
Narrow aluminum door hardware set 20S4200A
NOTE: Refer to pages 12-13 for installation specifications
NOTE: Refer to pages 8-9 for installation specifications
▬ Lift mechanism (qty 2)
▬ #7x 35 mm (1-3/8") wood
screw (qty 8)
▬ Right and left cover plate
▬ Non-handed cover cap (qty 2)
▬ Arm assembly mounting plate
(qty 2)
▬ Arm assembly mounting plate
(qty 2)
▬ 669.110 aluminum screw for
narrow aluminum lever arm
mounting plate (qty 8)
Light Gray (HGIG)
Dark Gray (TGIG)
Silk White (SWIG)
© 2021 Blum, Inc. Subject to technical modifications without notice
14

AVENTOS HK top Ordering Information
for TIP-ON
AVENTOS
TIP-ON set for standard doors
Use of screw-on catch plate
required for all applications Part no.
NOTE: Due to various door weights and sizes, trial application recommended Standard door set 956.1004
TIP-ON set for large doors
Use of screw-on catch plate
required for all applications Part no.
NOTE: Due to various door weights and sizes, trial application recommended Large door set 956A1004
50 min 0.6
18
∅10
76 min 0.6
38
∅10
TIP-ON for AVENTOS specifications Screw-on catch plate specifications
2.5 min.
50 min.
3 min.
76 min.
Ø15
7.5
OL
Standard doors Large doors
Pre-boring Ø2.5 countersunk
pilot holes are required
For TIP-ON adapter plate mounting please refer to the Concealed hinges brochure.
White (SEIW)
Gray (R736)
Black (TERS)
▬ Nylon gray unit with magnet tip
▬ Adjustment range +4mm to -1mm
▬ For door heights up to 400 (15-3/4")
▬ Works for overlay and inset applications
▬ Can be bored into the panel or used with
an adapter plate
▬ TIP-ON unit
▬ Self-adhesive catch plate
▬ Screw-on catch plate
▬ Wood screw
Set includes:
▬ Nylon gray unit with magnet tip
▬ Adjustment range +4mm to -1mm
▬ For door heights greater than
400 (15-3/4")
▬ Works for overlay and inset applications
▬ Can be bored into the panel or used with
an adapter plate
▬ TIP-ON unit
▬ Self-adhesive catch plate
▬ Screw-on catch plate
▬ Wood screw
Set includes:
White (SEIW)
Gray (R736)
Black (TERS)
Dimensions in millimeters (inch equivalents as noted) © 2021 Blum, Inc. 15

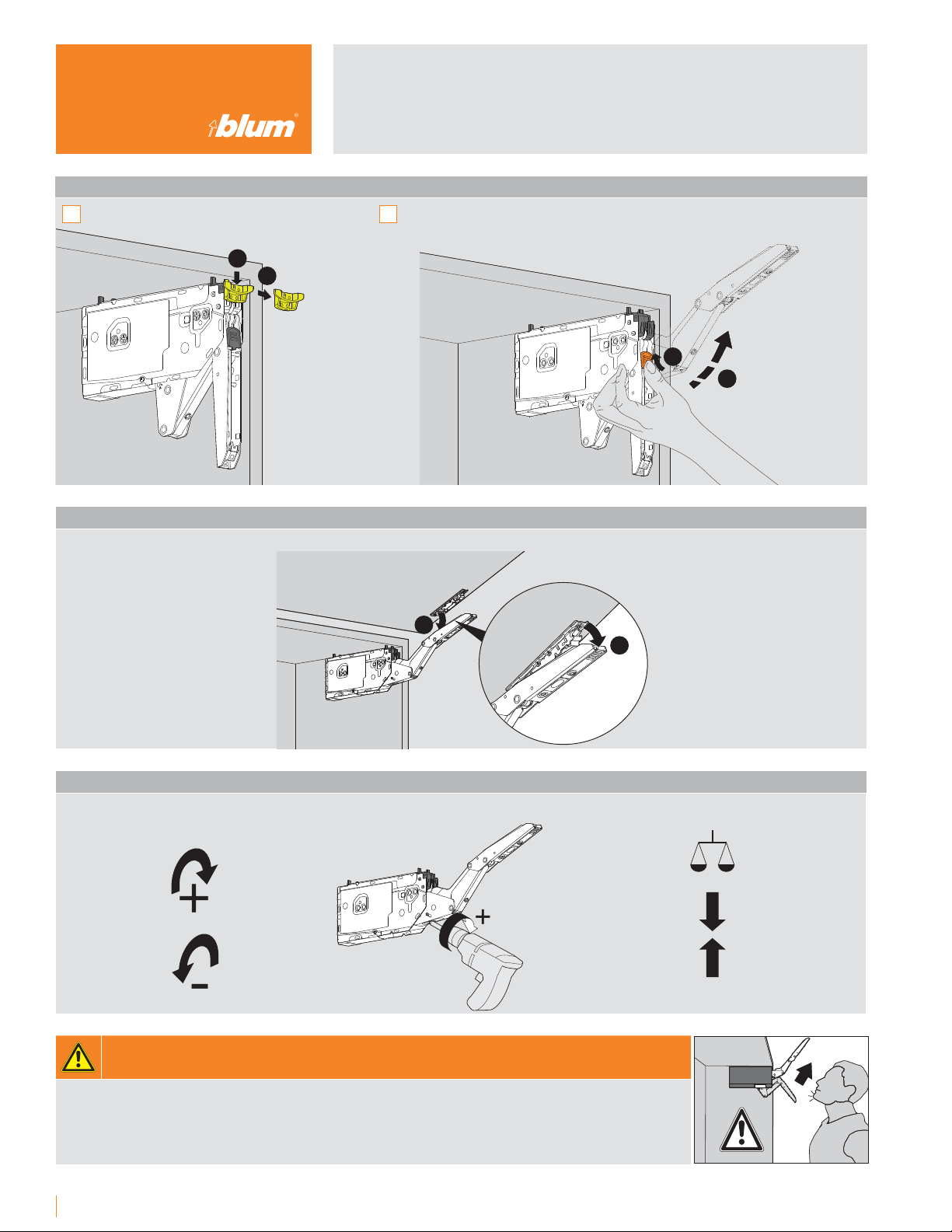

AVENTOS HK top Assembly
AVENTOS
Attaching AVENTOS HK top doors
Adjust the lift mechanism
Use a T20 TORX screwdriver or screw gun and a T20 TORX bit to adjust the lift mechanism to the desired tension (door weight balanced).
Cover cap does not need to be removed to perform this adjustment.
Warning: Risk of injury by spring-loaded lever arm!
▬ Arm has built in safety feature to prevent opening and closing
▬ Secure lever arm before installing cabinet
Remove positioning template
Push the positioning template down to remove. Press up on arm release slide then slowly raise the arm to the upright position.
Click
Attach the door using the CLIP mechanism to the arm assembly.
1 2
1
2
1
2
1
2
© 2021 Blum, Inc. Subject to technical modifications without notice
16

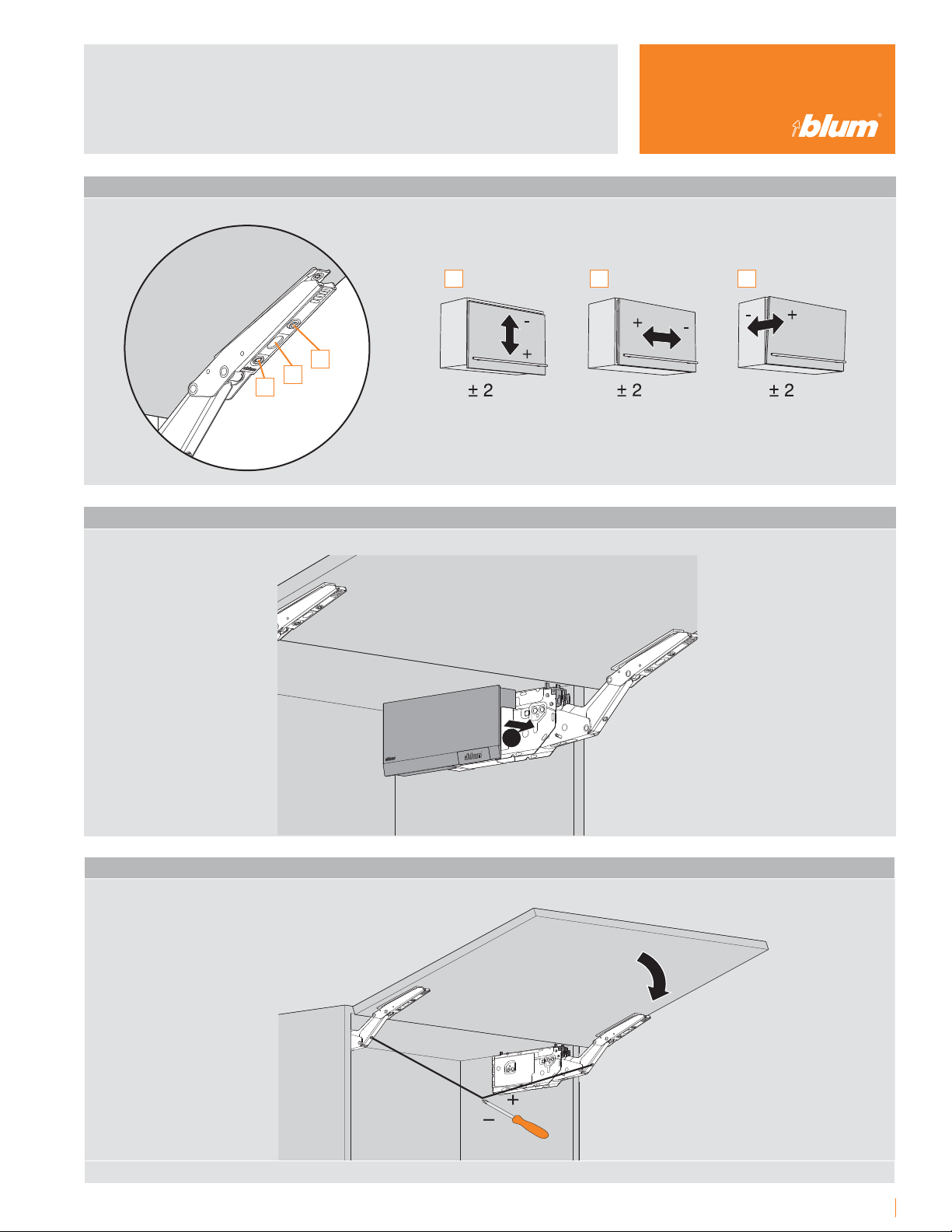

AVENTOS HK top Adjustments AVENTOS
AVENTOS HK top door adjustment
Use a T20 TORX screwdriver to perform cam adjustments for each of the three-dimensional door adjustments.
mm mm mm
Attaching cover caps
Place the left and right cover plates over the appropriate lift mechanisms, and snap them in place.
21
1 2 3
3
1
2
1
Adjust opening angle
Turn adjustment screw, with a T20 TORX screwdriver, until tight on both sides and desired angle is reached.
NOTE: Adjustments can be made with the cap on
Dimensions in millimeters (inch equivalents as noted) © 2021 Blum, Inc. 17

AVENTOS HK top face frame mounting bracket set
▬ Brackets for mounting AVENTOS HK top
in face frame cabinet
▬ Minimum recess of 12.5 (1/2")
▬ Provides accurate mounting
position for lift mechanism
Set includes:
▬ Right and left brackets
▬ M4 x 30 lift moutning screws (qty 12)
Part no.
HK top frame mounting bracket set 22K6001
AVENTOS HK top face frame bracket mounting locations
Fixed setback allowing for up to 25.4 top overlay. Attach bracket to face frame with two #7 x 3/4" (7074N) wood screws.
Attach lift mechanism to bracket with four M4 x 30 machine screws
(included).
NOTE: Machine screw mounting locations marked in orange
79 32.5 29.5
9
12.5
min.
9
AVENTOS Face Frame
Mounting Brackets
© 2021 Blum, Inc. Subject to technical modifications without notice
18

Universal individual template
▬Used to pre-bore for AVENTOS lift
mechanism locating pins
▬Also used for pre-boring for cabinet profiles
and BLUMOTION for doors and TIP-ON
for doors adapter plates
▬Calibrated scale for accurate setting
Set includes:
1Universal individual template
2Ø2.5 stop collar
3Ø5 stop collar
Part no.
Template 65.1051.02
Ø2.5 drill bit DB-2.5mm R
Ø5 drill bit DB-5mm R
Short TORX DRIVER
▬For AVENTOS HK top and
LEGRABOX adjustments
▬TORX size 20 (T20)
▬Blade length 35
Part no.
T20 TORX DRIVER SHORT TORX DRIVER
POZI DRIVER
A POZI screwdriver (different from
Phillips) is the most crucial tool
you can use to assure that full
torque is applied to all Blum
mounting screws. POZI screws
can be identified by the distinctive
“tick” marks located in the center
of the screwhead recess.
Part no.
#2 POZI DRIVER POZI DRIVER
1/4" Magnetic bit holder
BIT HOLDER
#2 x 1" POZI bit insert POZI BIT #2X1
#2 x 2" POZI bit insert POZI BIT #2X2
TORX
Phillips
Tick marks
POZI
Front marking template for HK top
▬Used to determine the location for the arm
assembly mounting plate
▬Side overlay adjustable from 12 to 21 mm
▬Calibrated scale for accurate setting
▬Only intended for frameless cabinets
▬Instructions included with template
Part no.
Template ZML.2200
Assembly Aids AVENTOS
23
1
TORX DRIVER
▬For AVENTOS HK top and
LEGRABOX adjustments
▬TORX size 20 (T20)
▬Blade length 100
▬Total length 210
Part no.
T20 TORX DRIVER TORX DRIVER
ts
0
TORX
Dimensions in millimeters (inch equivalents as noted) © 2021 Blum, Inc. 19

SERVO-DRIVE for
AVENTOS HK top
AVENTOS HK top is also compatible with other Blum motion technologies that
help create an awe-inspiring space, like SERVO-DRIVE, our electrical motion
support system. With one-touch opening and closing, SERVO-DRIVE increases
the functionality of the cabinet, and even with the added electrical drive unit, the
mechanism remains impressively compact.
© 2021 Blum, Inc. Subject to technical modifications without notice
20
