BLUM AVENTOS HF User manual

AVENTOS HF
Dimensions in millimeters (inch equivalents as noted) © 2021 1
Telescopic arm set
▀ Telescopic arm (qty 2)
Cabinet heights Part no.
479 (18-7/8") - 558 (22") 20F3200.01
558 (22") - 686 (27") 20F3500.01
686 (27") - 889 (35") 20F3800.01
889 (35") - 1067 (42") 20F3900.01
Cover set
▀ Right and left cover plate
▀ Non-handed cover cap (qty 2)
Cover set 20F8020.NA
Lift mechanism set
▀ Lift mechanism (qty 2)
▀ #7 x 35 mm (1-3/8”) wood screw (qty 8)
Power factor Part no.
85 - 230 (1 lift mechanism req.) 20F2200.N5
231 - 470 20F2200.N5
471 - 880 20F2500.N5
780 - 1440 20F2800.N5
1401 - 2300 (3 lift mechanisms req.) 20F2800.N5
Narrow aluminum door hardware set
▀ 72T550A.TL - CLIP top free swing narrow alum. top door hinge (qty 2)
▀ 78Z550AT - CLIP top narrow aluminum bottom door hinge (qty 2)
▀ 175H3100 - Top door mounting plate (qty 2)
▀ 175H5A00 - Bottom door mounting plate (qty 2)
▀ 175H5B00 - Telescopic arm mounting plate (qty 2)
▀ 669.110 - Aluminum screw for the bottom door mounting plate, bottom hinge,
top hinge and telescopic arm mounting plate (qty 18)
NOTE: Three hinges and mounting plates are required for cabinet widths over
1219 (48”) or combined door weight of 26.5 lb.
Narrow aluminum door hardware set 78Z550ATA6
Installation screw for top mounting plate 606N or 606P
Narrow aluminum
frame door application
Part no.
▀ Colors: Light Gray, Dark Gray and Silk White
Part no.

Subject to technical modifications without notice. © 2021
2
Part no.
65.1051.02
192
Y
37
Top door height
TR
Ø5
TR = Top reveal
TDH = Top door ht.
Top door height
(TDH)Y
231 to 271 TDH x .6 - 28 + TR
272 to 531 TDH x .6 - 57 + TR
Universal individual template is available for pre-boring holes for locating pins.
1Locating pin locations
Assembly
WARNING
Risk of injury from spring-loaded arm
▀ Do not push arm assembly down or leave in the down position.
▀ Remove mechanism before installing or removing cabinet.

3
Dimensions in millimeters (inch equivalents as noted) © 2021
WARNING: Risk of injury from spring loaded arm.
Attach telescopic arms by clipping them
on in the fully upright position.
2Attach the lift mechanism
3Attach the telescopic arms
Align the two locating pins on the lift mechanism with the two Ø5 x 5 holes bored in the side of
cabinet, and attach the mechanism with the five wood screws provided.
#7 x 35 mm (1-3/8") wood screws (qty 4)
5min.
Ø5
Assembly

Subject to technical modifications without notice. © 2021
4
19
1
.
7
21
66
15
66
3
21
Assembly
4Top door hinge planning
5Bottom door hinge planning
Part no.
Aluminum door hinge
72T550A
In-line mounting plate
175H3100
Part no.
Aluminum door bottom hinge
78Z550AT
Bottom door mounting plate
175H5A00

5
Dimensions in millimeters (inch equivalents as noted) © 2021
22
31
11.4
38
44
R4
19 ‒
21
R4
7.5 1.4
min.
90°
– 0.1
Ø7
1.1
38
X
17
min.
Top door height
NOTE: 3 hinges are
required for cabinet width
over 1219 mm (48") or 26.5
lb. combined door weight.
Top door
height (TDH)X
231 to 271 TDH x .5 + 70
272 to 531 TDH x .5 + 47
6Frame preparation
7Bottom door planning
Part no.
Telescopic arm mounting plate
175H5B00
Assembly

Subject to technical modifications without notice. © 2021
6
Determine the locations of mounting plates and hinges and attach the hardware to cabinet doors.

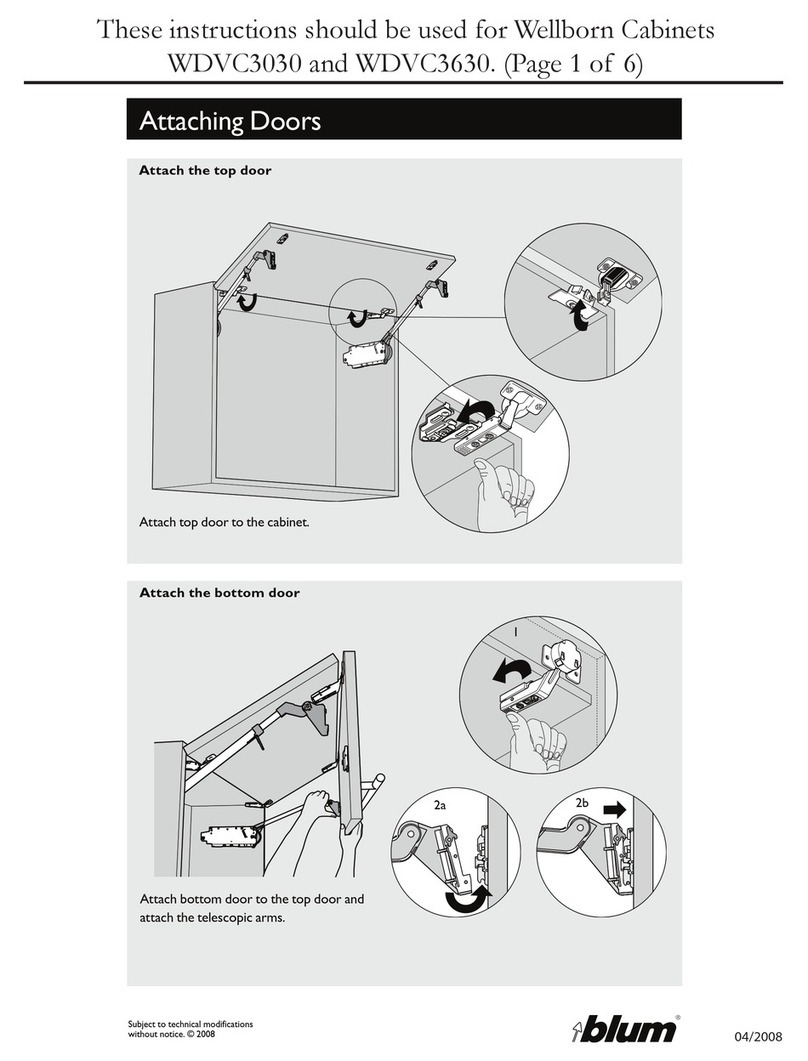

Attach top door to the cabinet.
Attach bottom door to the top door and attach the telescopic arms.
Assembly
8Attach the top door to the cabinet
9Attach the bottom door

7
Dimensions in millimeters (inch equivalents as noted) © 2021
Use #2x2 POZI bit
10 Finalize the tension adjustments
11 Finalizing the door adjustments
1. Adjust each top door hinge and
mounting plate to properly align the top
door to the cabinet.
2. Adjust each bottom door hinge and
mounting plate to properly align doors to
the cabinet and to the top door.
NOTE: Although not illustrated here, telescopic arm mounting plates can also be adjusted
horizontally ± 2 mm if needed.
1 2
± 2 mm ± 2 mm± 2.5 mm± 2 mm± 3 mm + 3/- 2 mm
Assembly
1 2
1. Close and flush doors to cabinet. Open
and close door to test closing force.
2. Open door and adjust tension screws on
both lift mechanisms with a power drill. Test
door again and repeat until desired function
is achieved.
Tension adjustment should be the same on both lift mechanisms.

Subject to technical modifications without notice. © 2021
8
Attach the left and right cover plates to each lift mechanism.
Assembly
1. Close and flush doors to cabinet. While
pressing on the bottom of the top door, pull the
bottom door open one inch.
2. Slightly open door and lock the telescopic
arms into position using the levers as shown.
12 Adjust and lock telescopic arms
13 Attach cover caps
Open door
enough to
lock levers.
1 2

9
Dimensions in millimeters (inch equivalents as noted) © 2021
Release both arms and gently rest the
top door on the loose arms. The tension
will hold the doors up for the next step.
WARNING
Removal
1Removing the covers
2Removing the door
Risk of injury from spring-loaded arm
▀ Do not push arm assembly down or leave in the down position.
▀ Remove mechanism before installing or removing cabinet.
1
2
Remove left and right cover plates.

Subject to technical modifications without notice. © 2021
10
1. Hold the bottom door while unclipping the
bottom hinge.
2. Hold the top door while detaching the
top hinges. Simply unclip them if using
the CLIP top hinges or unscrew them if
using COMPACT.
1
2
3Removing the doors
Using a screwdriver, depress the release
tabs to remove telescopic arms.
If transporting the cabinet to the jobsite, stop
here. Lift mechanisms can stay inside the
cabinet for easy transport.
4Removing the telescopic arms
1
2
1
2
Removal

Z
TDH
Z = TDH x .44 + 38
INST-AVT07.21
Inch mm
1/32 .031 1
1/16 .063 1.5
3/32 .094 2
1/8.125 3
5/32 .15 6 4
3/16 .18 8 5
7/32 .219 5.5
1/4.25 6
9/32 .281 7
5/16 .313 8
11/32 .344 9
3/8.375 9.5
13/32 .406 10
7/16 .438 11
15/32 .469 12
1/2 .5 13
17/32 .531 13.5
9/16 .563 14
19/32 .594 15
5/8.625 16
21/32 .656 17
11/16 .688 17. 5
23/32 .719 18
3/4.75 19
25/32 .781 20
13/16 .813 20.5
27/32 .844 21
7/8.875 22
29/32 .906 23
15/16 .938 24
31/32 .969 24.5
1 1 25.4
Other information
Door clearance above cabinet.
Blum, Inc.
800-438-6788
[e-mail]
blum.com
