Bob's Space Racers Gear It Up User manual

WARNING
READ THIS OPERATION MANUAL BEFORE USING THIS MACHINE TO ENSURE SAFE OPERATION
OPERATOR’S
MANUAL
Version 1 / FEB2015

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
2

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
3
TABLE OF CONTENTS
1.
Game Specifications
Page 5
2.
Introduction
2.1
Overview
Page 6
2.2
Important Safety Information
Page 7
3.
Package Contents
Page 8
4.
Installation
4.1
Parts List Verification
Page 9
4.2
Play Zone Requirements
Page 9
4.3
Maintenance Consideration
Page 9
4.4
Crated Games Contents
Page 10
4.5
Installing the Marquee
Page 11-12
4.6
Assembling and Installing the Seat Base (Optional)
Page 13-14
4.7
Game Leveling
Page 14
5.
Connecting the Power Cord
Page 15-16
6.
Linking Two Gear It Up™ Games Together
Page 17
7.
Instructions for Play
Page 18
8.
Mechanical Coin and Ticket Meters
Page 19
9.
Options Setting Controls and Option Settings Chart
Page 19-20
10.
Maintenance and Inspection
Page 21-22
11.
Troubleshooting
11.1
Troubleshooting Philosophy
Page 23
11.2
Troubleshooting Guide
Page 24
12.
Game Diagrams
12.1
Electronic Assembly
Page 25
10.2
Main Board Components
Page 25
13.
Parts List
Page 26-30
14.
Warranty
Page 31
Calling for Service
Page 33

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
4

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
5
1. SPECIFICATIONS:
RATED POWER SUPPLY
Domestic (United States): 110V ±10V / 1.5A / 165W
Export: 220V ±10V / .75A / 165W
DIMENSIONS
Length: 60 in. (152.4 cm); Width: 46 in. (116.84 cm); Height: 98.5 in. (250.19 cm)
WEIGHT
645 lbs. (293.18 kg)
Note: Game parameters are subject to change without notice

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
6
2. INTRODUCTION:
2.1 Overview:
Thank you for purchasing the new Gear It Up™from Bob's Space Racers®. Built on a long
tradition of value, the new Gear It Up TM retains all of the great game play you have come to expect of
a game from BSR, and is specifically designed for today's Arcade environment. Gear It Up™uses
technology specifically developed for this game.
This owner’s Manual is intended to provide detailed descriptions together with all the necessary
information covering the general operation of electronic assemblies, servicing control, spare parts,
etc. pertaining to the game.
To Maintain Safety:
This manual is intended for the owner, personnel and managers in charge of operation of the
product. Before operating this product, we highly recommend carefully reading and fully reviewing this
instructional guide. If the product fails to function satisfactorily, non-technical personnel should
under no circumstances perform any kind of repair internally.
To ensure the safe usage of the product, be sure to read the following before using the product.
The following instructions are intended for the users, operators and the personnel in charge of the
operation of the product. After carefully reading and sufficiently understanding the warning display
and cautions, handle the product appropriately. Be sure to keep this operation manual nearby the
product or elsewhere convenient for referring to it when necessary.
Warnings, Cautions, and notes used within these instructions are explained as follows:
- A WARNING refers to a procedure or practice that, if not followed correctly, could result in
injury, long term health hazards, or death.

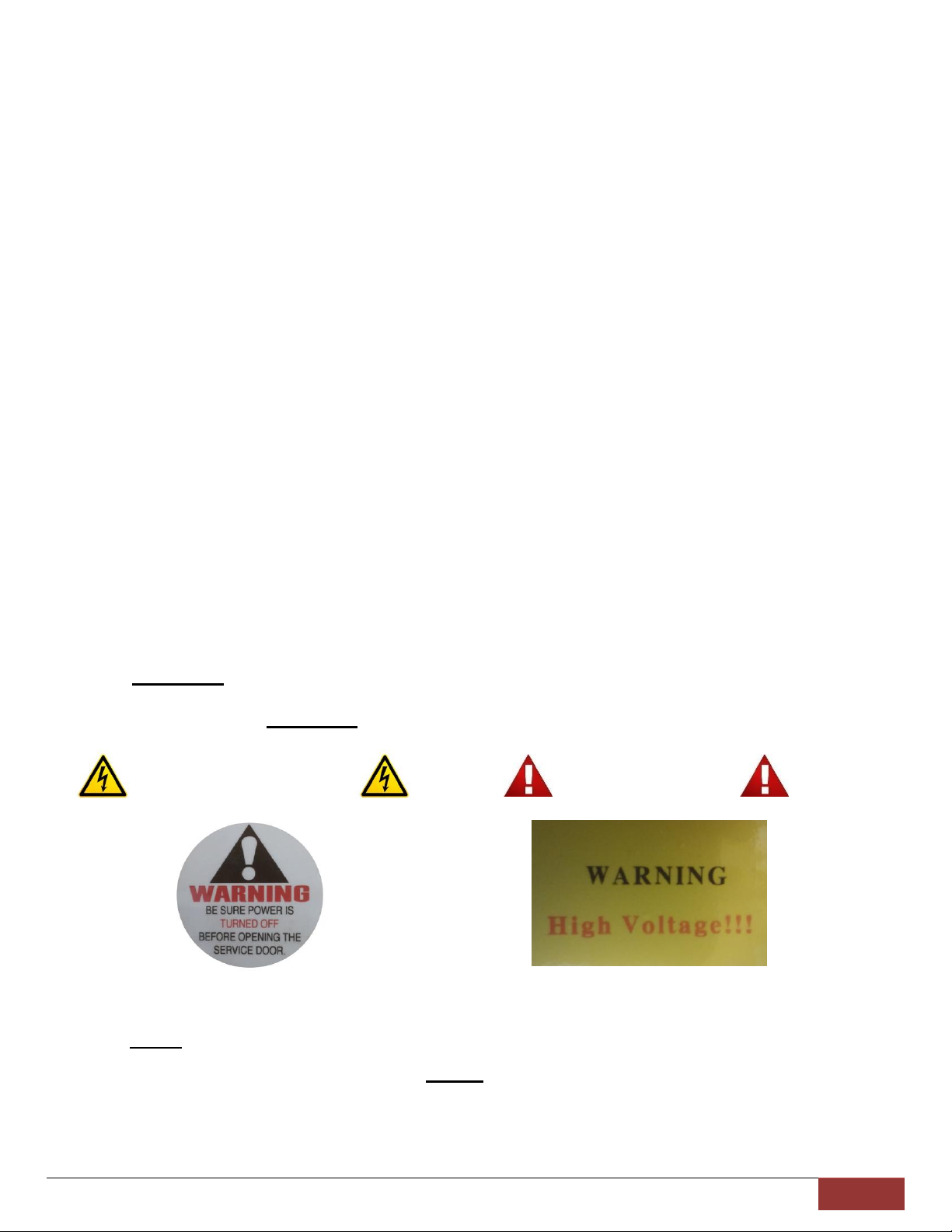

- Below is a list of WARNING labels found throughout this manual and on the Gear It Up™
game:
NOTE (or) NOTICE:
- A NOTE refers to a procedure or condition that requires emphasis.
NOTE:
ONLY QUALIFIED TECHNICAL PERSONNEL SHOULD WORK ON THIS
GAME. FAILING TO COMPLY CAN CAUSE SEVERE INJURY.
WARNING
ATTENTION

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
7
2. INTRODUCTION (CONTINUED):
2.2 Important Safety Information:
IMPORTANT SAFETY INFORMATION
Use only a GROUNDED AC receptacle. Failure to do so could result in improper
operation or damage to the game and could void your warranty. If you are unsure that your AC
receptacle is properly grounded, have a qualified electrician perform this check for you.
Ensure power to the game is turned off when performing even the slightest of routine
maintenance, otherwise, moving parts could activate unexpectedly, causing injury.
This product is heavy, necessitated by the design. We recommend at least two people
when moving or relocating the game. Use a suitable dolly or hand truck where practical. Use
back support when needed.
WARNING
Unplug the game from the AC wall receptacle when servicing this product. Failure to
do so could result in serious injury or death.

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
8
3. PACKAGE CONTENTS:
This game comes prepackaged with the following GAME UNIT ACCESSORIES:
Item
Content
Specification
Quantity
1
Manual
ENGLISH
N/A
2
Power Cord
5’ –10A/125V
1 pc
3
Fuse
5A –Domestic
3A –Export
1 pc
4
Key
Key #: 3172
2 pcs
5
Key
Key #: 3157
1 pc
6
Bolts
Bonus Wheel Marquee Bolts
4 pcs
7
Photo sensor
Photo sensor
2 pcs
8
Seat Base
and
Accessories
(Optional)
Seat Base and Accessories
(Optional)
1 Base
1 Seat
Assembly
1 Pack of
Hardware

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
9
4. INSTALLATION:
4.1Parts List Verification:
Check the parts list prior to installation. Verify that all parts that have been received and
are in good condition.
4.2Play Zone Requirements:
This machine requires space for operating the game. It is recommended to leave
approximately 12 inches (300mm) on all sides for proper operation.
4.3Maintenance Considerations:
This machine requires periodic maintenance that will require access to the rear access
panels of the game. It is recommended to leave a space of approximately 2-3 feet
behind the game to allow for such maintenance.
ATTENTION
RECOMMENDED FOR INDOOR USE!
This machine is designed for indoor use only.
Never install this machine outdoors or in any of the following:
Locations exposed to direct sunlight
Locations subject to rain or water leakage
Unstable locations or locations subject to vibration
Dusty, hot, or humid locations
WARNING
Be sure to check the ELECTRICAL SPECIFICATIONS. Ensure that this product is compatible
with your locations power supply, voltage and frequency requirement.
A plate describing ELECTRICAL SPECIFICATIONS is attached on the backside of the product.
Non-compliance with the ELECTRICAL SPECIFICATIONS can cause a fire and electrical shock.
Putting many loads on one electrical outlet can cause generation of heat and a fire
resulting from overload.
Be sure to plug the game into the proper A.C. GROUNDED receptacle. Do not use long
extension cords unless absolutely necessary and if so, be sure it is a heavy duty cord of at
least 16 Ga. and no longer than 20 ft. Check the label on the back of the game to make
sure the power requirements of the game match that of your location.

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
10
4. INSTALLATION (CONTINUED):
4.4 Crated Game Contents:
1. If you receive the GEAR IT UP™ Arcade Game
crated, it will arrive like the picture to the left,
except it will be protected by cardboard as well.
2. Below is a list of contents:
FRONT OF GAME:
Seat (Optional)
Marquee Top (Bonus spinner Wheel)
Parts Box
REAR OF GAME:
Seat base (Optional)

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
11
4. INSTALLATION (CONTINUED):
4.5 Installing the Marquee:
Tools needed to install the marquee: #2 Phillips head screwdriver

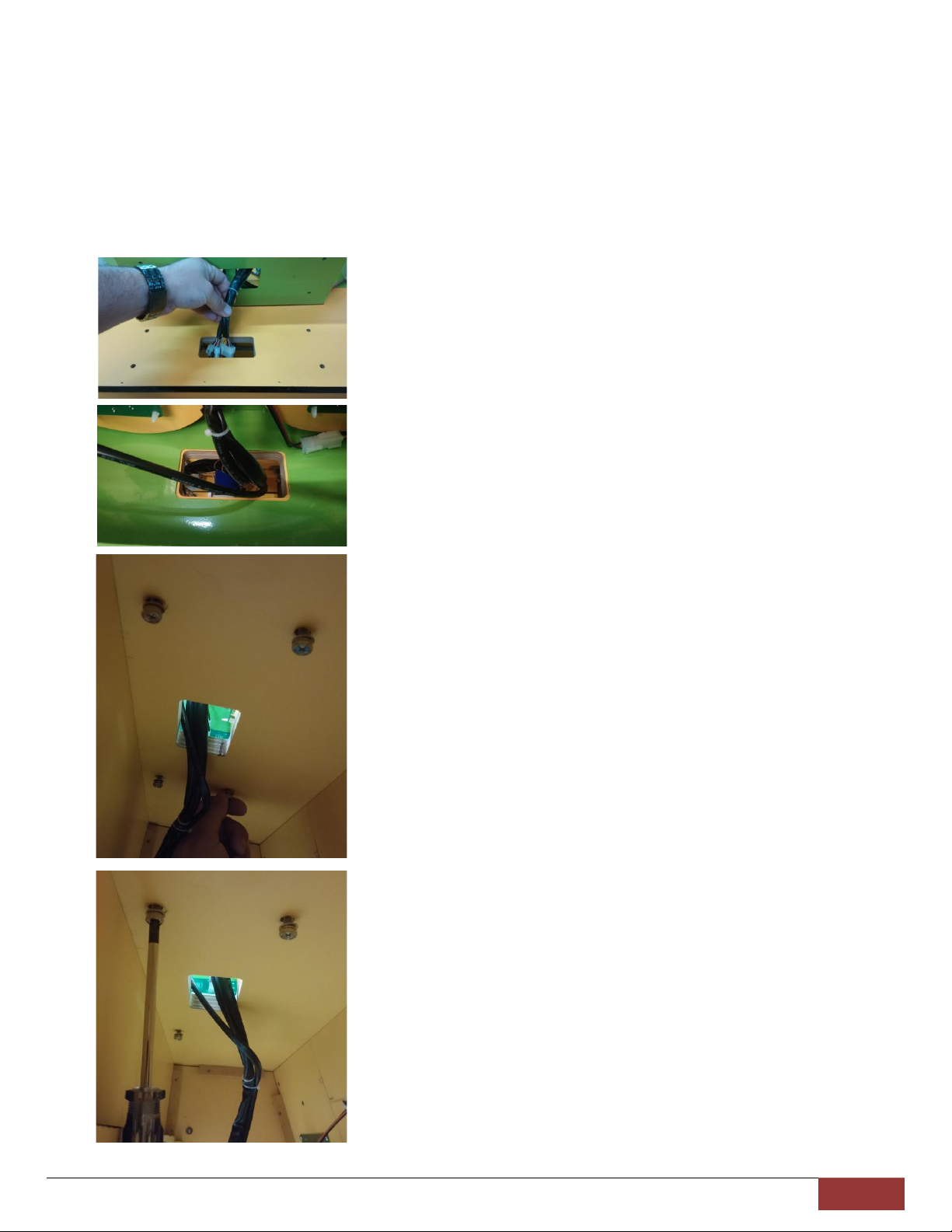

1. Remove the top rear access panel of the game cabinet to gain access to the needed
wiring harness.
2. Two people are recommended when raising the marquee into place and then holding it
in place until the marquee is secured.
3. Pull the loose wiring harness from the bottom of the
marquee and feed it through the provided opening on the
top of the game cabinet.
4. Stand the marquee up; ensure not to pinch the wires when
doing so.
5. Line up the access holes opening between the marquee and
the top of the cabinet.
6. Tighten all four BONUS WHEEL MARQUEE BOLTS by hand
one by one to loosely secure the marquee to the top of the
game cabinet.
7. Fully tighten the BONUS WHEEL MARQUEE BOLTS using a #2
Phillips head screwdriver until the bolts are snug against the
top of the cabinet.

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
12
4. INSTALLATION (CONTINUED):
4.5 Installing the Marquee (Continued):
Number of
Pins on the
Connector
Pin Use
Troubleshooting Notes
3-Pin Plug
Connects Marquee Sensor
If there is a bad connection at the 3-Pin Plug, the
Main Board will not read the sensor and Error
Code “E15” appears on the left display.
4-Pin Plug
Connects the Marquee Spinner
Motor
Without power to the motor, the spinner will not
turn and Error Code “E15” appears on the left
display.
6-Pin Plug
Connects the Marquee outside LED
gear lights
If disconnected, the outside gear lights of the
marquee will not light
16-Pin Plug
Connects the Marquee Bonus
Amount LED lights
If disconnected, the Marquee Bonus Amount LED
lights do not light.
8. There will be (4) four wire harness plugs connecting the
marquee to the game cabinet:
(1) One 16-pin connection; both male and female plugs.
(1) One 6-pin connection; both male and female plugs.
(1) One 4-pin connection; both male and female plugs.
(1) One 3-pin connection; both male and female plugs.
9. Connect all four plugs coming from the marquee to the game
cabinet. Ensure all plugs are properly seated.
10. Replace the top rear access panel and secure.

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
13
4. INSTALLATION (CONTINUED):
4.6 Assembling and Installing the Seat Base (Optional; if seat is included with game)
Tools needed to assemble the seat: 7/16” Open-ended wrench
Game Parts Needed: Seat, Seat Base, and Included Hardware
SEAT
SEAT BASE
HARDWARE
1. Line up the seat flange through holes with the seat base
threaded holes.
2. Once the holes between the seat flange and the seat base are
lined up, start the 7/16” bolts and washers by hand as
pictured.
3. Once all four bolts are started by hand, tighten the bolts with
the 7/16” open-ended wrench until snug.
4. Once seat base is secure, drop the green flange cap down to
where the holes line up with the securing bolts and slide the
green flange cap all the way down.
GREEN FLANGE CAP THROUGH HOLES
SECURING BOLTS
5. Once the green flange cap is place, secure the flange cap using
(3) three sets of washers and star nuts, and tighten with the
7/16” open-ended wrench until snug.

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
14
4. INSTALLATION (CONTINUED):
4.6 Assembling and Installing the Seat Base (Continued):

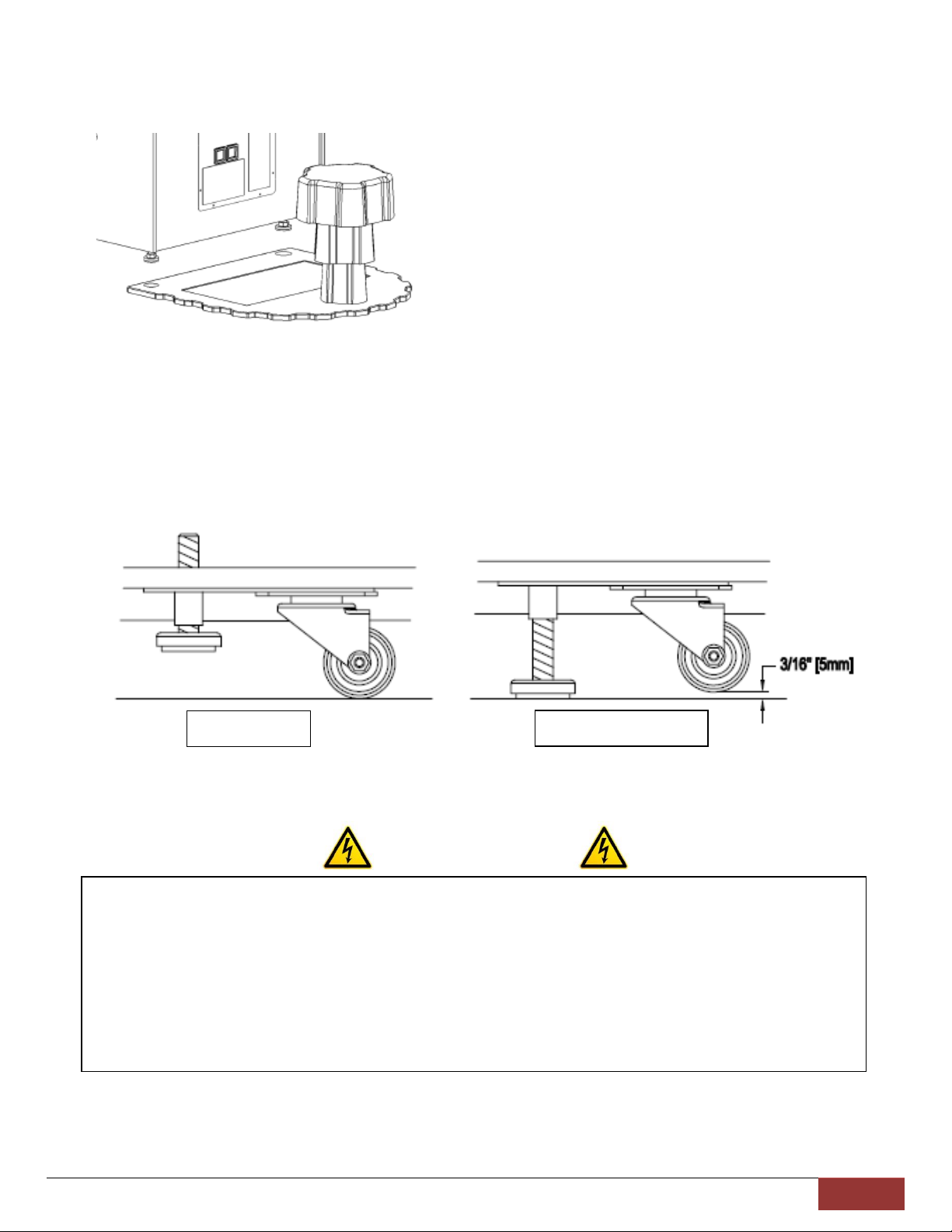

4.7 Game Leveling:
Install this game on a flat surface. Adjust levelers to lift the legs and to level the game.
Make sure that the machine is level with the floor. If the machine is not level, the game may
not play well.
6. Once the seat is secure to the seat base, slide
the seat base under the leveling feet of the
game. There are two large through holes that
the leveling legs will pass through to secure the
seat base to the game.
Move Position
Fasten/Level Position
Disconnect game power before moving
Make sure all wheels are intact. Replace any wheels that are
damaged or broken before moving the game.
When moving the game, DO NOT slide the game across the floor
Ensure the game is level before connecting the power
WARNING

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
15

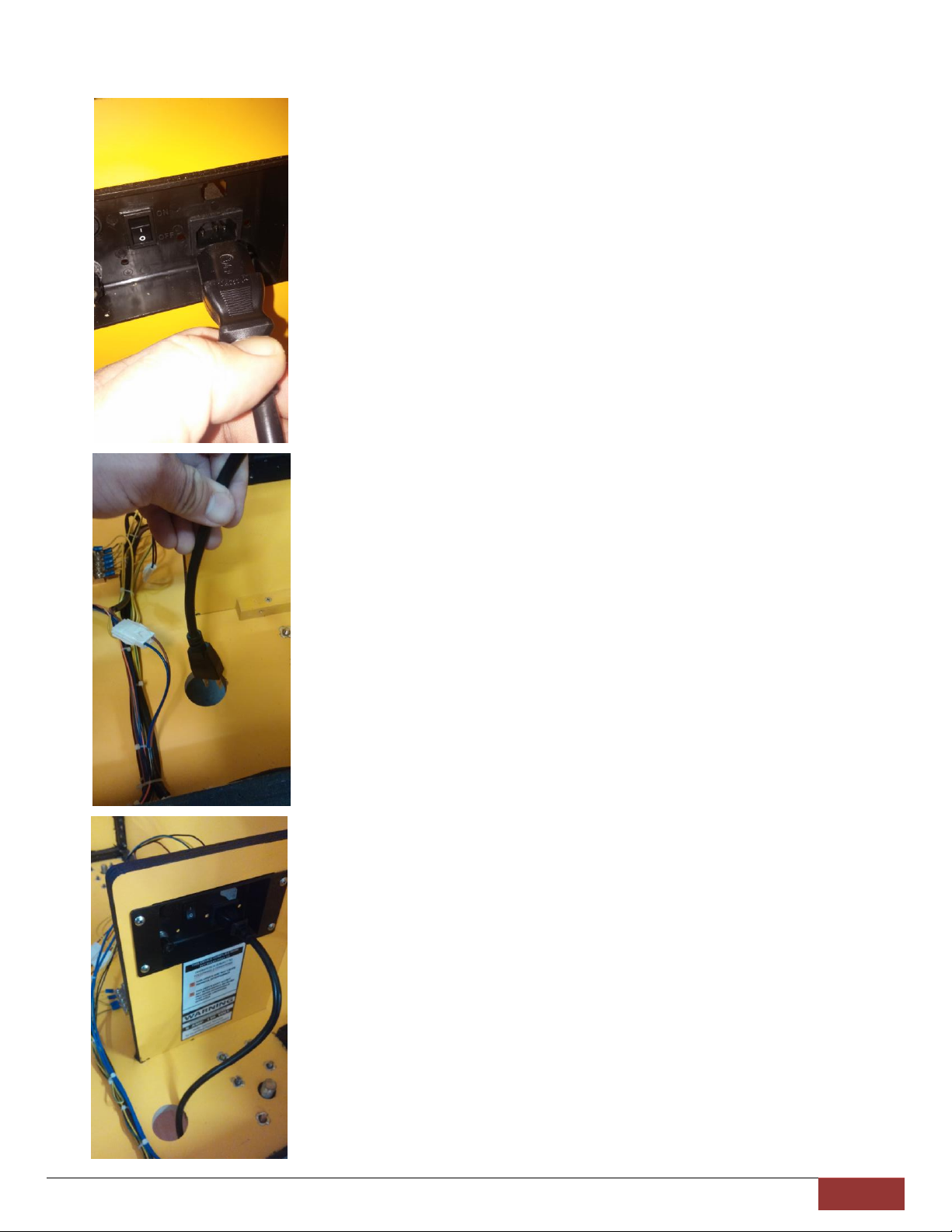

5. CONNECTING THE POWER CORD
1. Remove the bottom rear access panel.
2. Plug the power cord into the power input panel, located on the
bottom right corner on the rear of the game.
3. Insert the plug through the cord access hole at the base of the
cabinet.
4. Run the remainder of the power cord through the cord access
hole at the base of the game cabinet, located underneath the
power input panel.

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
16

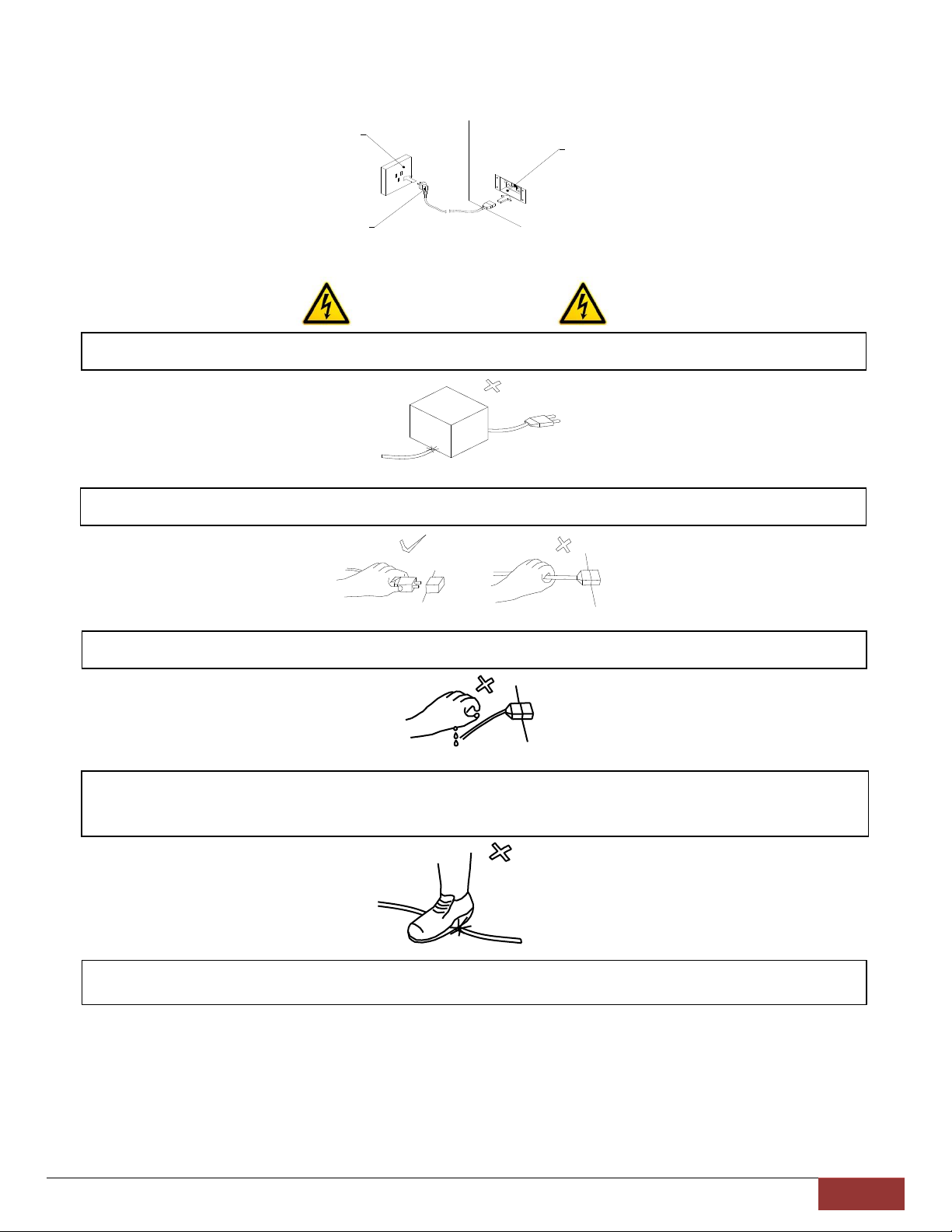

5. CONNECTING THE POWER CORD (CONTINUED):
Power socket
Power plug
Electrical wire box
Do not draw or twist the cord or place near a heat source.
Operate this game with the correct power and fuse configuration. (The machine’s supply
Voltage is 110VAC or 220VAC, please refer to the label on the machine, connecting the actual
supply voltage. Failure to do so can cause electric shock or equipment damage.)
WARNING
Do not put heavy items on power cord.
Hold the plug instead of the wire to draw the power cord out of the socket.
Do not touch the power cord with wet hands.
Do not place the cord where the player can easily trip over or come in contact with it.

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
17

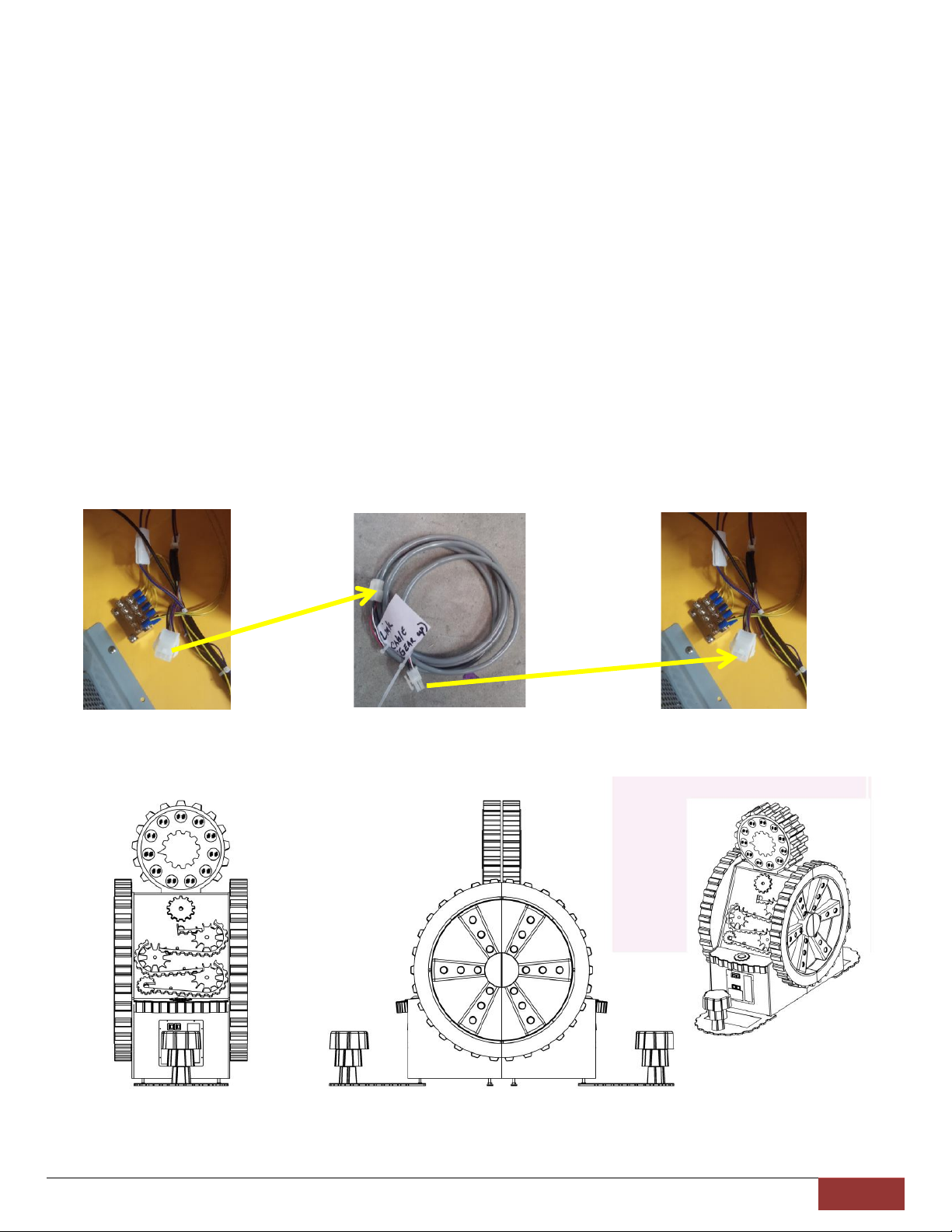

6. LINKING TWO GEAR IT UP™GAMES TOGETHER:
It is possible to link two Gear It Up™ games together, back to back; this will allow the game
lights to illuminate in sequence with each other.
Tools needed to Link two Gear It Up™ games: Back Panel Keys
Game Parts Needed: 6-Pin Linking Wire Harness
1. Power down both Gear It Up™ games.
2. Remove the rear access panels to both games.
3. Connect the 6-pin Linking Wire Harness to one game unit.
4. Run the wiring harness through the wire access hole and into the access hole of the other
unit.
5. Connect the other end of the 6-pin Linking Wire Harness to the other game unit.
6. Replace the rear access panels to both games and place both games back to back.
7. Power up both Gear It Up™ games.
Gear It Up™Game #1
Gear It Up™Game #2
Gear It Up™Linking
Cable Harness

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
18

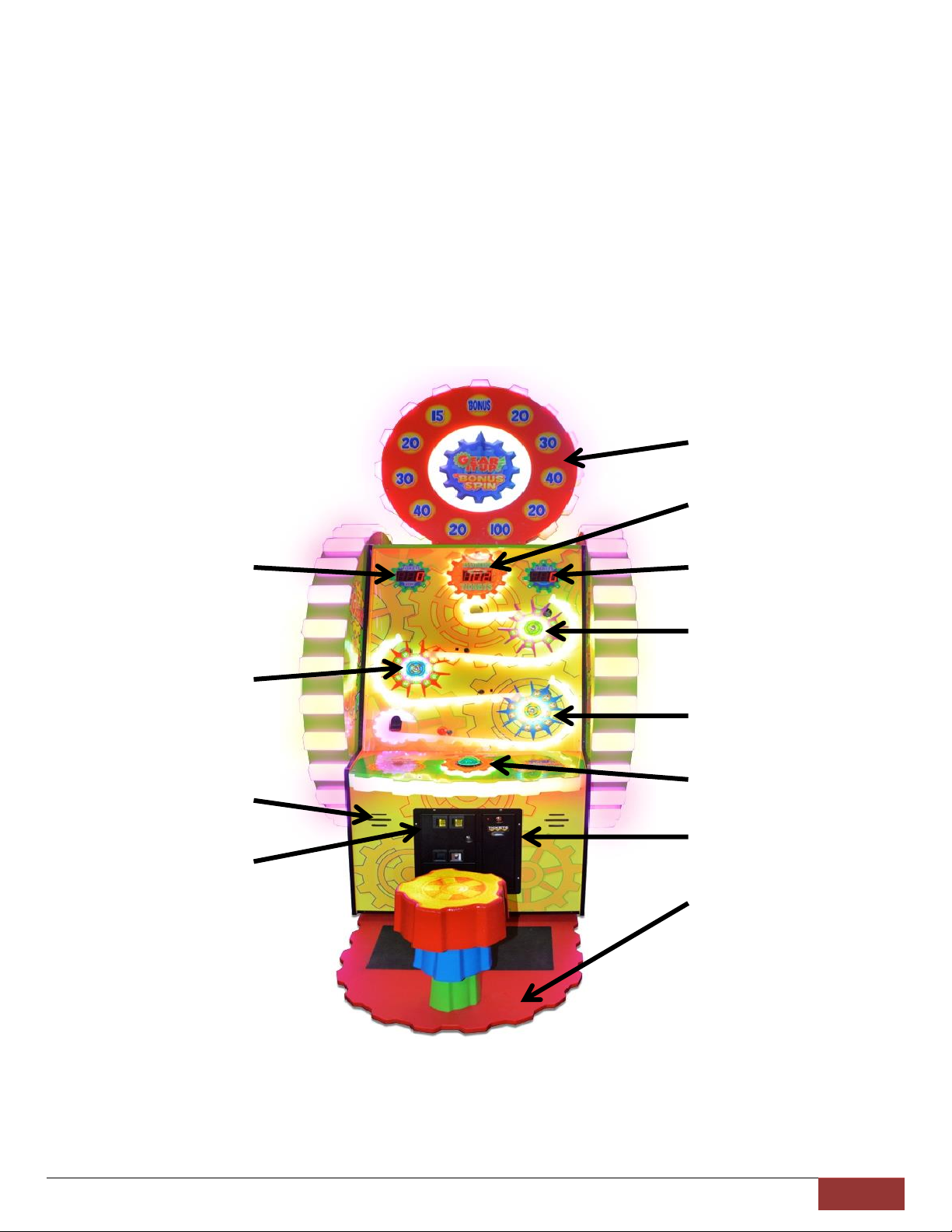

7. INSTRUCTIONS FOR PLAY:
1. Aim for “UP” gear slots.
2. Push button to drop ball.
3. Raise ball to top to win a chance at BONUS SPIN.
4. Press button to stop BONUS SPIN and try to stop gear on BONUS to
win.
BONUS WHEEL
BONUS VALUE
CREDIT DISPLAY
WHEEL #3
WHEEL #1
PUSHBUTTON
TICKET DISPENSER
SEAT BASE
AND SEAT
(OPTIONAL)
SCORE DISPLAY
WHEEL #2
SPEAKER
COIN SLOT

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
19
8. MECHANICAL COIN AND TICKET METERS:
9. OPTION SETTING CONTROLS AND OPTION SETTINGS CHART:
Mechanical Coin Counter:
A non-resettable mechanical
meter that records the amount of
coins the game has taken.
Mechanical Ticket Counter:
A non-resettable mechanical
meter that records the amount of
tickets the game has distributed.
The Mechanical Coin and Ticket Meters are located directly behind the coin mech door.
The Options Settings Controls are located directly behind the coin mech door,
underneath the Mechanical Meters.
Volume
Control
Service
Test
Ticket
Owing
Change
Data/Ticket
Reset
Choose
the Item
Enter/Exit
Option Setting Buttons:
Refer to Options Settings Chart on next
page for descriptions of options and
option range values.
1. Press the Red “SERVICE” Button on the
OPTION SETTINGS CONTROLS panel to
enter the options settings
2. Press the “TEST” button to scroll
through the option registers.
3. Press the “TICKET OWING” button to
change the value of the currently
selected option address.
4. When finished, press “SERVICE” button
to save the data in the MCU and exit.
***NOTE: The Option Address will appear in the
“Tickets Won” Display and the Option Values will
appear in the “Bonus Tickets” Display.

Bob’s Space Racers, Inc. | Gear It Up™ Operator’s Manual (V1.FEB2015)
20
9. OPTION SETTING CONTROLS AND OPTION SETTINGS CHART
(CONTINUED):
No.
Item:
Option
Address
Content
Range
(Option)
Values
Default
Option
Values
1
P01
Coin per credit (if P01=00 means free game)
00 –04
1
2
P02
Ball per credit
01 –04
1
3
P03
Score per ticket (if P03=00, no ticket will be dispensed)
00 –25
1
4
P04
Bonus Initial Value (if P04=10, increase progressively)
00 –150
100
5
P05
Bonus Value Increase (if P05=00, without increasing)
00 –10
10
6
P06
Bonus Maximum Value (if P06=10, increase progressively)
000 –500
500
7
P07
Bonus Marquee Header
(if P07=00, stop automatically; if P07=01, press the button to stop)
00 –01
1
8
P08
Bonus Value Memory (P08=00, No Memory; P08=01, with memory)
00 –01
1
9
P09
Demo Music (P09=00, Demo Music Off; P09=01, Demo Music On)
00 –01
1
10
P10
Demo Time (P10=00, Demo Time Off; P10=01, Demo Time Increases
Progressively)
00 –120
30
11
P11
Tickets of the Ball Hole; When the ball misses the 1st Gear (from the
bottom up)
00 –10
0
12
P12
Tickets of the Ball Hole; When the ball misses the 2nd Gear (from the
bottom up)
00 –10
0
13
P13
Tickets of the Ball Hole; When the ball misses the 3rd Gear (from the
bottom up)
00 –10
0
14
P14
The 1st round, win tickets
00 –50
10
15
P15
The 2nd round; win tickets
00 –50
10
16
P16
The 3rd round; win tickets
00 –50
0
17
P17
Time of Ball Release(s) (P17=00, No time setting)
00 –50
20
18
P18
Score Group of the Turntable on top.
00 –03
2
A: P18=00; Bonus, 03, 05, 02, 03, 04, 15, 03, 04, 05, 02
B: P18=01; Bonus, 04, 08, 06, 05, 07, 25, 05, 08, 06, 03
C: P18=02; Bonus, 20, 30, 40, 20, 100, 20, 40, 30, 20, 15
D: P18=03; Bonus, 30, 40, 50, 30, 100, 30, 50, 40, 30, 20
19
P19
Hard Drive Test (Does not save the test data)
00 –07
0
P19=01; Test the ticket dispenser
P19=02; Test Solenoid #1 (from the bottom up)
P19=03; Test Solenoid #2 (from the bottom up)
P19=04; Test Solenoid #3 (from the bottom up)
P19=05; Test Gear Turntable #1 (from the bottom up)
P19=02; Test Gear Turntable #2 (from the bottom up)
P19=02; Test Gear Turntable #3 (from the bottom up)
20
P20
Bonus Auto Stop Time (P20=00, Bonus Wheel does not stop)
00 –60
20
21
Pr
Factory default (Pr=01, press the “EXIT” button to reset to factory
default settings)
00 –01
0
**********VALUES ARE SET FOR $1.00 PER PLAY**********
NOTE: HIGHLIGHTED FIELDS ARE RECOMMENDED PAYOUT ADJUSTMENT SETTINGS
