Bob's Space Racers Rescue 1 User manual

WARNING
READ THIS OPERATION MANUAL BEFORE USING THIS MACHINE TO ENSURE SAFE OPERATION
OPERATOR’S
MANUAL
Version 1 / SEPT2014

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
2

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
3
TABLE OF CONTENTS
1.
Game Specifications
Page 5
2.
Introduction
2.1
Overview
Page 6
2.2
Important Safety Information
Page 7
3.
Package Contents
Page 8
4.
Installation
4.1
Parts List Verification
Page 9
4.2
Play Zone Requirements
Page 9
4.3
Maintenance Consideration
Page 9
4.4
Installing the Marquee
Page 10
4.5
Installing the Light Tubes
Page 11
4.6
Game Leveling
Page 12
4.7
Installing the Seat Base
Page 13
4.8
Adding Water to the Game
Page 14
5.
Connecting the Power Cord
Page 15
6.
Instructions for Play
Page 16
6.1
Mechanical Meters
Page 17
7.
Options Settings
7.1
Options Control Panel
Page 17
7.2
Game Options Setting Chart
Page 18
8.
Maintenance and Inspection
8.1
General Maintenance Information
Page 19
8.2
Cleaning
Page 19
8.3
Changing the Water
Page 20
8.4
Changing the Water Filter
Page 21
8.5
Low Water Indicator
Page 21
8.6
Recommended Maintenance Schedule
Page 22
9.
Troubleshooting
9.1
Troubleshooting Philosophy
Page 23
9.2
Troubleshooting Guide
Page 24
10.
Game Diagrams
10.1
Electronic Assembly
Page 25
10.2
Main Board
Page 25
10.3
Sound Board
Page 26
10.4
Chasing Light Control Board
Page 26
10.5
Window Light Control Board
Page 27
10.6
3-Color Chasing Light Control
Page 27
11.
Parts List
Page 28-36
12.
Warranty
Page 37
Calling for Service
Page 39

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
4

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
5
1. SPECIFICATIONS:
RATED POWER SUPPLY
110VAC ±5%, 60 Hz, 8 A; NOTE: Refer to the game label for actual voltage
DIMENSIONS
Length: 98 7/8” (2511 mm); Width: 39 1/2” (1003 mm); Height: 93 1/2” (2375 mm)
WEIGHT
833 lbs (378 kg)
Note: Game parameters are subject to change without notice

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
6
2. INTRODUCTION:
2.1 Overview:
Thank you for purchasing the new Rescue 1™from Bob's Space Racers®. Built on a
long tradition of value, the new Rescue 1 TM retains all of the great game play you have come to
expect of a game from BSR, and is specifically designed for today's Arcade environment. The
new game uses technology specifically developed for this application.
This owner’s Manual is intended to provide detailed descriptions together with all the
necessary information covering the general operation of electronic assemblies, servicing control,
spare parts, etc. pertaining to the game.
This manual is intended for the owner, personnel and managers in charge of operation of the
product. Operate the product after carefully reading and sufficiently understanding the
instructions. If the product fails to function satisfactorily, non-technical personnel should under
no circumstances touch the internal system.
To Maintain Safety:
To ensure the safe usage of the product, be sure to read the following before using the
product. The following instructions are intended for the users, operators and the personnel in
charge of the operation of the product. After carefully reading and sufficiently understanding the
warning display and cautions, handle the product appropriately. Be sure to keep this operation
manual nearby the product or elsewhere convenient for referring to it when necessary.
Herein, explanations which require special attention are in sign of warning. Depending on
the potentially hazardous degrees, the terms of NOTICE, WARNING, and CAUTION, etc. are
used. Be sure to understand the content of the displays before reading the text.
: (or) CAUTION:
- Disregarding this text could result in serious injury or damage to the machine.
NOTE (or) NOTICE:
- An advisory text to give hints or help.
NOTE: ONLY QUALIFIED TECHNICAL PERSONNEL SHOULD WORK ON THIS GAME. FAILING TO COMPLY
CAN CAUSE SEVERE INJURY.
WARNING

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
7
2. INTRODUCTION (CONTINUED):
2.2 Important Safety Information:
IMPORTANT SAFETY INFORMATION
Use only a GROUNDED AC receptacle. Failure to do so could result in improper
operation or damage to the game and could void your warranty. If you are unsure that
your AC receptacle is properly grounded, have a qualified electrician perform this check
for you.
Always be sure power to the game is turned off when doing even routine
maintenance. Otherwise, moving parts could activate unexpectedly causing injury.
This product is heavy, necessitated by the design. When moving this game, be sure
you have adequate help. Use a suitable dolly or hand truck where practical. Use back
support when needed.
WARNING
Unplug the game from the AC wall receptacle when servicing this product. Failure to
do so could result in serious injury to yourself or others.

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
8
3. PACKAGE CONTENTS:
This game comes prepackaged with the following GAME UNIT ACCESSORIES:
Item
Content
Specification
Quantity
1
Manual
ENGLISH
N/A
2
Power
Cord
5’ –10A/125V
1 pc
3
Fuse
10A
2 pcs
4
Key
Key #: 1285
2 pcs
5
Key
Key #: 1396
2 pcs
6
LED Bulb
12V LED Bulb
4 pcs
7
LED Bulb
LED Bulb Replacement for
START button
2 pcs
8
Water
Filter
Water Filter (20 Micron)
1 pc
9
Filter
Handle
Filter Handle
1 pc

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
9
4. INSTALLATION:
4.1 Parts List Verification:
Check the parts list before installation. Verify that all parts that have been received
and are in good condition.
4.2 Play Zone Requirements:
This machine requires space for playing the game. Be sure to leave enough space
when installing the machine.
4.3Maintenance Considerations:
This machine requires periodic maintenance that will require access to the rear
access panels of the game. It is highly recommended to leave a space of
approximately 2-3 feet behind the game to allow for such maintenance.
ATTENTION
FOR INDOOR USE ONLY!
This machine is designed for indoor use only.
Never install this machine outdoors or in any of the following:
Locations exposed to direct sunlight
Locations subject to rain or water leakage
Unstable locations or locations subject to vibration
Dusty, hot, or humid locations
WARNING
Be sure to check the ELECTRICAL SPECIFICATIONS. Ensure that this product is compatible
with your locations power supply, voltage and frequency requirement.
A plate describing ELECTRICAL SPECIFICATIONS is attached on the backside of the product.
Non-compliance with the ELECTRICAL SPECIFICATIONS can cause a fire and electrical shock.
Putting many loads on one electrical outlet can cause generation of heat and a fire
resulting from overload.
Be sure to plug the game into the proper A.C. GROUNDED receptacle. Do not use long
extension cords unless absolutely necessary and if so, be sure it is a heavy duty cord of at
least 16 Ga. and no longer than 20 ft. Check the label on the back of the game to make
sure the power requirements of the game match that of your location.

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
10
4. INSTALLATION (CONTINUED):
4.4 Installing the Marquee:
Tools needed to install the marquee: #6mm hex head key
#6 Hex Head Bolts
2. Once the marquee is
fastened, feed the
marquee light wires
through the access hole.
3. Bring all excess wire
to the bottom portion of
the game unit.
4. Connect the four pin
plug and the two pin
plug from the marquee
into the corresponding
plugs from the game
unit, and then replace
the marquee access
panel.
1. Remove the marquee access panel from
the rear of the game unit to gain access to
needed wiring.
2. Two people are recommended. Place the
marquee on top of the game and secure
the marquee with four (4) #6mm hex head
bolts. Be careful not to pinch the wiring
when securing the marquee.

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
11
4. INSTALLATION (CONTINUED):
4.5 Installing the Light Tubes:
Tools needed to install the light tubes: Phillip’s Screwdriver
1. The game will be delivered with two (2) side light tubes for
each side (a total of four (4) light tubes), that need to be
installed.
2. Remove Phillip’s Head bolts, but retain the bolts to use to
secure the light tubes onto the game.
Phillips’ Head Bolts
3. Ensure the light tube brackets face downward and that the
wiring harness lines up.
5. Hold the light tube to allow connecting the wiring harnesses
from the light tube to the game unit, and make the
connection. Ensure the plugs are firmly connected.
4. Feed all excess wire and the plug into the game cabinet
access hole.
7. Once the plug and all excess wire is fed into the cabinet, hold
the light tube so that you can secure the light tube into place,
with the brackets on the bottom side of the light tube, using
the Phillip’s head bolts that were removed in Step 2. Ensure
that the wiring and plug do not get pinched while securing
the light tube. Tighten all Phillip’s head bolts into place.
6. Repeat steps 2-6 for remaining light tubes.

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
12
4. INSTALLATION (CONTINUED):
4.6Game Leveling:
Install this game on a flat surface. Adjust levelers to lift the legs and to
level the game.
Make sure that the machine is level with the floor. If the machine is not
level, the game may not play well.
Disconnect game power before moving
Make sure all wheels are intact. Replace any wheels that are
damaged or broken before moving the game.
When moving the game, DO NOT slide the game across the floor
Ensure the game is level before connecting the power
Move Position
Fasten/Level Position
WARNING

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
13
4. INSTALLATION (CONTINUED):
4.7 Installing the Seat Base:
1. Once the game is level and placed into location, align
the two slide lock openings of the seat base retaining
bracket with the tabs on the retaining bracket of
game itself.
2. Slightly raise the seat base and guide the slide lock
opening onto the tabs and then lower the seat base.
3. This will lock the seat bases into place.
Seat Base Slide
Lock Bracket
Game Cabinet
Retaining Bracket

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
14
4. INSTALLATION (CONTINUED):
4.8 Adding water to the game:
1. Add 10 gallons (40L) of clean tap water to the holding pan located directly in
front of the water guns. NOTE: Do not add any additives, chemical cleanser,
or deionized distilled water into the holding pan. Clean tap water is best.
2. Before powering on the game, open the access door to the pump.
3. Insert the normal screwdriver into the shaft of the pump and turn it with a
screwdriver.
If the shaft turns smoothly, then the pump will operate smoothly. If the shaft does not
turn smoothly, then apply an increasing amount of force to ensure that the shaft will turn
smoothly. This will break away any corrosion that may have built up inside the pump
impeller or housing.
4. After confirming that the shaft turns smoothly, power can then be applied to
the game.
5. Run the game and look for proper operation of the pump.
Note: There is potential for the water to freeze if kept in an area where temperatures
decrease below freezing point. DO NOT RUN THE GAME IN FREEZING TEMPERATURES!
Running the game in freezing temperatures could cause the water pump to potentially
burn up if the water inside the pump housing is frozen. Remove the water from the game
and water pump before freezing temperatures are reached.
DO NOT operate the game with no or too little water in the game. This will cause the
water pump to overheat and potentially burn up.
Insert the screwdriver into axostyle of the
pump to move the axostyle with
screwdriver. Make sure the axostyle can
run smoothly before connecting the power.
axostyle of the pump

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
15

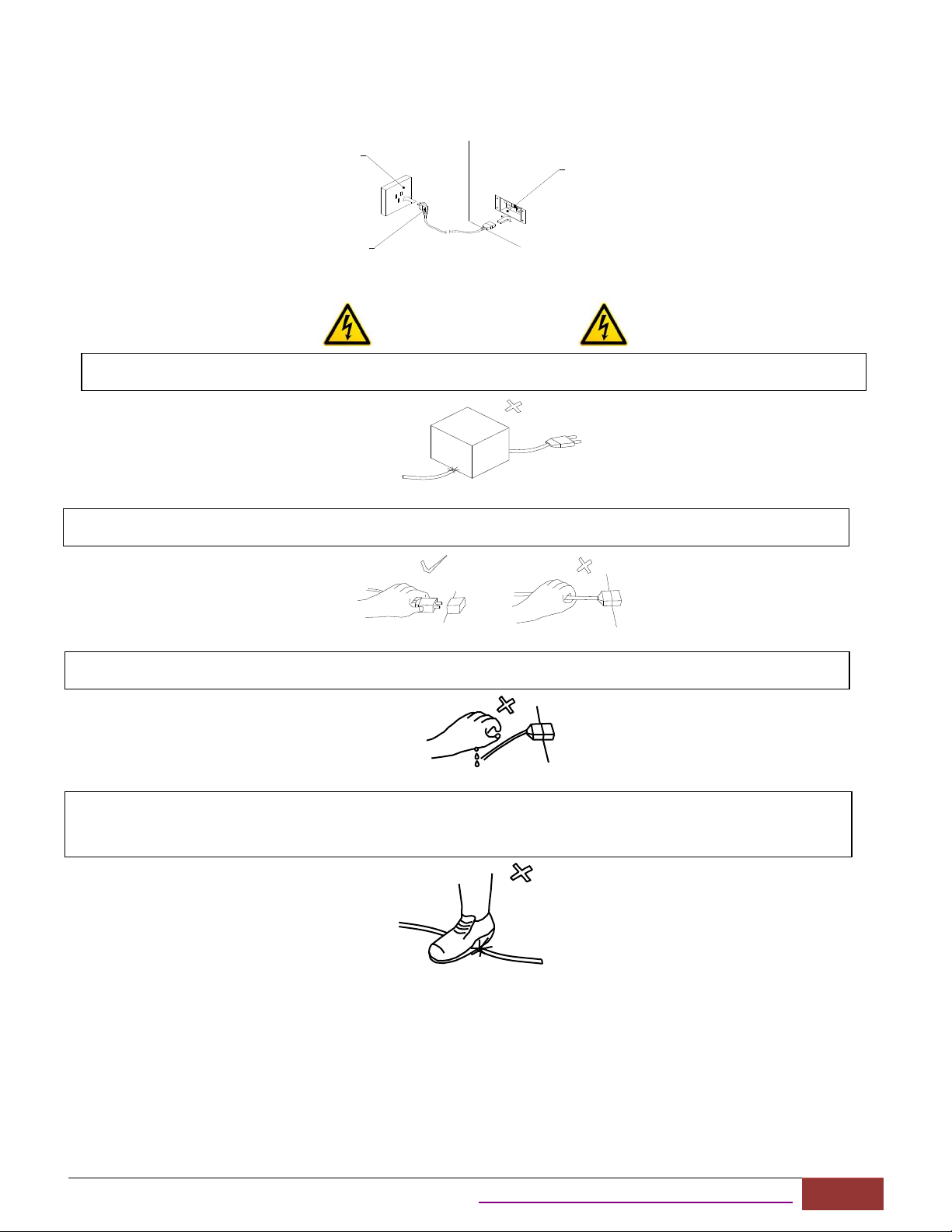

5. CONNECTING THE POWER CORD
Power socket
Power plug
Electrical wire box
Do not draw or twist the cord or near a heat source
Operate this game with the correct power and fuse configuration. (The machine’s
supply Voltage is 110VAC, please refer to the label on the machine, connect the actual
supply voltage, if not, it can cause an electric shock or malfunction.)
WARNING
Do not put heavy items on power cord.
Hold the plug instead of the wire to draw the power cord out of the socket.
Do not touch the power cord with wet hands.
Do not place the cord where the player can easily trip over or come in contact with it.

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
16
6. INSTRUCTIONS FOR PLAY:
1. Select Player Position 1 or 2and insert coin(s).
2. Press the Start Button when ready.
3. Shoot the windows when they light until they are out.
4. The more lighted windows you shoot out, the more tickets you win.
5. Receive extra tickets for winning with TWO players.
6. Beat Bonus Score to win Bonus Tickets.
MARQUEE
PLAYER 2SCORE
SPEAKERS
GAME
INSTRUCTIONS
TIME DISPLAY
PLAYER 2
WATER GUN
PLAYER 2
PLAY FEILD
PLAYER 2
TICKETS
PLAYER 2
COIN SLOT
PLAYER 2
SEAT
BEAT SCORE TO
WIN BONUS
PLAYER 1SCORE
PLAYER 1
TICKETS
START BUTTON
PLAYER 1
WATER GUN
PLAYER 1
PLAY FEILD
PLAYER 1
COIN SLOT
COIN
COLLECTION
PLAYER 1
SEAT

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
17
6. INSTRUCTIONS FOR PLAY (CONTINUED):
6.1 Mechanical Meters (Located directly behind the coin mechanism door):
7. OPTION SETTINGS:
7.1 Options Control Panel (located directly behind coin mechanism door):
TEST Button: Used to
Enter/Exit Program
Mode and to cycle
through Option
Addresses. (See
PROGRAM OPTIONS for
a complete listing of
available options.)
SERVE Button: If pressed
one (1) time, it will coin
up Player 1. If pressed
two (2) times it will coin
up Player 2.
ENTER Button: If
pressed while the game
is in Program Mode, the
game cycles through
available settings for the
selected individual
address. (See
PROGRAM OPTIONS for
a complete listing of
available data option
settings)
NOTE: SW1, SELECT, and
ERASE Buttons do not
have a function.
Mechanical Coin Counter:
A non-resettable mechanical meter that records
the amount of coins the game has taken.
Mechanical Ticket Counter:
A non-resettable mechanical meter that records
the amount of tickets the game has distributed.

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
18
7. OPTION SETTINGS (CONTINUED):
7.2 Game Option Settings Chart
How to change an option setting:
1. Press the TEST button on the Options
Control Panel to enter program
mode.
2. Press the TEST button until the
wanted address (1-17) you wish to
change is reached.
3. Press the ENTER button to increase
the option setting to preferred value.
4. When all wanted values are changed,
press the TEST button until the game
returns to PLAY MODE.
ADDRESS VALUE
Game in PROGRAM MODE
SETTING VALUE
Value

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
19
8. MAINTENANCE AND INSPECTION:
8.1 General Maintenance Information:
Due to the design of the machine, periodic maintenance is required.
Start the game and verify the correct operation before putting the game into
everyday operations.
Clean the surface of the game as needed.
After about a month of game operation, check to be sure all parts are secure and in
proper working order.
1. Remove power before servicing game.
To avoid a short circuit, the power must be removed before touching the inside
of the game.
2. Choose the appropriate replacement parts.
Using the wrong parts could lead to malfunction or damage to the game and
components.
3. Do not substitute or change equipment, without authorization.
Doing so could lead to a short circuit and machine malfunction, or fire.
4. Do not put containers of water, cups or soda cans on the machine. In
addition, chemicals or heavy items should not be allowed around the game.
The spill could cause a short circuit. Falling items could injure people or destroy
the machine.
8.2 Cleaning:
CLEANING - Clean the outer surfaces of the game with a commercial spray type
cleaner. DO NOT however, use glass cleaner or commercial sprays on the
marquee graphic panel. Use a good quality spray type furniture polish to keep
the game looking good. Use a good quality glass cleaner to clean and polish the
glass portions of the game.

Bob’s Space Racers Inc. | Rescue 1™ Operator’s Manual (V1.SEPT2014)
20
8. MAINTENANCE AND INSPECTION (CONTINUED):
8.3 Changing the water:
It is highly recommended to change the water for the game every week in
order to keep the game clean. Fully read and follow the below steps in order
to properly change the water:
1. Keep game power on, but ensure that no one plays the game until after the
water has been changed out.
2. Open the bottom access panel located behind the game to gain access to the
water pump, water filter, and all hose connections and fittings.
3. Place the drain tube into a large bucket.
4. Fully open the drain tube valve by turning the drain valve handle counter-
clockwise.
5. While securely holding the drain tube into the bucket, press and hold the
“CHANGE WATER BUTTON” located above the pump plug. This will start the
pump, and water will begin to be pumped out of the game and into the
bucket. NOTE: The pump will only work and drain while the “CHANGE
WATER BUTTON” is being pressed. Once the bucket is full or all water has
been drained, release the “CHANGE WATER BUTTON”.
6. Once all water is drained, fully close the drain tube valve by turning the valve
handle clockwise.
7. If the water filter needs to be changed at this time, do so while the water is
drained. Follow the steps in Section 8.4 “Changing the water filter” in order
to properly change the water filter.
8. Pour clean tap water (approximately ten gallons) into the water holding tank
from the front of the game. Do not use any form of chemical cleanser or
deionized distilled water to put into the game.
CHANGE WATER BUTTON
DRAIN TUBE VALVE:
Clockwise = CLOSE
Counter-Clockwise - OPEN
PUMP
DRAIN TUBE
BUCKET
