Body Solid GCC0150S User manual

USER MANUAL –EN
IN 18285 Crossover Machine Body-Solid GCC0150S

2
CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
TECHNICAL ............................................................................................................................................ 3
PARTS LIST............................................................................................................................................ 4
ASSEMBLY MATERIAL.......................................................................................................................... 6
COMPONENTS....................................................................................................................................... 7
ASSEMBLY ............................................................................................................................................. 8

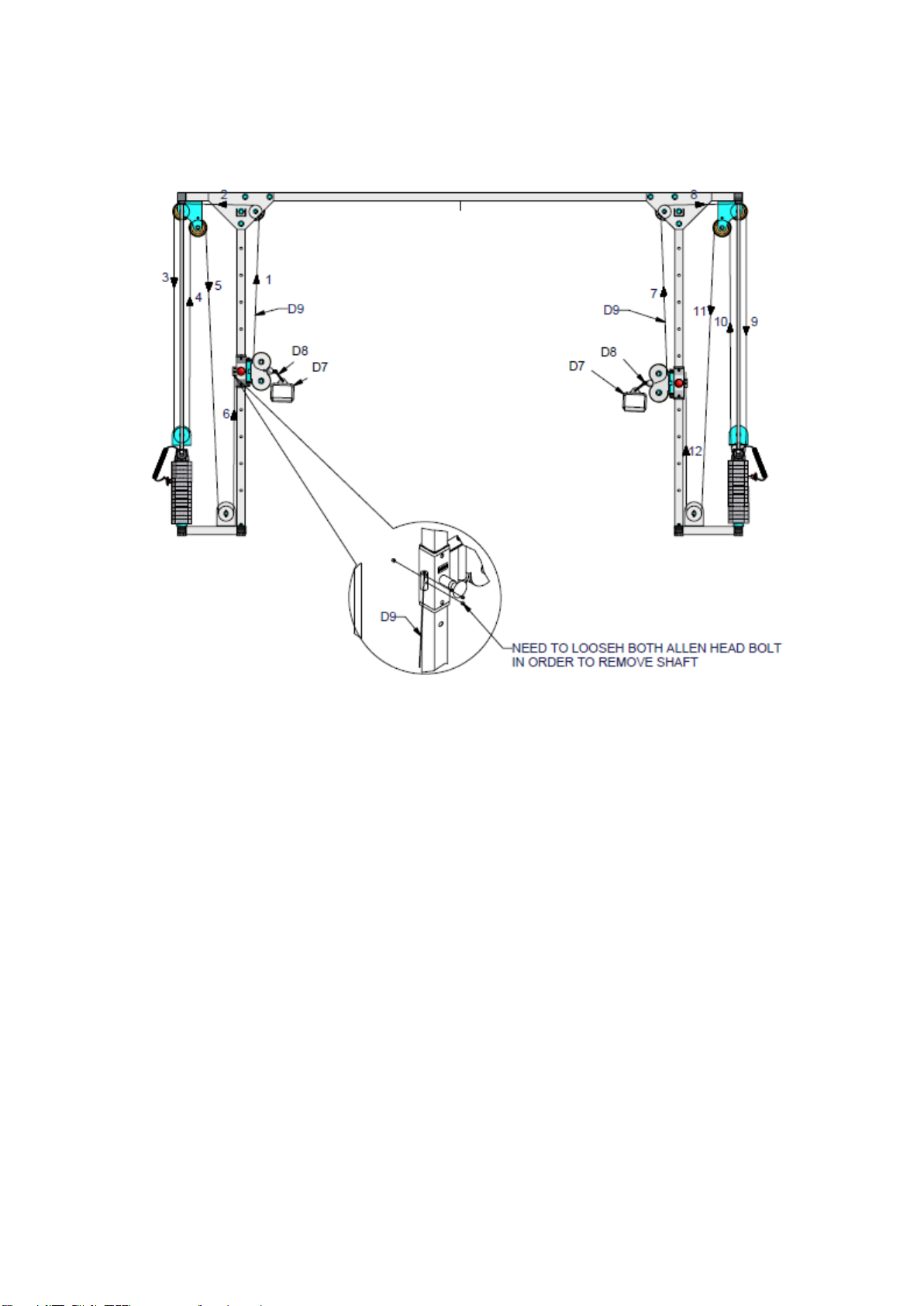

CABLE MANAGEMENT........................................................................................................................ 13
USE ....................................................................................................................................................... 13
EXERCISE INSTRUCTIONS ................................................................................................................ 13
ENVIRONMENT PROTECTION ........................................................................................................... 15
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 15

3
SAFETY INSTRUCTIONS
Please read the manual carefully before using the device and keep it for future reference.
•Read the manual carefully before assembling and using the device to avoid injury. Instruct
other users about the safety instructions.
•Consult your physician before starting exercise. Your physician can advise you on the optimal
load and exercise frequency. Improper use can lead to injury. In particular, consult your
condition if you are taking medicines or have an injury.
•If you experience nausea or another anomaly, stop exercising. Do not exercise if you feel:
chest pain or tension, irregular heartbeat, shortness of breath, nausea or if you are dizzy. If
you observe any health problems, contact your doctor immediately.
•The device may only be used by adults. Do not keep children or pets unattended around the
device.
•Place the machine on a flat and solid surface. Use a protection mat to protect the floor. Keep
away from other equipment in the room min. 0.6 m.
•Make sure all screws are properly tightened before using the device. Replace damaged parts
or worn parts immediately. Proper maintenance will extend the life of the equipment.
•No adjustable part can prohibit movement of user.
•Use the device only in accordance with the manual. Replace worn parts immediately. Do not
exercise on damaged equipment.
•Wear suitable clothes during exercise. Avoid too loose clothes that is easy to be stuck. Wear
sport shoes.
•Do not use the device outdoors or near water.
•The device is not suitable for therapeutic purposes.
•Do not exercise on the device for about 1 hour before and after a meal.
•Before starting an exercise, do warm up exercise.
•Be careful not to injure your back or other body when moving the machine. If necessary, ask
another adult for help.
TECHNICAL SPECIFICATIONS
•Dimensions: L355 cm x W99 cm x H211
•Category SC –suitable for professional and commercial use

4

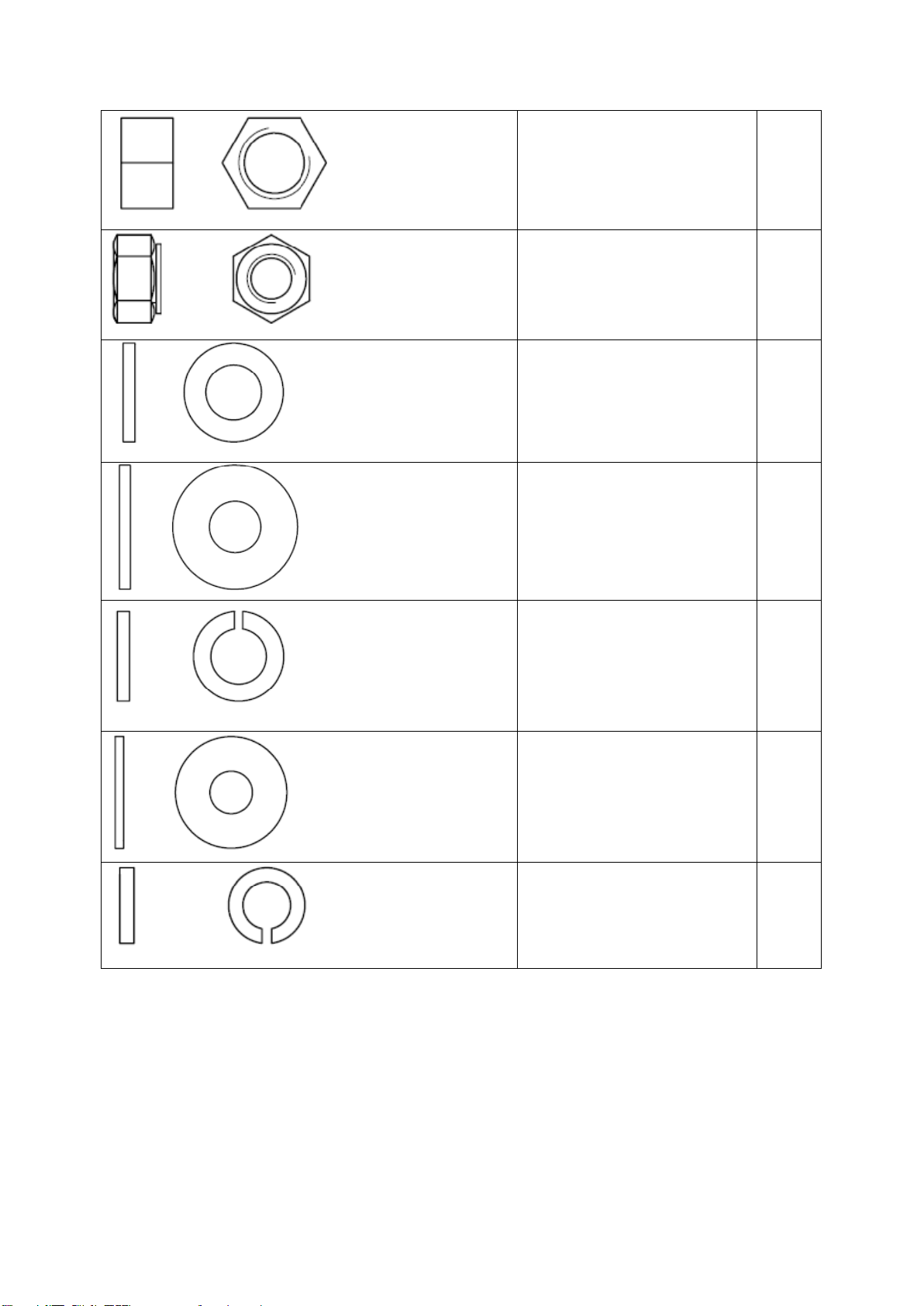

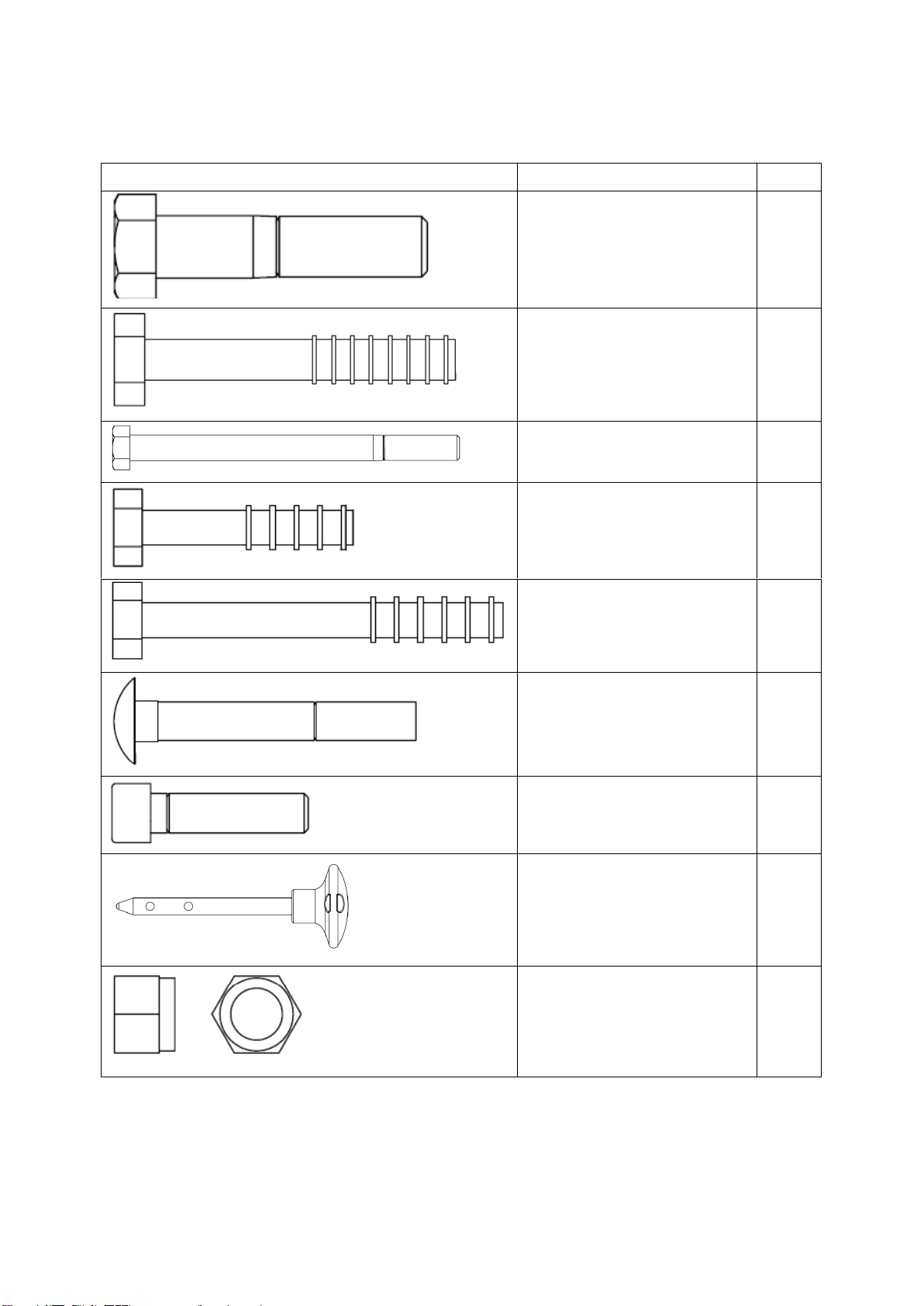

PARTS LIST
Name
QTY
(A1) Hex head bolt ½“X2 ¼“L
partial thread
4
(A2) Hex head bolt ½“X3 ¼“L
partial thread
8
(A3) Hex head bolt ½“X6 ½“L
partial thread
2
(A4) Hex head bolt 3/8“X1 ¾“L
partial thread
8
(A5) Hex head bolt 3/8“X3“L
partial thread
2
(A6) Round head bolt 3/8“X2
¾“L partial thread
4
(A7) Round head bolt 3/8“X1
½“L partial thread
2
(A8) 10LB Safety pin (8250-71)
2
(B1) Nylon nut ½“
14

5
(B2) Lock nut ½“
2
(B3) Nylon lock nut 3/8“
14
(C1) ½“ Flat washer ø25
4
(C2) ½“ Flat washer ø34
24
(C3) ½“ Spring washer
2
(C4) 3/8“Flat washer ø27
24
(C5) 3/8“ Spring washer
2

6

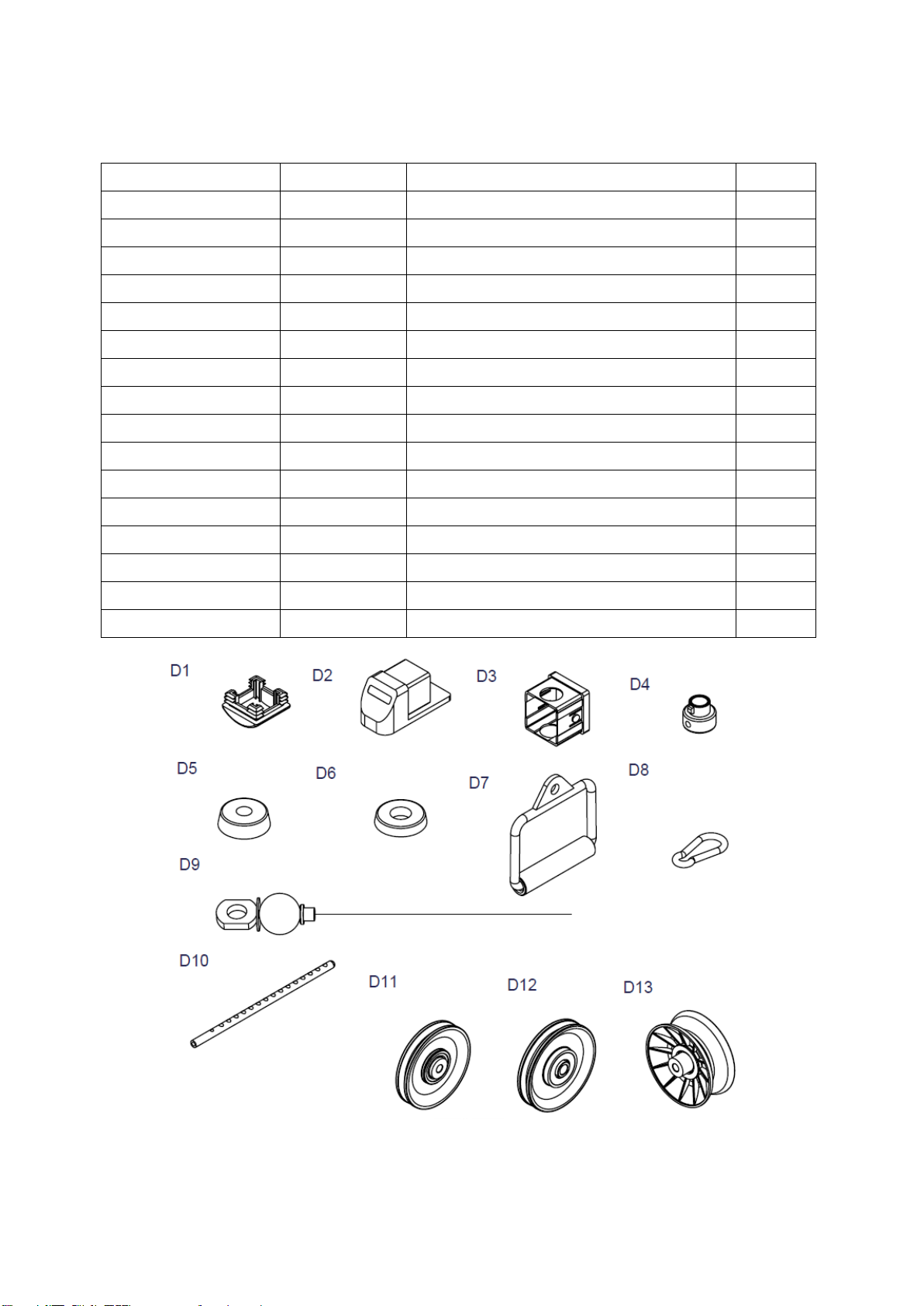

ASSEMBLY MATERIAL
NO
Specification
Name
QTY
D1
2“X2“
End cap (9211-087)
4
D2
2“X2“
Foot cap (9211-025)
8
D3
60x50
Nylon bushing (9211-033)
4
D4
Ø3/4“
Shaft collar (9211-046)
4
D5
Ø2 1/2“
Rubber donut (9310-010)
4
D6
Ø2 1/2“
Rubber donut (9310-011)
4
D7
130 mm
Pull utensil (8290-006)
2
D8
Ø8 mm
Spring snap link (8810-001)
2
D9
7330 mm
Steel cable
2
D10
Weight selector bar (8210-052)
2
D11
Ø110
Pulley (9213-002C)
8
D12
Ø114
Pulley (9213-010B)
4
D13
Ø109
Pulley (9213-022A)
2
D14
Top plate (8400-009)
2
D15
Elastic cable
2
22,5 kg (50 lb)
WEight
6

7

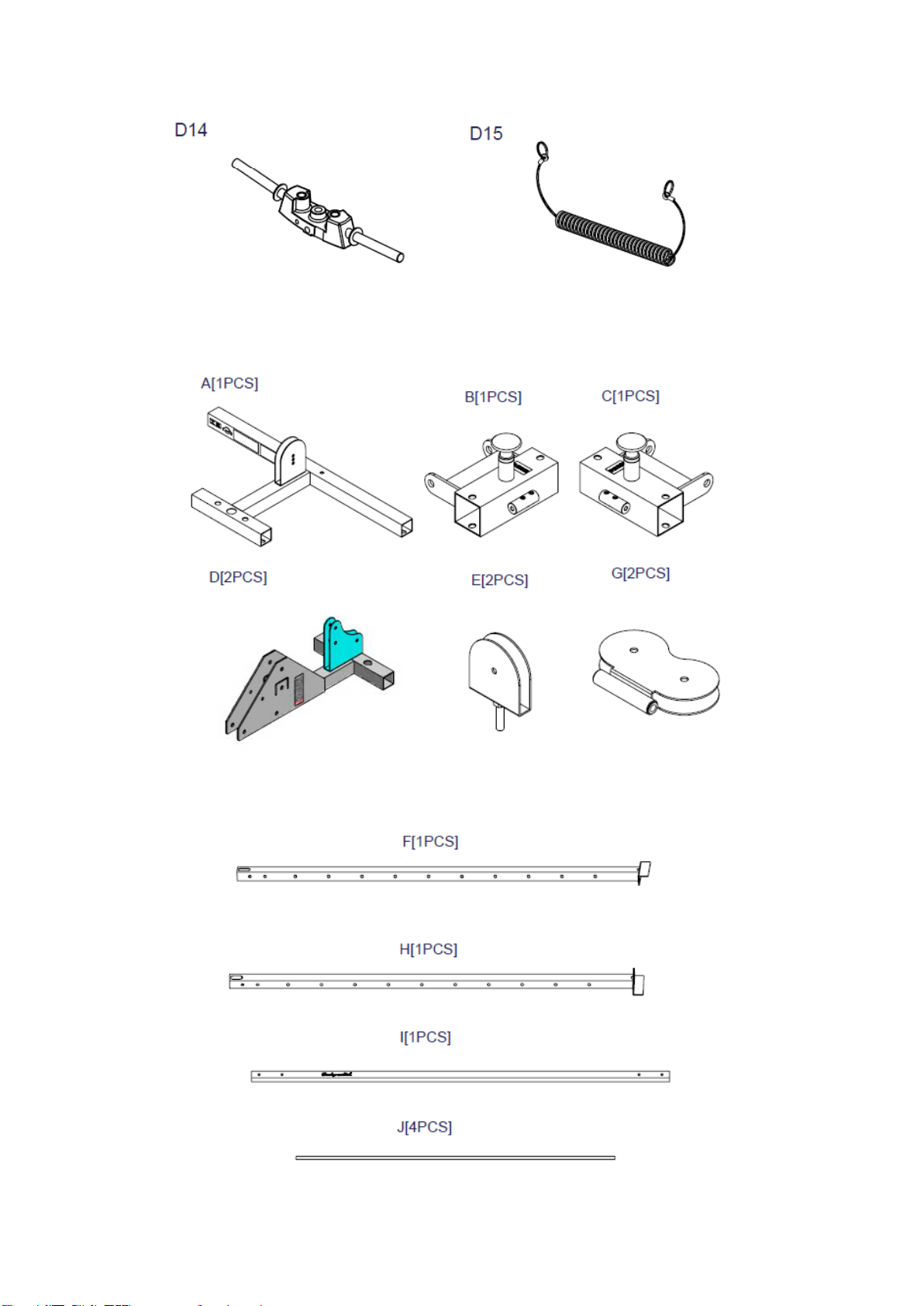

COMPONENTS

8

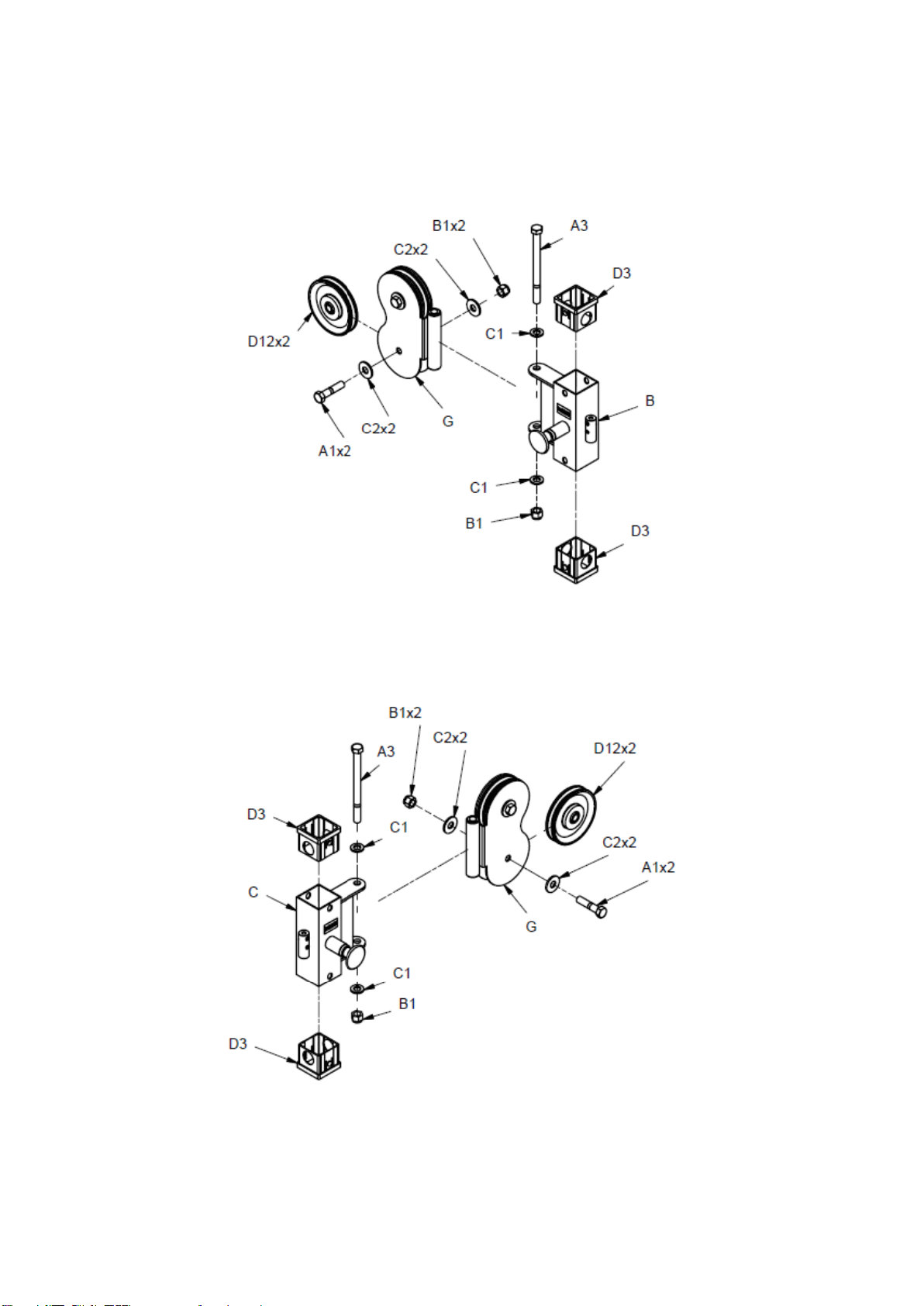

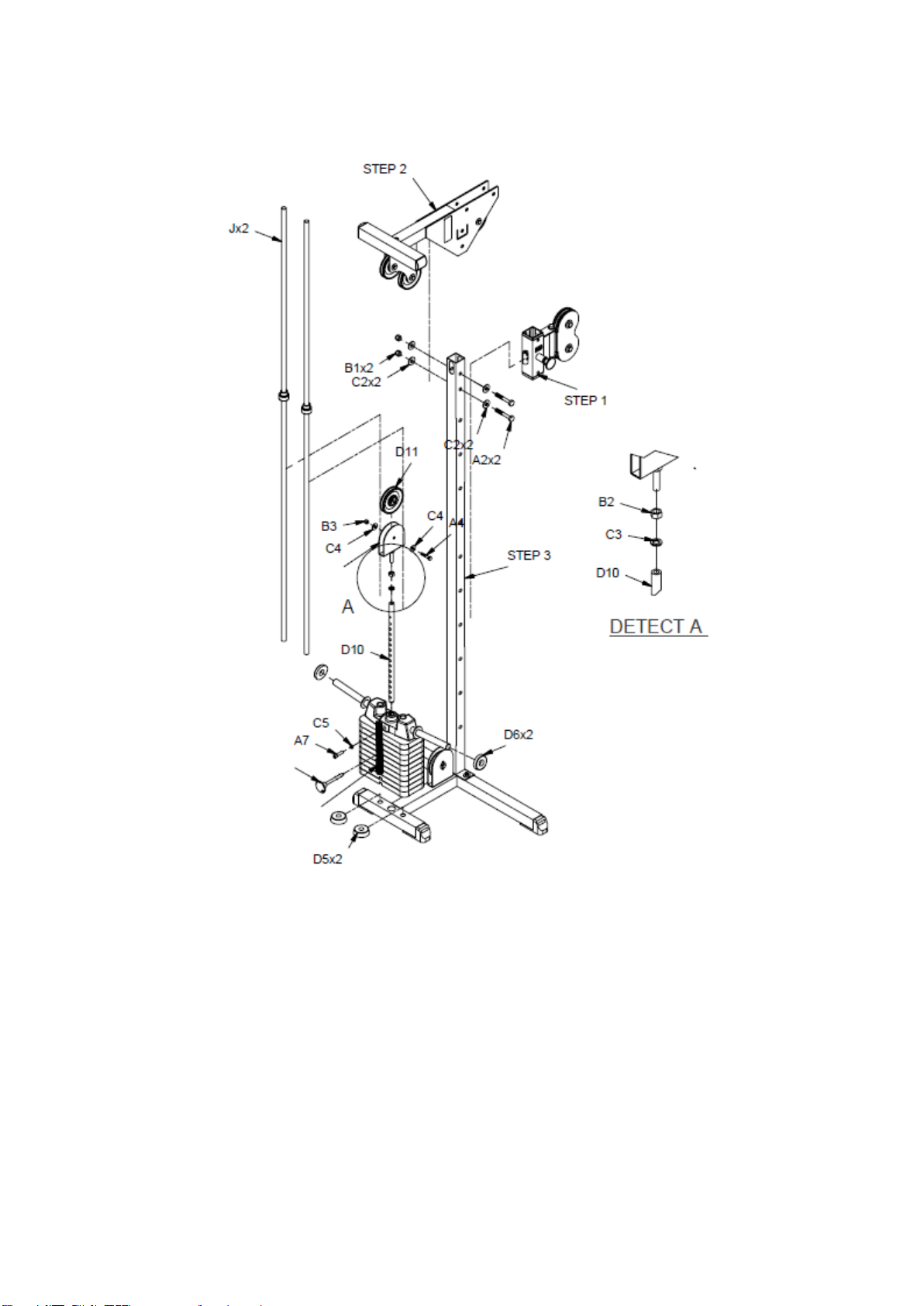

ASSEMBLY

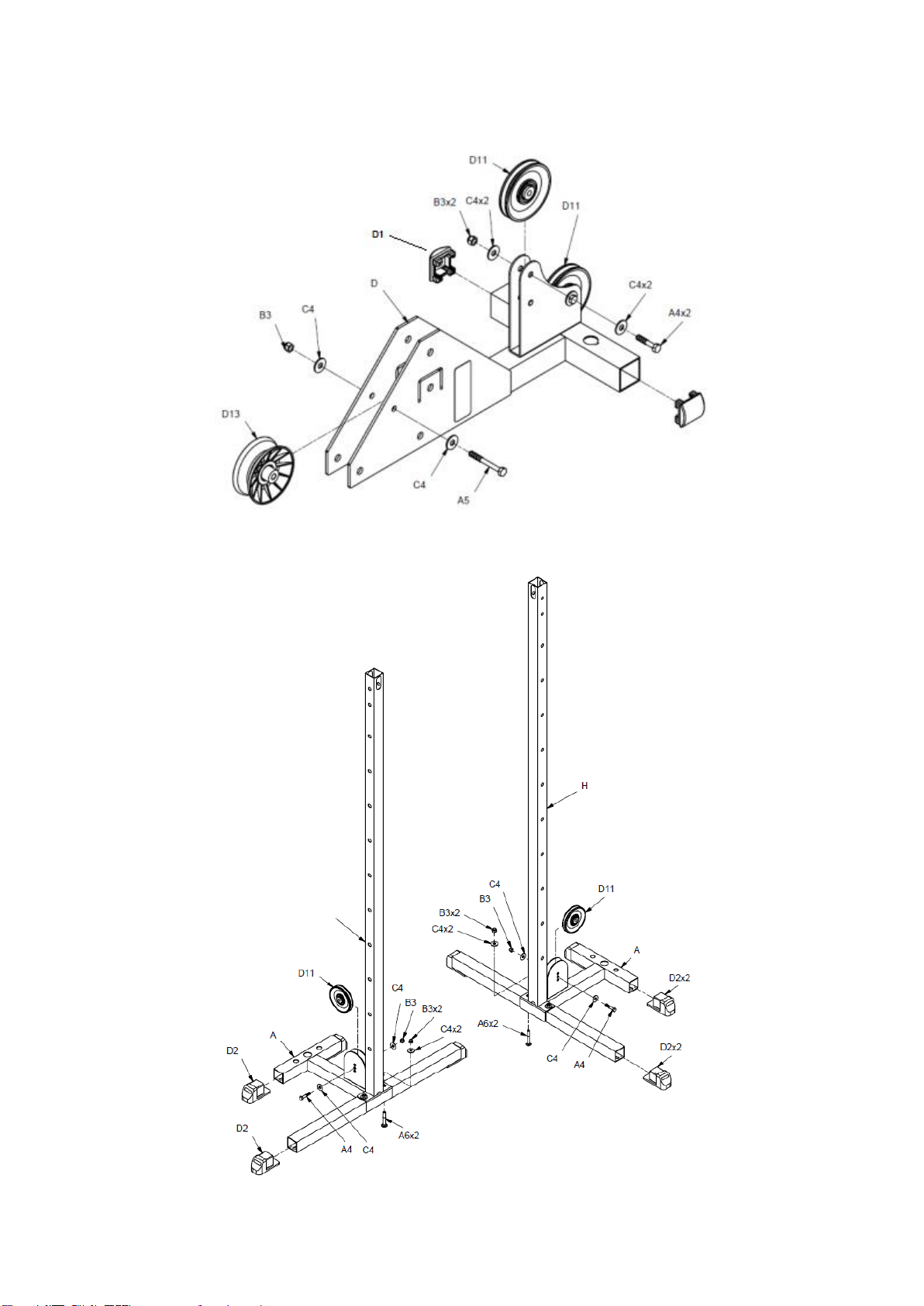

Step 1

9
Step 2
Step 3

10
Step 4

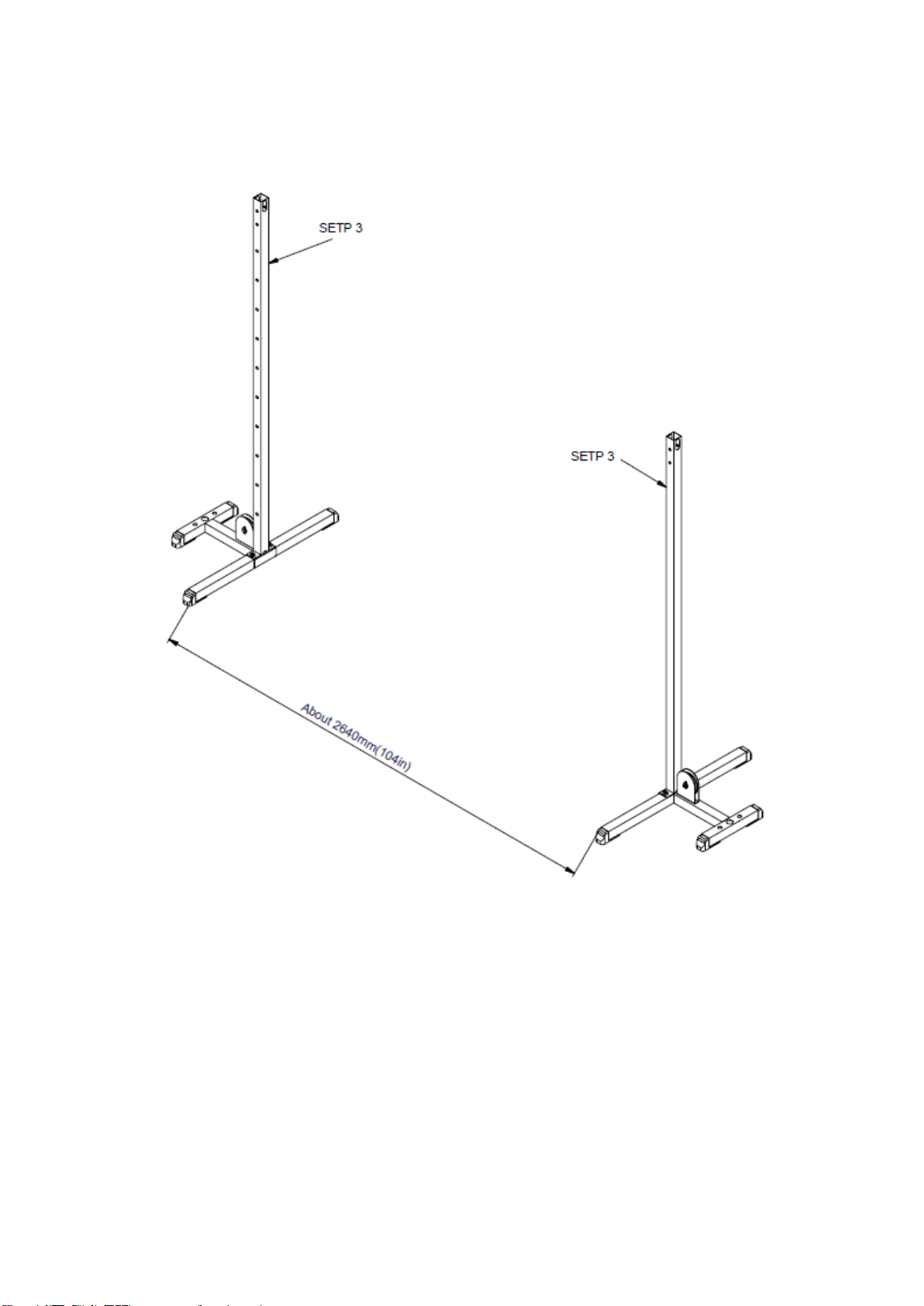

Before placing the weight, complete step 3 and adjust the distance between the pedestals to 2640 mm
(104in).

11

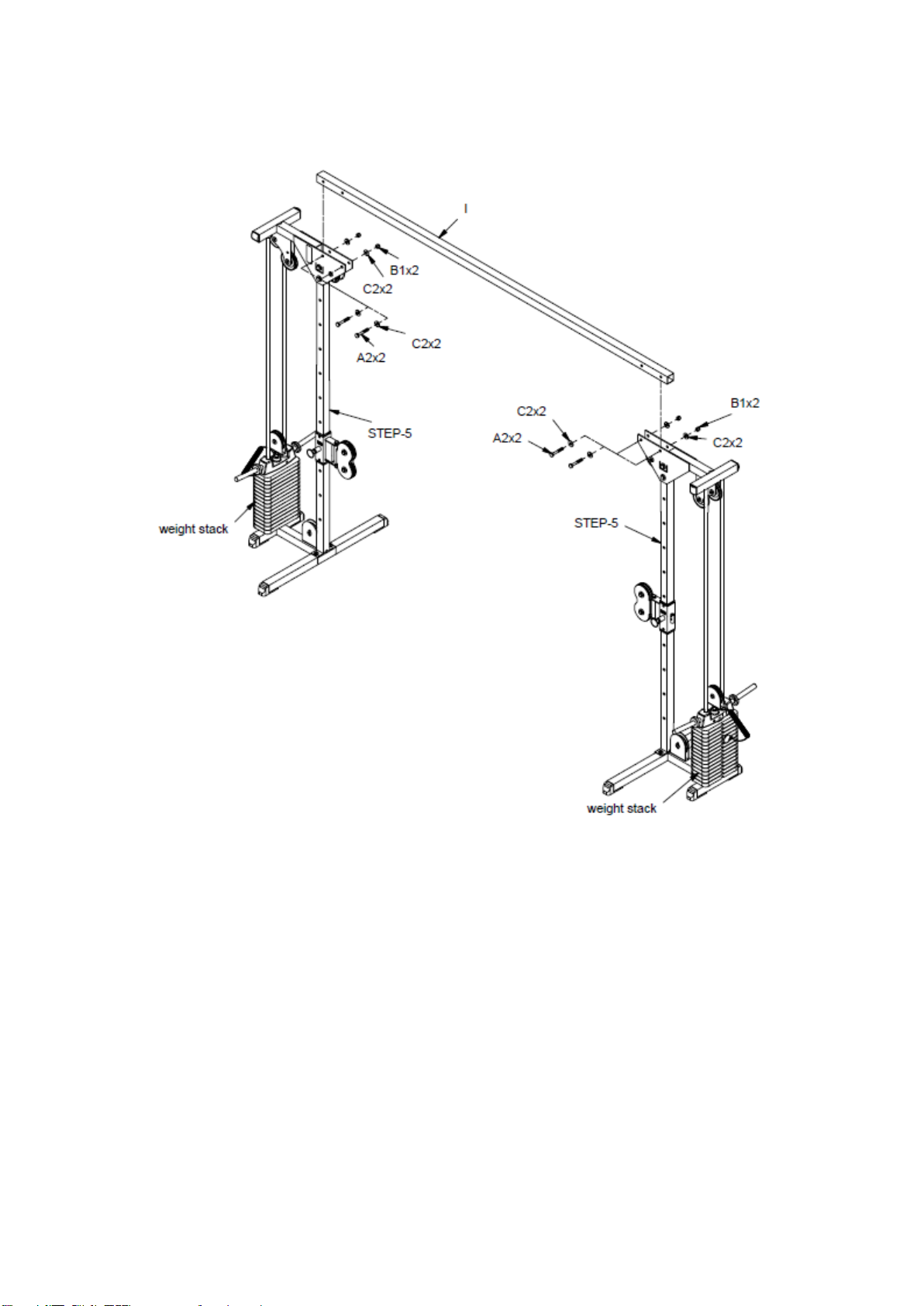

Step 5

12
Step 6

13
CABLE MANAGEMENT
USE
Our equipment will help you to exercise almost every muscle of your body. It is a good device for
strengthening your legs, hands, chest and back muscles. You can do a lot of different exercises on
your device. Its stability and security are enhanced by its robust, four-sided steel frame and wide base.
EXERCISE INSTRUCTIONS
Exercise is beneficial to your health, improves physical condition, shapes muscles and, in combination
with a calorie-balanced diet, leads to weight loss.

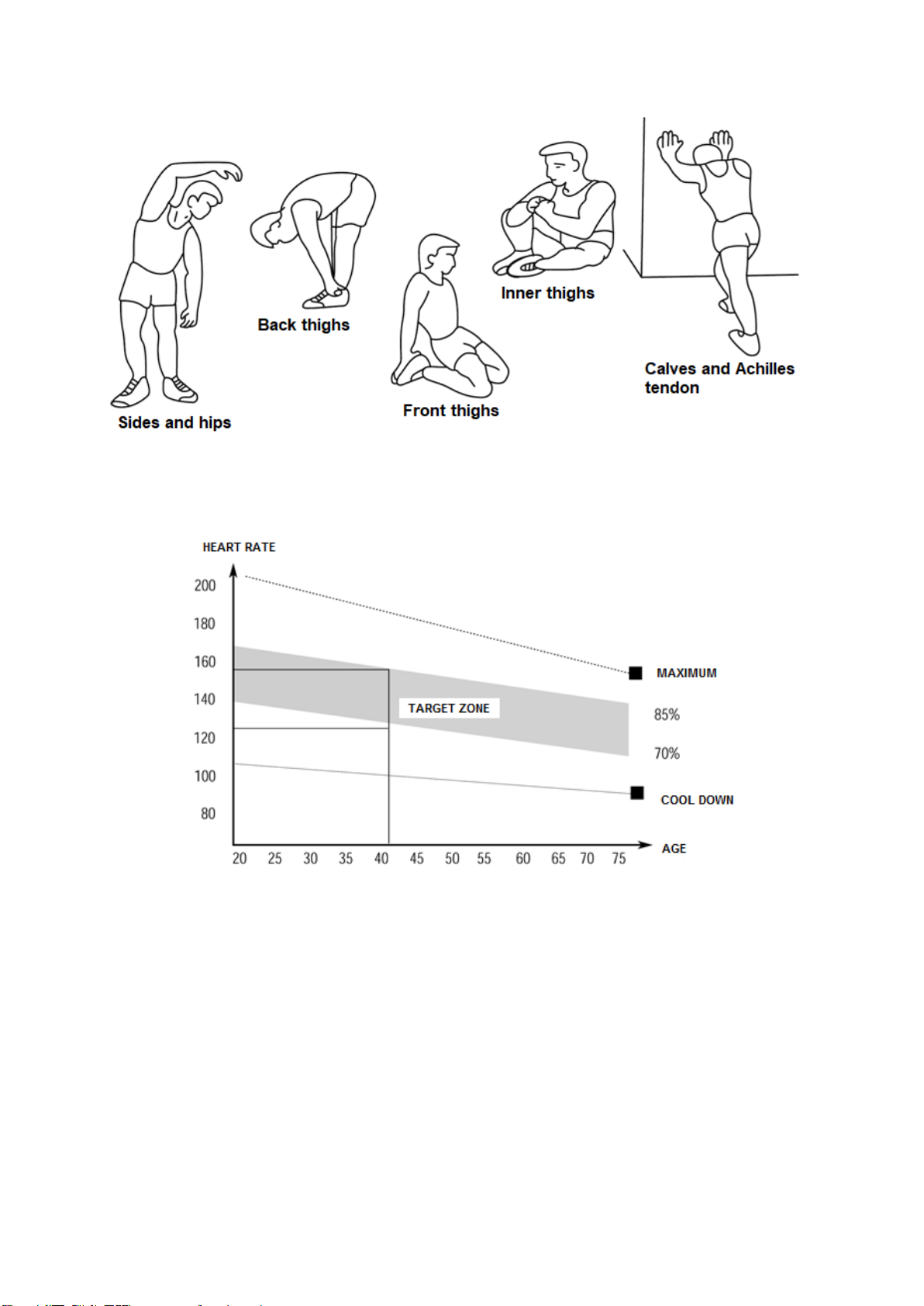

1. WARM UP
This phase serves to improve the blood circulation of the whole body and to warm up the muscles, to
reduce the risk of convulsions and muscle injury. We recommend performing the stretching exercises
below. When dragging, stay in the end position for approximately 30 seconds, do not make sudden
movements and do not vibrate.

14
2. EXERCISING
This phase is the most physically demanding part. Regular exercise strengthens the muscles. You can
determine the tempo yourself, but it is very important that it is the same throughout the exercise. Heart
rate should be within the target zone (see figure below).
This phase should last at least 12 minutes. Most people exercise for 15-20 minutes.
3. COOLDOWN
This phase serves to soothe the cardiovascular system and relax the muscles. It should take
approximately 5 minutes. You can repeat warming up exercises or continue exercising at slower pace.
Stretching your muscles after exercise is extremely important - you need to avoid sudden movements
and vibrations.
With improved fitness, you can lengthen and increase exercise intensity. Train regularly, at least three
times a week.
SHAPING MUSCLES
For muscle shaping, it is important to set a high load. The muscles will be more stressed, which may
cause that you will not be able to exercise as long as usual. If you are trying to improve your condition
at the same time, you need to adjust your training. Exercise in the usual way during the warm-up and
final stages of training but increase the resistance of the device at the end of the exercise. You may
need to slow down the speed to keep the heart rate in the target area.

15
WEIGHT LOSS
The number of calories burned depends on the length and intensity of the exercise. The essence is
the same as in fitness exercise, but the goal is different.
MAINTENANCE
1. After exercising, wipe off any sweat to avoid corrosion. Clean the device with a soft cloth and
mild detergents. Do not use abrasive cleaners or solvents on plastic parts.
2. In case of increased machine noise, all screws and joints must be checked and tightened
properly.
3. The product must be placed in clean, ventilated and dry areas.
4. Do not expose the device to direct sunlight.
ENVIRONMENT PROTECTION
After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the
local laws and environmentally friendly in the nearest scrapyard.
By proper disposal you will protect the environment and natural sources. Moreover, you can help
protect human health. If you are not sure in correct disposing, ask local authorities to avoid law
violation or sanctions.
