Boneco H300 User manual

H300
MANUAL
Read and save these instructions
Lisez et enregistrez ces instructions
Lea y guarde estas instrucciones

EN Always observe all safety notes (included separately in delivery).
FR Veuillez respecter impérativement l’ensemble des consignes de sécurité
(fournies séparéme nt dans le contenu de la livraison).
ES Tenga en cuenta siempre todas las indicaciones de seguridad
(se suministran aparte junto con el producto).

EN Instructions for use 5
FR Mode d’emploi 29
ES Instrucciones de uso 53

5
en
INSTRUCTIONS FOR USE

6
en
TABLE OF CONTENTS
The various comfort modes 16
Comfort modes 16
AUTO mode 16
SLEEP mode 16
BABY mode 16
Fragrance container 17
Fragrance container 17
Use 17
The benefits of the BONECO app 18
About the BONECO app 18
Scope of services 18
Download 19
BONECO app for iOS 19
BONECO app for Android 19
Pairing with the BONECO appliance 20
Getting ready 20
Pairing 20
Notes on cleaning 21
About cleaning 21
Recommended cleaning intervals 21
Items included 8
Healthy air is a basic need 8
Availability of accessories 8
Overview and part names 9
Technical data 10
Starting up 11
Manual handling 13
About manual handling 13
AUTO mode 13
Adjusted AUTO mode 13
Switching on and o 13
Manual control 14
The various operating modes 15
Hybrid mode (“Hybrid”) 15
“Hybrid” LED operating mode 15
Humidification only (“Humidifier”) 15
“Humidifier” LED operating mode 15
Purification only (“Purifier”) 15
“Purifier” LED operating mode 15

7
en
Cleaning the appliance 22
Disassembly and cleaning 22
Cleaning the AW200 evaporator mat 23
About the AW200 evaporator mat 23
Cleaning in the washing machine 23
Cleaning by hand 23
Cleaning the pre-filter 24
About the pre-filter 24
Clean the pre-filter 24
Replacing the accessories 25
Replacing the A7017 Ionic Silver Stick® 25
Replacing the AH300 pollen filter 25
Availability of accessories 25
Malfunctions and troubleshooting 26
Factory default settings 27
About the factory default settings 27
Resetting the appliance 27

8
en
ITEMS INCLUDEDHEALTHY AIR IS A BASIC NEED
There is little to which we react with greater sensi-
tivity than poor air. And yet many people do not pay
enough attention to air quality, which has conse-
quences for health and quality of life. This makes us
all the more pleased that you have chosen a BONECO
appliance to ensure that the basic need for healthy
room air is satisfied for you and the people around
you.
AVAILABILITY OF ACCESSORIES
You can obtain replacements for spent accessories
as well as additional accessories:
• At your BONECO specialist dealer,
• At shop.boneco.us or
• Directly via the “BONECO healthy air” app.
BONECO H300 Quick ManualPower supply Safety instructions
ITEMS INCLUDED

1
2
3
4
5
76 8
109
9
en
OVERVIEW AND PART NAMES
1Cover/air inlet
2Pre-filter
3AH300 pollen filter
4Hygrometer
5On/O, performance level
6Air outlet
7Fragrance container
8Water base*
9Drum*
10 AW200 evaporator mat**
* Washable in the dishwasher up to 122°F
(50°C)
** Washable in the washing machine up to
104°F (40°C)

10
en
TECHNICAL DATA
TECHNICAL DATA*
Type designation BONECO H300
Power supply voltage 100 – 120 V ~ 60 Hz
Power consumption Standby 0.6 W
Level 1 3.6 W
Level 6 9.6 W
Humidity output up to 2.22 gal/day (350 g/h)**
Particle CADR 3180 cu ft / h (<90 m3/ h)
For rooms up to 650 sq ft (50 m2) / 5300 cu ft (125 m3)
Water capacity max. 1.19 gallons (4.5 liters)
Dimensions L × W× H 11.1 × 11.1 ×18.3 in (280× 280 ×465 mm)
Weight (empty) 12.1 lbs (5.3 kg)
Operation noise level Level 1 28 dB(A)
Level 6 51 dB(A)
* Subject to change
** at 120 V ~ 60 Hz

11
en

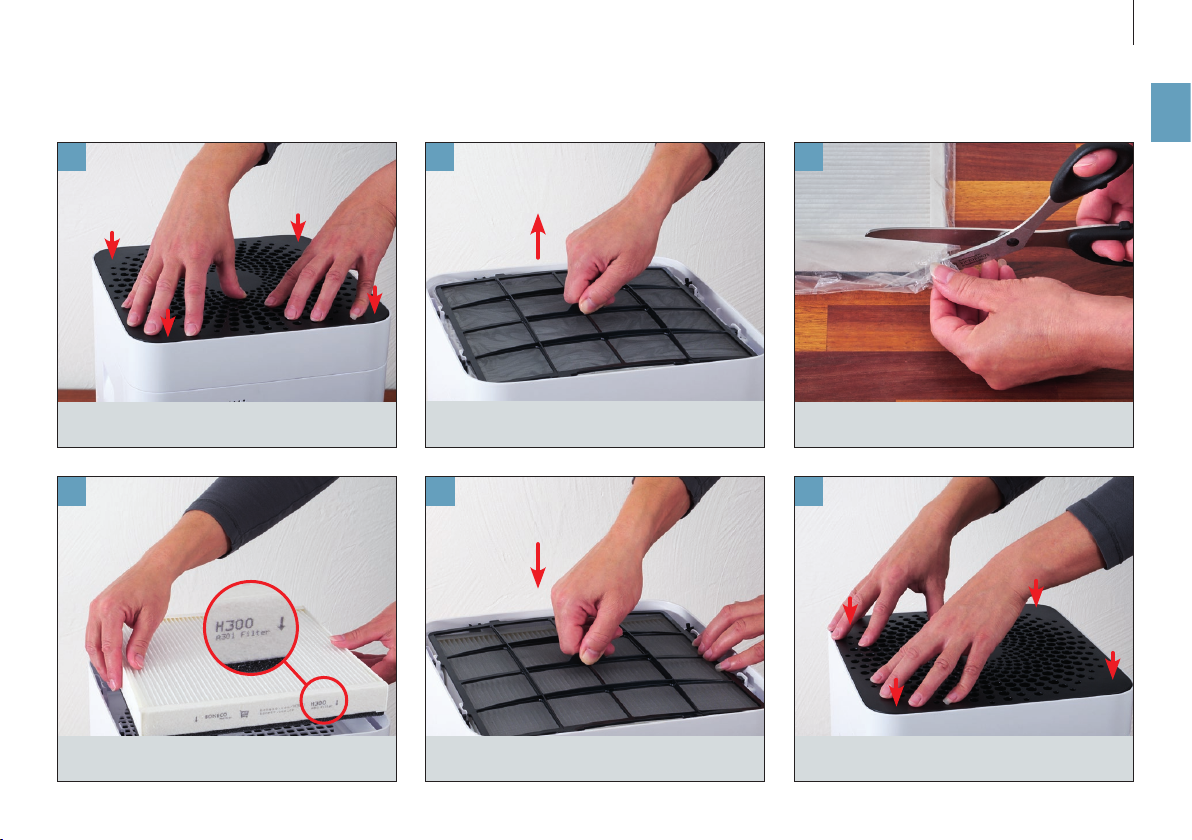

STARTING UP
654
3
2
1
Remove the pre-filter and the AH300 pollen filter. Remove the protective covering of the AH300
pollen filter.
Insert the AH300 pollen filter (observe the direc-
tion of the arrow).
Press down on all four corners of the cover to
unlock them.
Insert the pre-filter. Press down forcefully to snap the cover back in
place.

12
en
121110
9
8
7

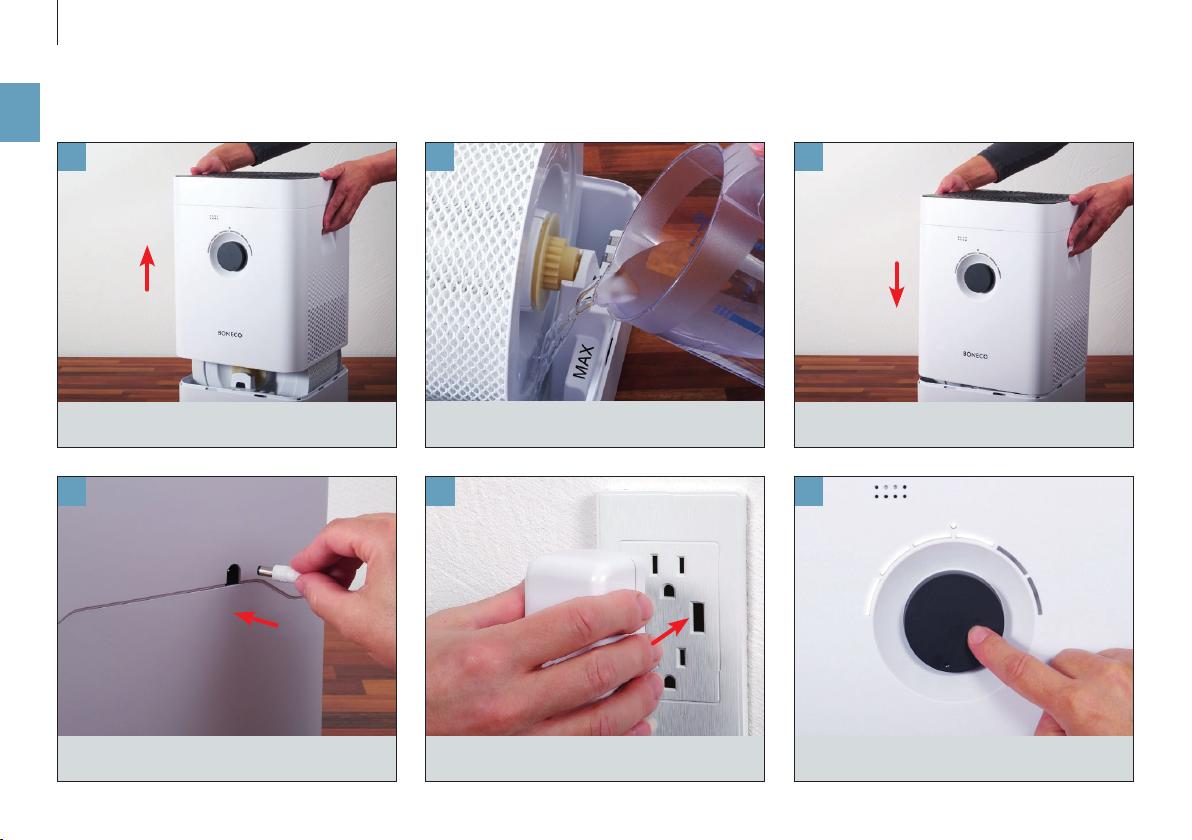

Fill with cold tap water up to the marking. Put the upper part on the water base.
Plug the power cord into the appliance.
Remove the upper part.
Plug the power cord into a power outlet. Briefly press the output regulator to switch on
the appliance.

13
en
MANUAL HANDLING
ABOUT MANUAL HANDLING
Manual handling works conveniently by the knob
on the front side. The BONECO app oers additional
extensive options for control and automation of the
BONECO appliance.
AUTO MODE
If you have never operated the BONECO appliance
with the BONECO app and switch it on for the first
time, it starts up in AUTO mode. The appliance is pre-
set to a target relative humidity of 50 percent. The
performance level is automatically adapted to the
current humidity: The drier the air, the higher the
performance level.
If the preset target humidity is exceeded, the appli-
ance switches to standby mode, which is indicated
by the pulsing LED:
If the humidity drops below the set level, the appli-
ance resumes operation.
ADJUSTED AUTO MODE
If you have already operated the appliance with the
BONECO app and set a dierent humidity, that value
is automatically taken over when the appliance is
switched on.

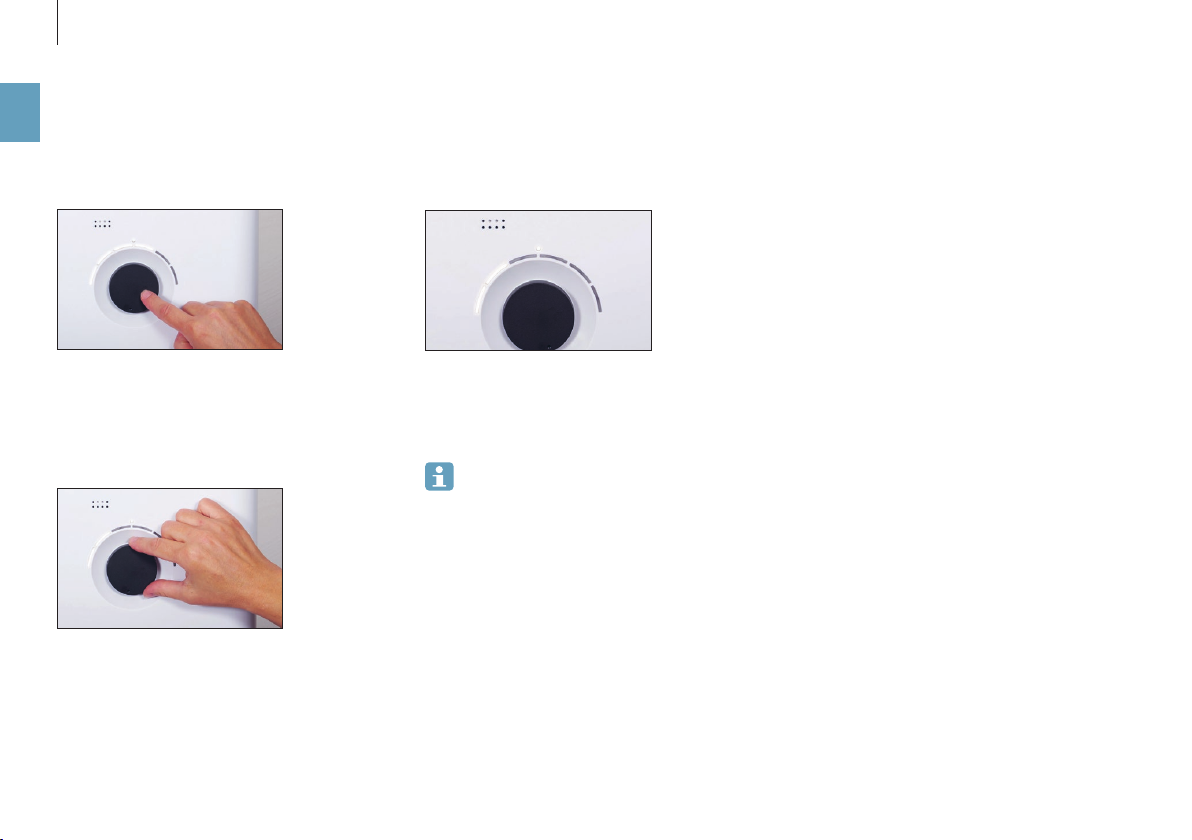

SWITCHING ON AND OFF
1. Briefly press the knob once to switch on the ap-
pliance.
The appliance is always in AUTO mode when it is
switched on. You can identify active AUTO mode by
the small LED that lights up above the knob.
2. To switch o the appliance while it is in AUTO
mode, briefly press the knob once.

14
en
The selected performance level is indicated by the
number of LEDs that light up above the knob.
3. Briefly press the knob once to exit manual mode
and to reactivate AUTO mode.
4. Briefly press the knob once more to switch o the
appliance.
If you exit AUTO mode, the appliance will con-
tinue at the selected performance level until
the water base is empty, regardless of what the cur-
rent level of humidity is.
MANUAL CONTROL
1. Briefly press the knob once to switch on the ap-
pliance.
The appliance is always in AUTO mode when it is
switched on.
2. Adjust the output to your needs by setting the
knob to the desired level from 1 to 6. This action
exits AUTO mode (AUTO LED is o).

15
en
HYBRID MODE (“HYBRID”)
The BONECO appliance combines two functions.
• The AH300 pollen filter cleanses breathing air by
removing pollen, household dust and fine parti-
cles.
• The AW200 evaporator mat humidifies the room
air.
You achieve the best results when the appliance is
humidifying and purifying the air at the same time.
Nevertheless it is possible to use just one of the two
functions.
“HYBRID” LED OPERATING MODE
HUMIDIFICATION ONLY (“HUMIDIFIER”)
We recommend using the appliance with insert-
ed AH300 pollen filter even in the winter because,
aside from pollen, it also filters household dust out
of the air. In order to operate the appliance with-
out the AH300 pollen filter, simply remove the filter
from its holder and use the BONECO app to switch to
“Humidifier” mode.
When you remove the AH300 pollen filter, the max-
imum humidifier performance increases because
you achieve a better air passage.
“HUMIDIFIER” LED OPERATING MODE
PURIFICATION ONLY (“PURIFIER”)
In summer, humidity is usually sucient, but pollen
gives people with allergies a dicult time. If you
only want to use the purifying eect of the AH300
pollen filter, switch the appliance to “Purifier” oper-
ating mode using the BONECO app and remove the
water and the drum from the appliance.
“PURIFIER” LED OPERATING MODE
THE VARIOUS OPERATING MODES

16
en
THE VARIOUS COMFORT MODES
COMFORT MODES
There are three dierent comfort modes available
in each of the three “Hybrid”, “Air purification” and
“Air humidification” operating modes: AUTO, SLEEP
and BABY.
AUTO MODE
In AUTO mode, the BONECO appliance uses all of the
fan levels between 1 and 5. The preset humidity is
50%.
SLEEP MODE
In SLEEP mode, the BONECO appliance can even be
used in a bedroom at night. The appliance automat-
ically operates at the lowest fan level of 1 to keep
the operation noise level to a minimum. The preset
humidity is 45%.
BABY MODE
The BABY mode uses fan levels 1 through 4 and in-
creases the humidity to 60%. This value is ideal for
use in a nursery or baby’s room since higher humid-
ity is recommended for babies and small children.
The fan also operates quietly enough that it will not
trigger a baby monitor.

17
en
FRAGRANCE CONTAINER
Commercially available fragrances and essential
oils can be inserted into the fragrance container on
the rear side.
Never put any fragrances into the water base
itself, since doing so can decrease the perfor-
mance of the appliance and even cause damage.
Such damage is not covered by the warranty.
The fragrance container can be cleaned in the
dishwasher. However, the temperature may
not exceed 122°F (50°C).
USE
1. Press down on the fragrance container to take
out the drawer.
2. Sprinkle the felt insert in the drawer with the fra-
grance of your choice.
FRAGRANCE CONTAINER

18
en
THE BENEFITS OF THE BONECO APP
ABOUT THE BONECO APP
The “BONECO healthy air” app is used to control the
appliance and lets you take full advantage of its po-
tential. The app includes functions such as a timer, a
humidity preset and the option to switch between
various programs. In addition, it provides remind-
ers for the cleaning intervals and other recurring
tasks.
SCOPE OF SERVICES
Operating modes “Hybrid” The air is cleaned and humidified at the same time
“Purifier” The air is cleaned, but not humidified
“Humidifier” The air is humidified, but not cleaned
Selecting modes Predefined settings for frequent situations
AUTO mode The appliance uses all fan levels from 1 to 5 and has a preset target
humidity of 50%
SLEEP mode The appliance uses fan level 1 only and increases the target humidity
to 45%
BABY mode The appliance uses fan level 1 through 4 and increases the humidity
to 60%
Hygrostat Defines the desired humidity
Dimmer Sets the brightness of the status LED
Weather Displays the current weather and outside temperature
Filter change information Indicates when an AH300 pollen filter is spent
Accessories and consumables Provides support in replacement orders and further information

19
en
DOWNLOAD
BONECO APP FOR IOS
Search the app store for “BONECO healthy air” or
scan the QR code below. Reading the QR code under
iOS 10 or earlier requires installing a corresponding
app. Under iOS 11 and later, the QR code is read au-
tomatically whenever you direct the camera at it.
BONECO APP FOR ANDROID
Search the Google Play Store for “BONECO healthy
air” or scan the QR code below. Reading the QR code
requires installing a corresponding app on your de-
vice.

20
en
PAIRING WITH THE BONECO APPLIANCE
GETTING READY
Make sure that Bluetooth is activated on your smart-
phone. During pairing, make sure that the smart-
phone is in the same room as the BONECO appliance.
Once paired successfully, you can control the
BONECO appliance with your smartphone from the
same room or even from an adjacent room. How-
ever, the maximum distance between smartphone
and BONECO appliance depends on the specific
structural conditions.
PAIRING
1. Make sure that Bluetooth is activated on your
smartphone.
2. Start the BONECO app.
3. Follow the instructions in the app.
