18.Broken switch.
19.Smoke or stench of scorched insulation.
Specic safety rules
• Do not disconnect the plug by pulling on the electrical
cable.
• If you are too far from the object you wish to clean, do
not move the cleaner nearer by pulling on the high pres-
sure hose; use the handle provided.
• Do not obstruct the ventilation grilles during operation.
• The cross-section of any extension cables used must be
proportional to their length, i.e. the longer the extension
cable, the greater the cross-section; cables with a protec-
tion level of“IPX5” must be used.
• Position the high pressure cleaner AS NEAR POSSIBLE to
the water supply.
• Use the high pressure cleaner only with accessories and
replacement parts authorized by the manufacturer. The
use of original accessories and replacement parts will en-
sure safe, trouble-free operation.
• Avoid unintentional ring of the trigger. Do not carry
the lance / trigger assembly with your hand over the trig-
ger. Always use the trigger lock mechanism.
• Ensure that the safety lock on the trigger is used, when
you have stopped using the pressure washer to prevent
accidental operation.
• Do not use the cleaner with inammable or toxic liquids,
or any products which are not compatible with the correct
operation of the high pressure cleaner.
• Do not direct the water jet towards the unit itself, electri-
cal parts or towards other electrical equipment.
• Do not allow children or incompetent persons to use
the high pressure cleaner.
• Do not touch the plug and/or socket with wet hands.
• Do not use the high pressure cleaner if the electrical ca-
ble is damaged.
• Do not use the high pressure cleaner if the high pressure
hose is damaged.
• Do not jam the trigger in the operating position.
• Check that the data plates are axed to the high pres-
sure cleaner, if not, inform your dealer. Cleaners without
plates must NOT be used as they are unidentiable and
potentially dangerous.
• Do not tamper with or alter the calibration of the safety
valve.
• Do not alter the original diameter of the spray head
nozzle.
• Do not leave the high pressure cleaner unattended.
• Do not move the high pressure cleaner by pulling on the
electrical cable.
• All electrical conductors MUST BE PROTECTED against
the water jet.
• The high pressure cleaner MUST ONLY BE CONNECTED
to a correctly earthed power supply.
• The high pressure may cause materials to bounce o
surfaces at speed; therefore protective clothing and safety
goggles MUST BE WORN.
• Before doing work on the cleaner, REMOVE the plug.
• Before pressing the trigger, GRIP the gun rmly to coun-
teract the recoil.
• Maintenance and/or repair of electrical components
MUST be carried out by qualied sta.
• DISCHARGE residual pressure before disconnecting the
high pressure cleaner hose.
• Before using the high pressure cleaner, CHECK every
time that the screws are fully tightened and that there are
no broken or worn parts.
• Only USE detergents which will not corrode the coating
materials of the high pressure hose/electrical cable
• ENSURE that all people or animals keep a minimum dis-
tance of 16 yd. (15m) away.

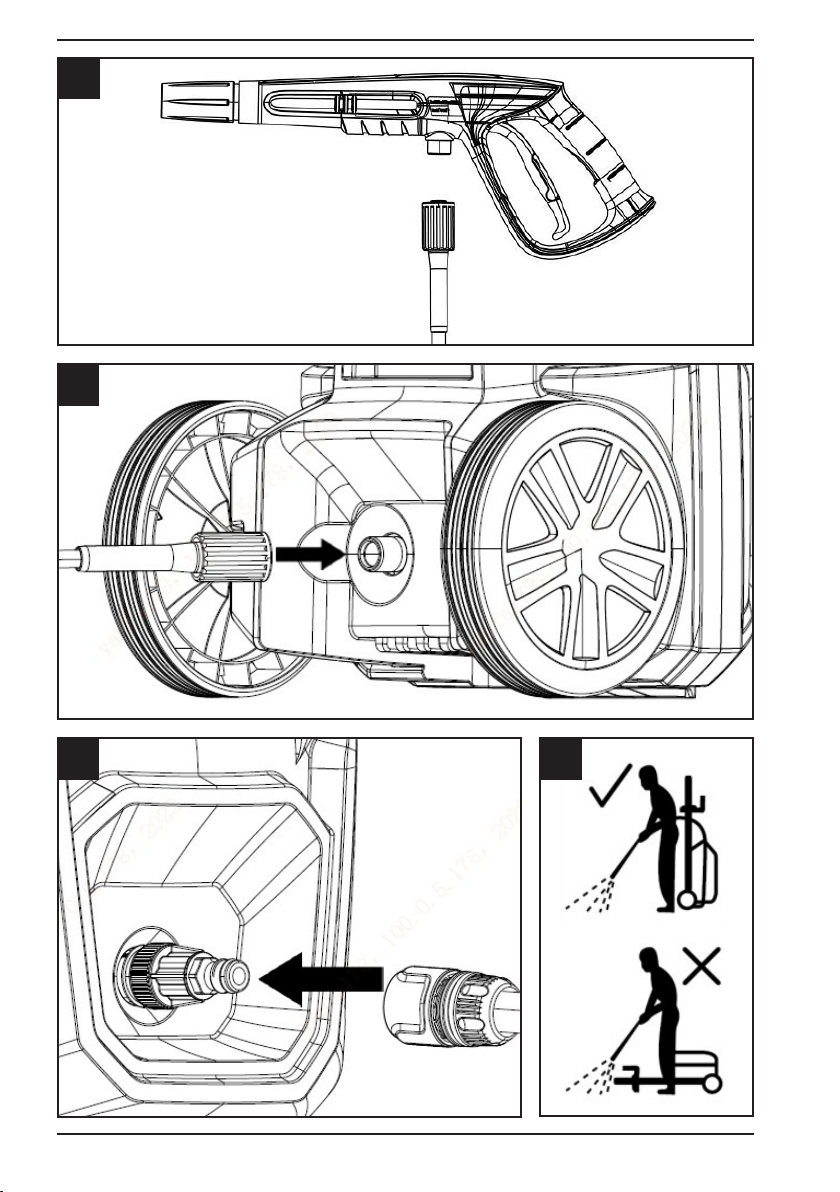

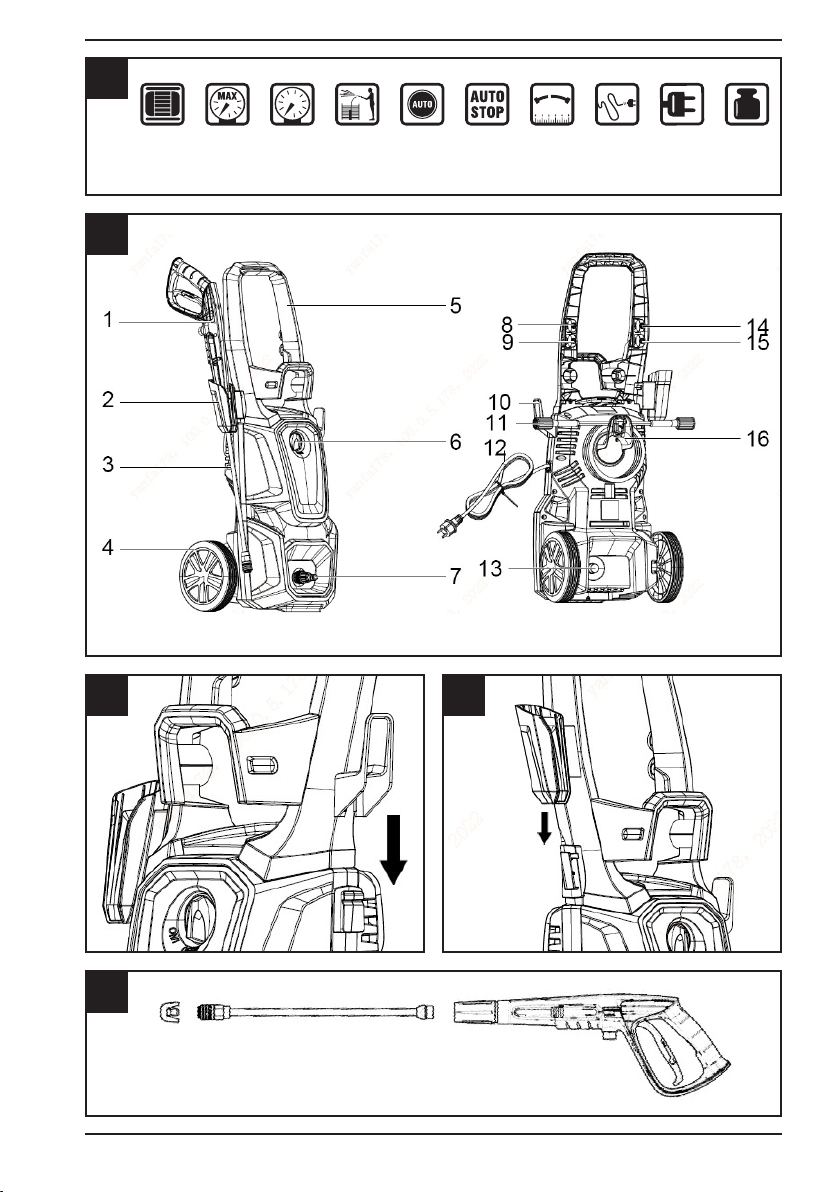

ASSEMBLY
• Connecting water hose to inlet rst,and turn on the tap.
Make sure the machine is full of water. .Then turn on the
main switch.The most important thing is not forget to
press the in electronic control center to start the machine.
• The electronic control center has three pressure modes
for users to choose. There are soft, medium and strong
mode.The pressure depends upon which attachment is
best suited to the surface you are cleaning.
• If you want to increase the pressure level, press the +
button in the electronic control center.
• If you want to reduce the pressure level, press the - but-
ton in the electronic control center.
• When you increase the pressure level to make the pres-
sure indicator turn red, it means that the machine is work-
ing at the maximum pressure. At this time, please do not
let the machine work continuously for more than 15 min-
utes under the maximum pressure. See picture 5.
PREOPERATION
Adjusting fan pattern
The angle of spray coming out of the lance may be adjust-
ed on some lances by rotating the nozzle. This will vary the
spray pattern from approximately a 0° narrow high impact
stream to a 60° wide fan spray
A narrow stream has high impact force on the cleaning
surface and results in maximum deep cleaning in a con-
centrated area. However, this narrow high impact spray
must be used cautiously, as it may damage some surfaces.
A wide fan pattern will distribute the impact of the water
over a larger area, resulting in excellent cleaning action
with a reduced risk of surface damage, Large surface areas
can be cleaned more quickly using a wide fan pattern.

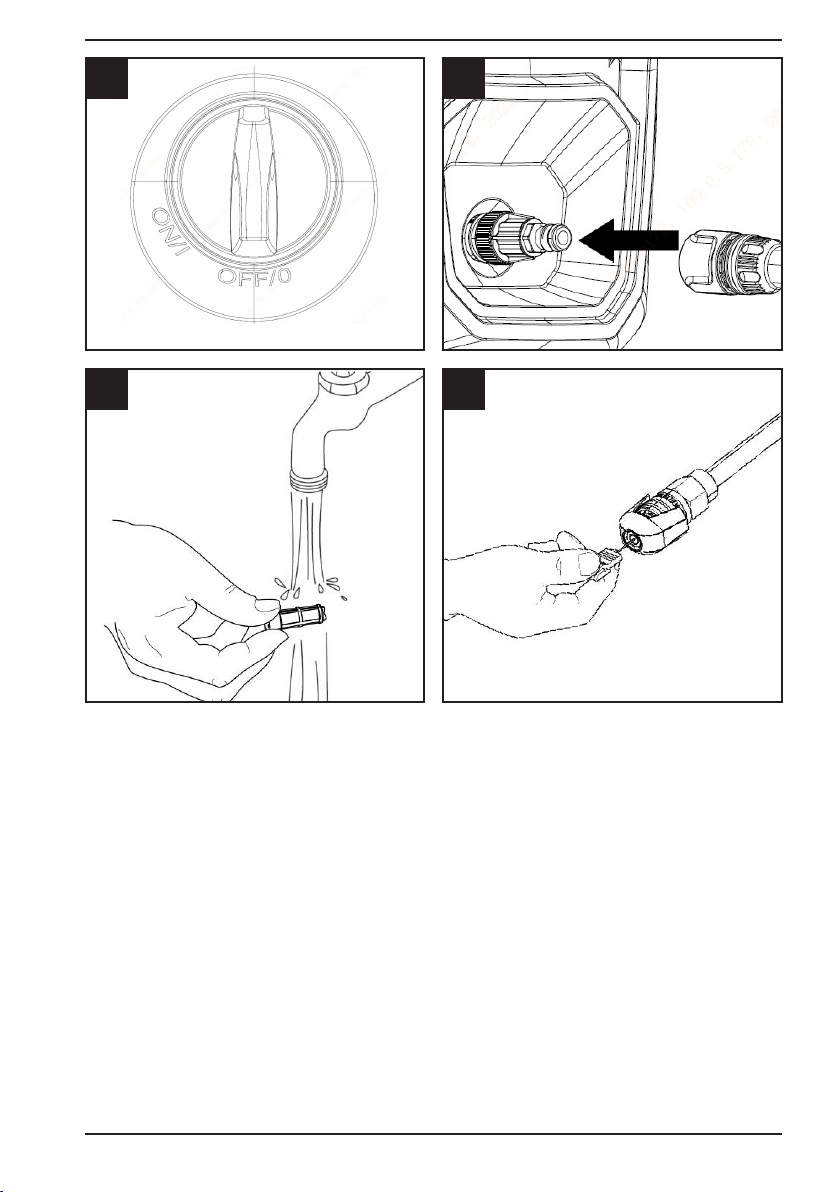

Nozzle cleaning instructions
A clogged or partially clogged nozzle can cause a signif-
icant reduction of water coming out of the nozzle and
cause the unit to pulsate while spraying. To clean out the
nozzle:
1. Turn o and unplug unit.
2. Turn o water supply. Relieve any pressure trapped in
the hose by squeezing trigger 2-3 times.
