Bosch twinguard User manual

Twinguard Smoke Alarm
with air quality sensor
Instruction Manual
Bosch Smart Home

Start making your home smart! Set up your product in just three steps
▶ Start the Bosch
Twinguard App
You can also watch easy to follow installation videos on our
website: www.bosch-smarthome.com/installation
Please be sure to install the Bosch
Smart Home Smoke Alarm Gateway
first! The gateway is part of your
Twinguard Starter Set.
Ensure that you have installed
and successfully set up both the
Bosch Smart Home Gateway and
the Bosch Twinguard App. You need
these to enjoy all the features of
your Twinguard and to interconnect
multiple smoke alarms.
▶ In the menu, under
rooms, select “add
new Twinguard”
▶ Scan the QR code
and follow
the instructions

5
Congratulations on purchasing your Bosch Smart Home Twinguard Smoke
Alarm. It will help you to make your home even safer and smarter.
The Twinguard Smoke Alarm can do more than just detect smoke. Its integrated
LED, lights up the escape route in case of an emergency. An air quality sensor
measures not only room temperature, but also relative humidity and volatile
organic compounds (VOC) of the air. For greater safety and comfort you
can interconnect multiple Twinguard Smoke Alarms through the Gateway.
We hope you enjoy your new product,
The Bosch Smart Home team
Dear customer,

6 7
1.0 Product description................08
1.1 Intended use ............................. 11
2.0 In the box .................................12
3.0 Warning notices ......................14
3.1 Explanation of symbols............. 14
3.2 Safety instructions.................... 15
4.0 Indicators and controls ..........16
4.1 Product overview ...................... 16
5.0 Installation and set up............20
5.1 Starting the Bosch
Twinguard App .......................... 31
5.2 Set up more smoke alarms ....... 23
5.3 Activating the Twinguard........... 24
6.0 Fixing........................................26
6.1 Mounting instructions............... 26
6.2 Fixing with screws..................... 32
7.0 Maintenance instructions ......34
7.1 Visual inspection....................... 35
7.2 Functional test ..........................36
8.0 Alarm and
troubleshooting.......................38
8.1 Faults ........................................ 38
8.2 Switching off the
Smoke Alarm ............................. 39
9.0 Product details .....................40
9.1 Technical data.........................40
9.2 Declaration of conformity....... 41
9.3 Faults in radio operation......... 42
9.4 Open-source software............ 42
9.5 Environmental protection
and disposal ...........................45
10.0 Further information..............46
TABLE OF CONTENTS

8 9
1.0 PRODUCT DESCRIPTION
The Twinguard is a Smoke Alarm
manufactured to EN 14604: 2005/
AC: 2008 which connects wirelessly
to a Gateway. It is equipped with the
following functions and components:
▶ Audible alarm
▶ 360° light strip for visual signals
▶ Radio module
▶ Alarm LED
▶ Emergency lighting
▶ Air quality sensor
▶ Smoke sensor
▶ Large operating button
▶ Batteries
The product reliably warns you of
potential fires in your home. If smoke
is detected both a visual and audible
alarm is triggered.
The Gateway links all the Twinguard
Smoke Alarms installed in your home
and enables the connection to your
mobile device, so if an alarm is trigger
a notification is forwarded to your
phone.
The forwarding of alarms to connected Twinguards and mobile
devices will only work when the gateway is switched on and connected
to the internet.
Without the smoke alarm gateway you are not able to link multiple
smoke alarms.
The Gateway must be set up before the smoke alarms!

10 11
1.1 Intended use
The product is intended for indoor use
in residential buildings. It should only
be used together with original Bosch
Smart Home components.
▶ Follow the safety instructions and
the directions in this manual and the
Bosch Twinguard App to ensure that
the product is set up correctly
▶ Observe the connection conditions,
ambient temperatures and humidity
limits in the Technical Data section
(see p. 40)
▶ Avoid installing in areas prone to
high amounts of direct sunlight or
near to sources of heat or cold
Do not modify the product in any way. Any other use is considered
unintended use. We will not assume liability for any resulting damage.
You can find more detailed information about your products,
e.g. blinking and malfunction codes, and how best to use them at:
www.bosch-smarthome.com
Only one Gateway can be set up with your Twinguard Smoke Alarms.
Up to 40 Twinguard Smoke Alarms can be connected to one
Gateway.

12 13
2.0 IN THE BOX
Batteries (6 x 1,5 V AA Alkaline) are already included and can be
replaced as necessary.
Please check that all products are in the box and are undamaged.
Please mount only parts that are in immaculate condition.
Twinguard Smoke Alarm Mounting bracket 2 screws,
2 plugs

14 15
3.2 Safety instructions
Please do not open the Twinguard Smoke Alarm. The product does
not contain any user replaceable parts.
The Gateway or Twinguard should not be dismantled. Incase of fault,
please contact our customer service team on 00800 843 762 78.
Please observe the intended use.
The product must only be used with original components. Only use
batteries recommended in the Technical Data. The product should
only be mounted using the material recommended in this manual.
Do not paint or wallpaper over any of the devices!
Batteries must not be exposed to excessive heat such as sunlight,
fire, etc.
3.0 WARNING NOTICES
3.1 Explanation of symbols
Info.
Indicates important information.
Warning.
This alerts you to danger.

16 17
4.0 INDICATORS AND CONTROLS
4.1 Product overview
1
2
3
54 6
7
8
Item Part Explanation
1360° LED
light strip For indicating the status: red, orange, green, blue
2Operating button For accessing and carrying out functions
3Alarm Audible signal
4Alarm LED Red: alarm or fault
5Emergency
lighting To ensure safe passage out of the danger zone
6Mounting bracket For ceiling installation
7Screw slot For accurate alignment of the alarm
8Straight edge For aligning the Twinguard with the ceiling level

18 19
3
2
1
Item Part Explanation
1Battery
compartment –
2Red plastic pin For activating the Twinguard
3QR code Scan for device identification
Battery compartment can
only be closed when all
batteries have been inserted.

20 21
5.0 INSTALLATION AND SET UP
Before you start
In order to set up the Twinguard, your mobile device must be con-
nected to the same WiFi network that your gateway is connected to.
Follow the instructions in the Bosch Twinguard App to add more
smoke alarms.
You can also use your Bosch Account for other Bosch devices you want
to interconnnect in a network. If you already have a Bosch Account for
another service, you can use it to log in directly.
5.1 Starting the Bosch Twinguard App
Now start the Bosch Twinguard App
and log in using your username and
password under “Login”. If you do not
have a Bosch Account, you can
create one using the app.
To add another smoke alarm follow the App, click in the menu
➞rooms ➞add new Twinguard. From this point, the app guides you
through the installation process.

22 23
There must be a functioning Wireless network and internet connection
in order for warnings to be sent in the event of a potential fire. Robert
Bosch Smart Home GmbH are not able to offer a guarantee on the time
it will take for this notification to be transmitted.
Please note that the emergency services number stored in the App
will not be automatically called if the Twinguard Smoke Alarm detects
smoke. If necessary, you always have to call the emergency services
yourself!
You need to ensure that your mobile device is on and connected to a
mobile communications network in order for it to receive warnings and
notifications from the Twinguard Smoke Alarm.
5.2 Set up more smoke alarms
In order to set up the Twinguard, your mobile device must be connect-
ed to the WiFi network that your Gateway is already connected to.
Follow the instructions in the Bosch
Twinguard App to add more Smoke
Alarms.

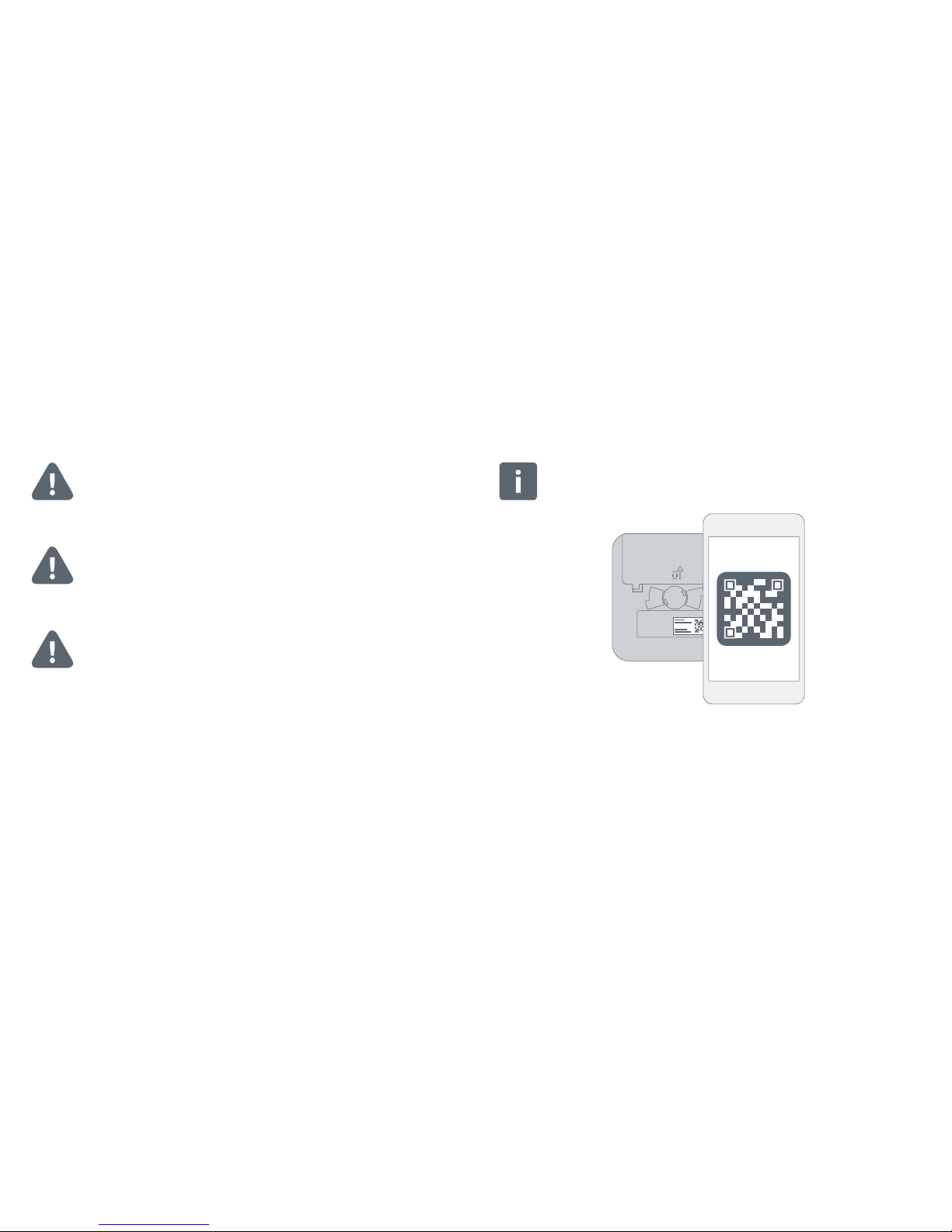

This will require scanning the
QR code found on the back of each
Smoke Alarm.

24 25
5.3 Activating the Twinguard
The Twinguard will become operational when the red pin has been
removed. Please note that inadvertently pressing the operating button
will trigger a test alarm.
When prompted by the app, activate
the Twinguard Smoke Alarm by remov-
ing the red pin on the back.

26 27
6.0 MOUNTING THE TWINGUARD
6.1 Mounting instructions
It is best practice to install several smoke alarms in your home to be
fully protected. As a minimum we recommend that they are installed in
every Bedroom, Kids room and in all hallways that serve as an escape
route. For the maximum effectiveness we recommend that additional
smoke alarms should be installed in living areas, attics and basements.

28 29
The Smoke Alarm should be mounted on the ceiling, its important to note certain
factors when choosing the best position.
▶ Mount the device in the center of the
ceiling. The maximum monitoring
area of an alarm is 60 m2. In large
rooms, an extra alarm should be
fitted for every 60 m2. The maximum
height a smoke alarm should be
installed is 6 m
▶ If being installed in Hallways (maxi-
mum 3 m wide), a smoke alarm must
be installed at least every
15 m along the length of the hallway.
There should be no more that 7.5 m
from a smoke alarm and the end of
the hallway. We recommend that a
smoke alarm is installed at all hall-
way junctions and corners
▶ In rooms that are divided into
multiple floors, it is recommended
that a smoke detector is installed
on each level where the ceiling area
is greater than 16 m², and the length
and width is over 2 m.
▶ If your ceiling is split by beams or
joints that protrude greater that
0.2 m, we recommend that multiple
Smoke Alarms are fitted if the ceiling
area created by the beams is greater
than 36 m2
> 20°> 20°
> 20°
> 1m
0.5 - 1m
0.5 - 1m
> 1m
0.5m

30 31
When choosing a mounting location and when drilling, pay attention
to potential electrical cables and/or supply lines that could be behind
the wall.
In order to prevent injury, the mounting instructions in this instruction
manual must be followed and the general safety regulations observed.
Align the straight edge of the mounting bracket parallel to the ceiling
edge of the desired room so the Smoke Alarm is parallel to the edge of
the room.
The kit includes two 3.5 x 30 mm countersunk cross-head screws and
two 5 mm universal wall plugs, which are suitable for fitting to concrete
ceilings.

32 33
6.2 Fixing with screws
▶ Hold the mounting bracket in the
desired position
▶ Mark the drill holes
▶ Drill the holes and insert the plugs
▶ Position the mounting bracket and
screw it on
▶ Now fit the Smoke Alarm to the
mounting bracket, align and rotate
in the direction of the arrows
▶ When you hear a “Click” your
Twinguard is mounted correctly
“Click”

34 35
7.0 MAINTENANCE INSTRUCTIONS 7.1 Visual inspection
We recommend you inspect and test your Twinguard
on a monthly basis.
▶ The smoke inlet openings along
the 360° light strip and the sound
outlets are not clogged (e.g. by dust,
dirt or paint)
▶ If necessary, clean the Smoke Alarm
carefully with a damp cloth
▶ Check for any damage and that the
bracket is still firmly fixed in place.
▶ Ensure that there is a clear space
of 0.5 m around your Twinguard so
smoke detection is not hindered

36 37
▶ To do this, briefly press the oper-
ating button. The alarm will sound
three times at a reduced volume, the
alarm LED and the LED light strip
will flash red and the emergency
lighting will turn on
▶ If the functional test was success-
ful, the 360° LED light strip will light
up blue for one second
By initiating a test or muting an
alarm using the operating button fire
detection is deactivated for the next
10minutes. It initiated or muted using
the APP, detection remains active.
7.2 Functional test
We recommend that you test your Twinguard immediately following
installation and every month following that. It should also be checked
following every battery change and software update.
If the signals described do not appear, the Smoke Alarm is faulty:
Please replace the product in this case.
Always press the Smoke Alarm’s operating button in the center at
the height of the Bosch logo.

38 39
Flash and fault codes, information about how to reset the Twinguard to
its factory settings plus much more can be found in the online FAQs at
www.bosch-smarthome.com/faq
Audible
signal
Visual
signal Cause Measure
Quiet
signal,
every 43 s
Yellow LED
flashes 3
times
every 43 s
Alarm faulty Replace the Alarm
Quiet
signal,
every 300 s
Yellow LED
flashes
once
every 300 s
Batteries nearly empty Replace the batteries
Quiet
signal,
sounds
every hour
–
Alarm OK, but
batteries in one of the
other alarms in the
network are nearly
empty
Look for a alarm whose
360° circumferential
LED light strip is flashing
yellow (once every 300 s)
and replace its batteries
8.0 ALARM AND TROUBLESHOOTING
8.1 Faults
8.3 Switching off the Smoke Alarm
If the alarm is triggered, please press
the operating button in the center of
the Smoke Alarm to mute it.
Alternatively you can silence the alarm
using the Twinguard App.
If the operating button is used to initiate the functional test or
switch off an alarm, both fire detection and the alarm is deactivated
for 10 minutes.
