BV7985
In-Dash AM/FM
DVD/MP3/CD Receiver
With 4.3 Widescreen TouchScreen
TFT Monitor
With Front Panel USB Port

2
Precautions
THANK YOU FOR PURCHASING THIS CAR DVD PLAYER .
Before operating the unit, read this manual thoroughly and keep it handy
for future reference .
To avoid injury or accident , read the following precautions before
installing and operating the unit .
ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL
NOTES ON CLEANING
Do not press on the LCD panel on the unit as doing so can distort the
picture or cause a malfunction . The picture may become unclear , or the
LCD panel may be damaged .
-Clean the LCD panel with a slightly damp soft cloth.
-Do not use solvents such as benzine, thinner, commercially available
cleaners or antistatic spray .
Do not use alcohol to clean the screen .
If your car was parked in a cold or hot place, the picture may not be clear .
The monitor is not damaged . The picture will become clear the temper-
ature in your car becomes normal .
-
DO NOT install any receiver in locations where;
- it may obstruct the steering wheel and gearshift lever operations, as this
may result in a traffic accident.
- it may obstruct the operation of safety devices such as air bags, as this
may result in a fatal accident.
- it may obstruct visibility.
DO NOT operate any receiver while manipulating the steering wheel, as
this may result in a traffic accident.
The driver must not watch the monitor while driving.
IF THE DRIVER watches the monitor while driving, it may lead to
carelessness and cause an accident.
IF YOU NEED to operate the receive while driving, be sure to look ahead
carefully or you may be involved in a traffic accident.
IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the
monitor, and no playback picture will be shown.
- This warning appears only when the parking brake wire is connected to
the parking brake system built in the car ( refer to the electric connection)
ON INSTALLATION

3
Safety Information
CAUTION:
WARNING:
REGION MANAGEMENT INFORMATION:
THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD
PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE
THE DVD PLAYER CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners.Use of this
copyright protection technology must be authorized by Macro vision Corporation,
and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
This DVD Player is designed and manufactured to respond to the Region
Management Information that is recorded on a DVD disc. If the Region number
described on the DVD disc does not correspond to the Region number of this
DVD Player, this DVD Player cannot play this disc.

Disc Notes
Preparing New Discs with
Spots
Rough
A new disc may have rough edges on
its inside and outside edges.If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc.Therefore,
remove the rough edges in advance
by using a ball point pen or pencil as
shown on the right.To remove the
rough edges, press the side of the pen
or pencil against the inside and outside
edges of the disc.
Rough spots
on
outside edge
Ball point pen
or pencil
Rough spots
on inside
edge
Do not touch
the
underside
of the disc
Do not
bend
Wipe the disc from
center
toward the outside
edge
Label side
up
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Handling and Cleaning
Dirt, dust, scratches and warping disc
will cause misoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
A disc should always be kept in its
case when not in use to prevent from
damaging.
Do not place discs in the following
places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Discs which cannot be played
with this player
DVD-ROM
DVD-R/DVD-RAM
CDV
CD-G
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
4
Disc formats supported by this
player
DVD
VCD
CD
MP3
Audio and Video
Discsize12cm
Audio and Video
Discsize12cm
Audio
Discsize12cm
Audio
Discsize12cm

Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure
all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or
modifications of the vehicle.
Install the unit where it does not get in the driver s way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.
If installation angle exceeds 30 from horizontal, the unit might not give its
performance.
Avoid installing the unit where it would be subject to high temperature, such
direct sunlight, or from hot air, from the heater, or where it would be
dirt or excessive vibration.
This unit can be properly installed either from "Front"(conventional DIN
or "Rear"(DIN Rear-mount installation, utilizing threaded
the unit chassis). For details, refer to the following
illustrated installation methods.
NOTES:
DIN FRONT/REAR-MOUNT
it is
of
other
optimum
as from
subject to dust,
Front-mount)
screw holes at the sides of
'
Installation
5
30

Installation
6
If you want to take CHASSIS out of the SLIDE BRACKET HOUSING,
first remove the PLASTIC COVER of the both sides away, then insert
the two KEY PLATE into left and right side of chassis as above illustration.
DASH BOARD
METAL MOUNTING
STRAP
HEX NUT
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
CONSOLE
SLIDE BRACKET
HOUSING
HEX BOLT
KEY PLATE
KEY PLATE
PLASTIC COVER

7
Installation
How To Remove And Install The Front Panel
When detaching or attaching the control panel, be careful not to damage the
connectors on the back of the control panel and on the panel holder.
Detaching The Front Panel
Before detaching the control panel, be sure to turn off the power.

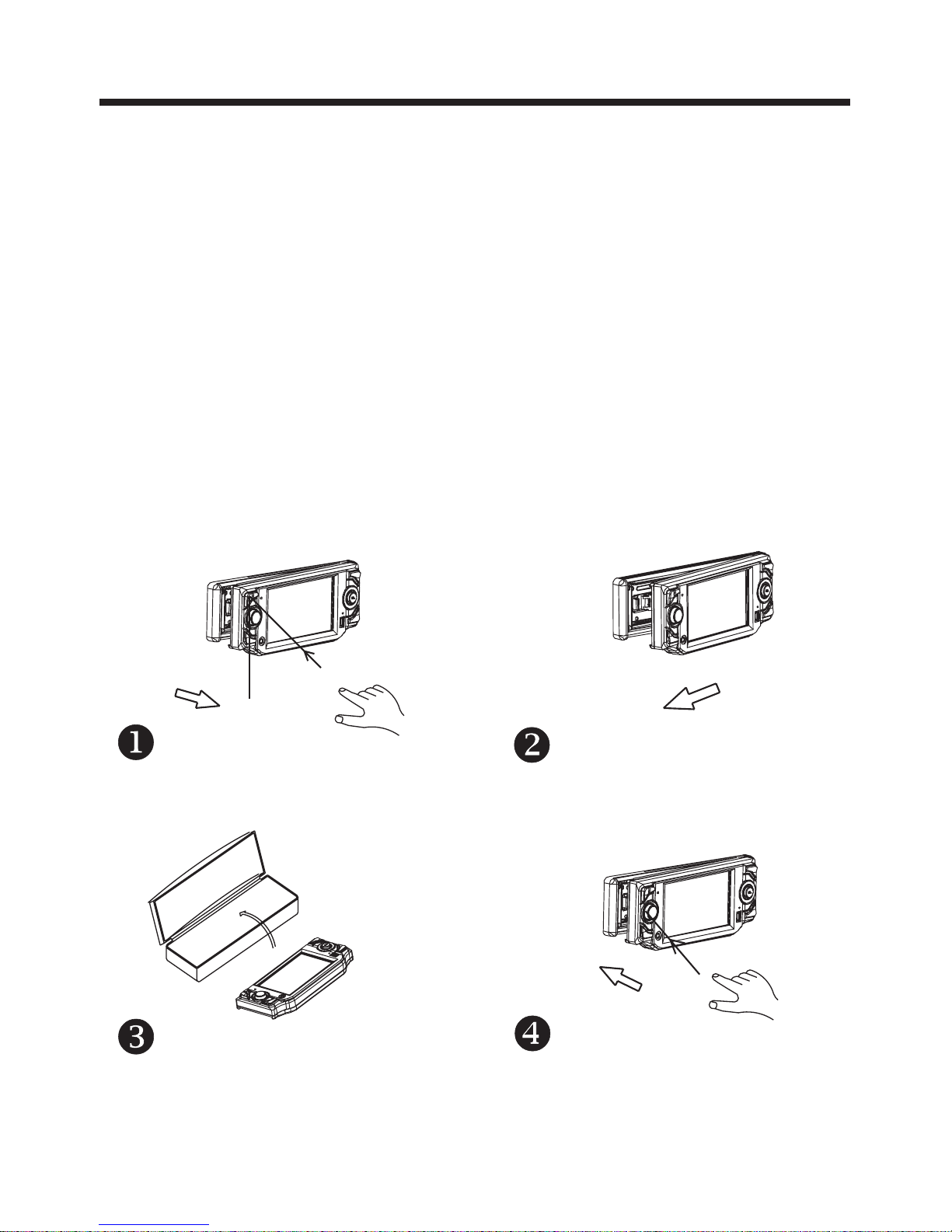

1). Press the release button and the left hand side of the front panel will release.
(FIG. 1)
2). Pull-off the front panel (FIG. 2) and keep the front panel into the case (FIG. 3)
Attaching The Front Panel
1). First insert the right hand side of the front panel into the hollow of the unit .
2). Gently push the left hand side of the front panel until you feel a “ Click” .
and then press the PWR button (2) briefly to switch the device ON.

Panel Angle Adjustment
8
Caution:
Do not insert your finger behind the control panel.
When you want to change the viewing angle of the operating unit to play,
you can touch the secion on the touch screen (or press the button
on the panel ) repeatedly to select the desired angle as follows:

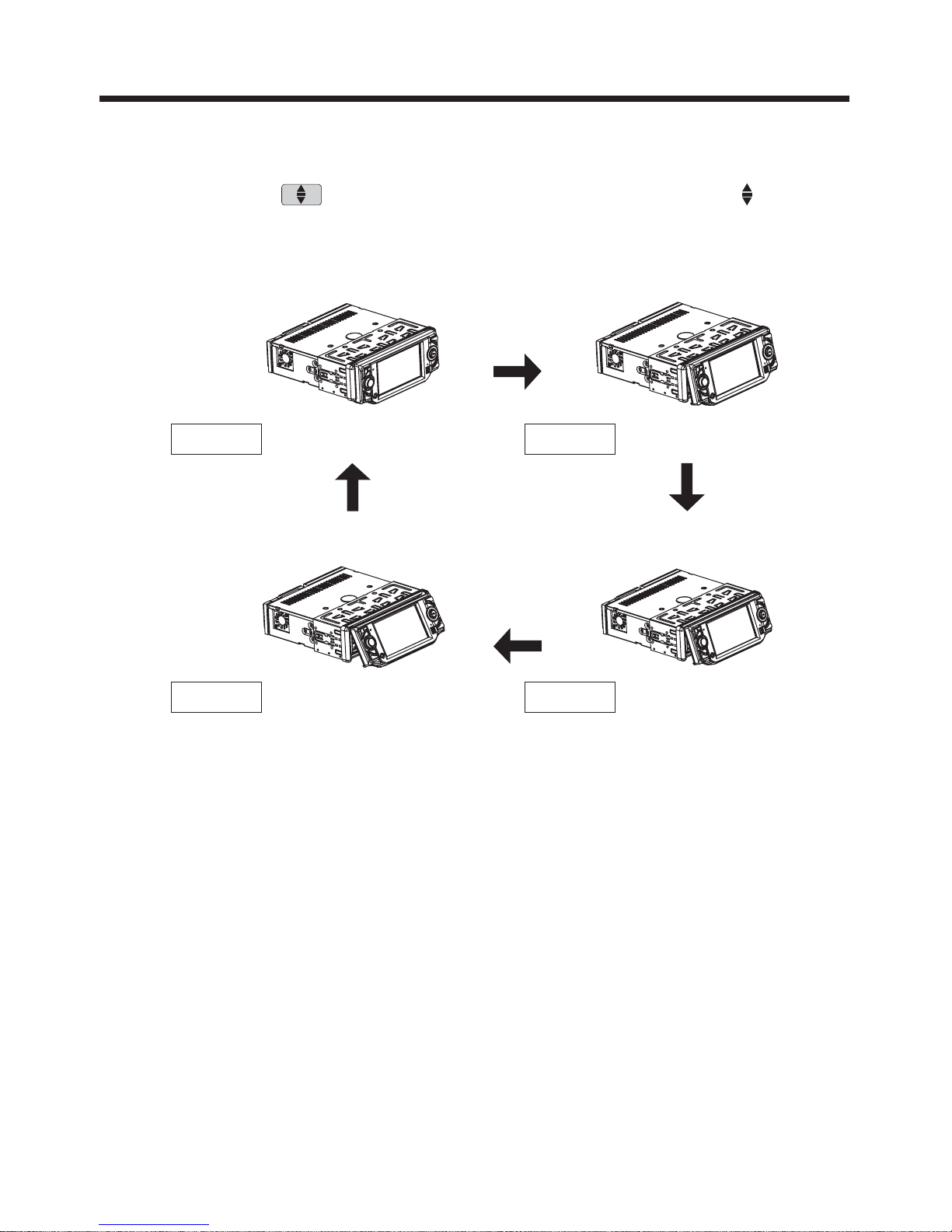

CHANGING THE CONTROL PANEL ANGLE
Angle 3Angle 4
Angle 1 Angle 2

Electric Connection

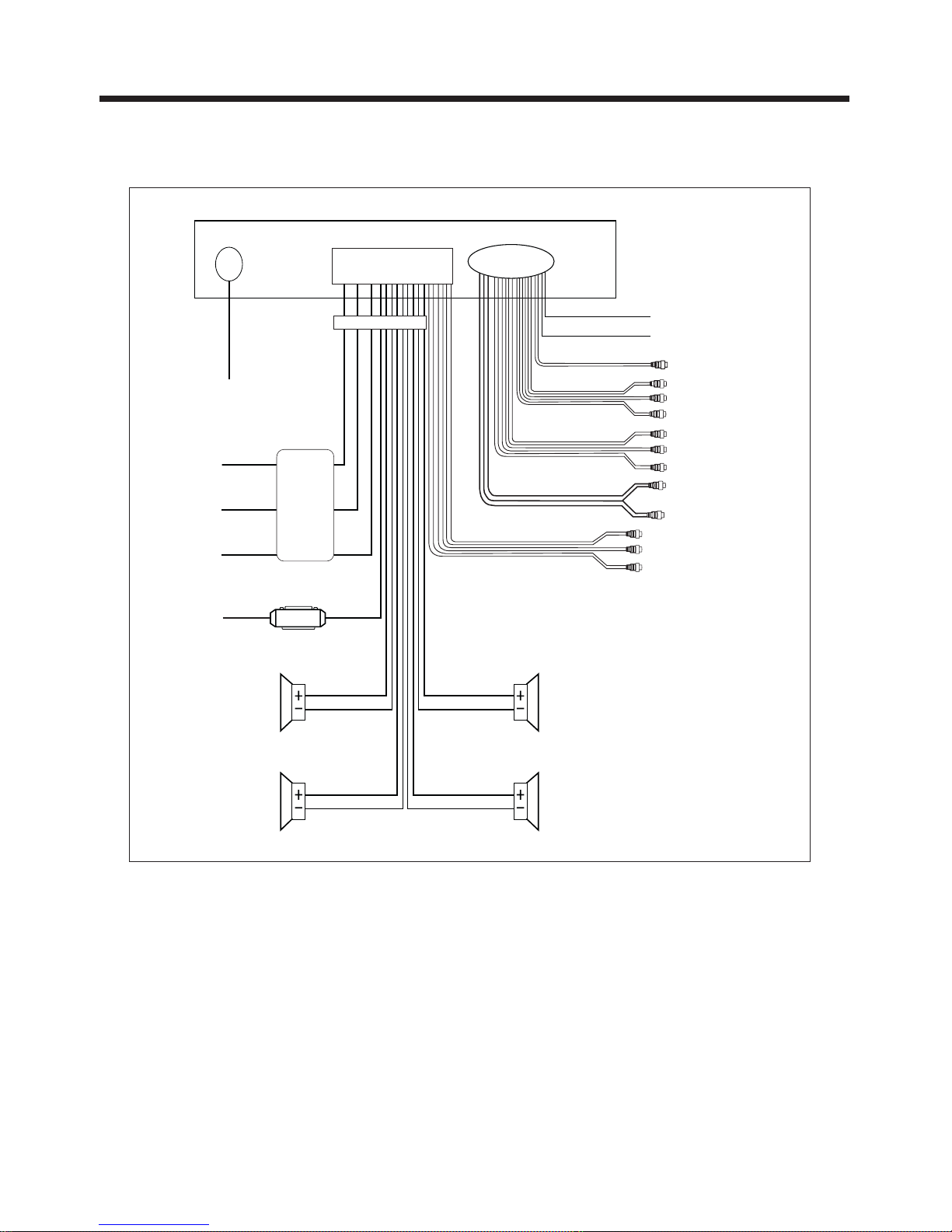

WIRING CONNECTION
9
Note:
The (B-) parking brake wire must be connected in order for video images to
appear on the monitor. If the wire has not been correctly connected,
the message “PARKING BRAKE” appears on the monitor.
(This wire must be connected to the (-) negative side of the parking brake system
of your vehicle. Once you engage the parking brake system, you will be allowed
to watch the video.)
VIDEO IN YELLOW
RCH IN RED
LCHINWHITE
GREY SUBWOOFER
VIDEO OUT 2 YELLOW
COAXIAL OUT BROWN
WHITE (B+)12V
REAR CAMERA SWITCH
GREEN
YELLOW
AUX(optional)
RCA CABLE
REAR CAMERA INPUT
(B-)PARKING BRAKE
FRONT RCA WHITE L
RCH RED
LCH WHITE
FRONT RCA RED R
VIDEO OUT 1 YELLOW
REAR RCA OUTPUT
CABLE (optional)
FRONT RCA OUTPUT
CABLE
(FOR RCA LINE OUT VERSION ONLY)
GREY
GREY/BLACK
FRONT
Rch SPK.
VIOLET
VIOLET/BLACK
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
REAR
Lch SPK.
AUTO
ANTENNA BLUE
FUSE
GROUND(B-)
MEMORY
BACK-UP(B+)
IGNITION
SWITCH(B+)
ANTENNA CONNECTOR
RED
YELLOW
BLACK
MAIN UNIT
REAR
Rch SPK.
FRONT
Lch SPK.
CHOKE
BOX
ISO CONNECTOR

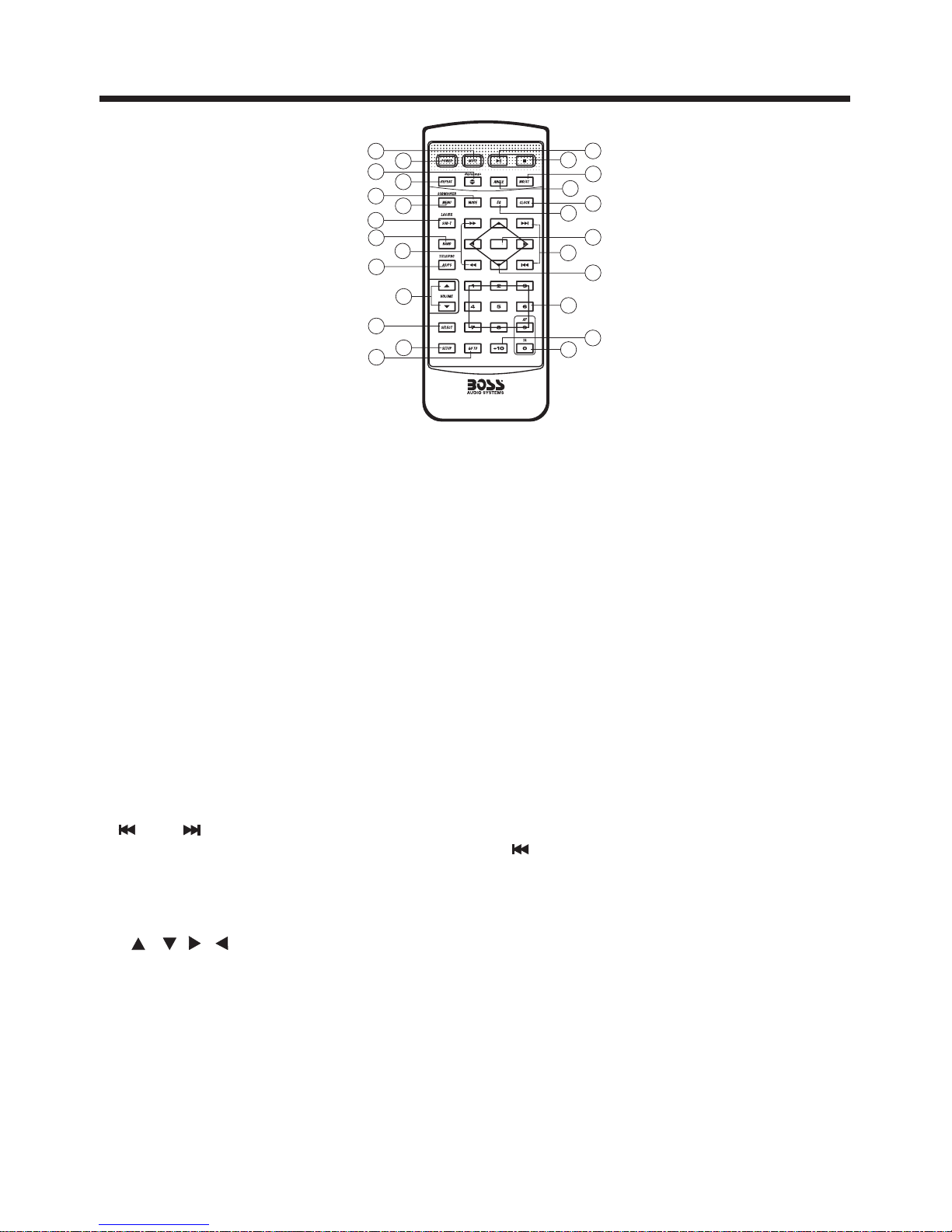

Remote Control
10
1.CLK
2.MODE
3.STOP
4.SETUP
Press this button to view the clock time. Press again to return to normal
display mode.
Press repeatedly to cycle through the various modes:
RADIO>DISC>AUXIN.
Press once to pause playback. Press PLAY/PAUSE to resume playback.
Please note: if you press STOP twice, playback will start at the beginning
of the disc.
Press this button to open the SETUP menu.
In Radio mode, press this button to change between Mono and Stereo
reception modes (when a station is weak, sometimes switching to Mono
will improve sound quality). In Disc Playback mode, pressing this button
opens the AUDIO setup menu for making changes to the way the
soundtrack is reproduced.
In DVD Disc Playback mode, pressing this button will allow you to change
the subtitle language on discs which have this as an option. In Radio
mode, press this button to change the radio reception sensitivity in
stations are near or far.
Pressing this button will open a menu presenting you with the playback
repeat options available for that kind of disc.
Press this button to begin playback at a moment in the program you
designate. Use the number buttons to enter the data that is needed.
Press these buttons to skip ahead or back one track.
Press this button repeatedly to cycle through the various audio and video
adjustments you can make: VOLUME, BASS, TREBLE, BALANCE,
FADER, COLOR, BRIGHTNESS, CONTRAST and TINT.
Use these controls to adjust the volume level.
Use these buttons to navigate the various menus present in the product.
Press this button briefly to display the root level directory of a DVD disc.
Press and hold this button to turn on or off the SUBWOOFER output.
In Radio mode, press this button repeatedly to switch between the five
radio bands: FM1 > FM2 > FM3 > AM1 > AM2. In Disc Playback modes,
Press this button to see information about the disc currently in play.
Press to turn the unit on or off.
In Disc Playback mode, press to pause playback. Press again to start
where playback stopped. In Radio mode (when RDS mode is engaged),
press this button to make a selection within the PTY stations available.
Press this button to turn off the audio. Press again to restore the sound
to its prior volume level.
(Note: In DVD
mode, press continually the twice to skip back one)
6. SUBTITLE
LOCAL/DISTANT
7.REPEAT
8.GOTO
9. and
10.SEL
11. VOL+/VOL-
12. / / /
13.MENU
SUB WOOFER
14.BAND(OSD)
15.POWER
16.PLAY/PAUSE
17.MUTE
5.MO/ST(AUDIO)
17 15
19
13
14
7
2
6
11
18
316
5
20
1
21
26
9
12
10
4
8
25
23
22
24

Remote Control
11
Using the Remote Control
When you use the remote, be sure to be no more than six feet from the IR receiver
on the unit, and within 30º to the left or right of the IR window. Beyond these ranges,
the remote control may not communicate properly with the unit.
Preparing the Remote Control
1. Press the release catch on the battery drawer in the direction shown in the picture
below ( ) . Then with your fingertip pull the drawer out ( ).
2. Take careful note of the polarity of the battery before you remove it.
The (+) terminal must be UP as shown in the picture below ( ).
3. Insert a new battery, and push in the battery drawer until you feel a "click." ( )
Inserting the Battery
1
2
3
4
20.ANGLE MARK
BUTTON
21.EQ
23.ENTER
24. 0-9 NUMBER
BUTTONS
25.+10 BUTTON
26. RADIO PRESET BUTTONS
18.TITLE/PBC
(Playback Control
mode),
AP (Auto-Program
mode).
When playing a DVD, pressing this button will open the TITLE
menu which is recorded on the DVD. When playing a VCD disc,
press this button to create a PBC (Playback Control) menu for
the disc to assist in making playback selections. In Radio mode,
press and hold this button to start the Auto-Program mode,
during which the tuner will scan for all strong stations and assign
them to the radio preset buttons.
Press this button to adjust the screen viewing angle (see page 7).
For DVD discs which have alternate viewing angles encoded,
when you see the "angle mark" symbol advising you that these
angles are available, press this button to see them.
Press repeatedly to cycle through the different equalizer curve
presets you may wish to use for enhanced listening.
In Disc Playback mode, press for fast forward/reverse playback.
This button is used to confirm selections and settings within
many of the menus in the OSD system.
These buttons are used for numeric entry in many different
menus. In addition, in Radio Mode (when RDS is engaged),
0servesastheTAbuttonand9servesastehAFbutton.
This button is used with the other number buttons for use with
two-digit number entries.
19.
22. and

1
12
3
16 2
17
6
7
4
11
14 8 5
9
10
13
15
5
SEL
CH1-6
MU/PTY
CH
X
18
Control Panel
Touch Panel
Key Functions
12
AUX IN
LUD SWF POP 11:08 DISC
VOLUME- SEL VOLUME+
MOD
AFTA
10.Volume- : volume adjustment (-)
Touch Screen Key :
6.MOD : operating mode selection .
7. : Previous
2.TA : Turning pre-switching for traffic
announcements on and off . (For RDS)
3. AF : Switch on and off
and alternative frequency. (For RDS)
1. (Angle) : Changing the viewing
angle of the operating unit .
4. (Eject) :Touch it to insert and
eject the DISC .
8.Volume+ : volume adjustment (+)
9.SEL : select the menu of the
Sound/Picture
5. :To switch of the sound .

13

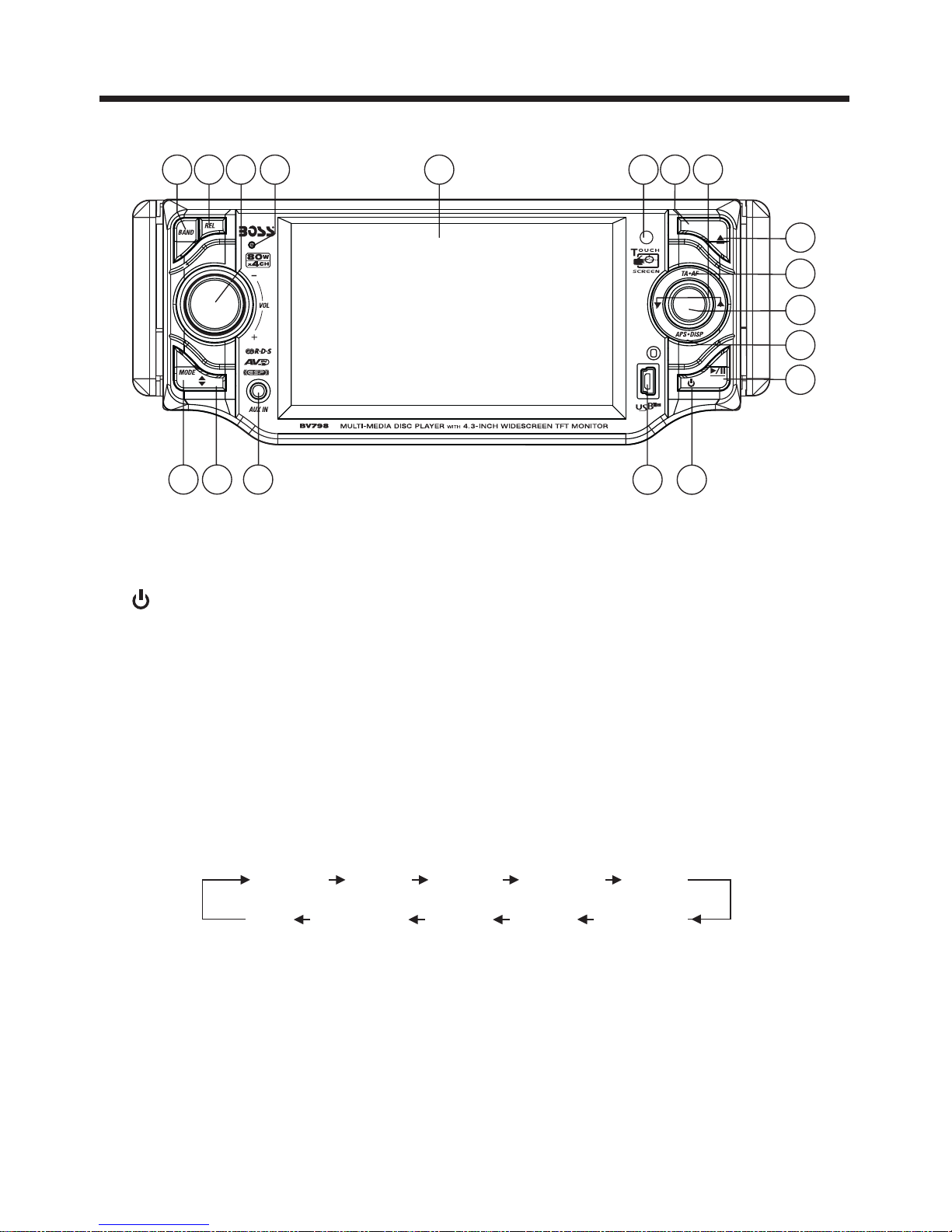

Unit Keys :
1.REL BUTTON
Press this button to release the front panel for removal . Refer to see page 7.
Control Panel
3.VOL+/ VOL- knob
In normal mode, this knob is used to increase or decrease the volume. It is also
used as an UP/DOWN knob when audio or video settings are being adjusted
when accessed using the SELECT button.
5. BAND BUTTON
press it repeatedly to select the desired radio band: FM1, FM2,
FM3, AM1(MW1), AM2(MW2) .
In Radio mode,
4.SELECT KNOB
To access the available adjustment settings for audio and video, press this knob
repeatedly to cycle through and select them:
Tint Contrast Bright Color BG Color
Volume Bass Treble Balance Fader
2. (POWER On/Off )BUTTON
Press this button to switch the device on. WELCOME appears in the display.
Press it again to switch the device off. SEE YOU appears in the display.
6. TA/AF BUTTON
TA Function [traffic Announcement] Button(for Rds Only)
In RADIO mode
When you press the TA/AF button briefly , the TA function is activated,
the TA symbol appears in the display .(press it again to turn off the TA mode).
1
12
3
16 2
17
6
7
4
11
1814 8 5
9
10
13
15
5
SEL
CH1-6
MU/PTY
CH
X

Control Panel
14
8. MU (MUTE)/PTY BUTTON
Press this button briefly to select the MUTE or NOT .
press this button and hold for a bout 2 seconds to select the PYT
of the grogram type (examples of such types of program are : NEWS, POP.....)
In Radio Mode,
10. /CH 1-6 BUTTON(RADIO PRESET)
In Disc Playback Mode
In Radio Mode
a).
Press this button to pause playback, press it again to resume playback.
B).
Press this button repeatedly to preset station. (Please refer to see page 20 .)
9. ANGLE (Screen position)
Press this button repeatedly to cycle through the different positions.
Longer press the TA/AF button , the AF function is activated. The AF symbol
appears in the display . (Longer press it again to cancel this function .)
The function about RDS to see page 20 .
Note: In Radio mode, press and hold the SEL knob for a long time to access the
selection menu: REG ON/REG OFF, PI MUTE/PI SOUND, AF ON/AF OFF .
Repeatedly the SEL knob to select the item and by using the VOL+/- to change .
AF [Alternative Frequencies]
7. APS, DISPLAY FUNCTIONS (using the SELECT knob)
In Radio mode, swing the SEL knob briefly in the APS/DISP direction , the radio
briefly plays all the preset stations of the frequency band .
In Radio mode, swing the SEL knob in direction of the APS/DISP for about 2
seconds to active automatic station storage. The radio searches within the
current frequency band, e.g. Fm1, for the stronger signal level until the search
cycle has finished . The six strongest stations are then allocated to the correspo-
nding storage locations . Then the station of the first storage location is set .
Scan Function
Automatic Preset Setup
Display ON/OFF Function:
In Disc mode, swing the SEL knob briefly in the direction of APS/DISP to turn off
the display image (the monitor on the unit only) , the sound will stay on.
(Swing it again to resume the playback picture mode.) You can press SEL knob
briefly to select the “BG COLOR” by repeatedly pressing the SEL knob, then
rotate the VOL+/- to select the background color among of the
“AUTO, BG COLOR: 01........BG COLOR: 11”, in “ AUTO” mode, the monitor of
unit will change the background color automatically .

15
14. RESET button
Press this button can return to the original setup .
15. IR sensor
13. (EJECT) button
Press it button to eject the DISC or insert the DISC to start play .
16. AUX Input Jack
For information about connecting a AUX device, please see page 25 .
17. USB PORT
For information about connecting a USB device, please see page 35.
18. TFT Display (liquid crystal display)
The operation of the TFT, please see page 17.
Control Panel
b) In Radio Mode:
Move the SEL button in the direction of or in order to set a radio station
manually. Keep the SEL taste pressed down in the or direction in order to
start the search for a radio station automatically.
11. / BUTTONS (TUNE, SEEK, TRACK, SKIP UP/DOWN)
a) In DISC, USB mode:
if you wish to jump forwards or backwards press the SEL button (4) briefly in
the or direction. (Note: in DVD mode, press the SEL button continually
twice in direction to skip back one track during playback.)
To wind through the tracks keep the SEL button pressed in the or direction
for about 2 seconds. FF X2 appears in the display. Operating the SEL button
again, the speed of rapid forward/reverse changes according to the disc
as follow:
DVD/VCD/CD/MP3:
Normal Playback 2x 4x 8x 16x
12. MOD BUTTON
Press it repeatedly to select AUX IN , RADIO and DISC mode.
During the USB playback, you can press STOP button and then press GOTO
button to select the DISC mode.

16
Basic Operation
Setting The Clock
Touch the CLK section on the
screen and hold for about 2
seconds the hour will flash ,
rotate the VOL+/- to adjust .
Touch it again, the minute
will flash, then use the VOL+/-
to adjust .
Setting The Buzzer ON/OFF
Touch the SEL section on the
touch screen to select the
BUZZER item, and then touch
the VOL+/- (or rotate the vol+
/vol-) to switch the BUZZER
ON/OFF .
Touch the screen the
VOLUME- to decrease
the volume level .
Touch screen
Touch the screen the
VOLUME+ to increase
the volume level .
Setting Blue-tooth ON/OFF
Touch the SEL section on the
touch screen to select the
Blue-tooth item, and then
touch the VOL+/- (or rotate
the vol+/-) to switch the Blue-
tooth ON/OFF .
Press it to switch the device ON,
press it again to switch the
device OFF.
POWER On/Off
B
Press the VOL+/- on remote control ,
to change the volume level .

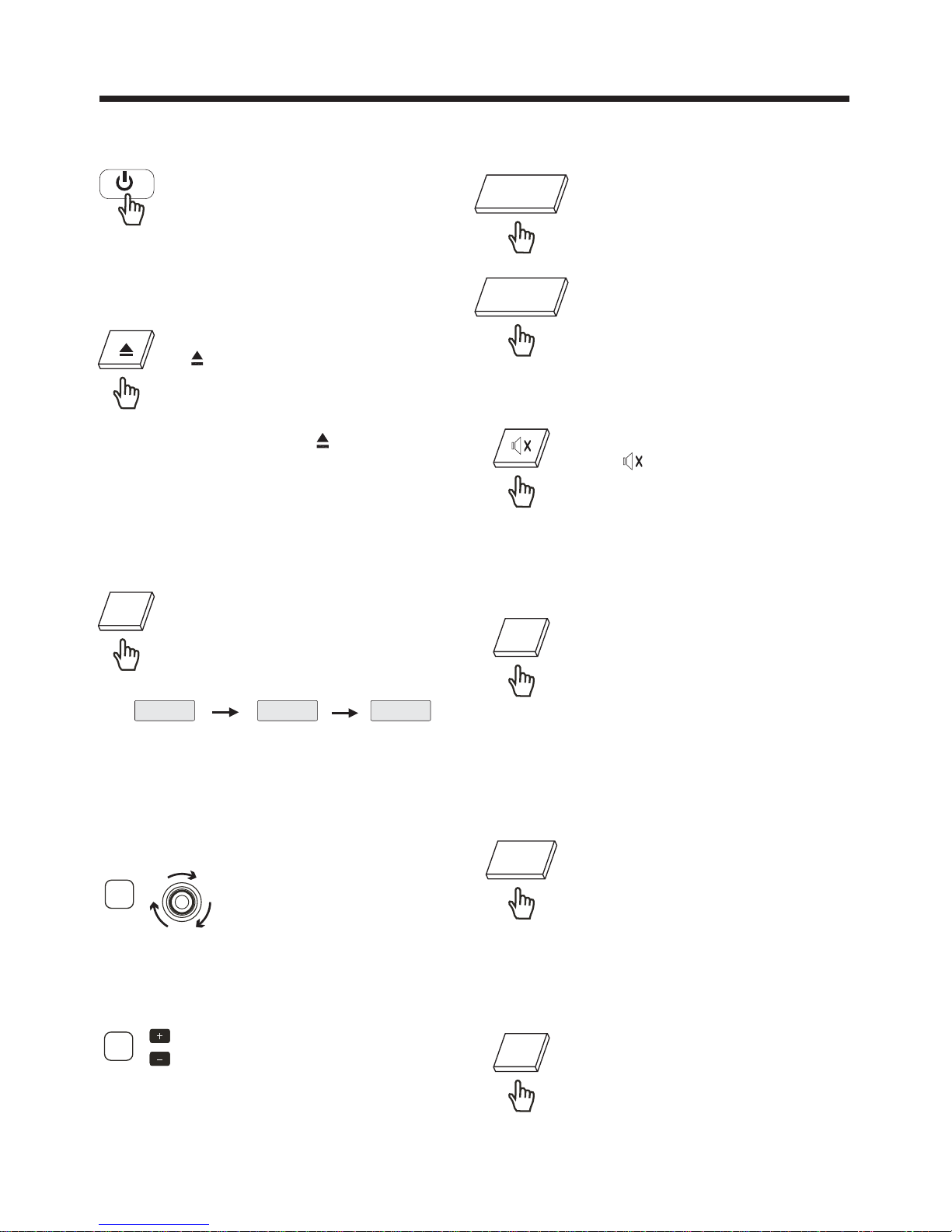

Volume Adjusting
Volume button
A
Revolve : clockwise to increase /
Anticlockwise to decrease .
SEL
CLK
Buzzer
VOLUME-
VOLUME+
Ejecting The Disc
Use your singer touch the
range on touch screen ,
the control panel of the unit
will swing downwards . Then
you can insert the disc or eject the disc .
(You can also press the button on the
front panel to eject the disc or insert the
disctostartplay.)
Mute Function
Use your finger touch
the section , it will
mute the sound but the
disc continues playing.
Touch it again to resume .
Select Sources
Touch the MOD
section on the screen, the
signals will display in the
screen as follow :
repeatedly
MOD
DISC AUX IN RADIO

17
TFT Monitor Adjustment
During DISC playback, use your
finger touch briefly the SEL
section on the screen (or press
SEL button on front panel
mode
)
to across the Picture
selection menu, by repeatedly touch the
SEL section, and then touch the VOL+/-
(or rotate the VOL+/-) to adjust the
selected mode .
(The corresponding value will show on
the monitor )
COLOR: 0 to 32
Adjust the color fo the picture-lighter or
darker.
BRIGHT:0to32
Adjust if the picture is too bright or
too dark.
CONTRAST: 0 to 32
Adjust the contrast of the bright and dark
portion.
TINT:0to32
Adjust the tint if the human skin color is
unnatural.
-Adjustable when NTSC is selected for
NTSC/PAL .
ADJUSTABLE ITEMS:
““
““
Rear View Camera
When connecting the rear view camera.
the mirror image of the rear view through
the rear view camera is automatically
displayed on the monitor when you
change the gear to the back position.
(The monitor on the unit only.)
Basic Operation
Audio Quality Adjustment
During DISC playback, use your
finger touch briefly the SEL
section on the screen (or press
SEL button on the front panel )
to across the Sound mode selection
menu, by repeatedly touch the SEL
section, and then touch the vol+/-
(or rotate the vol+/-) to adjust the
selected mode . (The corresponding
value will show on the monitor )
It`s depend on your habit to setup the data .
ADJUSTABLE ITEMS:
Volume:
Bass:
Treble:
0to32
Adjust volume level by using VOL +/-.
-14to+14
Adjust bass level by using VOL +/-.
-14to+14
Adjust treble level by using VOL +/-.
SEL
SEL
LUD SWF POP 11:08
DISC
DVD 11-0:44:36
MOD
SEL VOL+VOL-
touch to adjust
touch to select
Volume Bass Treble Balance
Contrast Bright ColorTint
FadeBuzzer
Volume Bass Treble Balance
Contrast Bright ColorTint
FadeBuzzer
LUD SWF POP 11:08
DISC
DVD 11-0:44:36
MOD
SEL VOL+VOL-
touch to adjust
touch to select

18
Reset Factory Settings
RESET button is placed on the housing
and must be activated with either a
ballpoint pen or thin metal object.
TheRESETbutton istobeactivatedfor
the following reasons:
VOL
RESET
NOTE:
If RESET is selected, all memory data
will deleted, please re-adjust .
Basic Operation
Balance:
Fader:
R0-10toL0-10.
Adjust sound balance between left
and right speakers by using VOL + / -
F0 10toR0-10.
Adjust sound balance between front and
rear speakers by using VOL + / VOL - .
.
-
Touch the screen the DSP range
(or press the EQ/LOUD button
on the remote ) to select one of
the preset sound modes .
(Rock/Pop/Jazz/Classic/Flat) .
The information will display in the
monitor as follow :
Setting Audio Modes
It`s depend on your habit to select the Audio mode .
A. Initial installation of the unit when
all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.
POP
FLAT
ROCK
CLASSIC
JAZZ
DSP
DVD 11-0:44:36
LUD SWF POP 11:08
DISC
OSD
TA AF
CLKSWF LUD DSP
RDM INT RPT
touch to select

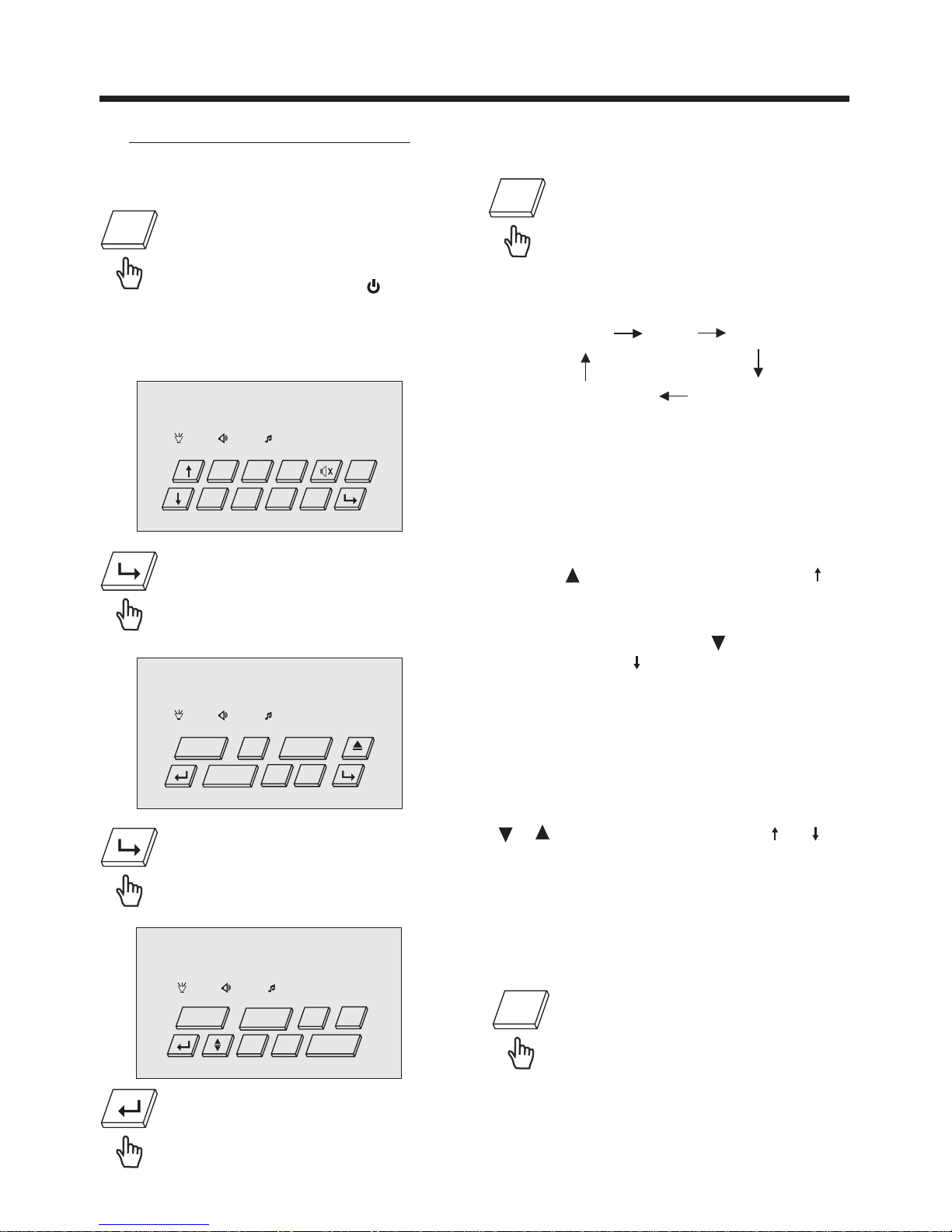

Scroll Caption Adjustment
In Radio mode:
You can adjust your desired scroll
caption , the method of the operation
as follow:
a). Press and hold the SETUP button
(for about 2 seconds) on the remote
control, the adjustment scroll bar
will display on the screen .
b). Use the VOL+/- to select among of
the “A, B, C ....X, Y, Z, and blank ”,
and use the / button on the
front panel to ahead/back (proceed/
cancel) , and then press the SETUP
button briefly to confirm .
FM1 106.30 MHz
ST DX TA
LUD SWF POP 11:08
DISC
(Press it button longer again to renew . )

Radio Operation
19
Listening to the Radio
Start Searching For a Station
Selecting The Frequency Band
FM1 FM2 FM3
AM2(MW2) AM1(MW1)
Touch the BND section on the
touch screen repeatedly to select
the band , screen band will show
in turn :
You can also press the BND on front
panel repeatedly to select the band .
(
)
BND
When an FM stereo broadcast is
hard to receive
Touch the ST/MON section on
touch screen (or press ST/MO
button on the remote) to select
the MONO or STEREO mode .
(
)
When Stereo mode is activated, the ST
symbol will appear .
ST/MON
Touch it to previous .
Touch it to select the other item,
it will display the following
as below :
Touch it to select the other item .
Switching To Radio Mode
Touch the MOD range repeat-
edly on the screen to select the
RADIO mode. (You can also
press repeatedly the / MOD
button to select the RADIO .)
the following information will appears\
on the display :
MOD
FM1 106.30 MHz
ST DX TA
CH
6
LUD SWF POP 11:08
DISC
4 5 6
2 31 MOD
BND
FM1 106.30 MHz
ST DX TA
CH
6
LUD SWF POP 11:08
DISC
SEL
ST/MON
VOLUME- VOLUME+
APSLOC
FM1 106.30 MHz
ST DX TA
CH
6
LUD SWF POP 11:08
DISC
TA AF
PTY
DSP CLK
SWF LUD
During Radio mode, swing the SEL
knob in direction (or touch the “ ”
section briefly) to increase frequency
by one step of channel spacing .
Swing the SEL knob in direction
(or touch the “ ” section briefly) to
decrease frequency by one step of
channel spacing .
Manual Search
Automatic Search
During Radio mode, swing and hold
(for about 2 seconds )the SELknob in
/ direction (or touch the
section long) to start search for a radio
station automatically .
/
