Bradley Terreon MF2922 Quick start guide

P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
[phone]
bradleycorp.com
Parts & Service
Terreon Multi-Fount Washfountain
Discontinued Models Prior to
February 1, 2013
MF2922
Corner-Fount™
MF2933
Tri-Fount™
MF2939
Tri-Fount, Wall-Hung
MF2944
Quadra-Fount™
MF2949
Quadra-Fount™, Wall-Hung
Table of Contents
Infrared......................................................................................... 2
Air Metering (AST4)..................................................................... 8
AST4 and IR Supply and Mixing Valve...................................... 14
Battery Infrared (BIR) ................................................................ 16
TouchTime (TT) ......................................................................... 24
Thermostatic Mixing Valve Troubleshooting............................... 27
Soap System ............................................................................. 30
Drain Spud and Strainer ............................................................ 33
Floor Pedestal Assembly ........................................................... 34
Wall Mount Pedestal Assembly ................................................. 35
Sprayhead Covers .................................................................... 35
Pedestal Panels ......................................................................... 37
Bowl Assembly........................................................................... 38
Terreon®Cleaning and Maintenance ......................................... 39
215-1448 Rev. C; ECN 17-00-014
© 2017 Bradley
Page 1 of 39 9/28/2017
MF2922 (AST shown)
MF2939 (AST shown)
MF2949 (AST shown)
MF2944 (AST shown)
MF2933 (AST shown)
Part numbers are subject to
change without formal notice.

Terreon Multi-Fount Washfountains Parts and Service
29/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014
Infrared (IR) — Sprayhead (24V Plug-In Transformer)
Item Part No. Description Corner Tri Quad
Qty. Qty. Qty.
1 269-1608 Sensor - Adaptive 2 3 4
- P10-569 Hook and Loop Fastener Strip (sensor mounting) 2 3 4
2 269-1190 Window 4 6 8
3 115-131 Sprayhead 2 3 4
4 176-119 Threaded Rod 4 6 8
5 140-748 Backplate 2 3 4
6 161-026 Nut 4 6 8
7 142-002BS Lockwasher 4 6 8
8 269-871 Fitting Straight (front sprayhead) - 1 2
9 269-628 Fitting Swivel 90° (side sprayheads) 2 2 2
10 R68-60011-R Tubing 1/4", Red * * *
10 R68-600011-G Tubing 1/4", Green * * *
10 R68-600011-B Tubing 1/4", Black * * *
10 R68-600011-Y Tubing 1/4", Yellow * * *
Parts List — Infrared Sensor and Sprayhead Assembly
1
10
1
2
3
4
5
6
7
8
9
* Specify length in feet

3
Parts and Service Terreon Multi-Fount Washfountains
Bradley • 215-1448 Rev. C; ECN 17-00-014 9/28/2017

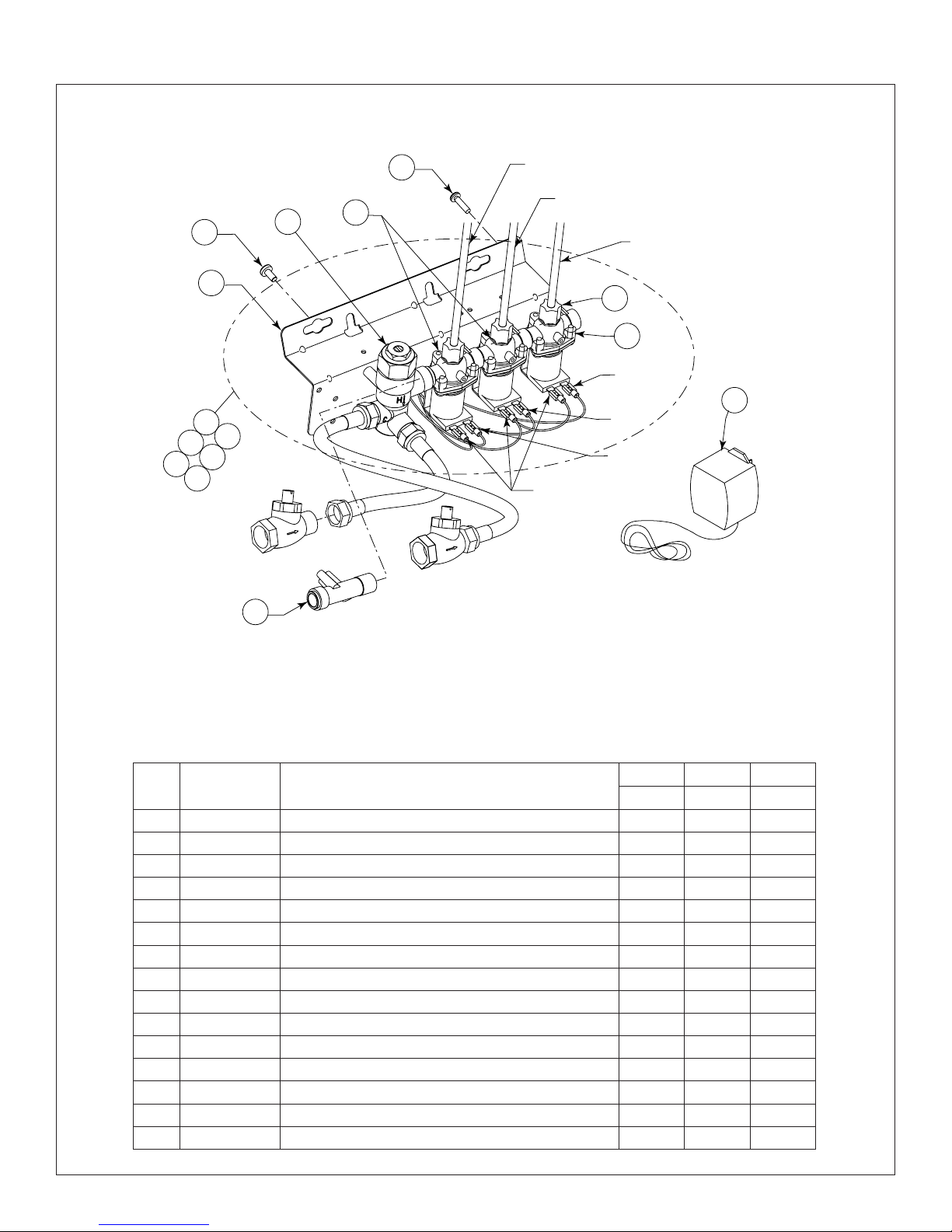

Infrared (IR) — Valves (24V Plug-In Transformer)
Prior to February 1, 2013
Item Part No. Description Corner Tri Quad
Qty. Qty. Qty.
1 S45-2084 IR TMA Dual valve Assembly (includes items 7-13) 1 - -
2 S45-2085 IT TL Dual Valve Assembly (includes items 8-14) 1 - -
3 S45-2090 IR TMA Tri Valve Assembly (includes items 7-13) - 1 -
4 S45-2091 IR TL Tri Valve Assembly (includes items 8-14) - 1 -
5 S45-2162 IR TMA Quad Valve Assembly (includes items 7-13) - - 1
6 S45-2163 IR TL Quad Valve Assembly (includes items 8-14) - - 1
7 S01-520 Vernatherm Valve, 4 GP 1 1 1
8 140-928 Bracket, Ganged Valve 111
9 P18-054 Screw 10-24 x 3/8 PN 2 2 2
10 S07-068A Solenoid Valve, 24 VAC, through 123
11 S07-068 Solenoid Valve, 24 VAC, closed 111
12 110-231 Compression Nut, 1/4" 2 3 4
13 160-447 Screw 8-16 x 5/8 PN 2 3 4
14 S39-685 Adapter, Valve Inlet 111
15 S83-152 Transformer 1 1 1
Parts List — Solenoid Valve Assembly and Valve Parts
1
24
5
6
3
9
7
12
11
8
13
14
10
15
Black Supply Tube
(From Sprayhead)
Green Supply Tube
(From Sprayhead)
Red Supply Tube
(From Sprayhead)
Red Spade
Terminal
Green Spade
Terminal
Black Spade
Terminal
White Jumper
Terminals
Tri-Fount Shown

Terreon Multi-Fount Washfountains Parts and Service
49/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014

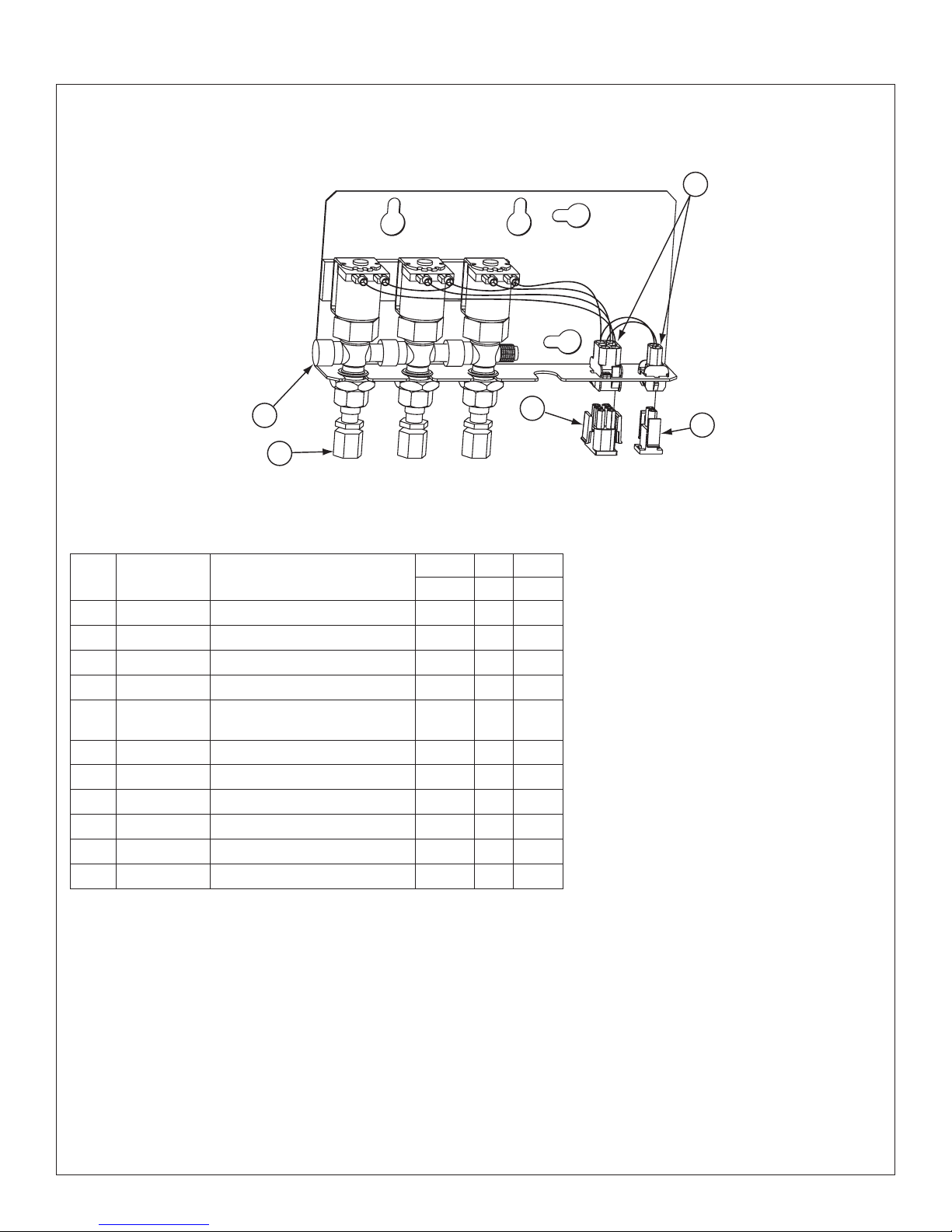

Infrared (IR) — Sprayhead (24V Plug-In Transformer)
Prior to June 13, 2005
15
14
17
16
18
3 Station Shown
Item Part No. Description Corner Tri Quad
Qty. Qty. Qty.
* S08-088 2 Valve Assembly with Bracket 1 - -
- S08-344 3 Valve Assembly with Bracket - 1 -
* S08-345 4 Valve Assembly with Bracket - - 1
*15 269-1365 Hose (Supply Inlet) 1 1 1
16 S83-152 Transformer 24 VAC
(269-901 no terminals)
1 1 1
*17 S83-145A Wire Harness 2 Solenoid 1 - -
17 S83-144 Wire Harness 3 Solenoid - 1 -
*17 S83-144B Wire Harness 4 Solenoid - - 1
*18 S83-144A Wire Harness 2 Sensor 1 - -
18 S83-145 Wire Harness 3 Sensor - 1 -
*18 S83-145B Wire Harness 4 Sensor - - 1
Parts List — Solenoid Assembly and Valve Parts
* Not Shown

5
Parts and Service Terreon Multi-Fount Washfountains
Bradley • 215-1448 Rev. C; ECN 17-00-014 9/28/2017

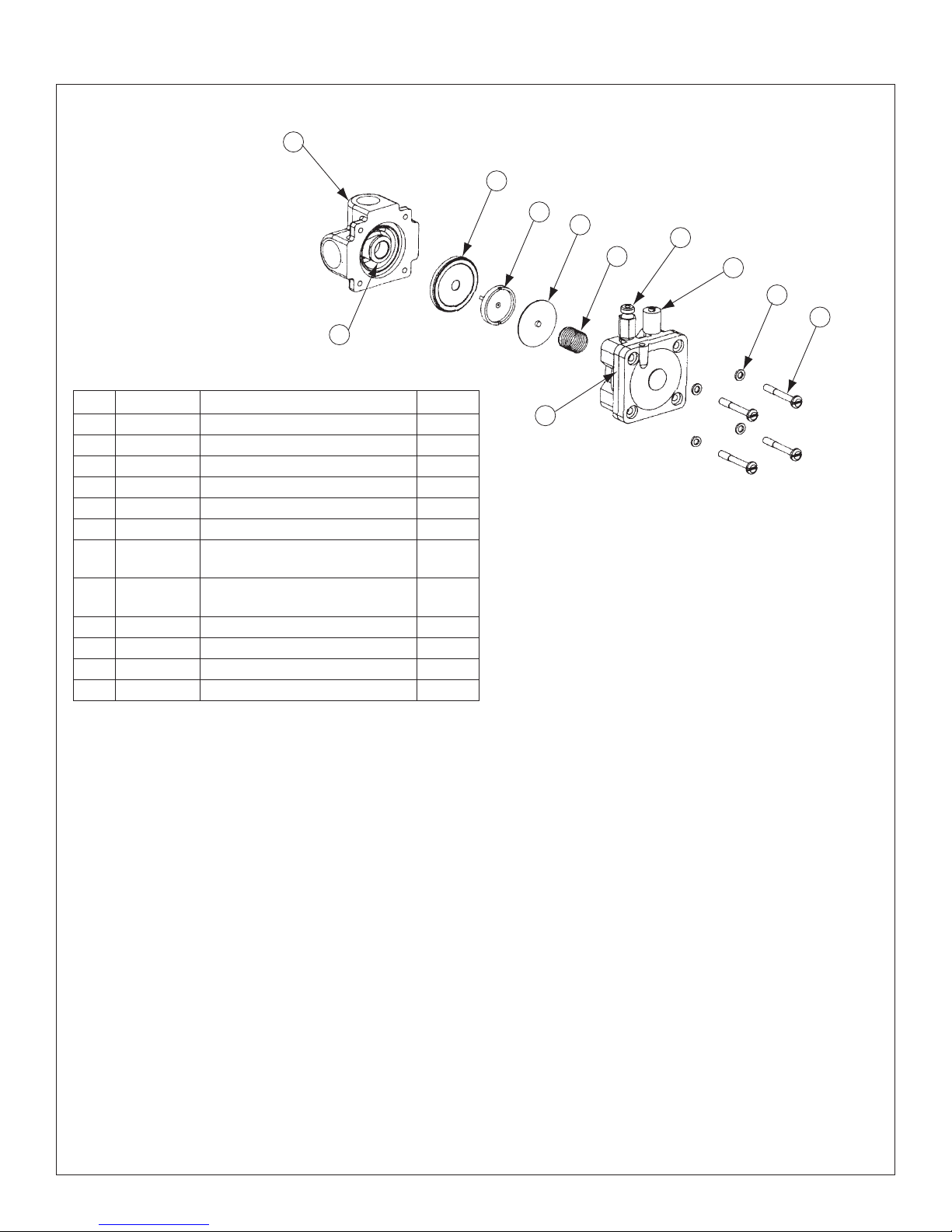

Infrared (IR) Valve Assembly - Solenoid Valve S07-068 (Closed Body)
and S07-068A (Thru Body) Prior to February 1, 2013
Item Part No. Description Qty
1 118-307 Valve Body, 1/4" Closed 1
1 118-307A Valve Body, 1/4", Through 1
2 269-983 Diaphragm 1
3 269-577 Armature 1
4 269-578 Spring 1
5 269-1729 Armature Housing 1
6 269-1730 clamp, Armature Housing 1
7 269-579 Coil, Solenoid Valve 1
8 160-447 Screw #8 x 5/8 3
9 125-165 O-Ring, #2-013 1
10 125-160 Flow Restrictor, 0.5 GPM 1
11 S65-113 Repair Kit 1
Solenoid Valve Parts List
Turn off water supplies to unit before troubleshooting.
Problem Cause Solution
An individual
operating station
fails to shut off and
drips.
There is debris
trapped between
the diaphragm and
the valve seat.
Remove debris between diaphragm and the valve seat.
1. Remove the three #8 Phillips-head screws that hold the solenoid valve assembly together. Be
careful not to lose the armature or spring (see previous page).
2. Remove the diaphragm. Remove any particles that have been trapped between the diaphragm
and the valve seat. Rinse off the diaphragm and inspect for damage. Make sure the center orifice
and both small side orifices are open.
3. Reassemble in reverse order, being careful not to overtighten the Phillips-head screws or you
may crack the plastic valve body. Tighten until the armature plate makes contact with the plastic
body.
4. Reconnect the wiring per diagram.
An individual
operating station
fails to turn on.
A failed coil for
the valve or
loose electrical
connection to the
terminal.
Test the station to determine cause.
1. Disconnect the wires from the coil of an adjacent valve. Disconnect the wires from the problem
valve and reconnect to the adjacent valve.
2. Turn on electrical and water supplies to the unit. Place hands in front of sensor for the problem
station; the adjacent station should turn on.
If the adjacent station turns on and cycles normally, replace the coil on the problem valve.
If the adjacent valve fails to turn on, inspect the wires from the sensor cable and do the following:
• make sure there are no breaks and that the fully insulated disconnect terminals are firmly
crimped in place;
• turn off the electrical and water supplies;
• reconnect to the adjacent valve and turn on the water supplies to the unit;
• place hands in front of sensor. If the station still fails to turn on, replace the sensor.
1
2
3
4
5
6
7
8
9
8
10
11

Terreon Multi-Fount Washfountains Parts and Service
69/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014

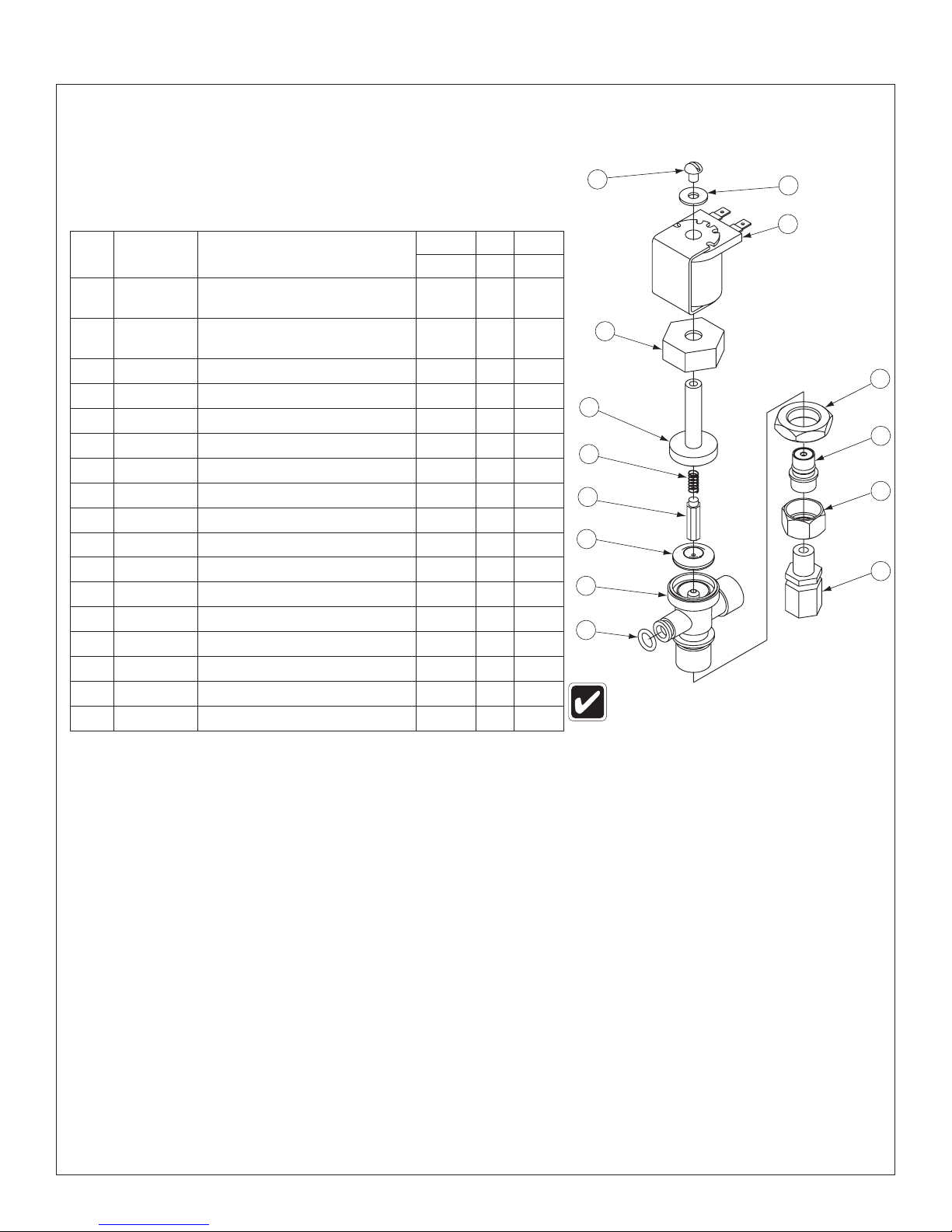

Infrared (IR) Valve Assembly (24V Plug in Transformer) -
Solenoid Valve S07-040 Individual (End), S07-041 Ganged
Prior to June 13, 2005
2
3
1
5
4
8
9
6
10
11
7
12
13
14
Tailpiece
Assembly
Solenoid valve S07-041 for "Ganged"
applications is identical to the S07-
040 "Individual" (End - opposite
supply inlet) valve. Except this end
has an o-ring (Item 10) for sealing
and the inner wall has been removed
to permit water to flow through to
adjacent valve.
Item Part No. Description Corner Tri Quad
Qty. Qty. Qty.
- S07-040 Valve Individual
(includes items 1-9)
1 1 1
- S07-041 Valve Ganged
(includes items 1-10)
1 2 3
1 160-066 Screw 10-24 x 1/4 RD 2 3 4
2 142-002AZ Washer Stainless Steel 2 3 4
3 269-579 Coil - Solenoid Valve 2 3 4
4 110-194 Nut - Bonnet 2 3 4
5 121-028 Bonnet 2 3 4
6 269-578 Spring 2 3 4
7 269-577 Armature 2 3 4
8 269-580 Diaphragm 2 3 4
9 118-237 Valve Body Individual (C) 1 1 1
9 118-238 Valve Body Ganged (A & B) 1 2 3
10 125-145 O-Ring (for ganged valve body) 1 2 3
11 110-224 Nut 2 3 4
12 S88-065 Tailpiece Assembly 2 3 4
13 110-195 Tailpiece Nut 2 3 4
14 145-089 Connector 2 3 4
Parts List — Solenoid Assembly and Valve Parts

7
Parts and Service Terreon Multi-Fount Washfountains
Bradley • 215-1448 Rev. C; ECN 17-00-014 9/28/2017
Problem Cause Solution
The center station
(B) will not shut
off.
Problem with a
sensor or solenoid
valve.
1. Disconnect the sensor wires to the center solenoid valve (B) and set them out of the way.
2. Disconnect the sensor wires to the left solenoid valve (A). Set these wires out of the way and make
sure they will not make contact with each other or any metal or framework.
3. Connect the wires from the center solenoid valve (B) to the left solenoid valve (A).
4. Reconnect the transformer to the wall outlet for power. Be sure to wait 2 minutes before trying
to activate the sensor after disconnecting power, as the sensor has to reset and adapt to the
environment.
5. Use your hands to activate the center station (B) and watch for the water to come out of the left
station (A).
If the left station works and shuts off, then the solenoid for the center station is the problem. There may
be debris between the valve seat and diaphragm. To remove the debris:
1. Disconnect the wires from the solenoid.
2. Loosen and remove the screw on top of the coil of the solenoid valve.
3. Unscrew the bonnet nut (counterclockwise) and tip forward to remove from the valve body.
4. Remove the diaphragm (269-580).
5. Remove any particles that may have been trapped between the diaphragm and the valve seat.
6. Rinse off the diaphragm and inspect for damage.
7. Make sure both orifices in the diaphragm are open.
8. Reassembly and retry the solenoid valve.
If there is still a problem, replace the solenoid valve. If ordering replacement solenoid valves, be careful
to order correctly, either an "individual" or a "ganged" solenoid valve.
If the left station does not shut off, then the sensor for the center station is the problem. The sensor will
have to be replaced. It cannot be repaired or adjusted in any way.
Infrared (IR) - Sensor and Valve Troubleshooting
Prior to June 13, 2005

Terreon Multi-Fount Washfountains Parts and Service
89/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014
Air Metering Valve (AST4) - Pushbutton and Sprayhead
16
24
26
1
2
34
26
15
14
12
13
17
25
21
20
19
18
22
9
6
7
23
14
5
10
11
27

9
Parts and Service Terreon Multi-Fount Washfountains
Bradley • 215-1448 Rev. C; ECN 17-00-014 9/28/2017
* Specify length in feet.
Item Part No. Description Corner Tri Quad
Qty. Qty. Qty.
1 S08-340 Pushbutton Assembly (Includes Items 2 thru 4) 2 3 4
2 128-090 Pushbutton Only 2 3 4
3 179-104 Guide for Pushbutton 2 3 4
4 147-034 Shoulder Screw for Pushbutton 2 3 4
5 182-110 Spacer 2 3 4
6 140-743 Brackey 234
7 110-115 Nut 2 3 4
- S65-168 Actuator Assembly (Includes Items 9 thru 14) 212
- S65-168A Actuator Assembly (Includes Items 9 thru 15) - 2 2
9 119-227A Piston 2 3 4
10 125-099 U-Cup 2 3 4
11 135-065 Spring 2 3 4
12 118-279 Actuator Body 2 3 4
13 198-010 Duckbill Check 2 3 4
14 169-890 Tube Connector 1/8" Straight 2 3 4
15 269-1186 Fitting Adj J - 2 2
16 160-165 Screw 4 6 8
17 R68-600008-R Tubing 1/8" OD, Red * * *
17 R68-600008-G Tubing 1/8" OD, Green * * *
17 R68-600008-B Tubing 1/8" OD, Black * * *
17 R68-600008-Y Tubing 1/8" OD, Yellow * * *
18 115-131 Sprayhead 2 3 4
19 176-119 Threaded Rod 4 6 8
20 269-1190 Window Hole Plug 4 6 8
21 140-748 Backplate 2 3 4
22 161-026 Nut 4 6 8
23 142-002BS Lockwasher 4 6 8
24 269-871 Fitting Straight (Front Sprayhead) - 1 2
25 269-628 Fitting Swivel 90° (Side Sprayheads) 2 2 2
26 R68-600011-R Tubing 1/4" ID, Red * * *
26 R68-600011-G Tubing 1/4" ID, Green * * *
26 R68-600011-B Tubing 1/4" ID, Black * * *
26 R68-600011-Y Tubing 1/4" ID, Yellow * * *
27 130-023 Spanner Wrench 111
Parts List — AST4 Pushbutton and Sprayhead

Terreon Multi-Fount Washfountains Parts and Service
10 9/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014
Air Metering Valve (AST4) - Assembly
Prior to February 1, 2013
Item Part No. Description Corner Tri Quad
Qty. Qty. Qty.
1 S08-452TMA TMA Dual Valve Assembly (Includes Items 7 thru 13) 1 - -
2 S08-452TL TL Dual Valve Assembly (Includes Items 8 thru 14) 1 - -
3 S08-453TMA TMA Tri Valve Assembly (Includes Items 7 thru 13) - 1 -
4 S08-453TL TL Tri Valve Assembly (Includes Items 8 thru 14) - 1 -
5 S08-454TMA TMA Quad Valve Assembly (Includes Items 7 thru 13) - - 1
6 S08-454TL TL Quad Valve Assembly (Includes Items 8 thru 14) - - 1
7 S01-520 Vernatherm Valve, 4 GP 1 1 1
8 140-928 Bracket, Ganged Valve 111
9 P18-054 Screw 10-24 x 3/8 PN 2 2 2
10 S07-078A AST4 Valve, Through 123
11 S07-078 AST4 Valve, Closed 111
12 110-231 Compression Nut, 1/4" 2 3 4
13 160-447 Screw 8-16 x 5/8 PN 2 3 4
14 S39-685 Adapter, Valve Inlet 111
Parts List — Air Metering Valve Assembly
10
11
12
7
13
9
8
1
2
3
4
5
6
14

11
Parts and Service Terreon Multi-Fount Washfountains
Bradley • 215-1448 Rev. C; ECN 17-00-014 9/28/2017
Air Metering Valve (AST4) - Assembly
Prior to June 13, 2005
Metering Valve Assembly
S67-181 Tri-Fount (Shown)
S67-180 Quadra-Fount
S67-202 Corner-Fount
Item Part No. Description Corner Tri Quad
Qty. Qty. Qty.
1 S67-202 Metering Valve Assembly -
Corner-Fount 1 - -
1 S67-181 Metering Valve Assembly -
Tri-Fount - 1 -
1 S67-180 Metering Valve Assembly -
Quadra-Fount - - 1
2 S07-058 Air Valve 2 3 4
3 169-168 Pipe Plug 1/2" 1 1 1
4 S45-1967 Tube Connector 1/4" x 3/8" with
Flow Control 2 3 4
5 125-020 Flow Control 2 3 4
6 169-890 Tube Connector 1/8" Straight 2 3 4
7 169-639 Elbow 90° 1/2" 1 1 1
8 113-006DH Nipple 1/2" 1 2 3
Parts List — Air Metering Valve Assembly
1
4
5
2
3
8
6
7
AST4 Valve Repair Kits
Prior to February 1, 2013
Item Part No. Description
1 125-165 O-Ring
2 118-307A Valve Body - Manifolded
3 118-307 Valve Body - Closed
4 269-983 Diaphragm
5 269-577 Armature, Valve
6 269-578 Spring, Valve
7 118-309 Cover, AST4 Valve
8 107-538 Cover, AST4 Valve Timer
9 S27-305 Timer, ASM, AST4 Valve
10 125-001BY O-Ring
11 110-234 Compression Nut, 1/8"
12 S39-591 Magnet/Diaphragm Assembly
13 107-535 Cover, AST4 Valve
14 110-233 Clamp Nut, AST4 Valve
15 160-449 Screw 8-16 x 7/8"
16 S65-261 Repair Kit - AST4 Valve
17 S65-262 Repair Kit - AST4 Valve - Upper
18 S65-260 Repair Kit - AST4 Valve - Complete
Parts List — AST4 Valve Repair Kits
1
2
3
12
13
5
4
6
8
7
9
10
11
14
15
16
18
17

Terreon Multi-Fount Washfountains Parts and Service
12 9/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014
Parts List — Air Metering Valve Repair Kit
Prior to June 13, 2005
Item Part No. Description Qty.
1 118-183 Valve Body Lower 1
2 117-036 Valve Seat 1
3 269-665 Rubber Diaphragm 1
4 269-664 Seat Guide 1
5 179-082 Armature with Grommet 1
6 135-053 Spring 1
* S65-110 Small Parts Kit
(includes items 3-6) 1
8 S73-054A Large Parts Kit (includes items
7-12) (includes Small Parts Kit) 1
9 S27-254 Timer Assembly 1
10 169-890 Tube Connector 1/8" Straight 1
11 142-002CR Lockwasher #8 4
12 160-313 Screw 4
Parts List — Air Metering Valve S07-058
1
2
3
4
5
6
10
9
11
12
8

13
Parts and Service Terreon Multi-Fount Washfountains
Bradley • 215-1448 Rev. C; ECN 17-00-014 9/28/2017
Problem Cause Solution
Air valve meter time
needs adjusting.
Adjust air valve meter time:
1. Remove filter cap and use a screwdriver to tighten or loosen the timer (see
illustration above). Turning the timer clockwise increases the time; turning the timer
counterclockwise decreases the time.
2. Continue to adjust until the timer is set at desired length.
3. Replace filter cap over the timer.
Valve will not
shut off.
Timing mechanism
is clogged.
Clean and inspect timing mechanism:
1. If compressed air is available, blow water and debris from timer cover of timing
mechanism.
2. Turn adjusting screw out all the way. Clean and inspect screw and valve body.
3. Turn adjusting screw in to desired cycle time.
Valve will not
turn on.
Water is not being
supplied to unit.
Open all stops on mixing valve.
Water pressure is
over 80 PSI.
Install a pressure reducing valve.
Failed diaphragm/
magnet assembly.
Unscrew the valve clamp nut on valve. Remove valve cover. Gently press the diaphragm.
The valve should activate. If not, replace the diaphragm/magnet assembly.
Timing can not
be adjusted for
more than 5
seconds.
There is an air leak. Check the valve assembly:
1. Check all tubing and fittings for proper assembly.
2. Tighten cap and nut on 1/8" tubing.
Push button
does not work
properly.
Air volume may
not be sufficient to
operate valve.
Check for leaks and lubricate U-cup:
1. Check all fittings for air leaks.
2. Disassemble push button and lubricate U-cup seal.
Water is dripping
from the
streamformers.
Debris has
accumulated
on valve seat or
orifices.
Clean and inspect valve seat.
1. Remove screws and disassemble metering valve.
2. Clean valve seat and inspect for deep gouges or scratches. Replace valve body if
necessary.
3. Remove any debris clogging off-center hole in rubber diaphragm.
Metering Air Valve Maintenance and Troubleshooting
Prior to February 1, 2013
The air valve timer is located next to the tube connector on the air valve body. The timer is capped with
a filter to prevent dirt build-up on the timer. The air valve timing can be adjusted from 5–60 seconds.
Air Valve
Tubing
Manual
Release Button
Sealing
Ring
Tube
Stop
Locking
Slope
Gripping
Ridge
Water Tube Connector
Air Valve
Filter Cap
Air Tube Connector

Terreon Multi-Fount Washfountains Parts and Service
14 9/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014
AST4 and IR Supply and Mixing Valve - Floor and Wall Mounted
Prior to February 1, 2013
Cold Supply Inlet
Hot Supply Inlet
Vernatherm TMV
Air Valve Assembly
1
Floor Mount
(Tri-Fount Shown)
Cold Supply Inlet
Hot Supply Inlet
Vernatherm TMV
Air Valve Assembly
Wall Mount
(Quadra-Fount Shown)
Item Part No. Description
Corner Tri Quad
Qty Qty Qty
1* 269-1735 Flex Hose 1/2" NPT x 24" (Supply to TMV) 2 2 2
2* S27-102 Check Stop 2 2 2
3 160-169 Screw 2 2 2
* Use Qty 1 for TL option, all models.
Supply Parts List
2
1
1
3

15
Parts and Service Terreon Multi-Fount Washfountains
Bradley • 215-1448 Rev. C; ECN 17-00-014 9/28/2017
AST4 and IR Supply and Mixing Valve - Floor and Wall Mounted
Prior to June 13, 2005
3
6
2
3
4
1
7
2
5
Item Part No. Description
Corner Tri Quad
Qty Qty Qty
1 S01-116B Thermostatic Mixing Valve - Vernatherm 1 1 1
2 269-653 Flex Hose 1/2" NPT x 24" (Supply to TMV) 2 2 2
3 S27-102 Check Stop (use with TMV) 2 2 2
4 140-889 Bracket TMV 1 1 1
5 160-169 Screw 1 1 1
6 269-1248 U-Bolt 1 1 1
7 161-026 Nut (for U-Bolt) 2 2 2
*8 269-1188 Filter - Washer 2 2 2
9 142-002AV Washer (Wall Hung Units) 2 2 2
10 269-1129 Pipe Clamp (Wall Hung Units) 2 2 2
11 169-639 Street Elbow (Wall Hung Units) 5 2 2
Supply Parts List
11
9
2
7
1
8
3
11
9
7
10
Floor Mount Wall Mount
* Not shown

Terreon Multi-Fount Washfountains Parts and Service
16 9/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014
Supply Tempered Line Prior to February 1, 2013
13
2
Item Part No. Description
Corner Tri Quad
Qty Qty Qty
1 S27-102 Check Stop 1 1 1
2 169-639 Fitting 90° 1 1 1
3 269-1188 Washer - Filter 1 1 1
Parts Line- Supply Tempered Line
Battery Infrared (BIR) - Sprayhead
Prior to February 1, 2013
10
1
2
3
4
5
6
7
8
9
Item Part No. Description
Corner Tri Quad
Qty Qty Qty
1 251-019A Sensor Eye Leads 2 3 4
2 269-1190 Window 4 6 8
3 115-131 Sprayhead 2 3 4
4 176-119 Threaded Rod 4 6 8
5 140-748 Backplate 2 3 4
6 161-026 Nut 4 6 8
7 142-002BS Lockwasher 4 6 8
8 269-871 Fitting Straight (front sprayhead) - 1 2
9 269-628 Fitting Swivel 90° (side sprayheads) 2 2 2
10 R68-60001-R Tubing 1/4", Red * * *
10 R68-60001-G Tubing 1/4", Green * * *
10 R68-60001-B Tubing 1/4", Black * * *
10 R68-60001-Y Tubing 1/4", Yellow * * *
Parts List - Battery Infrared Sensor, Sprayhead and Valves
* Specify length in feet.

17
Parts and Service Terreon Multi-Fount Washfountains
Bradley • 215-1448 Rev. C; ECN 17-00-014 9/28/2017

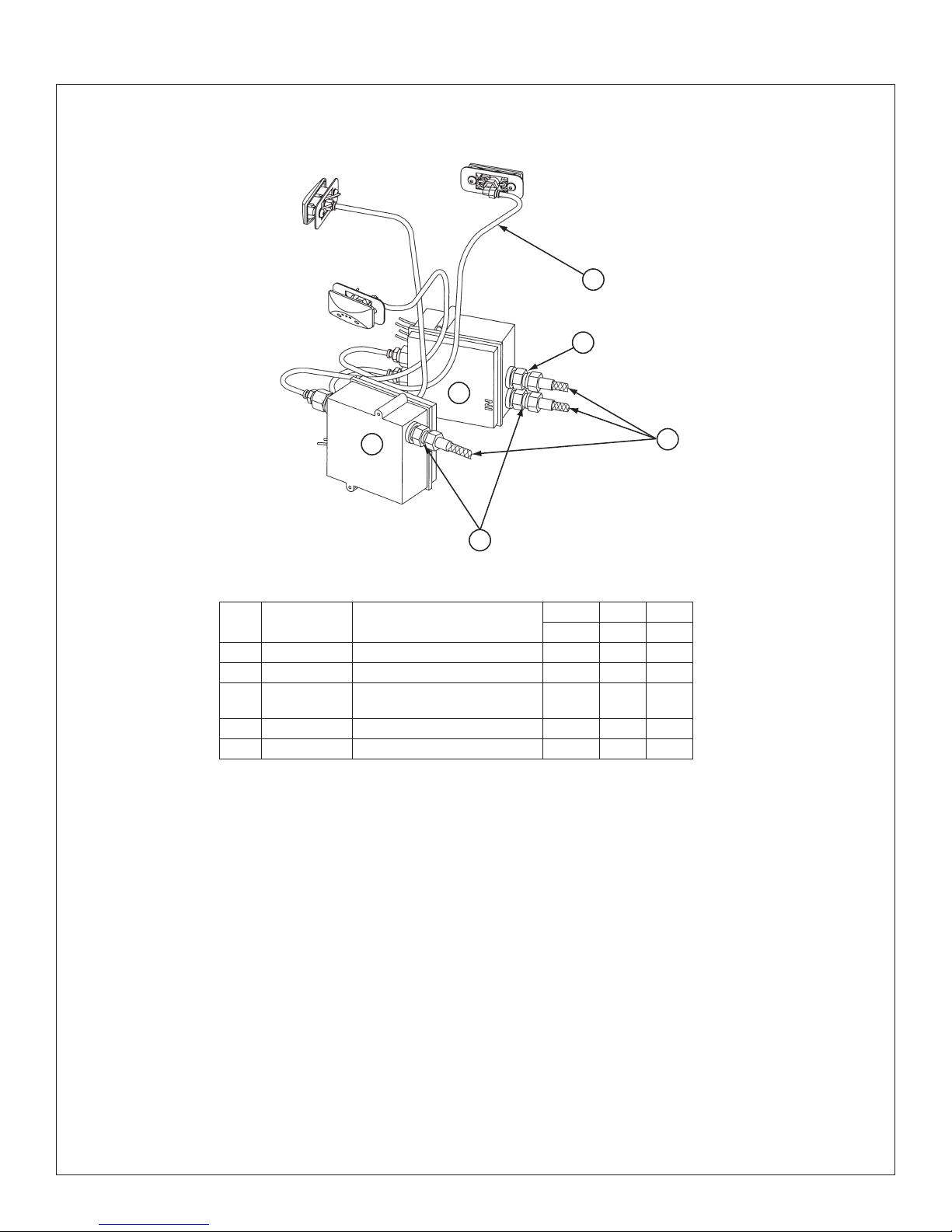

Battery Infrared (BIR) - Sprayhead
Prior to June 13, 2005
3
1
5
4
2
2
Item Part No. Description
Corner Tri Quad
Qty Qty Qty
1 R68-600011 Tubing 1/4" * * *
2 S65-141 Filter Screwwn (Inlet Hoses) 2 3 4
3 269-1365 Hose Flex 1/2" (manifold to
valve box)
2 3 4
4 S67-218 Valve (Sensor) Box 2 Station 1 1 2
5 S67-219 Valve (Sensor) Box 1 Station
Parts Line- Battery Infrared Sensor, Sprayhead and Valves
* Specify length in feet.
Tri-Fount Shown

Terreon Multi-Fount Washfountains Parts and Service
18 9/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014

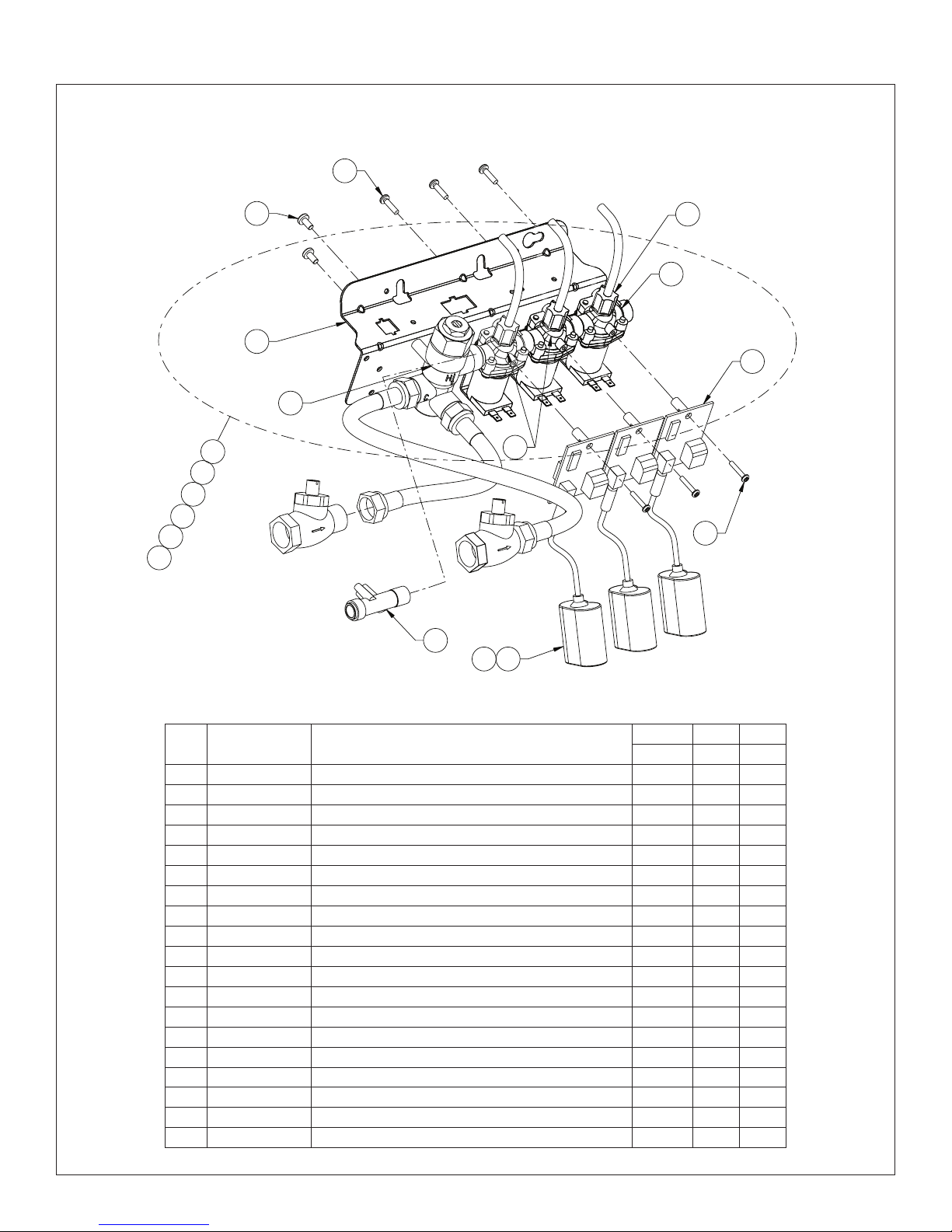

Battery Infrared Valve (BIR3) - Assembly
Prior to February 1, 2013
8
9
13
7
11
12
10
17
1819
16
1
2
3
4
5
6
14
Tri-Fount Shown
Item Part No. Description
Corner Tri Quad
Qty Qty Qty
1 S08-432TMA TMA Dual Valve Assembly (includes items 7-13) 1 - -
2 S08-432TL TL Fual Valve Assembly (includes items 8-14) 1 - -
3 S08-433TMA TMA Tri Valve Assembly (includes items 7-13) - 1 -
4 S08-433TL TL Tri Valve Assembly (includes items 8-14) - 1 -
5 S08-434TMA TMA Quad Valve Assembly (includes items 7-13) - - 1
6 S08-434TL TL Quad Valve Assembly (includes items 8-14) - - 1
7 S01-520 Vernatherm Valve, 4GP 1 1 1
8 140-928 Bracket, Ganged Valve 1 1 1
9 P18-054 Screw 10-24 x 3/8 PN 2 2 2
10 S07-083 BIR3 Valve, through (includes items 15-17) 1 2 3
11 S07-083A BIR3 Valve, closed (includes 15-17) 1 1 1
12 110-231 Compression Nut, 1/4" 2 3 4
13 160-447 Screw 8-16 x 5/8" PN 2 3 4
14 S39-685 Adapter, Valve Inlet 1 1 1
16 S83-178 Circuit Board 2 3 4
17 160-451 Screw #6-19 x 3/4 2 3 4
18 S83-177 Battery Holder 2 3 4
19 261-010 Lithium Battery, Type DL223A or Equivalent 2 3 4
20 S45-2083 Battery Prepack (includes items 18-19) 2 3 4
Parts List - Battery Infrared Valve Assembly

19
Parts and Service Terreon Multi-Fount Washfountains
Bradley • 215-1448 Rev. C; ECN 17-00-014 9/28/2017

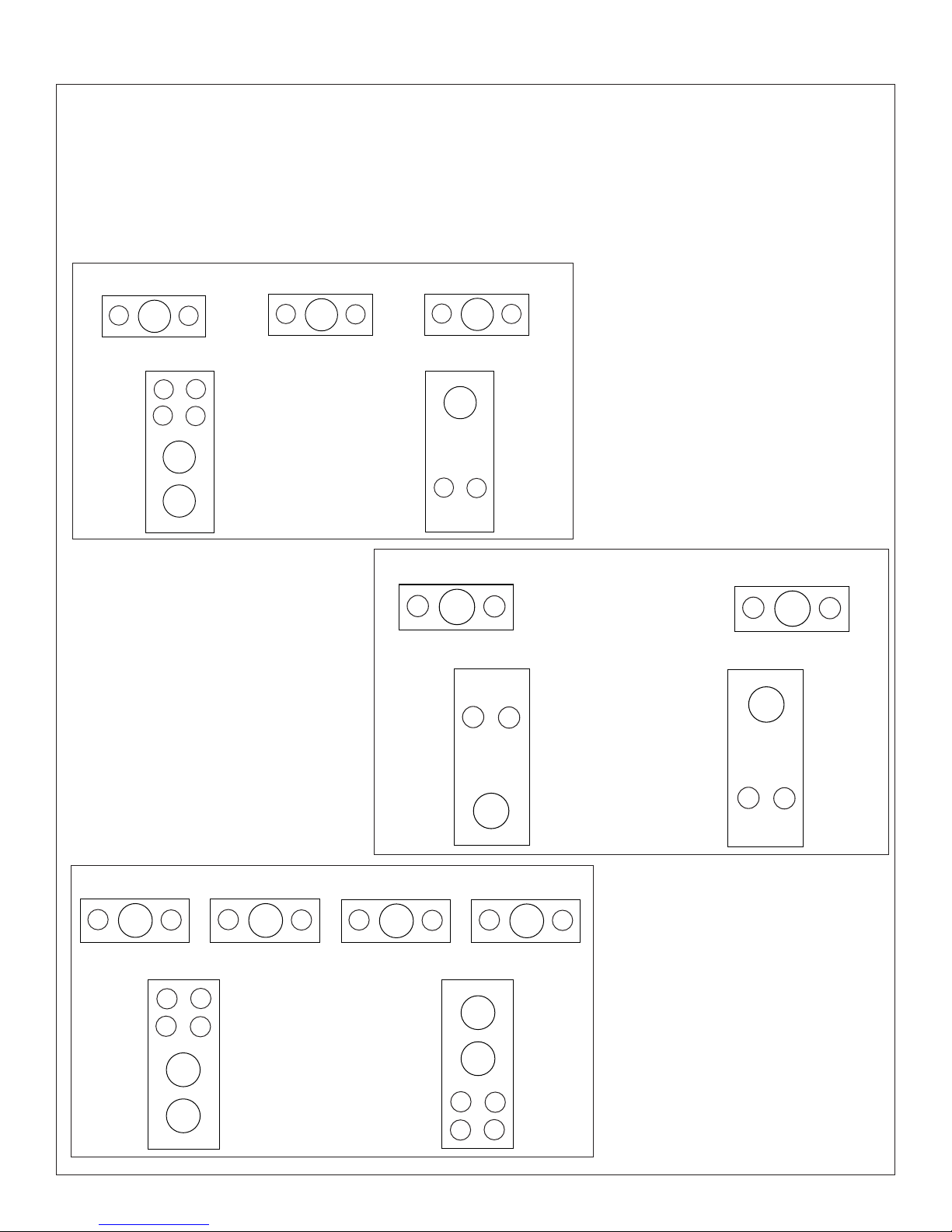

Valve Box and Sprayhead Connections Prior to June 13, 2005
These drawings show the supply connections and sensor cable placement for the Multi-Founts. The view is from in
front of the fixture facing the wall. The numbers indicate which sprayhead the sensor cables or supply connections
operate. The letters indicate the following:
S = Sensor cable from the valve box to the sprayhead window
W = Water supply connection from the valve box to the sprayhead
Sprayhead #1
Sprayhead #2
1W
3W
1W
3S
1S
1S
3S
1S
1S 2W
2S 2S
Valve Box
Sprayhead #3
2W
3W
2S
3S
2S
3S
Valve Bo
x
Tri-Fount
MF2933
MF2939
Sprayhead #1
Sprayhead #2
1W
1W
1S
1S
1S
1S 2W
2S 2S
Valve Box
2W
2S 2S
Valve Bo
x
Corner Fount
MF2922
Sprayhead #1 Sprayhead #2
2W
1W
1W
2S
1S
1S
2S
1S
1S 2W
2S 2S
Valve Box
Sprayhead #3 Sprayhead #4
4W
3W
3S
4S
3S
3S
4S
3S 4W
4S 4S
Valve Bo
x
3W
Quadra-Fount
MF2944
MF2949

Terreon Multi-Fount Washfountains Parts and Service
20 9/28/2017 Bradley • 215-1448 Rev. C; ECN 17-00-014
Battery Infrared Valve (BIR3) Assembly - Solenoid Valve S07-073
(Closed Body) and S07-073A (Thru Body) - Prior to February 1, 2013










10
Item Qty Part No. Description
1 1 118-307 Valve Body, 1/4" Closed
1 1 118-307A Valve Body, 1/4" Thru
2 1 269-983 Diaphragm
3 1 192-017 Armature
4 1 136-093 Spring
5 1 269-1729 Armature Housing
6 1 269-1730 Clamp, Armature Housing
7 1 269-1731 Coil, Solenoid Valve
8 3 160-447 SCrew, #8 x 5/8"
9 1 125-165 O-Ring, #2-013
10 1 125-160 Flow Restrictor, .5 GPM
Solenoid Valve with Circuit Board
Closed Body (S07-073)
Thru Body (S07-073A)
Circuit Board
(S83-178)
Pan-Head Screw 6-19 x 3/4"
(160-451)
