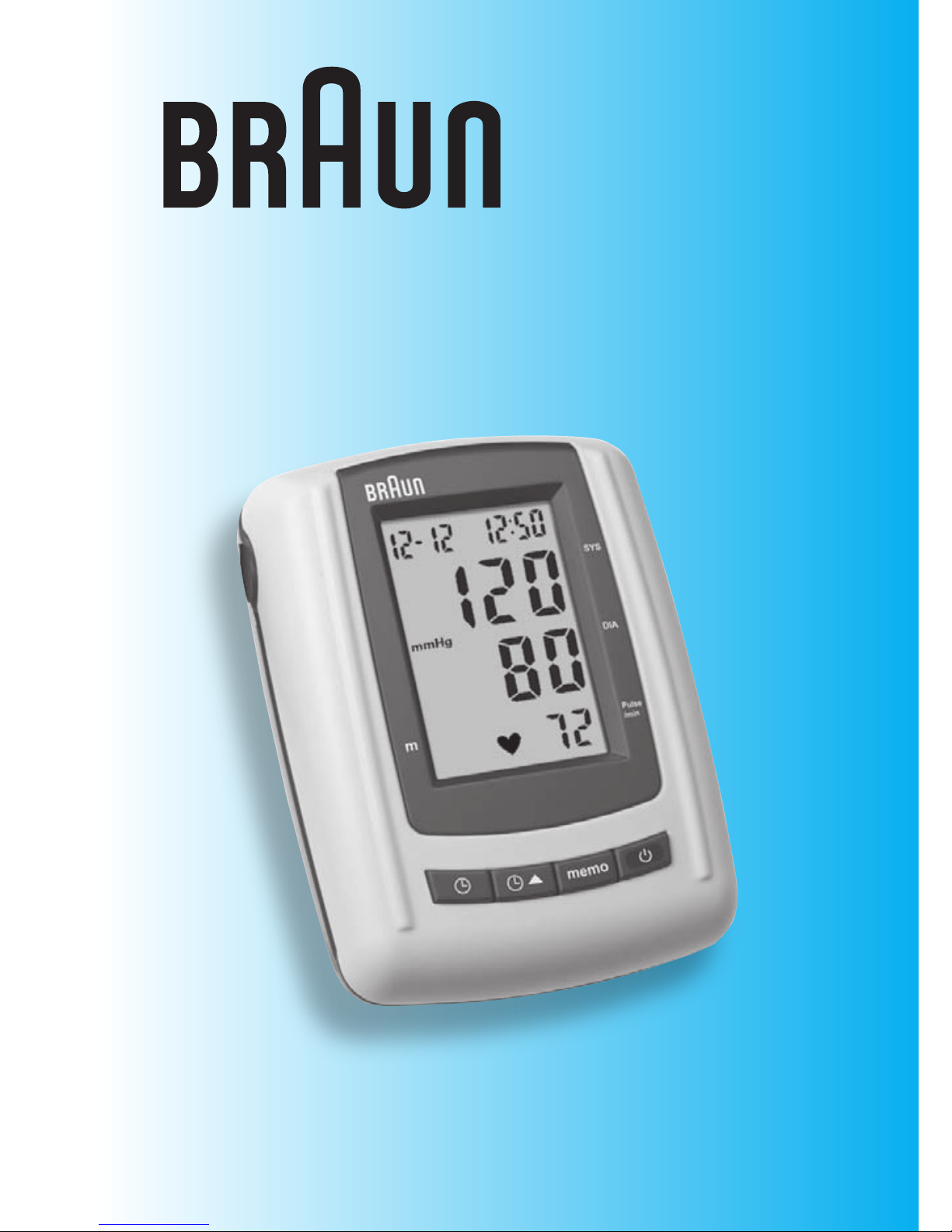

Braun BP4000 User manual

1
BP4000
BP4010
BP4020
BP5000
BP5010
ExactFit / ExactFit Plus

2
Internet: www.kaz.com/Braun
This product is manufactured by
Kaz Europe SA under a license to the‘Braun’
trademark. ‘Braun’is a registered trademark
of Braun GmbH, Kronberg , Germany.
Manufacturer:
Kaz Europe SA
Place Chauderon 18
CH-1003 Lausanne
Switzerland
Product description
ENGLISH .................................. 3
DEUTSCH .............................10
FRANÇAIS ............................17
ESPAÑOL ..............................24
PORTUGUÊS ........................31
ITALIANO ..............................38
NEDERLANDS .....................45
SVENSKA ..............................52
NORSK ...................................59
DANSK ...................................66
SUOMI ....................................73
TÜRKÇE..................................80
EΛΛHNIKA ............................87
HEBREW.................................94
ARABIC .................... 101 0297
1
2
3
4
5
6
7
8
9
P/N 31IM4000193
I
P
E
F
D
GB
NL
S
N
DK
FIN
TR
GR
HER
Arab

3
English
Braun upper arm blood pressure monitor has been developed for accurate and comfortable
blood pressure measurements. The measuring accuracy of Braun’s upper arm blood pressure
monitor was tested at the time of manufacture and was proven by clinical research in accor-
dance with AAMI/ANSI-SP10.
What you should know about blood pressure
Blood pressure constantly changes throughout the day. It rises sharply in the early morning
and declines during the late morning. Blood pressure rises again in the afternoon and nally
drops to a low level at night. Also, it may vary in a short period of time. Therefore, readings
from successive measurements can uctuate.

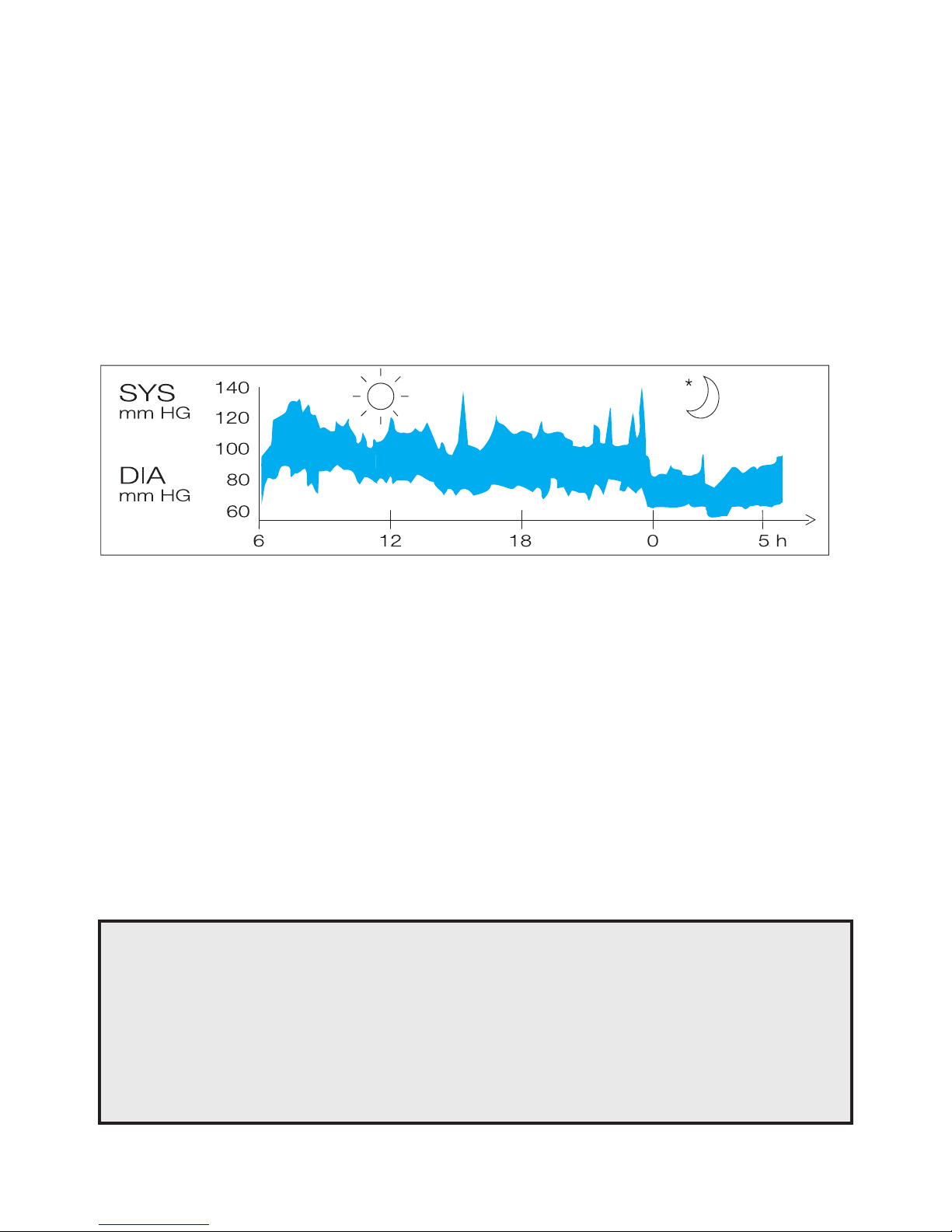

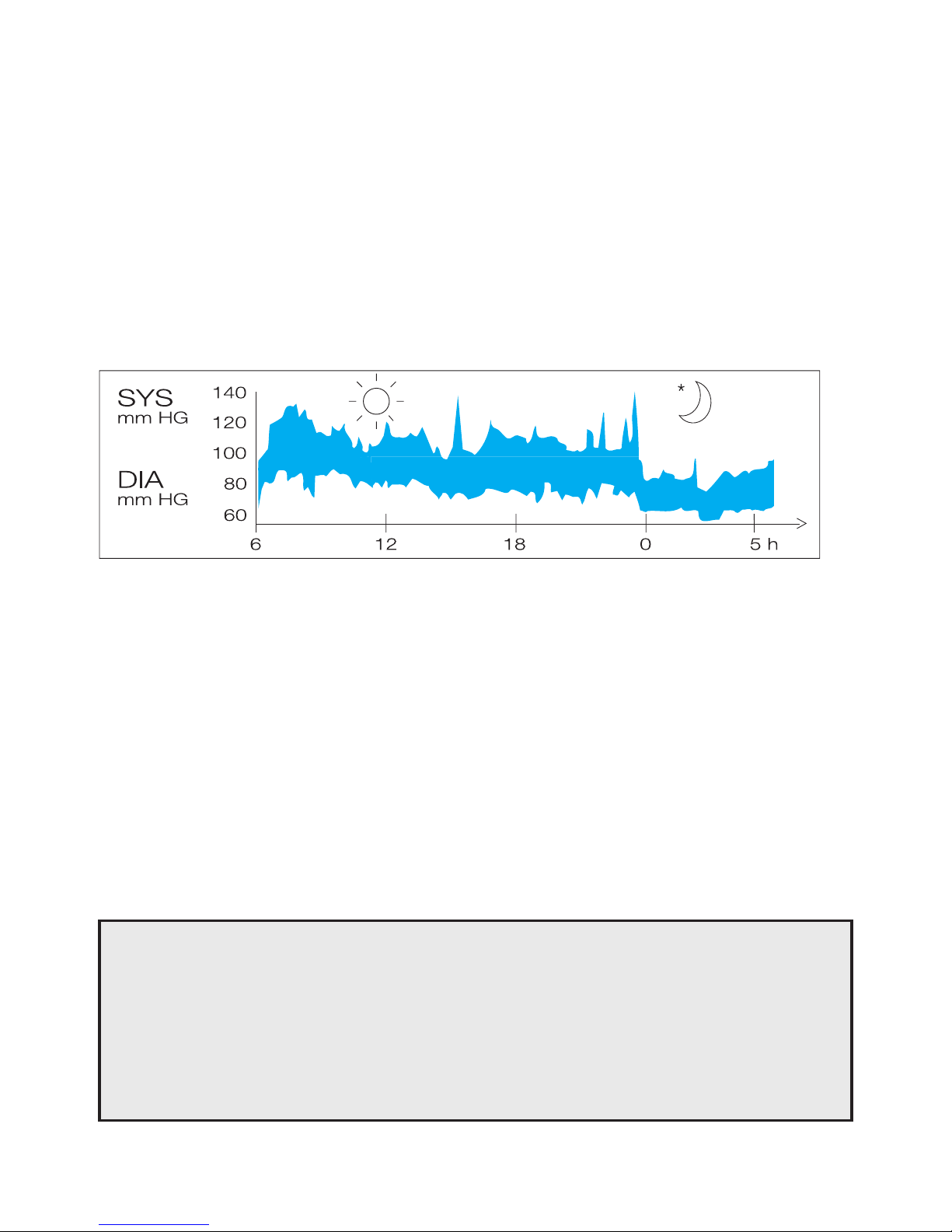

Blood pressure readings taken from a healthy 31-year-old male, measured at 5-minute intervals
Blood pressure measured in a doctor’s oce only provides a momentary value. Repeated
measurements at home better reect one’s actual blood pressure values under everyday
conditions.
Moreover, many people have a dierent blood pressure when they measure at home, because
they tend to be more relaxed than when in the doctor’s oce. Regular blood pressure mea-
surements taken at home can provide your doctor with valuable information on your normal
blood pressure values under actual «everyday» conditions.
The World Health Organisation (WHO) has set up the following standard blood pressure values
when measured at resting pulse:
Blood Pressure Normal Mild Severe
(mmHg) Values Hypertension Hypertension
SYS = systole (upper value) up to 140 140-180 over 180
DIA = diastole (lower value) up to 90 90-110 over 110

4
• To ensure accurate measuring results, carefully read the complete use instructions.
• This product is intended for household use only. Keep product and batteries away
from children.
• People suering from cardiac arrhythmia, vascular constriction, arteriosclerosis in
extremities, diabetes or users of cardiac pacemakers should consult their doctor
before measuring their blood pressure themselves, since deviations in blood
pressure values may occur in such cases.
• If you are under medical treatment or taking any medication, please consult your
doctor rst.
• The use of this blood pressure monitor is not intended as a substitute for
consultation with your doctor.
Product Description
1. LCD Display
2. Start/Stop Button
3. Recall Memory Button «memo»
4. Set Button
5. Mode Button
6. Air Plug
7. Air Jack
8. Arm Cu
9. (AA) 1.5V x 4 Alkaline Batteries

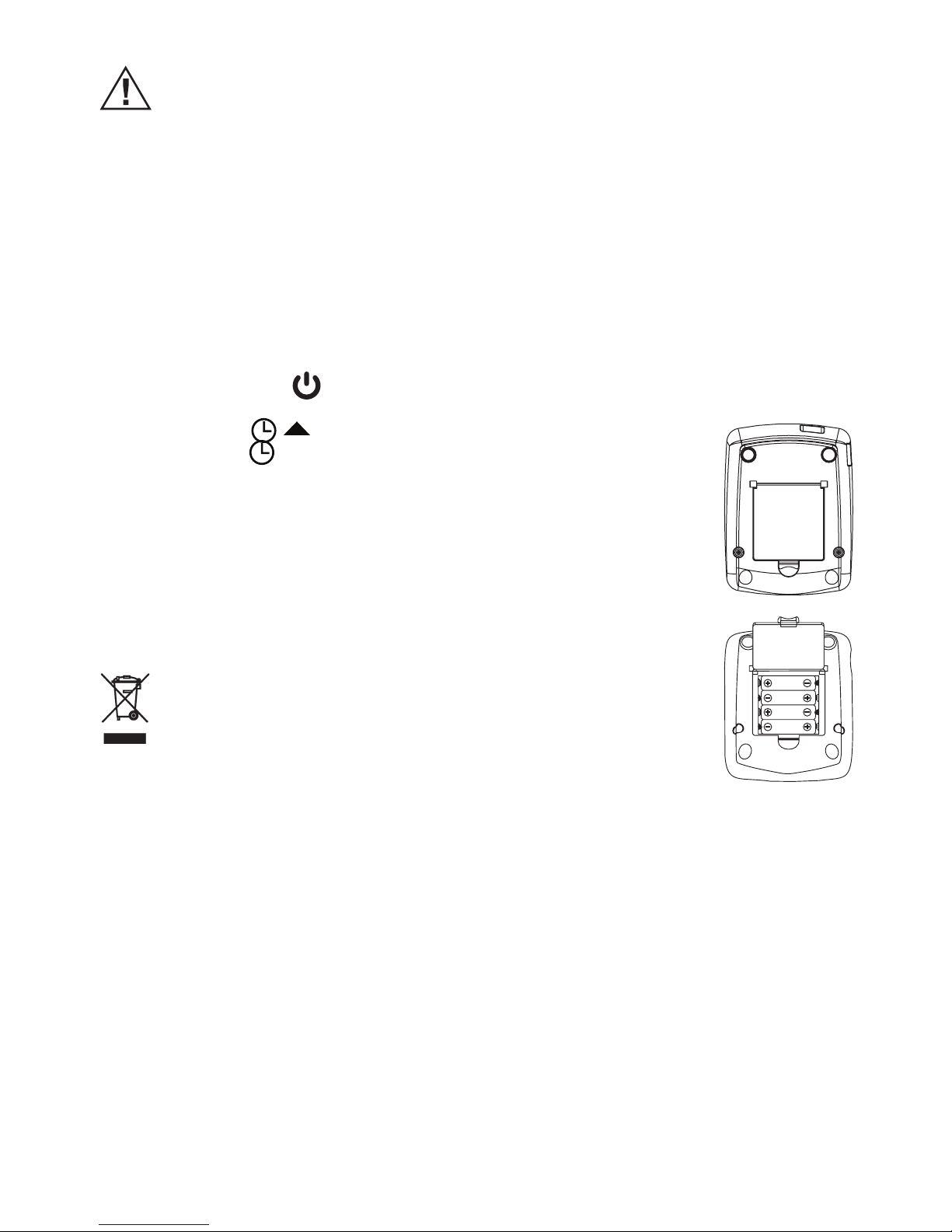

Inserting Batteries

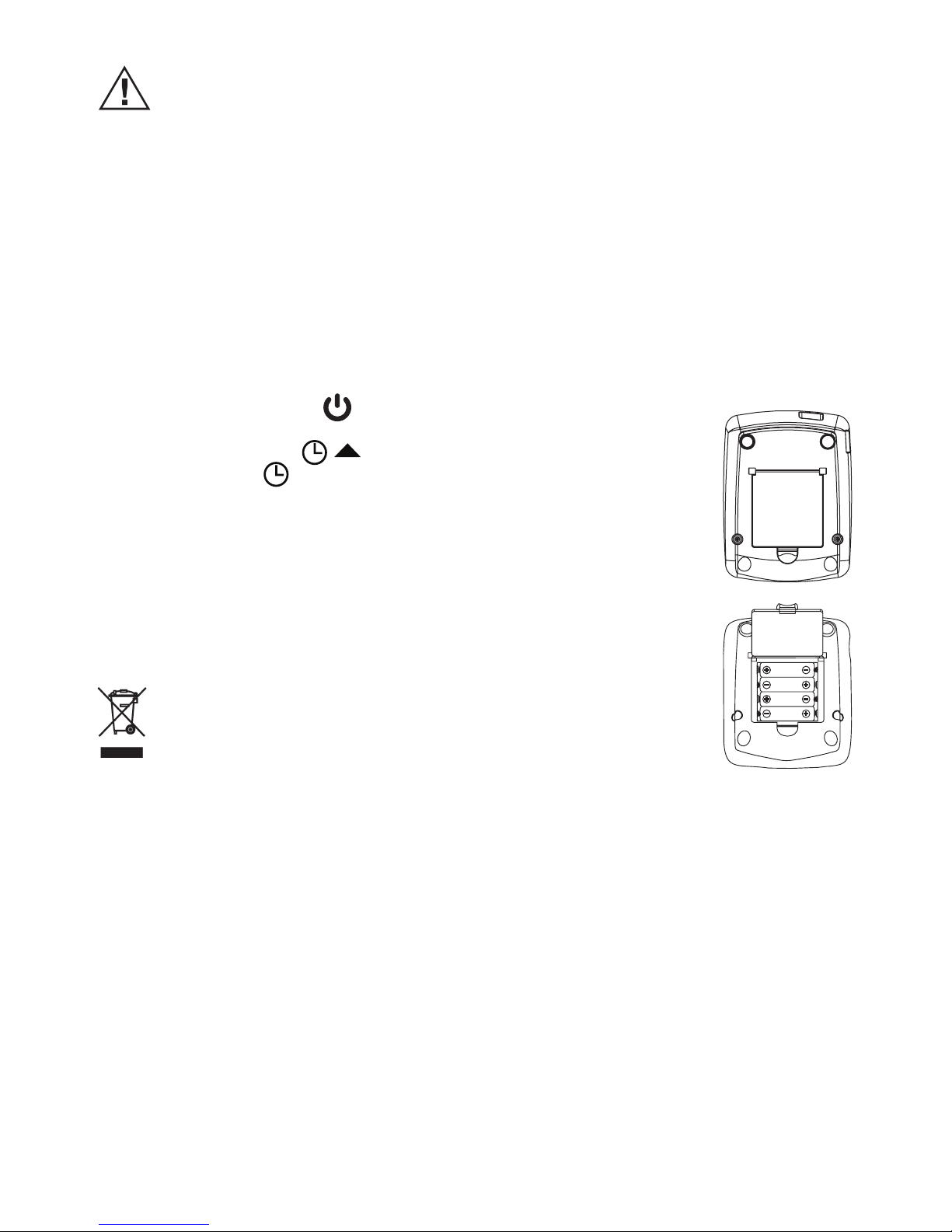

• Remove the battery compartment cover at the rear side of the unit and
insert ALKALINE batteries with correct polarity (see symbol in the
battery compartment). (Fig. 1)
• Only discard empty batteries. They should not be disposed of
in the household waste, but at appropriate collection sites or
at your retailer.
Key Rules for Accurate Blood Pressure Measurement
• Always take readings at the same time of day, ideally in the morning, under
the same conditions.
• Do not measure within 30 minutes after smoking, coee or tea consumption.
• Take o wrist watch and jewelry before tting the cu on the measuring arm.
• While taking a measurement sit down, relax, keep still, and do not move or speak.
• Wrap the cu snugly around your arm. The cu must be at heart level.
• Do not vibrate the unit during measurement, or the proper measurement
will not be achieved.
• Perform measurement quietly in a relaxed position.
• Sit in a chair with your feet at on the oor.
• Do not wrap the cu over jacket or sweater sleeve or measurement
cannot be done.
• Remove tight-tting clothing from your left arm.
Fig. 1

5
Choosing the Right Cu
For accurate measurement, it is important to choose the correct
sized cu which ts best your upper arm. Choose the cu size
according to your arm circumference and make sure the bottom
of the cu is 2-3 cm above your elbow. (Fig. 3)
Small/Medium Cu (BP 4000, BP 4020, BP 5000) =
23-33 cm arm circumference
Large/XLarge Cu (BP 4010, BP 4020, BP 5010) =
33-43 cm arm circumference
Applying the Arm Cu
1. Press your brachial artery by two ngers above the elbow on the
inside of your left arm. (Fig. 4)
2. Determine where your strongest pulse is. Slide the end of arm cu
elbow furthest from the tube through the metal ring to a loop. The
smooth cloth should be on the inside of the cu.
What You Should Know Before Taking Your Blood Pressure
• Do not in any way twist the arm cu.
• Do not inate the monitor’s cu when it is not wrapped around the arm.
• Do not attempt to disassemble or change any parts of the monitor including the cu.
• Do not drop the product or put it through strong impact.
• The device is not supposed to be used if your arm has any wound or injury.

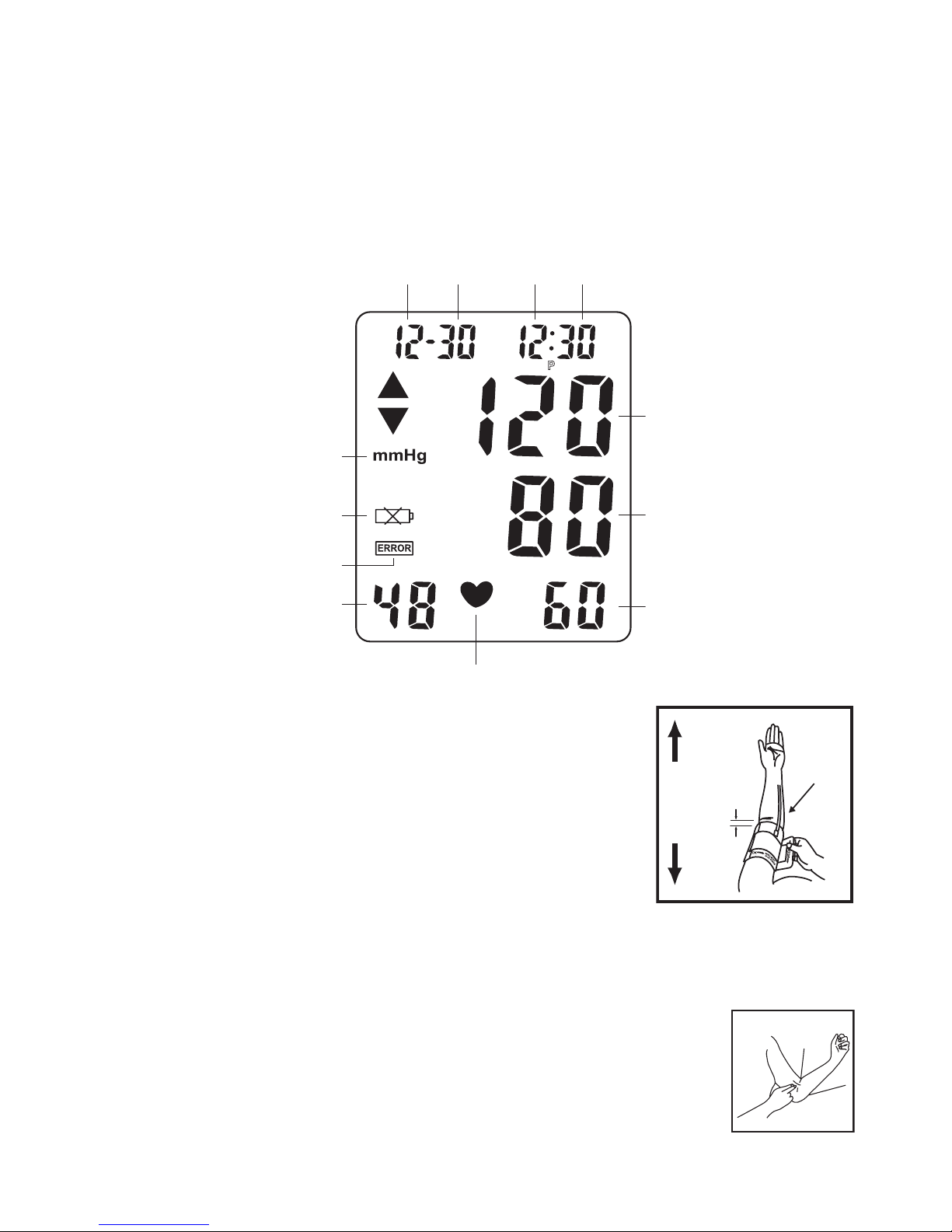

Display (Fig. 2)
Fig. 3
Fig. 4
MONTH DATE HOUR MINUTE
SYSTOLIC
PRESSURE
DIASTOLIC
PRESSURE
PULSE RATE
HEART RATE SYMBOL
BLOOD
PRESSURE UNIT
LOW BATTERY
LIGHT INDICATOR
MEASURING
ERROR DISPLAY
MEMORY
RECORD

6
3. If the cu is located correctly, the Velcro will be on the outside of the
cu and metal ring will not touch your skin. (Fig. 5)
4. Put your left arm through the cu loop. The bottom of the cu should be
approximately 2-3 cm above elbow. The tube should lie over the brachial
artery on the inside of the arm. (Fig. 6)
5. Pull the cu so that the top and bottom edges are
tightened around your arm.
6. When the cu is positioned properly, press the Velcro
rmly against the pile side of the cu. (Fig. 7)
7. Sit on a chair and place your arm on the table so that
the cu is at the same level as your heart. (Fig. 8)
8. Relax your arm with your palm upward. (Fig 9)
9. Ensure there are no kinks in the air tube.
Taking a Measurement
1. Wrap the cu around the arm (see“Applying the Arm Cu” section above).
2. Sit upright on the chair to have a correct posture.
3. Press the (2) button. All elements of the display indicate‘888’
during the rst 3 seconds. The measuring blood pressure symbol
will then ash on the display and the air pressure will automatically
pump up to certain pressure level and start measurement. (Fig. 10)
Do not move or talk in the midst of taking blood pressure measurement.
4. After the air pressure has increased, it will slowly decrease. When the
pulse is detected, the HEART RATE symbol will start ashing.
After taking blood pressure measurement, the product will turn o automatically
after 1 minute.
Memory Function
Your blood pressure monitor can store the reading of 48 measurements
(BP 5000 and BP 5010: 99 measurements).
Storing Measurement Data
After each blood pressure measurement, the Systolic pressure, Diastolic
pressure, Pulse rate and the time & date of specic day will be
automatically stored. The memory stores the latest 48 measurement
data (BP 5000 and BP 5010: 99 measurement data).
Once the memory is full, the oldest values will be overwritten. (Fig. 11)
Fig. 5
Fig. 11
Fig. 10
Fig. 6 Fig. 7
Fig. 8 Fig. 9

7
Recalling Stored Readings
• Press the «memo» (3) button. Nothing will appear on the display if there is no data stored
in the memory. If there is data stored in the memory, the latest recorded set of measure-
ment which are the Systolic pressure, Diastolic pressure, Pulse rate, and the recording
time and date will appear on the display for 1 minute.
• Press the «memo» (3) button to read the next line of stored data. The data called up on
the display is numbered accordingly.
• Press the (2) button to exit the memory mode.
Erasing data
• Press the «memo» (3) button into Memory mode.
• Press and hold the (5) button and then press the (4) button, all the stored
data will be erased.
• To check if the data was erased, press the «memo» (3) button. No data should show up
on screen.

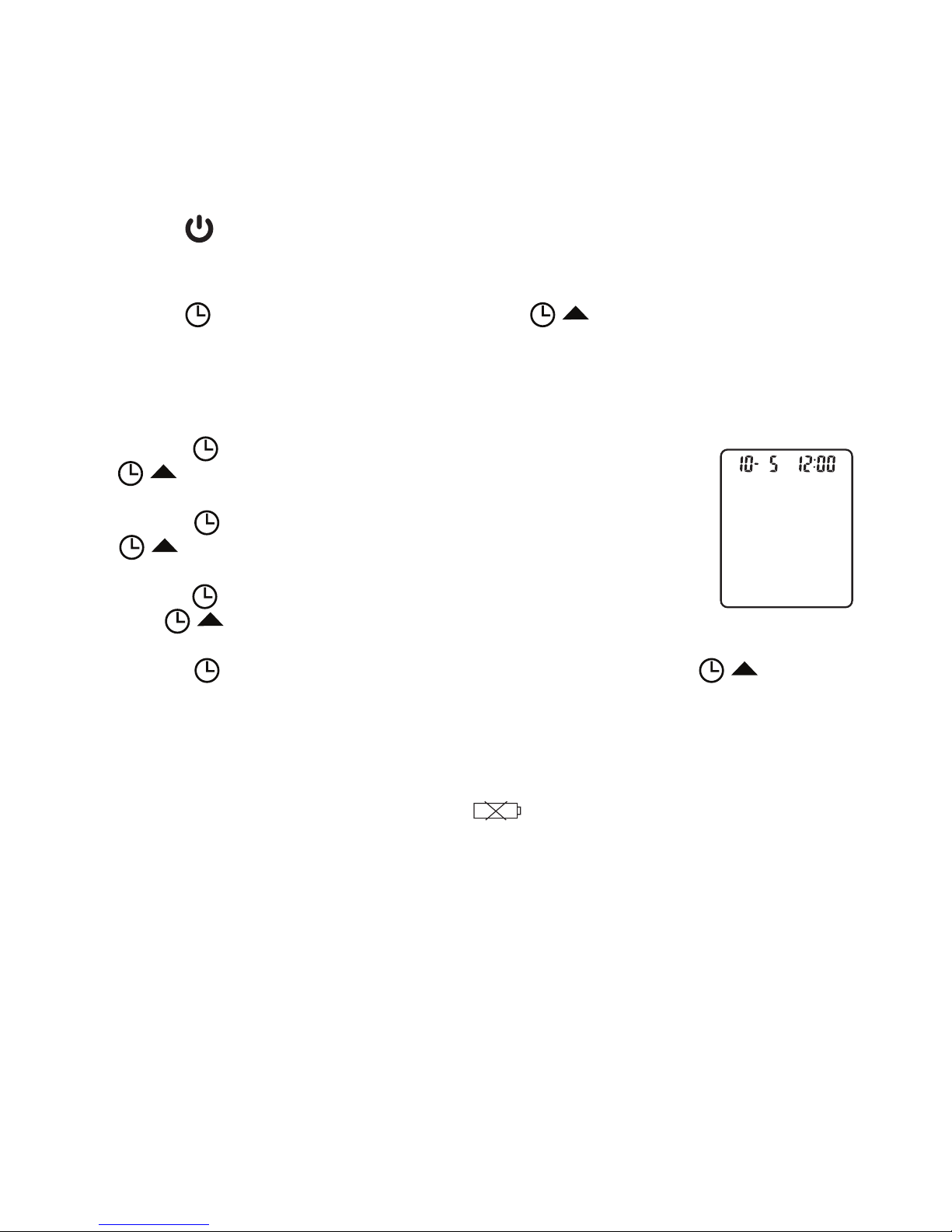

Setting Month, Date and Time (Fig. 12)
a. Press (5) button (“month”starts ashing)
Press (4) button to set the correct month (1,2,3,…..12)
b. Press (5) button again (“date” starts ashing)
Press (4) button to set the correct date (1,2,3,…..31)
c. Press (5) button again (“hour”starts ashing)
Press (4) button to set the correct hour (1,2,3,…..12)
d. Press (5) button again (“minute”starts ashing)
Press (4) button to set the correct minute (0,1,2,3,….59)
e. Press (5) button again to lock in time settings. Digits will stop ashing.
Low Battery Light Indicator
When the low battery light indicator ashes on the display, it means the battery is
low and the four batteries need to be replaced with Alkaline LR6 (AA) batteries.
Storage and Cleaning
• Always keep the unit in the carrying case after its use.
• Do not put the item directly under the sunlight, in high temperature or humid and dusty
places.
• Do not store in extremely low (less than -20°C) or high (more than 60°C) temperature.
• Use a piece of cloth with water or mild cleansing agent to clean the case and then use a
piece of dry cloth to wipe it dry. Use piece of dry cloth to wipe the cu when it is dirty.
• Do not use gas or any strong cleansers to clean it.
• When the unit is not to be used for a long time, remove the batteries. (Leaking of battery
liquid can be harmful).
Fig. 12

8
Method of measurement: Oscillometric
Model number BP 4000 / BP 4010 / BP 4020 / BP 5000 / BP5010
Range of measurement Pressure 0 ~ 300 mmHg,
Pulse 40 ~ 199 beats/minute
Accuracy Pressure +/- 3mmHg,
Pulse +/-5% Max.
Ination Deluxe Automatic
Exhaust Automatic exhaust valve
Display Liquid Crystal Display
Systolic. Diastolic. Pulse rate
Sets of memory 48 set (BP 5000 and BP 5010: 99 set)
Cu size • Small Cu (BP 4000, BP 4020, BP 5000) = 23-33 cm arm circumference
• Large Cu (BP 4010, BP 4020, BP 5010) = 33-43 cm arm circumference
Operating temperature +10 °C ~ + 40 °C, less than 85% R.H.
Storage temperature - 20 °C ~ + 70 °C, less than 85% R.H.
Unit weight Approx. 265g with battery
Power supply Alkaline Battery: 4 x AA (LR6)
Battery life 300 times measurement (twice a day measurement)
Auto power o Whenever not used for 1 minute
Accessories 4 batteries, arm cu with tube, instruction manual, pouch, gift box
Specications
Problem Reason Solution
Heart Rate Symbol Appears in the measurement
condition and ashes when pulse
is detected
• Measurement in progress, remain quiet.
Low Battery
Light Indicator
Appears when the battery voltage is
excessively low or the positions of
the batteries are incorrect
• Replace all four batteries with new ones.
Insert the batteries in the correct posi-
tions. Be aware of +/- positions.
Measuring Error Appears when the accurate blood
pressure could not be obtained.
• Press“Start/Stop”button again and
remeasure.
• Check if cu is wrapped according to
instructions.
• Check that there are no kinks in tube.
• Check palm if exerting eort.
• Check if talking or moving during
measurement.
• Check if posture is correct.
What to do if…

9
Guarantee
Kaz grants 2 years guarantee on the product commencing on the date of purchase. Within the
guarantee period we will eliminate, free of charge, any defects in the appliance resulting from
faults in materials or workmanship, either by repairing or replacing the complete appliance as
we may choose.
This guarantee extends to every country where this appliance is supplied by Kaz or its ap-
pointed distributor.
This guarantee does not cover: damage due to improper use, normal wear or use as well as
defects that have a negligible eect on the value or operation of the appliance. The guarantee
becomes void if repairs are undertaken by unauthorised persons and if original Braun parts
are not used.
To obtain service within the guarantee period, hand in or send the complete appliance with
your sales receipt to an authorised Kaz Customer Service Centre (See package insert for a local
Service Center)
UK only:
This guarantee in no way aects your rights under statutory law.
IMPORTANT
Read the operating instructions.
Classication:
• Internally powered equipment
• Type BF equipment
• IPX0
• Not suitable for use in the presence of ammable anæsthetic mixture with air,
oxygen or nitrous oxide
• Continuous operation with short-time loading
This product conforms to the provisions of the EC directive 93/42/EEC (Medical
Device Directive). This device conforms to the following standards:
• EN 60601-1: 1990 + A1: 1993 + A2: 1995 + A13: 1996 General requirements for safety.
• EN 60601-1-2: 2001 - Electromagnetic compatibility requirements and tests.
• EN1060-1: 1995 + A1: 2002 - Non-invasive sphygmomanometers- General
requirements .
• EN1060-3: 1997 + A1: 2005 - Non-invasive sphygmomanometers- supplementary
requirements for electromechanical blood pressure measuring systems.
• EN1060-4: 2004 - Non-invasive sphygmomanometers- Test procedures to determine
the overall system accuracy of automated non-invasive sphygmomanometers.
Portable and mobile RF communications equipment can aect medical electrical
equipment.
Please do not dispose of the product in the household waste at the end of its useful
life. Disposal can take place at appropriate collection points provided in your country.
0297

10
Deutsch
Das Blutdruckmessgerät für den Oberarm von Braun wurde für genaue und bequeme Blut-
druckmessungen entwickelt. Die Messgenauigkeit des Blutdruckmessgeräts für den Oberarm
von Braun wurde zum Zeitpunkt der Herstellung geprüft und durch klinische Forschung
gemäß AAMI/ANSI-SP10 nachgewiesen.
Was Sie über Blutdruck wissen sollten
Der Blutdruck ändert sich ständig während des Tages. Er nimmt am frühen Morgen stark zu
und fällt während des Spätmorgens ab. Der Blutdruck steigt am Nachmittag wieder an und fällt
schließlich nachts auf einen niedrigen Wert ab. Außerdem kann er sich innerhalb kurzer Zeit
ändern. Deshalb können Werte aus nachfolgenden Messungen schwanken.
Blutdruckmesswerte bei einem gesunden 31-jährigen Mann, in Abständen von 5 Minuten gemessen
Der in der Arztpraxis gemessene Blutdruck stellt nur einen Momentanwert bereit.
Wiederholte Messungen zuhause geben tatsächliche Blutdruckwerte unter alltäglichen Bedin-
gungen besser an.
Darüber hinaus haben viele Menschen einen anderen Blutdruck zuhause, weil sie dort
meistens entspannter sind als in der Arztpraxis.
Regelmäßige, zuhause vorgenommene Blutdruckmessungen können Ihrem Arzt wertvolle
Informationen zu Ihren normalen Blutdruckwerten unter tatsächlichen «alltäglichen» Bedin-
gungen liefern.
Die World Health Organisation (WHO) hat die folgenden Blutdruckwerte für eine Messung bei
ruhigem Puls als Maßstab festgelegt:
Blutdruck Normale Leichter Schwerer
(mmHg) Werte Bluthochdruck Bluthochdruck
SYS = Systole bis zu 140 140-180 über 180
(oberer Wert)
DIA = Diastole bis zu 90 90-110 über 110
(unterer Wert)
