Braun VitalScan Plus is a blood pressure monitor that has been developed for easy
and accurate blood pressure measurements from the wrist. The measuring accuracy
of Braun VitalScan Plus was tested at the time of manufacture and was proven by
clinical research in accordance with AAMI/ANSI-SP10.
What you should know about blood pressure
Blood pressure constantly changes throughout the day. It rises sharply in the early
morning and declines during the late morning. Blood pressure rises again in the
afternoon and finally drops to a low level at night. Also, it may vary in a short period
of time. Therefore, readings from successive measurements can fluctuate.

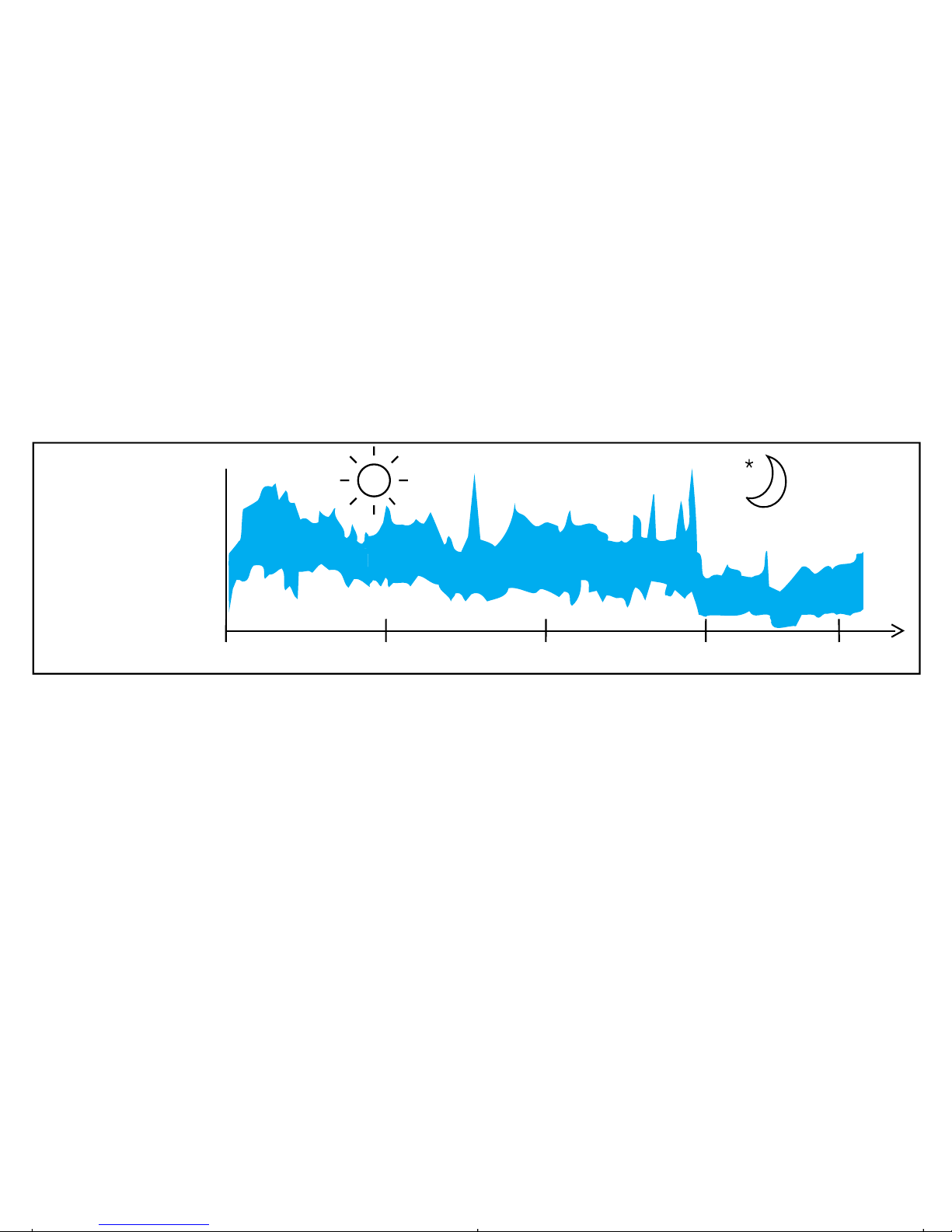

Blood pressure readings from a healthy 31-year old male, measured at 5-minute
intervals
Blood pressure measured in a doctor's office only provides a momentary value.
Repeated measurements at home better reflect one's actual blood pressure values
under everyday conditions.
Moreover, many people have a different blood pressure when they measure at home,
because they tend to be more relaxed than when in the doctor's office.
Regular blood pressure measurements taken at home can provide your doctor with
valuable information on your normal blood pressure values under actual «everyday»
conditions.
The World Health Organisation (WHO) has set up the following standard blood
pressure values when measured at resting pulse.
SYS
mm HG
140
120
100
60
65h12 18 0
80
DIA
mm HG
English
6073432_BP1650_AMEE_4-84 Seite 4 Donnerstag, 4. Januar 2007 10:44 10

5
• To ensure accurate measuring results, carefully read these use instructions.
• This product is intended for household use only. Keep product and batteries away
from children.
• People suffering from cardiac arrhythmia, vascular constriction, arteriosclerosis in
extremities, diabetes or users of cardiac pacemakers should consult their doctor
before measuring their blood pressure themselves, since deviations in blood
pressure values may occur in such cases.
• If you are under medical treatment or taking any medication, please consult your
doctor first.
• The use of this blood pressure monitor is not intended as a substitute for
consultation with your doctor.
Blood
pressure (mmHg)
Normal values Mild hypertension Severe
hypertension
SYS = Systole
= upper value
DIA = Diastole
= lower value
up to 140
up to 90
140 – 180
90 – 110
over 180
over 110
6073432_BP1650_AMEE_4-84 Seite 5 Donnerstag, 4. Januar 2007 10:44 10

6
Product description
A Display
B Memory button («memo»)
C Time/date button (BP 1650 only)
D Start/stop button
E Battery compartment
F Battery compartment cover
G Cuff
Inserting batteries
• Use alkaline batteries, type LR 03 (AAA) as supplied
with this product.
• Remove the battery compartment cover (F) and insert
two batteries with correct polarity (see symbol in the
battery compartment (E)).
• New batteries will provide approximately 200 measure-
ments.
• Only discard empty batteries. They should not be
disposed of in the household waste, but at appropriate
collection sites or at your retailer.
Key rules for accurate blood pressure
measurement
• Always take readings at the same time of day, ideally in
the morning, under the same conditions.
• Do not measure within 30 minutes after smoking, coffee
or tea consumption.
• Take off wrist watch and jewelry before fitting the
monitor on the measuring arm.
• While taking a measurement, sit down, relax, keep still,
especially the hand of the measuring arm, do not move
or speak.
SYS
mm Hg
mm Hg
DIA
6073432_BP1650_AMEE_4-84 Seite 6 Donnerstag, 4. Januar 2007 10:44 10

7
• Hold the monitor at heart level.
• Wait approximately 3 minutes before repeating a
measurement.
Taking a measurement
1. Fasten the monitor on the palm side of your wrist,
roughly 2 cm below the palm line.
Make sure that the cuff (G) fits tightly.
2. Press the red start/stop button (D).
3. Hold the monitor at heart level.
The measurement starts automatically. While measure-
ment is in progress, do not move or speak.
2 cm
SYS
mm Hg
mm Hg
DIA
memo
6073432_BP1650_AMEE_4-84 Seite 7 Donnerstag, 4. Januar 2007 10:44 10

8
4. At the end of the measurement, a beep sounds and the
reading is displayed:
Upper (systolic) value
Lower (diastolic) value
Pulse
5. Press the start/stop button to turn the product off.
Otherwise the product will turn off automatically after
2 minutes.
If at any time, you want to stop the measurement, press
the red start/stop button.
Memory function
After each measurement, the blood pressure monitor
automatically stores the reading in memory.
Please note that stored data will be erased if changing
batteries takes longer than 15 seconds.
Recalling stored readings
• To recall stored readings, first turn the device off.
• Then press the memory button («memo») (B).
The latest reading will be displayed.
• Repeatedly pressing the memory button will call up one
by one all stored readings.
• To exit the memory mode, turn the device off by
pressing the start/stop button.
Puls
1/min
SYS
mm Hg
mm Hg
DIA
SYS
mm Hg
mm Hg
DIA
memo
mm Hg
DIA
memo
6073432_BP1650_AMEE_4-84 Seite 8 Donnerstag, 4. Januar 2007 10:44 10

9
BP 1600: The readings of the last 10 measurements are stored in memory.
BP 1650: The readings of the last 20 measurements with time and date are stored
in memory. The lower display line successively shows date, time and
pulse of the respective measurement.
Setting time and date (BP 1650 only)
• Push the time/date button (C). The lower display line shows «Time» and
flashing digits in the hour position. To adjust the hours, repeatedly push
the «memo» button.
• Push button (C) again: The minutes digits will flash. Again, repeatedly
push the «memo» button to adjust the minutes.
• Push button (C) again to adjust the date: The lower display line shows
«Date» and flashing digits in the month position. Adjust the month by
repeatedly pushing the «memo» button.
• Push button (C) again: The day digits will flash. Again, repeatedly push
the «memo» button to adjust the day.
• To exit the time and date setting mode, push button (C).
• Otherwise the device automatically turns off after 2 minutes and
activates the settings made so far.
Date
Time
Puls
1/min
mm Hg
memo
mm Hg
DIA
memo
Time
Time
Time
6073432_BP1650_AMEE_4-84 Seite 9 Donnerstag, 4. Januar 2007 10:44 10

10
Storage and cleaning
Clean the product with a soft, slightly damp cloth. Stains on the cuff (G) can be
carefully removed with a damp cloth. Do not wash or dry clean the cuff. Do not store
the product in a place exposed to direct sunlight or high humidity.
Calibration
This product has been calibrated at the time of manufacture. If used according to
the use instructions, periodic recalibration is not required.
If at any time, you question the measuring accuracy, please contact a Braun Service
Centre.
What to do if ...
Problem Reason Solution
Batteries are flat. Insert new batteries.
ERR Measurement /
handling error
Repeat measurement as
described under «Taking a
measurement». If problem
persists, contact a Braun Service
Centre or call the Braun Helpline.
– – – Inflation above
320 mmHg
Repeat measurement.
While measuring
(during deflation
of the cuff),
you can hear a
clicking sound
with every
detected
heartbeat.
The device works with
a special deflation
procedure (stepwise
deflation).
none
